ASUS PRIME A620M-A AMD A620 AM5 Micro-ATX Motherboard

Brand ASUS
14 reviews
Sale priceRs. 16,000.00
(Save Rs. 0.00)
  • More details
    EMI Options

    EMI Plan


    Browse the EMI options here and select your preffered EMI option at the time of payment.
  • Easy On Pocket: All Payment Options

    Wallets

    BNPL

    Cardless EMI

    UPI

    Wallet
    PayTM, PhonePe, Google Pay, Airtel Money, and more.
    BNPL
    HDFC Flexipay, ICICI PayLater, LazyPay.
    Cardless EMI
    ZestMoney, EarlySalary, Instacred
    UPI
    Make hassle free payments using any UPI app.
    COD
    For all orders upto Rs. 5000/-.

    Out of Stock


    Quantity:
    Sold out

    Brand Warranty

    10 Days Replacement

    Free Shipping

    Brand Warranty
    This product comes with warranties provided by the brand/manufacturer ASUS.
    Return & Replacement
    This product is eligible for return or replacement as per Return and Replacement policy
    Free Shipping
    This product is eligible for a free standard shipping. Check delivery estimates using the pincode tool on this page.
    Activation/Appointment
    Once order is placed, our support team will contact you within 24 hours regarding next steps.
    Digital Product/Service
    Not a physical product hence shipping is not applicable. Service to be availed/activated through our support teams.
    Prepaid Only
    This product must be orders via online payment methods during check-out.

    8,00,000+ orders fulfilled. Made for India, by Proud Indians.

    Highlights:

    • ASUS Prime A620M-A motherboard is designed to support latest AMD Socket AM5 for Ryzen 7000 series Processors.
    • The board is PCIe 4.0 Ready supporting up to 128GB DDR5 6400MHz+(OC) of memory and EXPO technology to push your gaming experience to its peak. The board support PCIe 4.0 video-cards.
    • Enjoy extended connectivity on ASUS A620M motherboard with the next-gen technology of PCIe 4.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C and Dual M.2 slots.
    • The A620 motherboard comes with AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio. Intelligent software solutions help ensure that your system performs at its best.

    ASUS Prime A620M-A Motherboard - From tpstech.in
    ASUS Prime A620M-A Motherboard - From tpstech.in

    DDR5 Overclocking

    For those who want to fly past stock DDR5 speeds, the PRIME A620M-A is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

    ASUS Prime A620M-A Motherboard - From tpstech.in

    Front USB Type-C

    A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 1 Type-C connector that provides data transfer speeds of up to 5Gbps.

    ASUS Prime A620M-A Motherboard - From tpstech.in

    PCIe 4.0 M.2

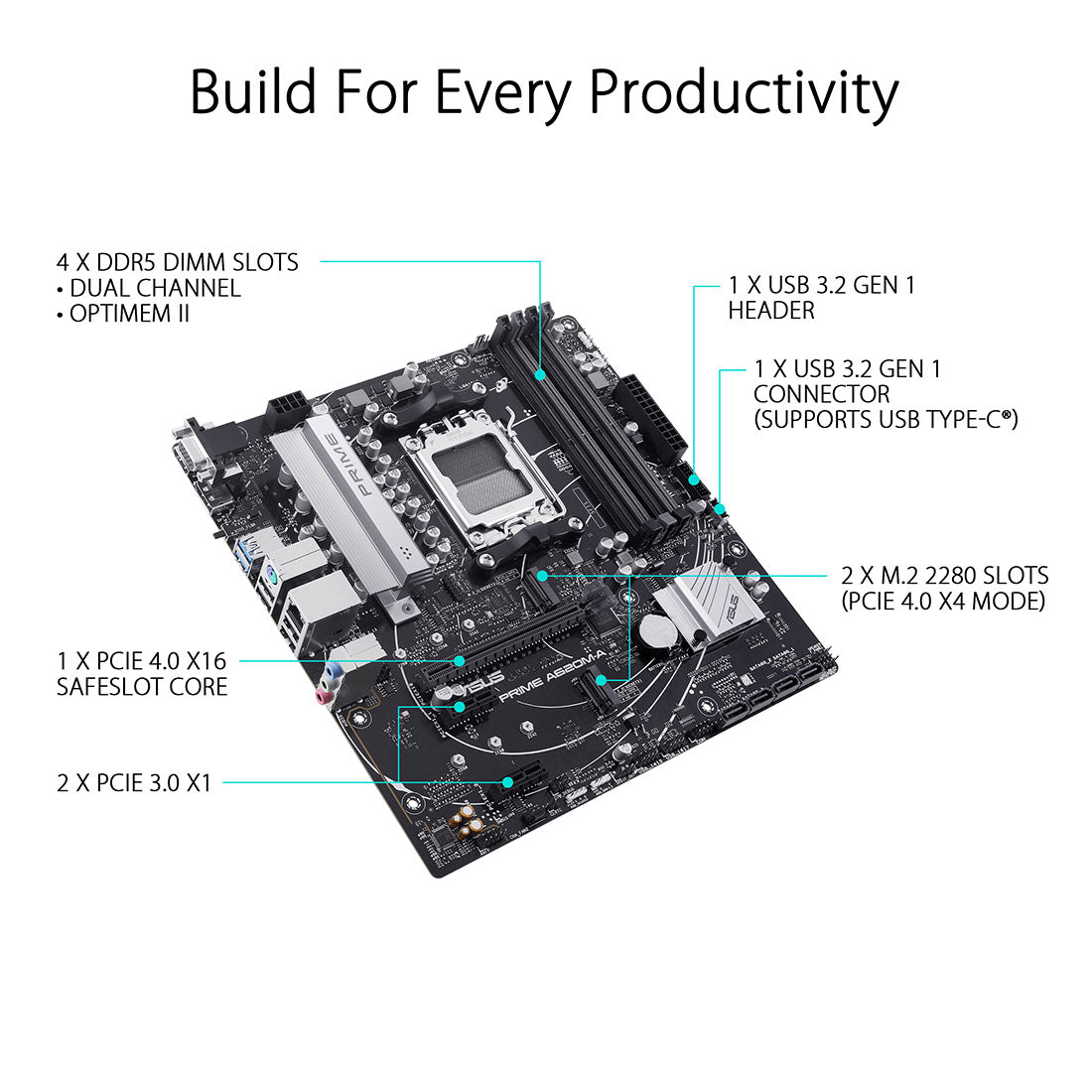

    Dual M.2 slots support up to PCle 4.0 and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCle 4.0 storage devices to enjoy the fastest data transfer.

    ASUS Prime A620M-A Motherboard - From tpstech.in

    PCIe 4.0 Slot

    PRIME A620M-A offers PCIe 4.0 slot connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

    ASUS Prime A620M-A Motherboard - From tpstech.in

    BIOS FlashBack

    BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack port and press the button.

    ASUS Prime A620M-A Motherboard - From tpstech.in

    SafeSlot Core

    SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. Provides a secure foundation for heavyweight graphics cards.

    ASUS Prime A620M-A Motherboard - From tpstech.in

    PRIME A620M-A

    ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options.

    Model ASUS Prime A620M-A Motherboard
    Part Number 90MB1F10-M0IAY0
    CPU Socket AMD AM5
    CPU Support AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processor.
    Chipset AMD A620
    Memory 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/
    5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO)
    OptiMem II
    On-Board Graphics support 1 x DisplayPort
    1 x HDMI
    1 x VGA
    Expansion Slot AMD Ryzen 7000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot
    AMD A620 Chipset
    2 x PCIe 3.0 x1 slots
    Ethernet 1 x Realtek 1Gb Ethernet
    Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
    AMD Ryzen 7000 Series Desktop Processors:
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    AMD A620 Chipset:
    4 x SATA 6Gb/s ports
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Supports up to 24-Bit/192 kHz playback
    USB Ports Rear USB (Total 6 ports):
    2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports):
    1 x USB 3.2 Gen 2 connector
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Back Panel I/O Ports 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI port
    1 x VGA port
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack button
    1 x PS/2 Keyboard/Mouse combo port

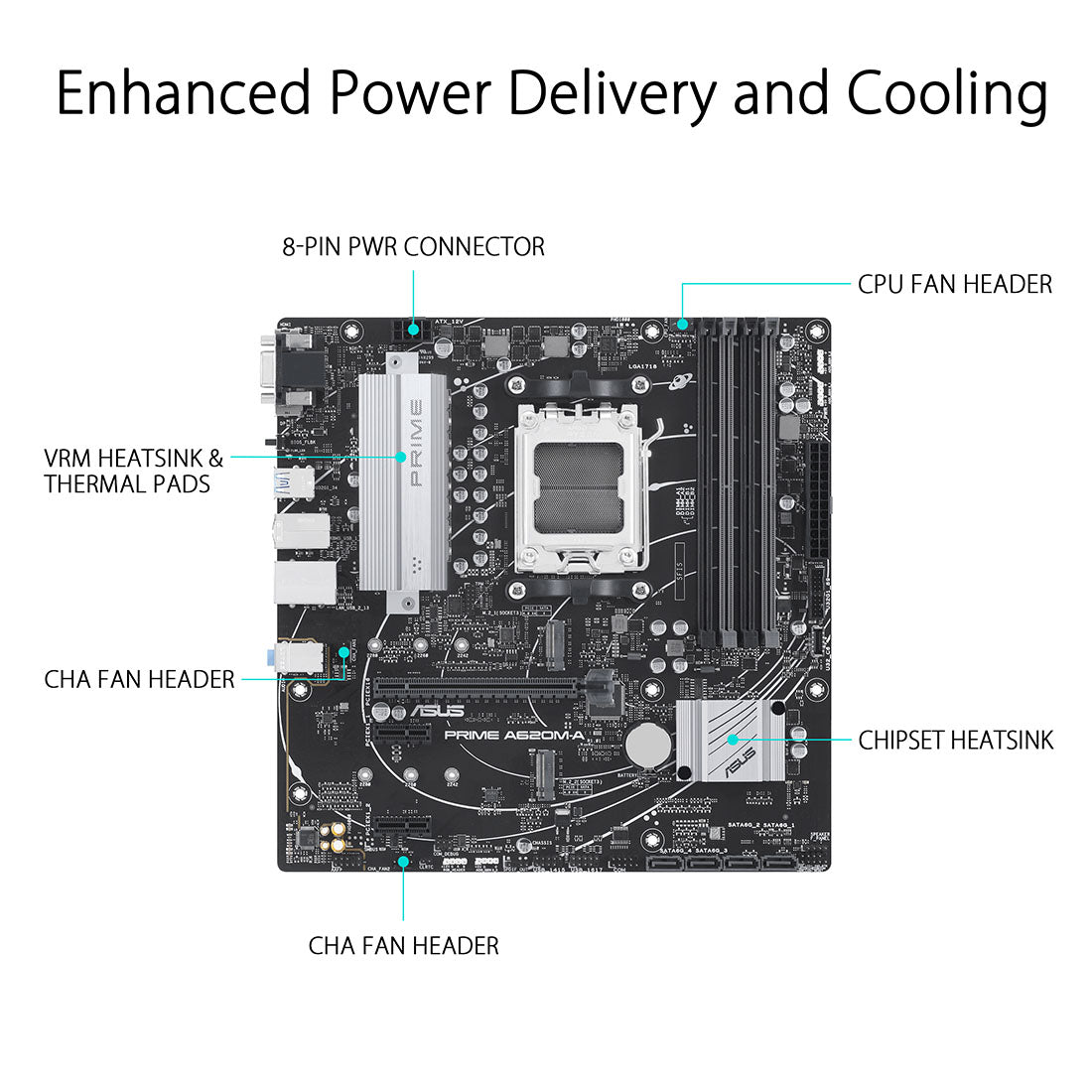

    Internal I/O ports Fan and Cooling related
    1 x 4-pin CPU Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous

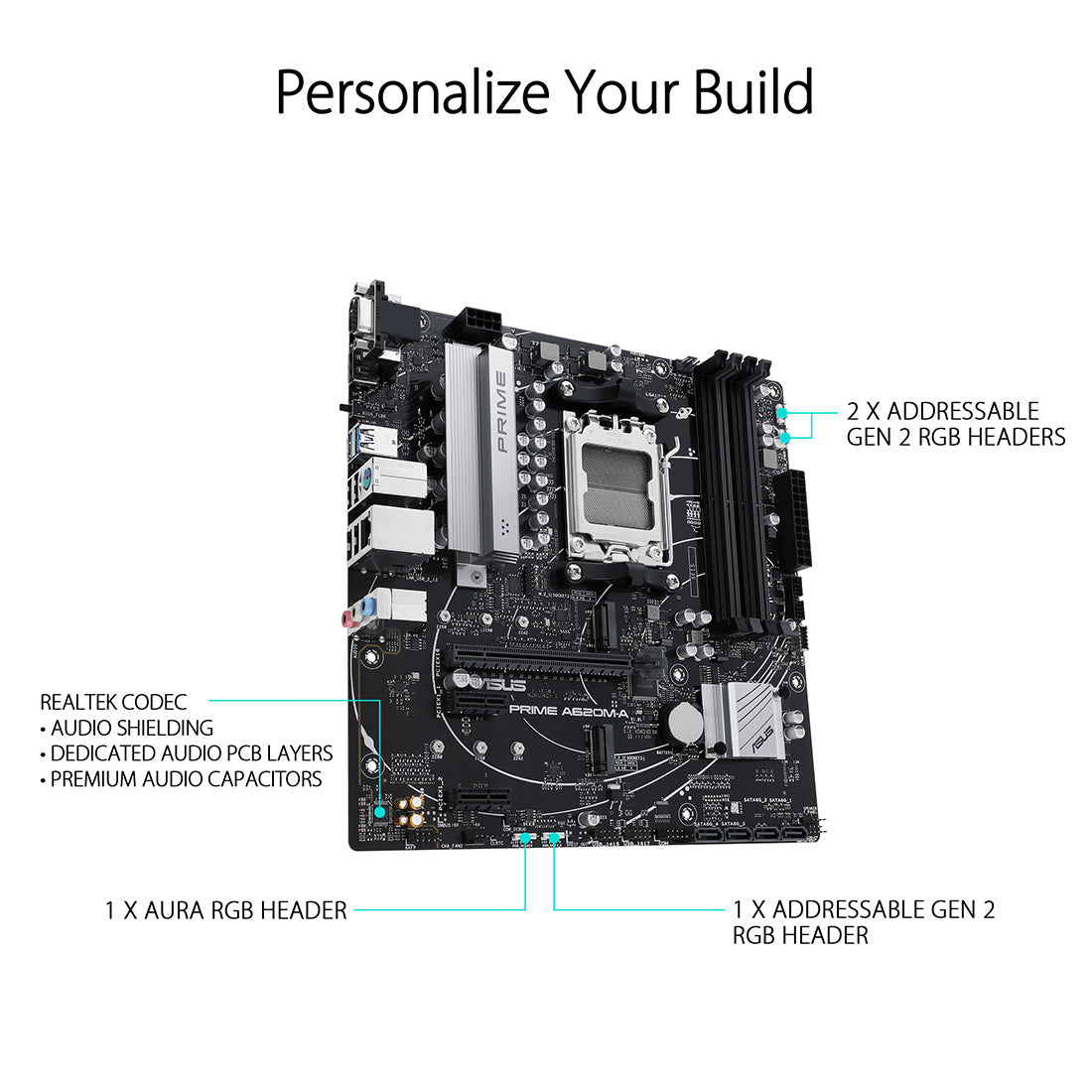

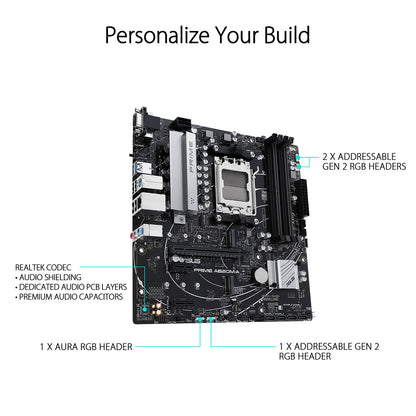

    3 x Addressable Gen 2 header
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin System Panel header

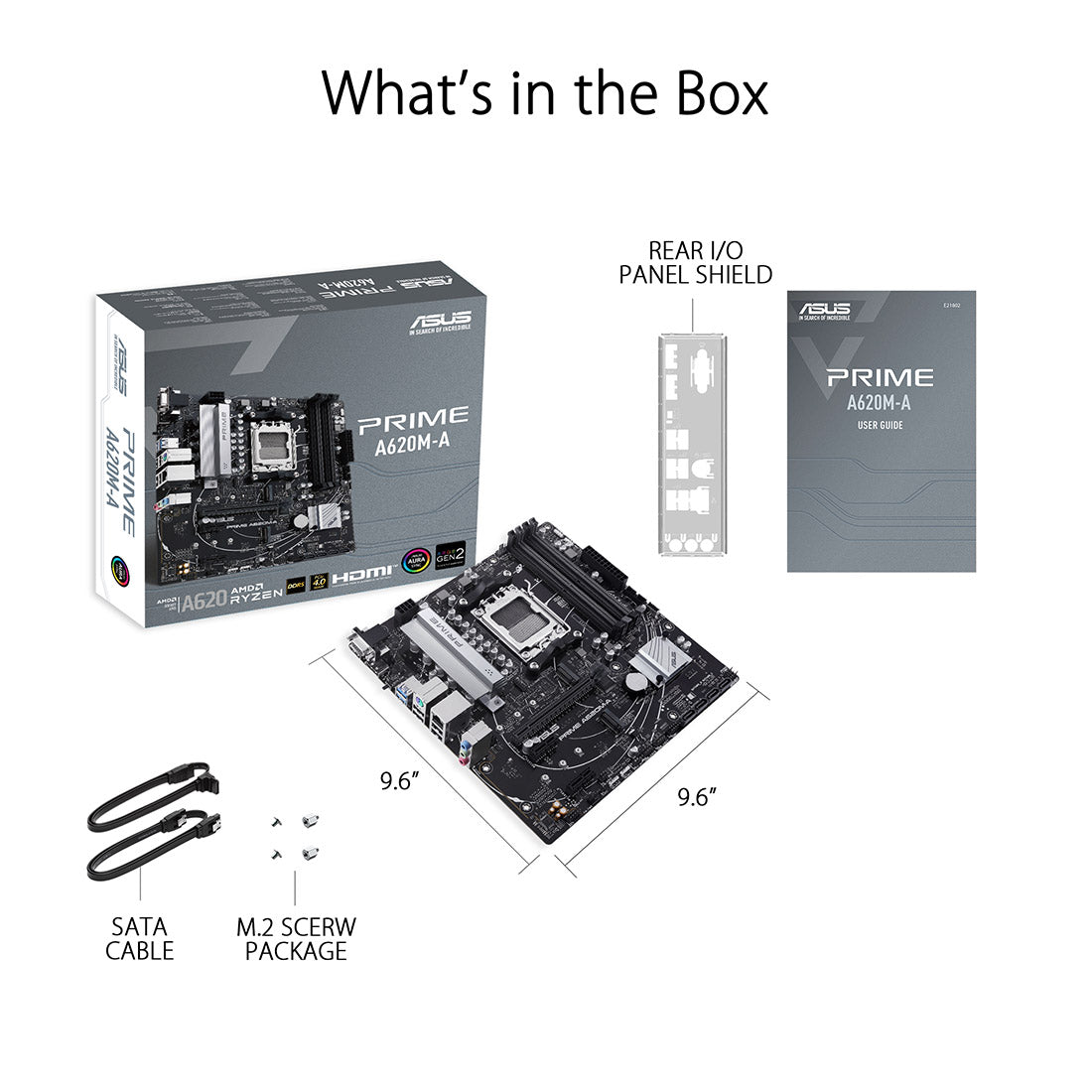

    Accessories Cables:
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    1 x Screw package for M.2 SSD
    Documentation
    1 x User guide
    Operating System Windows 11 64-bit
    Windows 10 64-bit
    Dimensions Micro-ATX Form Factor
    24.4cm x 24.4cm
    Warranty 3 Years of Brand Warranty
