Highlights:
- The ASUS Prime AP201 is a stylish 33-liter MicroATX case support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- The AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

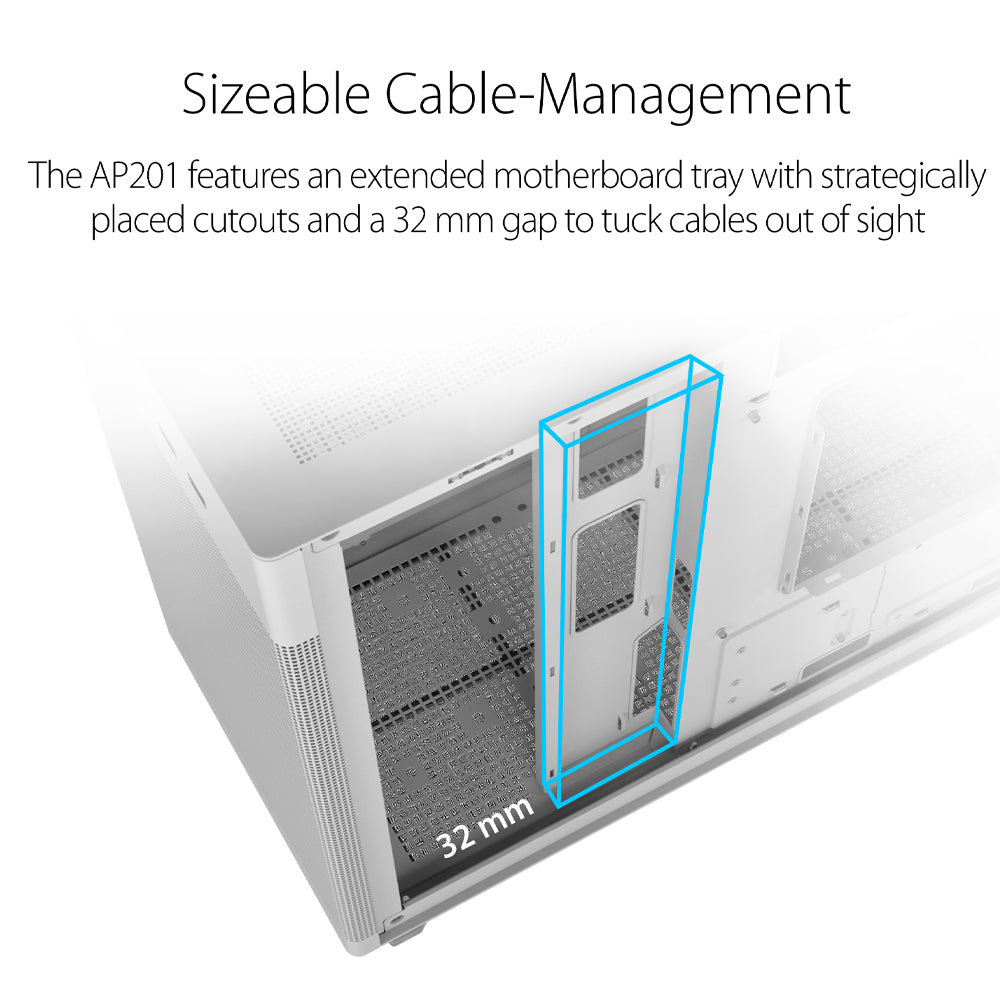

- The ASUS Micro-ATX Cabinet features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
- The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
- ASUS Cabinet comes with Tool-Free Side Panels, a simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

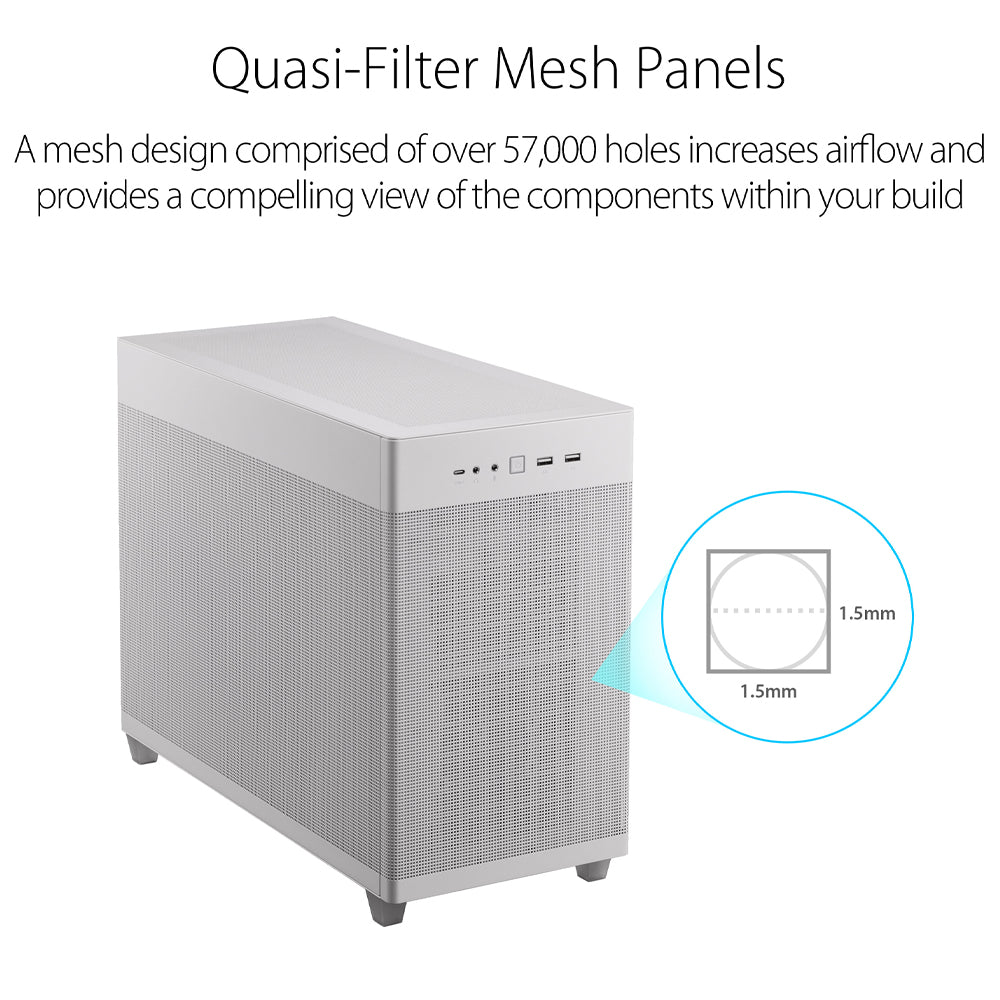

Quasi-Filter Mesh Panels
The AP201 mesh design is comprised of over 57,000 precision-machined 1.5mm holes, structured to increase airflow, reduce dust ingress, and collectively provide a compelling view of the components within your build.

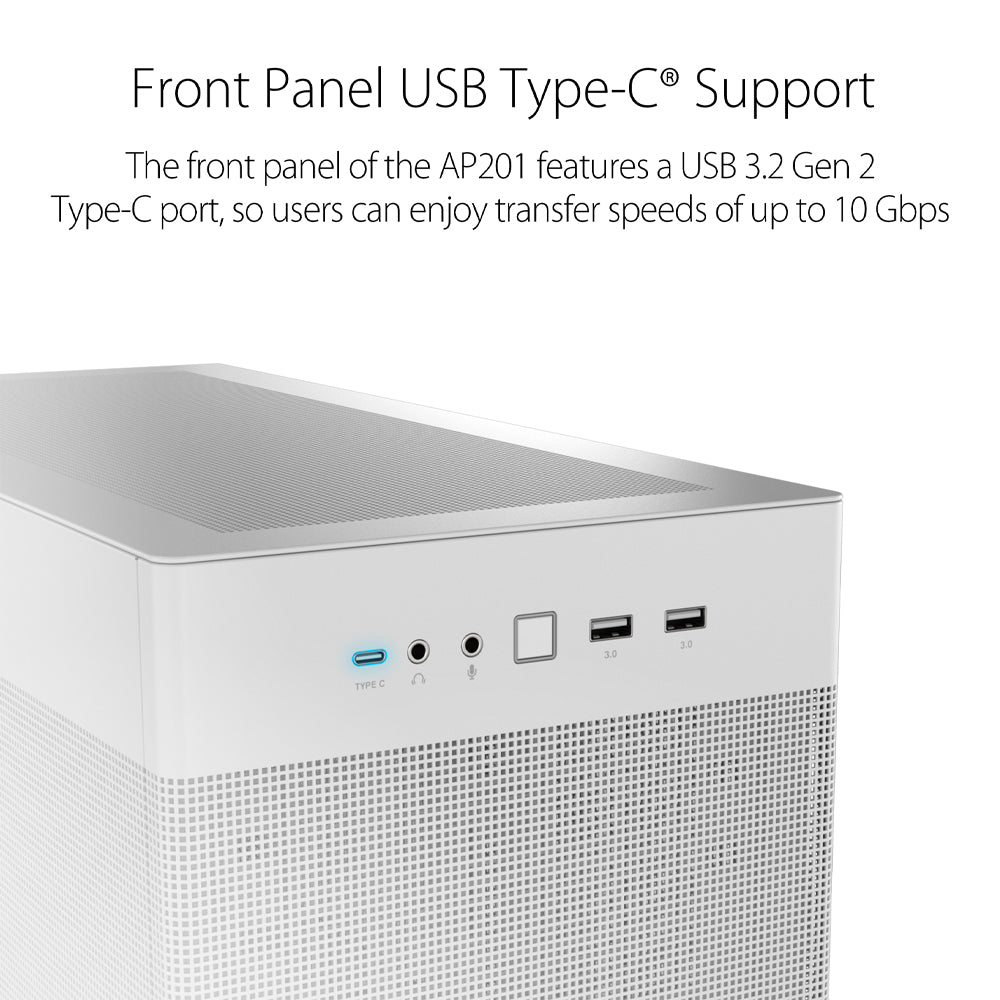

Front Panel USB Type-C Support
In addition to two Type-A USB 3.2 Gen 1 ports, the front panel of the AP201 also features a Type-C port that is rated for USB 3.2 Gen 2. Compatible microATX ASUS motherboards such as the TUF Gaming B660M Plus or ROG STRIX B660-G can use this port to enjoy transfer speeds of up to 10 Gbps.
Optimized or Cooling
With support for 280 and 360mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
Industry-Leading Spatial Efficiency
Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.

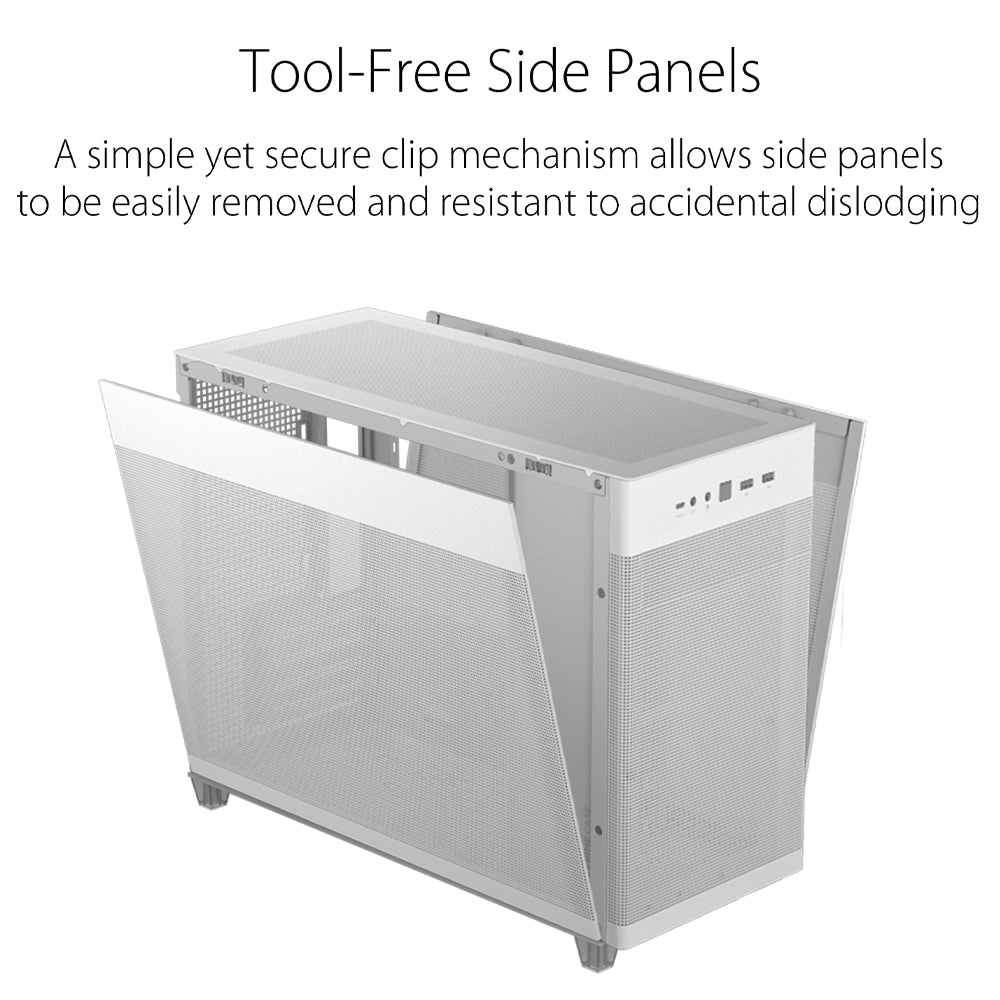

Tool-Free Side Panels
Instead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged.
Go Big. Stay Compact.
The ASUS Prime AP201 is a breakthrough in Micro-ATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space.
| Model | ASUS Prime AP201 |
| Part Number | 90DC00G3-B30000 |
| Dimensions | 205 x 350 x 460 mm |
| Form Factor | Micro ATX Tower |
| Color | White |
| Materials | Steel / Plastic |
| Mainboard Support | Micro-ATX / Mini-ITX |
| Front I/O Ports | 1 x Headphone 1 x Microphone 2 x USB 3.1 Gen1 1 x USB 3.2 Gen2 Type C |
| Expansion & Drive Bays | |
| Expansion Slots | 4 |
| 3.5 Inch / 2.5 Inch | 3 |
| 2.5 Inch | 1 |
| Fan Support | |
| Front | 3 x 120 mm 2 x 140 mm |
| Top | 3 x 120 mm 2 x 140 mm |
| Rear | 1 x 120 mm |
| Included Fan | 1 x 120 mm Rear |
| Radiator Support | |
| Top | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Rear | 120 mm |
| Clearance | |
| Max GPU Length | 338 mm |
| Max CPU Height | 170 mm |
| Max PSU Height | 140-180 mm |
| Miscellaneous | |
| Dust Filter | Bottom |
| Maximum Cable Management Space | 32 mm |
| Net Weight | 5.8 Kg |
| Warranty | 1 Years Brand Warranty |
