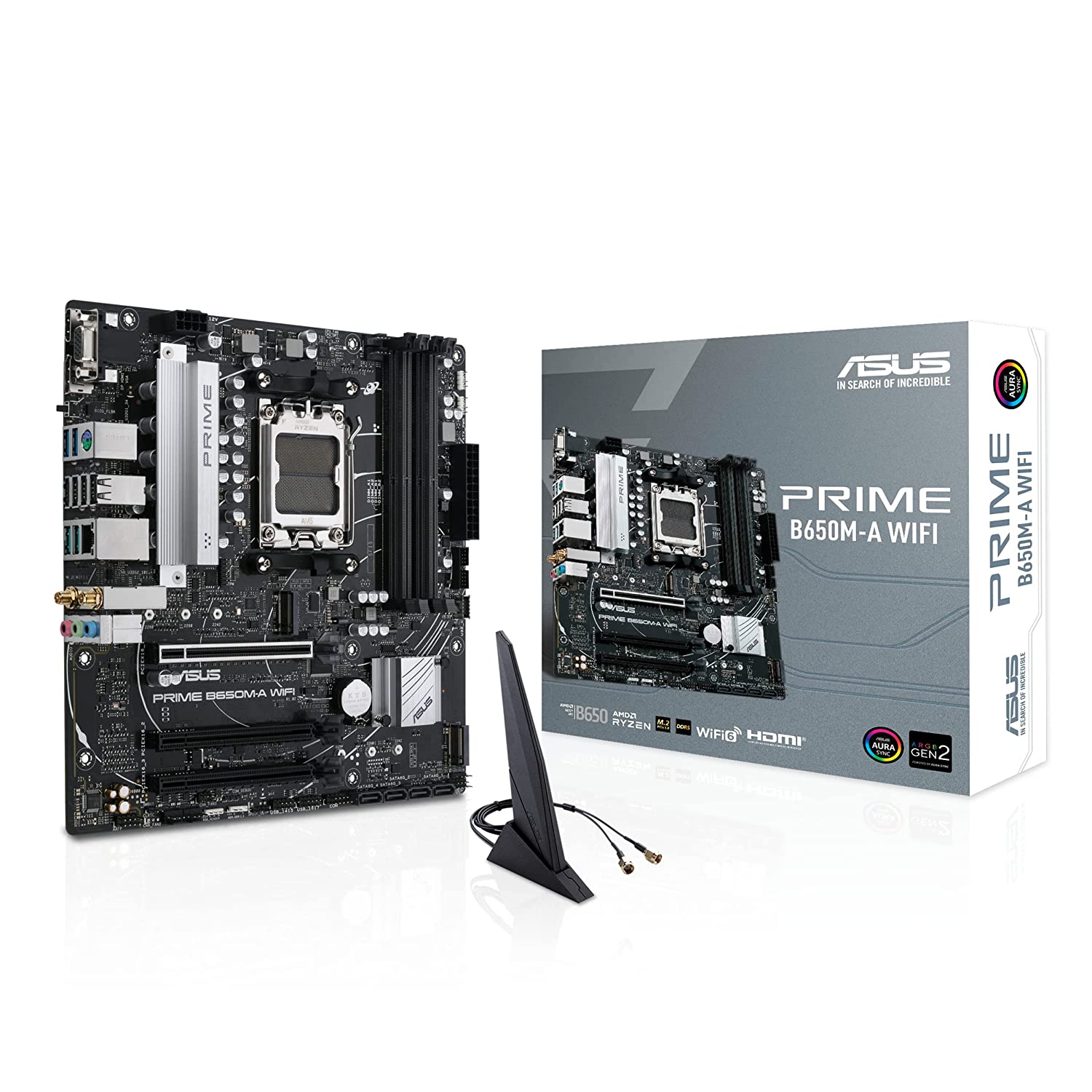

ASUS PRIME B650M-A WIFI AMD B650 AM5 Micro-ATX Motherboard

ASUS PRIME B650M-A WIFI AMD B650 AM5 Micro-ATX Motherboard

Brand: ASUS
Regular price Rs. 19,599.00
Regular price Rs. 32,000.00 Sale price Rs. 19,599.00
Sale Sold out
  • Free Shipping: We deliver to 27000+ pin codes in India.
  • 10-Days Return: We got you covered with easy returns.
  • Original Warranty: This product has original Brand warranty.
Easy Returns Cancellation Policy Shipping Policy Trust Center
  • The ASUS motherboard is designed to support latest AMD Socket AM5 for Ryzen 7000 series Processors.
  • The board is PCIe 5.0 storage Ready supporting up to 128GB DDR5 5600MHz of memory and EXPO technology to push your gaming experience to its peak. The board support PCIe 4.0 video-cards.
  • Enjoy extended connectivity with the next-gen technology of WIFI6, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C and Three M.2 slots.

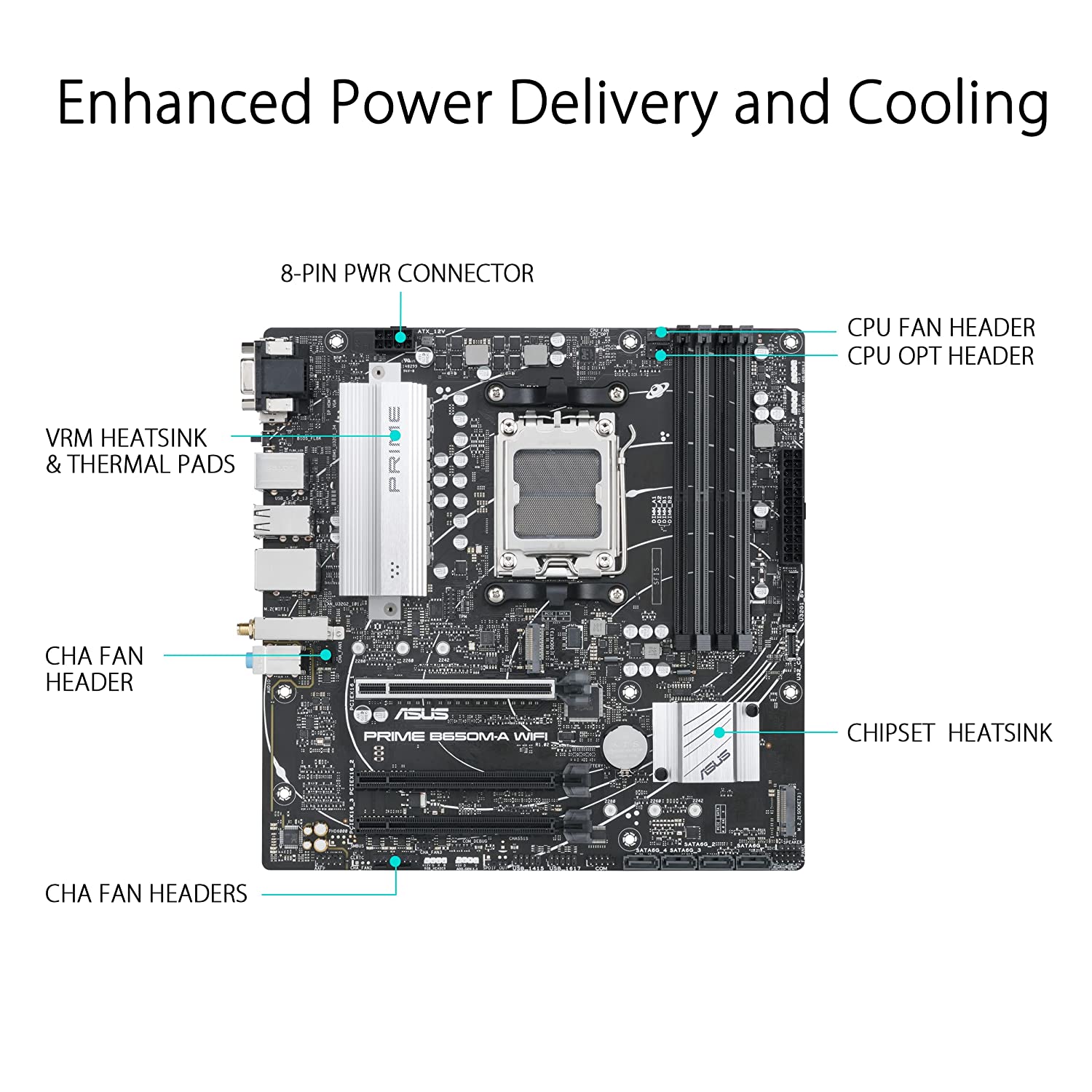

  • The motherboard comes with comprehensive cooling options such as VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.

~section~

ASUS PRIME B650M-A WIFI Motherboard - From tpstech.in
ASUS PRIME B650M-A WIFI Motherboard - From tpstech.in

DDR5 Overclocking

For those who want to fly past stock DDR5 speeds, the PRIME B650 is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

ASUS PRIME B650M-A WIFI Motherboard - From tpstech.in

PCIe 5.0 M.2

PRIME B650M-A WIFI offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.

ASUS PRIME B650M-A WIFI Motherboard - From tpstech.in

WIFI 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2 Gbps. It's optimized for more efficient operation on crowded networks with a lot of competing traffic.

ASUS PRIME B650M-A WIFI Motherboard - From tpstech.in

PCIe 4.0 Slot

Prime B650 motherboards offer PCIe 4.0 Slot connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

ASUS PRIME B650M-A WIFI Motherboard - From tpstech.in

BIOS FlashBack

BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack port and press the button.

ASUS PRIME B650M-A WIFI Motherboard - From tpstech.in

Q-LED

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. Provides a secure foundation for heavyweight graphics cards.

ASUS PRIME B650M-A WIFI Motherboard - From tpstech.in

PRIME B650M-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A WIFI provides users and PC DIY builders with a range of performance optimizations.

~section~

Model ASUS Prime B650M-A WIFI Motherboard
Part Number 90MB1C00-M0EAY0
CPU Socket AMD AM5
CPU Support AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processor.
Chipset AMD B650
Memory 4 x DIMM, Max. 128GB, DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
On-Board Graphics support 1 x DisplayPort
1 x HDMI
1 x VGA Port
Expansion Slot AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B650 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
Wireless & Bluetooth Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Ethernet 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

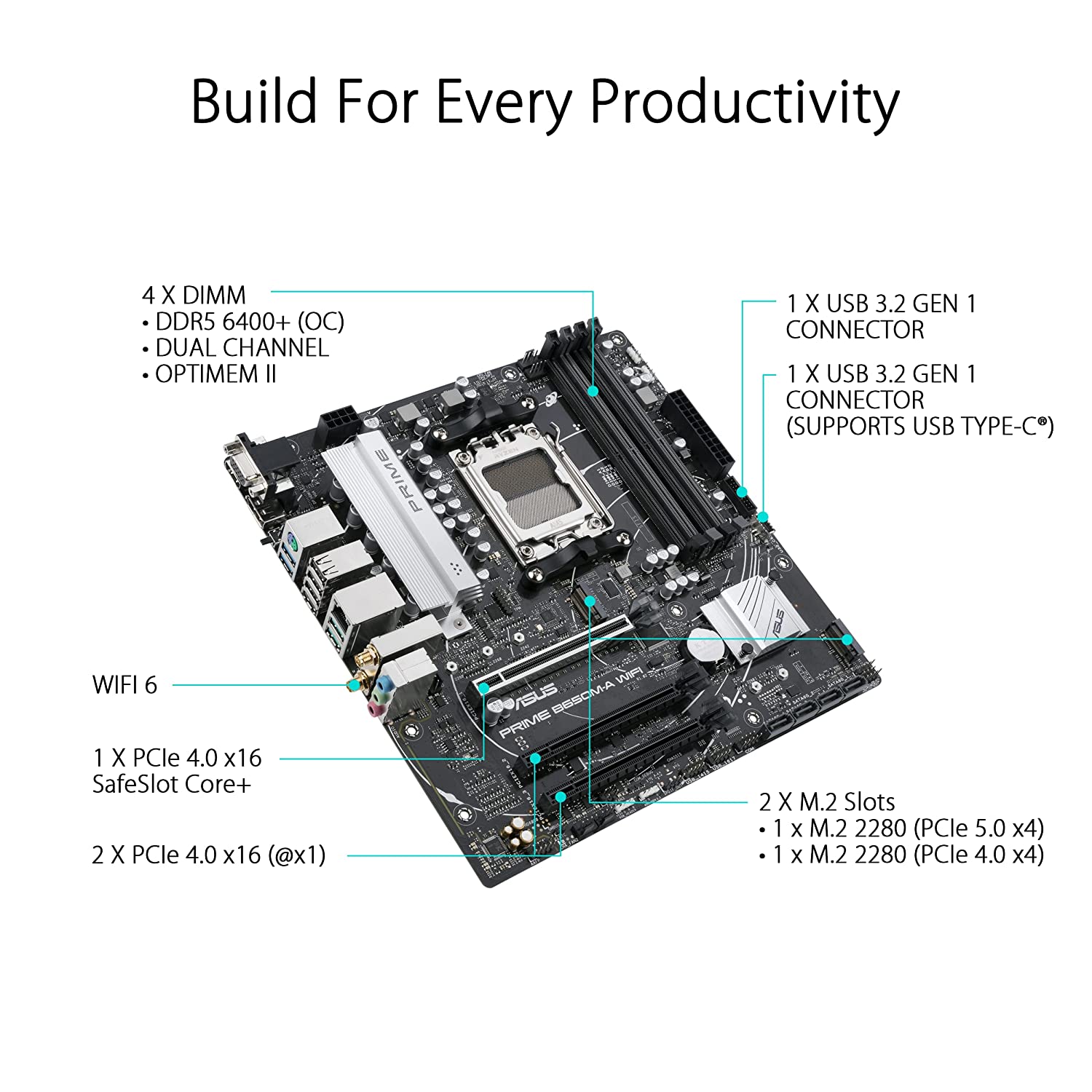

Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
USB Ports Rear USB (Total 8 ports):
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports):
1 x USB 3.2Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

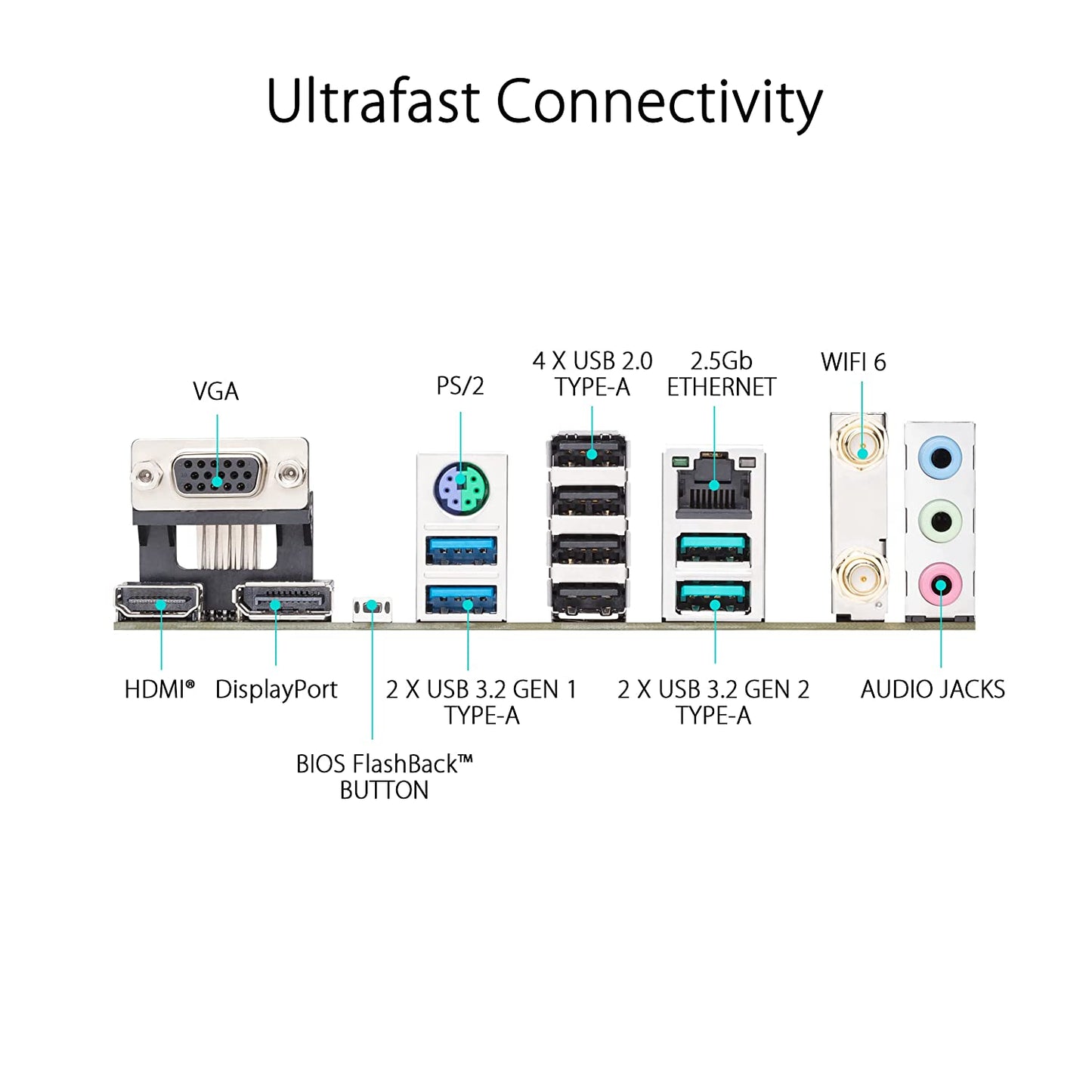

Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous

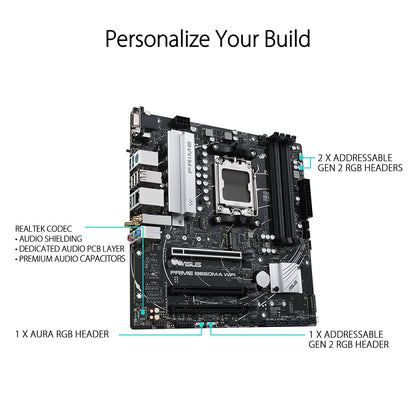

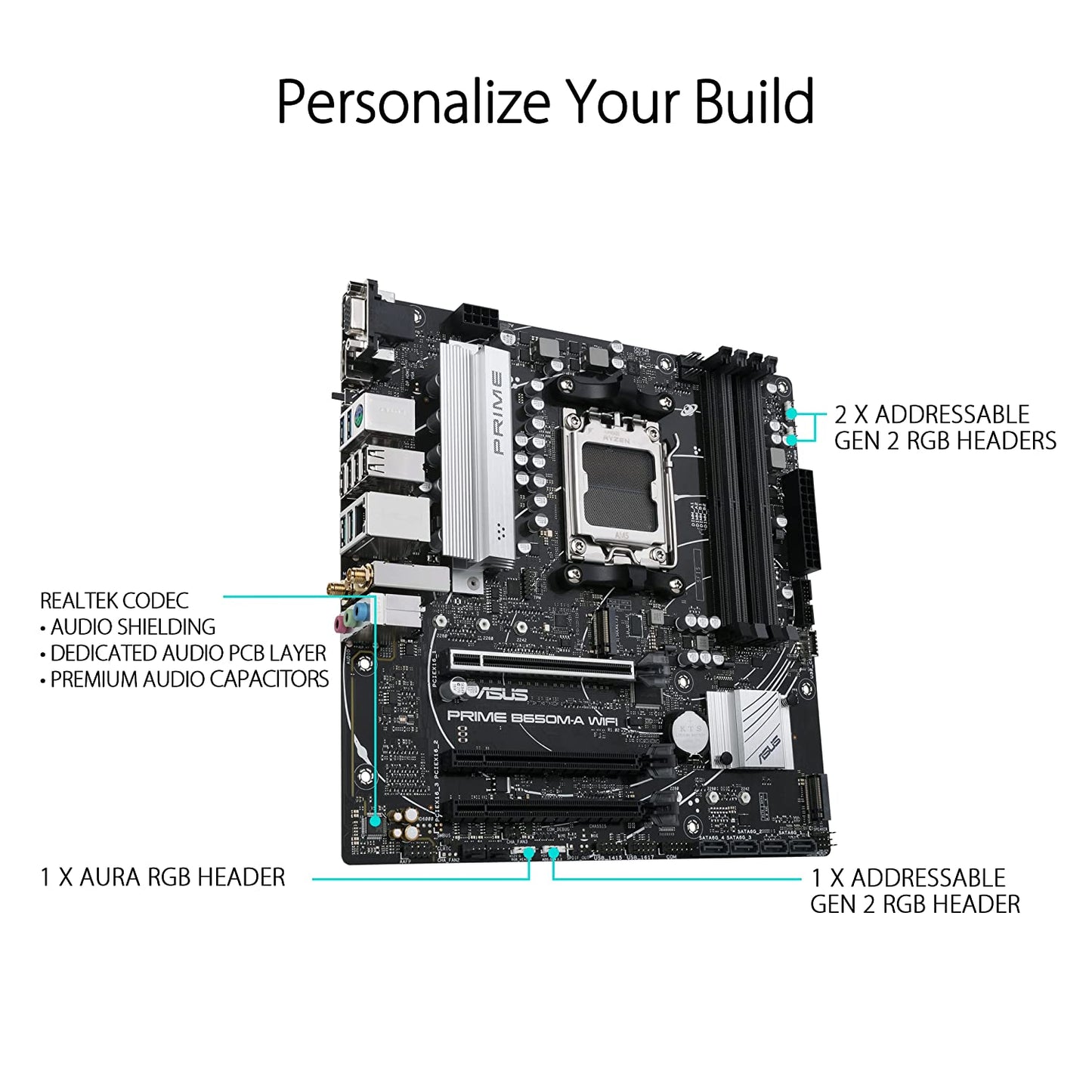

3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

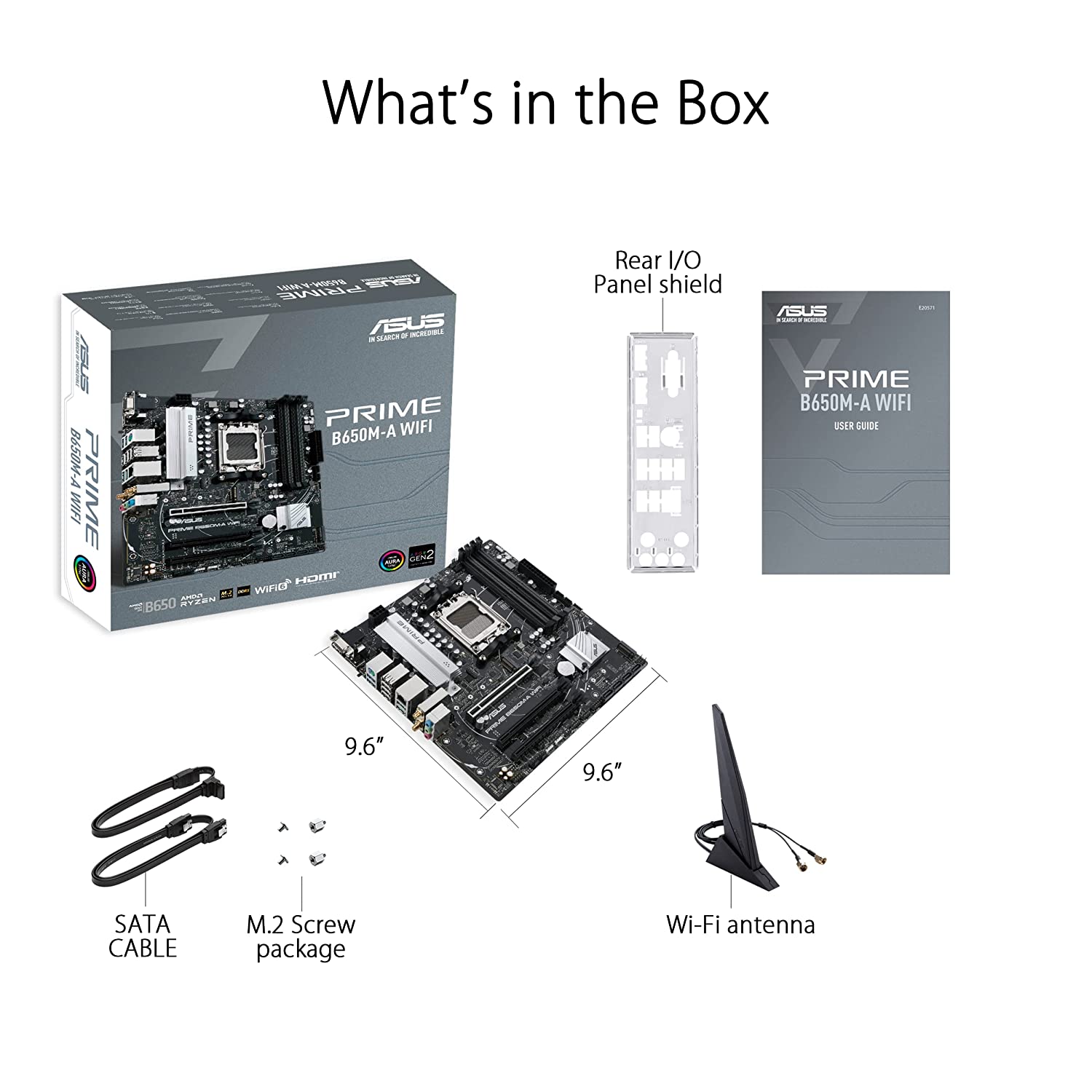

Accessories Cables:
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Screw Package for M.2 SSD
Documentation
1 x User guide
Operating System Windows 11
Windows 10 64-bit
Dimensions Micro-ATX Form Factor
24.4cm x 24.4cm
Warranty 3 Years of Brand Warranty
