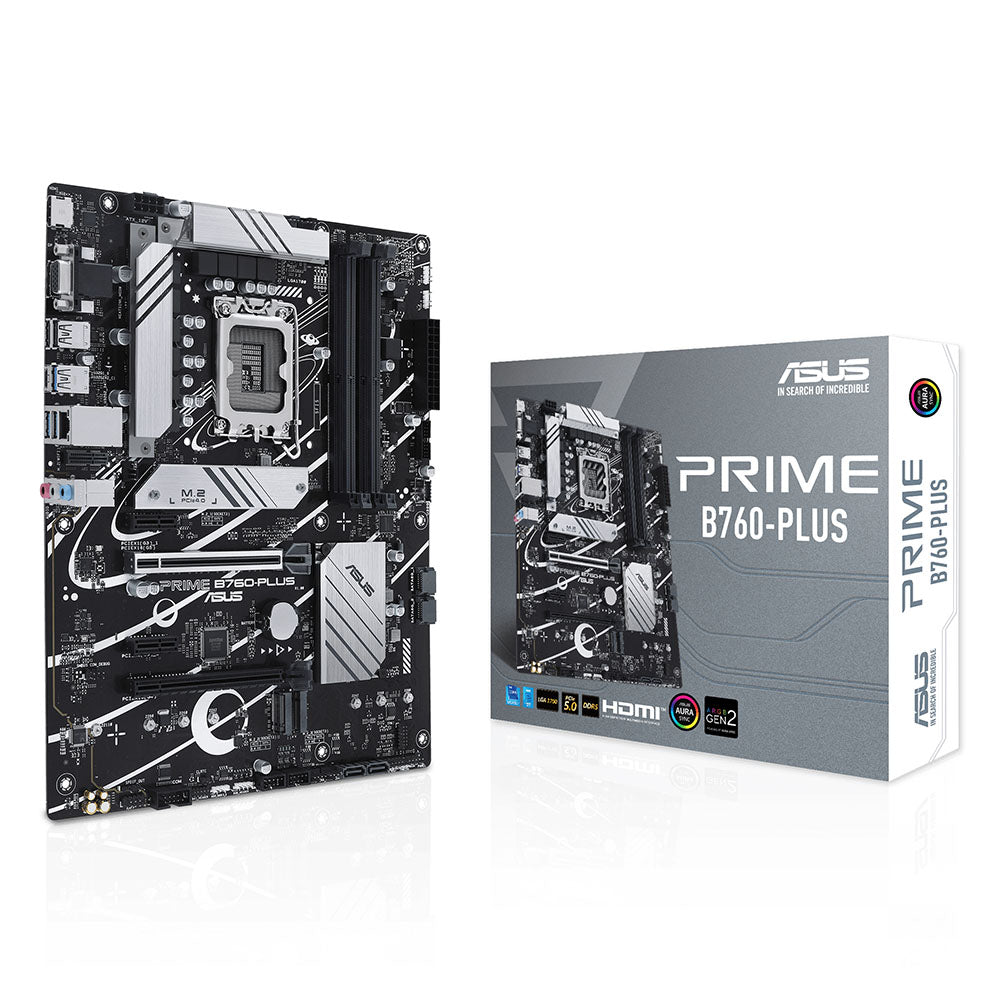

ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX DDR5 Motherboard

ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX DDR5 Motherboard

Brand: ASUS
Regular price Rs. 17,999.00
Sale price 28% off Rs. 17,999.00 Sale Sold out Regular price Rs. 24,760.00
  • The ASUS PRIME B760-PLUS D5 ATX motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen and 12th Gen Intel Core processors, Pentium Gold and Celeron Processors.
  • The ASUS B760-PLUS motherboard is PCIe 5.0 Ready supporting up to 128GB DDR5 7200+ MHz(OC) of memory and Intel Turbo Boost Technology. The DDR5 ASUS motherboard support next gen PCIe 5.0 M.2 slots making it future proof.
  • Enjoy extended connectivity with the next-gen technology of PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt (USB4) header support and 3x M.2 slots.

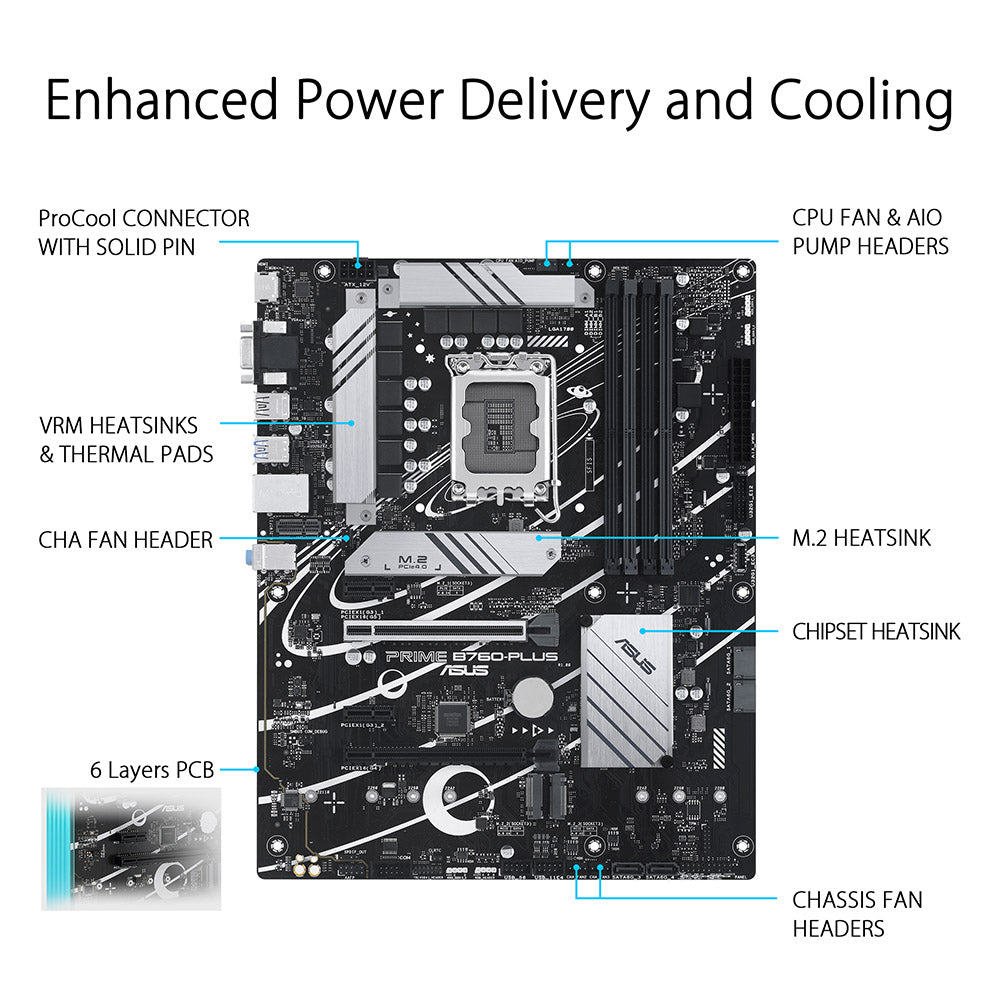

  • Features the most comprehensive cooling options ever that are configurable via Fan Xpert 2+ or the UEFI BIOS. It employs VRM heatsink, M.2 heatsink, PCH heatsink and hybrid fan headers.
  • The ATX motherboard comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also having a handful features like Overvoltage Protection and SafeSlot Core+.

~section~

Model ASUS PRIME B760-PLUS Motherboard
Part Number 90MB1EF0-M0IAY0
CPU Socket Intel B760 Chipset
CPU Support Intel 13th Gen and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset Intel Socket LGA 1700
Memory 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
On-Board Graphics support 1 x DisplayPort
1 x VGA port
1 x HDMI port

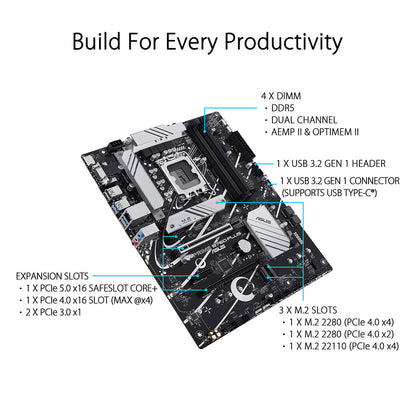

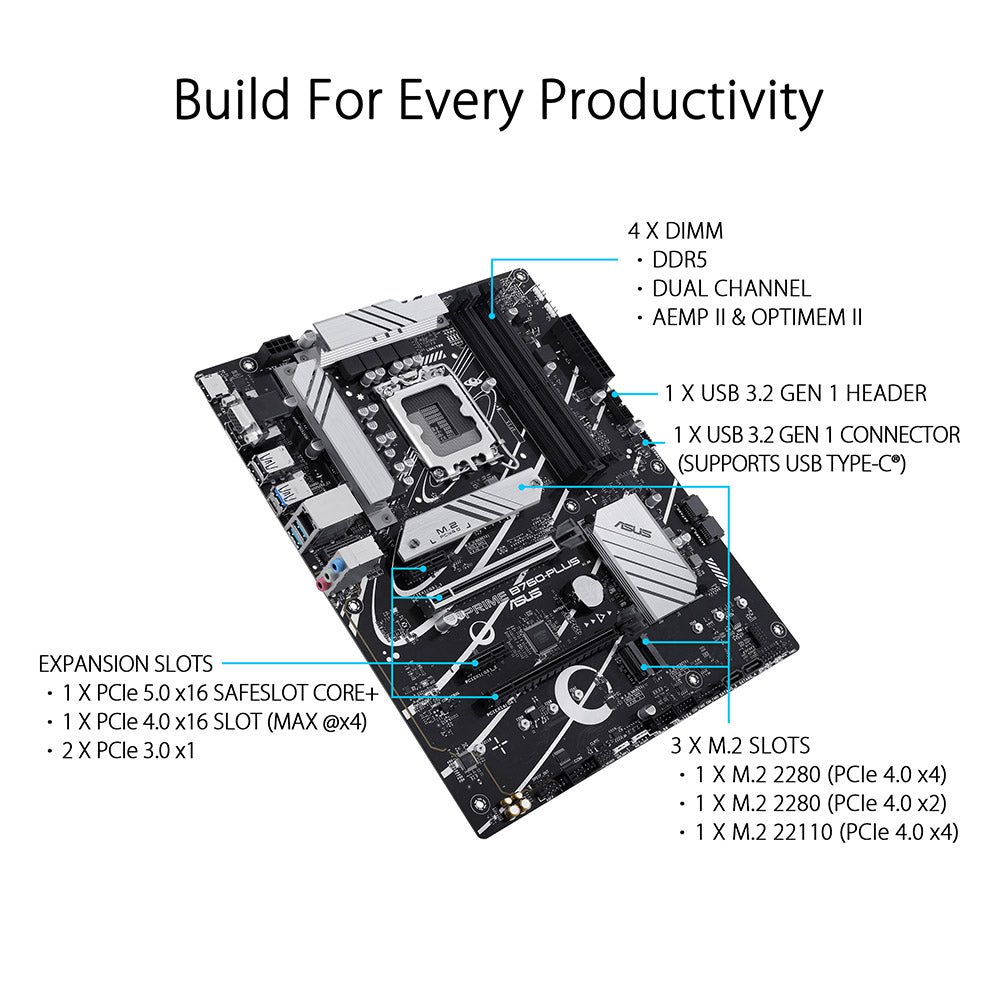

Expansion Slot Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Ethernet 1 x Realtek 2.5Gb Ethernet
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s port
Audio Realtek 7.1 Surround Sound High-Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
USB Ports Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

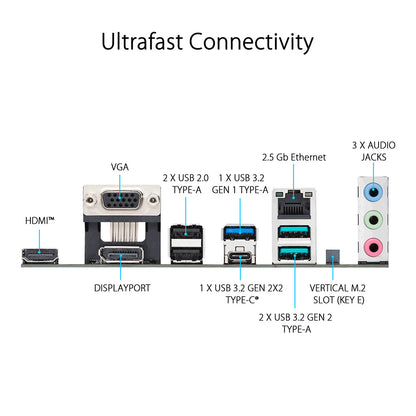

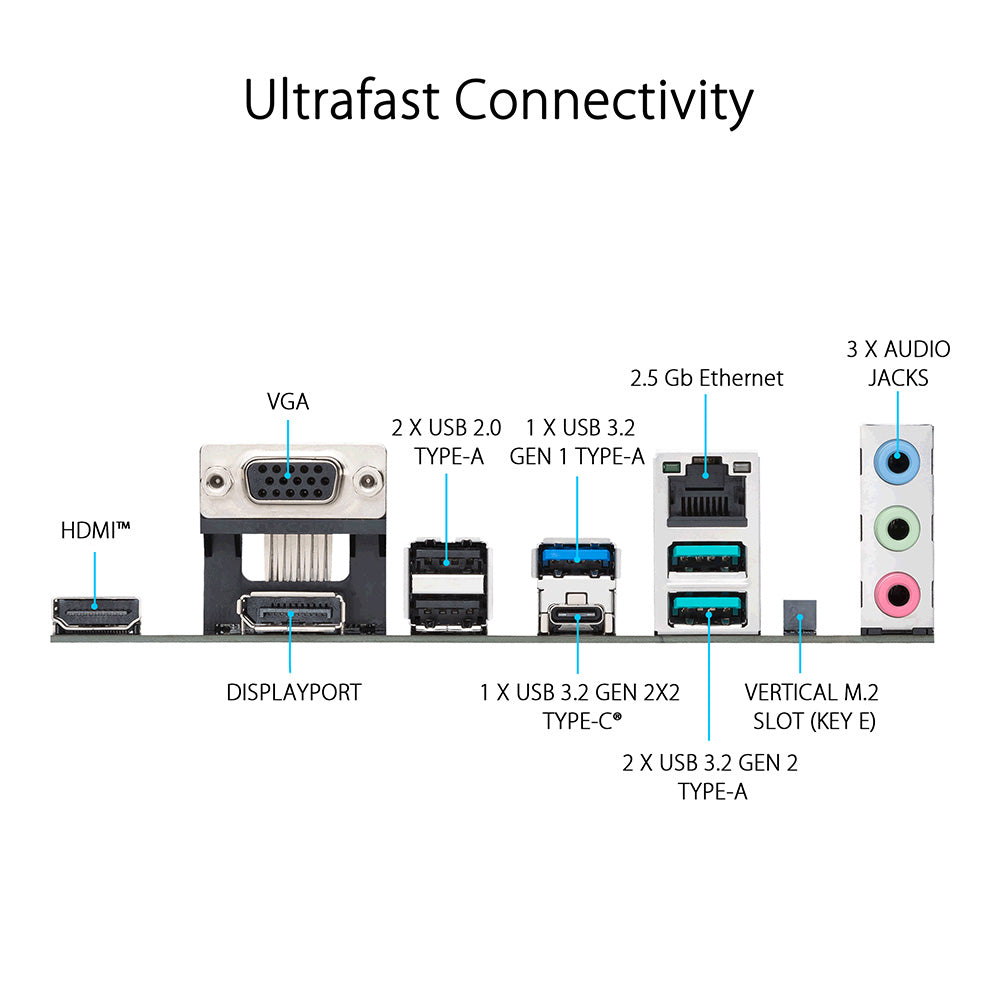

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous

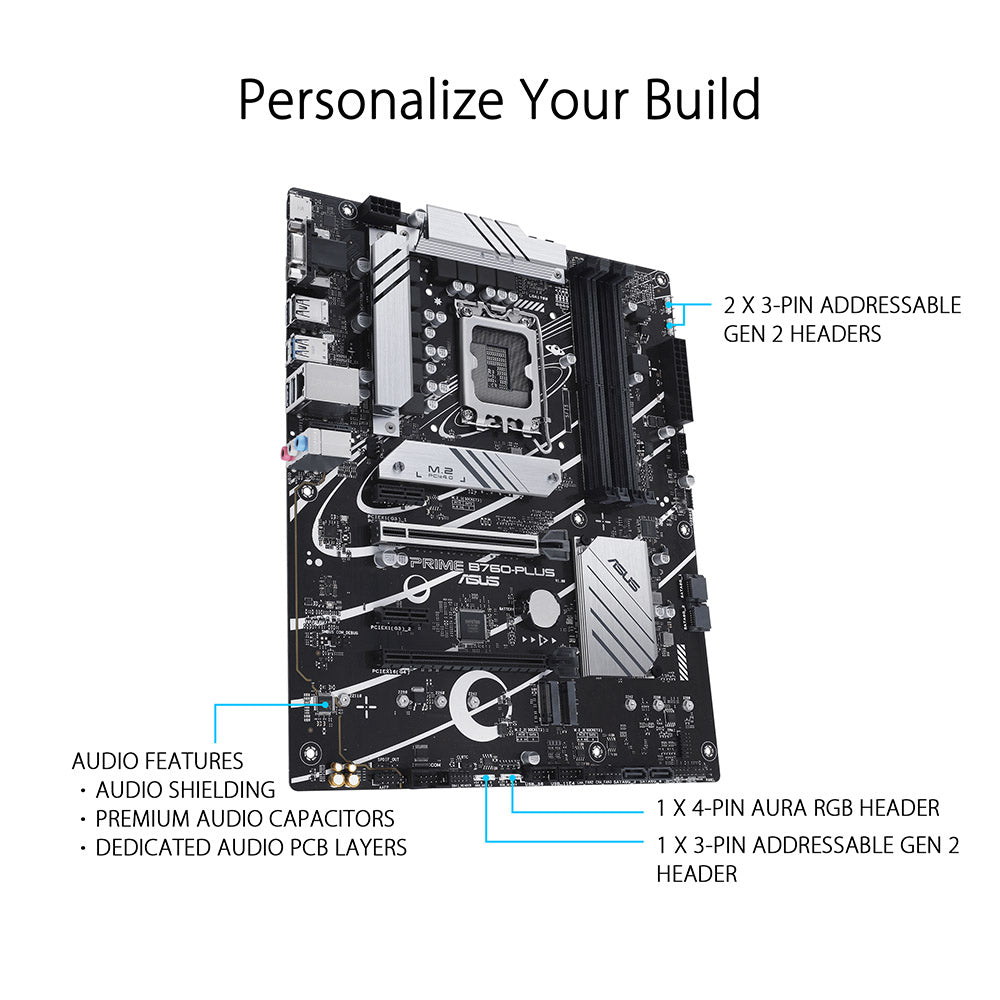

3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header

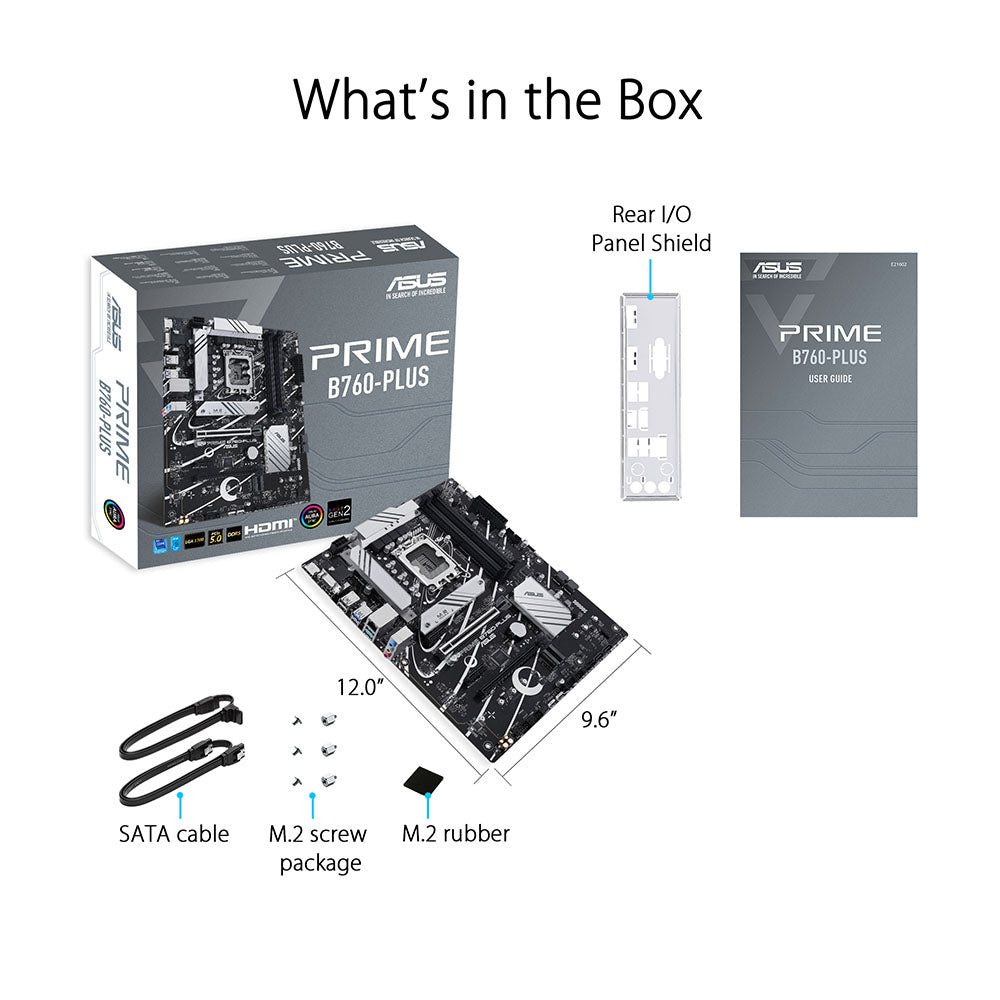

Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
Documentation
1 x User guide
Operating System Windows 11 64-bit
Windows 10 64-bit
Dimensions 30.5 cm x 24.4 cm
ATX Form Factor
Warranty 3 Years of Brand Warranty
