ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard with PCIe 5.0 USB 4 Header and Three M.2 Slots

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard with PCIe 5.0 USB 4 Header and Three M.2 Slots

Brand: ASUS
Regular price Rs. 29,999.00
Sale price 14% off Rs. 29,999.00 Sale Sold out Regular price Rs. 34,500.00
  • The ASUS PRIME X670-P WIFI ATX motherboard is designed to support latest AMD Ryzen 7000 Series CPU's with AM5 socket.
  • The board is PCIe 5.0 Ready supporting up to 128GB DDR5 6400MHz(OC) of memory and AMD Extended Profiles for Overclocking (EXPO) to push your experience to its peak.
  • Enjoy extended connectivity with the next-gen technology of PCIe 5.0, WiFi6, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, three M.2 slots and Thunderbolt (USB4) header support.
  • Comes with AI Overclocking optimizing performance based on CPU and cooler loads and AI Cooling which manges and controls all motherboard fans, automatically optimizing settings based on current system load and temperature.
  • Prime X670-P features the most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, M.2 Heatsink, BIOS FlashBack, Q-Latch and AIO Pump Header.
  • The board comes with Audio shielding which ensures precision analog/digital separation and greatly reduced multi-lateral interference. The Premium Audio Capacitors provides warm, natural and immersive sound with exceptional clarity and fidelity..

~section~

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech
ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

Prime X670-P WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

Three M.2 Slots

PRIME X670-P offers a total of three M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

WIFI 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic..

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

USB4 Support

Features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device.

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

AI Cooling

ASUS AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

CPU Performance Boost

AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance.

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners.

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

DDR5 Performance

With the PRIME X670-P, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

M.2 Heatsink

An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers.

ASUS PRIME X670-P WIFI AMD Socket AM5 ATX Motherboard - From TPSTech

PCIe 4.0 Slot

Prime X670 motherboards offer PCIe 4.0 Slot connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

~section~

Model ASUS PRIME X670-P WIFI ATX Motherboard
Part Number 90MB1BV0-M0IAYC
CPU Socket AMD Socket AM5
CPU Support AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset AMD X670 Chipset
Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
On-Board Graphics support 1 x DisplayPort
1 x HDMI port
Expansion Slot AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD X670 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless and Bluetooth Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s port
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
USB Ports Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thunderbolt (USB4) header

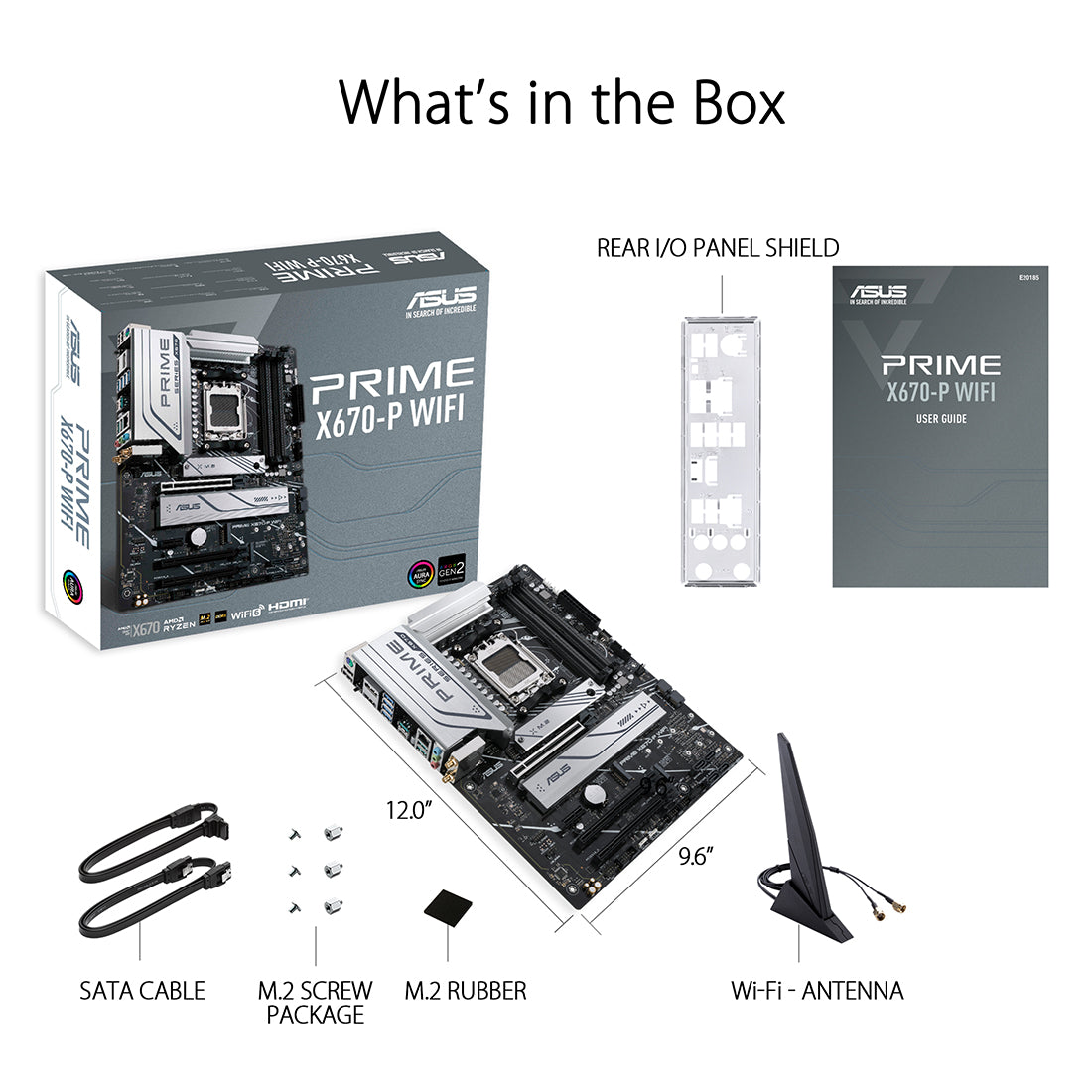

Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Rubber Package for M.2
2 x Screw Packages for M.2 SSD
Documentation 1 x User guide
Operating System Windows 11 64-bit
Windows 10 64-bit
Dimensions 30.5 cm x 24.4 cm
ATX Form Factor
Warranty 3 Years of Brand Warranty
