ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard with PCIe 5.0

ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard with PCIe 5.0

Brand: ASUS
Regular price Rs. 23,299.00
Regular price Rs. 28,000.00 Sale price Rs. 23,299.00
Sale Sold out
  • Free Shipping: We deliver to 27000+ pin codes in India.
  • 10-Days Return: We got you covered with easy returns.
  • Original Warranty: This product has original Brand warranty.
Easy Returns Cancellation Policy Shipping Policy Trust Center
  • ASUS PRIME Z790-P D4-CSM motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors.
  • The ASUS Z790 motherboard is PCIe 5.0 Ready supporting up to 128GB DDR4 5333+MHz (OC) of memory and Intel Turbo Boost Technology. The DDR4 ASUS motherboard support next gen PCIe 5.0 M.2 slots making it future proof.
  • Enjoy extended connectivity with the next-gen technology of PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 front-panel connector, Three M.2 slots and USB Type-C.
  • Features the most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, Thermal Pads, M.2 heatsink and hybrid fan headers
  • The ATX motherboard comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also having a handful features like Overvoltage Protection, SafeSlot Core+ and LANGuard.

~section~

ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard - From tpstech.in
ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard - From tpstech.in

Three M.2 Slots

PRIME Z790-P D4-CSM offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard - From tpstech.in

DDR4 Performance

With the PRIME Z790-P D4-CSM, you can extract all of the potential out of your DDR4 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard - From tpstech.in

PCIe 5.0 Slot

Prime Z790 motherboards offer PCIe 5.0 Slot connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard - From tpstech.in

PRIME Z790-P D4-CSM

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P D4-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard - From tpstech.in

Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard - From tpstech.in

Thunderbolt 4

PRIME Z790-P D4-CSM motherboard features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device.

ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard - From tpstech.in

ASUS OptiMem II

ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

ASUS PRIME Z790-P D4-CSM Intel Z790 LGA 1700 ATX Motherboard - From tpstech.in

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

~section~

Model ASUS PRIME Z790-P D4-CSM Motherboard
Part Number 90MB1CV0-M0IAYC
CPU Socket Intel Z790 Chipset
CPU Support Intel 13th Gen, 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset Intel Socket LGA 1700
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/
4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/
4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/
3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
On-Board Graphics support 1 x DisplayPort 1.4,Supports max 4K@60Hz
1 x HDMI 2.1 port,Supports 4K@60Hz
Expansion Slot Intel 13th and 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless and Bluetooth Vertical M.2 slot only
Storage Total supports 3 M.2 slots and 4 SATA 6Gb/s ports
Intel 13th and 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes)
4 x SATA 6Gb/s port
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
USB Ports Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

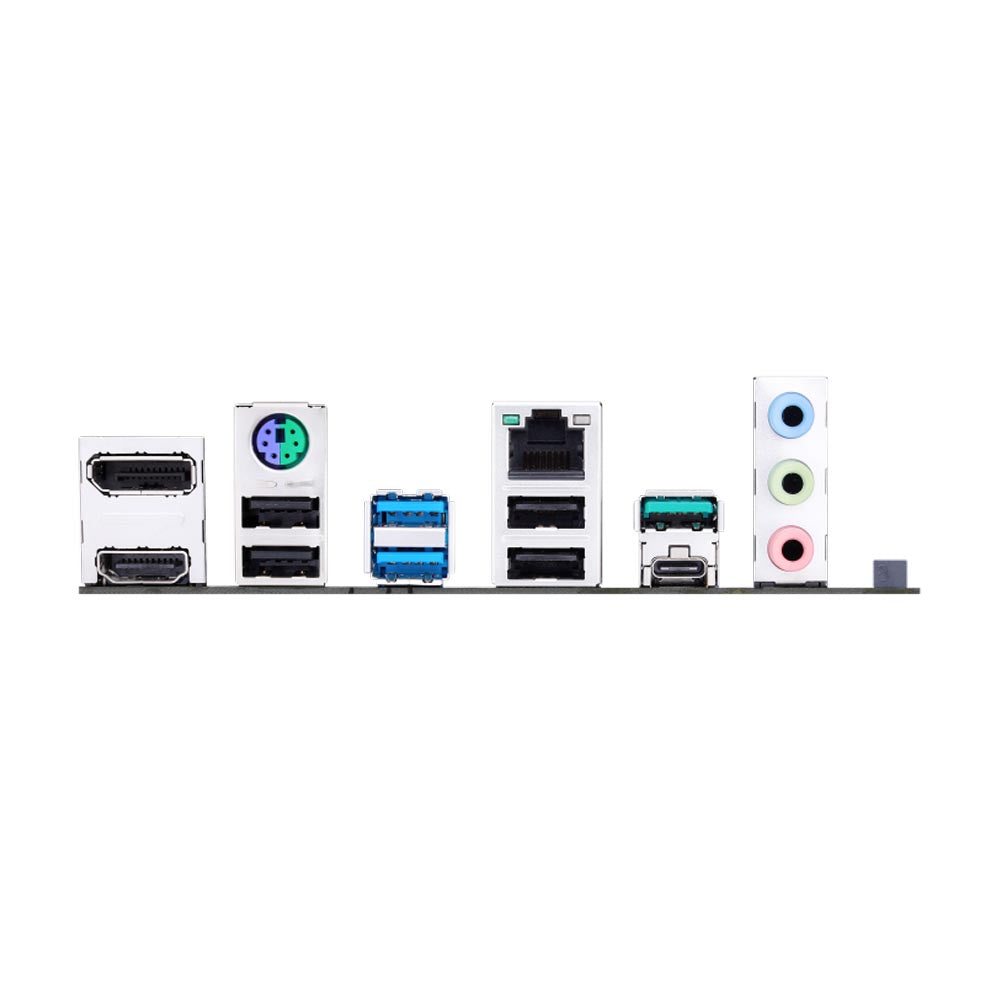

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 ports (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thunderbolt (USB4) header
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Rubber Package for M.2
2 x Screw Packages for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System Windows 11 64-bit
Windows 10 64-bit
Dimensions 30.5 cm x 23.4 cm
ATX Form Factor
Warranty 3 Years of Brand Warranty
