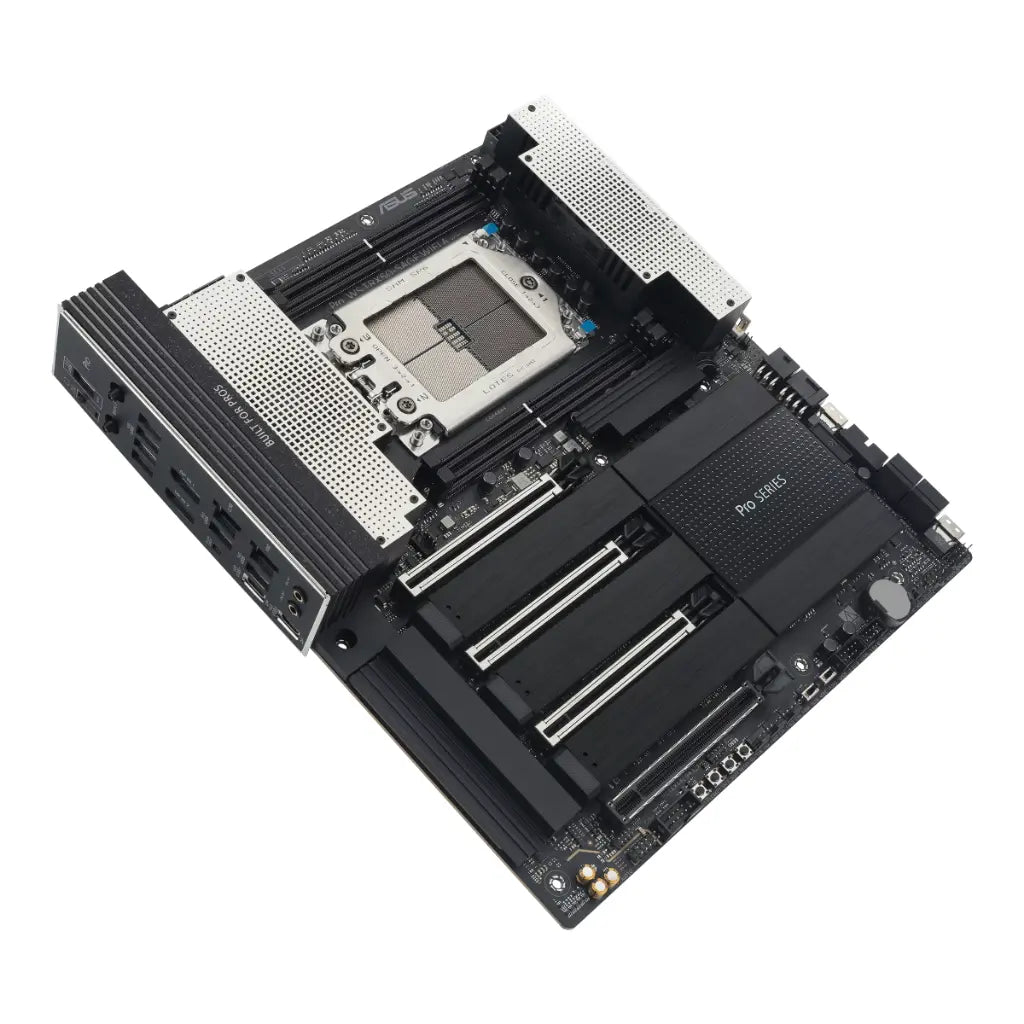

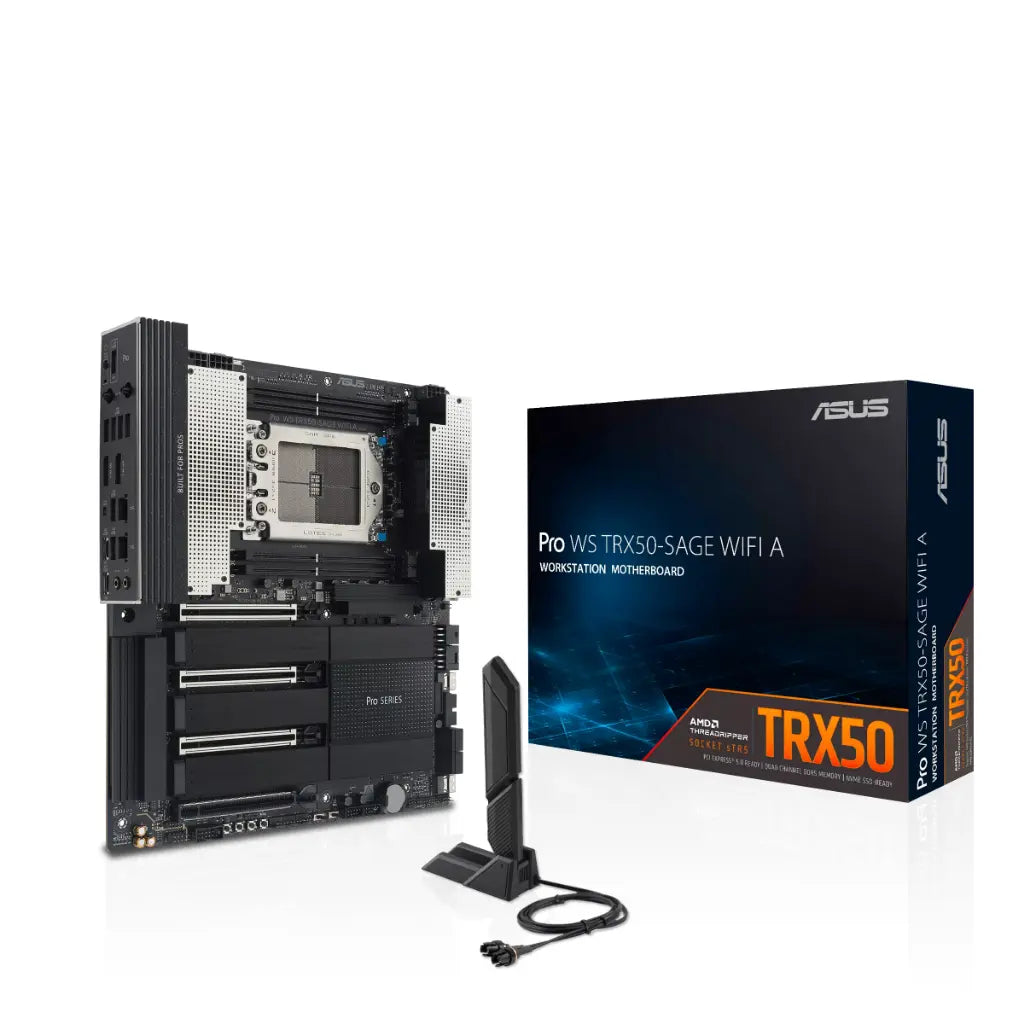

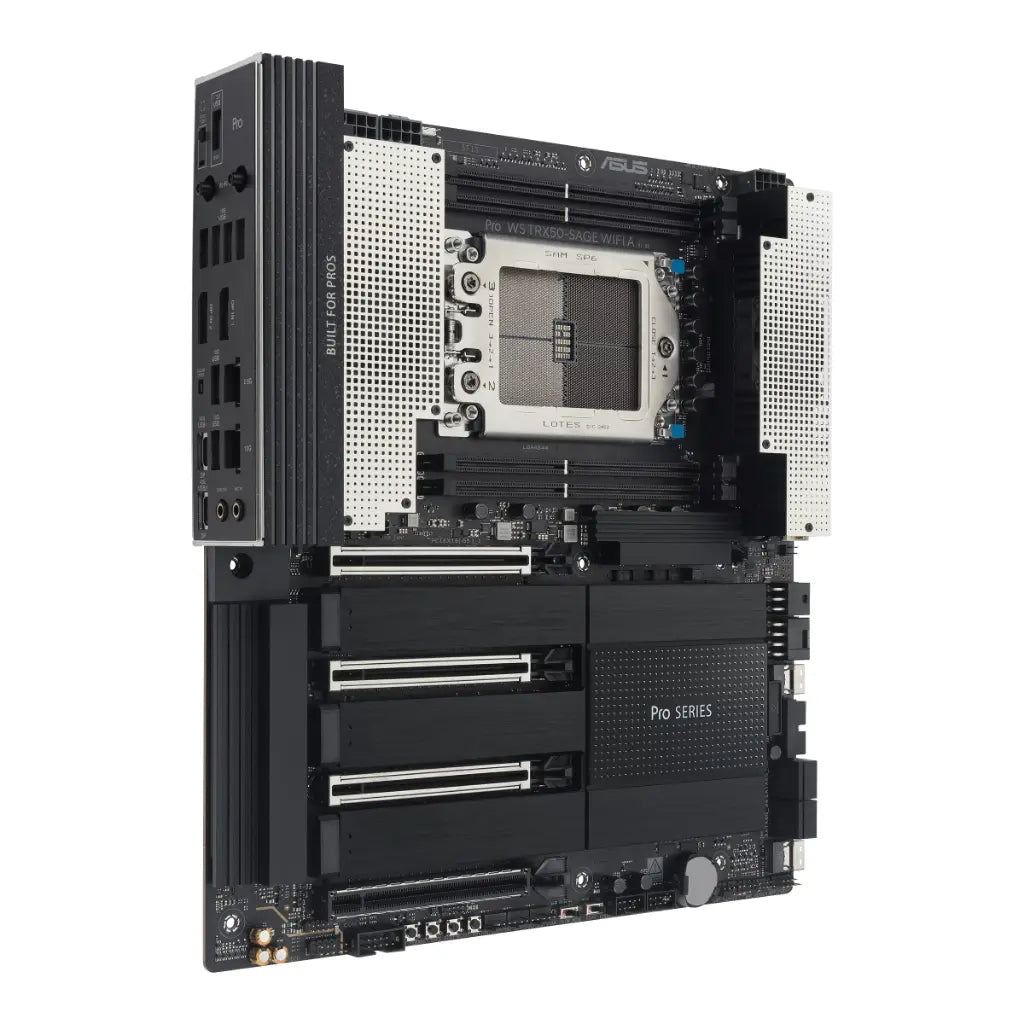

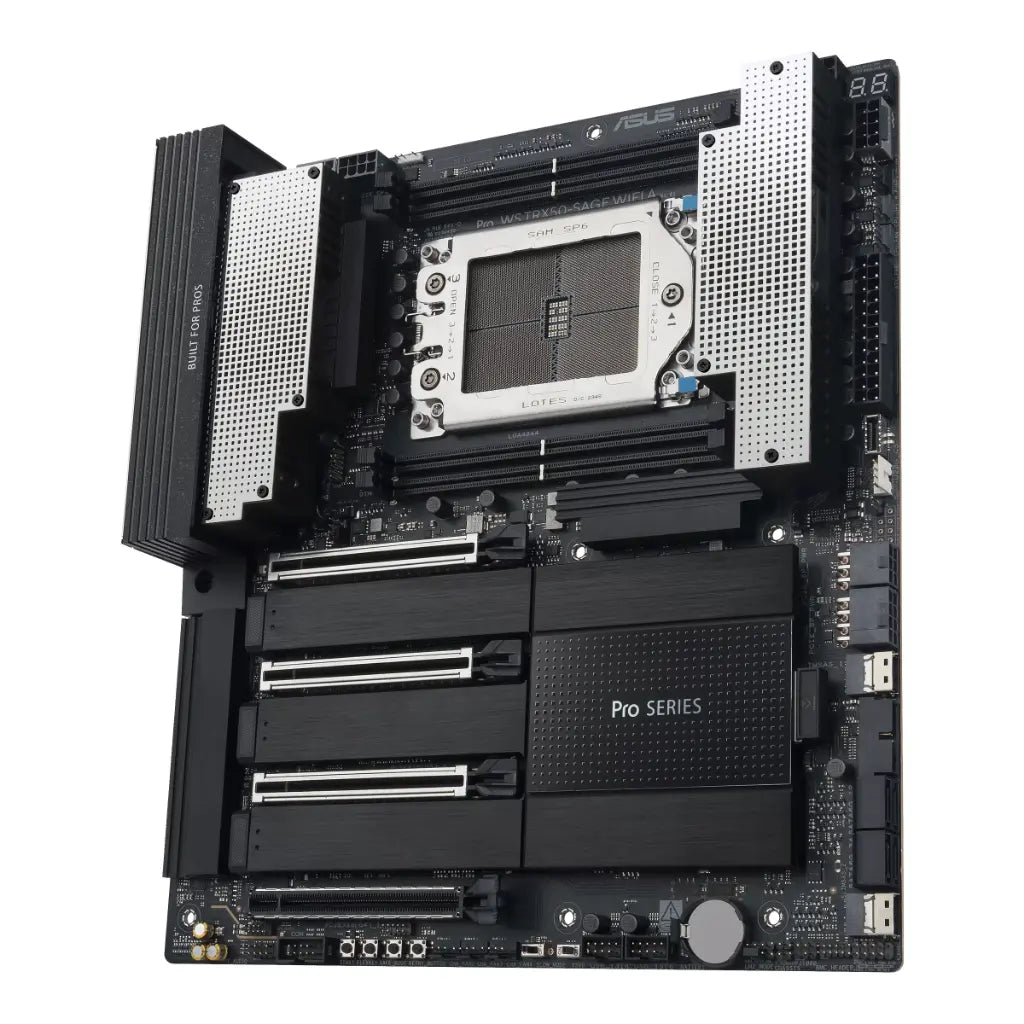

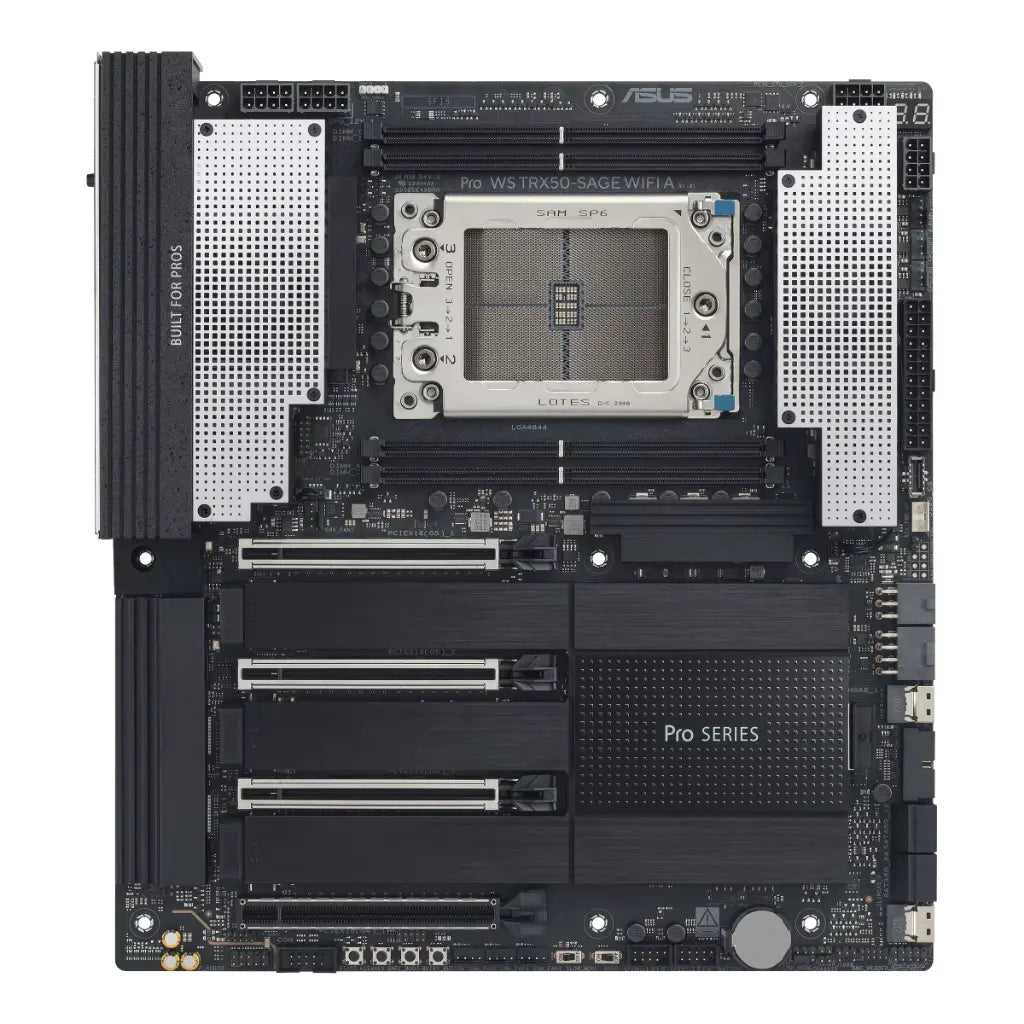

ASUS Pro WS TRX50‑SAGE WIFI A TRX50 sTR5 SSI CEB Motherboard

⭐ AMD sTR5 Socket with Up to 96‑Core Support – Designed for Ryzen Threadripper 7000/9000 and PRO WX processors for extreme workstation performance.

⚡ PCIe 5.0 for Next‑Generation GPUs & Storage – Multiple PCIe 5.0 x16 slots enable high‑bandwidth workflows for creators and professionals.

❄️ 36‑Stage Power Delivery with Advanced Cooling – Massive VRM heatsinks and thermal pads ensure stable performance under heavy loads.

📶 WiFi 7 + 10Gb & 2.5Gb LAN – Ultra‑fast wired and wireless connectivity for demanding rendering, AI, and cloud workflows.

💾 Supports Up to 1TB ECC DDR5 R‑DIMM – Ideal for AI, simulation, VFX, and large data workloads.

🛠️ Server‑Grade IPMI Management – Remote hardware‑level control for professional workstation environments.

Specification	Details
Model	Pro WS TRX50‑SAGE WIFI A
CPU	AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX‑Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors ** • Refer to asus.com for CPU support list. • System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration (normal behavior).
Chipset	AMD TRX50 Chipset
Memory	• 4 × DIMM slots, DDR5, ECC Registered Memory* • 4‑Channel Memory Architecture *Supported memory types, speeds, and module counts vary by CPU and configuration; refer to ASUS Support/Memory QVL.
Expansion Slots	For Ryzen™ Threadripper™ PRO 9000 & 7000 WX‑Series and Ryzen™ Threadripper™ 9000 & 7000 Series: • 3 × PCIe 5.0 x16 slots • 1 × PCIe 4.0 x16 slot *Check PCIe bifurcation table on ASUS Support (FAQ/1037507).
Storage (Total)	4 × M.2 slots, 4 × SATA 6Gb/s ports, 2 × SlimSAS ports
Storage – By Source	With Ryzen™ Threadripper™ PRO 9000 & 7000 WX‑Series and Ryzen™ Threadripper™ 9000 & 7000 Series: • M.2_1 (Key M) 2242/2260/2280 — PCIe 5.0 x4 • M.2_2 (Key M) 2242/2260/2280 — PCIe 5.0 x4 ** Via AMD TRX50 Chipset: • M.2_3 (Key M) 2280 — PCIe 4.0 x4, shared with SlimSAS_2 (one disables the other) • 4 × SATA 6Gb/s ports • SlimSAS_2 — PCIe 4.0 x4 NVMe, shared with M.2_3
Additional (PRO‑only)	With Threadripper™ PRO series installed: • M.2_4 (Key M) 2242/2260/2280 — PCIe 5.0 x4 • SlimSAS_1 — PCIe 4.0 x4 NVMe
RAID Support	AMD RAIDXpert2 Technology • PCIe RAID 0/1/5/10 • SATA RAID 0/1/5/10
Ethernet	• 1 × Marvell® AQtion 10GbE • 1 × Intel® I226‑LM 2.5GbE
Wireless & Bluetooth	Wi‑Fi 7 (Realtek® RTL8922AE) — 2×2 802.11be; supports 2.4/5/6 GHz; 160 MHz bandwidth* Bluetooth® 5.4 *OS and regional band support vary. Win11 24H2+ for full Wi‑Fi 7; Win11 21H2/22H2/23H2 supports Wi‑Fi 6E; Win10 supports Wi‑Fi 6.
USB (Rear I/O Total 9)	• 2 × USB4® (40 Gbps) Type‑C® • 6 × USB 10 Gbps Type‑A • 1 × USB 2.0 Type‑A
USB (Front, Total 7)	• 1 × USB 20 Gbps Type‑C® header (up to 30 W PD: 5 V/9 V @ 3 A; 12 V @ 2.5 A; 15 V @ 2.0 A) • 1 × USB 5 Gbps header (adds 2 ports) • 2 × USB 2.0 headers (add 4 ports)
Audio Codec	Realtek ALC1220P HD Audio • Impedance sensing (front/rear) • Integrated amp • Jack detection, multi‑streaming, front jack retasking • Up to 32‑bit/192 kHz playback • 120 dB SNR playback / 113 dB SNR recording (Line‑in)
Audio Notes & Features	• 5.1 surround supported (requires chassis HD audio module; limited by port count) • Audio shielding, dedicated PCB layers, de‑pop circuit

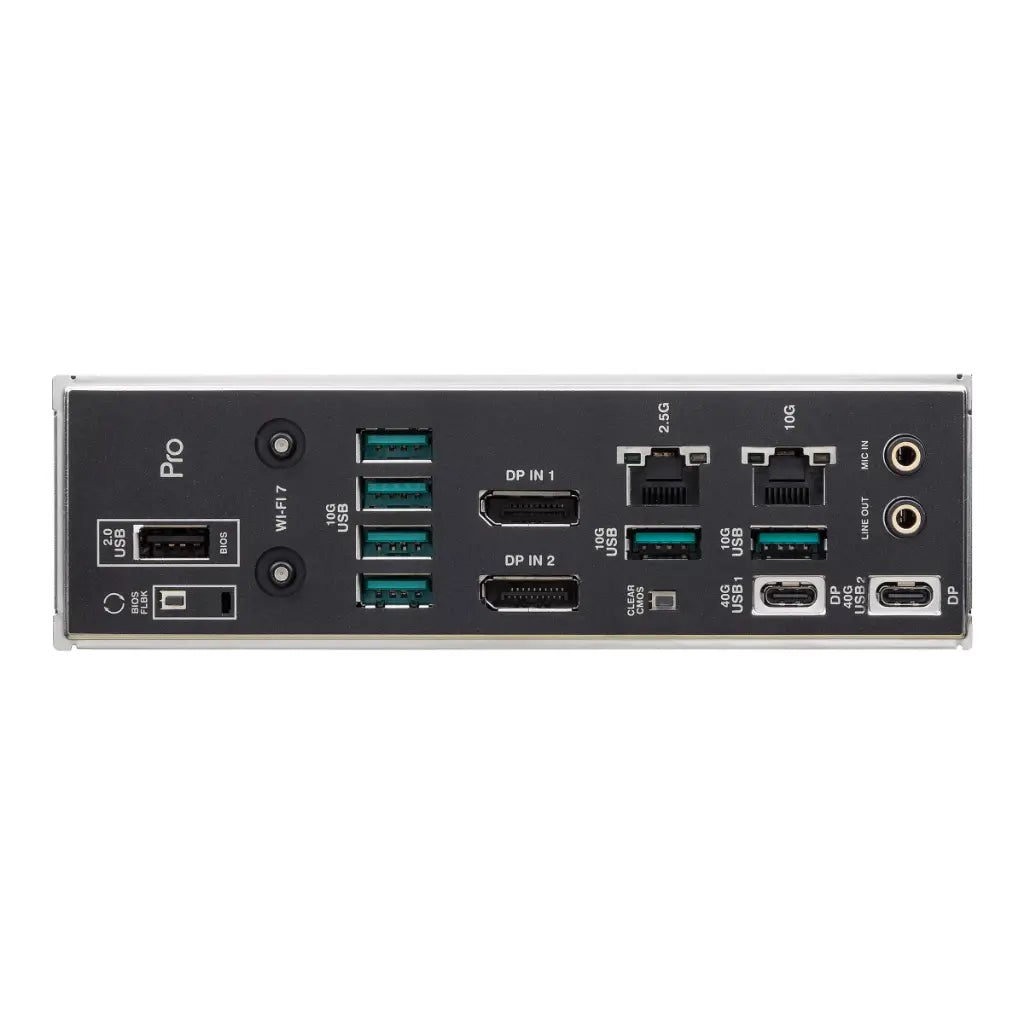

Back Panel I/O	• 2 × USB4 (40 Gbps) Type‑C® • 6 × USB 10 Gbps Type‑A • 1 × USB 2.0 Type‑A • 2 × DisplayPort IN • Wi‑Fi module cut‑out • 1 × 10GbE (Marvell®) • 1 × 2.5GbE (Intel®) • 2 × Audio jacks • BIOS FlashBack™ button • Clear CMOS button
Internal I/O – Cooling	• 1 × 4‑pin CPU Fan • 1 × 4‑pin CPU OPT Fan • 1 × W_PUMP+ • 4 × 4‑pin Chassis Fan • 2 × 4‑pin VRM Fan (VRM fan onboard)
Internal I/O – Power	• 1 × 24‑pin Main Power • 1 × 4‑pin to 24‑pin Main Power • 2 × 8‑pin +12 V CPU • 2 × 8‑pin PCIe to CPU power • 1 × 6‑pin PCIe Power • 1 × 8‑pin PCIe Power
Internal I/O – Storage	• 4 × M.2 (Key M) • 4 × SATA 6Gb/s • 2 × SlimSAS
Internal I/O – USB	• 1 × USB 20 Gbps Type‑C® header • 1 × USB 5 Gbps header (adds 2 ports) • 2 × USB 2.0 headers (add 4 ports)
Internal I/O – Misc.	• 1 × Addressable RGB Gen 2 header • 1 × BMC header • 1 × COM header • FlexKey button • Front panel audio (F_AUDIO) • Start, Safe Boot, ReTry buttons • LN2 mode jumper, Slow mode switch • SPI TPM header (14‑1 pin) • 10‑1 pin Front Panel header • Chassis intrusion header • Thermal Sensor header • 7 × ProbeIt measurement points
Special Features – Q‑Design	Q‑Code, M.2 Q‑Latch, M.2 Q‑Release, Q‑Connector, Q‑DIMM, Q‑LED (CPU red / DRAM yellow / VGA white / Boot yellow‑green), Q‑Slot
Special Features – Thermal	M.2 heatsinks & thermal pads, M.2 heatsink backplate, VRM heatsink with active fans
Special Features – EZ DIY	BIOS FlashBack™ button & LED, Clear CMOS, Dual DIMM clips, ProCool II, Pre‑mounted I/O shield, SafeSlot, SafeDIMM
Lighting	Aura Sync — Addressable RGB Gen 2 header
Business/Design	24/7 Reliability, Overcurrent Protection
Software – ASUS Exclusive	Armoury Crate (Fan Xpert 4, Aura Sync), ASUS CPU‑Z, ASUS DriverHub
IT Management	ASUS Control Center Express (ACCE) supported
Bundled Trials	Adobe Creative Cloud (Free Trial), Norton 360 Deluxe (60 days), WinRAR (40 days) (region/model restrictions may apply)
UEFI BIOS Utilities	ASUS CrashFree BIOS 3, ASUSTeK EZ Flash Utility, FlexKey
Remote Management	ACCE supported; Ready for IPMI Expansion Card (1 × BMC header; card sold separately)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE (UEFI mode)

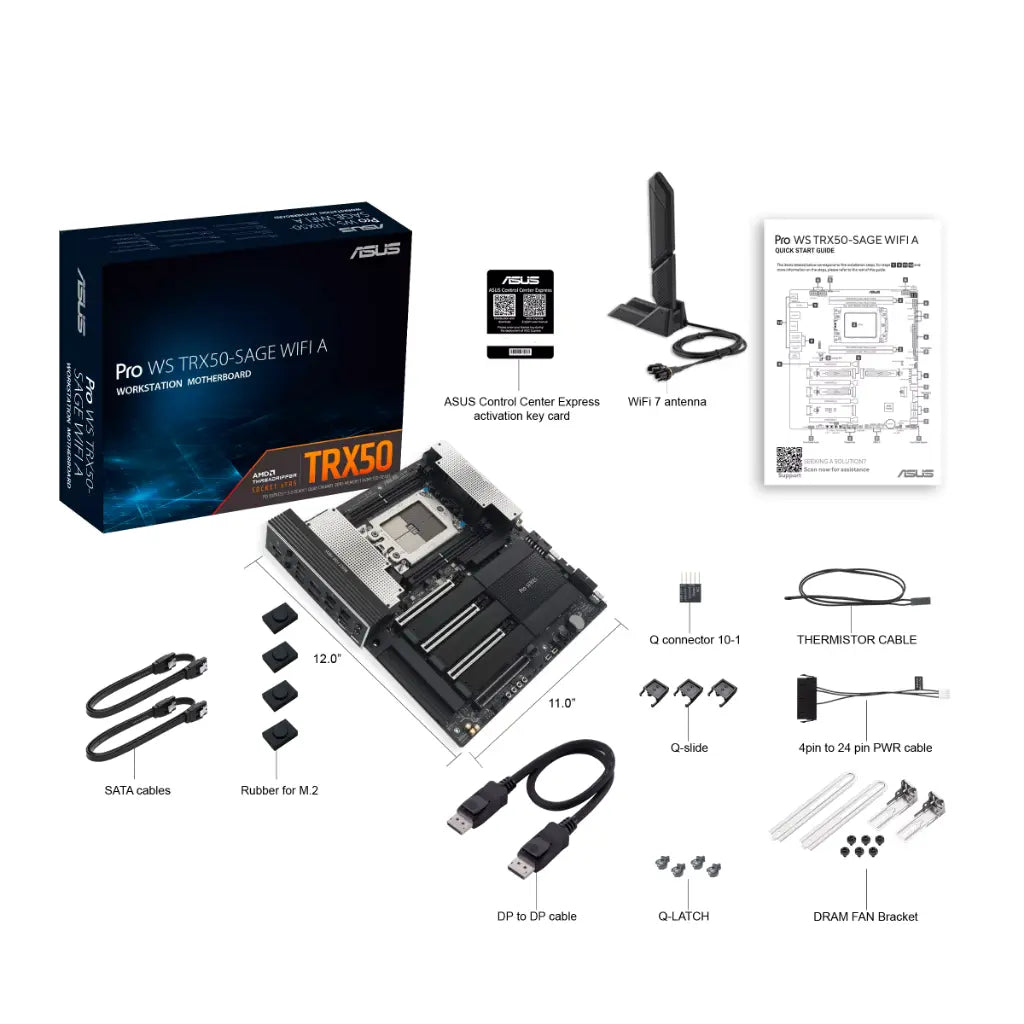

Accessories – Cables	2 × SATA 6Gb/s, 1 × Thermistor cable pack, 1 × DisplayPort cable, 1 × 4‑pin to 24‑pin ATX power connector
Accessories – Misc.	ASUS WiFi Q‑Antenna, 2 × M.2 Q‑Latch (2‑in‑1), 2 × M.2 Q‑Slide, 2 × M.2 Rubber, Fan bracket, Q‑Connector
Accessories – Docs	ACCE Activation Key Card, Quick Start Guide (QSG)
Operating System	Windows® 11
Form Factor	SSI CEB, 12" × 11" (30.5 × 28.0 cm)
Weight	2.8 kg
Warranty	3 Years
Country of Origin	Taiwan
