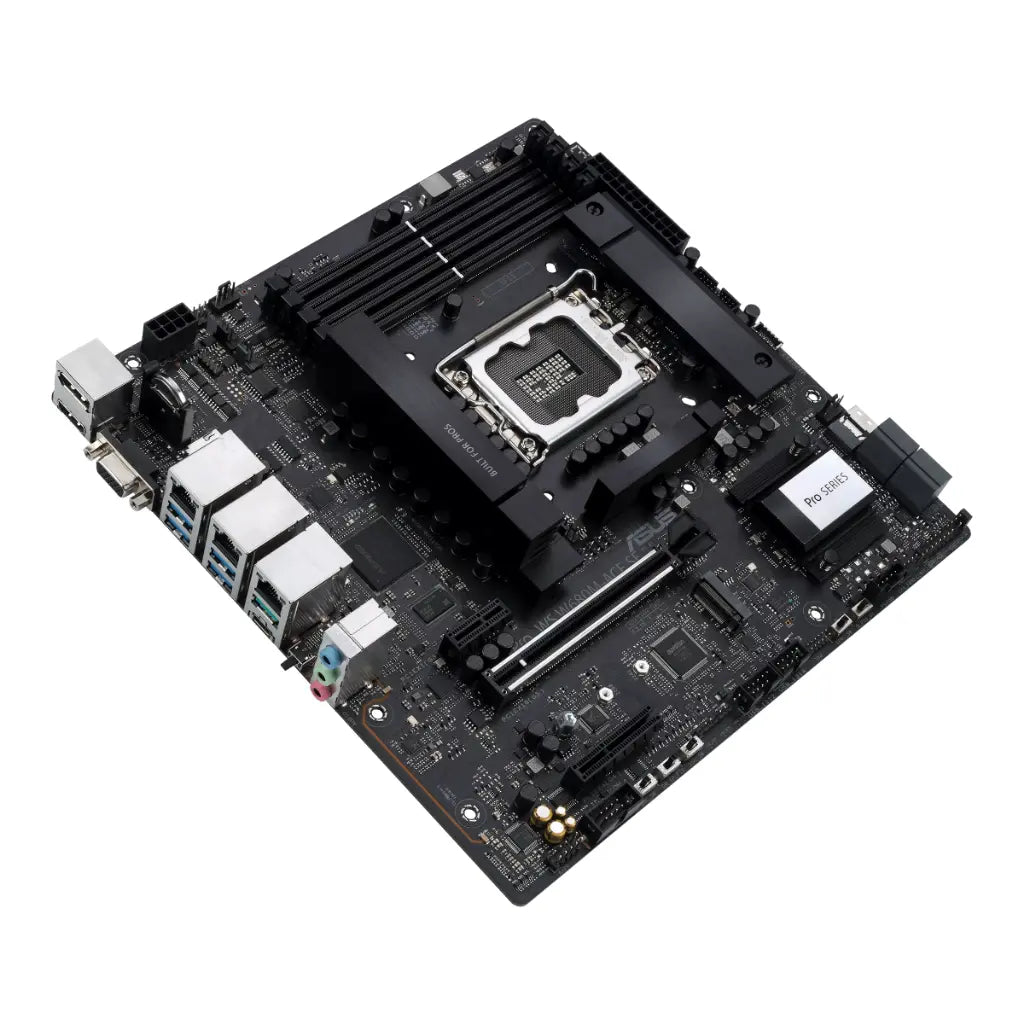

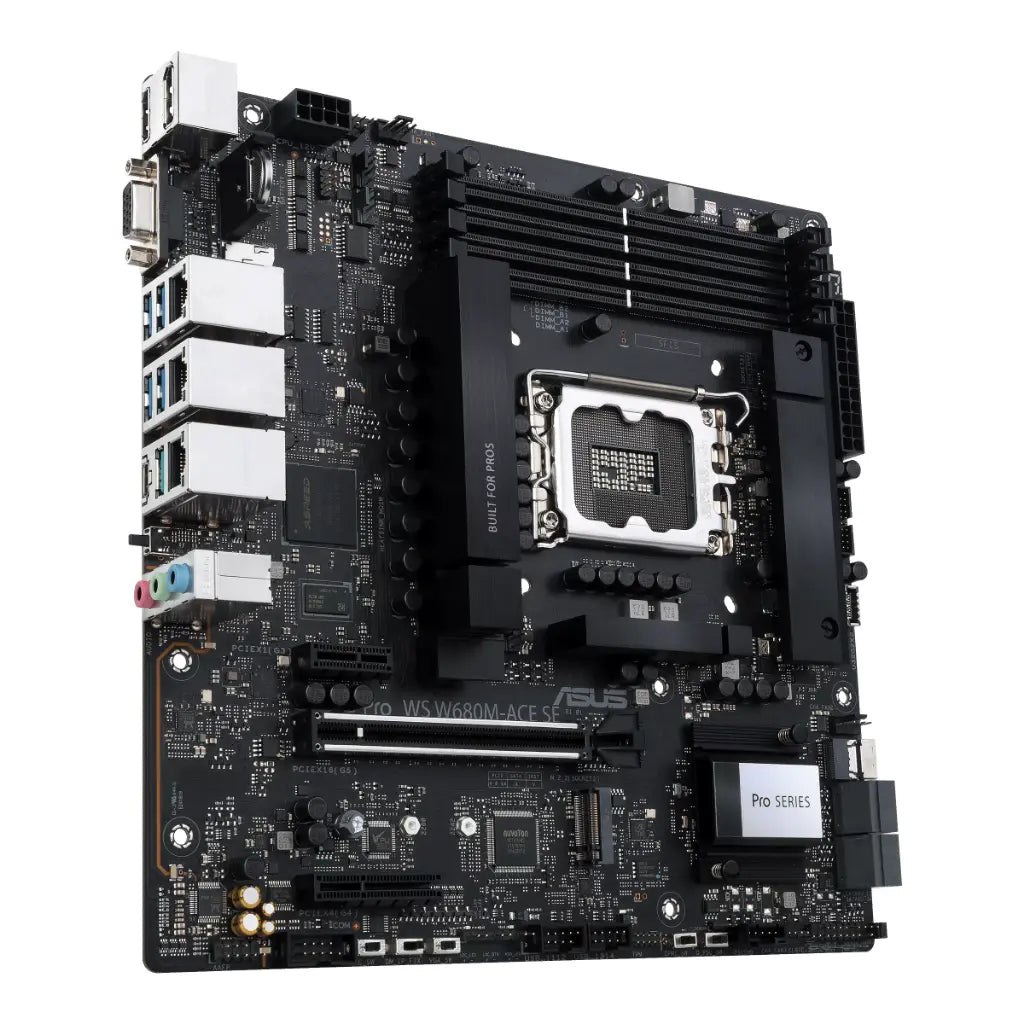

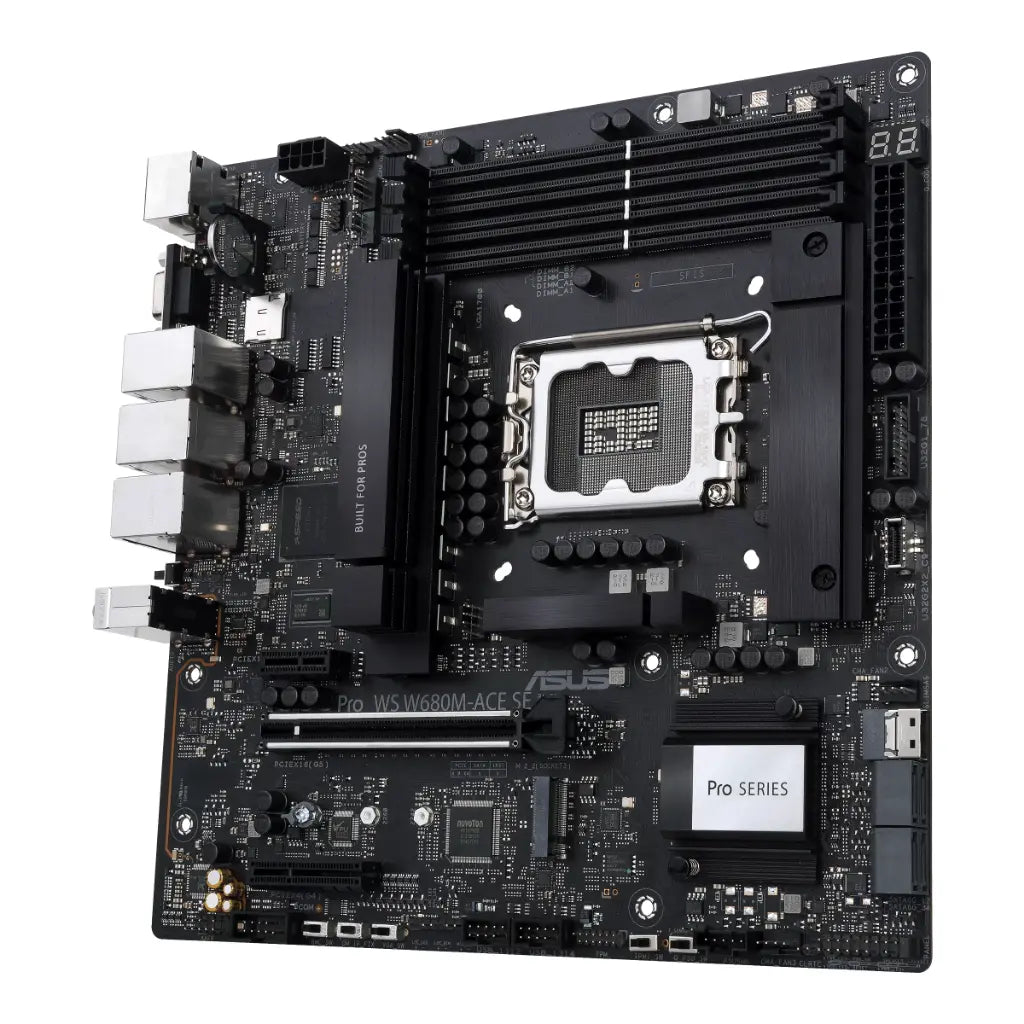

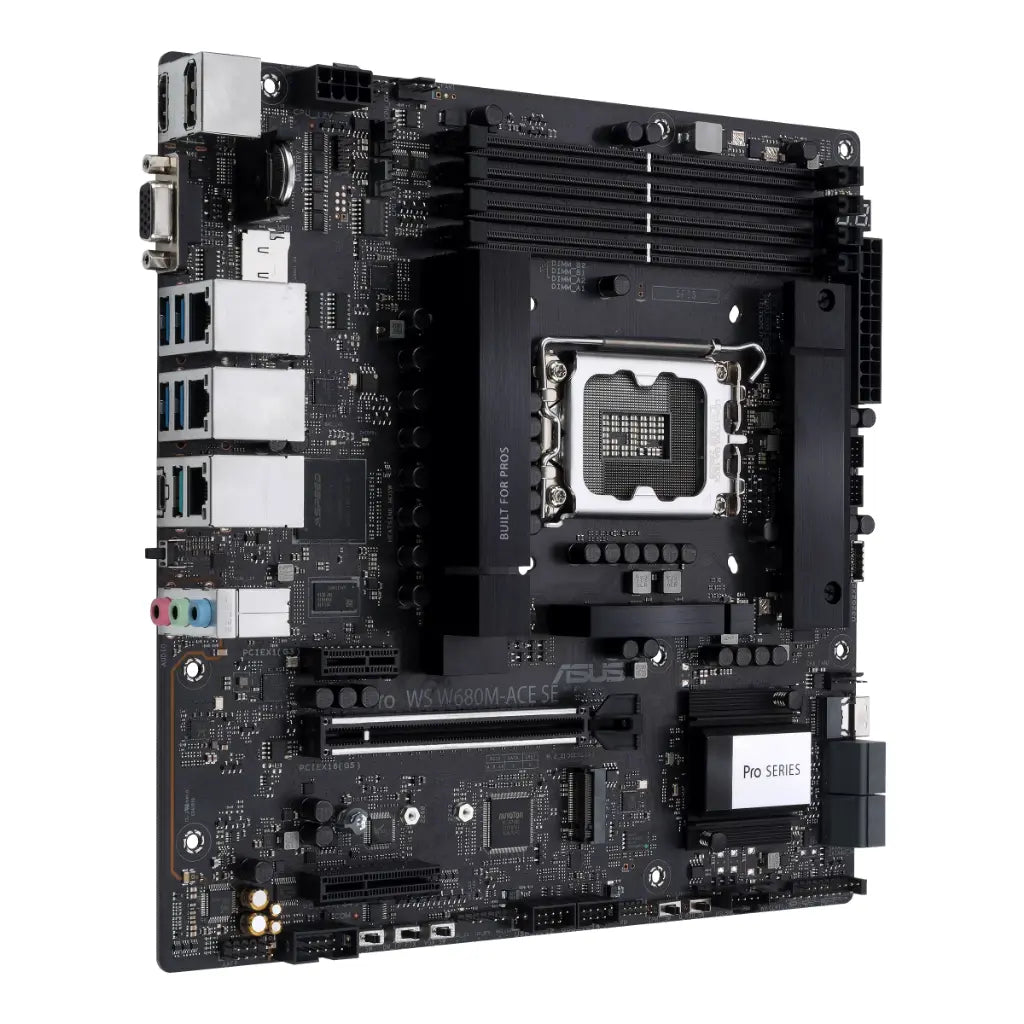

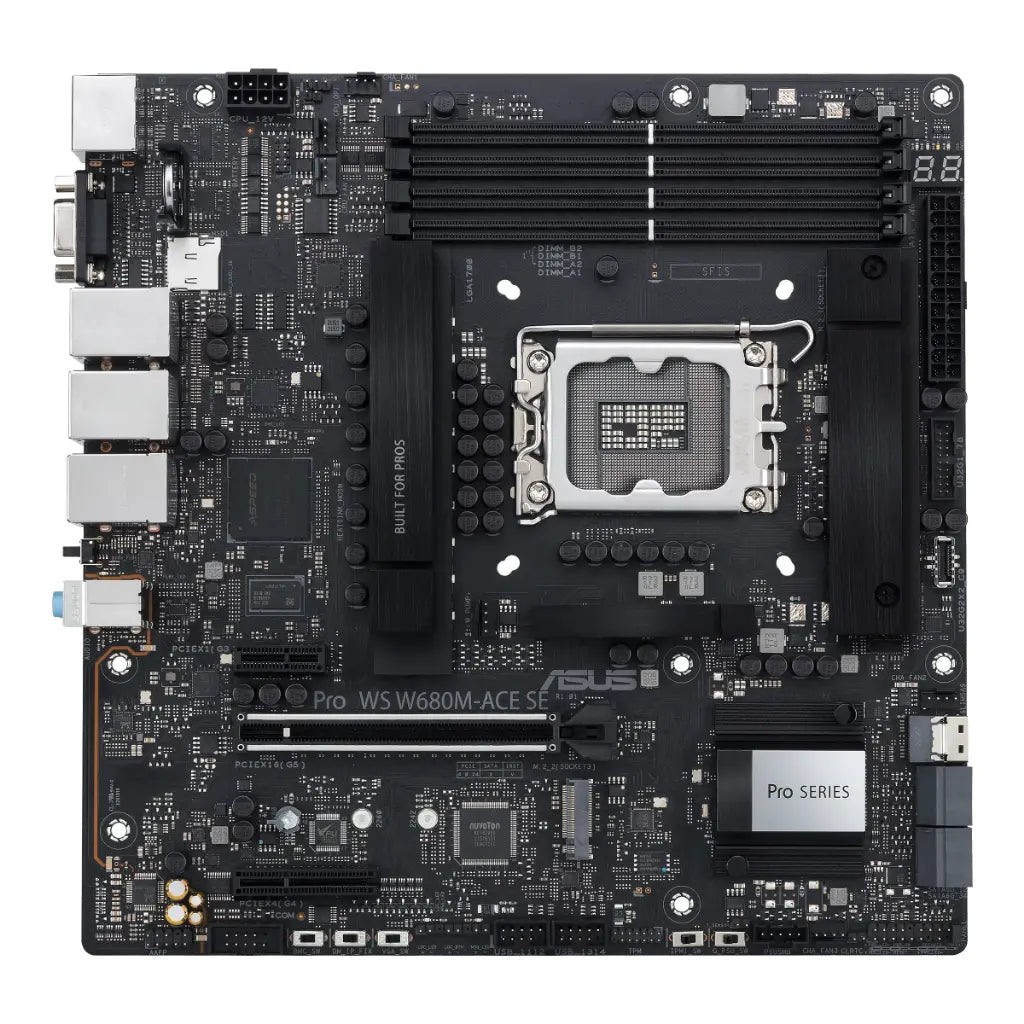

ASUS Pro WS W680M-ACE SE W680 LGA1700 DDR5 Micro‑ATX Workstation Motherboard

⭐ Intel W680 Chipset & LGA1700 Support – Designed for 14th, 13th & 12th Gen Intel Core, Pentium Gold & Celeron processors for professional workstation performance.

⚡ PCIe 5.0 High‑Bandwidth Expansion – Features a next‑gen PCIe 5.0 x16 slot ideal for GPUs, AI workloads, and high‑performance rendering systems.

🚀 Fast DDR5 Memory Compatibility – Supports up to 192GB DDR5 ECC/Non‑ECC memory with 4 DIMM slots for exceptional multitasking and reliability.

🌐 Dual 2.5Gb LAN + Dedicated BMC IPMI – Includes dual Intel 2.5Gb Ethernet ports plus a dedicated management LAN with AST2600 BMC for remote monitoring.

🔥 Advanced Thermal Design – Equipped with VRM heatsinks, M.2 heatsinks, hybrid fan headers & ASUS Fan Xpert 4 for superior heat management.

💾 Flexible Storage with Dual M.2 & SlimSAS – Supports PCIe 4.0 NVMe SSDs and SlimSAS for fast NVMe or multiple SATA device configurations.

Specification	Details
Model	Pro WS W680M-ACE SE
CPU Support	Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold & Celeron® Processors
Chipset	Intel® W680 Chipset
Memory	4× DIMM, Max 192GB, DDR5 ECC/Non‑ECC Un‑buffered; Dual Channel; Supports XMP & OptiMem II
Graphics Outputs	1× DisplayPort (up to 8K@60Hz), 1× HDMI (up to 4K@60Hz), 1× VGA (AST2600)
Expansion Slots	1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x1
Storage Support	2× M.2 (PCIe 4.0 x4), 8× SATA 6Gb/s, 1× SlimSAS (PCIe 4.0 x4 or up to 4× SATA)
RAID Support	PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10
Ethernet	2× Intel® 2.5Gb LAN, 1× Realtek 1Gb LAN (AST2600)
Rear USB Ports	2× USB 3.2 Gen 2 (Type‑A + Type‑C), 4× USB 3.2 Gen 1 (Type‑A)
Front USB Support	1× USB 3.2 Gen 2x2 Type‑C, 1× USB 3.2 Gen 1 header (2 ports), 2× USB 2.0 headers (4 ports)
Audio	Realtek 7.1 HD Audio, 24‑bit/192kHz, Audio Shielding, Premium Caps, Dedicated PCB Layers

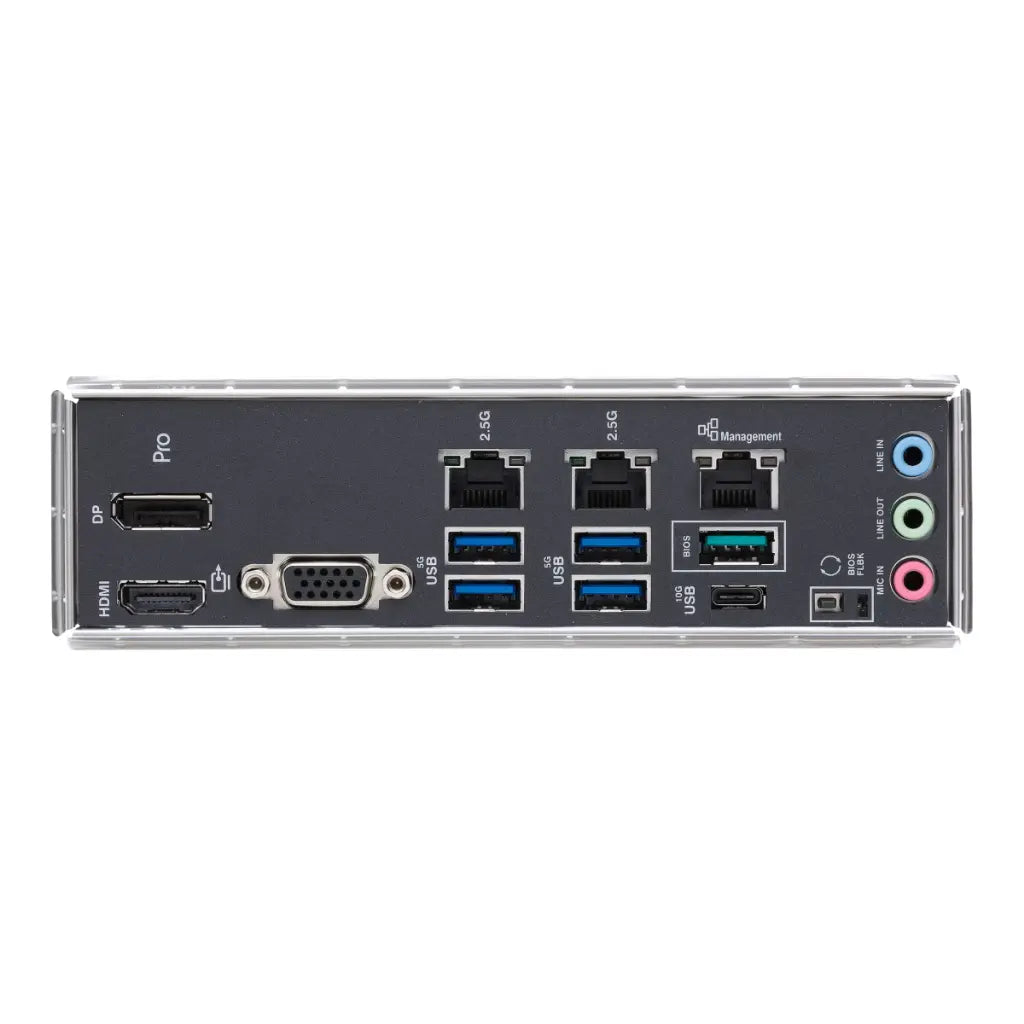

Back Panel I/O	DP, HDMI, VGA, 2× 2.5Gb LAN, 1× 1Gb LAN, 3× Audio Jacks, USB ports, BIOS Flashback Button
Cooling Headers	CPU Fan, CPU OPT, W_PUMP+, 3× Chassis Fan
Power Connectors	24‑pin ATX, 8‑pin 12V
Internal I/O	2× M.2, 4× SATA, 1× SlimSAS, LPT, T-sensor, CMOS, COM, AAFP, TPM, System Panel
BMC Features	AST2600 BMC, microSD slot, IPMI switches, BMC LED, SMBus, VGA switch
Special Features	ASUS 5X Protection III, Q‑Design, M.2 Heatsinks, VRM Cooling, SafeDIMM, SafeSlot, BIOS FlashBack
Software	Armoury Crate, Fan Xpert 4, ASUS CPU‑Z, Norton 360 (60‑day trial), Adobe CC trial, WinRAR
Manageability	WOL, PXE, Intel® vPro, ASUS Control Center Express
BIOS	256Mb UEFI AMI BIOS

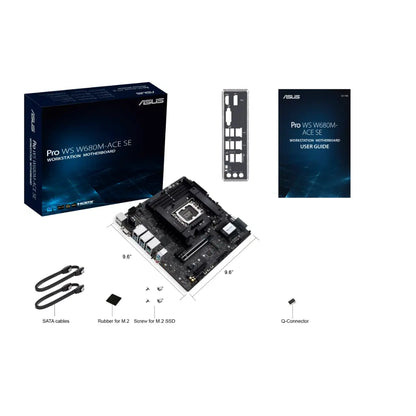

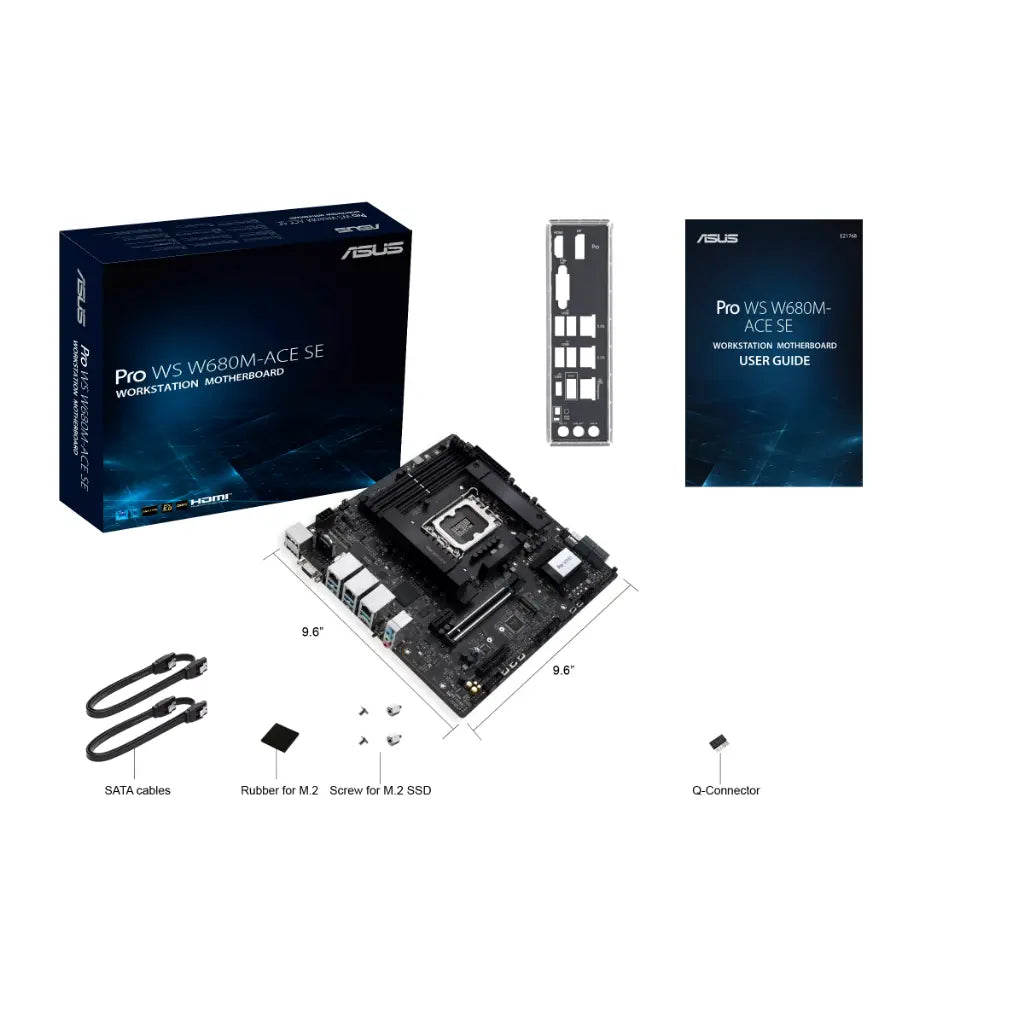

Accessories	2× SATA Cables, Q‑Connector, M.2 Rubber, 2× M.2 Screws, I/O Shield, User Guide, ACCE Key Card
Operating System Support	Windows 11 / Windows 10 (64‑bit)
Form Factor	Micro‑ATX (24.4 cm x 24.4 cm)
Country of Origin	China
Warranty	3 Years
