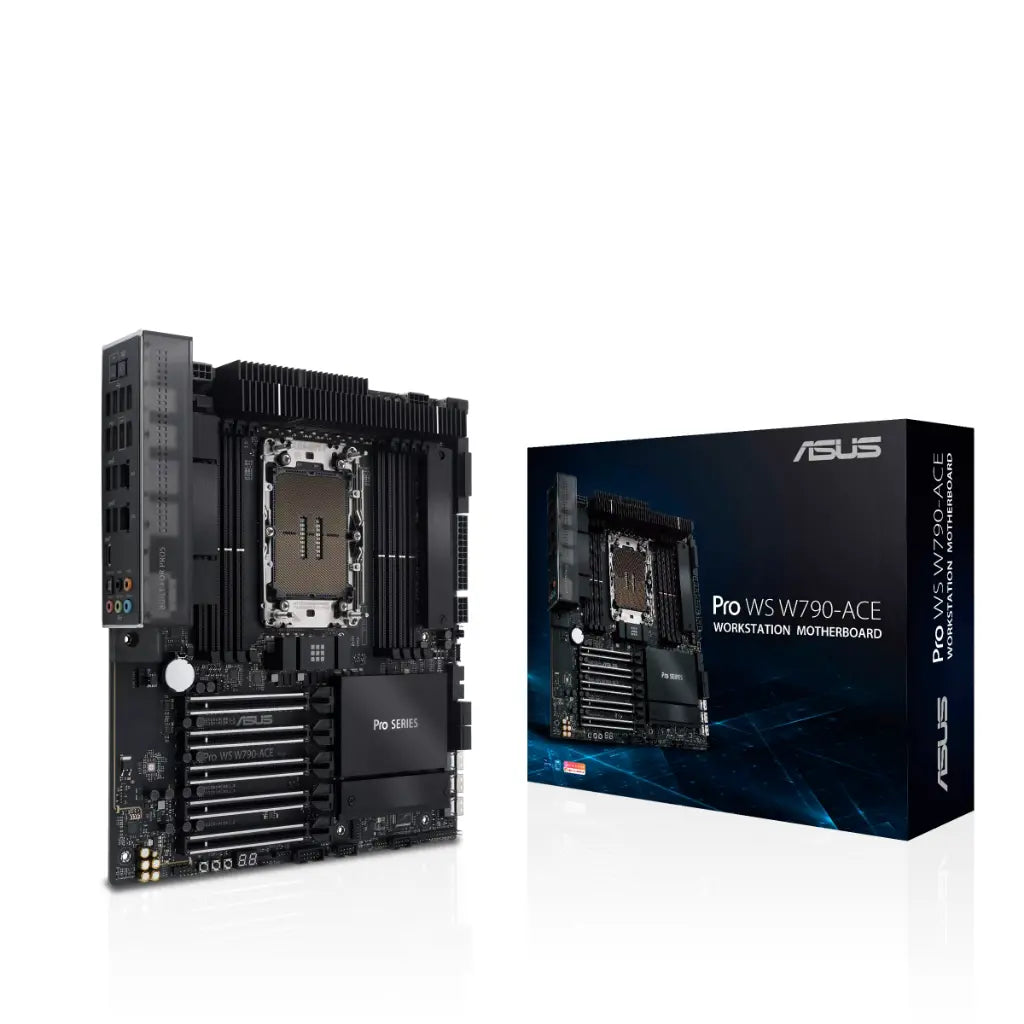

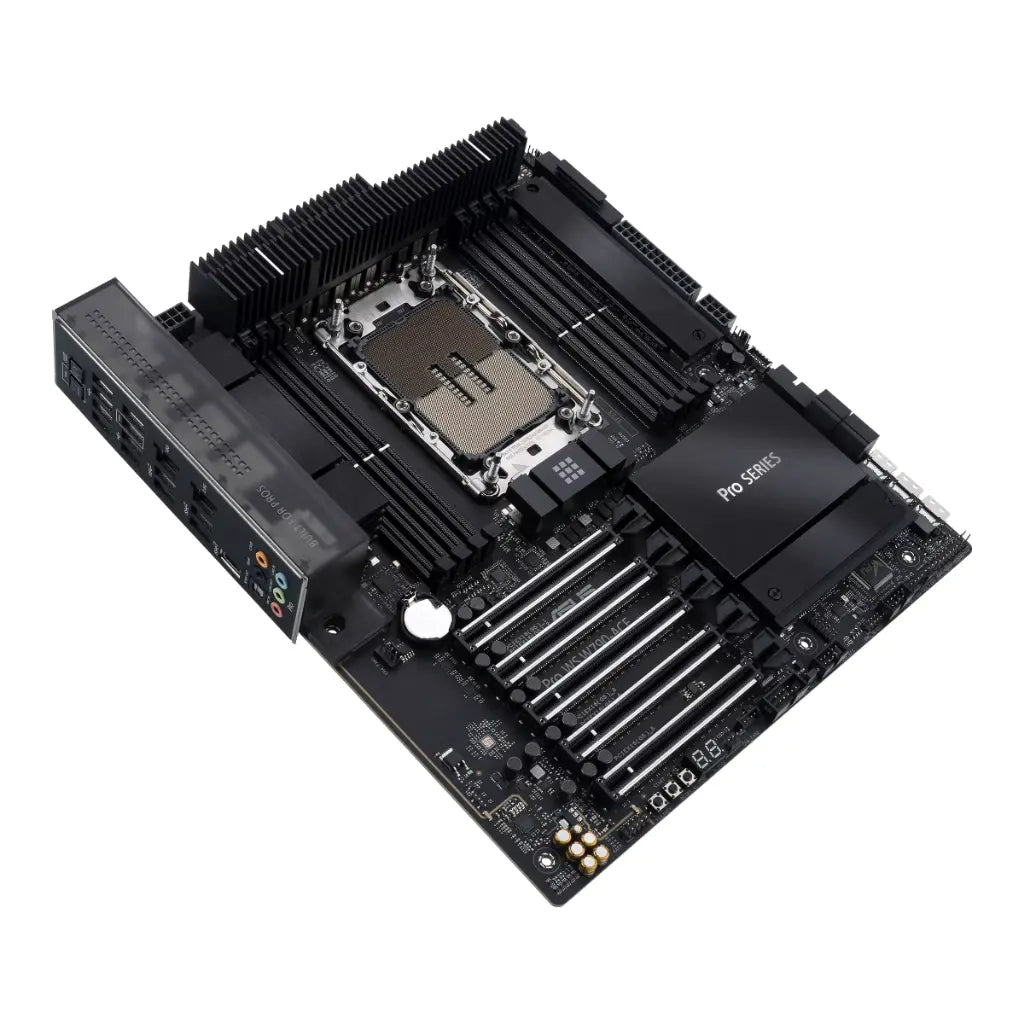

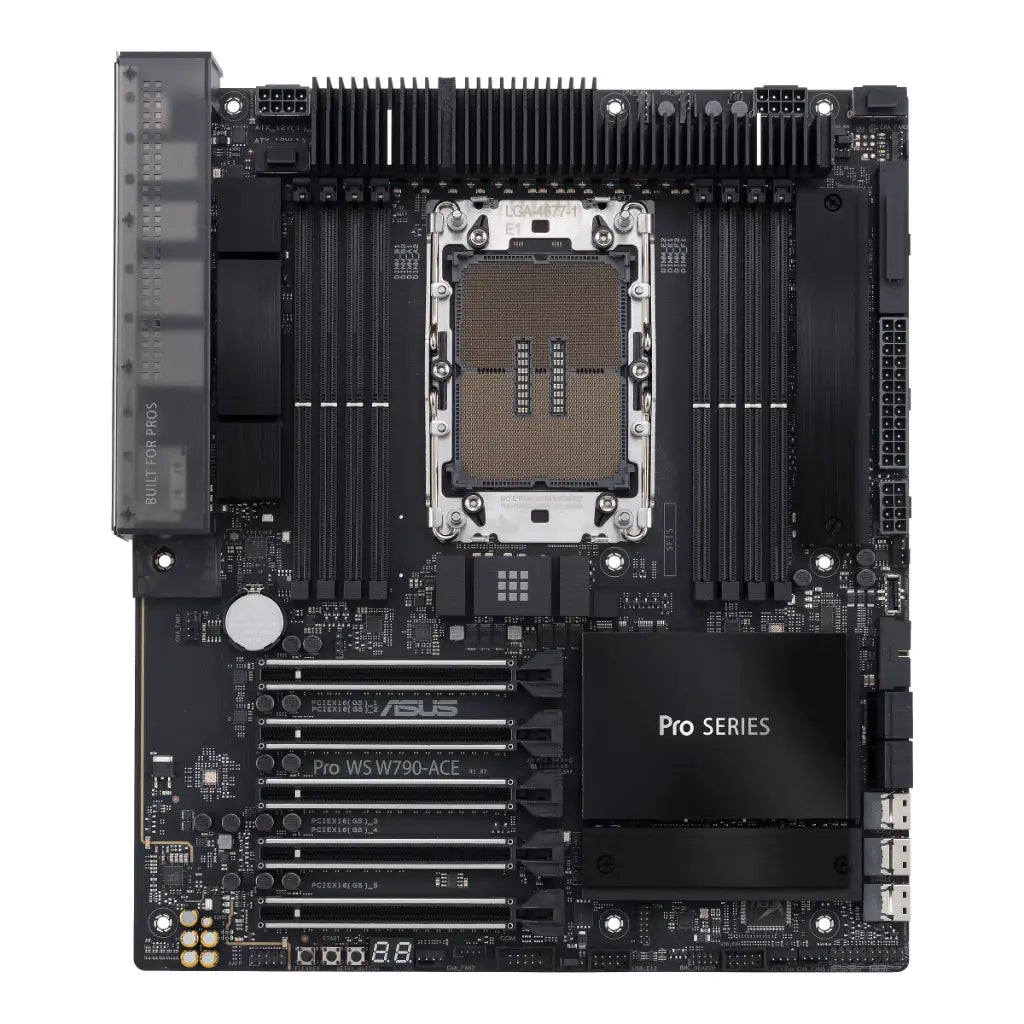

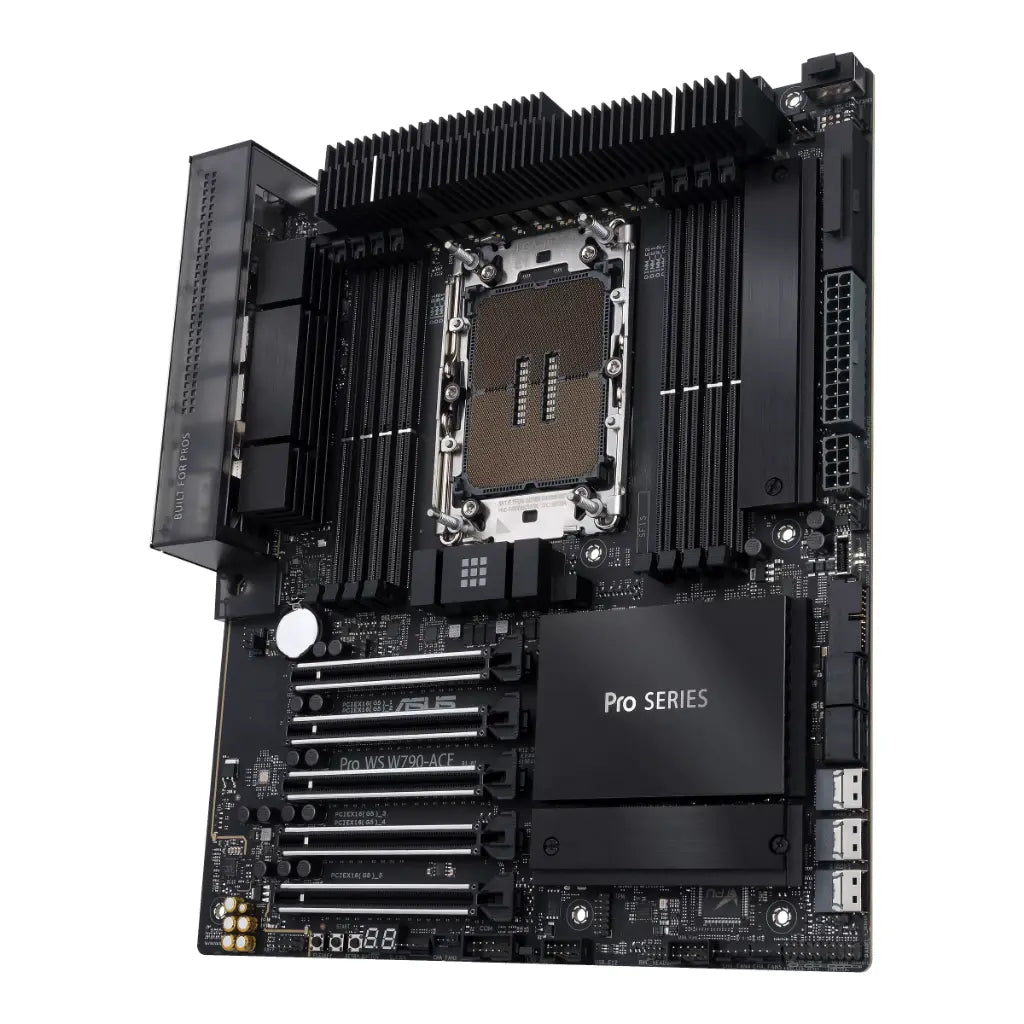

ASUS Pro WS W790‑ACE W790 LGA4677 DDR5 Workstation Motherboard

ASUS Pro WS W790‑ACE W790 LGA4677 DDR5 Workstation Motherboard

Brand: ASUS
Rs. 91,000.00
19% off Rs. 112,000.00 Rs. 91,000.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled

Product Description:
⚙️ Xeon‑Grade Workstation Power — Built for Intel Xeon W‑3400/W‑2400 processors, delivering exceptional reliability for professional workloads.

🚀 Ultra‑High DDR5 ECC Support — Features 8 DIMM slots supporting up to 2TB DDR5 ECC Registered Memory for demanding rendering and simulation tasks.

🔌 5× PCIe 5.0 x16 Slots — Ideal for GPUs, accelerators, RAID controllers and expansion cards requiring maximum bandwidth.

⚡ Dual High‑Speed LAN — Equipped with 10Gb Marvell LAN + 2.5Gb Intel LAN for ultra‑fast data transfers and low‑latency networking.

💾 Advanced Storage Flexibility — Includes dual PCIe 4.0 M.2, SlimSAS ports, and 4× SATA 6Gb/s for enterprise‑level NVMe & RAID configurations.

🎧 Pro‑Grade Connectivity & Audio — Comes with USB 3.2 Gen2x2 Type‑C, multiple USB ports, and premium Realtek S1220A 7.1 HD audio.

The ASUS Pro WS W790‑ACE is a high‑performance workstation motherboard engineered for creators, engineers, and enterprise professionals. Featuring the Intel W790 chipset, support for Xeon W‑series processors, and up to 2TB of DDR5 ECC memory, it delivers exceptional stability for rendering, AI, simulation, and data‑intensive tasks. With PCIe 5.0 slots, advanced storage options, dual high‑speed LAN, and professional‑grade audio, it provides unmatched scalability and reliability for mission‑critical workstation builds.

Product Specifications:

Specification Details
Model Pro WS W790‑ACE
CPU Support Intel® Socket LGA4677 for Xeon® W‑3400 & W‑2400 Series Processors, Supports Intel® Turbo Boost Max Technology 3.0
Chipset Intel® W790 Chipset
Memory 8× DIMM Slots, Max 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800
ECC Registered Memory Support
Quad‑Channel Architecture, Intel® XMP Support
Expansion Slots 5× PCIe 5.0 x16 (supports x16, x16, x16, x0/x8, x16/x8 modes)
Storage 2× M.2 Slots (PCIe 4.0 x4)
4× SATA 6Gb/s Ports
3× SlimSAS Ports (PCIe 3.0/4.0 NVMe, SATA via cables)
Ethernet 1× Marvell® AQtion 10Gb Ethernet
1× Intel® 2.5Gb Ethernet
Rear USB Ports (13 Total) 1× USB 3.2 Gen 2x2 Type‑C
4× USB 3.2 Gen 2 Type‑A
8× USB 2.0 Type‑A
Front USB Ports (7 Total) 1× USB 3.2 Gen 2x2 Type‑C
1× USB 3.2 Gen 1 Header (Adds 2 Ports)
2× USB 2.0 Headers (Add 4 Ports)
Audio Realtek S1220A 7.1 HD Audio CODEC
120 dB SNR Playback, 113 dB SNR Recording
Optical S/PDIF Out, Premium Audio Capacitors

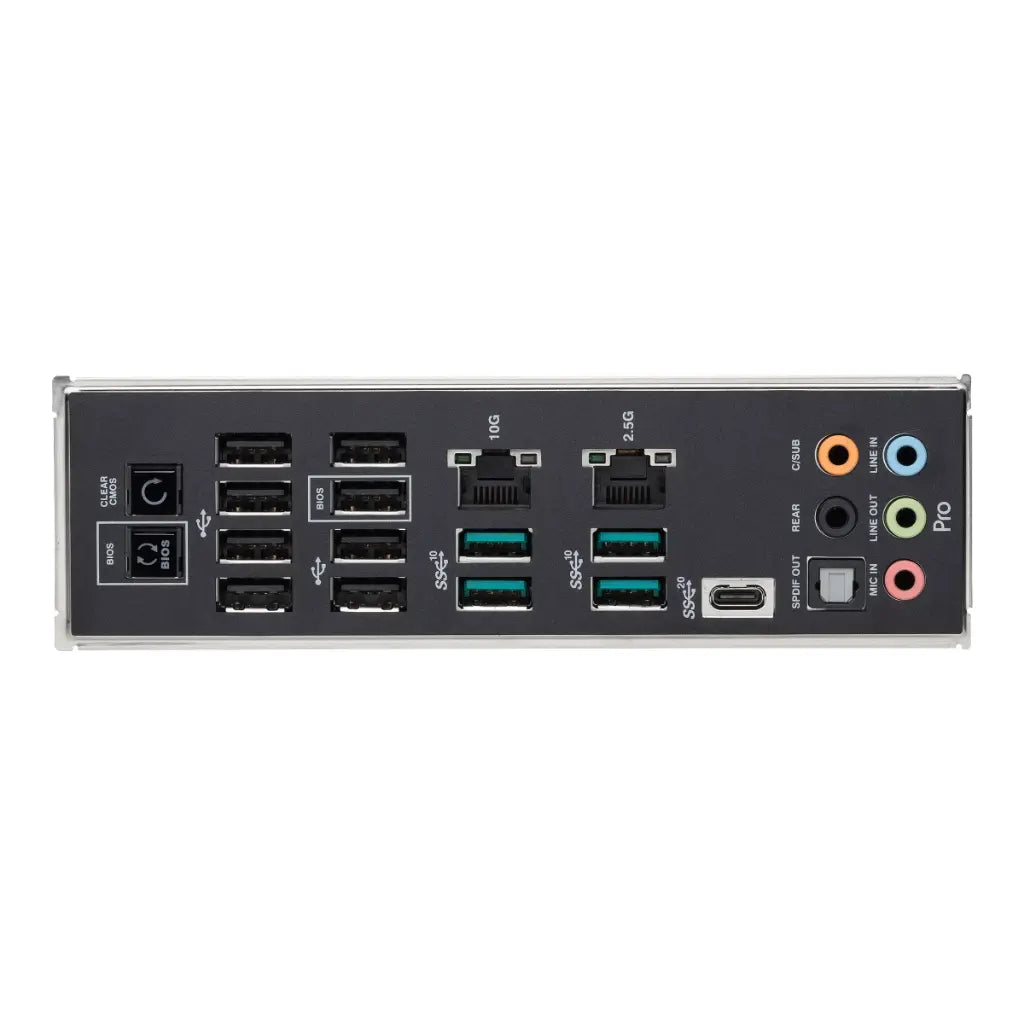

Back Panel I/O 1× USB 3.2 Gen 2x2 Type‑C
4× USB 3.2 Gen 2 Type‑A
8× USB 2.0 Type‑A
1× 10Gb LAN
5× Audio Jacks
1× Optical S/PDIF Out
BIOS FlashBack Button
Internal I/O 1× CPU Fan
2× 24‑Pin Power
2× M.2
USB 3.2 Gen 2x2 Front
BMC Header
Special Features Extreme OC Kit (FlexKey, ReTry, Start Button)
ASUS 5X Protection III
ASUS Thermal Solution
Software Armoury Crate, Fan Xpert 4, AI Suite 3, ASUS CPU‑Z, ACCE Support
Adobe CC Trial, Norton 360 Trial, WinRAR
BIOS 512 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL, PXE (UEFI Mode)

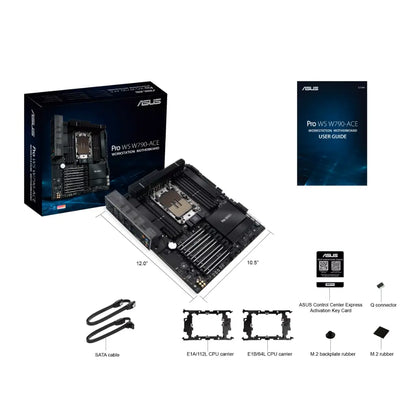

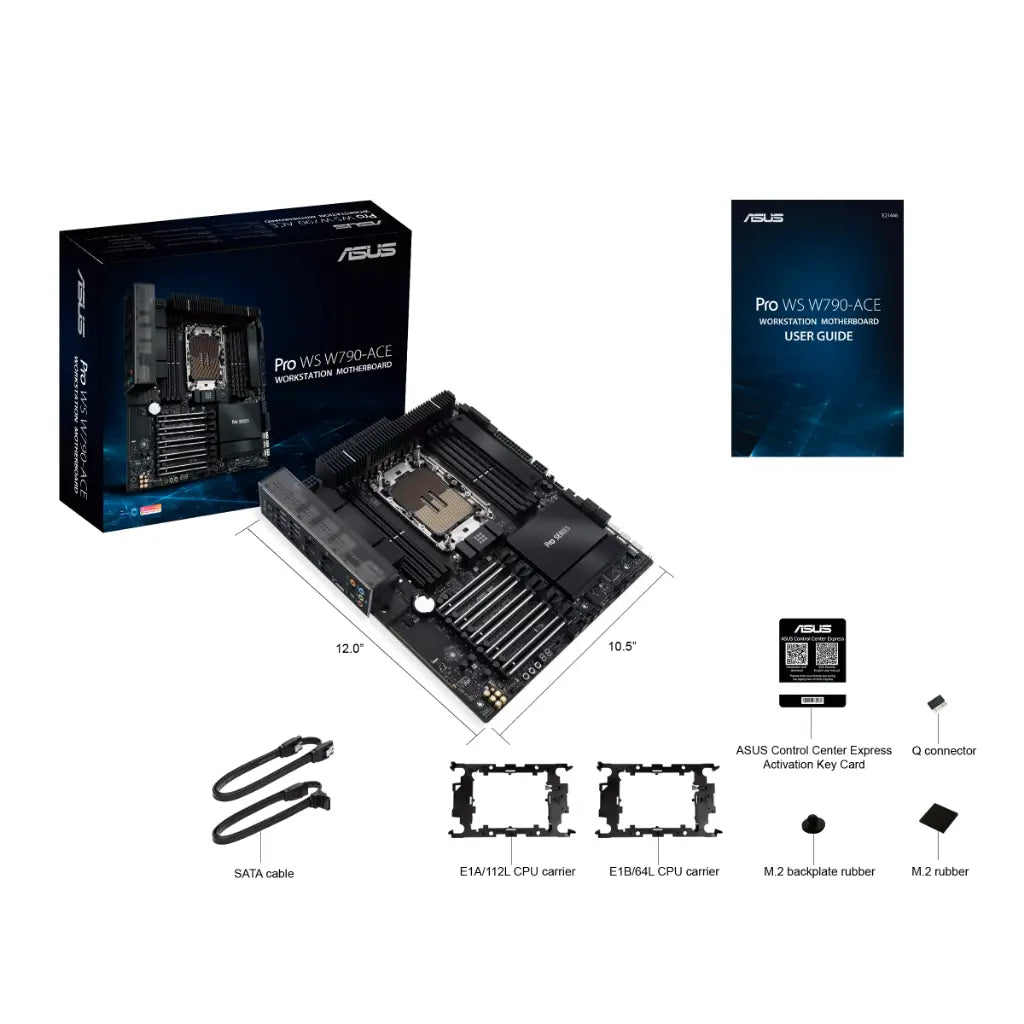

Accessories 2× SATA Cables
Operating System Support Windows® 11 & Windows® 10 64‑bit
Form Factor CEB (12" × 10.5" / 30.5cm × 26.67cm)
Country of Origin Taiwan
Warranty 3 Years
Weight 1.81 kg
