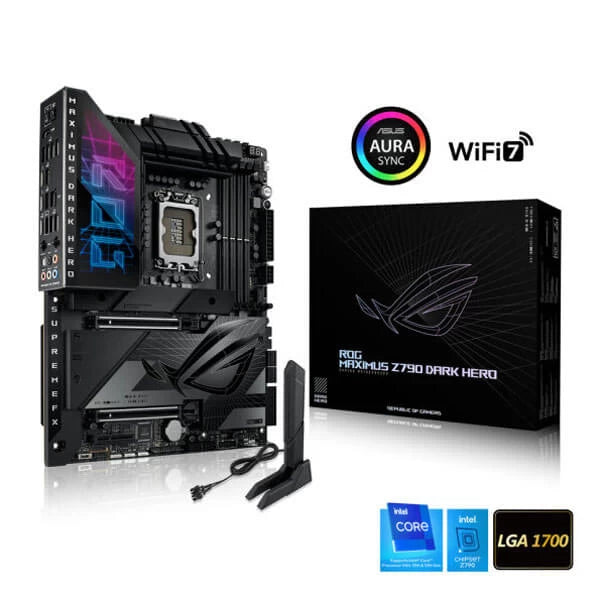

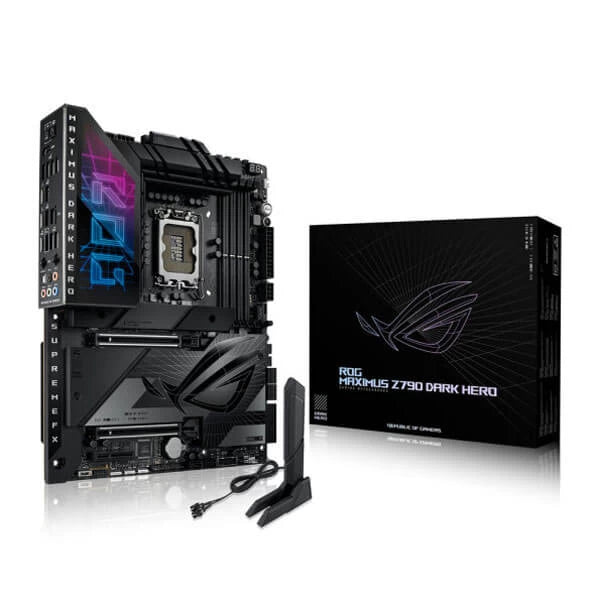

ASUS ROG Maximus Z790 Dark Hero LGA 1700 ATX Motherboard
ASUS ROG Maximus Z790 Dark Hero LGA 1700 ATX Motherboard
Couldn't load pickup availability
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
Intel LGA 1700 socket: Ready for Intel Core 14th & 13th Gen processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Robust Power Solution: 20+1+2 power stages with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
Latest M.2 Support: Onboard PCIe 5.0 M.2 slot, and four PCIe 4.0 M.2 slots all with substantial cooling solutions
Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI 2.1
ROG OVERCLOCKING TECHNOLOGIES
Psyche up and engage the Dark Hero overclocker in you, with onboard intelligence to scan, predict, and adapt CPU performance parameters, and tools to command and track system vitals.
WIFI 7
Next-gen WiFi 7* chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
2.5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
| Model | ROG MAXIMUS Z790 DARK HERO |
| Part Number | |
| CPU Socket | Intel Socket LGA 1700 |
| CPU Support |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 |
| Memory |
4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*" Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supports DIMM Flex |
| On-Board Graphics support |
1 x HDMITM port 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs |
| Expansion Slot |
Intel® CoreTM Processors (14th & 13th & 12th Gen) 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel® Z790 Chipset 1 x PCIe 4.0 x4 slot |
| Ethernet |
1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless and Bluetooth |
Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth® v5.4**** |
| Storage |
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) Intel® Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - ESS® ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors |
| USB Ports |
Rear USB (Total 12 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Back Panel I/O Ports |
2 x Thunderbolt™ 4 USB Type-C® ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin main power connector 2 x 8-pin +12V power connector 1 x 8-pin PCIe power connector Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x ReTry button 1 x 10-1 pin system panel header 1 x Thermal sensor header 1 x CPU over voltage jumper 1 x Alteration PCIe mode switch |
| Accessories |
Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 1 x DDR5 fan holder Miscellaneous 1 x ASUS WiFi Q-Antenna 3 x M.2 backplate Q-Latch packages 3 x M.2 backplate Rubber Packages 1 x Q-connector 1 x ROG stickers 1 x ROG key chain 1 x M.2 rubber package 1 x ROG VIP card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 30.5 cm x 24.4 cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
