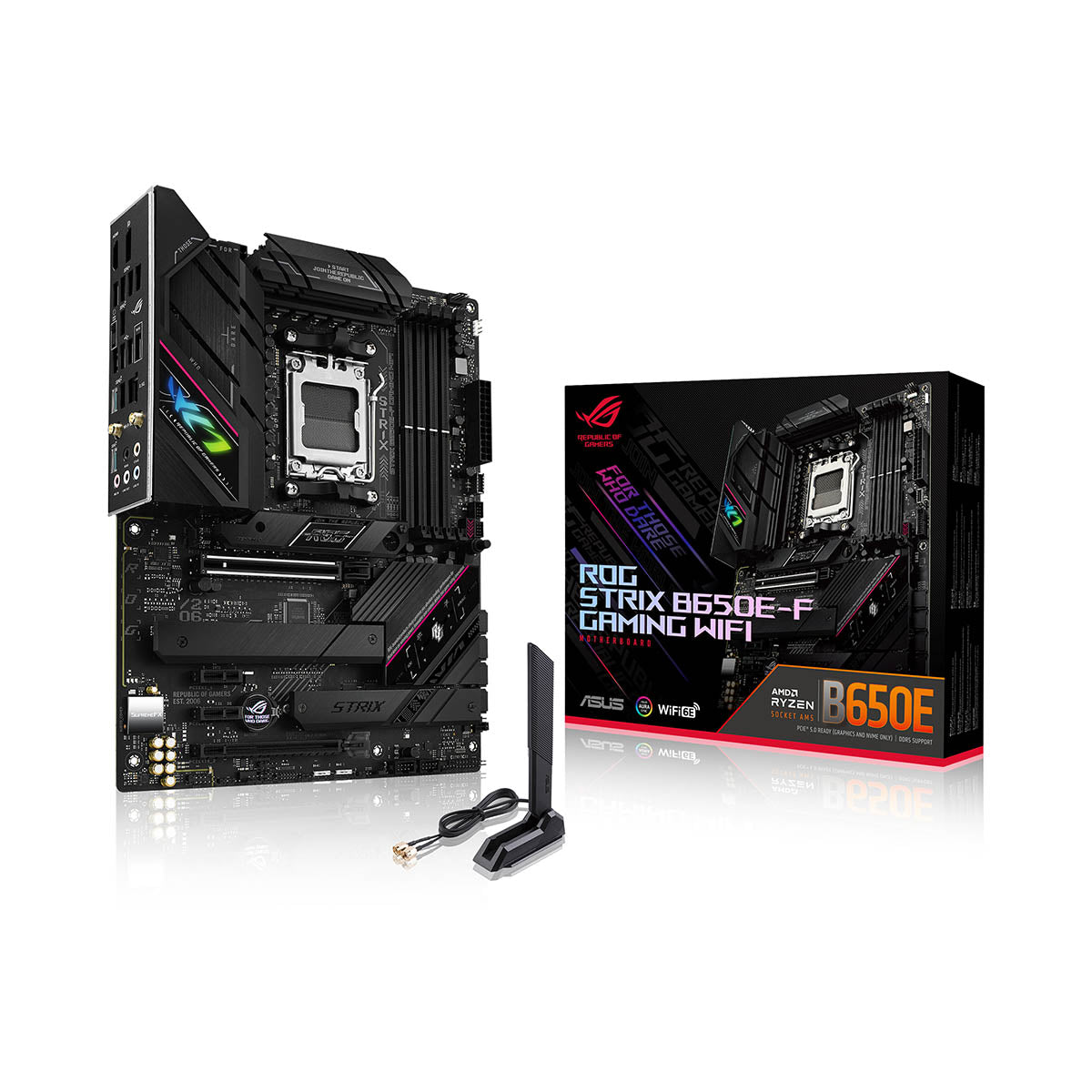

ASUS ROG STRIX B650E-F WIFI AMD B650 AM5 ATX Motherboard
ASUS ROG STRIX B650E-F WIFI AMD B650 AM5 ATX Motherboard
Couldn't load pickup availability
- Free Shipping
- 10-Days Return
- Original Warranty
Product Description:
- The ASUS motherboard is designed to support latest AMD Socket AM5 for Ryzen 7000 series Processors.
- The board is PCIe 5.0 storage Ready supporting up to 128GB DDR5 6400+MHz of memory and EXPO technology to push your gaming experience to its peak. The board support PCIe 5.0 video-cards making it future proof.
- Enjoy extended connectivity with the next-gen technology of WIFI6E, PCIe 5.0, Intel 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C and Three M.2 slots.

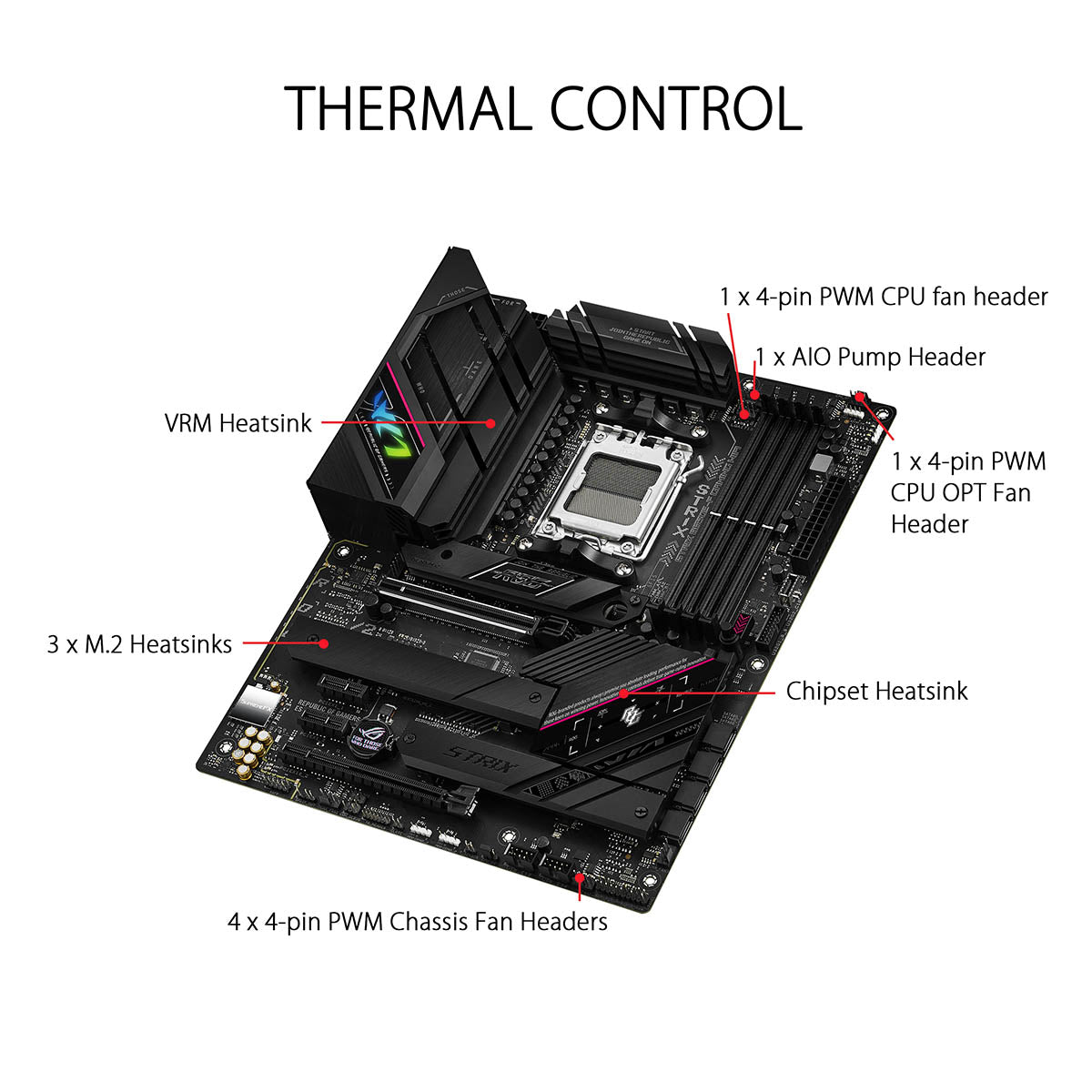

- The motherboard comes with comprehensive cooling options such as VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+.
~section~
DDR5 Overclocking
For those who want to fly past stock DDR5 speeds, the Strix B650E-F is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
PCIe 5.0 M.2

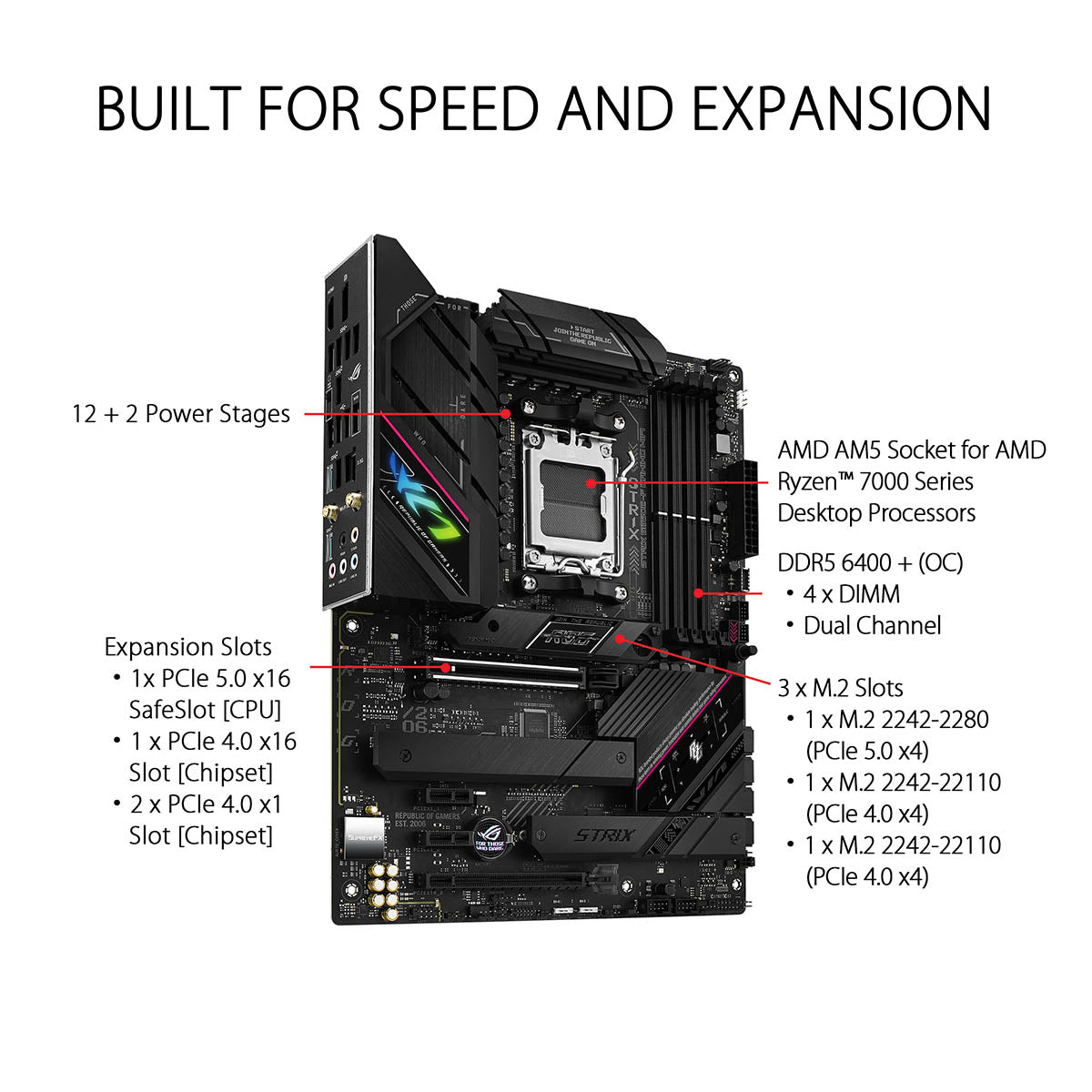

Take advantage of future storage and GPU performance with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all with robust heatsinks, and a PCIe 5.0 x16 slot that features SafeSlot and Q-Release for easy upgrades.
WIFI 6E
Onboard WIFI 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
PCIe Slot Q-Release
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
BIOS FlashBack
BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button.
ROG B650E-F WIFI
This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.
~section~
| Model | ASUS ROG STRIX B650E-F WIFI Gaming Motherboard |
| Part Number | 90MB1BQ0-M0EAY0 |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processor. |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| On-Board Graphics support | 1 x DisplayPort 1 x HDMI |
| Expansion Slot |
AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Ethernet | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset: M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |

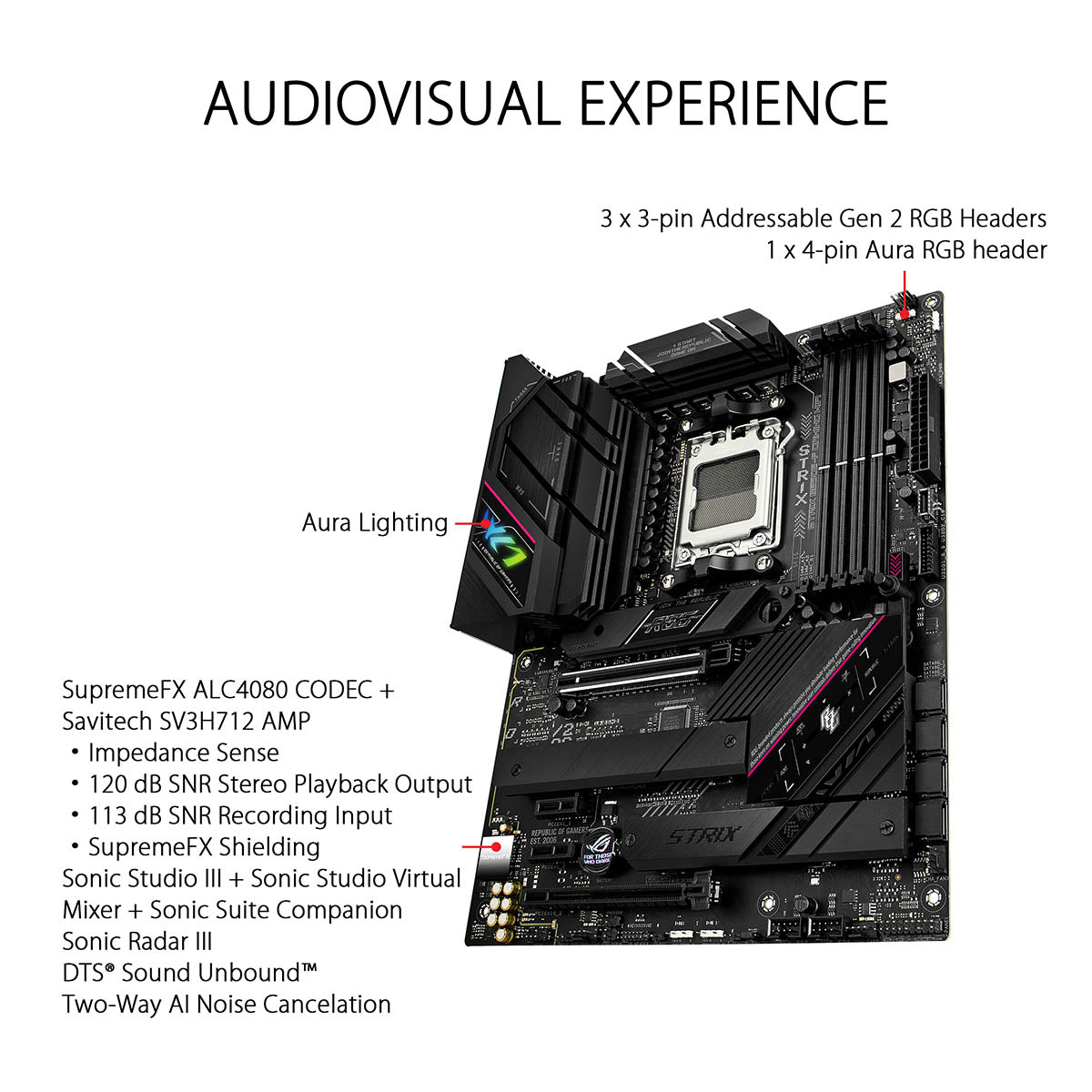

| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 32-Bit/384 kHz playback |
| USB Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 port (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports): 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |

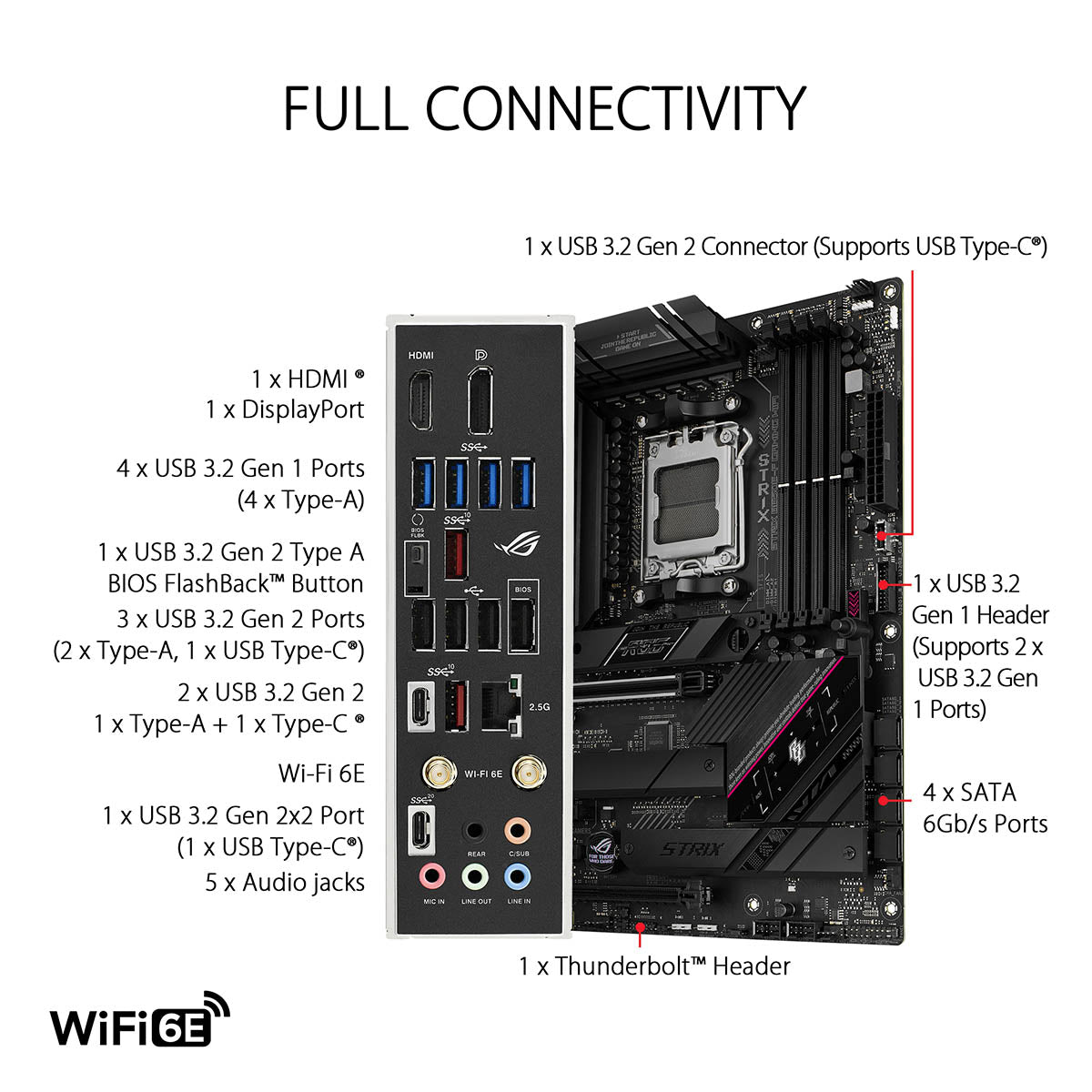

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Internal I/O ports |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x COM_DEBUGheader |

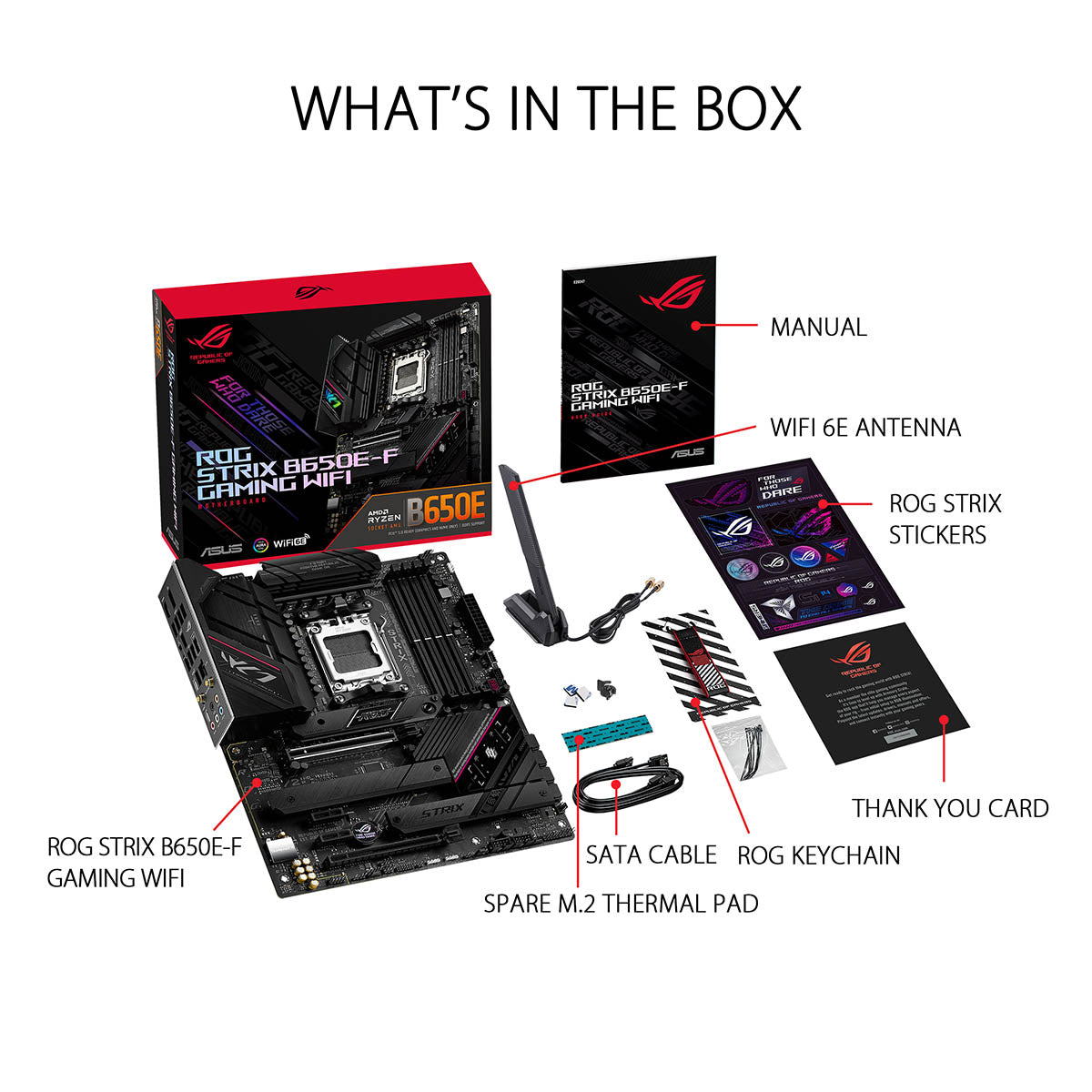

| Accessories |
Cables: 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages Documentation 1 x User guide |
| Operating System | Windows 11 64-bit |
| Dimensions | ATX Form Factor 30.5cm x 24.4cm |
| Warranty | 3 Years of Brand Warranty |
