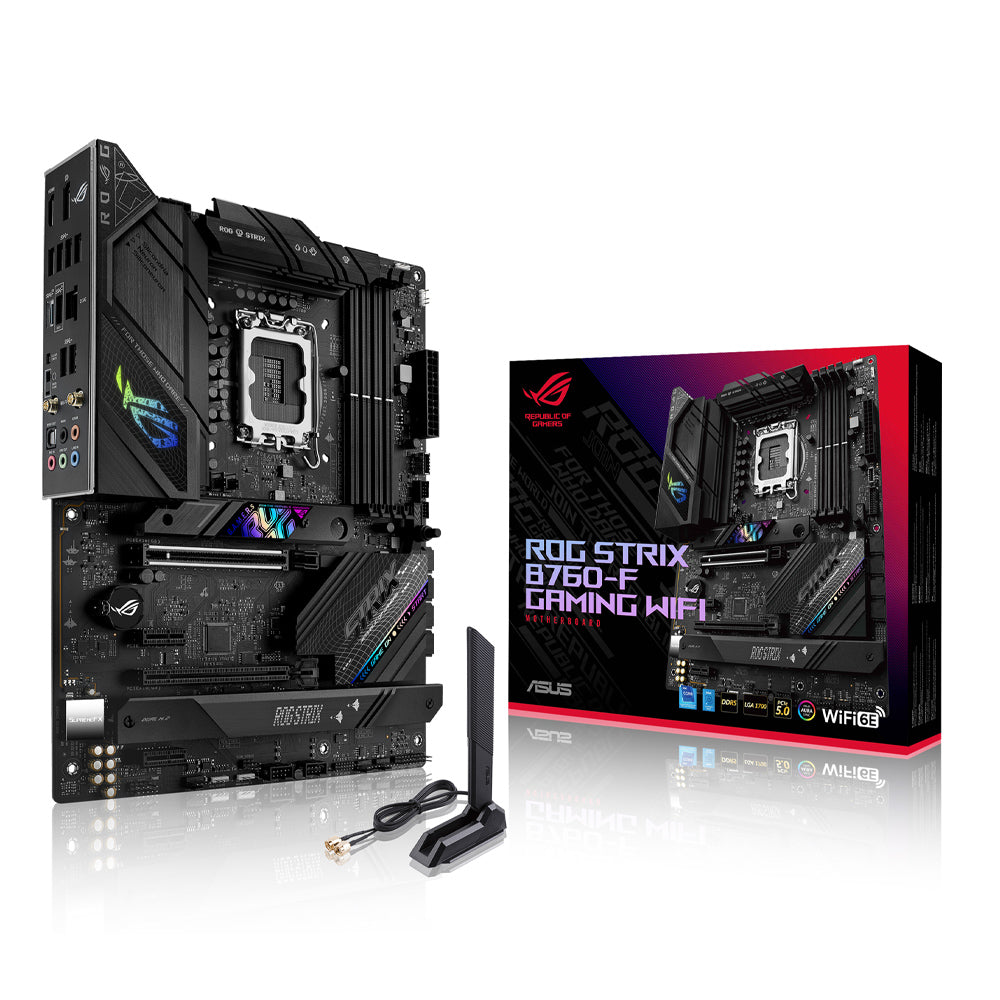

ASUS ROG STRIX B760-F GAMING WIFI Intel B760 LGA 1700 ATX Motherboard

ASUS ROG STRIX B760-F GAMING WIFI Intel B760 LGA 1700 ATX Motherboard

Brand: ASUS
Regular price Rs. 27,999.00
Regular price Rs. 40,000.00 Sale price Rs. 27,999.00
Sale Sold out
  • Free Shipping: We deliver to 27000+ pin codes in India.
  • 10-Days Return: We got you covered with easy returns.
  • Original Warranty: This product has original Brand warranty.
Easy Returns Cancellation Policy Shipping Policy Trust Center
  • The ASUS motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen Intel Core Processors, 12th Gen Intel Core processors, Pentium Gold and Celeron Processors.
  • The board is PCIe 5.0 Ready supporting up to 128GB DDR5 7800MHz(OC) of memory and Intel Turbo Boost Technology to push your gaming experience to its peak. The board support next gen PCIe 5.0 video-cards making it future prrof.
  • Enjoy extended connectivity with the next-gen technology of WIFI 6E, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C and Three M.2 slots.

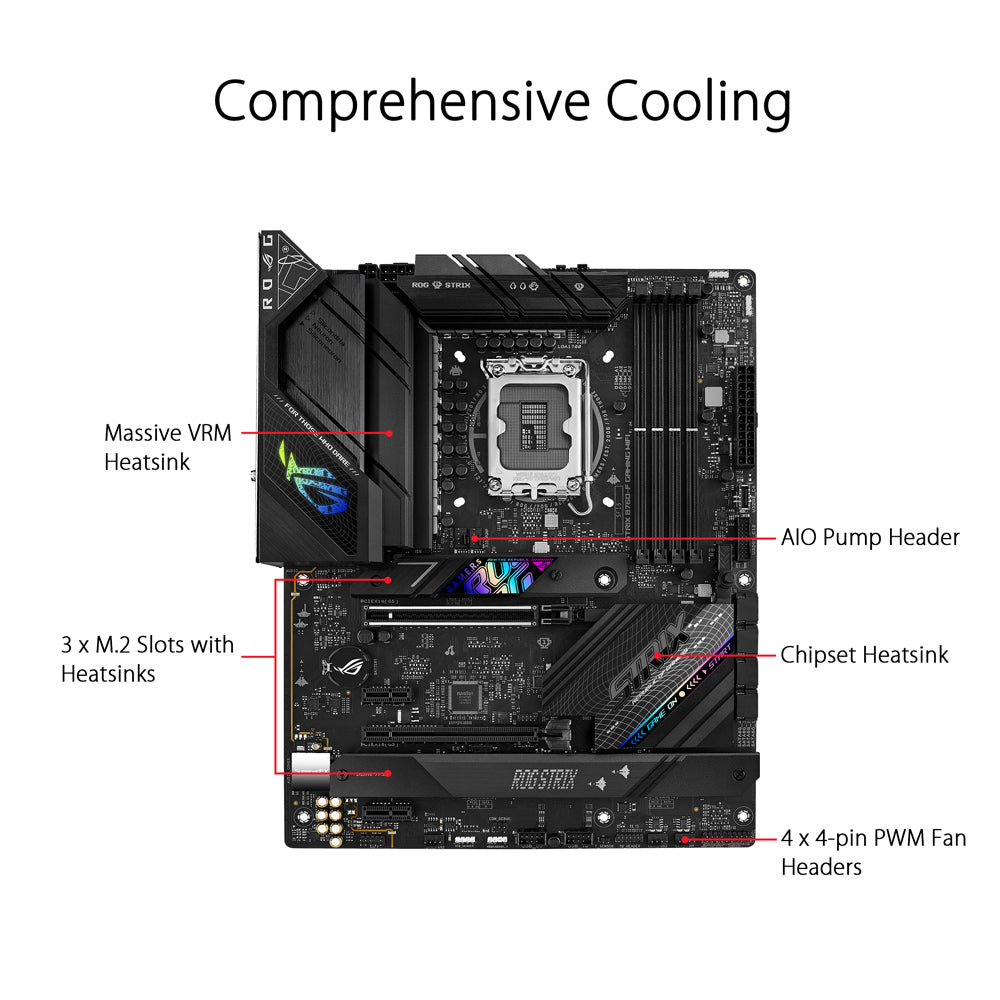

  • Features the most comprehensive cooling options with VRM heatsink, Thermal pads, M.2 Heatsink and hybrid fan headers. This motherboard offers rock-solid and stable performance for marathon gaming.
  • The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio. Intelligent software solutions help ensure that your system performs at its best.

~section~

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 ATX Motherboard - from tpstech.in
ASUS ROG STRIX B760-F GAMING WIFI Intel B760 ATX Motherboard - from tpstech.in

Three M.2 Slots

With three strategically placed M.2 slots, ROG Strix B760-F Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver lightning-fast data transfers that blaze past traditional SATA-based SSDs.

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 ATX Motherboard - from tpstech.in

PCIE 5.0

Fully embracing the new standard, the Strix B760-F offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards.

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 ATX Motherboard - from tpstech.in

DDR5 Overclocking

For DDR5, the Strix B760 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC.

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 ATX Motherboard - from tpstech.in

AEMP II

ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix B760-F to push frequencies higher than ever before.

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 ATX Motherboard - from tpstech.in

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 ATX Motherboard - from tpstech.in

USB 3.2 Gen 2x2

The Strix B760-F comes loaded with multiple high-speed USB options. All of the rear I/O ports are USB 3.2-compliant, with the fastest being a USB 3.2 Gen 2x2 Type-C port for data transfers up to 20 Gbps.

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 ATX Motherboard - from tpstech.in

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 ATX Motherboard - from tpstech.in

AIDA64 Extreme

The ROG Strix B760-F includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues.

~section~

Model ASUS ROG STRIX B760-F GAMING WIFI Motherboard
Part Number 90MB1CT0-M0IAY0
CPU Socket Intel Socket LGA 1700
CPU Support Intel 13th Gen, 12th Gen Intel Core, Pentium Gold and Celeron Processors.
Chipset Intel B760
Memory 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/
6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
On-Board Graphics support 1 x DisplayPort 1.4, Supports max 8K@60Hz
1 x HDMI 2.1, Supports 4K@60Hz

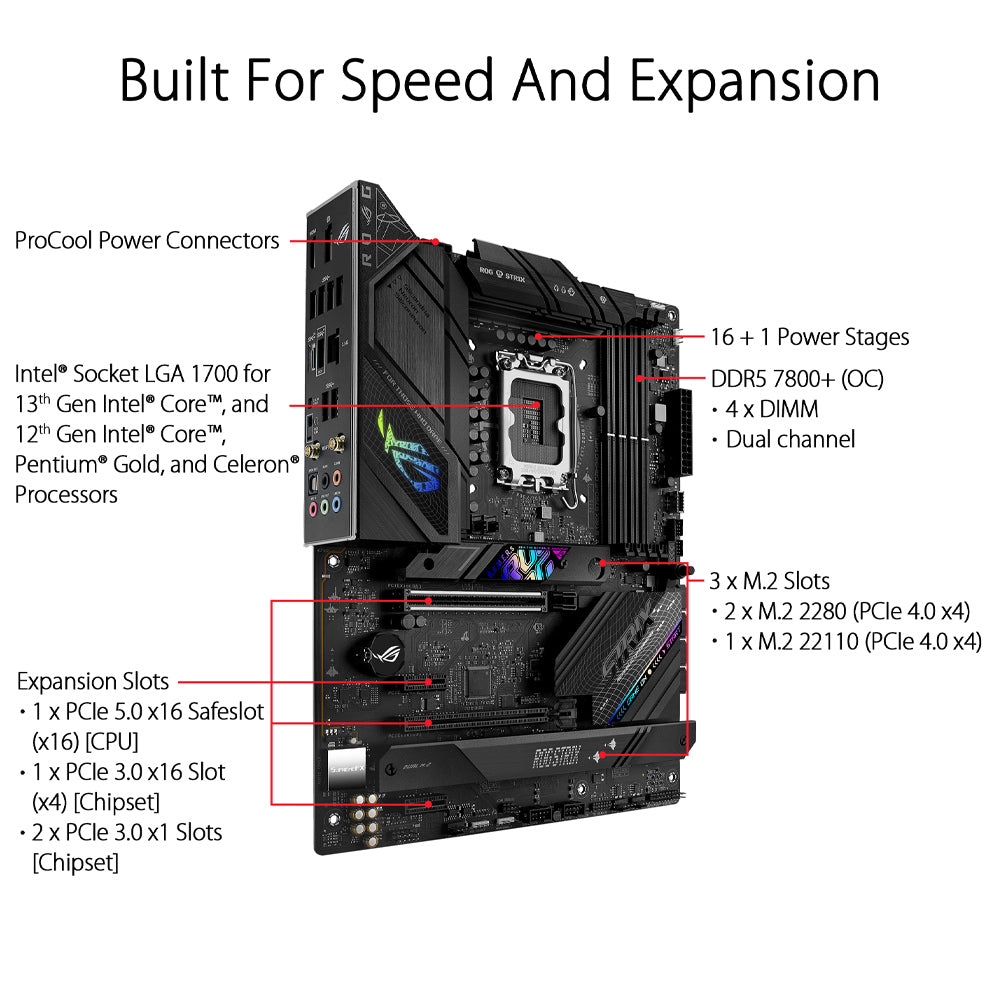

Expansion Slot Intel 13th and 12th Gen Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
Intel B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slot
Ethernet 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless and Bluetooth Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th and 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports

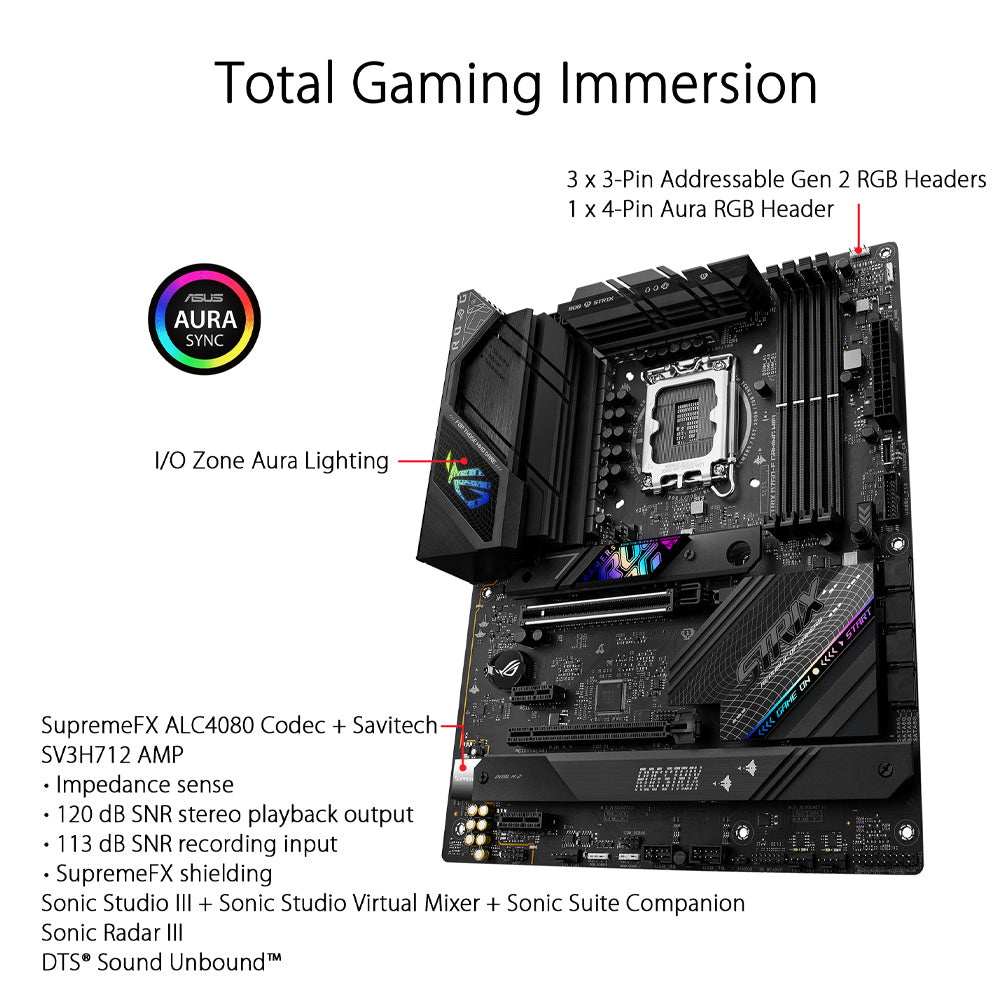

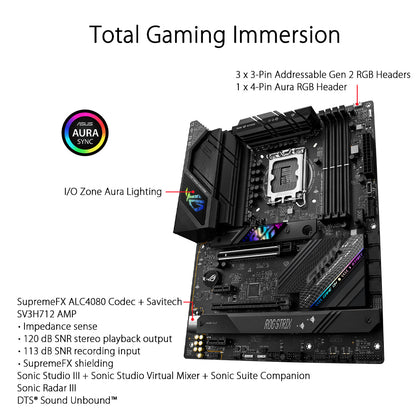

Audio ROG SupremeFX 7.1 Surround Sound High-Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
USB Ports Rear USB (Total 8 ports):
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
Front USB (Total 7 ports):
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

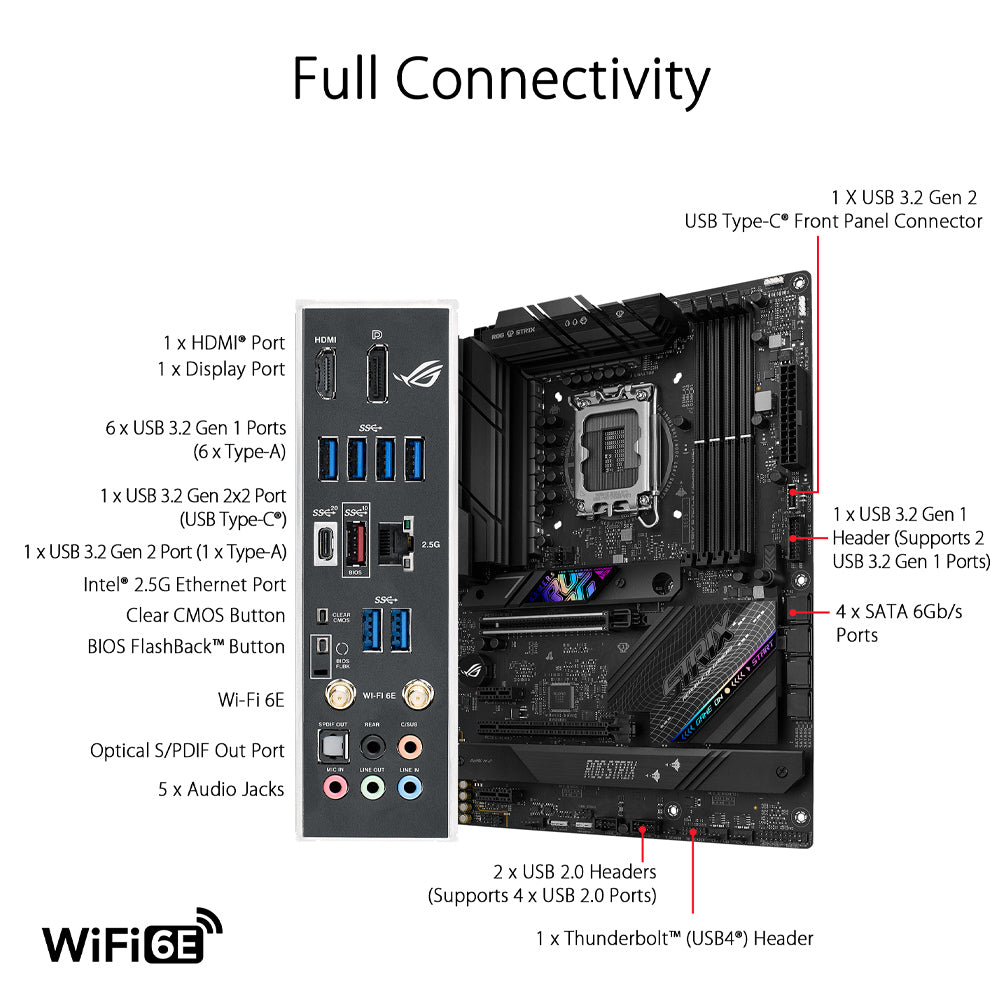

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
1 x HDMI port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O ports Fan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related:
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 xThunderbolt (USB4) header

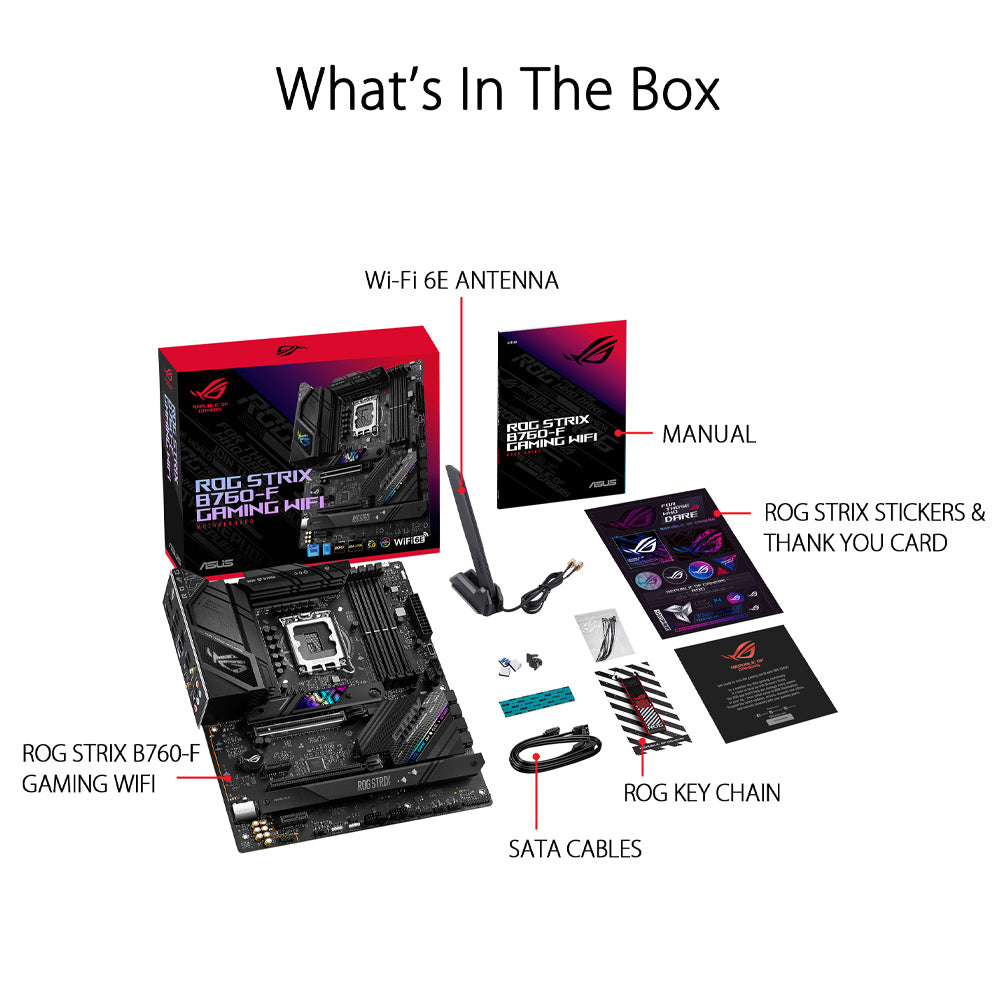

Accessories Cables:
2 x SATA 6Gb/s cables
Additional Cooling Kit:
1 x Thermal pad for M.2
Miscellaneous:
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
2 x M.2 Rubber Packages
1 x ROG Strix thank you card
1 x ROG key chain
1 x ROG STRIX stickers
Package Documentation:
1 x User guide
Operating System Windows 11 64-bit
Windows 10 64-bit
Dimensions 30.5 cm x 24.4 cm
ATX Form Factor
Warranty 3 Years of Brand Warranty
