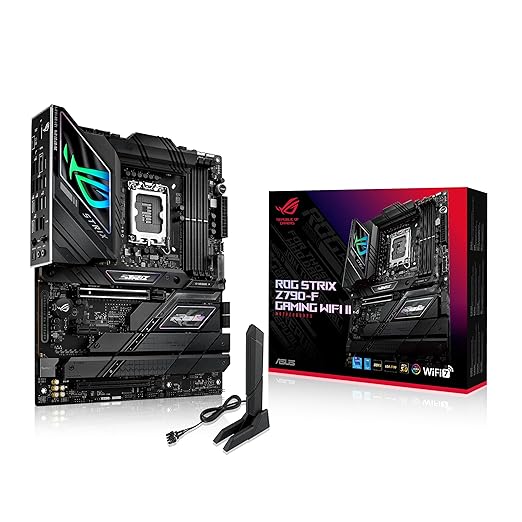

ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700 ATX Motherboard
ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700 ATX Motherboard
Couldn't load pickup availability
- Free Shipping
- 10-Days Return
- Original Warranty
Product Description:
Intel LGA 1700 socket: Ready for Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

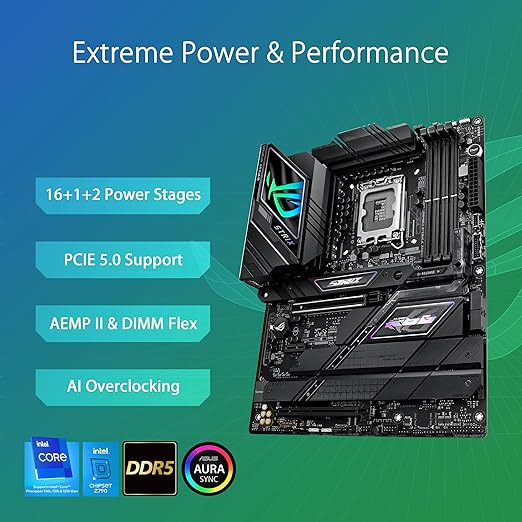

Robust Power Solution: 16+1+2 power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe
Ample M.2 Support: One PCIe 4.0 M.2 slot with a heatsink and backplate, and four PCIe 4.0 M.2 slots with heatsinks
Abundant Connectivity: USB 20Gbps, 10Gbps and 5Gbps rear I/O ports, front-panel USB connector with PD 3.0 up to 30W, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
WIFI 7
With Multi-Link Operation (MLO)*, WiFi 7** can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.
Learn more about Multi-Link Operation (MLO) and WiFi 7 technology. https://www.asus.com/content/wifi7/
* MLO (Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
** WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features.
PCIE 5.0
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.
DDR5 DOMINATION
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the Strix Z790-F II, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

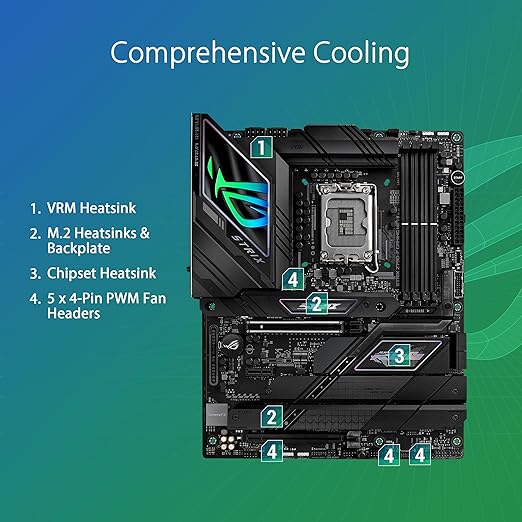

VRM HEATSINK ARRAY
Covering the power solution are two thick heatsinks connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of high-performance Intel 14th Gen processors.
| Model | ASUS ROG STRIX Z790-F GAMING WIFI II Motherboard |
| Part Number | ROG STRIX Z790-F GAMING WIFI II |
| CPU Socket | Intel Socket LGA 1700 |
| CPU Support | Intel 14th Gen,13th Gen, 12th Gen Intel Core, |
| Chipset | Intel Z790 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/ 6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| On-Board Graphics support | 1 x DisplayPort 1.4, Supports max 8K@60Hz 1 x HDMI 2.1, Supports 4K@60Hz |
| Expansion Slot |
Intel 14th, 13th and 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 2 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot |
| Ethernet | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless and Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 14th ,13th and 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes) 4 x SATA 6Gb/s ports |
| Audio |
ROG SupremeFX 7.1 Surround Sound High-Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback |
| USB Ports |
Rear USB (Total 12 ports): 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports): 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O ports |
Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) 1 x USB 3.2 Gen 1 header support 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |

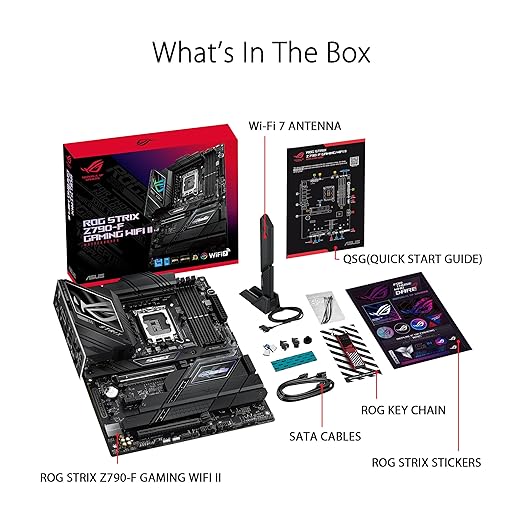

| Accessories |
Cables: 2 x SATA 6Gb/s cables Additional Cooling Kit: 1 x DDR5 Fan holder 1 x Thermal pad for M.2 Miscellaneous: 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 backplate Q-Latch package 2 x M.2 Rubber Packages 1 x ROG Strix thank you card 1 x ROG key chain 1 x M.2 backplate Rubber 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Package Documentation: 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 30.5 cm x 24.4 cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
