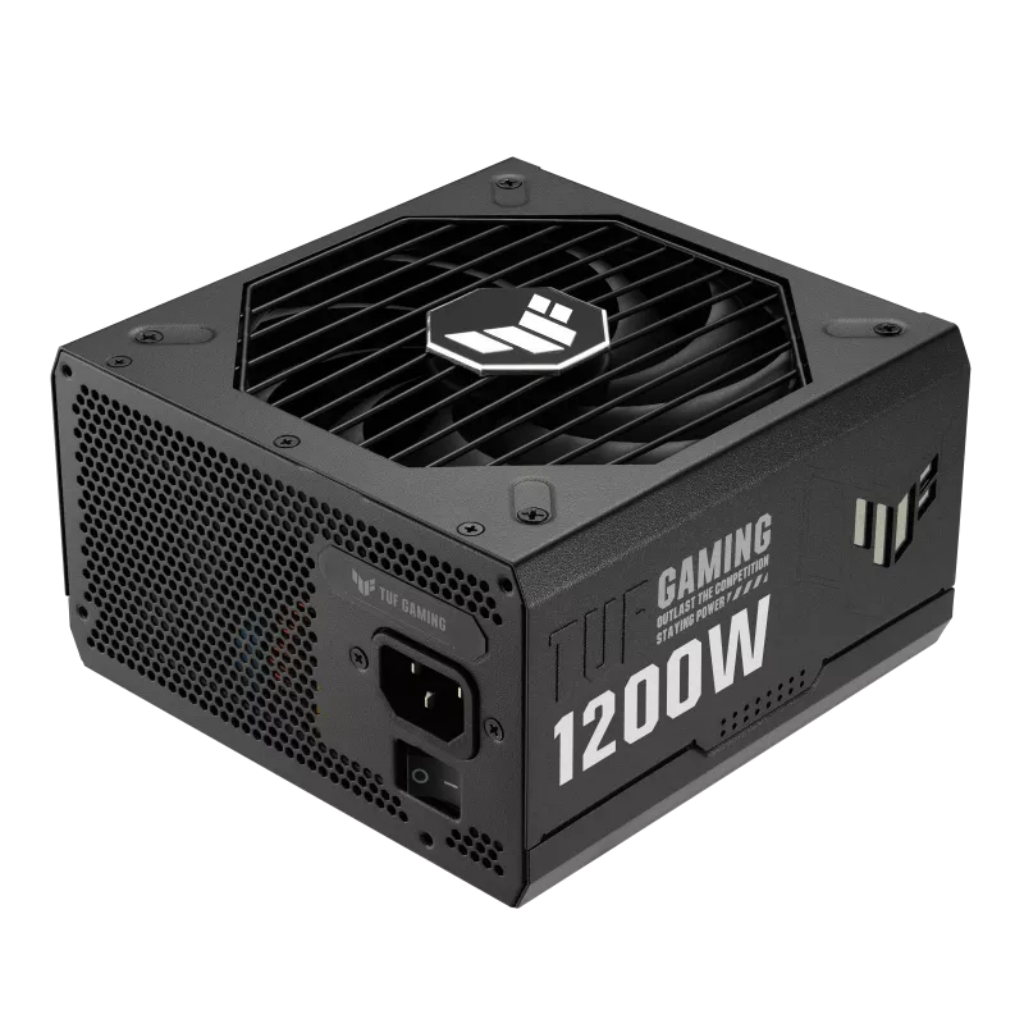

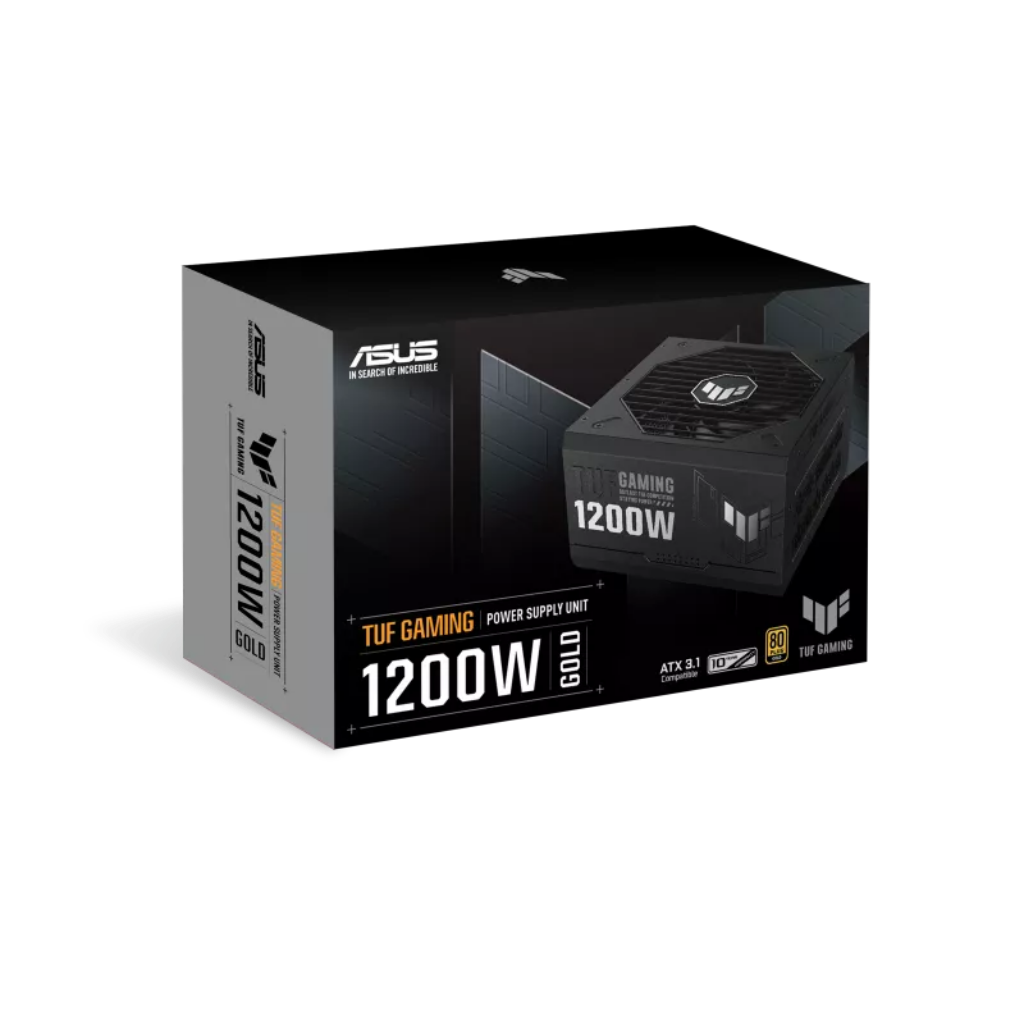

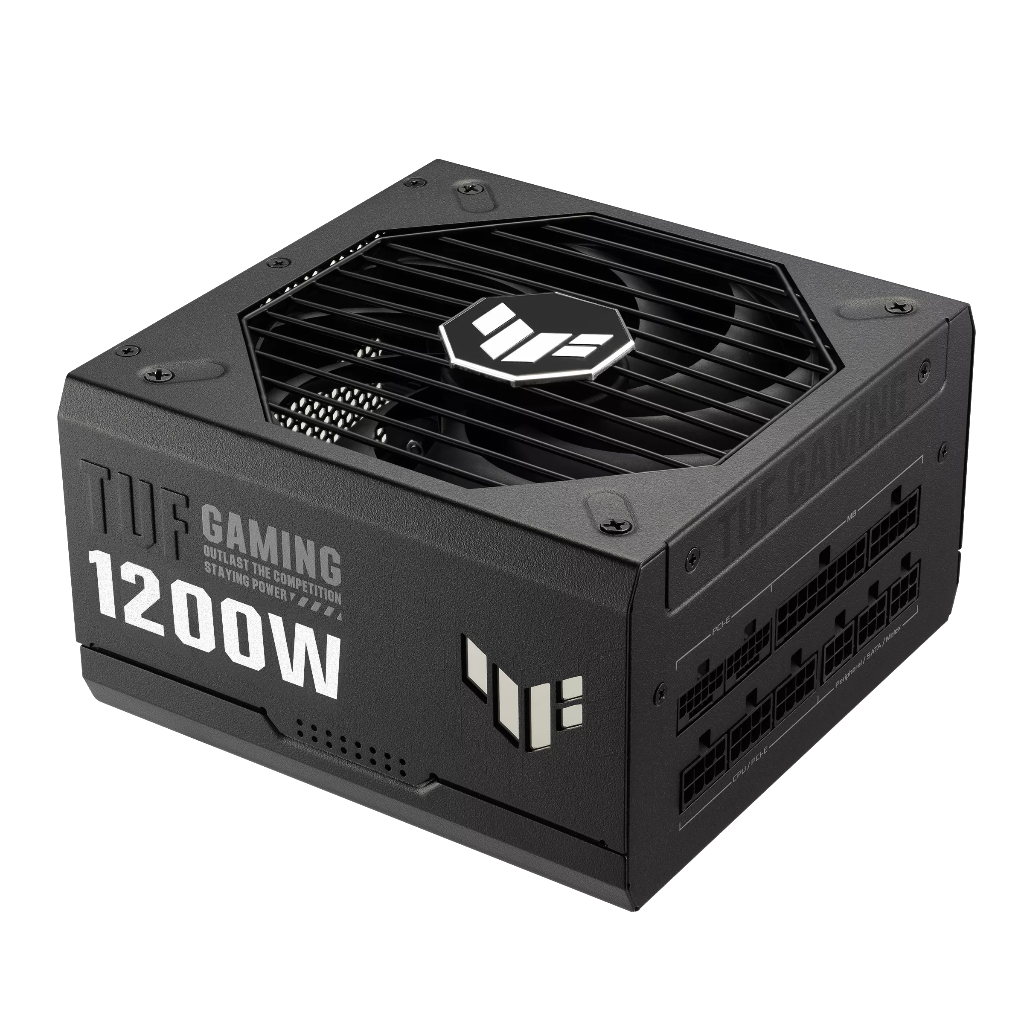

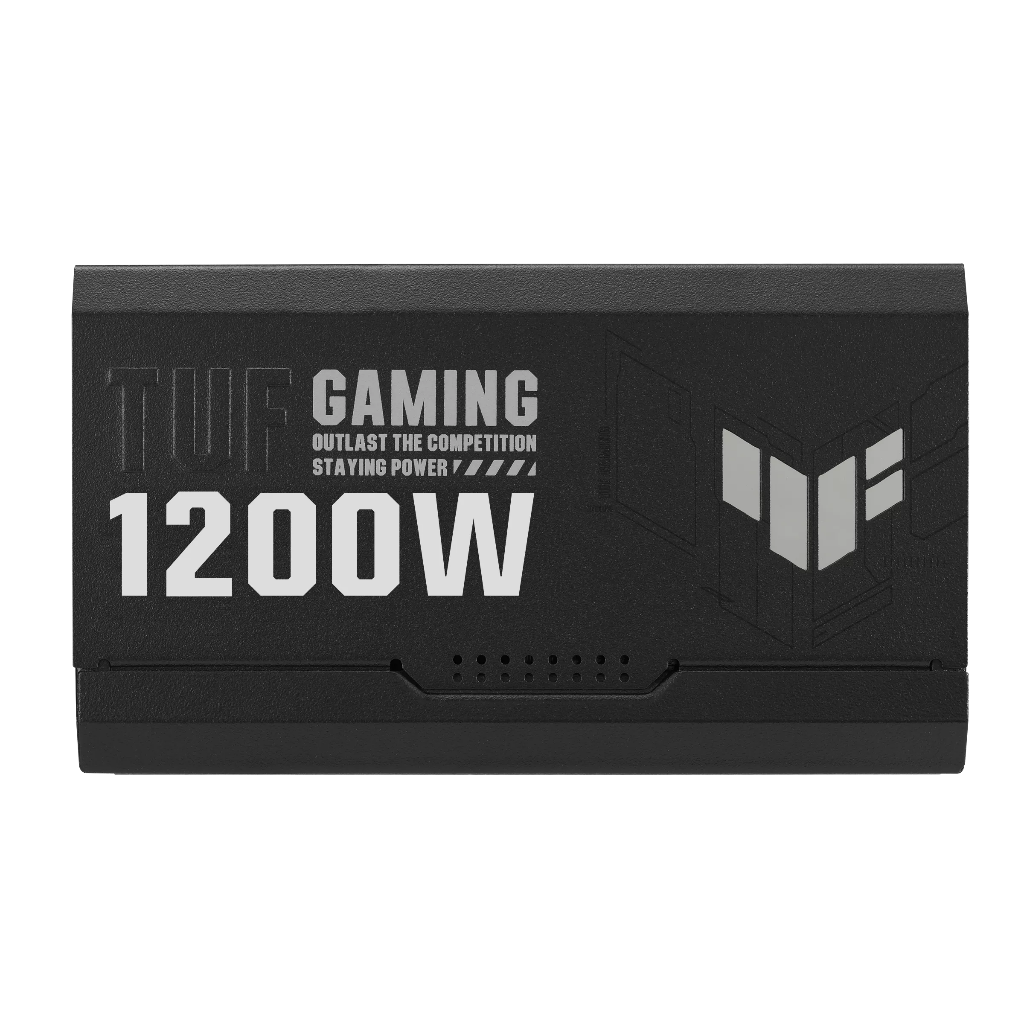

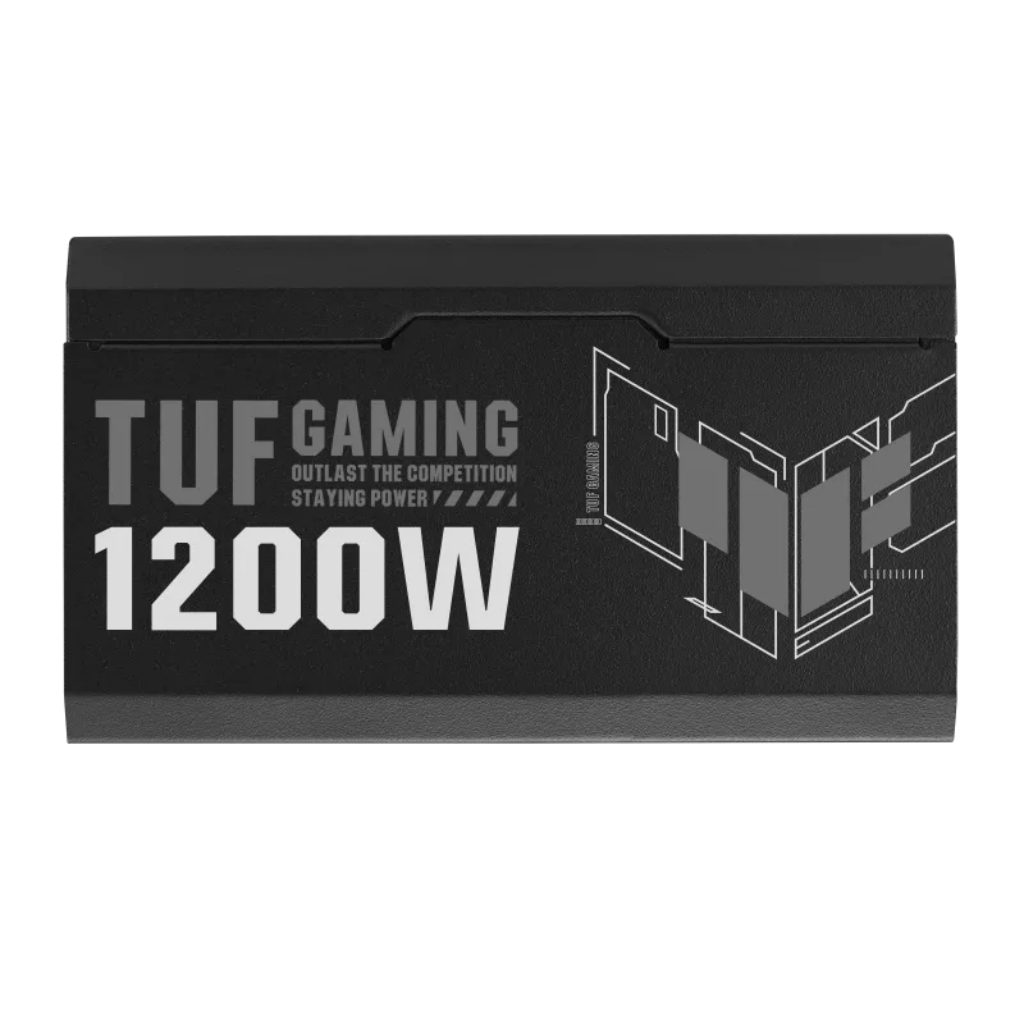

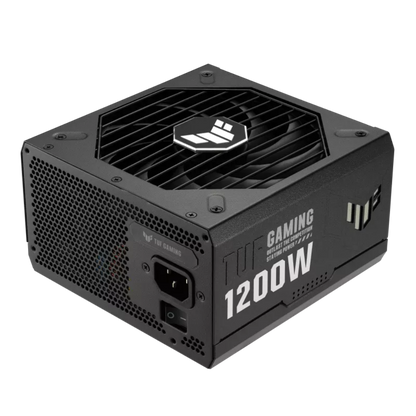

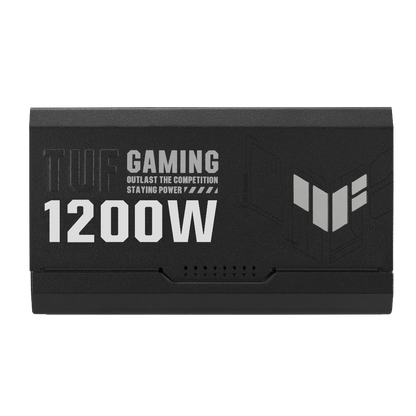

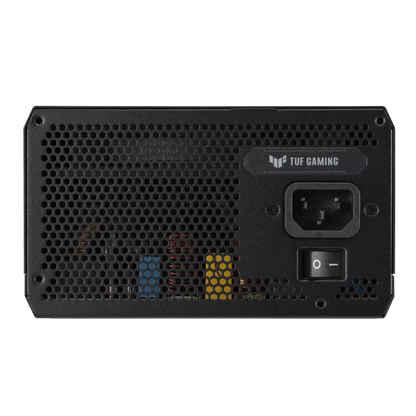

ASUS TUF Gaming 1200W 80 Plus Gold Full Modular CPU Power Supply

ASUS TUF Gaming 1200W 80 Plus Gold Full Modular CPU Power Supply

Brand: ASUS
Rs. 20,399.00
55% off Rs. 45,000.00 Rs. 20,399.00
Sale Sold out
Loading Offers...
+ Offers

Product Description:

Capacitors and chokes pass demanding tests to achieve Military-grade Certification.

Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

A protective PCB coating protects against moisture, dust, and extreme temperatures.

An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

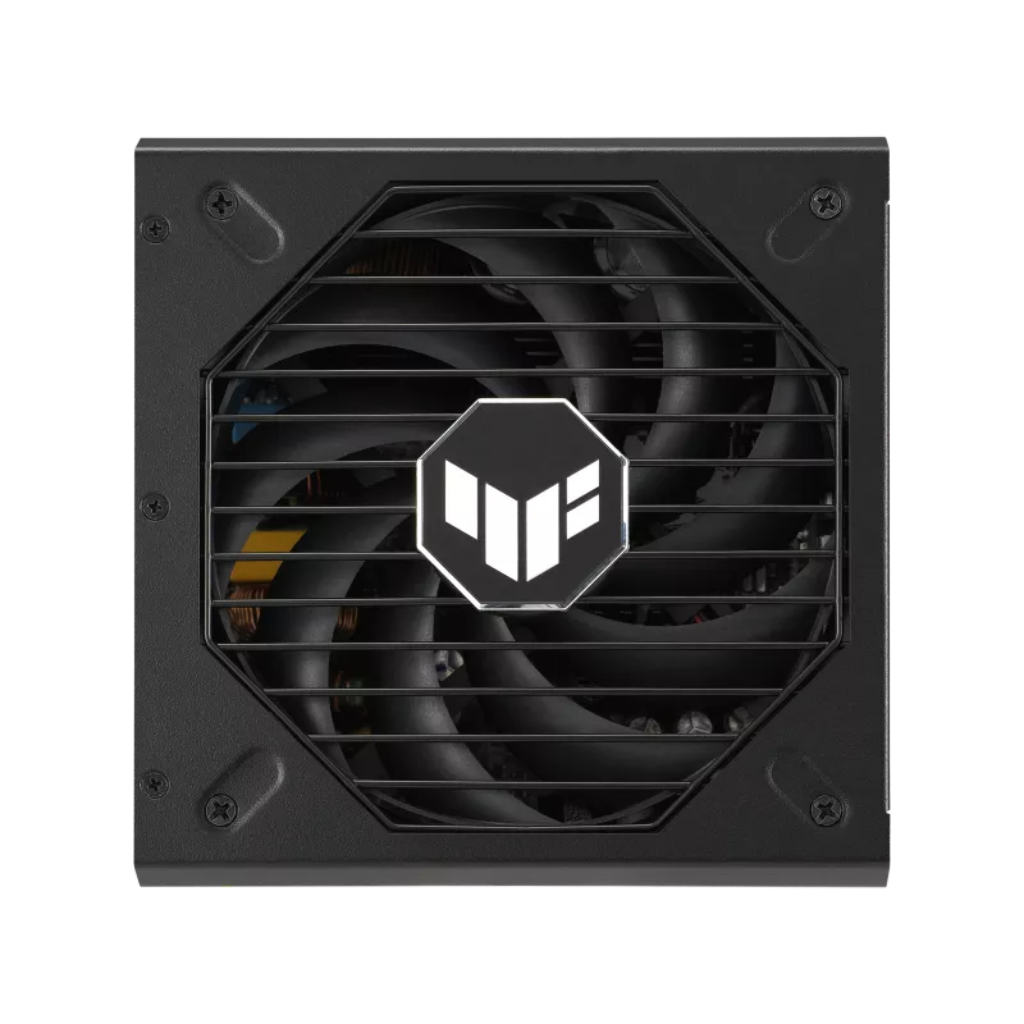

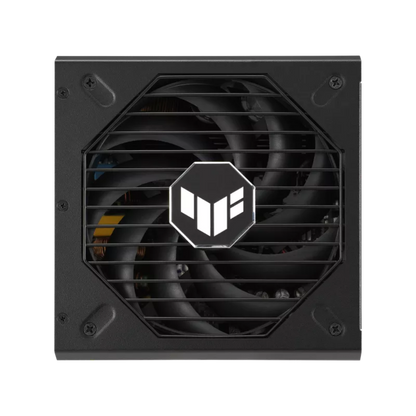

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

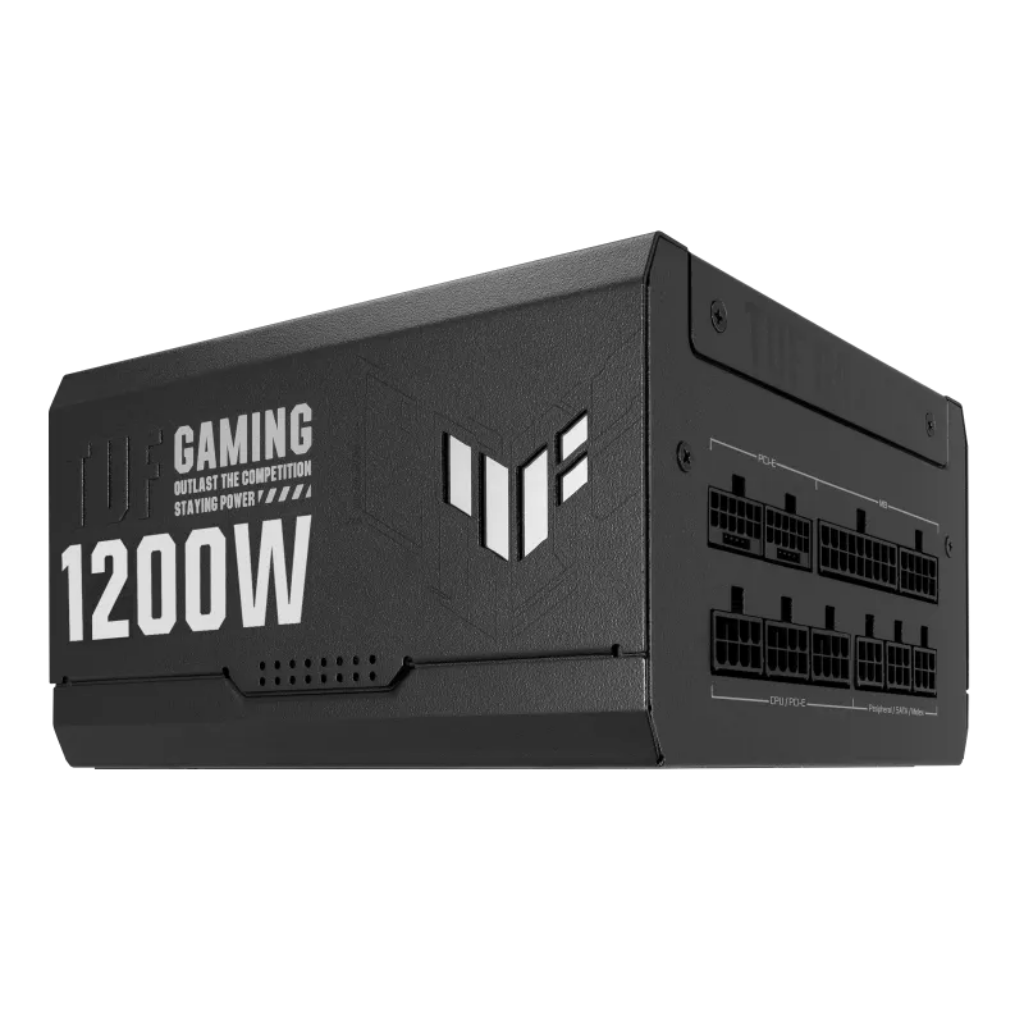

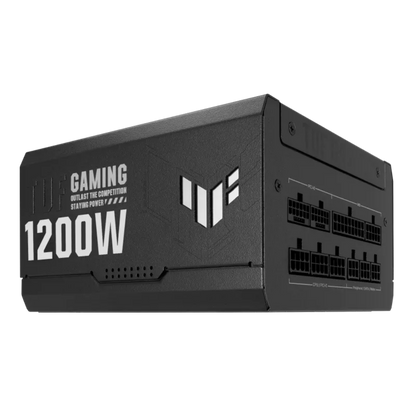

Fully modular etched cables keep your rig neat and tidy.

Model 90YE00S0-B0IA00
Intel Specification
 ATX12V
Intel Form Factor
 ATX12V
PFC Type
 Active PFC
ATX Standard
 ATX 3.1
Dimensions
 150 x 150 x 86 mm
Efficiency 80Plus Gold
MTBF >120,000 hrs @ 40°C
Protection Features
 OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
 ROHS
AC Input Range
 100-240Vac
DC Output Voltage
 +3.3V +5V +12V -12V +5Vsb
Maximum Load
 25A25A99A 0.8A 3A
Combined Load
 130W 130W 1188W 9.6W 15W
Total Output
 1200W
Cable Connectors
 MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Package Contents
 Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 2 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight
2.66kg (single PSU)
0dB Technology Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
Warranty
10 years
