ASUS TUF GAMING B650-Plus WIFI AMD B650 AM5 ATX Motherboard

ASUS TUF GAMING B650-Plus WIFI AMD B650 AM5 ATX Motherboard

Brand: ASUS
Regular price Rs. 23,499.00
Sale price 33% off Rs. 23,499.00 Sale Sold out Regular price Rs. 35,000.00
  • The ASUS motherboard is designed to support latest AMD Socket AM5 for Ryzen 7000 series Processors.
  • The board is PCIe 5.0 storage Ready supporting up to 128GB DDR5 6400MHz+(OC) of memory and EXPO technology to push your gaming experience to its peak. The board support PCIe 4.0 video-cards.
  • Enjoy extended connectivity on ASUS B650 motherboard with the next-gen technology of WIFI 6,PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C and Three M.2 slots.
  • The motherboard comes with AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio. Intelligent software solutions help ensure that your system performs at its best.

~section~

ASUS TUF Gaming B650-Plus WIFI Motherboard - From tpstech.in
ASUS TUF Gaming B650-Plus WIFI Motherboard - From tpstech.in

DDR5 Overclocking

For those who want to fly past stock DDR5 speeds, the TUF Gaming B650 is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

ASUS TUF Gaming B650-Plus WIFI Motherboard - From tpstech.in

PCIe 5.0 M.2

TUF GAMING B650 motherboards also feature PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.

ASUS TUF Gaming B650-Plus WIFI Motherboard - From tpstech.in

WIFI 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2 Gbps. It's optimized for more efficient operation on crowded networks with a lot of competing traffic.

ASUS TUF Gaming B650-Plus WIFI Motherboard - From tpstech.in

Realtek 7.1

The unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out.

ASUS TUF Gaming B650-Plus WIFI Motherboard - From tpstech.in

2.5Gb Ethernet

2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. You can take advantage this networking upgrade to experience smoother, lag-free gaming

ASUS TUF Gaming B650-Plus WIFI Motherboard - From tpstech.in

Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components like CPU, RAM, graphics card, storage devices are functioning normally during startup.

ASUS TUF Gaming B650-Plus WIFI Motherboard - From tpstech.in

TUF B650-PLUS WIFI

ASUS TUF GAMING B650-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail.

~section~

Model ASUS TUF Gaming B650-Plus WIFI Motherboard
Part Number 90MB1BZ0-M0EAY0
CPU Socket AMD AM5
CPU Support AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processor.
Chipset AMD B650

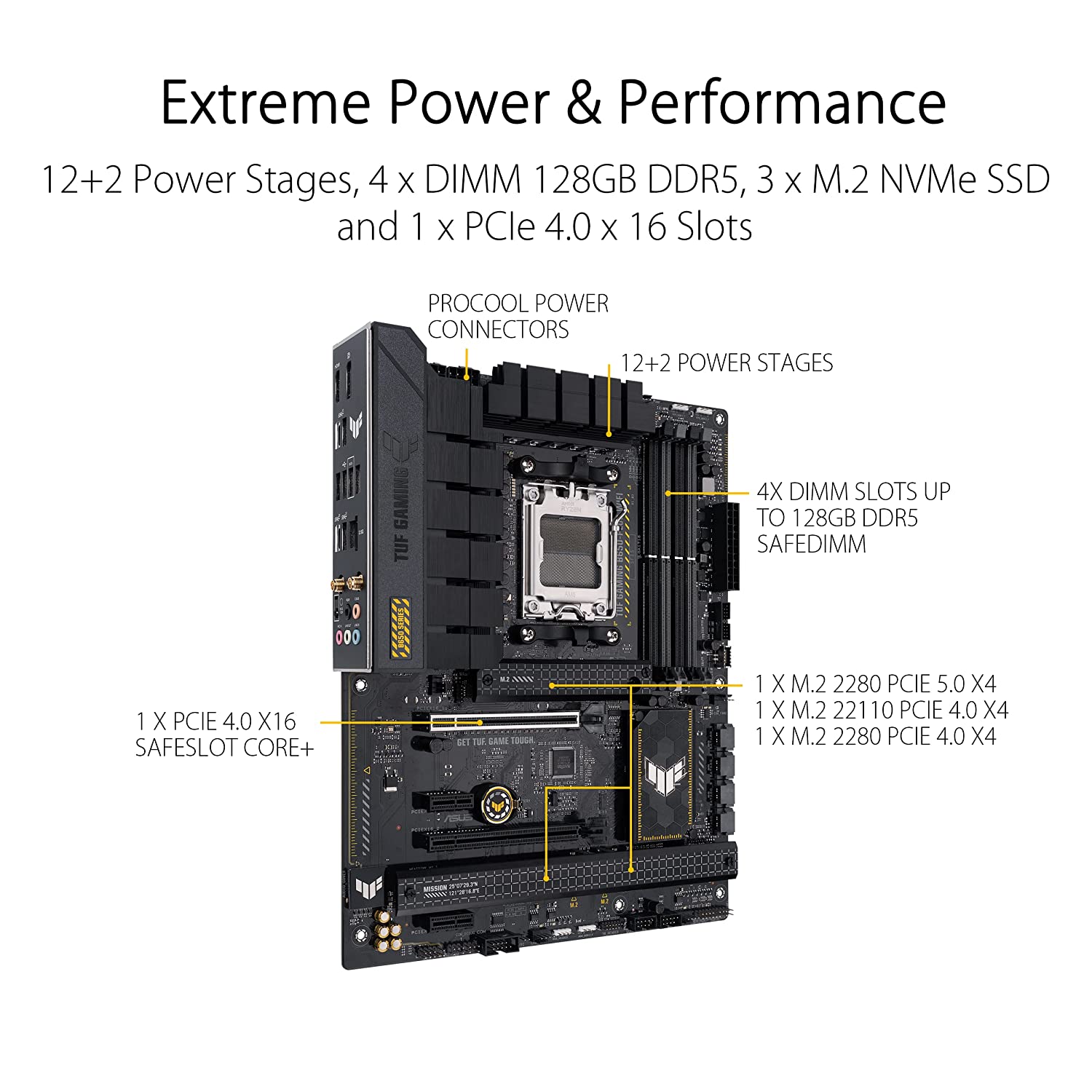

Memory 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/
5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
On-Board Graphics support 1 x DisplayPort
1 x HDMI
Expansion Slot AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0/3.0 x16 slot
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 4.0/3.0 x1 slots
Wireless & Bluetooth Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Ethernet 1 x Realtek 2.5Gb Ethernet
1x TUF LANGuard
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset:
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback

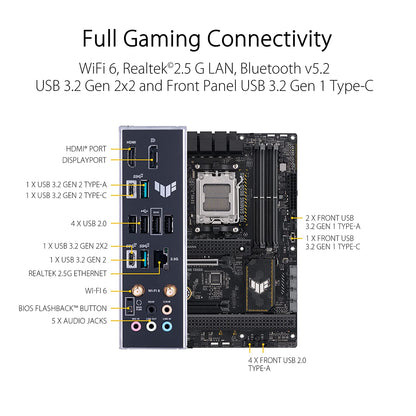

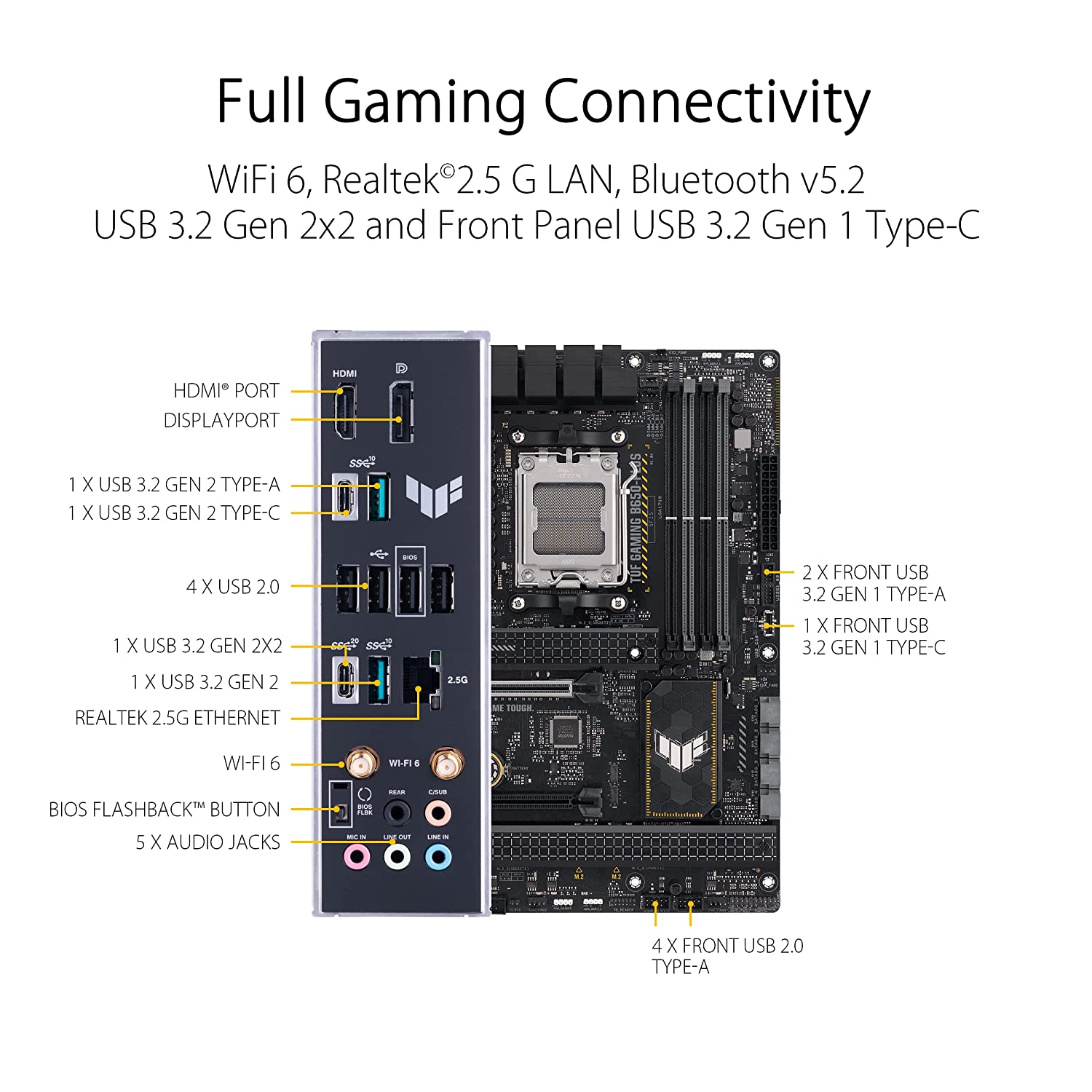

USB Ports Rear USB (Total 8 ports):
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports):
1 x USB 3.2Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x WIFI Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button

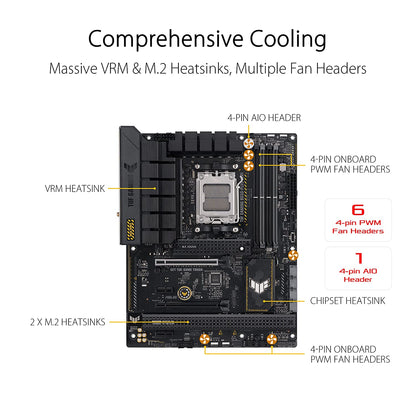

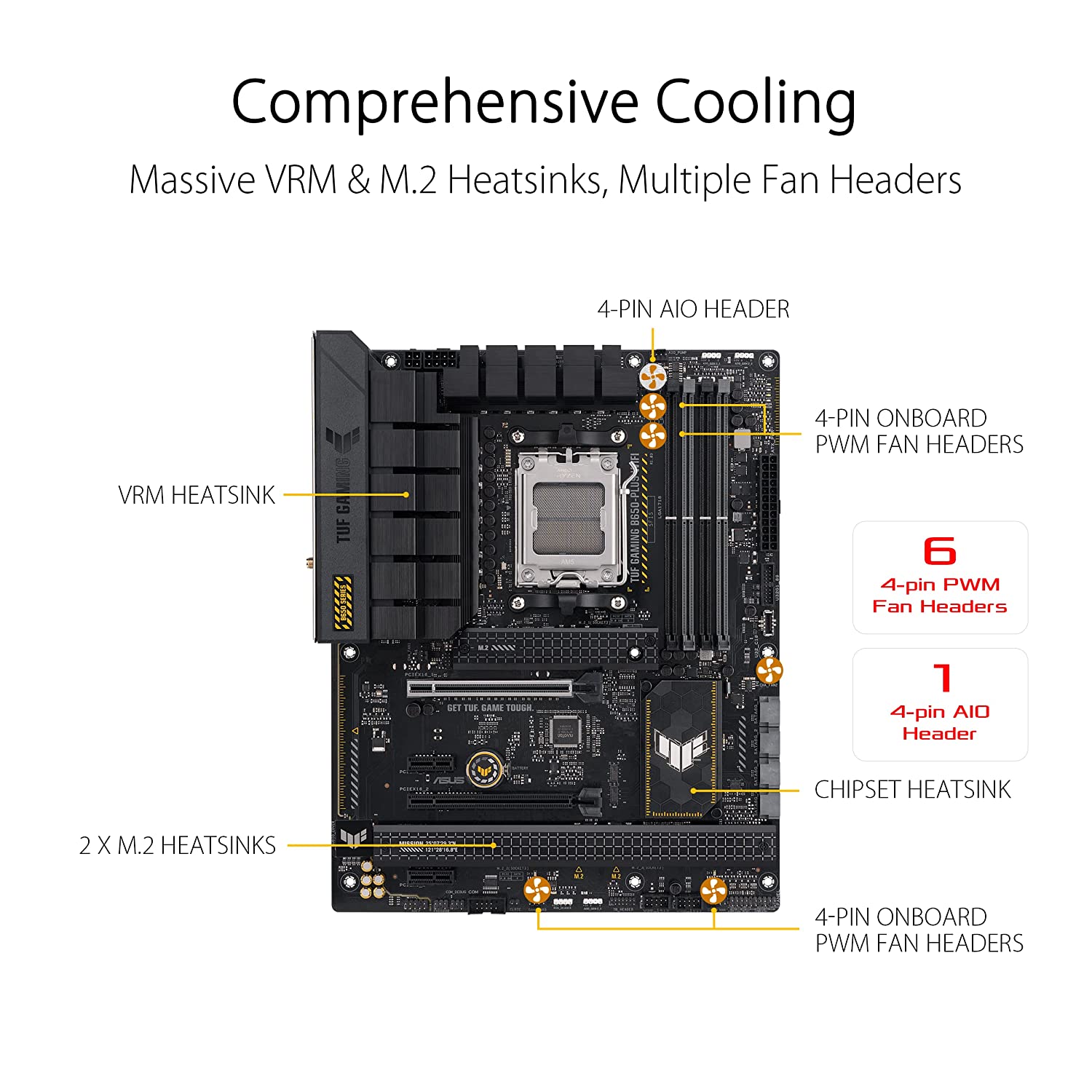

Internal I/O ports Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Operating System Windows 11
Windows 10 64-bit
Dimensions ATX Form Factor
30.5cm x 24.4cm
Warranty 3 Years of Brand Warranty
