ASUS TUF GAMING B760M-PLUS WIFI II D4 LGA 1700 Micro-ATX Gaming Motherboard
ASUS TUF GAMING B760M-PLUS WIFI II D4 LGA 1700 Micro-ATX Gaming Motherboard
Couldn't load pickup availability
Couldn't load pickup availability
- Free Standard Shipping
- TPS Returns Policy
- Original Brand Warranty
Product Description:
DDR4 Performance: Whether you're building a gaming PC that hits the performance sweet spot or aiming for sensible specs, it's easy to pick the right kit for your TUF Gaming rig. TUF motherboards are subjected to stringent tests to ensure they're ready.
Two M.2 Slots
The two PCIe 4.0 M.2 slots support up to two 2280 devices and the data-transfer speeds are up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
Connectivity
The TUF-GAMING B760M-PLUS WIFI D4 reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.
WIFI 6
The WIFI 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
2.5Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components like CPU, RAM, graphics card, storage devices are functioning normally during startup.
Armoury Crate
The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination.
Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.
| Model | ASUS TUF Gaming B760M-PLUS WIFI D4 Motherboard |
| Part Number | 90MB1DG0-M0IAY0 |
| CPU Socket | Intel B760 Chipset |
| CPU Support | Intel 13th Gen and 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Socket LGA 1700 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/ 4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/ 4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/ 3200/3000/2933/2800/2666/2400/2133 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| On-Board Graphics support | 1 x DisplayPort 1.4 1 x HDMI port 2.1 |
| Expansion Slot |
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slots |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Bluetooth v5.2 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s port |
| Audio |
Realtek 7.1 Surround Sound High-Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover |
| USB Ports |
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O ports |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connectors 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |

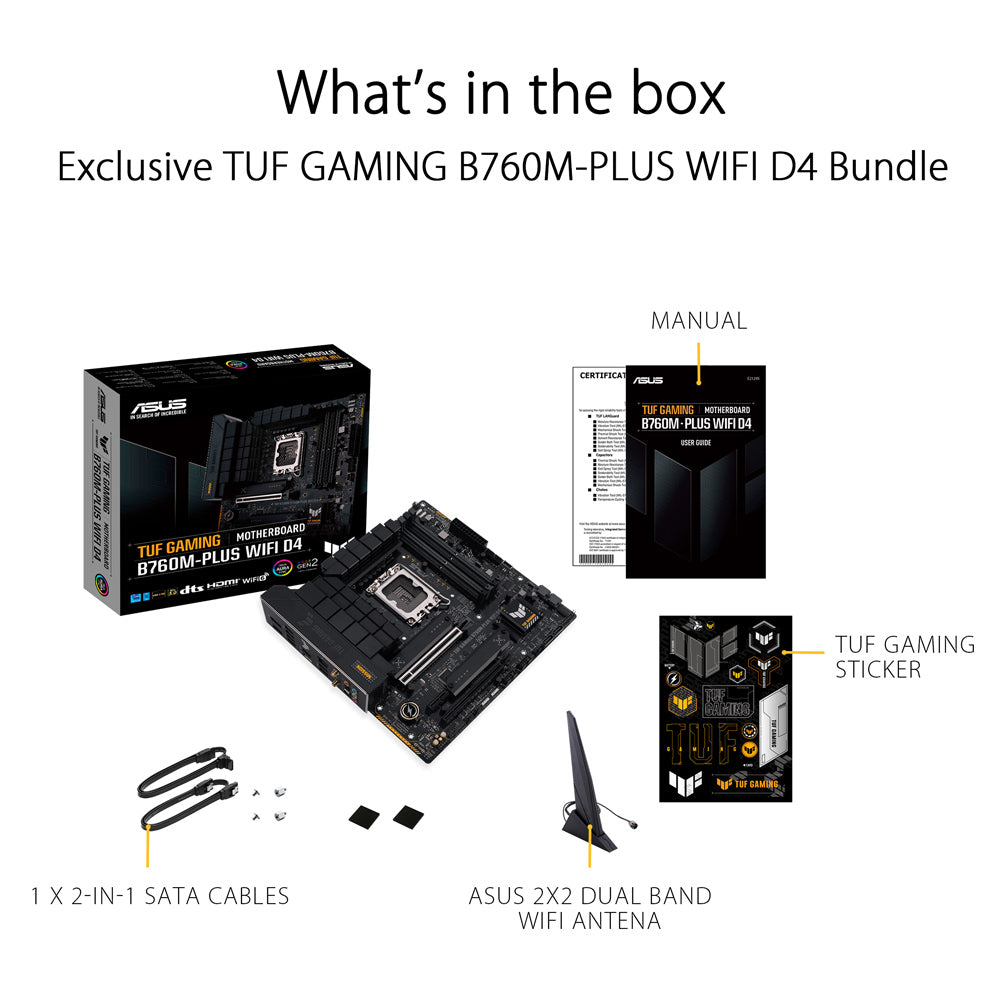

| Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF GAMING sticker 1 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation1 x TUF certification card 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 24.4 cm x 24.4 cm Micro-ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
