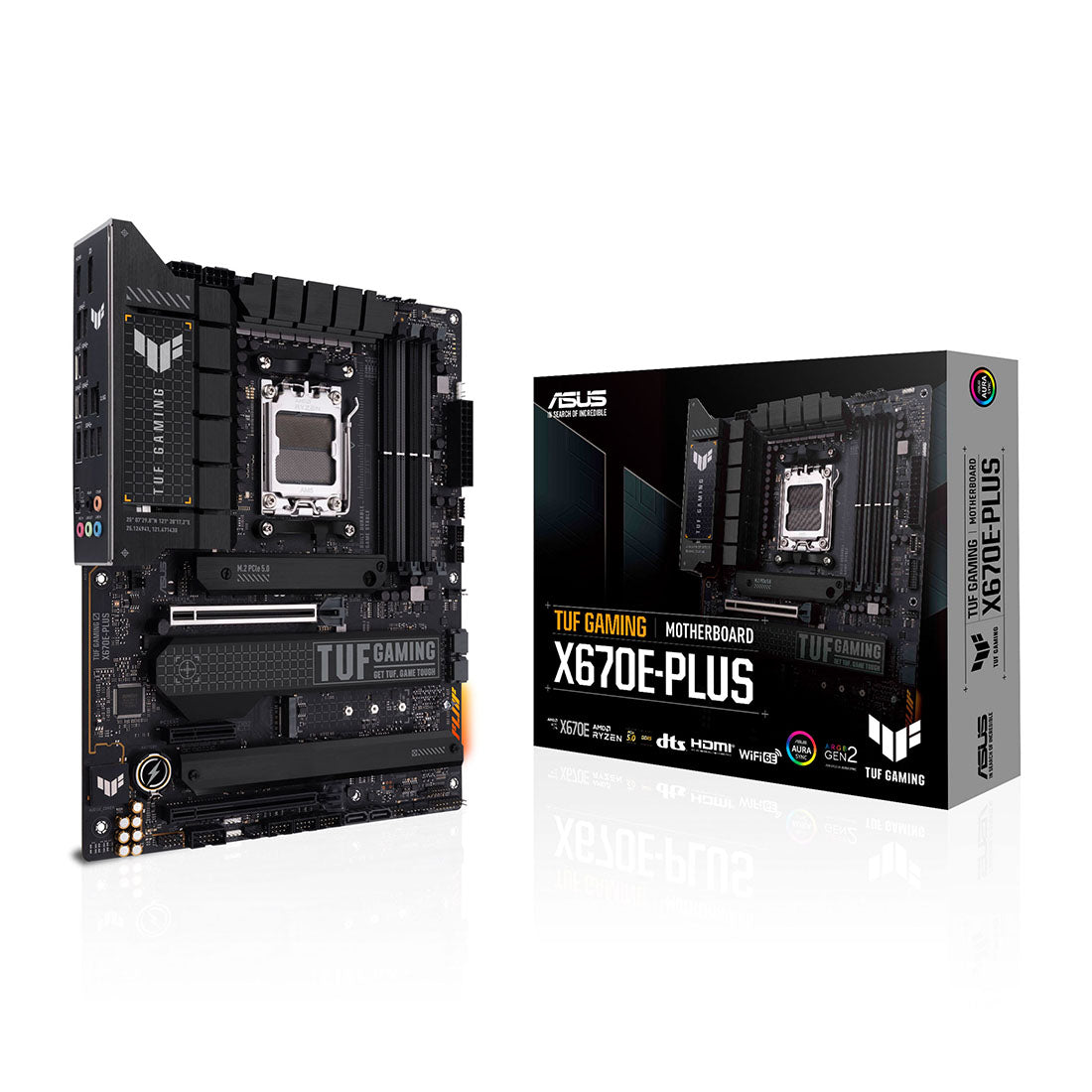

ASUS TUF GAMING X670E-PLUS AMD AM5 ATX Gaming Motherboard with DDR5 and PCIe 5.0

ASUS TUF GAMING X670E-PLUS AMD AM5 ATX Gaming Motherboard with DDR5 and PCIe 5.0

Brand: ASUS
Regular price Rs. 31,799.00
Sale price 33% off Rs. 31,799.00 Sale Sold out Regular price Rs. 47,000.00
  • The ASUS motherboard is designed to support latest AMD Ryzen 7000 Series CPU's with AM5 socket.
  • The motherboard is PCIe 5.0 Ready supporting up to 128GB DDR5 6400MHz(OC) of memory and AMD Extended Profiles for Overclocking (EXPO) to push your experience to its peak.
  • Enjoy extended connectivity with the next-gen technology of PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, 4x M.2 slots and Thunderbolt header support.
  • This motherboard have AI Cooling which manages and balance the thermals and acoustics of any build with a single click.

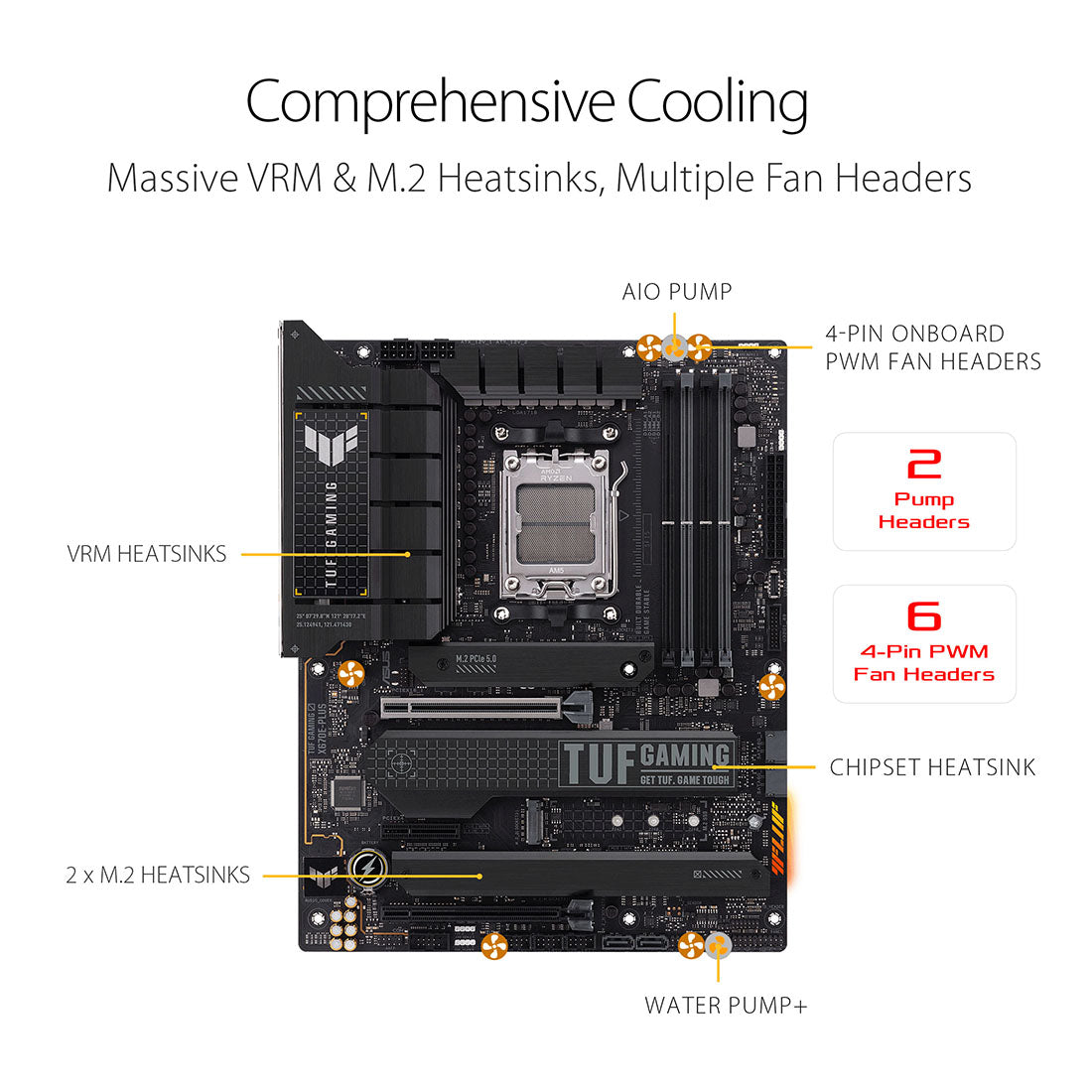

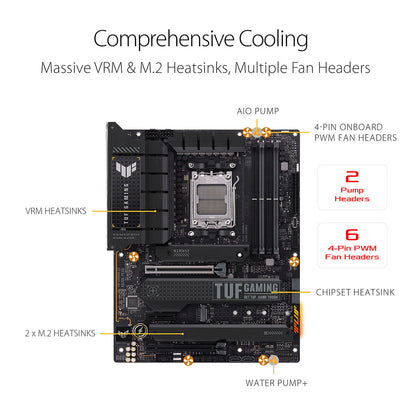

  • The motherboard is armed with a 3X enlarged VRM, PCH and three M.2 slots with heatsinks that provide the perfect balance of mass and surface area for heat dissipation.

~section~

ASUS TUF Gaming X670E-PLUS AMD AM5 Motherboard - tpstech.in
ASUS TUF Gaming X670E-PLUS AMD AM5 Motherboard - tpstech.in

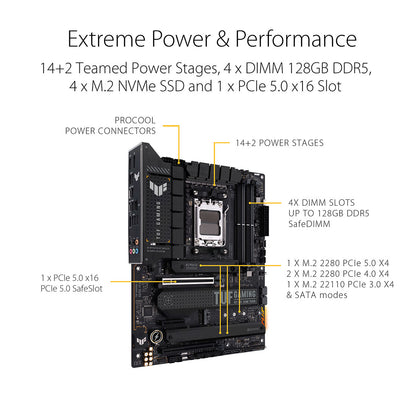

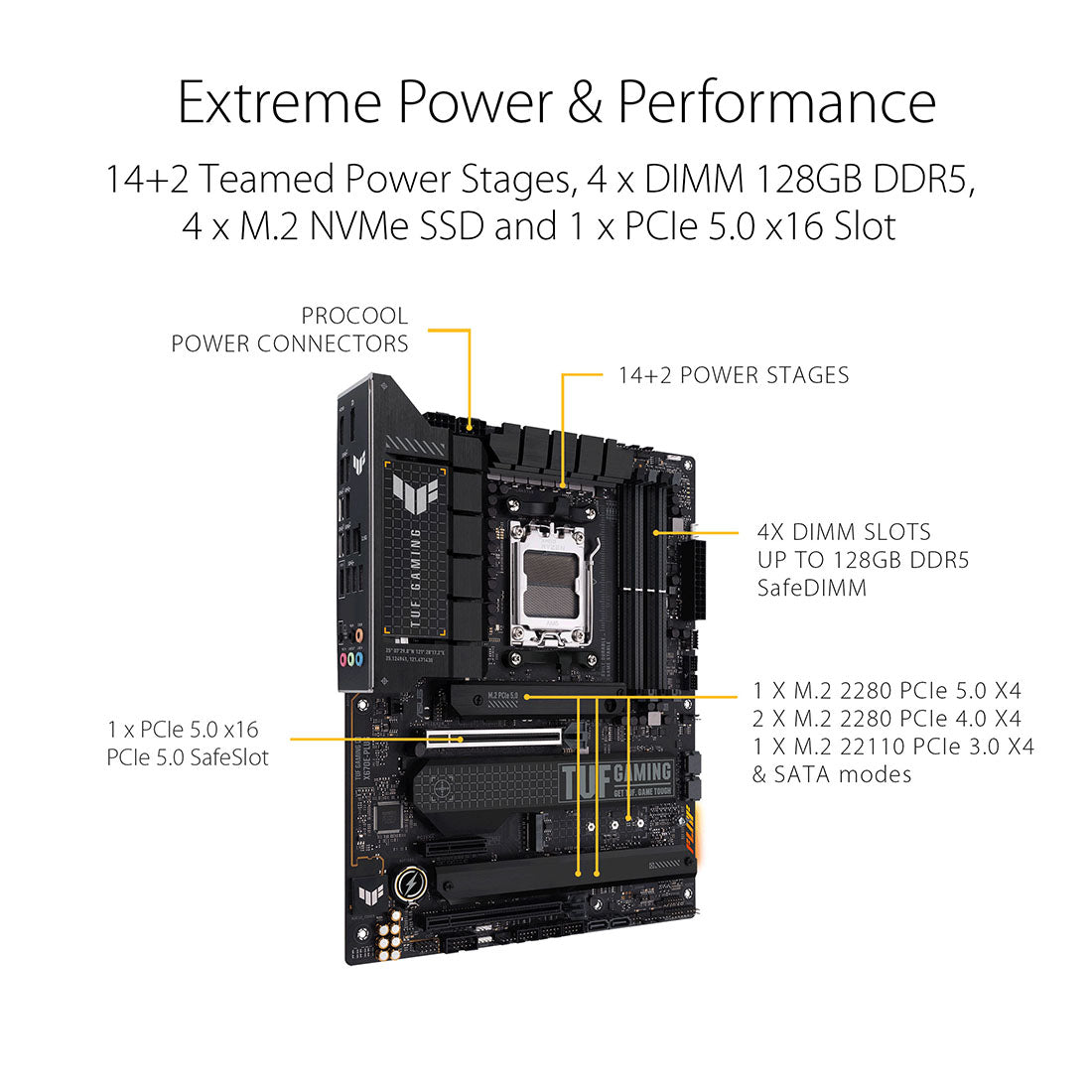

Four M.2 Slots

Features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps and all M.2 slots support for NVMe and SATA RAID configurations to take advantage of the latest available speeds.

ASUS TUF Gaming X670E-PLUS AMD AM5 Motherboard - tpstech.in

DDR5 Performance

You can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

ASUS TUF Gaming X670E-PLUS AMD AM5 Motherboard - tpstech.in

SafeSlot Core+ & SafeDIMM

SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards.

ASUS TUF Gaming X670E-PLUS AMD AM5 Motherboard - tpstech.in

2.5Gb Ethernet

2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade.

ASUS TUF Gaming X670E-PLUS AMD AM5 Motherboard - tpstech.in

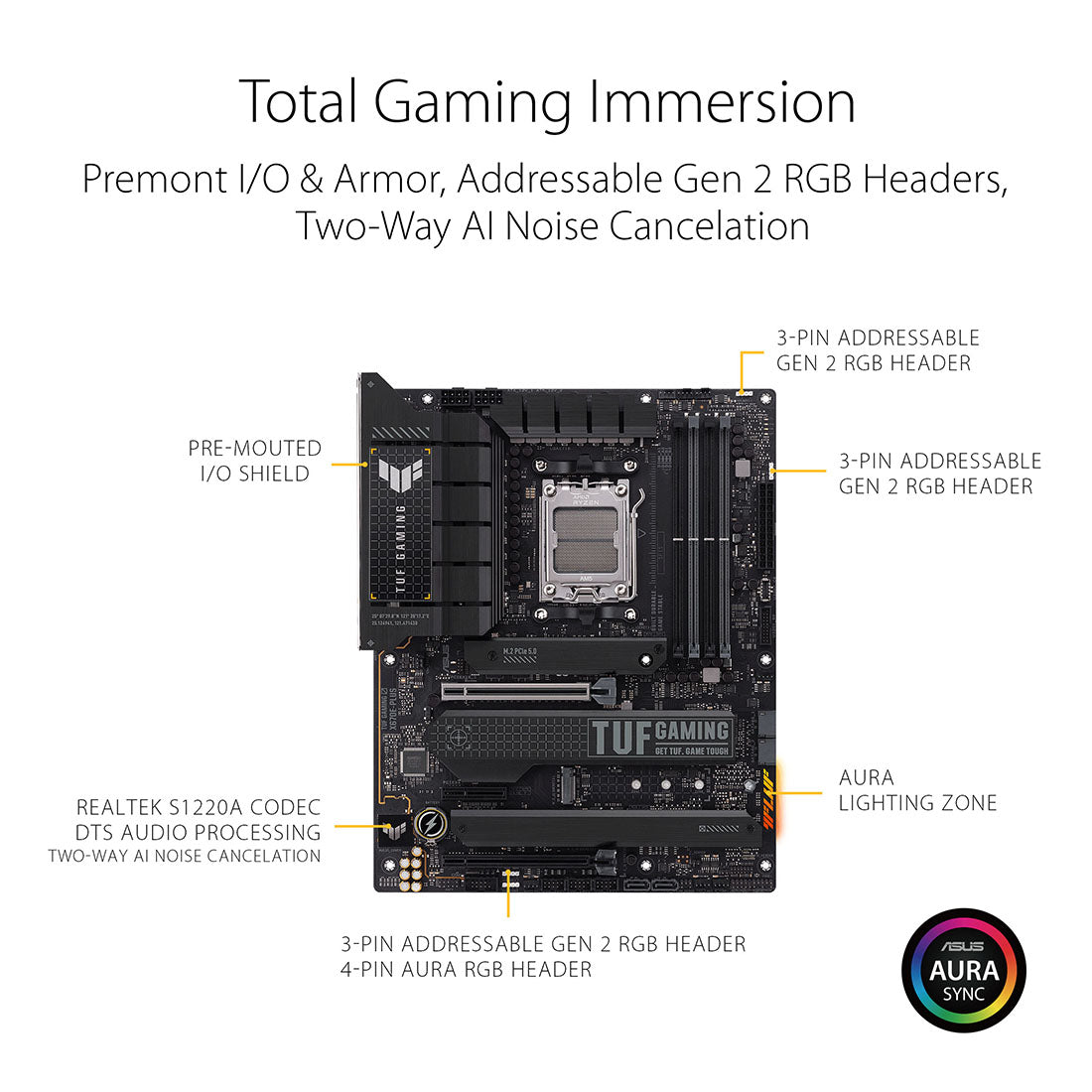

Realtek 7.1 Surround Sound

It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality.

ASUS TUF Gaming X670E-PLUS AMD AM5 Motherboard - tpstech.in

Two-Way AI Noise Cancelation

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices.

ASUS TUF Gaming X670E-PLUS AMD AM5 Motherboard - tpstech.in

TUF Gaming X670E-Plus

ASUS TUF GAMING X670E-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. This motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.

ASUS ROG STRIX X670E-E GAMING WIFI AMD Socket AM5 ATX Motherboard - From tpstech.in

The Change is Here

Build your next rig with an AMD Ryzen 7000 Series processor and ROG Strix X670E-E Gaming WiFi to experience advanced performance. You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe 5.0.

~section~

Model ASUS TUF Gaming X670E-Plus ATX Motherboard
Part Number 90MB1BJ0-M0IAY0
CPU Socket AMD Socket AM5
CPU Support AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset AMD X670 Chipset
Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
On-Board Graphics support 1 x DisplayPort
1 x HDMI port
Expansion Slot AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD X670 Chipset
1 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x4 slot
Ethernet 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s port
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
USB Ports Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
5 x USB 3.2 Gen 1 ports (5 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

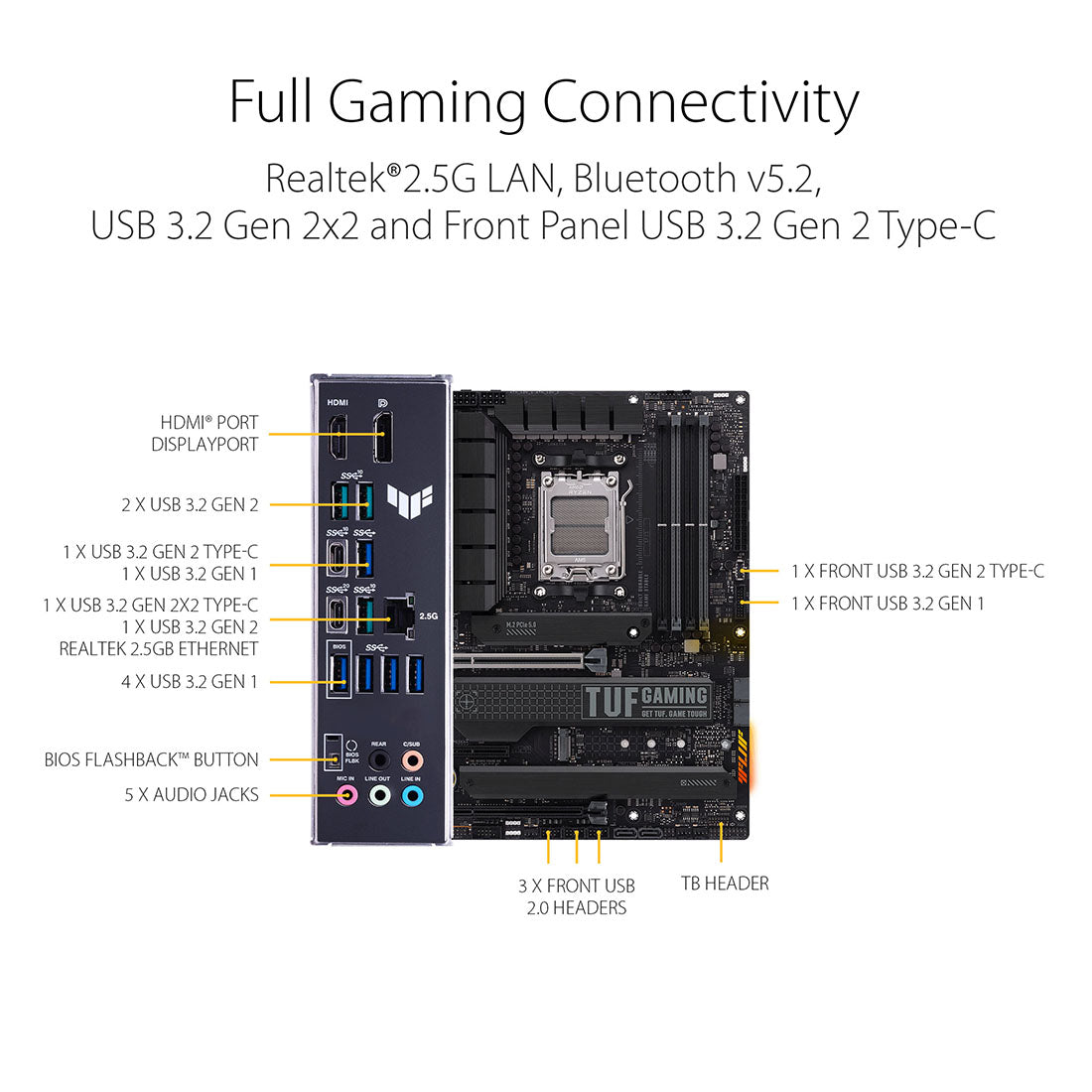

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C)
5 x USB 3.2 Gen 1 ports (5 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header

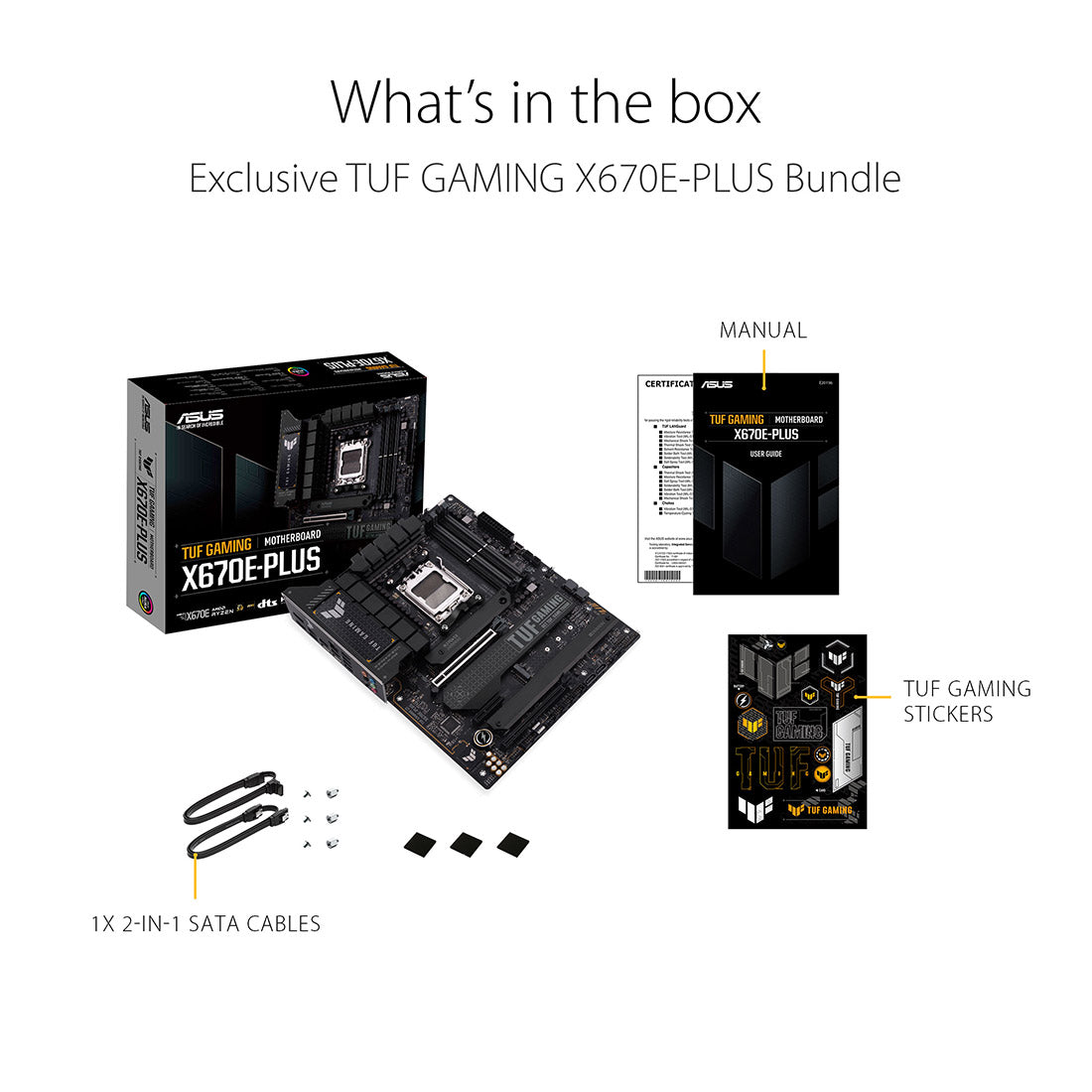

Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
2 x Rubber Package for M.2
2 x Screw Packages for M.2 SSD
Documentation1 x TUF certification card
1 x User guide
Operating System Windows 11 64-bit
Windows 10 64-bit
Dimensions 30.5 cm x 24.4 cm
ATX Form Factor
Warranty 3 Years of Brand Warranty
