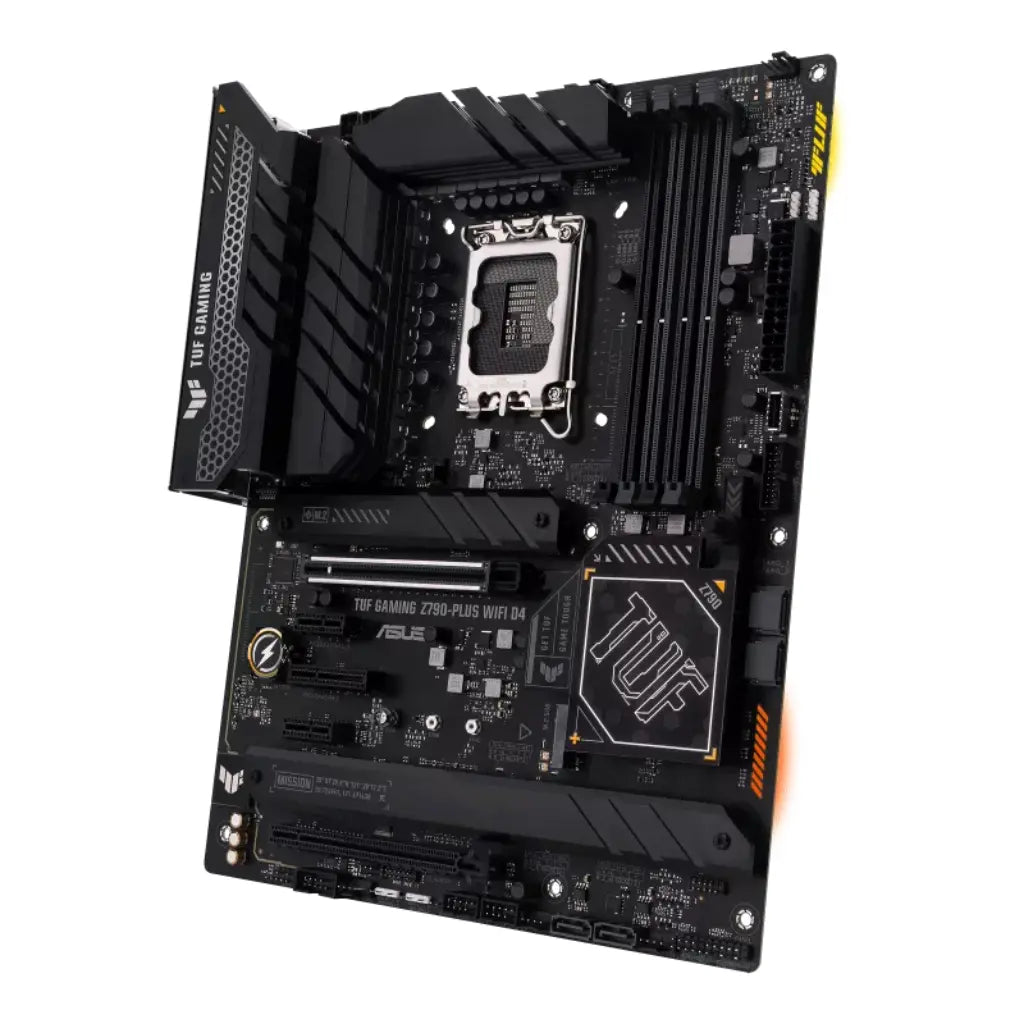

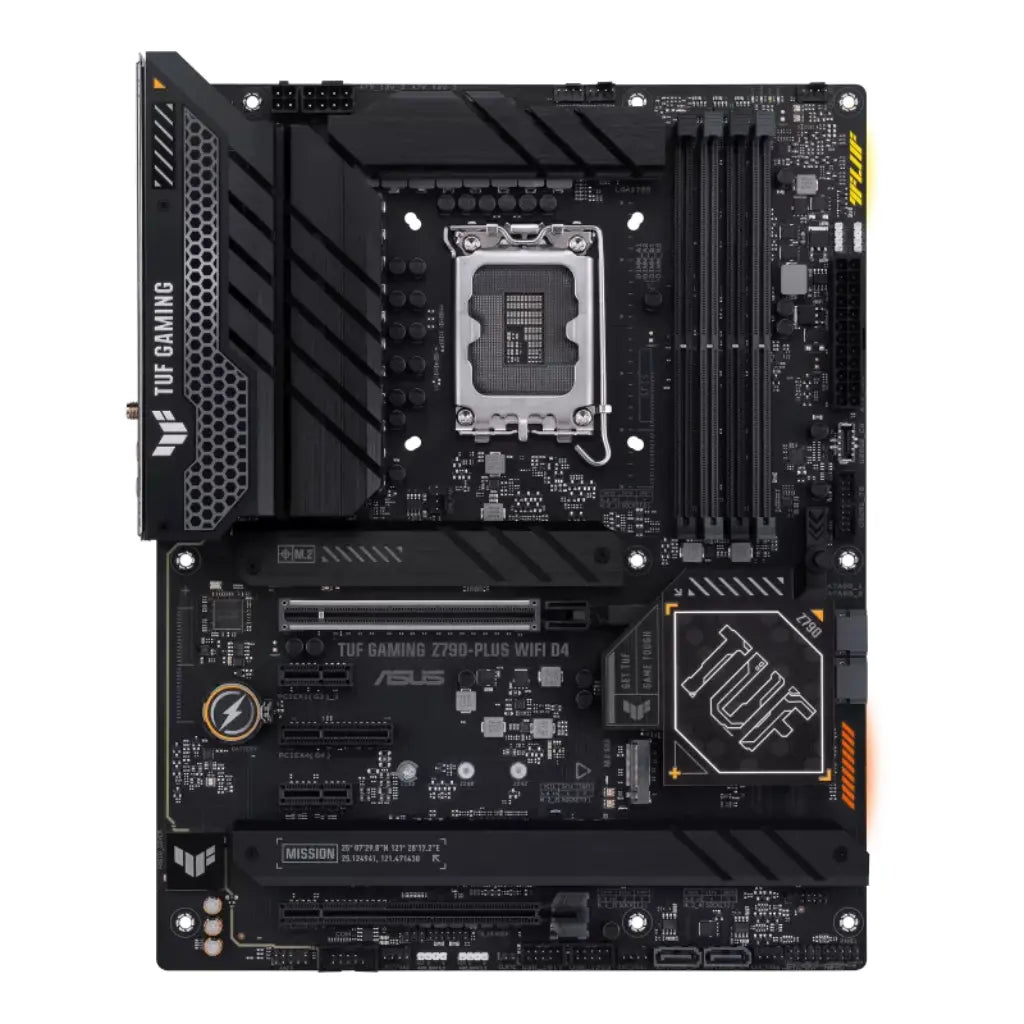

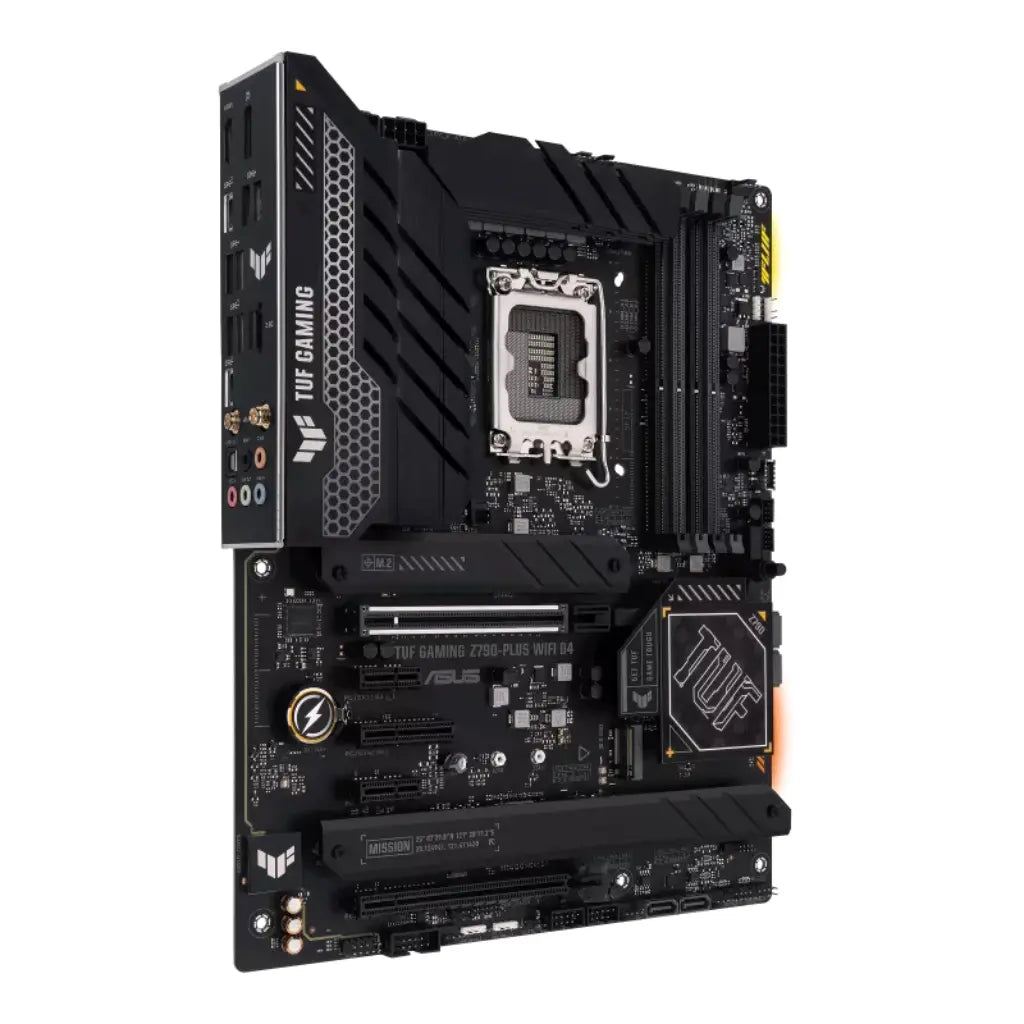

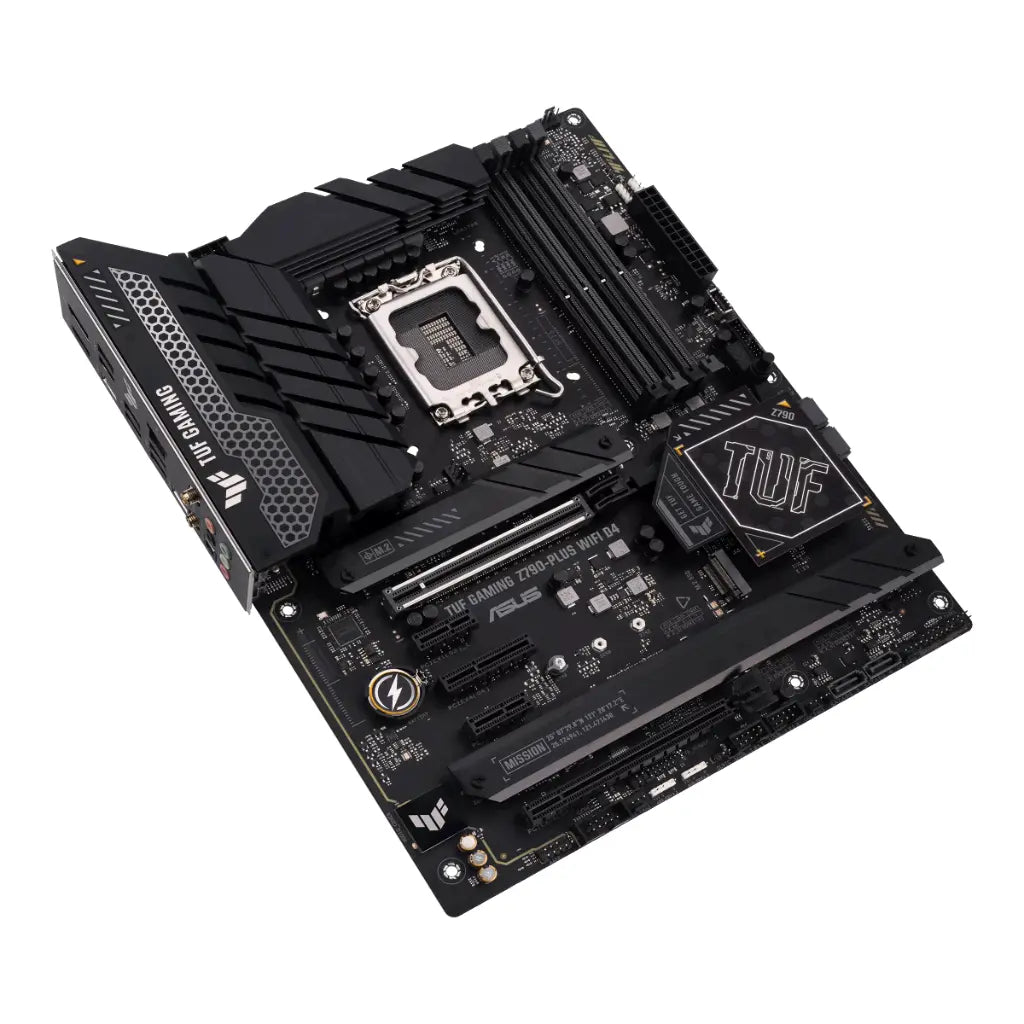

ASUS TUF Gaming Z790-Plus WiFi D4 Z790 LGA1700 ATX DDR4 Motherboard with WiFi 6

ASUS TUF Gaming Z790-Plus WiFi D4 Z790 LGA1700 ATX DDR4 Motherboard with WiFi 6

Brand: ASUS
Rs. 30,999.00
23% off Rs. 39,999.00 Rs. 30,999.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled

Product Description:

🔥 Intel LGA1700 Ready: Fully compatible with 14th, 13th, and 12th Gen Intel Core processors for powerful performance.

⚡ Z790 Chipset Power: Built on the Intel Z790 platform for faster data handling and enhanced system responsiveness.

🚀 High‑Speed DDR4 Support: Features four DIMM slots supporting up to 5333 MHz (OC) for smooth multitasking and gaming.

💨 4× M.2 Storage Options: Multiple PCIe 4.0 M.2 slots enabling ultra‑fast NVMe SSD performance.

📡 WiFi 6 + 2.5Gb LAN: Offers next‑generation wireless connectivity and high‑speed wired networking for stable gameplay.

❄️ Advanced Cooling Design: Uses military‑grade components and enlarged VRM heatsinks for exceptional thermal reliability.

The ASUS TUF Gaming Z790‑Plus WiFi D4 is a rugged ATX motherboard designed for gamers and performance‑focused users. It supports Intel’s latest processors via the LGA1700 socket and delivers smooth multitasking with high‑speed DDR4 memory support. With four PCIe 4.0 M.2 slots, WiFi 6, and 2.5Gb LAN, it ensures fast connectivity and storage performance. Built using durable military‑grade components and robust cooling solutions, it provides long‑lasting stability for demanding gaming and productivity workloads.

Product Specifications:

Specification Details
Model TUF GAMING Z790‑PLUS WIFI D4
Form Factor ATX (12" × 9.6" / 30.5 cm × 24.4 cm)
CPU Support Intel® Socket LGA1700 for Intel® Core™ 14th/13th/12th Gen, Pentium® Gold & Celeron®; Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0 (support depends on CPU)
Chipset Intel® Z790
Memory 4 × DIMM, up to 128 GB, DDR4 2133 → 5333 MHz (OC); Dual Channel; Intel® XMP; OptiMem II (memory support varies by CPU/configuration)
Integrated Graphics (Outputs) 1 × DisplayPort (up to 4K@60Hz, DP 1.4), 1 × HDMI® (up to 4K@60Hz, HDMI 2.1) (graphics specs vary by CPU)
Expansion Slots From CPU: 1 × PCIe 5.0 x16 • From Chipset: 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 4.0 x4, 2 × PCIe 3.0 x1
Storage 4 × M.2 + 4 × SATA 6Gb/s • M.2_1 (CPU): 2242/2260/2280/22110, PCIe 4.0 x4 (13th/12th Gen CPUs) • M.2_2 (Chipset): 2242/2260/2280, PCIe 4.0 x4 • M.2_3 (Chipset): 2242/2260/2280/22110, PCIe 4.0 x4 • M.2_4 (Chipset): 2242/2260/2280, PCIe 4.0 x4 & SATA
RAID Support Intel® RST: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Networking (Wired) 1 × Intel® 2.5Gb Ethernet with TUF LANGuard
Networking (Wireless) Intel® Wi‑Fi 6 (802.11 a/b/g/n/ac/ax), 2×2, supports 2.4/5 GHz
Bluetooth Bluetooth® v5.2 (version may vary by module)
Rear USB (8 total) 1 × USB 3.2 Gen 2x2 Type‑C • 3 × USB 3.2 Gen 2 (2 × Type‑A + 1 × Type‑C) • 4 × USB 3.2 Gen 1 Type‑A
Front / Internal USB 1 × USB 3.2 Gen 2 (Type‑C) connector • 1 × USB 3.2 Gen 1 header (adds 2 ports) • 2 × USB 2.0 headers (add 4 ports)
Audio Codec Realtek S1220A, 7.1‑Channel HD Audio
Audio Specs 120 dB SNR stereo playback, 113 dB SNR line‑in recording, up to 32‑bit/192 kHz playback* (32‑bit/192 kHz not supported for 7.1 surround due to HDA bandwidth)
Audio Features Impedance sensing (front/rear), internal amp, jack detection, multi‑streaming, front panel jack‑retasking, audio shielding, premium audio caps, dedicated audio PCB layers, audio cover, rear optical S/PDIF out

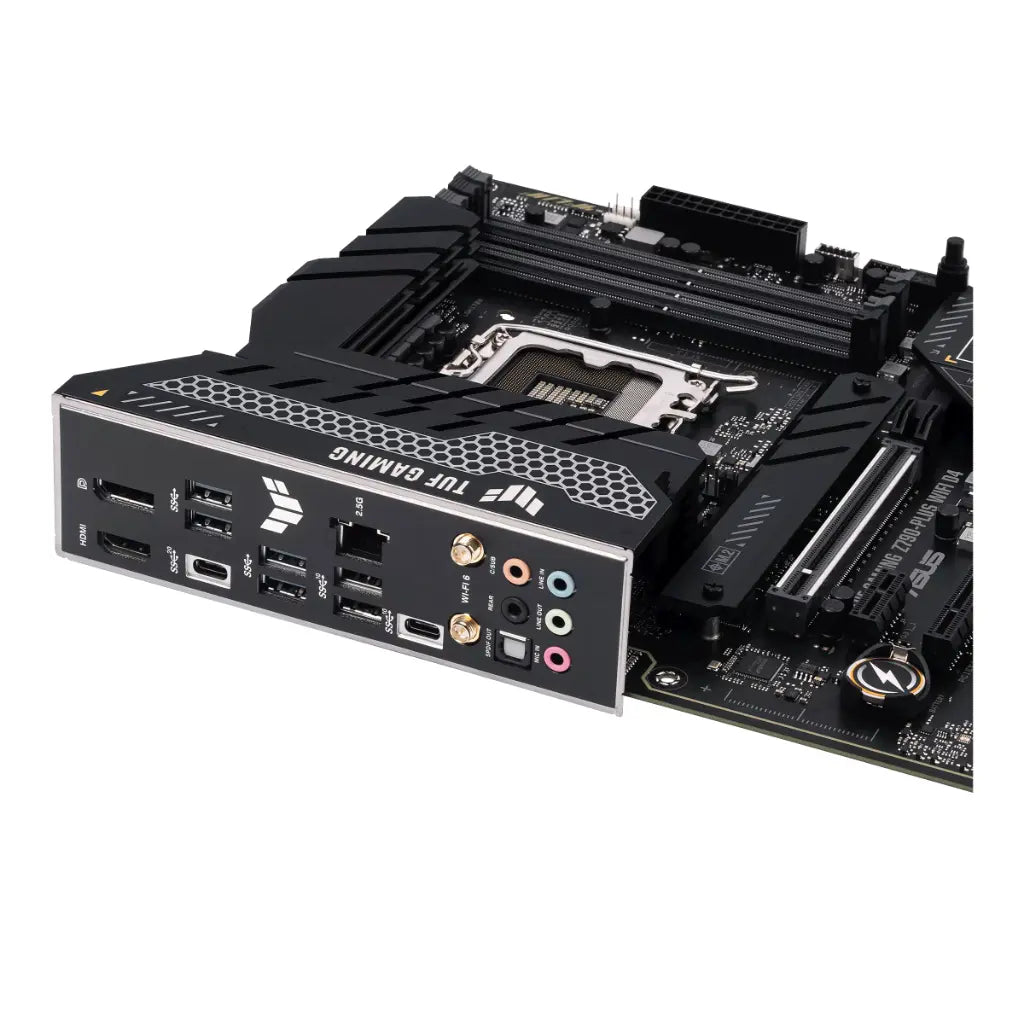

Back Panel I/O 1 × USB 3.2 Gen 2x2 Type‑C • 3 × USB 3.2 Gen 2 (2 × Type‑A + 1 × Type‑C) • 4 × USB 3.2 Gen 1 Type‑A • 1 × DisplayPort • 1 × HDMI® • 1 × Intel® 2.5GbE • 1 × Wi‑Fi module • 5 × Audio jacks • 1 × Optical S/PDIF out
Cooling Headers 1 × 4‑pin CPU Fan • 1 × 4‑pin CPU OPT • 1 × 4‑pin AIO Pump • 4 × 4‑pin Chassis Fan
Power Connectors 1 × 24‑pin ATX • 1 × 8‑pin +12V EPS • 1 × 4‑pin +12V
Internal Headers 4 × M.2 (Key M) • 4 × SATA 6Gb/s • 1 × USB 3.2 Gen 2 (Type‑C) • 1 × USB 3.2 Gen 1 header (2 ports) • 2 × USB 2.0 headers (4 ports) • 3 × Addressable Gen 2 • 1 × Aura RGB • 1 × Clear CMOS • 1 × COM header • 1 × Front Panel Audio (AAFP) • 1 × 20‑3 pin System Panel (chassis intrude) • 1 × Thunderbolt™ (USB4®) header
ASUS TUF Protection DIGI+ VRM (DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless‑Steel Back I/O
ASUS Q‑Design M.2 Q‑Latch, PCIe Slot Q‑Release, Q‑DIMM, Q‑LED (CPU/DRAM/VGA/Boot), Q‑Slot
Thermal Solutions VRM heatsink design, M.2 heatsinks
EZ DIY CPU socket lever protector, ProCool, Pre‑mounted I/O shield, SafeDIMM
AURA Sync 1 × Aura RGB header, 3 × Addressable Gen 2 headers
Software (Exclusive) Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, Two‑Way AI Noise Cancelation, Power Saving), AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner), TUF GAMING CPU‑Z, DTS Audio Processing, MyASUS, Norton 360 for Gamers, WinRAR
BIOS & Utilities ASUS UEFI BIOS (EZ/Advanced), ASUS CrashFree BIOS 3, ASUS EZ Flash 3
BIOS ROM 192 Mb (128 + 64) UEFI AMI
Manageability WOL by PME, PXE
Operating System Windows® 11, Windows® 10 (64‑bit)
Box Contents 2 × SATA 6Gb/s cables, ASUS Wi‑Fi moving antenna, 2 × M.2 rubber packages, M.2 SSD screw package, TUF GAMING sticker, TUF Certification card, User guide
Weight 1.3 kg
Warranty 3 Years
Country of Origin China
