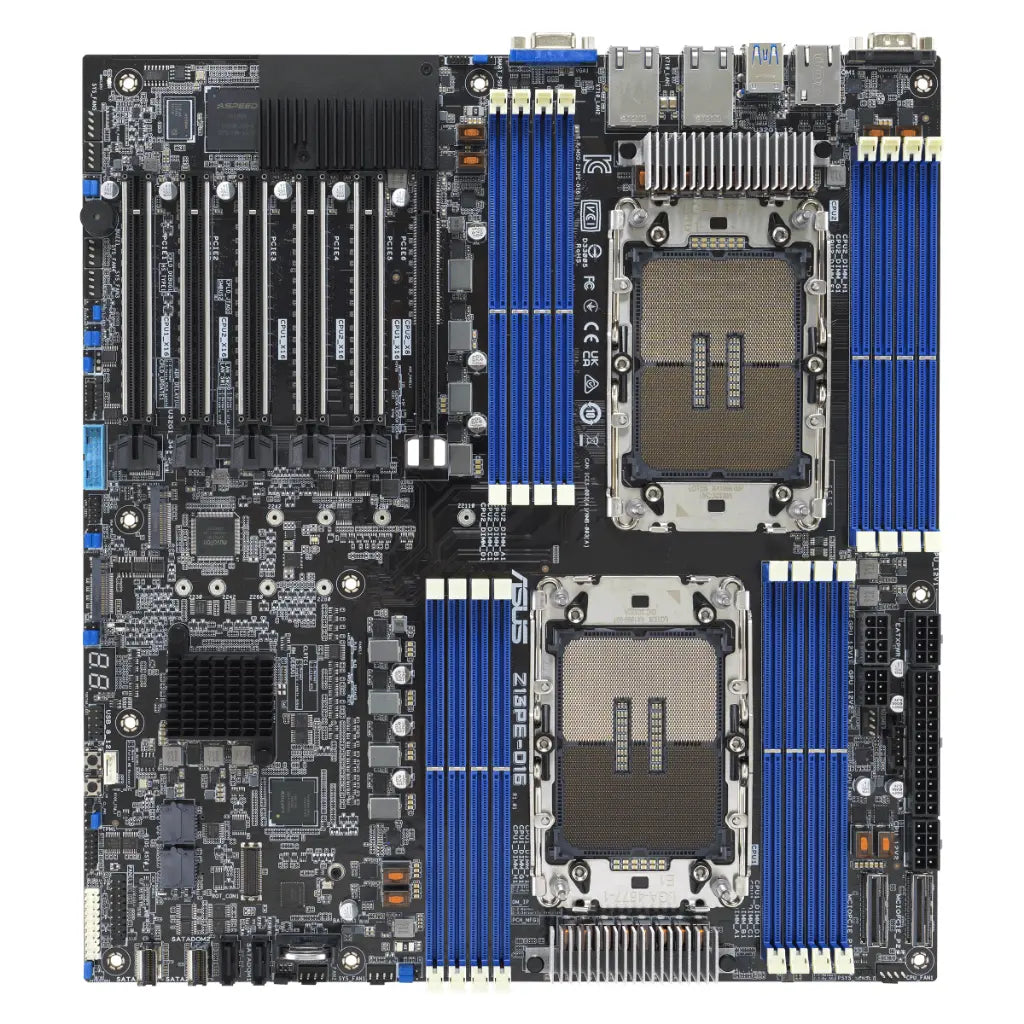

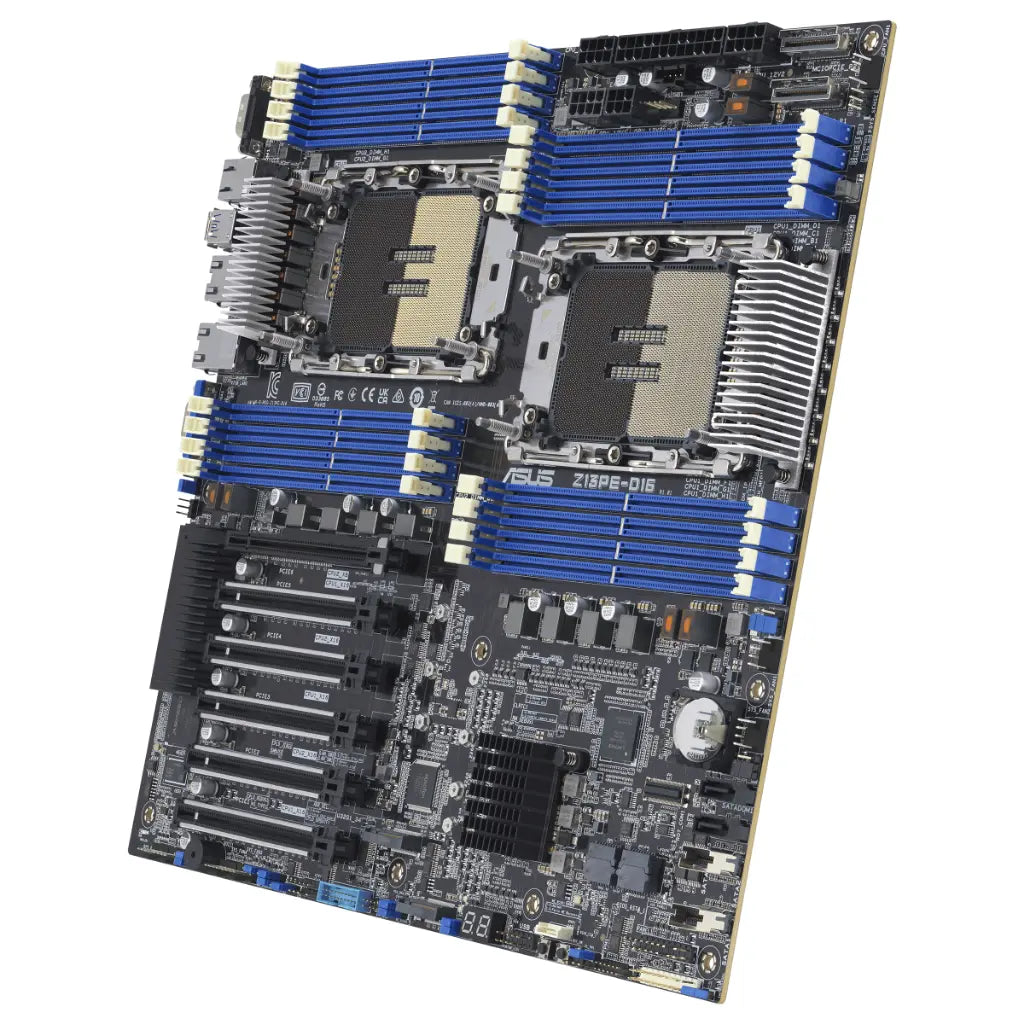

ASUS Z13PE‑D16 C741 LGA4677 E‑ATX Server Motherboard
ASUS Z13PE‑D16 C741 LGA4677 E‑ATX Server Motherboard
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
⚡ Dual 5th Gen Intel® Xeon Support — Built for high‑performance enterprise workloads with LGA4677 dual‑socket architecture.
🧠 16‑DIMM DDR5 ECC RDIMM Support — Handles up to 4TB of high‑speed memory for HPC, AI, virtualization and data processing.
🚀 PCIe 5.0 Expansion Ready — Supports multiple PCIe devices with next‑gen bandwidth for accelerators and high‑speed storage.
⚙️ Intel C741 Chipset + Dual M.2 PCIe 5.0 — Delivers faster OS booting and enhanced NVMe SSD performance.
🌐 Dual Intel® 10GbE Networking — Ensures high‑speed, low‑latency connectivity with failover and teaming support.
🔧 ASMB11‑iKVM + ASUS Control Center — Full remote server management for monitoring, updates, and troubleshooting.
🧠 16‑DIMM DDR5 ECC RDIMM Support — Handles up to 4TB of high‑speed memory for HPC, AI, virtualization and data processing.
🚀 PCIe 5.0 Expansion Ready — Supports multiple PCIe devices with next‑gen bandwidth for accelerators and high‑speed storage.
⚙️ Intel C741 Chipset + Dual M.2 PCIe 5.0 — Delivers faster OS booting and enhanced NVMe SSD performance.
🌐 Dual Intel® 10GbE Networking — Ensures high‑speed, low‑latency connectivity with failover and teaming support.
🔧 ASMB11‑iKVM + ASUS Control Center — Full remote server management for monitoring, updates, and troubleshooting.
The ASUS Z13PE‑D16 is a powerful E‑ATX server motherboard engineered for enterprise, cloud, AI, and virtualization environments. It supports dual 5th Gen Intel® Xeon processors, DDR5 ECC memory, PCIe 5.0 expansion, and dual M.2 for high‑speed NVMe storage. With dual 10GbE LAN and advanced remote management via ASMB11‑iKVM and ASUS Control Center, it delivers exceptional performance, reliability, and scalability for demanding data‑center and high‑compute workloads.
Product Specifications:
| Specification | Details |
| Processor / System Bus | • 2 × Socket for Intel® Xeon® Scalable Family (Up to 350W) |
| Chipset | Intel® C741 Chipset |
| Memory | • Total Slots: 16 DIMMs (8‑channel per CPU, 8 DIMM per CPU) • Max Capacity: Up to 2TB per CPU • Supported Speeds: DDR5 4800 (1DPC), DDR5 5600/4800 (5th Gen) • Supported Modules: 64GB / 32GB / 16GB RDIMM; 256GB / 128GB RDIMM 3DS |
| Expansion Slots | • Total up to 6 slots • 5 × PCIe Gen5 x16 link • 1 × PCIe Gen5 x8 link |
| Form Factor | E‑ATX (12” x 13”, 304.8mm × 330.2mm) |
| Storage | • 10 × SATA 6Gb/s (8 via 2 × Slimline SAS) • 2 × M.2 (1 × 2280, 1 × 22110) |
| Networking | • 2 × 10GbE LAN (RJ45, Intel X710‑AT2) • 1 × Management Port |
| Graphics | Aspeed AST2600 with 64MB VRAM |
| Onboard I/O | • 1 × TPM header • 3 × PSU power connectors (1 × 24‑pin ATX + 2 × 8‑pin 12V) • 1 × USB 3.2 Gen1 header • 1 × USB 2.0 header • 8 × 4‑pin fan headers • 1 × SMBus • 1 × Chassis Intruder • 2 × M.2 connectors • 2 × MCIO connectors • 2 × SATA connectors • 2 × Slimline SAS connectors • 1 × onboard header for optional management card |
| Back I/O Ports | • 2 × USB 3.2 Gen1 ports • 1 × Serial Port • 1 × VGA Port • 2 × 10GbE LAN (Intel X710‑AT2) • 1 × Mgmt Port |
| Management | ASUS Control Center (In‑band), ASMB11‑iKVM (Out‑of‑band, BMC AST2600) |
| Weight | Net: 1.75 kg |
| Country of Origin | China |
| Warranty | 3 Years |
| Environmental Conditions | • Operating Temp: 10°C – 35°C • Non‑operating Temp: −40°C – 70°C • Non‑operating Humidity: 20%–90% (non‑condensing) |
