Product Description:
🧠 16 GB DDR5 ECC Memory (Expandable to 64 GB): Server-grade ECC RAM ensures data integrity and system stability.
⚡ Dual 10 GbE & Dual 5 GbE Ports: Lightning-fast network connectivity with multichannel SMB for up to 1675 MB/s read and 791 MB/s write speeds.
🔌 Advanced PCIe 4.0 M.2 & USB4 Support: Four NVMe slots with PCIe 4.0 and two USB4 ports (40 Gbps) enable ultra‑fast cache/expansion.
❄️ Efficient Cooling & Reliability: Heat-pipe design with robust ADM security, AES‑256 encryption, snapshots, and ransomware protection.
📦 Versatile Storage Expansion: 4-bay diskless configuration supporting MyArchive cold-swap drives, hybrid cloud backup, surveillance support and Docker via Portainer.

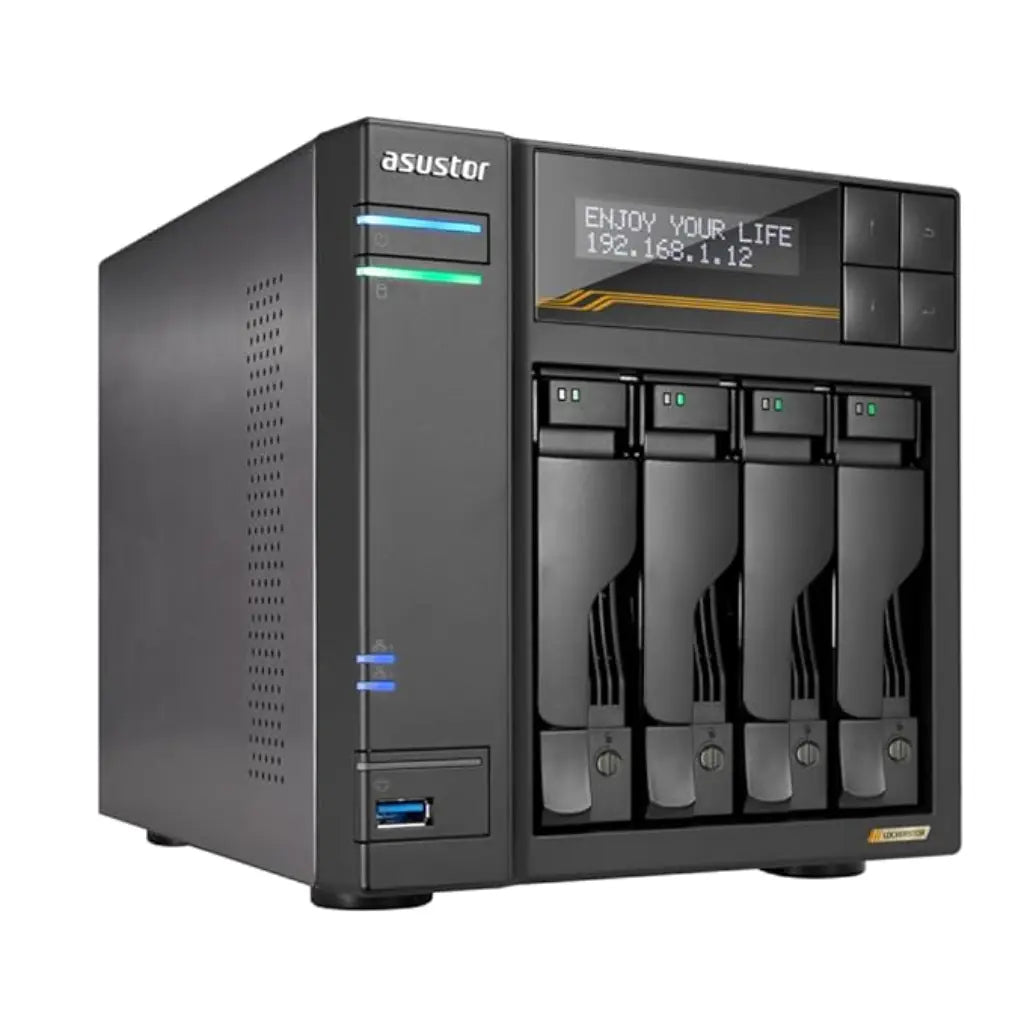

The ASUSTOR AS6804T Lockerstor 4 Gen3 Diskless NAS packs a powerful Ryzen V3C14 CPU and 16 GB DDR5 ECC memory for professional-grade performance. Dual 10 GbE and 5 GbE ports, along with PCIe 4.0 NVMe slots and USB4, ensure lightning-fast data access and expansion. Advanced ADM features including AES-256 encryption, PQC-ready TLS, snapshots and cloud backup deliver robust security and flexibility. Perfect for creative workgroups, surveillance systems, or hybrid storage environments.
Product Specifications:
| Specification | Details |
| Model | ASUSTOR AS6804T Lockerstor 4 Gen3 (Diskless) |
| CPU | AMD Ryzen V3C14 Quad-Core, 2.3 GHz (Burst up to 3.8 GHz), x64 64-bit |
| Memory | 16 GB ECC DDR5-4800 SO-DIMM (1×16 GB pre-installed), Expandable up to 64 GB |
| Memory Slots | 2 slots, supports ECC (disabled if mixed with non-ECC) |
| Flash Memory | 8 GB eMMC |
| Drive Bays | 4 × 3.5" SATA HDD / 2.5" SATA HDD / 2.5" SATA SSD |
| M.2 Slots | 4 × NVMe PCIe 4.0 (M.2 2280) |
| Max Drive Bays | 16 with expansion unit |
| Hot Swappable | Supported |

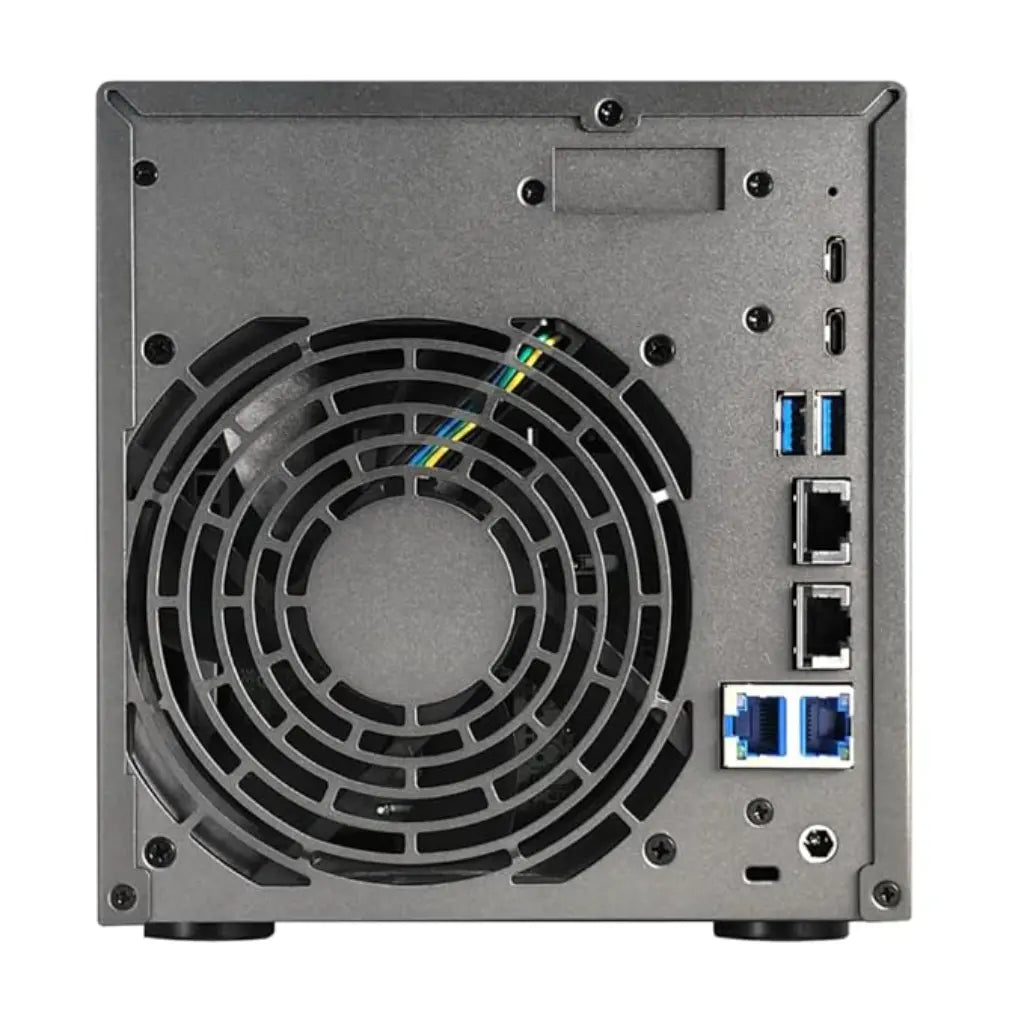

| External Ports | 3 × USB 3.2 Gen 2 (10 Gbps), 2 × USB4 (40 Gbps) |
| Network Ports | 2 × 10 GbE, 2 × 5 GbE |
| PCIe Expansion | 1 slot for optional 10 GbE card (requires removal of M.2 card) |
| System Fan | 1 × 120 mm |
| Power Supply | 90 W adapter, 100–240 V AC input |
| Certifications | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA |
| Power Consumption | 34 W (Operation), 2.3 W (Sleep Mode) |
| Noise Level | 17.6 dB (HDD idle) |
| Operating Temp | 0°C to 40°C |
| Storage Temp | -20°C to 70°C |
| Humidity | 5% to 95% RH |

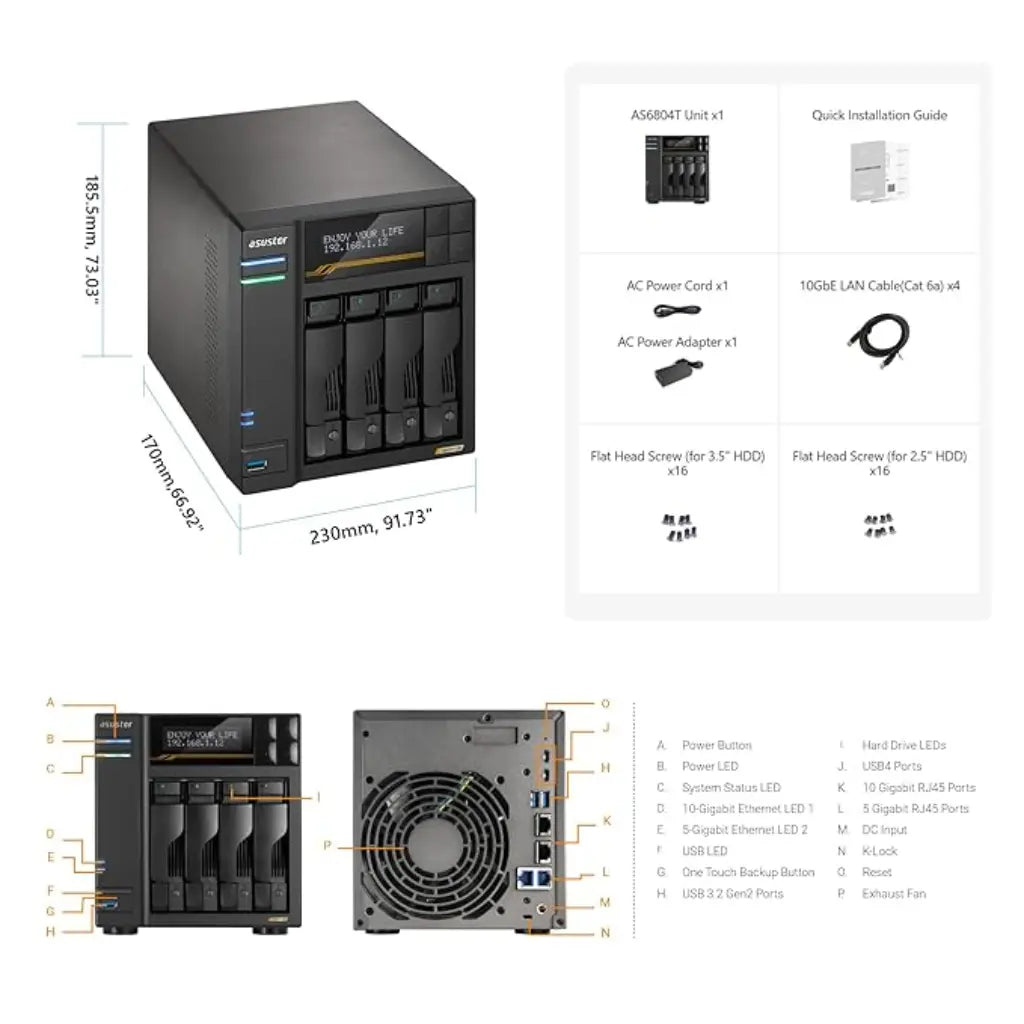

| Dimensions | 185.5(H) × 170(W) × 230(D) mm |
| Weight | 3.2 kg / 7.06 lb |
| Supported OS | Windows 10/11, Server 2016/2019/2022, macOS, UNIX/Linux/BSD |
| Supported Browsers | Firefox, Chrome, Safari, Microsoft Edge |
| File Systems | Internal: EXT4, Btrfs; External: FAT32, NTFS, EXT3/4, HFS+, exFAT, Btrfs |
| RAID Support | Single, JBOD, RAID 0/1/5/6/10 + migration & expansion options |
| Backup Solutions | Rsync, Cloud Backup, FTP, External Backup, EZ Sync, Snapshots (256) |
| Security | AES-256 encryption, Firewall, HTTPS, SSH, SFTP, Rsync over SSH |
| Warranty | 3 Years |
| Part Number | AS6804T |
| Country of Origin | Taiwan |
