Product Description:
Ryzen Quad-Core Performance: AMD Ryzen Embedded V3C14 runs at 2.3GHz with boost speeds up to 3.8GHz for demanding storage and multitasking workloads.

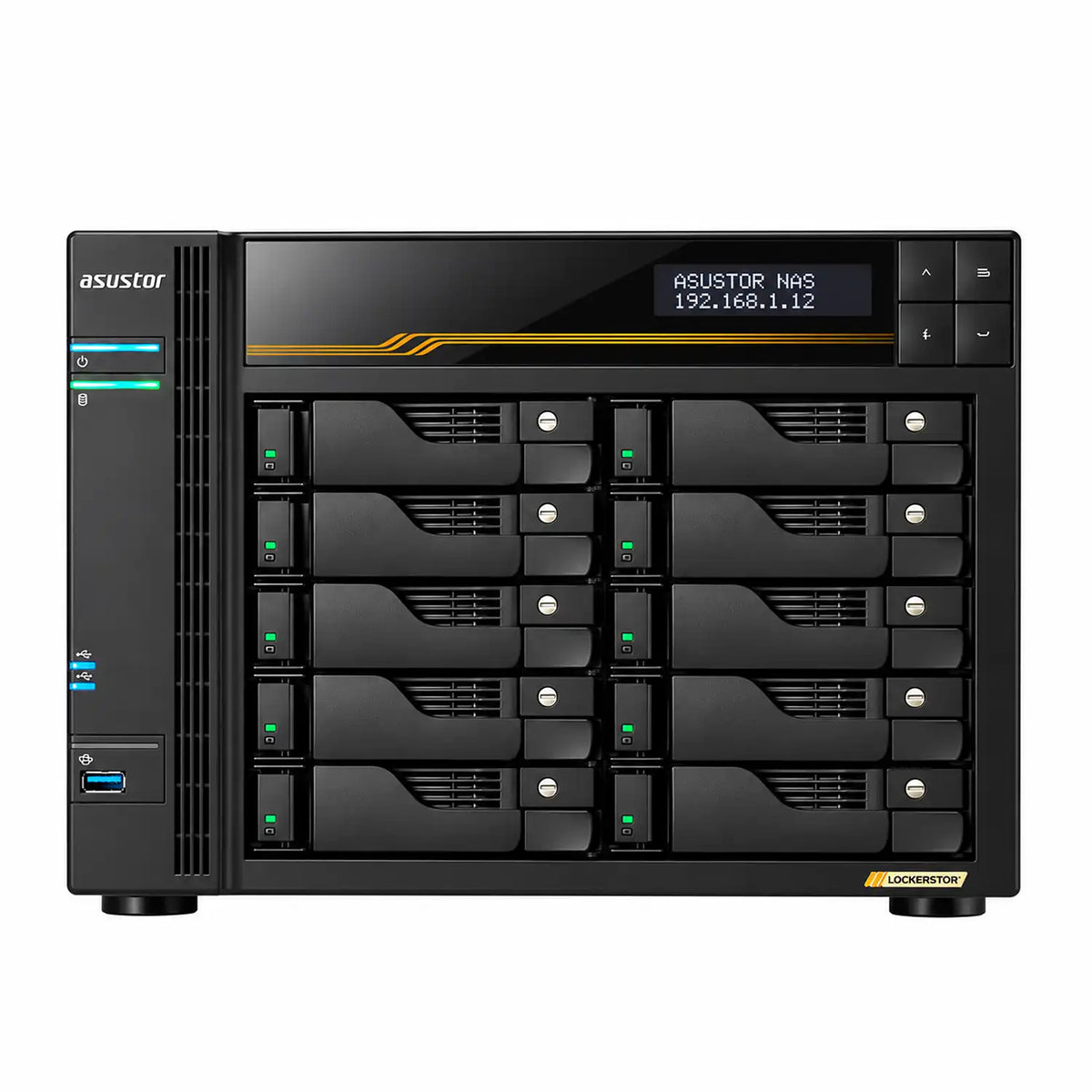

10-Bay Storage Capacity: Ten SATA drive bays support 3.5-inch and 2.5-inch HDDs or SSDs, providing flexible high-capacity storage configurations.
High-Speed Networking: Dual 10GbE and dual 5GbE ports provide fast network connectivity with support for 10G/5G/2.5G/1G/100M modes.
NVMe & ECC Memory: Four PCIe 4.0 M.2 slots and 16GB ECC DDR5-4800 memory provides fast storage acceleration and data-integrity support.
Modern Expansion: Two USB4 ports provide up to 40Gbps per port, alongside three USB 3.2 Gen 2 Type-A ports for compatible peripherals.

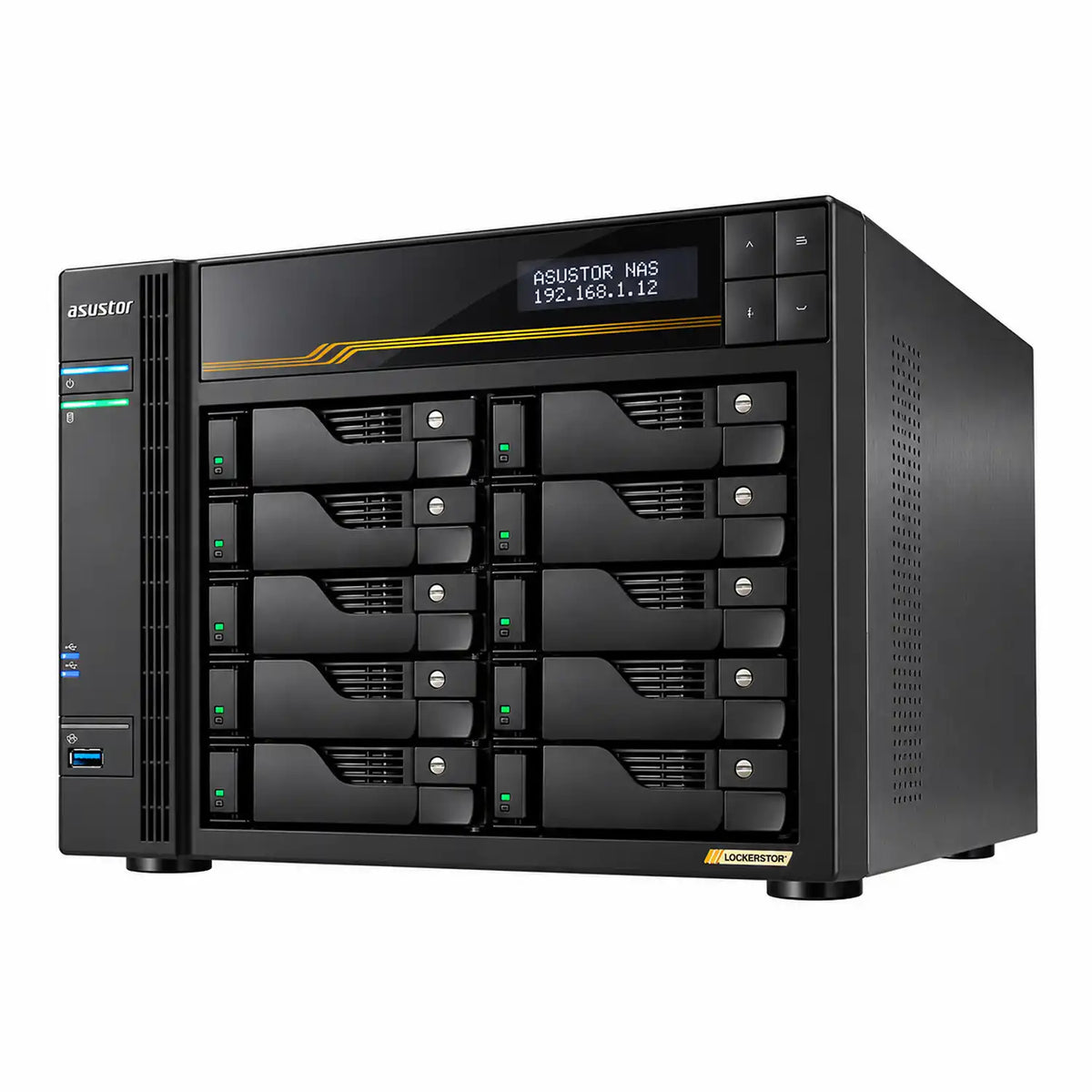

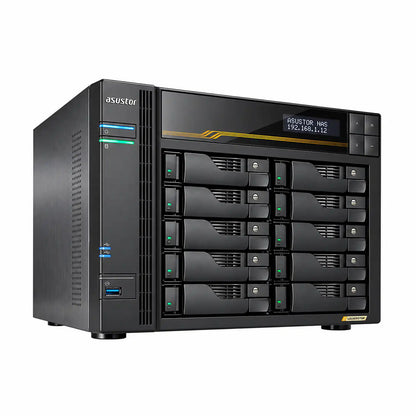

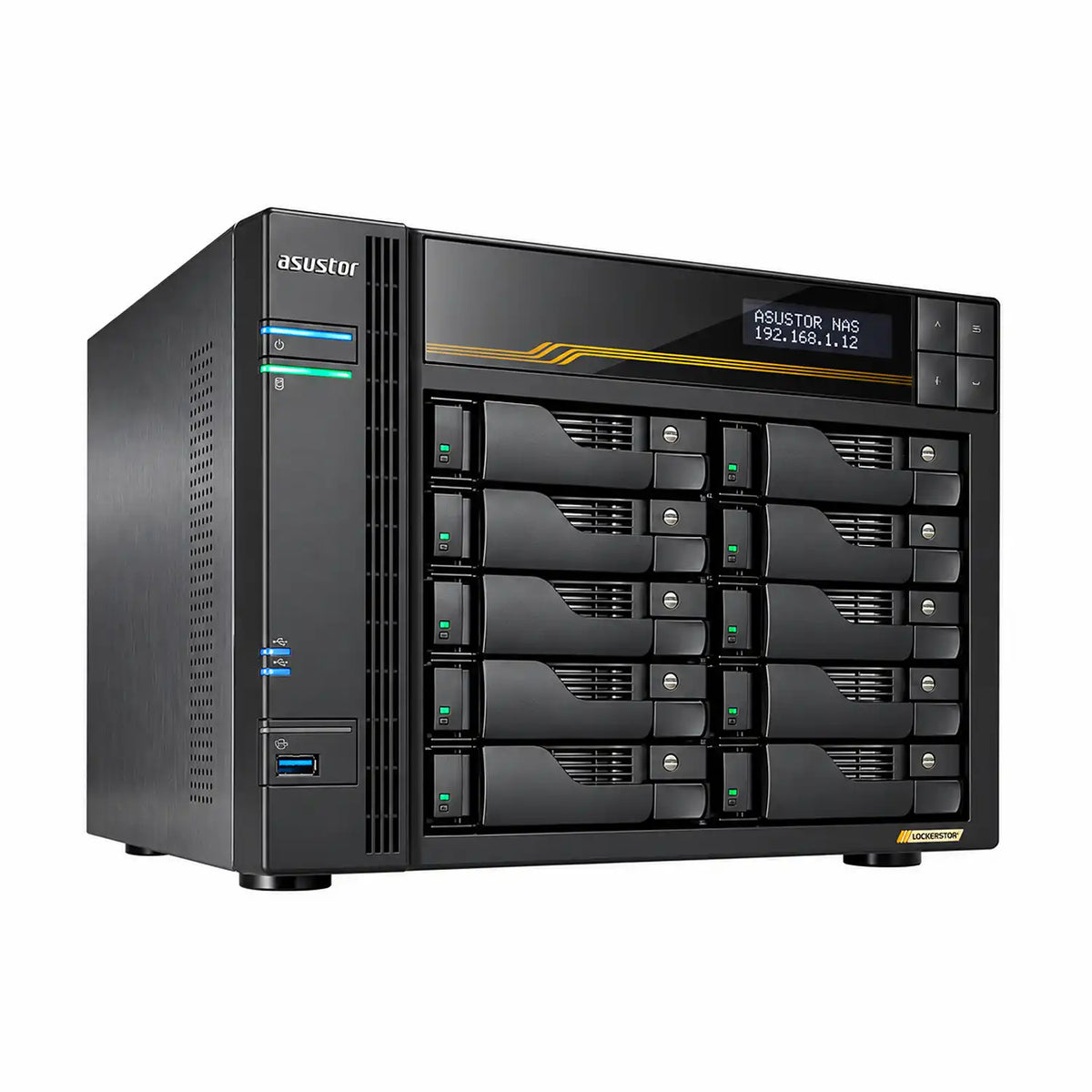

The ASUSTOR LOCKERSTOR 10 Gen3 AS6810T is a 10-bay NAS designed for high-capacity storage, fast network access and demanding data workloads. It combines an AMD Ryzen Embedded V3C14 quad-core processor with 16GB ECC DDR5-4800 memory, four PCIe 4.0 M.2 NVMe slots, dual 10GbE and dual 5GbE networking. It supports SATA HDD/SSD storage, NVMe SSDs and multiple RAID configurations for business, professional and advanced home storage environments.
Product Specifications:
| Brand | ASUSTOR |
| Model | LOCKERSTOR 10 Gen3 AS6810T |
| Product Type | 10-Bay NAS |
| System Memory | 16GB ECC DDR5-4800 |
| Processor | AMD Ryzen Embedded V3C14 |
| CPU Quantity | 1 |
| CPU Cores | 4 |
| CPU Threads | 8 |
| CPU Architecture | x64 64-bit |
| Processor Frequency | 2.3GHz, up to 3.8GHz burst |
| System Memory | 16GB ECC DDR5-4800 |
| Memory Module Pre-installed | 1 × 16GB ECC DDR5-4800 SO-DIMM |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 64GB |
| Drive Bays | 10 |
| Maximum Drive Bays with Expansion Unit | 22 |
| Hot Swappable Drive | Yes |
| Form Factor | Desktop |
| Drive Bays | 10 × SATA |
| Drive Type | 3.5-inch SATA HDD, 2.5-inch SATA HDD, 2.5-inch SATA SSD |
| Maximum Drive Bays | 10 |
| Maximum Local User Accounts | 32,768 |
| Maximum Local Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 64 |
| Maximum Single Volume Size | 256TB |
| Maximum Internal Volume Number | 512 |
| RAID Support | Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 1/5/6/10 + Spare Drive |

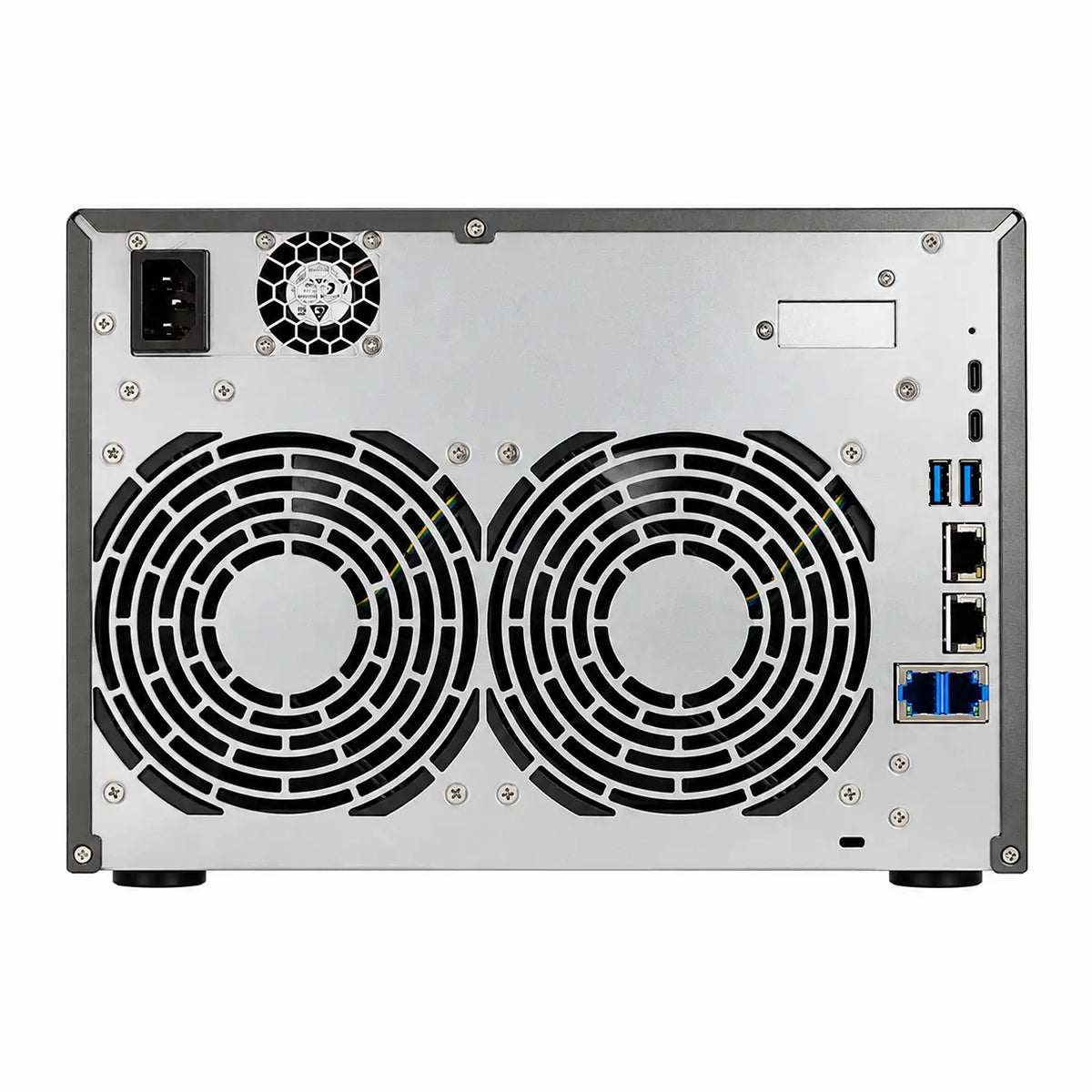

| Network Ports | 2 × 10GbE, 2 × 5GbE |
| PCIe Expansion | 1 × PCIe expansion slot |
| USB Ports | 3 × USB 3.2 Gen 2 Type-A |
| Expansion Port | 2 × USB4, up to 40Gbps per port; 4 × M.2 2280 NVMe PCIe 4.0 slots |
| Power Supply | 250W |
| Noise Level | 23.6 dB(A) |
| Dimensions (H × W × D) | 215.5 × 293 × 230 mm |
| Operating System | ADM |
| Part Number | AS6810T |
| Net Weight | 6.55 kg |
| Warranty | 3 Years Brand Warranty |
