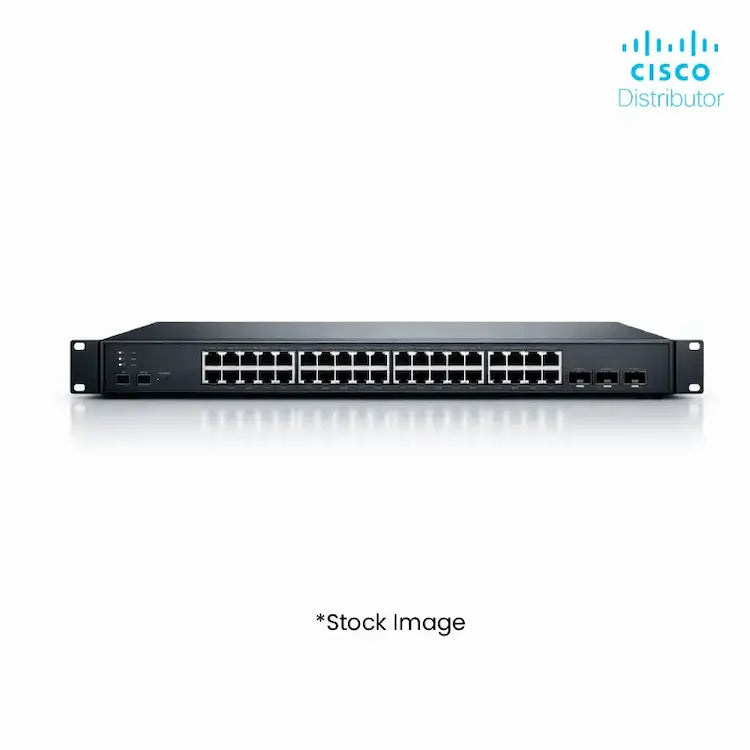

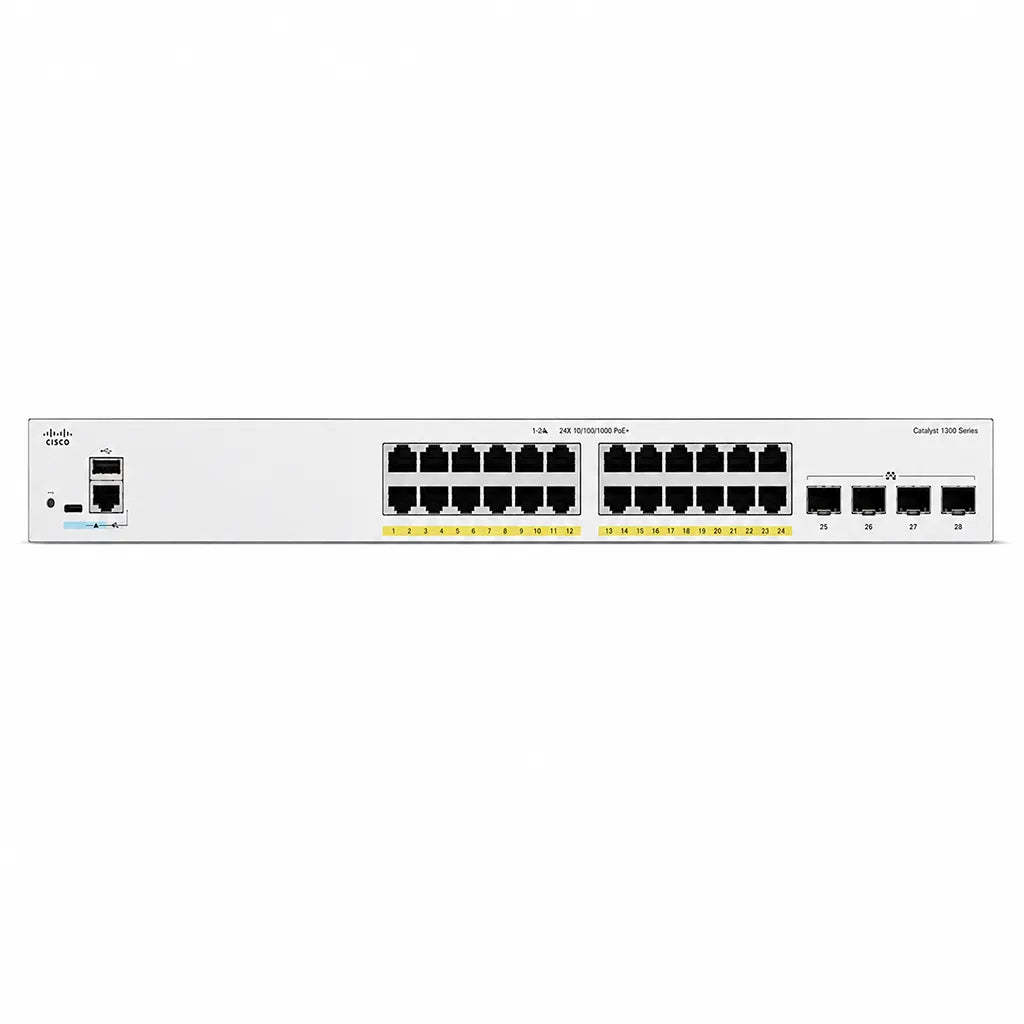

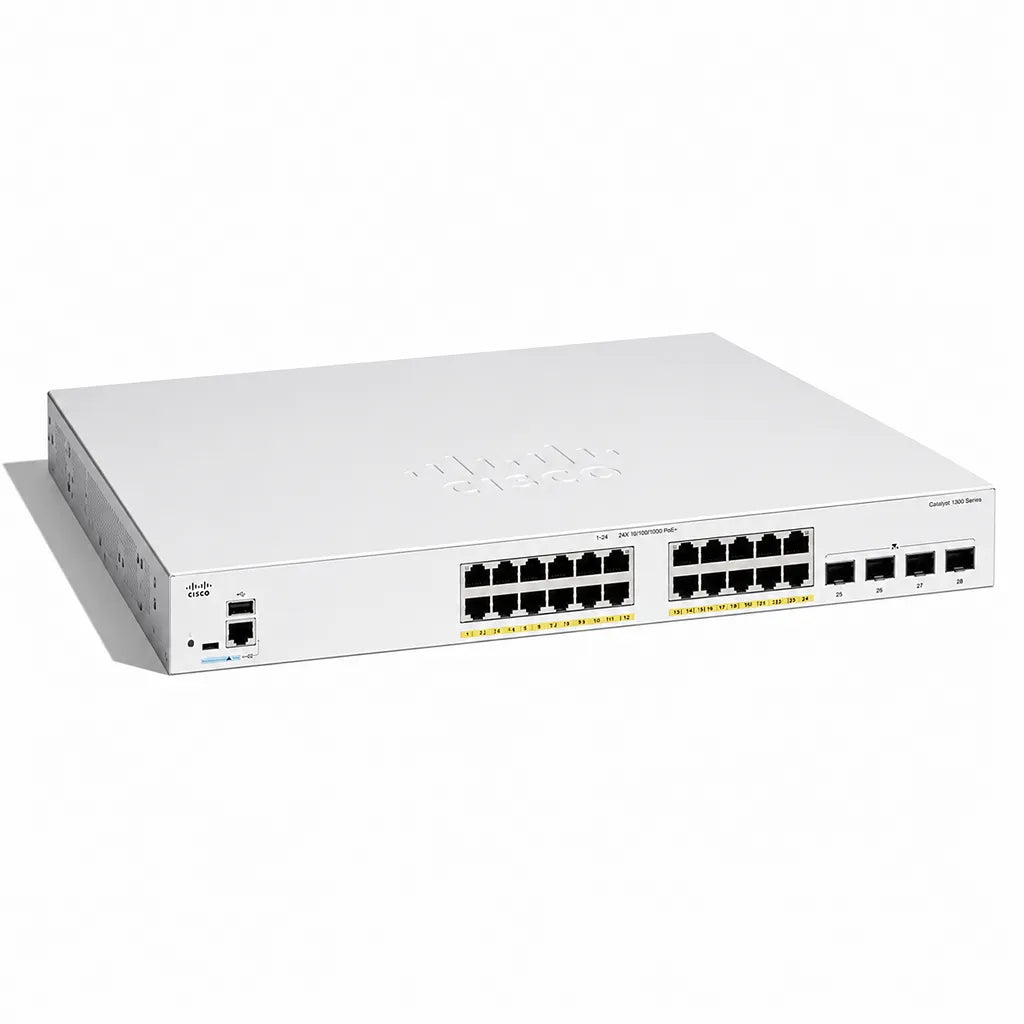

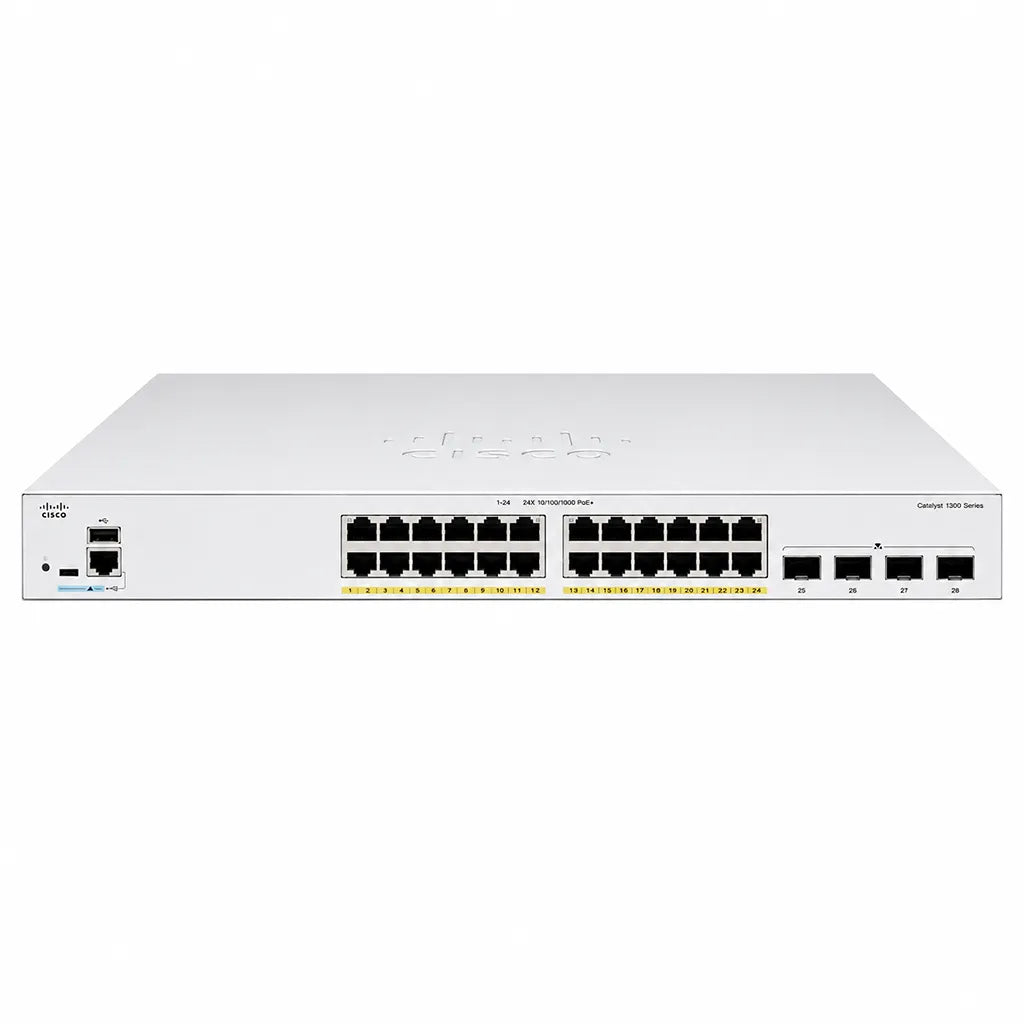

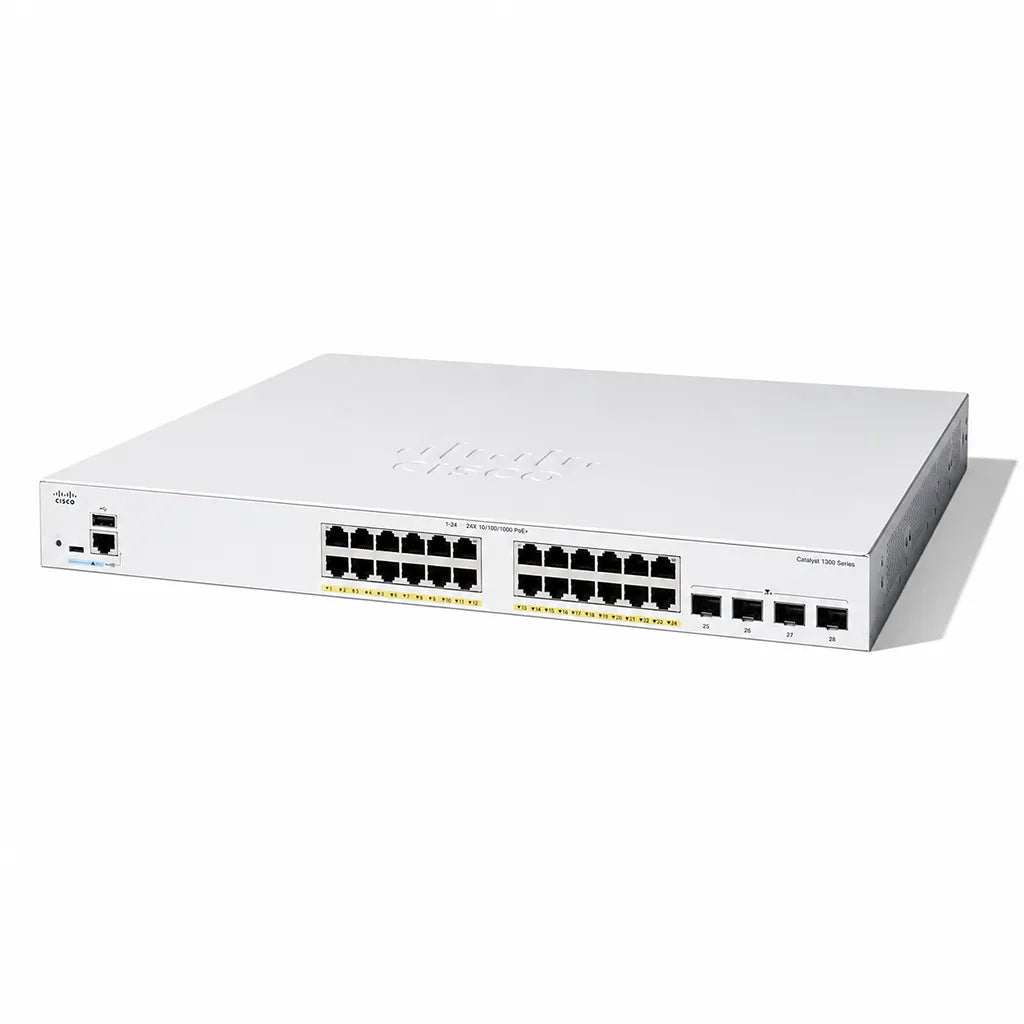

Cisco C1300-24FP-4X 24-Port Full PoE Gigabit Managed Switch with 4x 10G SFP+ Uplinks
Cisco C1300-24FP-4X 24-Port Full PoE Gigabit Managed Switch with 4x 10G SFP+ Uplinks
- Free Pan-India Shipping
- Easy 7-Day Returns
- GST Invoice on Every Order
- 100% Genuine, Brand New & Sealed
- Original Manufacturer Warranty
- Trusted Since 2014 ยท 15 Lakh+ Orders
Couldn't load pickup availability
Product Description:
The Cisco C1300-24FP-4X is a high-performance managed Full PoE+ switch designed for businesses requiring advanced connectivity, centralized management, and reliable power delivery. Featuring 24 Gigabit PoE+ ports with a powerful 375W PoE budget and 4 dedicated 10G SFP+ uplinks, it delivers exceptional performance for wireless networks, IP surveillance systems, VoIP deployments, and enterprise edge environments.
With advanced Layer 2+ and Layer 3 Lite capabilities, robust security features, and simplified management tools, the C1300-24FP-4X enables organizations to build secure, scalable, and future-ready network infrastructures.
โ 24 Gigabit Full PoE+ Ports โ Delivers power and data connectivity for IP cameras, Wi-Fi access points, VoIP phones, and other PoE-enabled devices.
โ 375W PoE Power Budget โ Supports high-density PoE deployments with up to 30W per port.
โ 4 Dedicated 10G SFP+ Uplink Ports โ Provides high-speed fiber uplinks for aggregation, backbone connectivity, and server access.
โ Advanced Layer 2+ & Layer 3 Lite Features โ Supports VLANs, Static Routing, QoS, Link Aggregation, and network segmentation.
โ 128 Gbps Switching Capacity โ Ensures high-performance and non-blocking data transmission.
โ Enterprise-Class Security โ Includes 802.1X authentication, DHCP Snooping, ACLs, Dynamic ARP Inspection, and IP Source Guard.
โ IPv4 & IPv6 Support โ Ready for modern and future network deployments.
โ Flexible Management Options โ Web GUI, CLI, SNMP, and Cisco Business Dashboard support.
| Specification | Details |
|---|---|
| Model | Cisco C1300-24FP-4X |
| Product Type | Managed Full PoE+ Gigabit Switch |
| Ethernet Ports | 24 ร 10/100/1000 Mbps RJ45 PoE+ Ports |
| Uplink Ports | 4 ร 10G SFP+ Ports |
| Total Ports | 28 |
| PoE Standard | IEEE 802.3af/at PoE+ |
| Total PoE Budget | 375W |
| Layer Support | Layer 2+ / Layer 3 Lite |
| Switching Capacity | 128 Gbps |
| Forwarding Performance | 95.23 Mpps |
| MAC Address Table | 16K Entries |
| VLAN Support | Up to 4094 VLANs |
| Jumbo Frame Support | Up to 9 KB |
| Link Aggregation | LACP (802.3ad) |
| Spanning Tree Protocol | STP, RSTP, MSTP |
| Quality of Service (QoS) | Yes |
| Access Control Lists (ACLs) | Yes |
| Static Routing | Supported |
| IPv4 Support | Yes |
| IPv6 Support | Yes |
| Security Features | 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection |
| Management Interface | Web GUI, CLI, SNMP |
| Port Mirroring | Supported |
| IGMP Snooping | Supported |
| Packet Buffer | 1.5 MB |
| Cooling | Active Cooling |
| Mounting | Rack Mountable |
| Power Supply | Internal Power Supply |

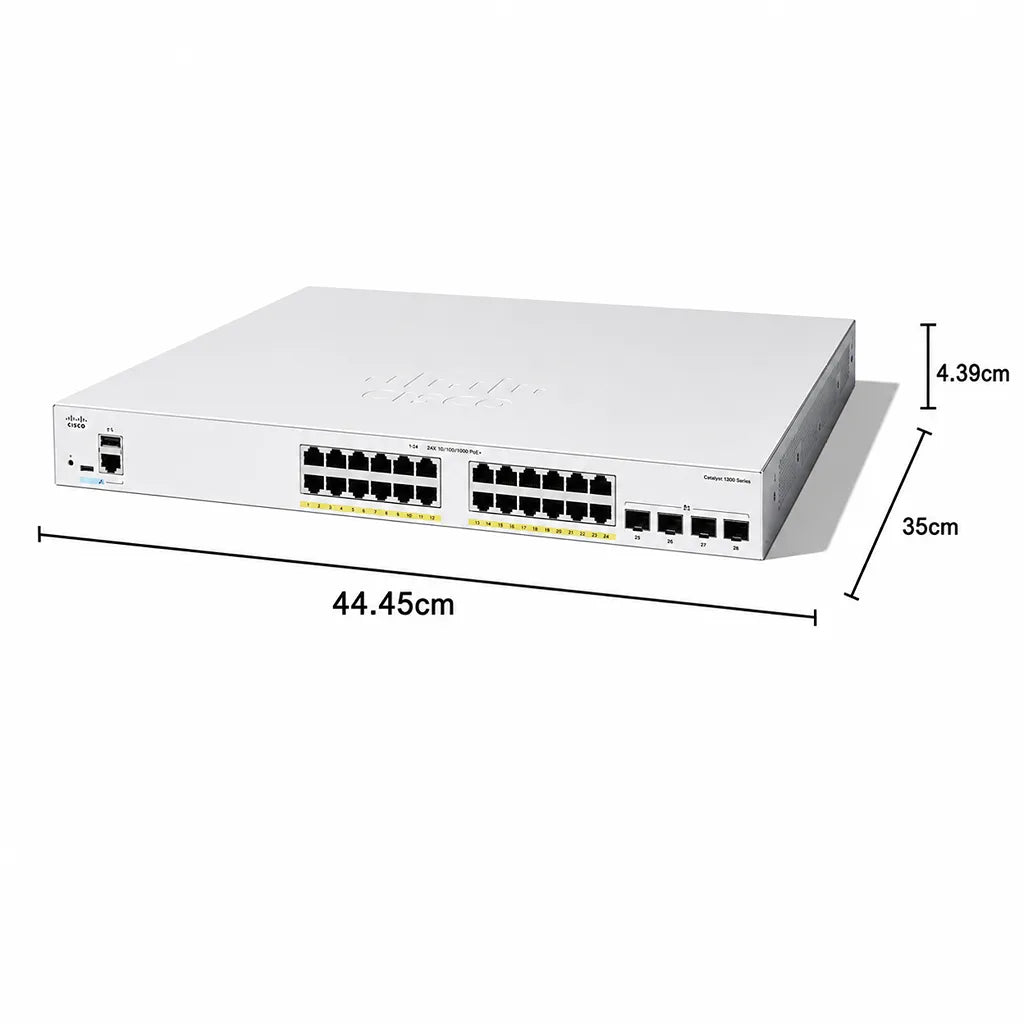

| Dimensions | 445 ร 345 ร 44 mm |
| Weight | 4.92 kg |
| Warranty | Limited Lifetime Warranty |
