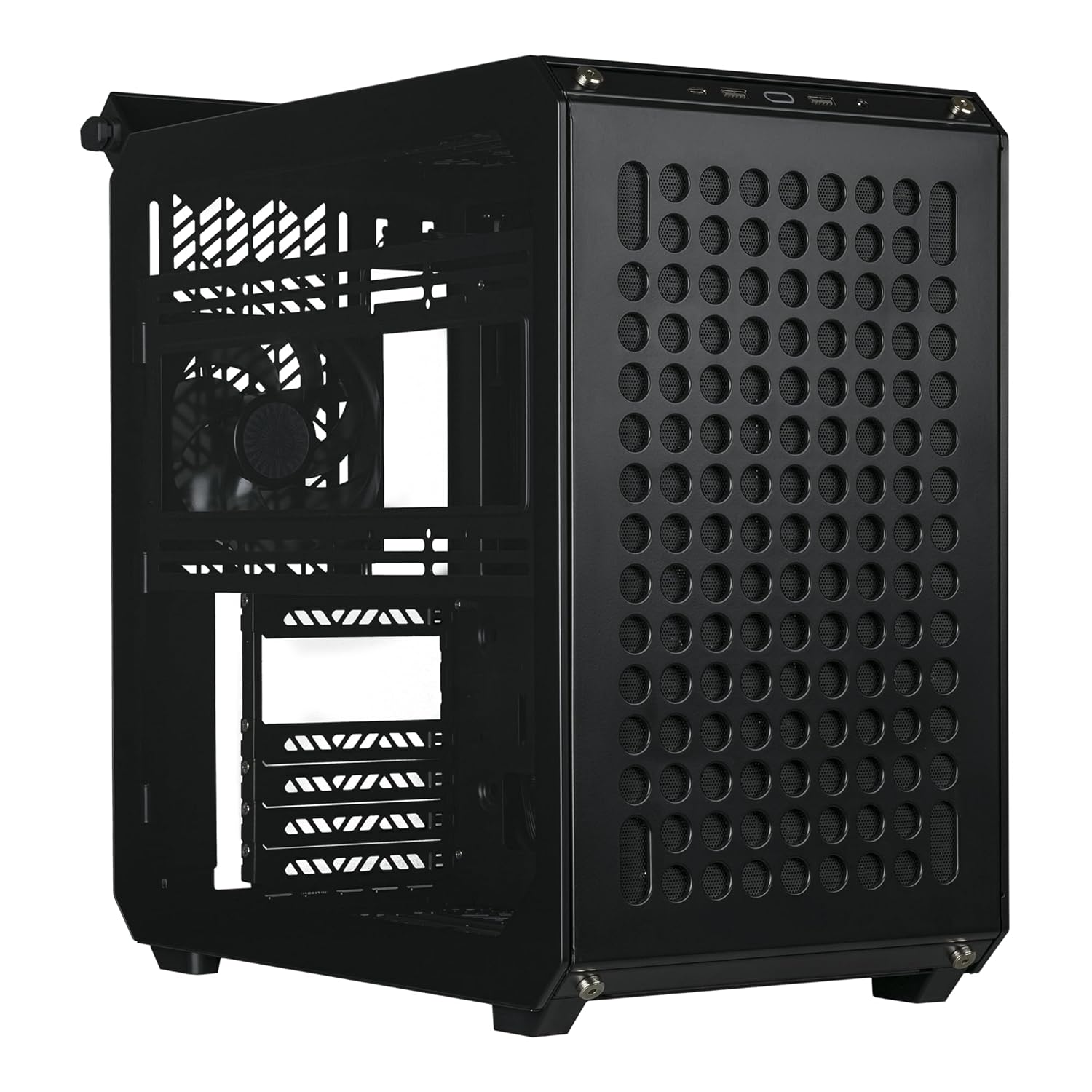

Cooler Master QUBE 500 Flatpack Small Mid-Tower ATX High Airflow Gaming Cabinet - Black
Cooler Master QUBE 500 Flatpack Small Mid-Tower ATX High Airflow Gaming Cabinet - Black
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:

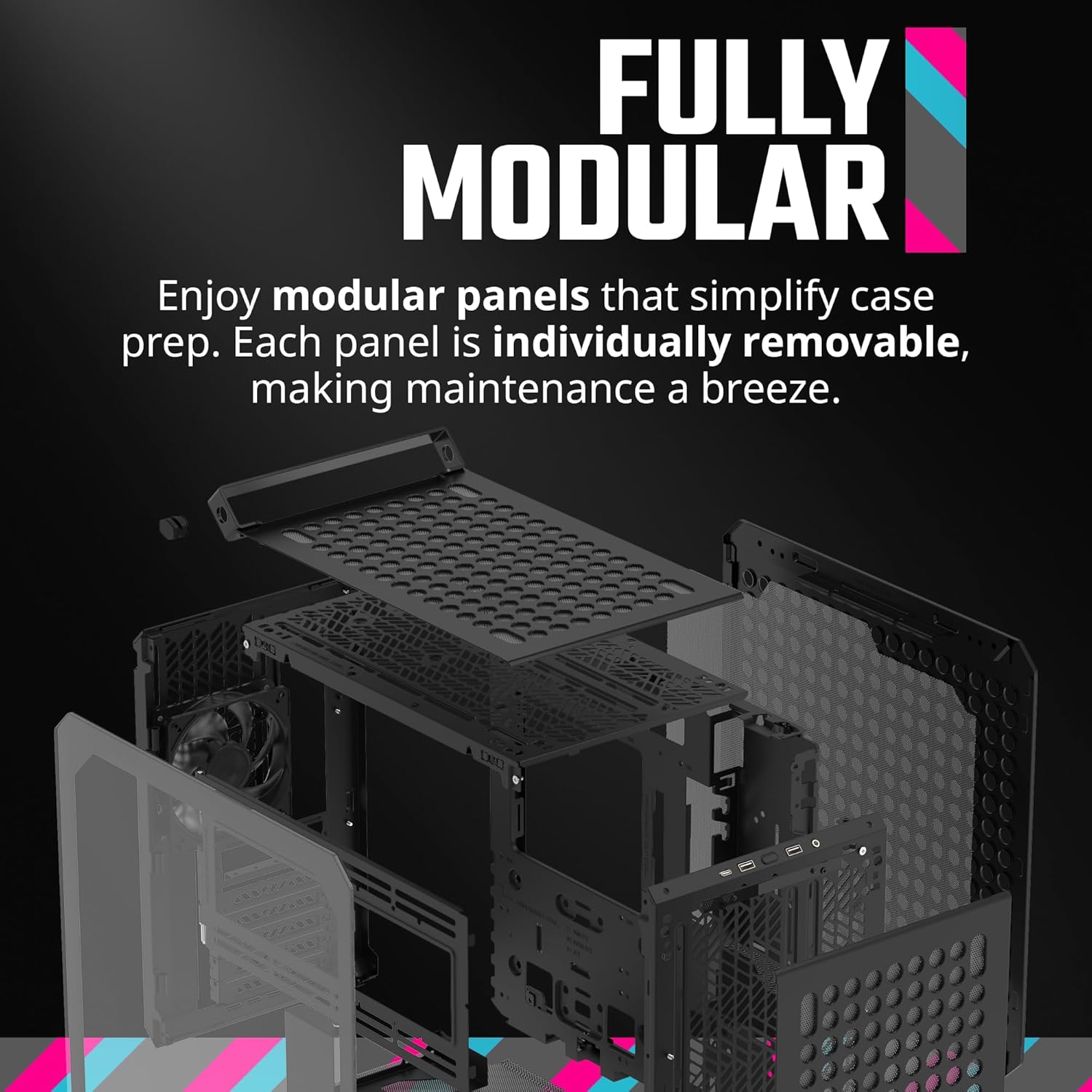

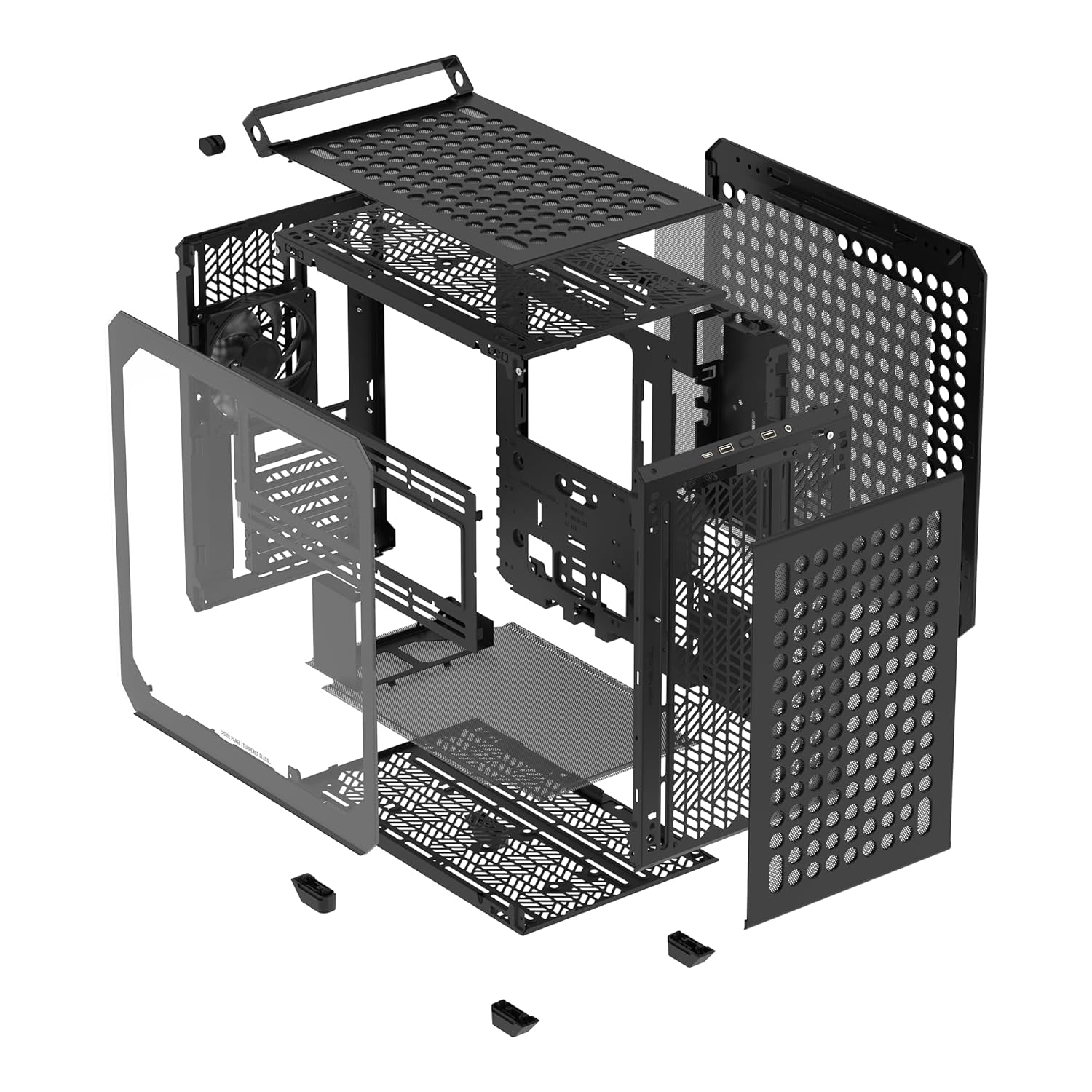

Fully Modular
Features modular panels that simplify and streamline the usual case prep process. Every panel is separately removable for easy maintenance.

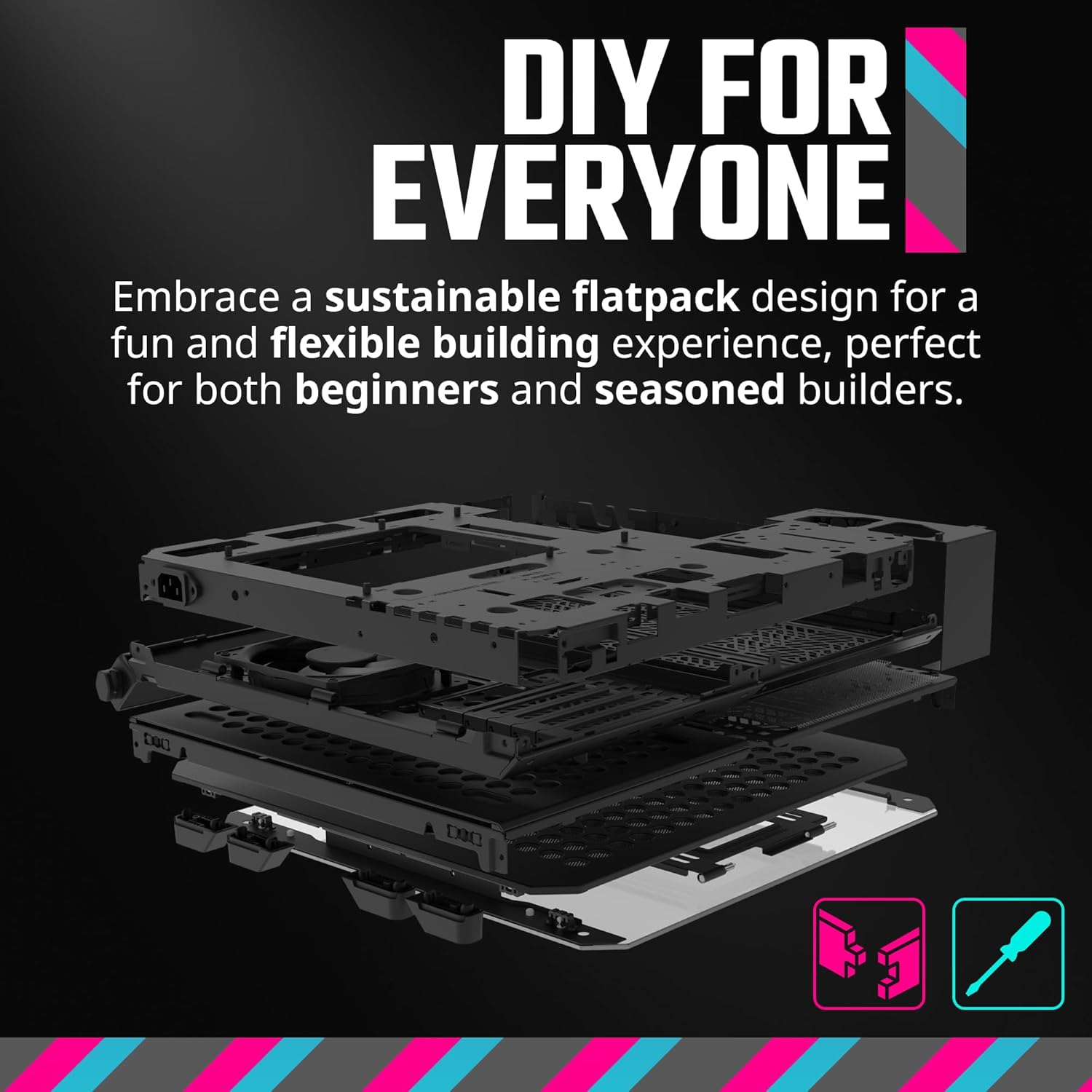

Flatpack Assembly
Besides the clear eco-benefits, we believe flat-packing will provide a fun and satisfying build experience.
Welcome to the future of PC DIY.

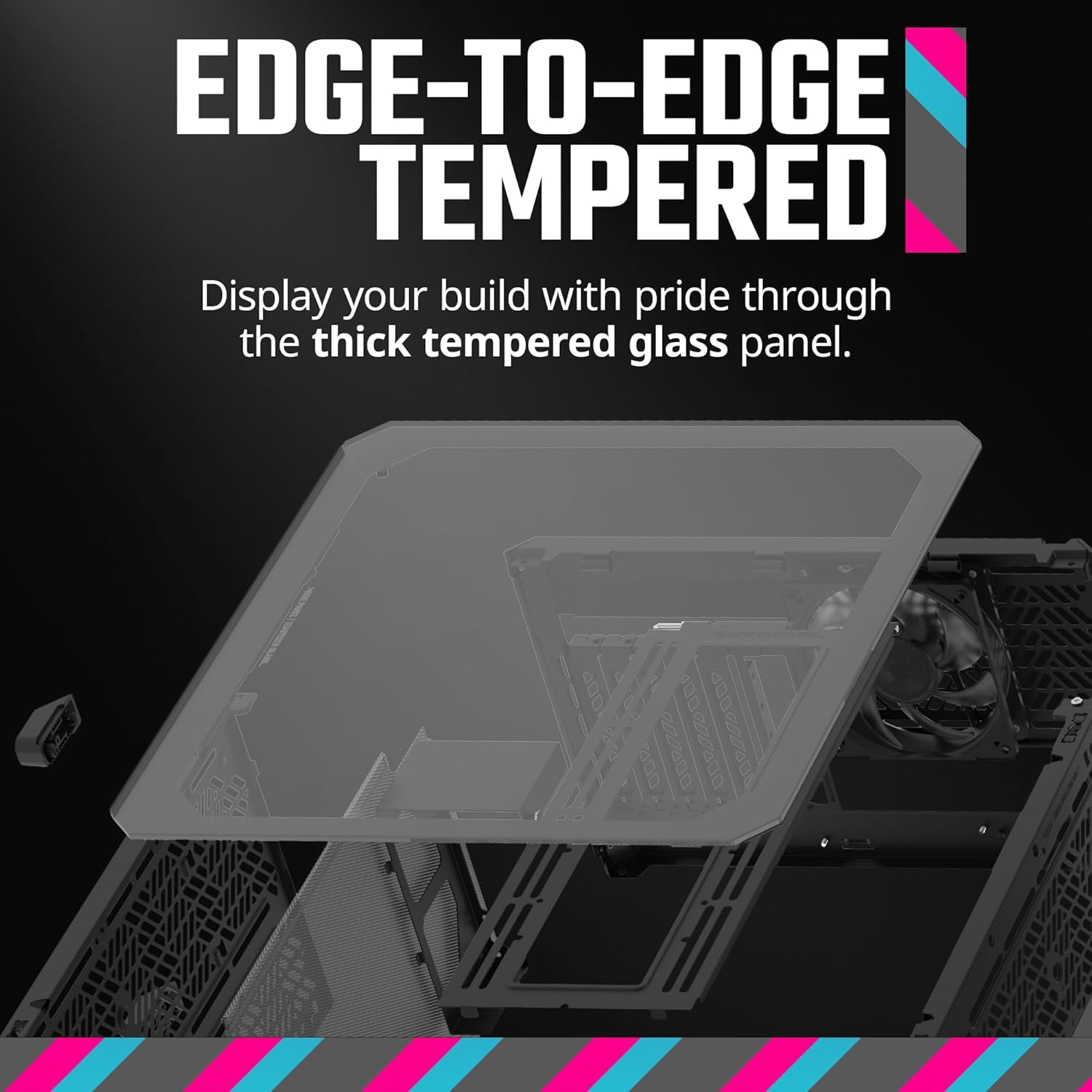

Swappable Side Panels
The symmetric design allows you to switch the steel panel and the glass panel with each other for a non-transparent build.

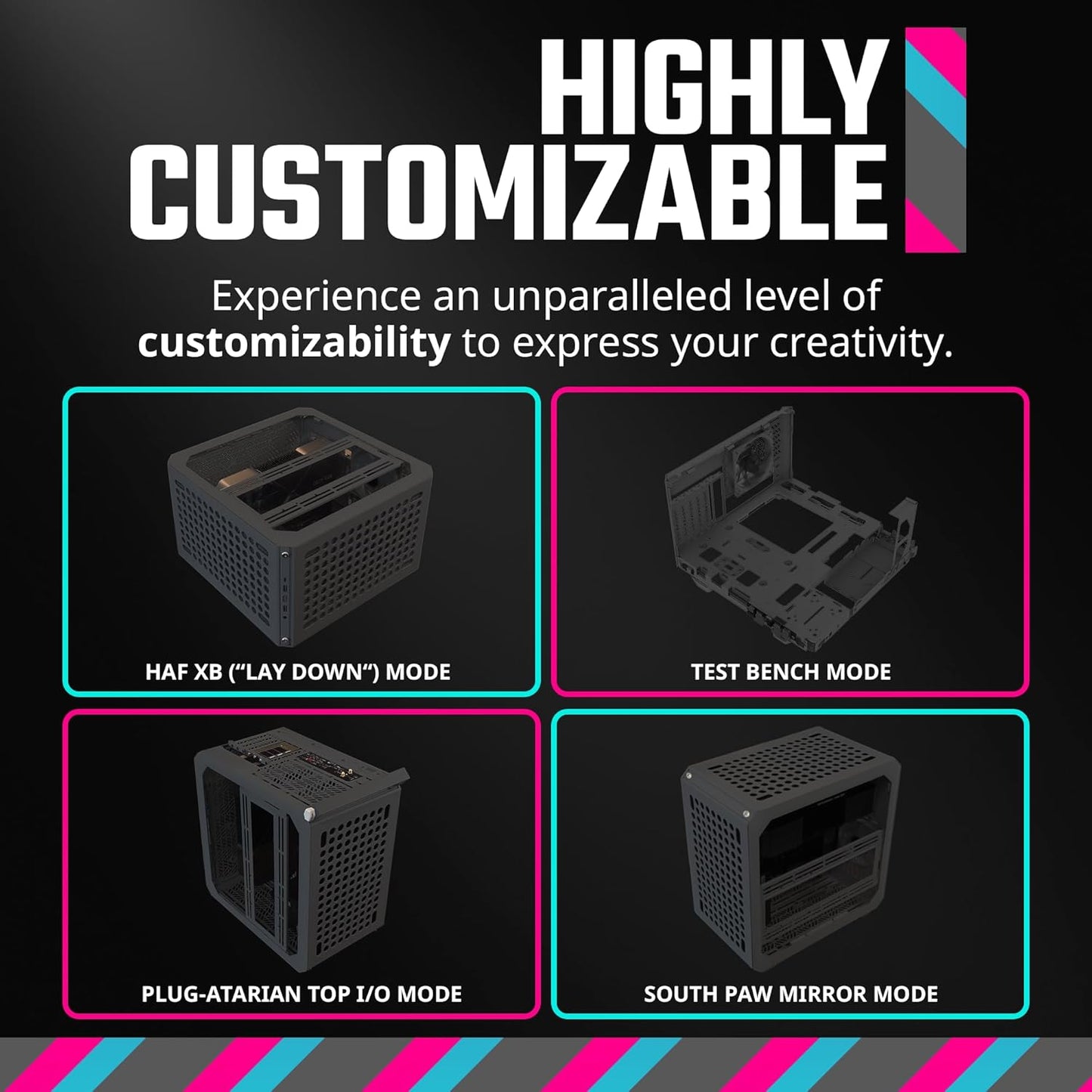

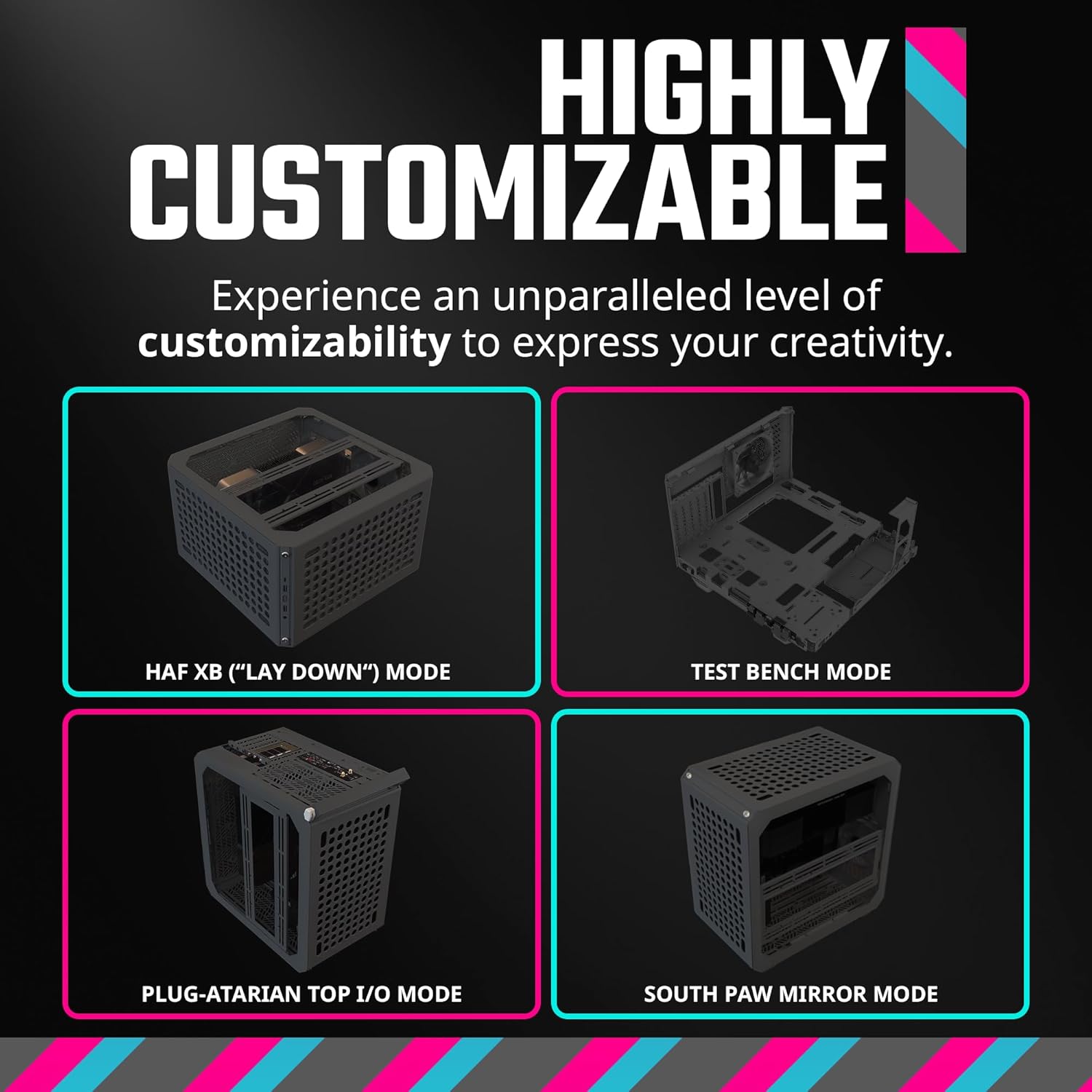

Highly Customizable
An unprecedented level of customizability allows for full creative expression.

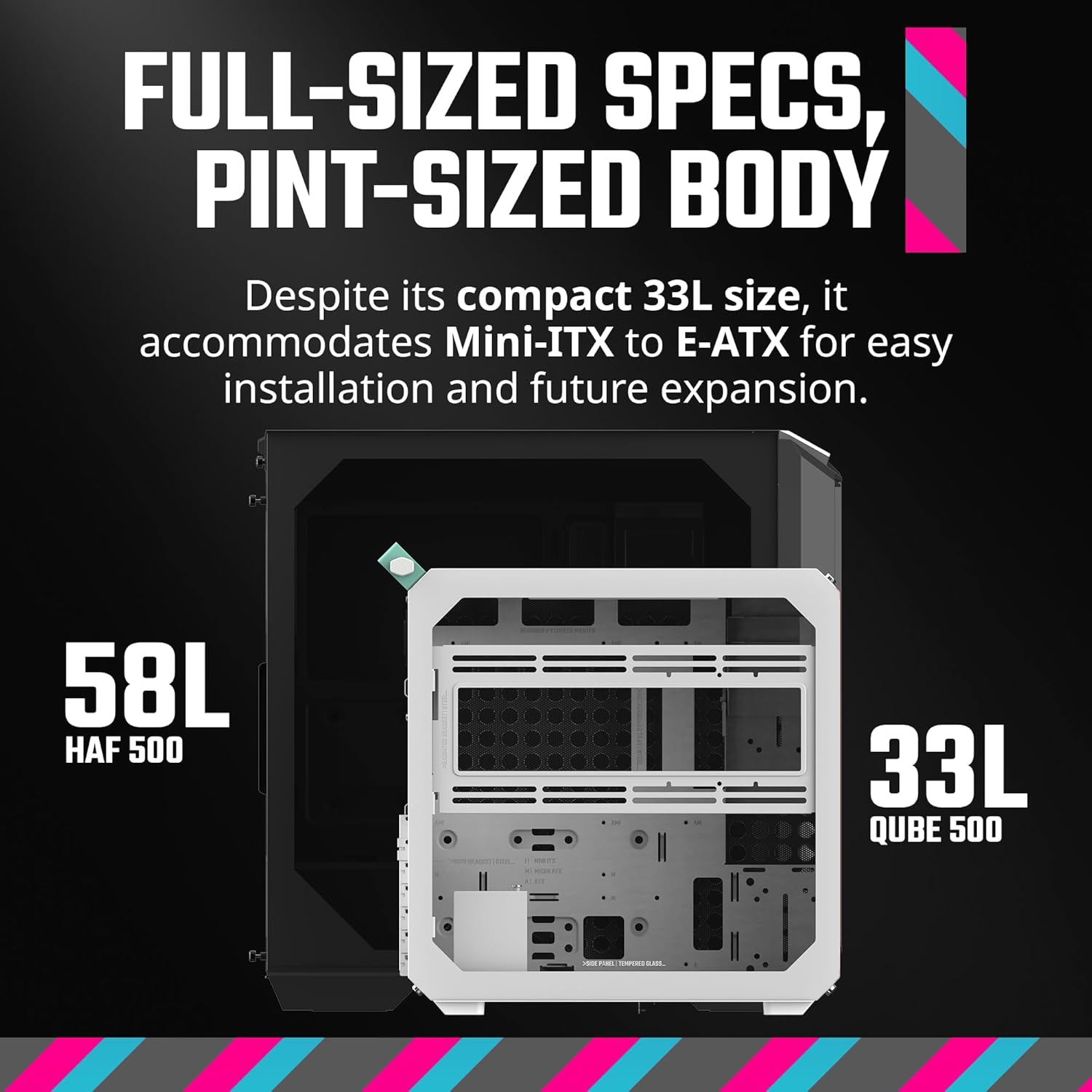

Full-sized specs
& pint-sized body
The Qube 500 can house almost anything you would expect from a larger case, from EATX Motherboards and the latest GPUs to dual 280mm radiators.

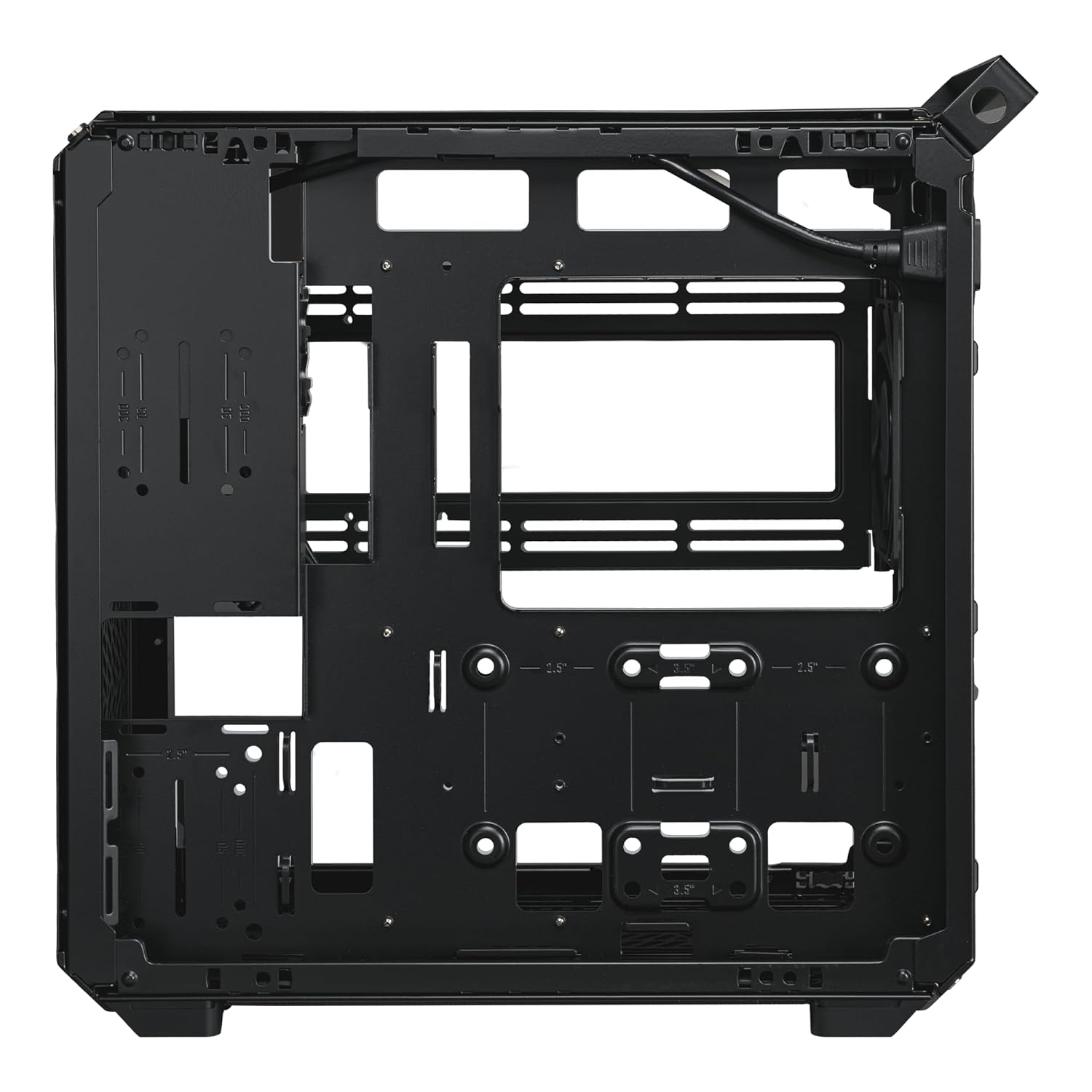

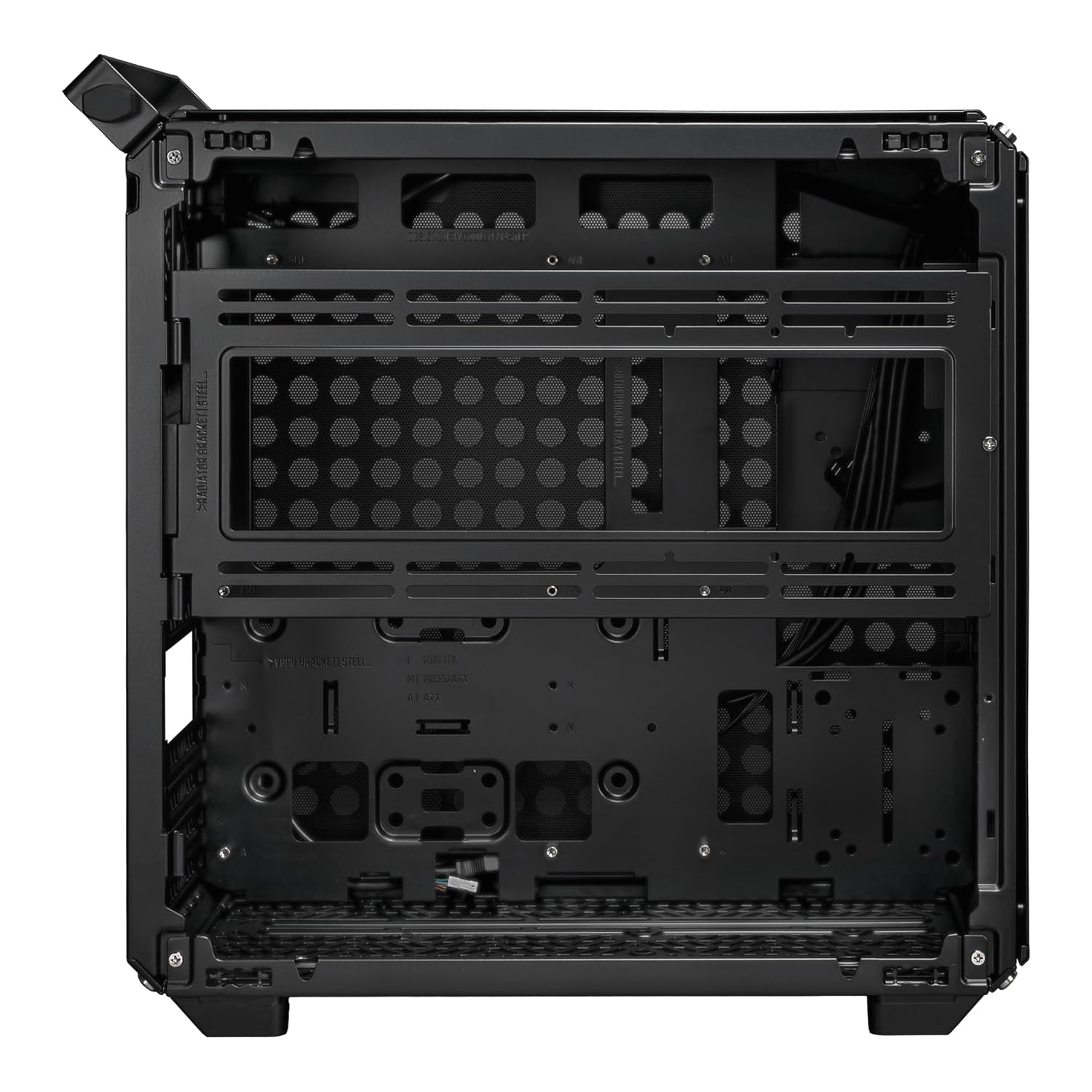

Hardware Compatibility
The Qube 500 is compatible with 280mm water coolers, 172mm air coolers, 173mm ATX PSUs, E-ATX motherboards and smaller, and 360mm GPUs.
Storage Compatibility
The Qube 500 provides up to 4x 3.5” HDD mounting positions and up to 3x 2.5” SSD mounting positions.
Color your way
Fully express yourself with the multi-color Macaron edition. It includes two sets of extra panels, an extra handlebar, and two accessory hooks. Mix and match the modular panels to create a case that is truly your own.
Extra Airflow
The side radiator mount has two positions, allowing you to install a 280mm radiator or provide your GPU with extra airflow.
Built-in vertical
Vertically mount your GPU with the included bracket. You can even adjust the distance from the side panel to maintain good airflow.
Accessory ecosystem
The Qube 500 comes with a living accessory ecosystem. A Gem mini cable manager and accessory hook are included, and we have prepared some 3D-printable files for you to create your own accessories.
Model | QUBE 500 Flatpack |
Exterior Color | Black |
Dimensions | 406 x 231 x 415mm (Incl. Protrusions) 380 x 231 x 381mm (excl. Protrusions) |
Form Factor | Mid-Tower |
Materials | Exterior - Steel, Plastic, TG Left Side Panel - Grey TG + Steel |
Motherboard Support | ITX Micro ATX ATX E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU) |

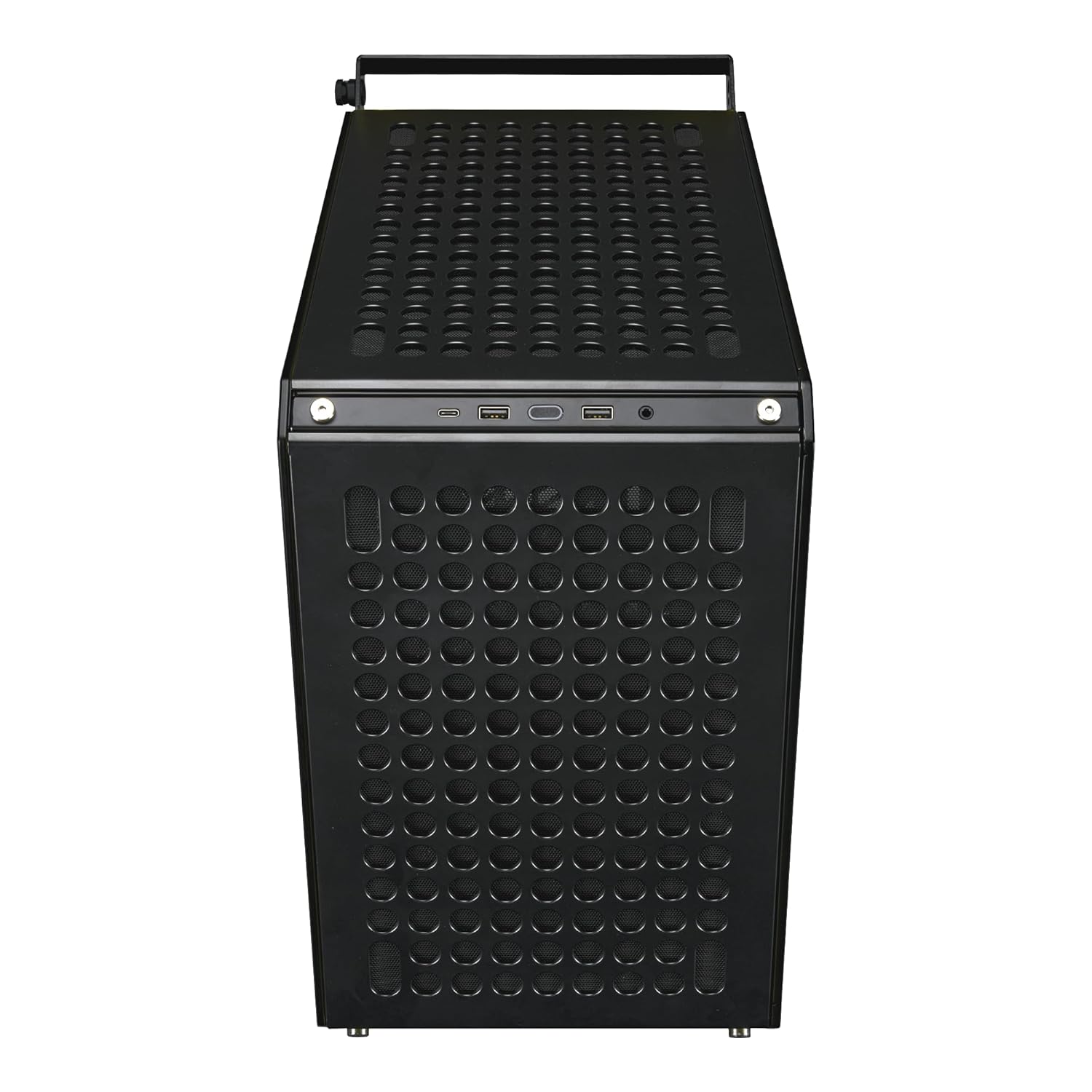

I/O Ports |

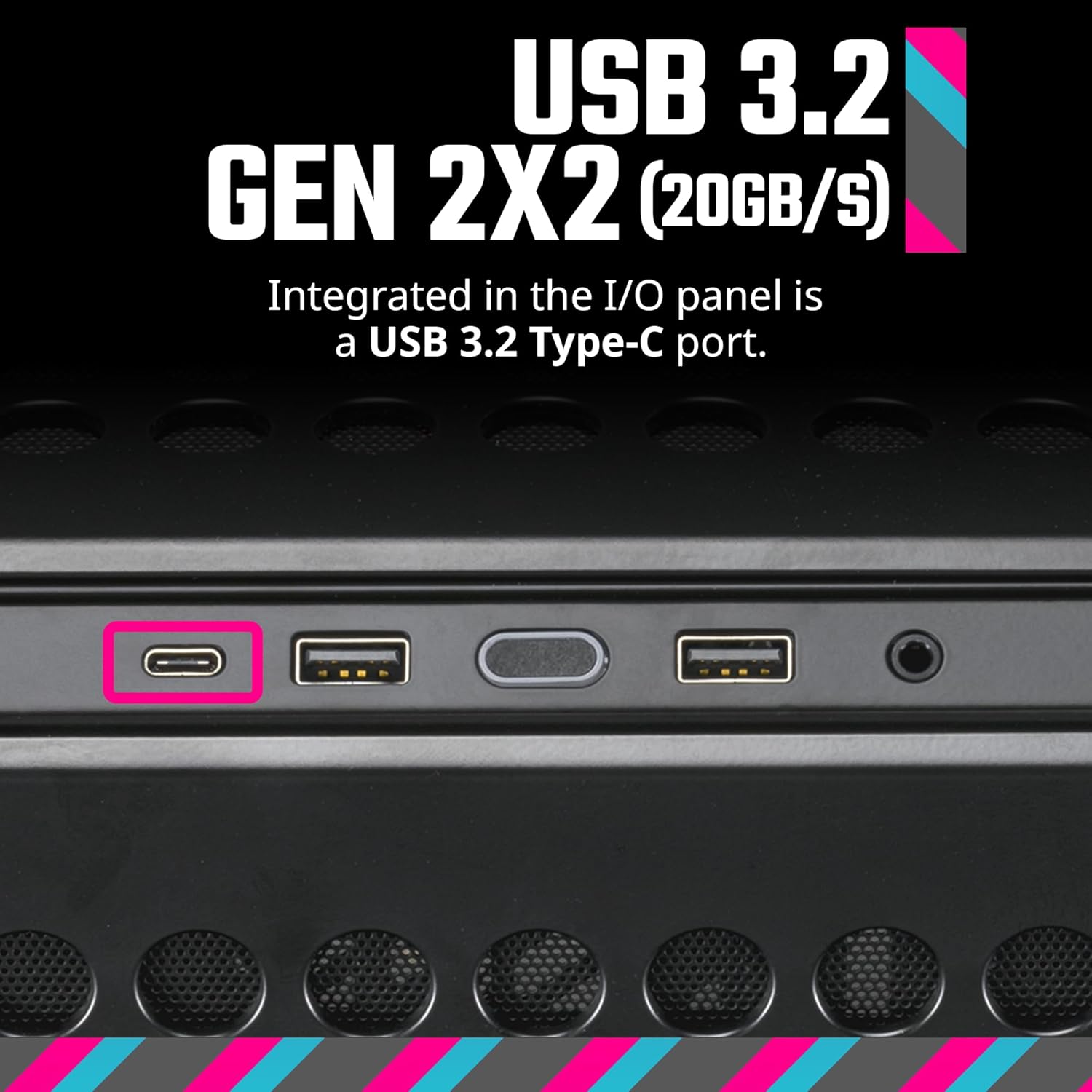

2x USB 3.2 Gen 1 Type A 1x USB 3.2 Gen 2 x 2 Type C 1x 3.5mm Combo |
Volume | 33.44L (excl. Protrusions) |
Expansion & Drive Bays | |
Expansion Slots | 7 |
3.5 Inch HDD | 4 |
2.5 Inch SSD | 3 |
Fan Support | |
Pre-Installed Fans - Rear | QUBE 500 Flatpack: 1x 120mm (1800 RPM) SF Black PWM |
Front | 1x 120/140mm (x2 if PSU is mounted in bottom) |
Top | 2x 120/140mm |
Rear | 1x 120mm |
Fan Support - Bottom | 2x 120/140mm |
Fan Support - Left side | 2x 120/140mm |

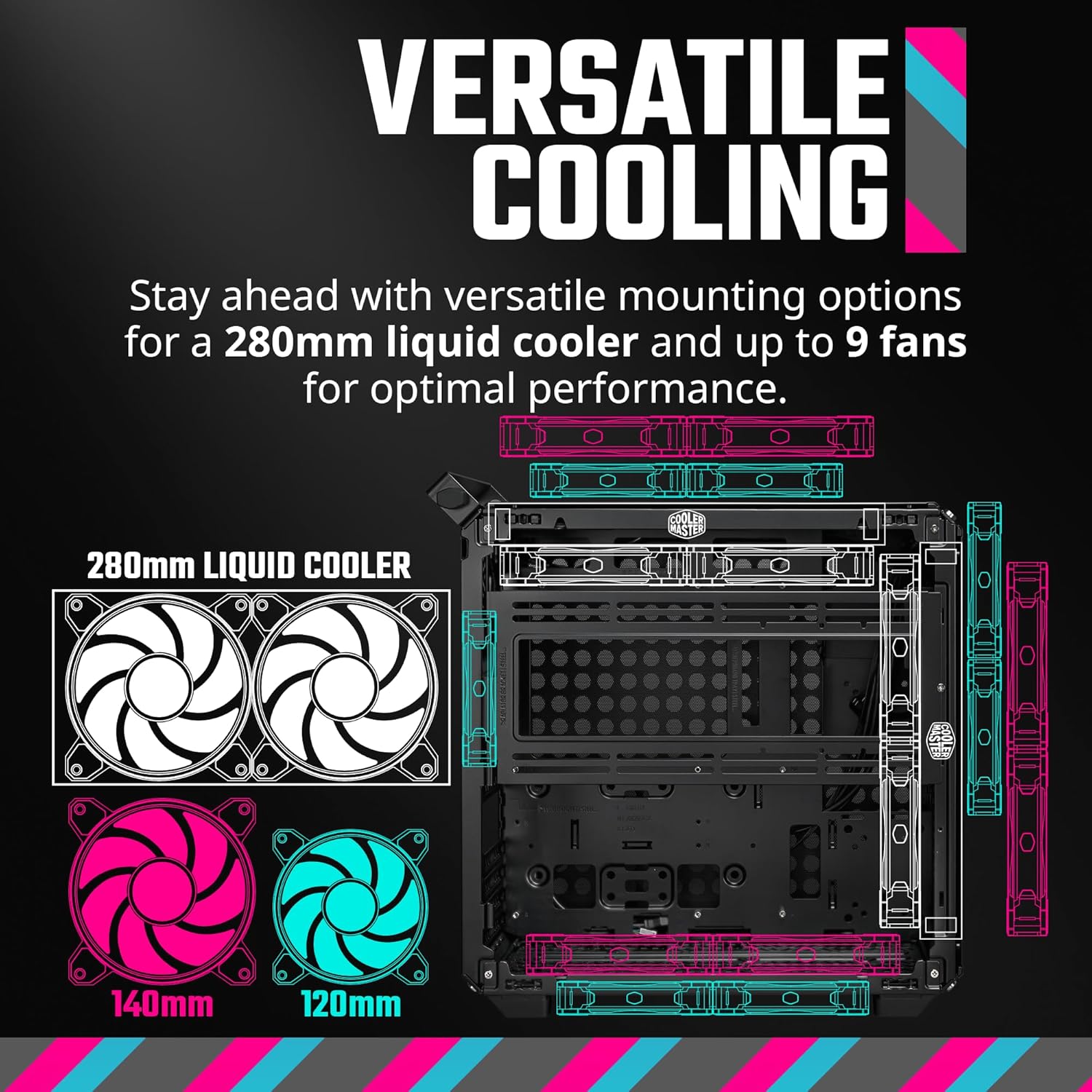

Radiator Support | |
Top | 120/140/240/280mm (280mm can be used within 53mm thickness) |
Front | 120/140 mm (240/280mm w/ PSU in bottom) |
Rear | 120mm |
Bottom | Radiator Support - Bottom |
Left Side | 120/140/240/280mm |

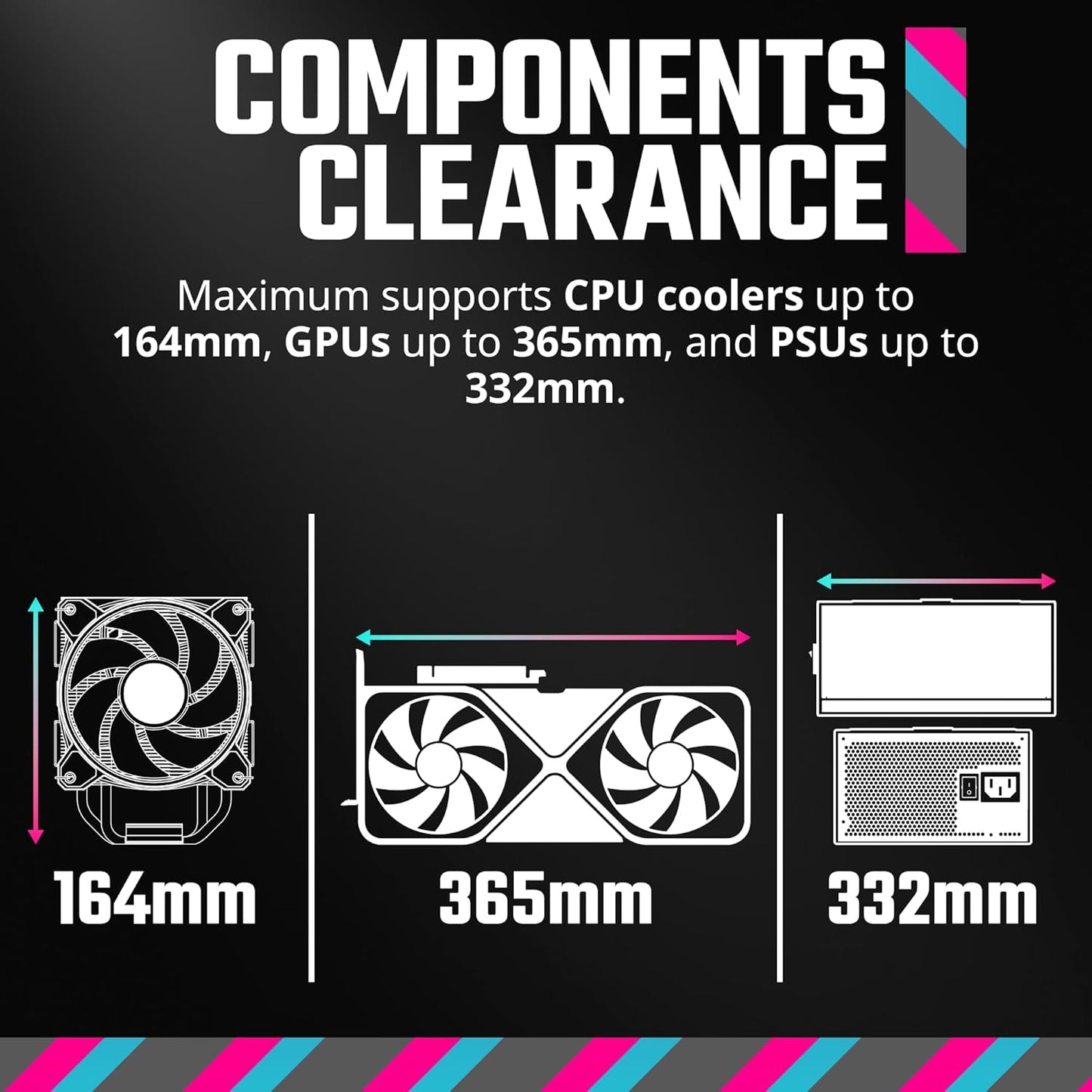

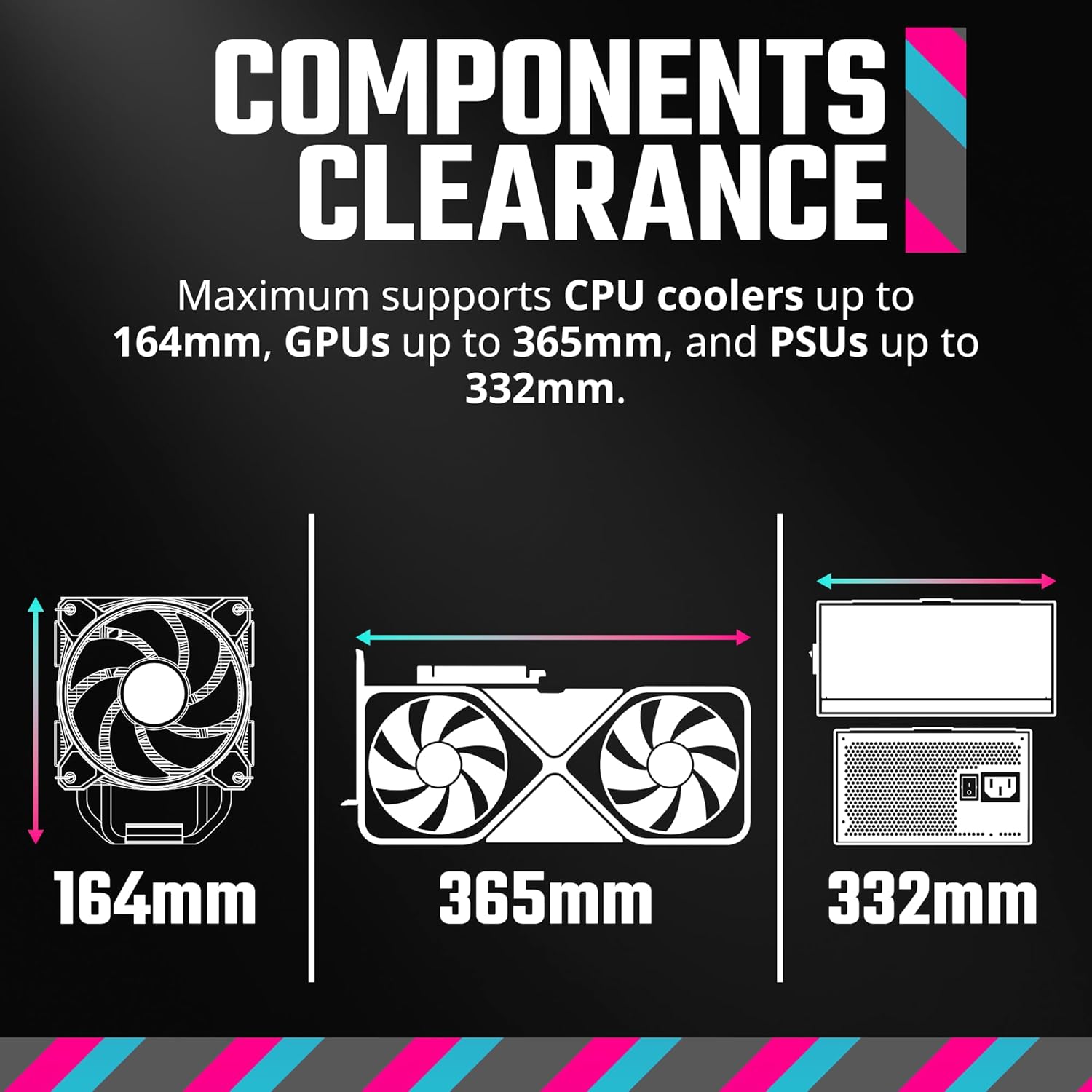

Clearance | |
CPU Cooler | 164mm-172mm (Remove the water cooling bracket) |
PSU | 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space) |
GFX | 365mm |
Cable Routing | 29-32mm |
Handle | Black x 1 |
Gem Mini | Black x 1 |
Dust Filters | Front, Top, Bottom, Right side |
Power Supply Support | SFX / SFX-L / ATX |
Warranty | 2 Years of Brand Warranty |
