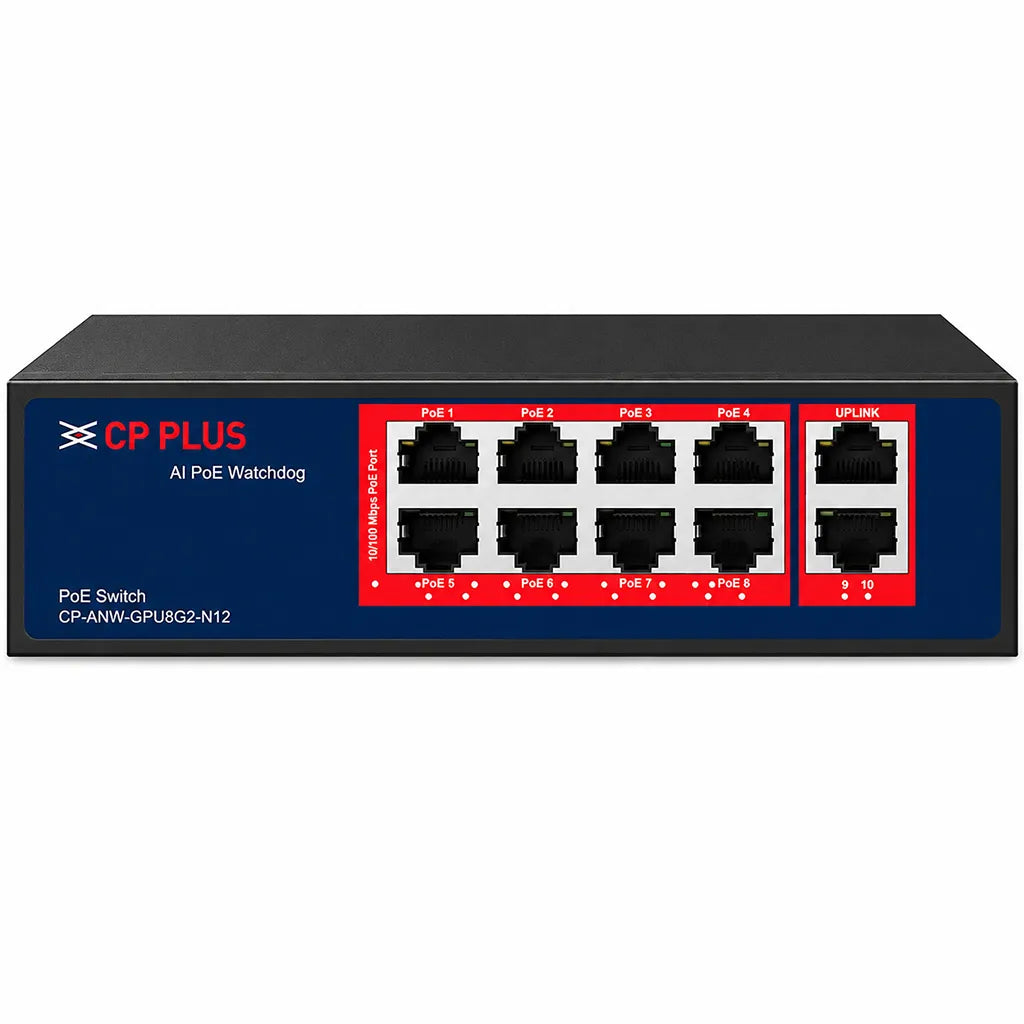

• CP PLUS CP-ANW-GPU8G2-N12 Gigabit Unmanaged PoE Switch front panel showing 8 PoE ports and 2 Gigabit uplink ports -tpstech.in

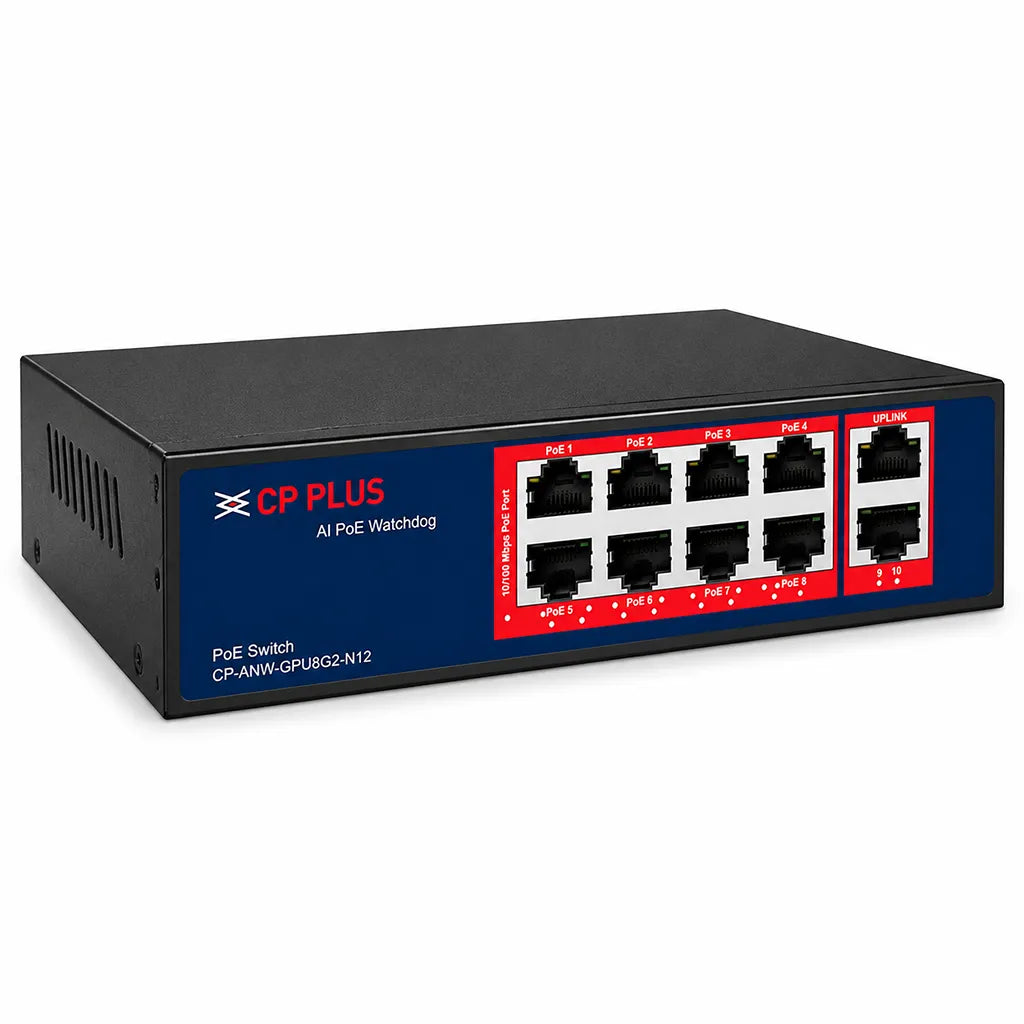

  • CP PLUS CP-ANW-GPU8G2-N12 8 Port Gigabit PoE Switch left perspective view designed for IP cameras and surveillance networking -tpstech.in

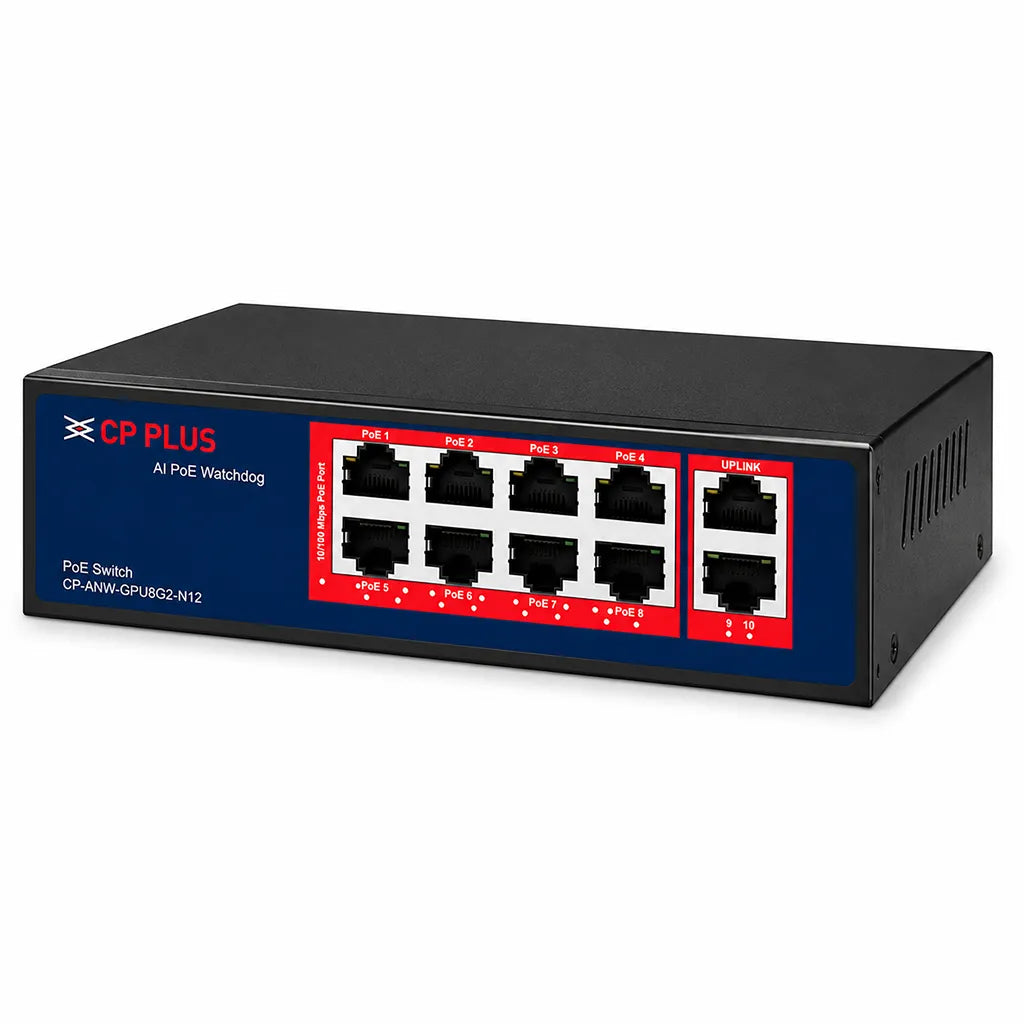

  • CP PLUS CP-ANW-GPU8G2-N12 8 Port Gigabit Unmanaged PoE Switch right perspective featuring AI PoE Watchdog and Gigabit uplink connectivity -tpstech.in

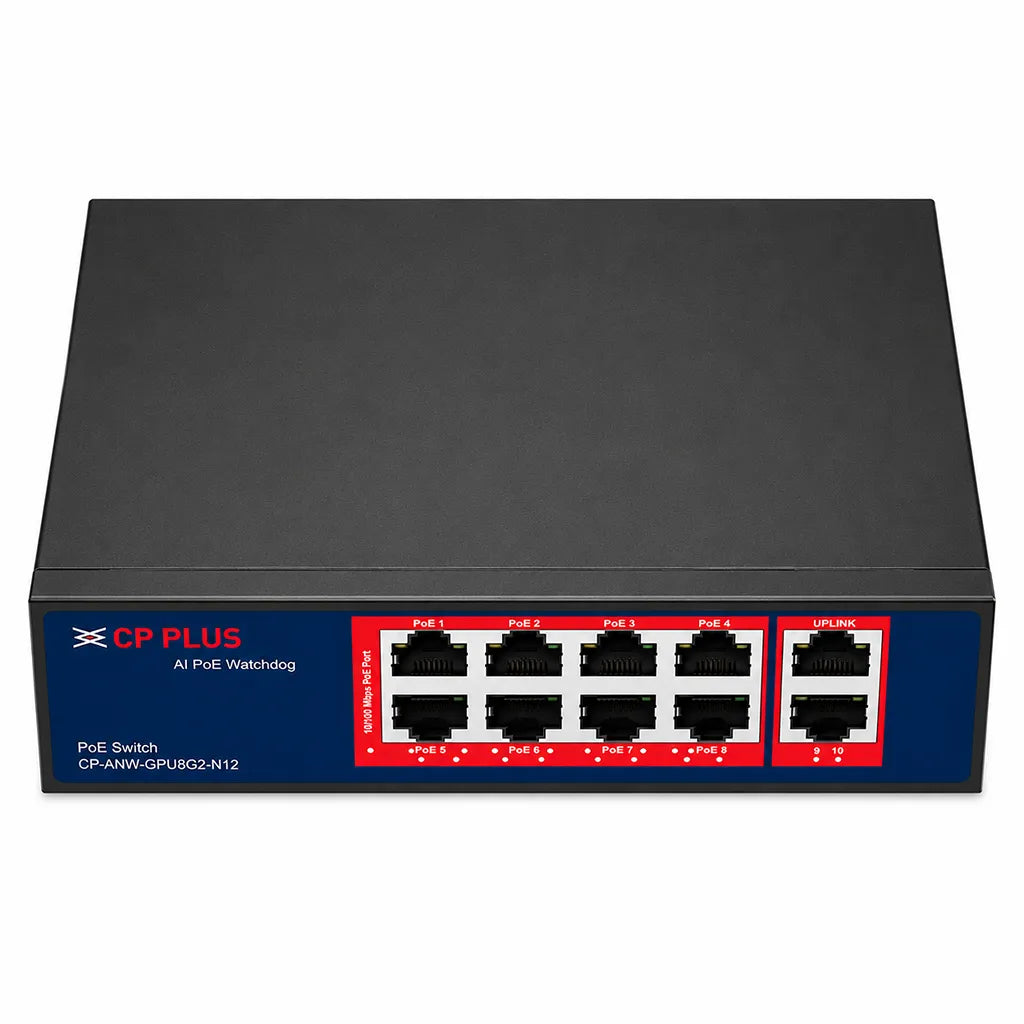

  • CP PLUS CP-ANW-GPU8G2-N12 8 Port Gigabit Unmanaged PoE Switch with 2 Gigabit Uplink Ports front view for CCTV and IP surveillance network deployment -tpstech.in

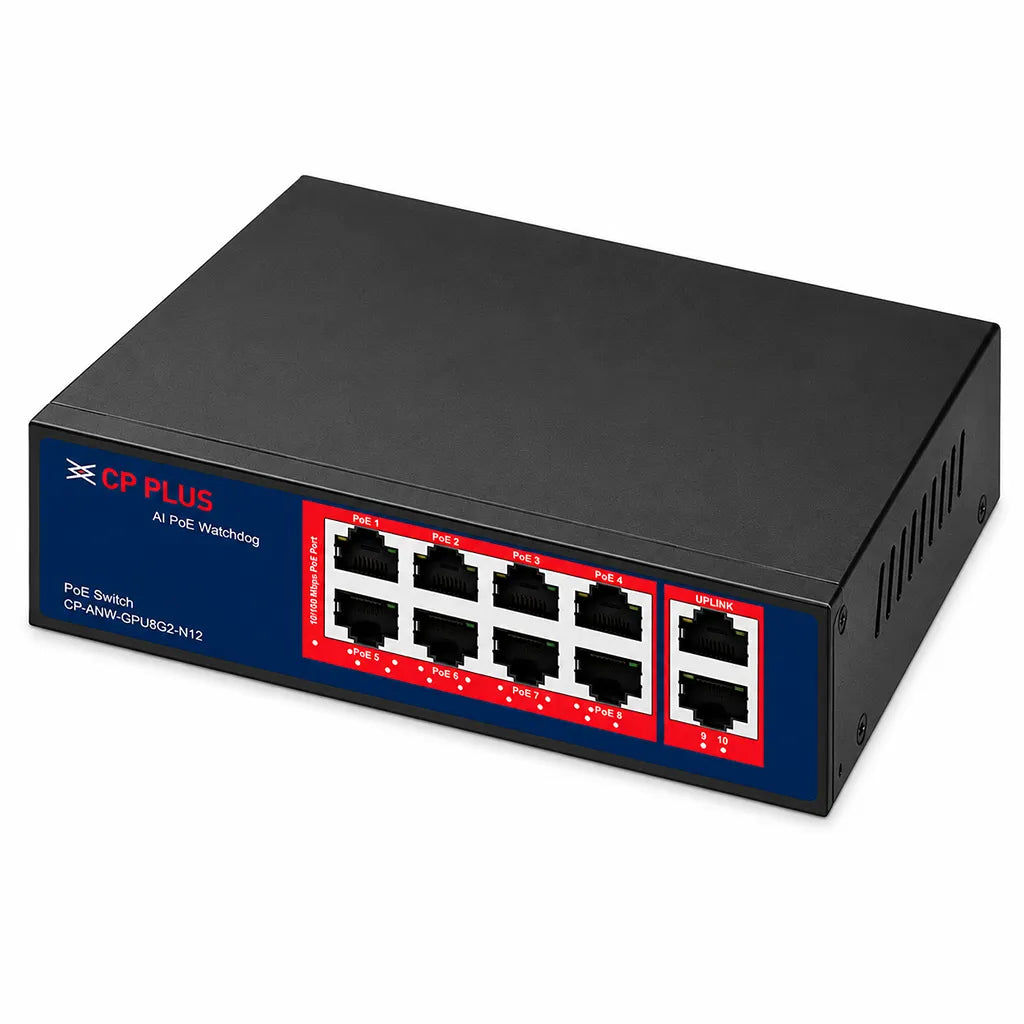

  • CP PLUS CP-ANW-GPU8G2-N12 8 Port Gigabit Unmanaged PoE Switch with AI PoE Watchdog shown from left angle featuring 2 Gigabit uplink ports -tpstech.in

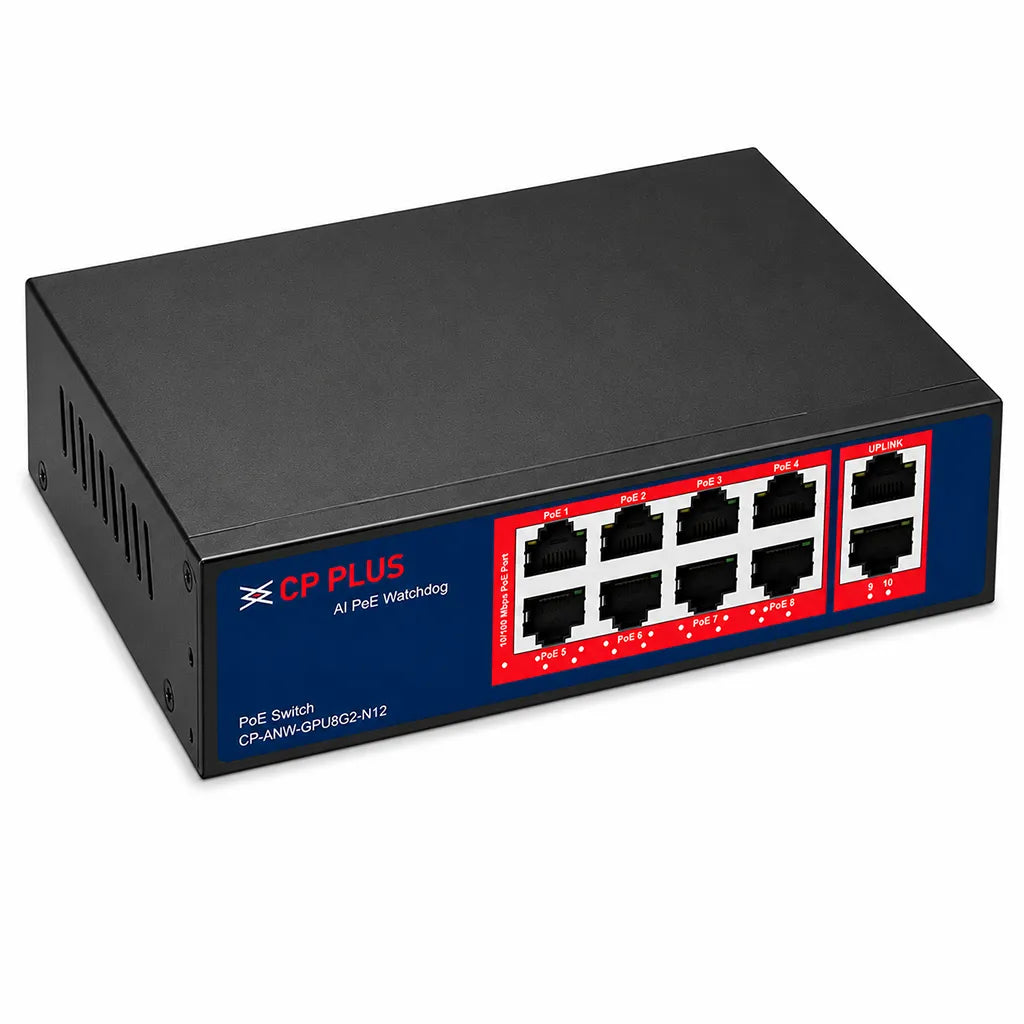

  • CP PLUS CP-ANW-GPU8G2-N12 8 Port Gigabit Unmanaged PoE Switch right angle view with 120W PoE budget and dual Gigabit uplink ports -tpstech.in

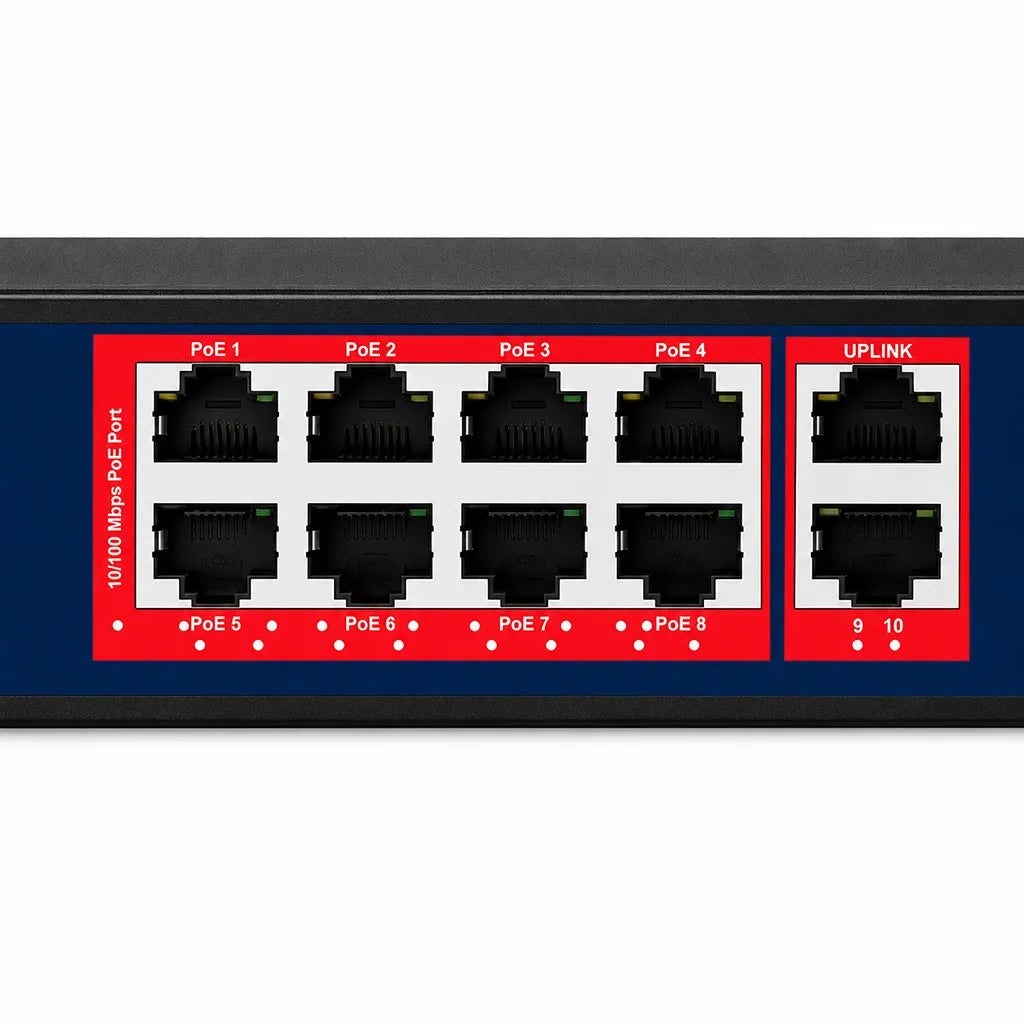

  • Close-up of CP PLUS CP-ANW-GPU8G2-N12 showing 8 Gigabit PoE ports and 2 Gigabit uplink ports for reliable CCTV network connectivity -tpstech.in
1 7

CP PLUS CP-ANW-GPU8G2-N12 8 Port Gigabit Unmanaged PoE Switch

CP PLUS CP-ANW-GPU8G2-N12 8 Port Gigabit Unmanaged PoE Switch

Brand: CP PLUS
Rs. 4,250.00
58% off Rs. 9,899.00 Rs. 4,250.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

🔌 10 Gigabit Ports – Connect multiple IP cameras, NVRs and network devices with 8 PoE ports and 2 dedicated Gigabit uplink ports for efficient deployment.

⚡ 120W PoE Power Budget – Delivers up to 120W total PoE power, with support for up to 60W high-power PoE on ports 7 and 8 for compatible devices.

📡 Long Distance Transmission – Supports extended transmission up to 130 metres at 10 Mbps, making it suitable for larger surveillance installations.

🛡️ Reliable Network Protection – Built with 6KV lightning protection, 8KV ESD protection, and AI Watchdog support to improve network reliability.

🖥️ Plug and Play Installation – Unmanaged desktop design requires no configuration, allowing quick installation for homes, offices and surveillance systems.

The CP PLUS CP-ANW-GPU8G2-N12 is a 10-port Gigabit unmanaged PoE switch designed for IP surveillance and network expansion. It features 8 Gigabit PoE ports, 2 Gigabit uplink ports, a 120W PoE power budget, AI Watchdog support and extended transmission up to 130 metres. With plug-and-play installation, built-in surge protection and support for IEEE 802.3af/at/bt standards, it is an excellent choice for CCTV, business and commercial networking applications.

Product Specifications:

Specification Details
Brand CP PLUS
Model CP-ANW-GPU8G2-N12
Product Type Gigabit Unmanaged PoE Switch
Total Network Ports 10 Ports
PoE Ports 8 × 10/100/1000 Mbps RJ45 PoE Ports
High Power PoE Ports 7–8 support IEEE 802.3bt up to 60W
Uplink Ports 2 × 10/100/1000 Mbps RJ45 Gigabit Uplink Ports
Network Standards IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3x Flow Control, IEEE 802.3af/at/bt (PoE)
Switching Bandwidth 20 Gbps
MAC Address Table 8K
AI Watchdog Supported
Transmission Rate 1000 Mbps Full Duplex; 10/100 Mbps Full Duplex / Half Duplex
Maximum Transmission Distance Up to 130 m (Extended Transmission Mode at 10 Mbps)
PoE Power Budget 120W
Maximum PoE Output Ports 1–6: Up to 30W per port; Ports 7–8: Up to 60W per port
Power Supply Built-in
Input Voltage AC 90–240V
Operating Temperature -30°C to 60°C
Dimensions (L × W × H) 190 × 140 × 43 mm
Warranty 2 Year manufacturer Warranty
Weight 1000 g
Certifications ISO 9001:2015, ISO 20000-1:2018, ISO 14001:2015, ISO 45001:2018, ISO 50001:2018, CE, FCC, RoHS, TEC/MTCTE
