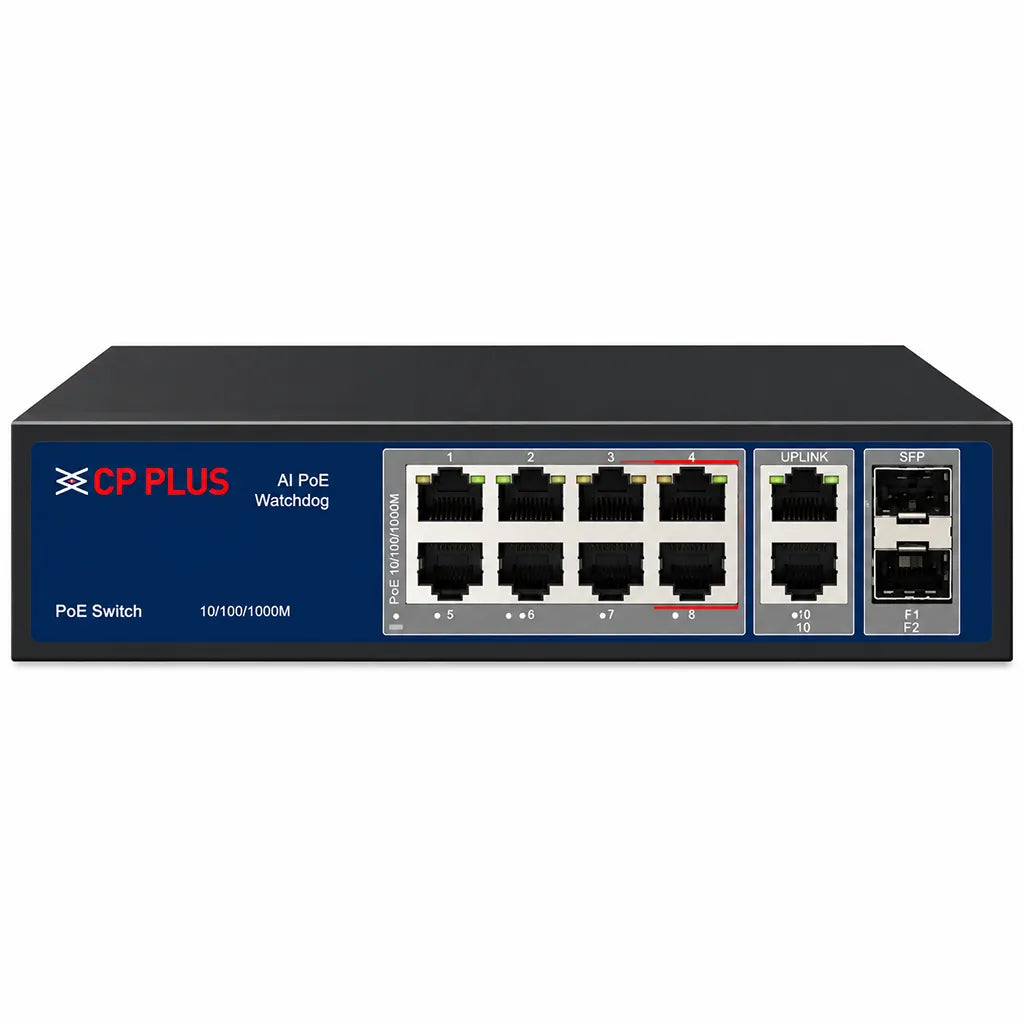

• CP PLUS CP-ANW-GPU8G2F2-N12 8 Port Gigabit Unmanaged PoE Switch front view with 2 Gigabit uplink ports and 2 SFP ports for CCTV and network deployment -tpstech.in

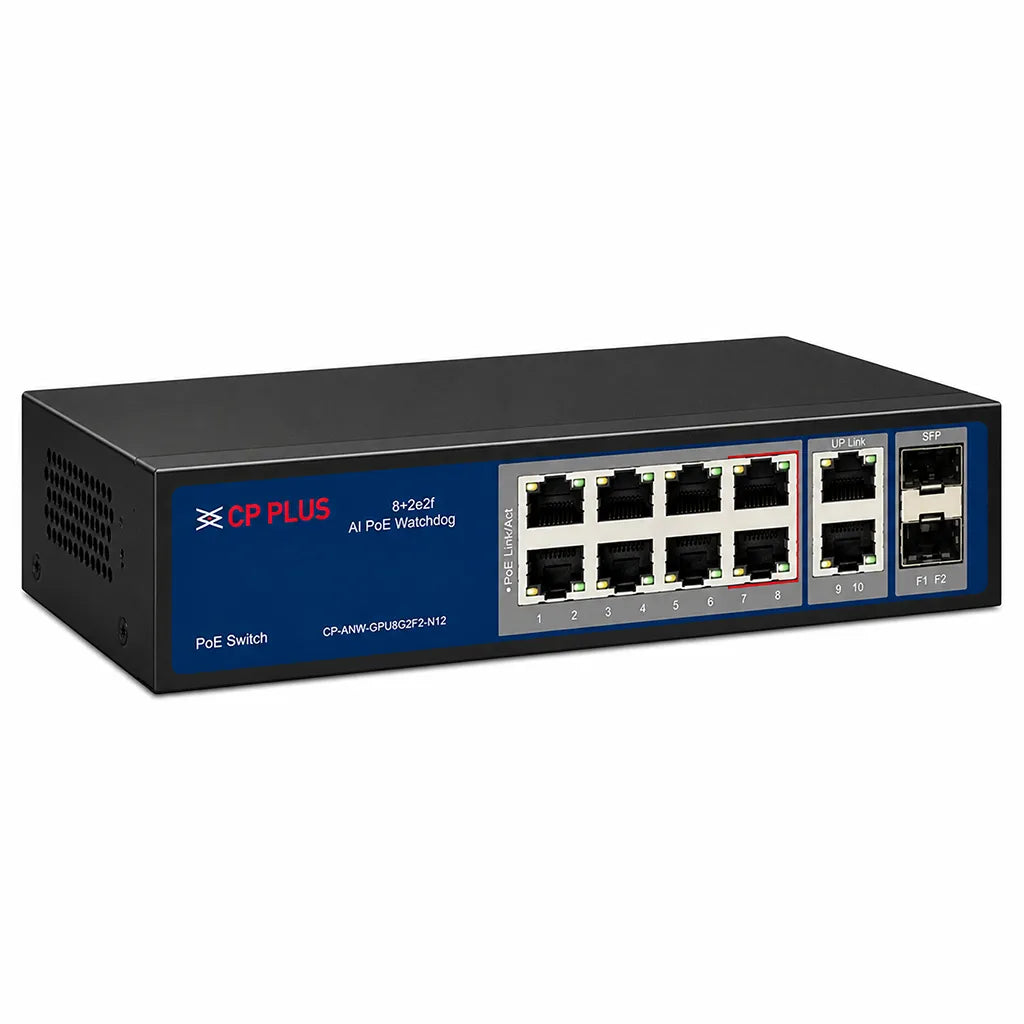

  • CP PLUS CP-ANW-GPU8G2F2-N12 Gigabit PoE Switch left angle view featuring 8 PoE ports, 2 RJ45 uplinks and 2 SFP ports -tpstech.in

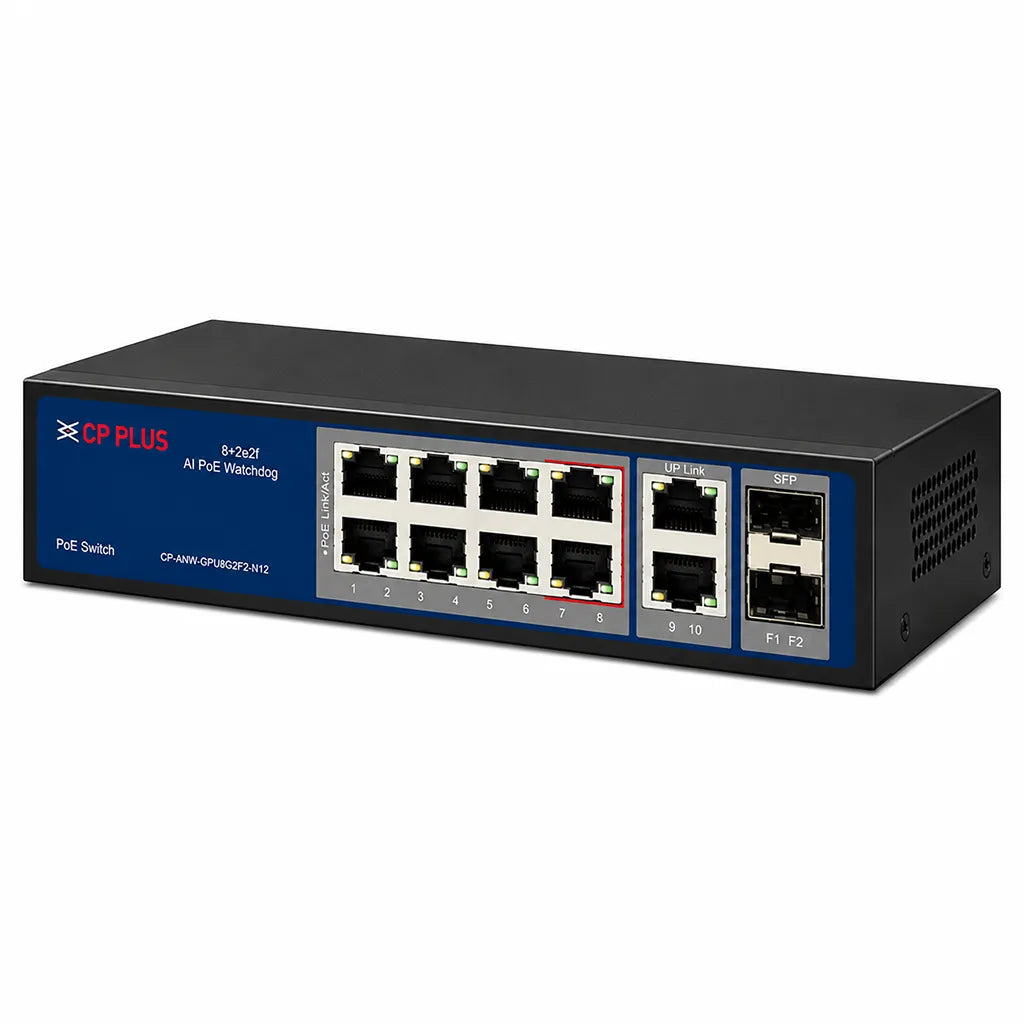

  • CP PLUS CP-ANW-GPU8G2F2-N12 8 Port Gigabit PoE Switch right angle view with AI PoE Watchdog and 120W PoE budget -tpstech.in

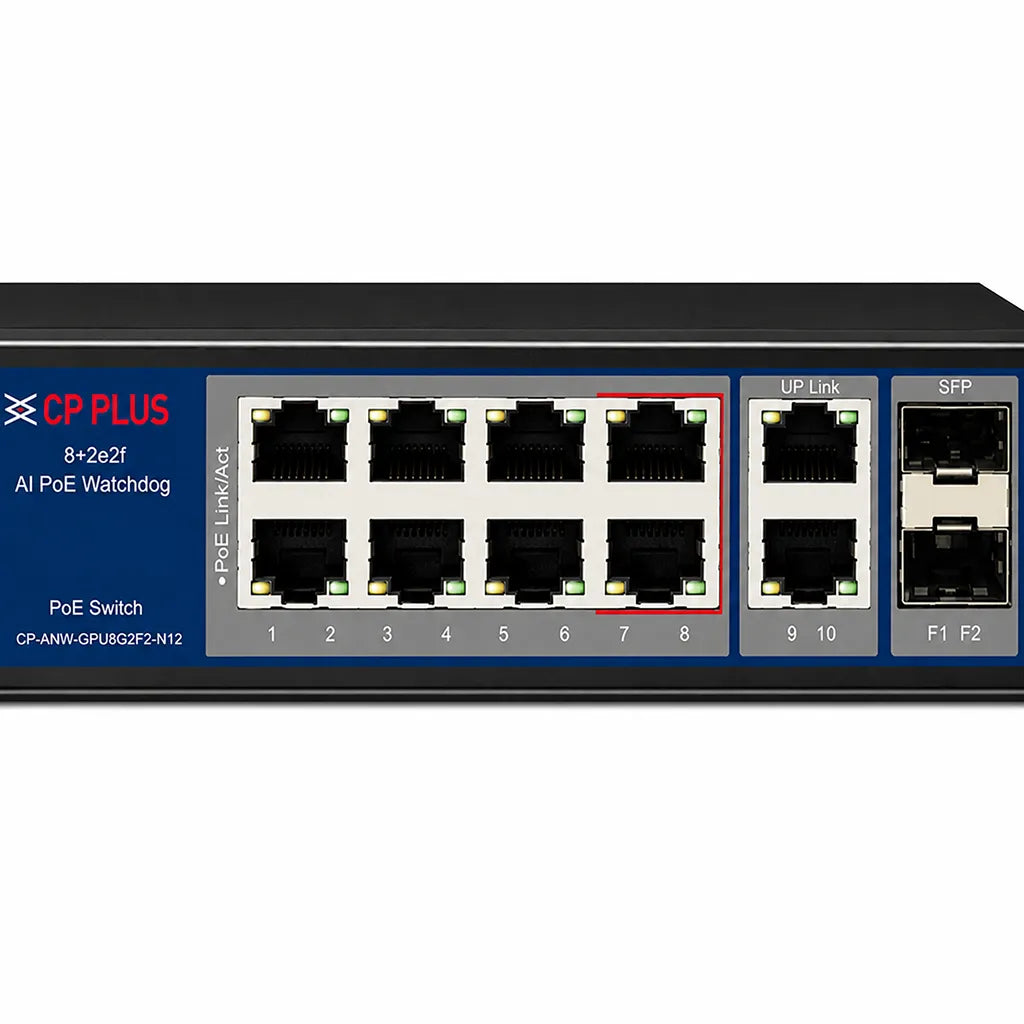

  • Close-up of CP PLUS CP-ANW-GPU8G2F2-N12 showing 8 Gigabit PoE ports, 2 Gigabit uplink ports and dual SFP slots -tpstech.in

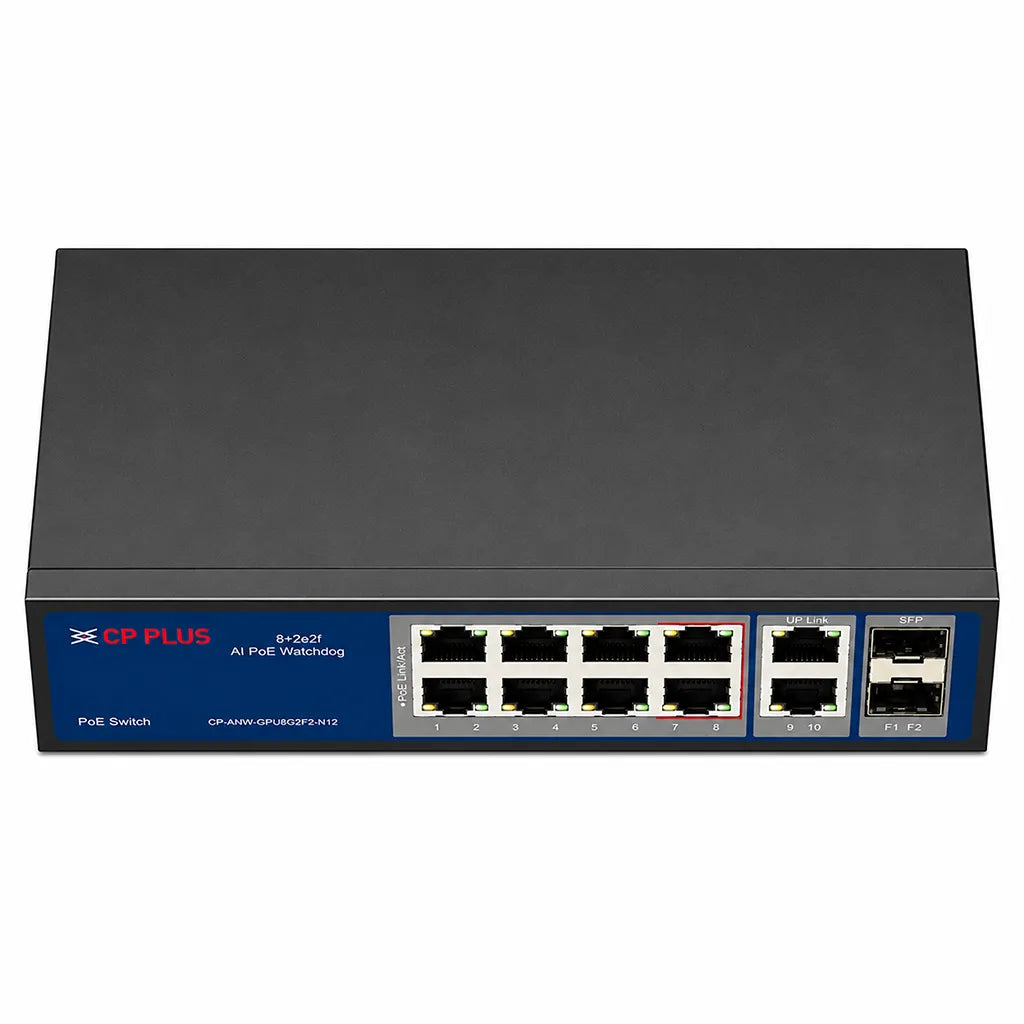

  • CP PLUS CP-ANW-GPU8G2F2-N12 unmanaged Gigabit PoE switch top front view for surveillance and enterprise networking -tpstech.in

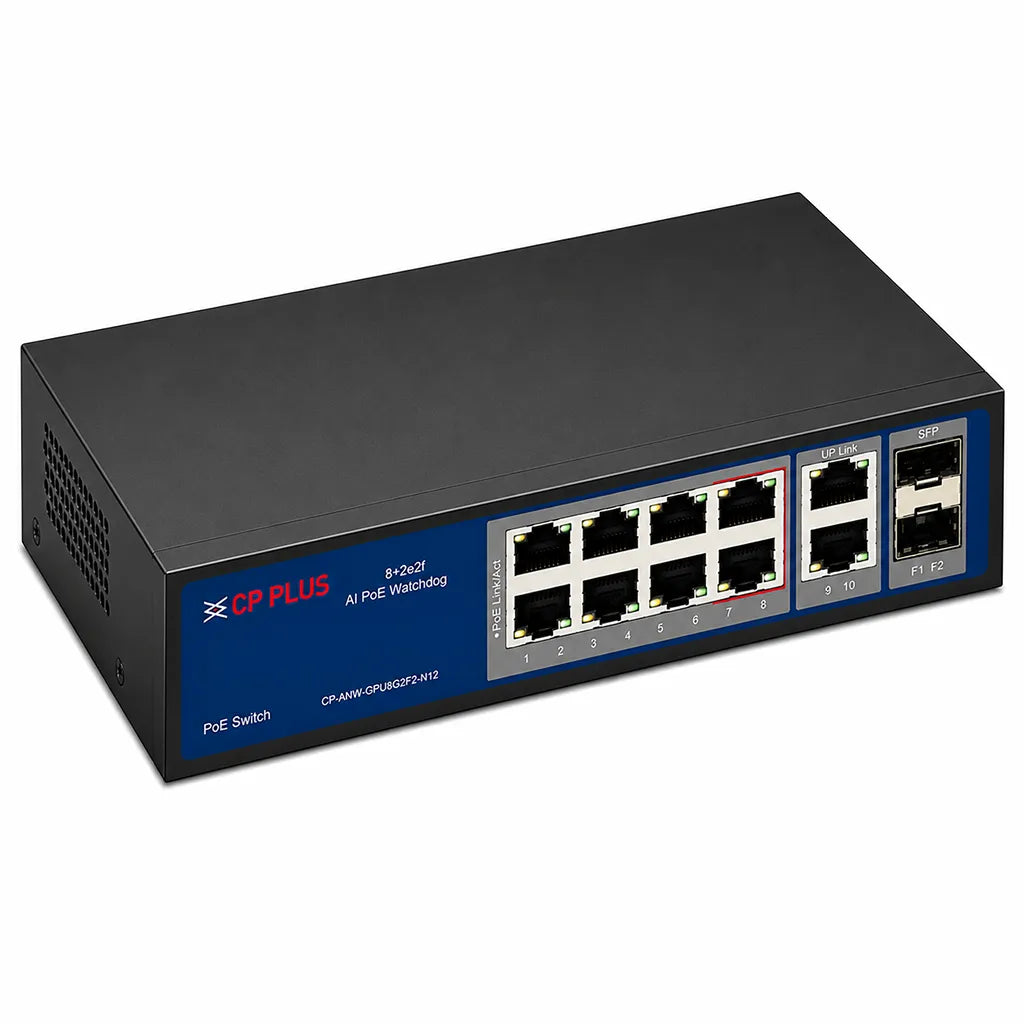

  • CP PLUS CP-ANW-GPU8G2F2-N12 8 Port Gigabit PoE Switch top left perspective with dual SFP uplink ports -tpstech.in

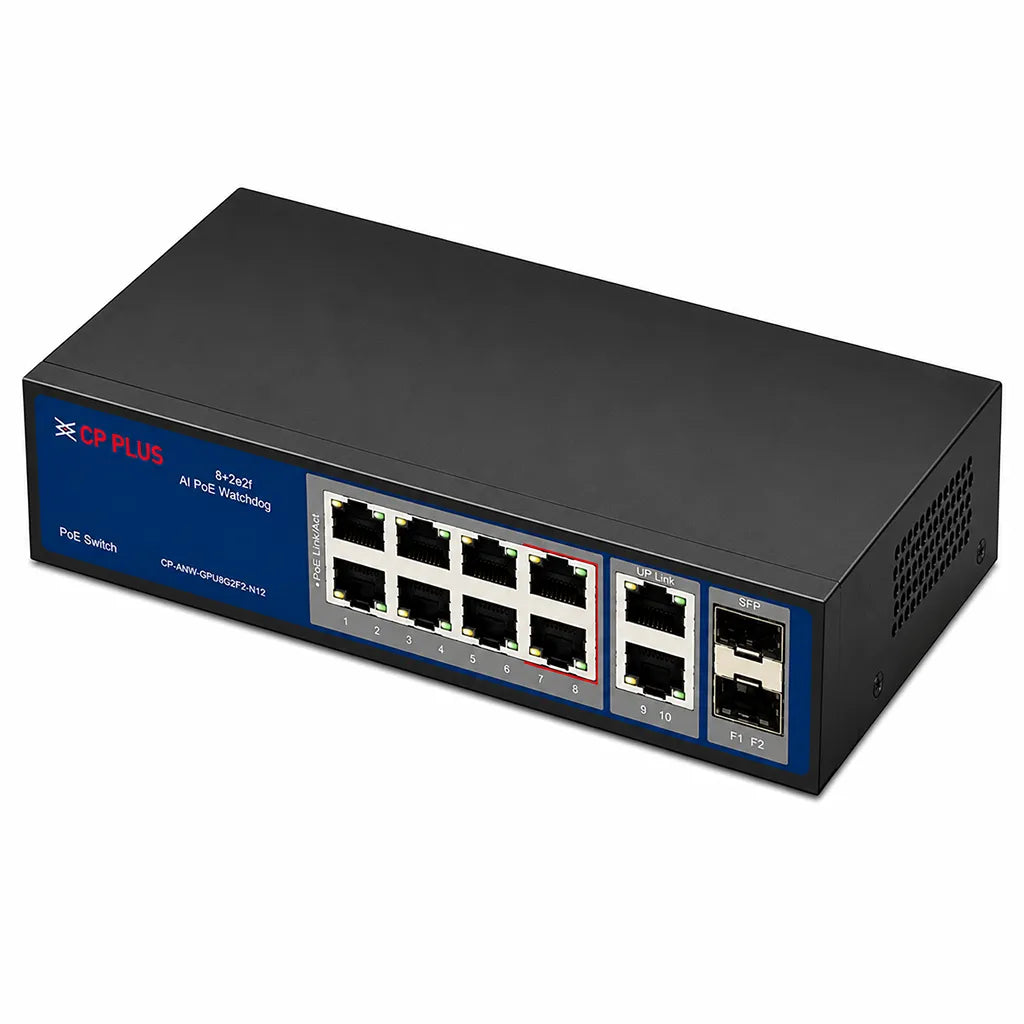

  • CP PLUS CP-ANW-GPU8G2F2-N12 Gigabit unmanaged PoE switch top right perspective with AI PoE Watchdog and 120W power budget -tpstech.in
1 7

CP PLUS CP-ANW-GPU8G2F2-N12 8 Port Gigabit Unmanaged PoE Switch

CP PLUS CP-ANW-GPU8G2F2-N12 8 Port Gigabit Unmanaged PoE Switch

Brand: CP PLUS
Rs. 3,750.00
63% off Rs. 9,899.00 Rs. 3,750.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

⚡ 8 Gigabit PoE Ports – Power compatible IP cameras, wireless access points, and other PoE devices through a single Ethernet cable for simpler installations.

🔗 2 Gigabit RJ45 Uplinks & 2 SFP Ports – Expand your network with dedicated uplink and fiber connectivity for flexible deployment.

🚀 120W PoE Budget – Supports up to 30W on ports 1 to 6 and up to 60W high-power PoE on ports 7 and 8 for compatible devices.

🛡️ AI Watchdog & Surge Protection – AI Watchdog helps automatically detect and restart connected PoE devices, while 6KV lightning protection enhances network reliability.

🔌 Plug and Play Operation – Unmanaged design requires no configuration, making installation quick for surveillance and business networking.

The CP PLUS CP-ANW-GPU8G2F2-N12 is an 8-port Gigabit unmanaged PoE switch designed for surveillance and networking applications. It features 8 Gigabit PoE ports, 2 Gigabit RJ45 uplinks, and 2 Gigabit SFP ports for flexible network expansion. With a 120W PoE budget, AI Watchdog support, and plug-and-play installation, it provides dependable connectivity for IP cameras, wireless access points, and other IEEE 802.3af/at/bt compatible PoE devices in homes, offices, and commercial environments.

Product Specifications:

Specification Details
Brand CP PLUS
Model CP-ANW-GPU8G2F2-N12
Product Type Unmanaged PoE Switch
Total Network Ports 12 Ports
PoE Ports 8 × Gigabit RJ45 PoE Ports
Standard PoE Ports Ports 1–6: 10/100/1000 Mbps RJ45, up to 30W per port
High Power PoE Ports Ports 7–8: 10/100/1000 Mbps RJ45, IEEE 802.3bt, up to 60W per port
RJ45 Uplink Ports 2 × 10/100/1000 Mbps RJ45
SFP Ports 2 × 10/100/1000 Mbps SFP
Network Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at/bt
Switching Bandwidth 24 Gbps
Packet Forwarding Rate 17.9 Mpps
MAC Address Table 8K
Network Latency ≤16 μs (64-byte packet size)
AI Watchdog Supported
Transmission Distance Up to 130 m (Extended Mode at 10 Mbps)
Transmission Rate 1000 Mbps Full Duplex; 10/100 Mbps Full Duplex / Half Duplex
PoE Power Budget 120W
Power Supply Built-in Power Supply, AC 90–240V
Operating Temperature -30°C to 60°C
Dimensions (L × W × H) 190 × 140 × 43 mm
Weight 1000 g
Certifications ISO 9001:2015, ISO 20000-1:2018, ISO 14001:2015, ISO 45001:2018, ISO 50001:2018, CE, FCC, RoHS, TEC/MTCTE
