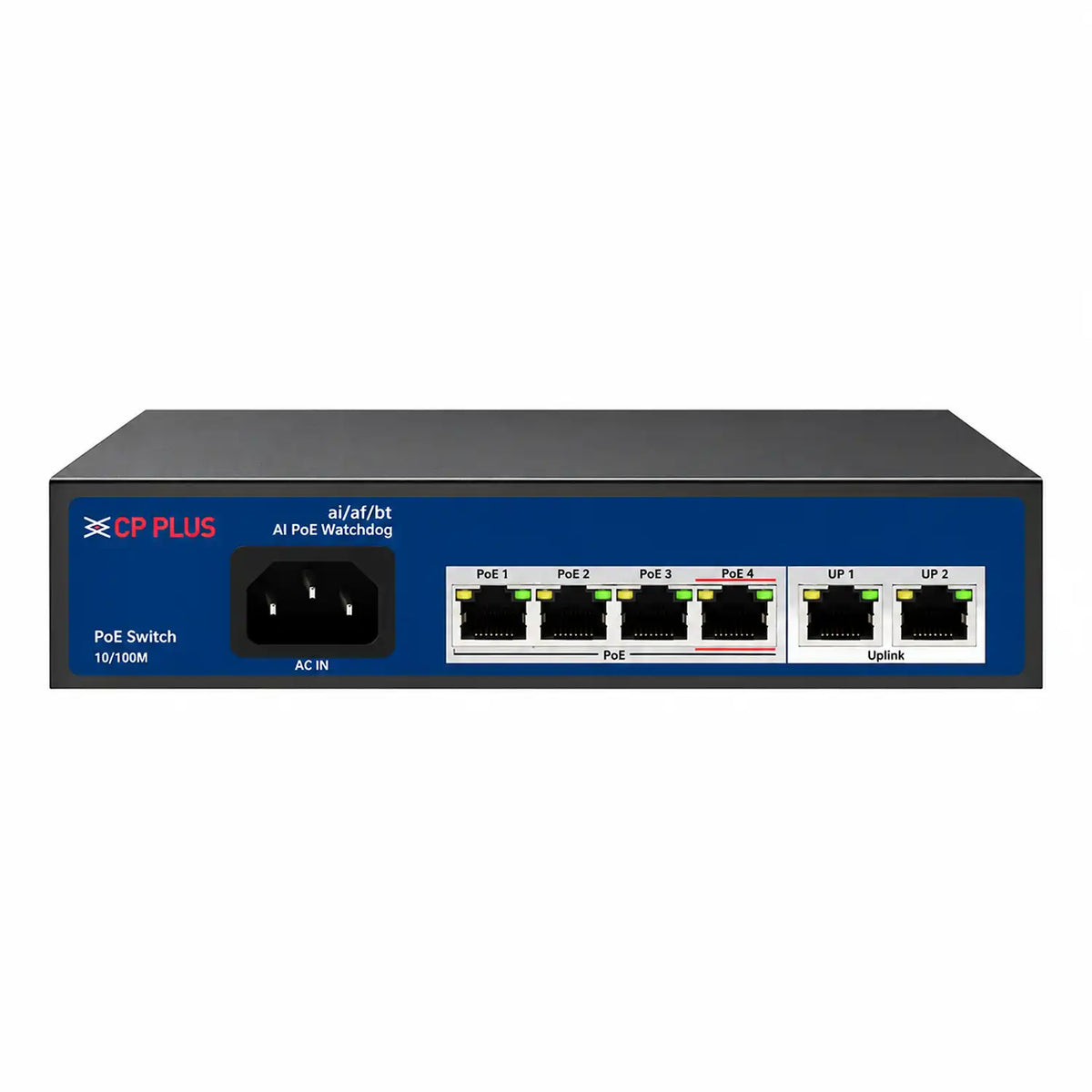

• Front View of CP PLUS CP-ANW-HP4H2-N65 4-Port Unmanaged PoE Switch with 2 Uplinks and AC Power Socket -tpstech.in

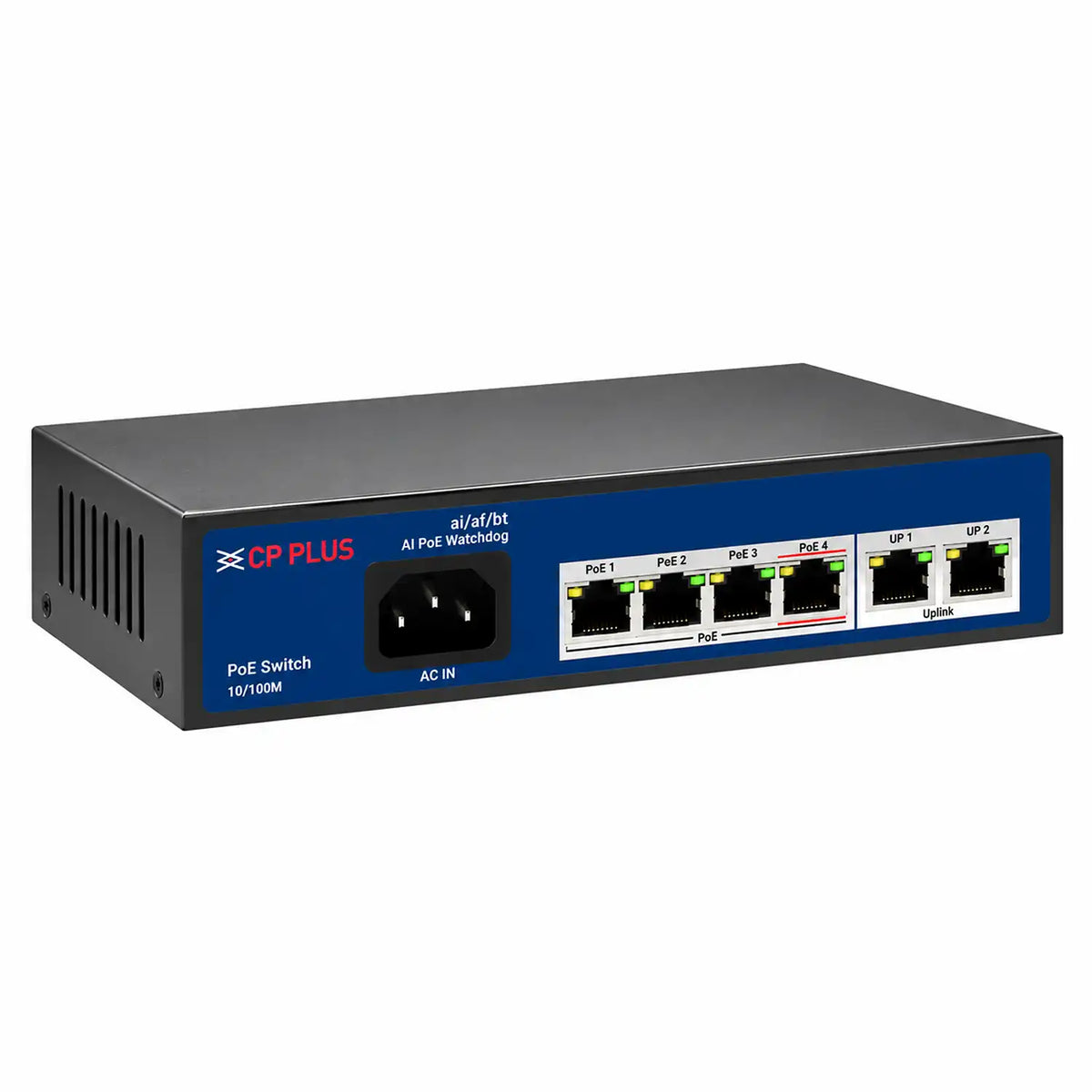

  • Angled Left Perspective View of CP PLUS CP-ANW-HP4H2-N65 4-Port Unmanaged PoE Switch -tpstech.in

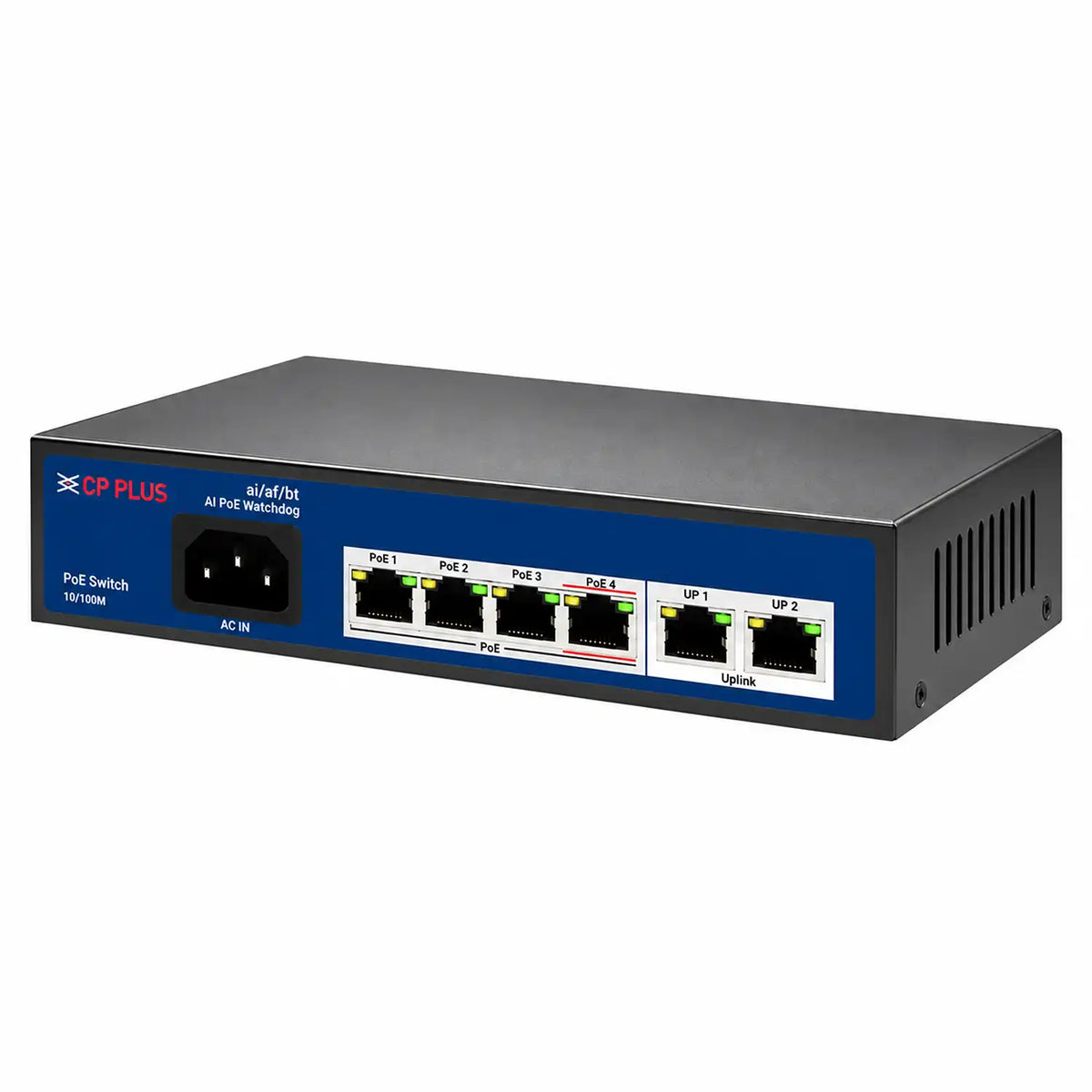

  • Angled Right View of CP PLUS CP-ANW-HP4H2-N65 PoE Switch with AI PoE Watchdog Ports -tpstech.in

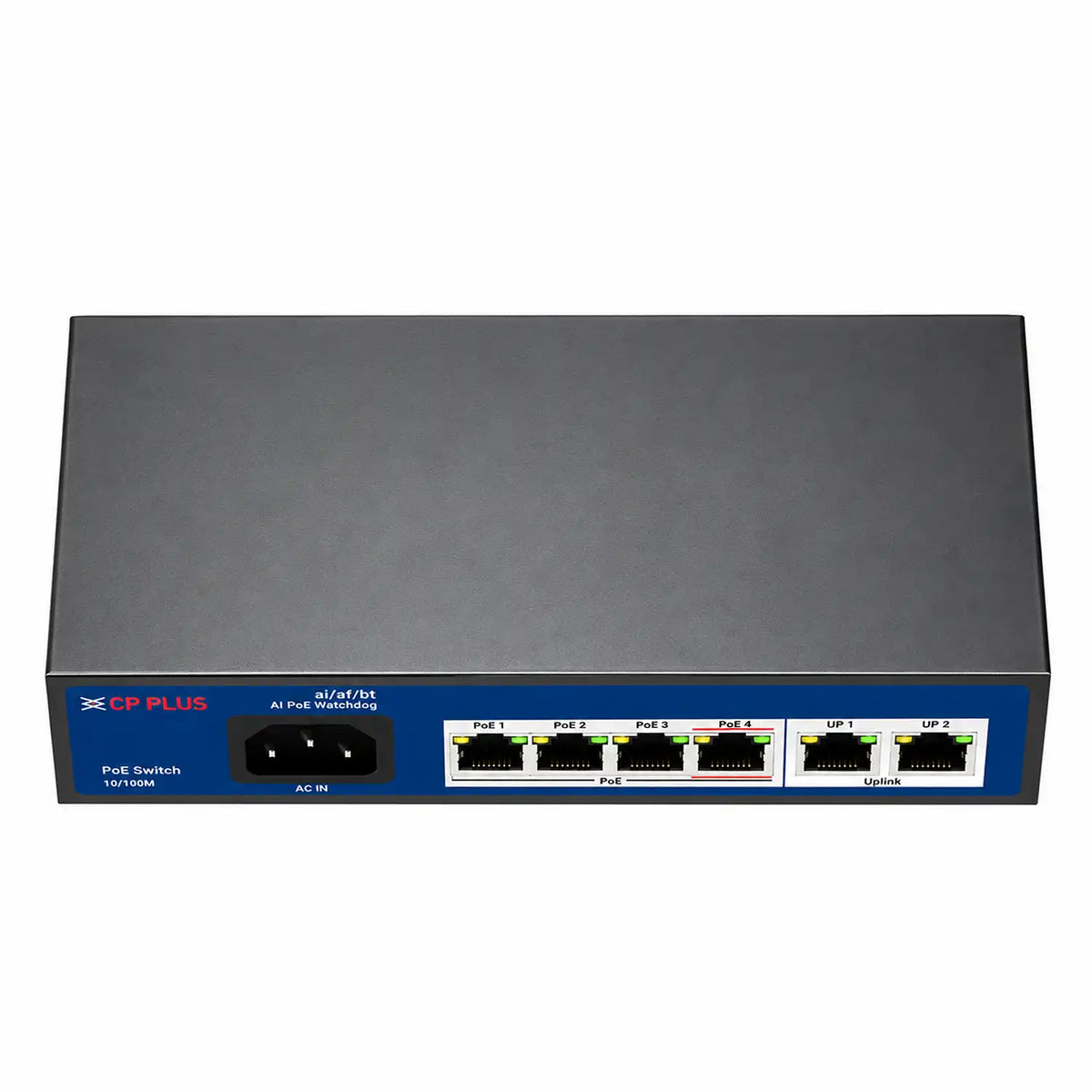

  • Top Down Perspective View of CP PLUS CP-ANW-HP4H2-N65 4-Port PoE Switch with 2 Uplink Ports -tpstech.in

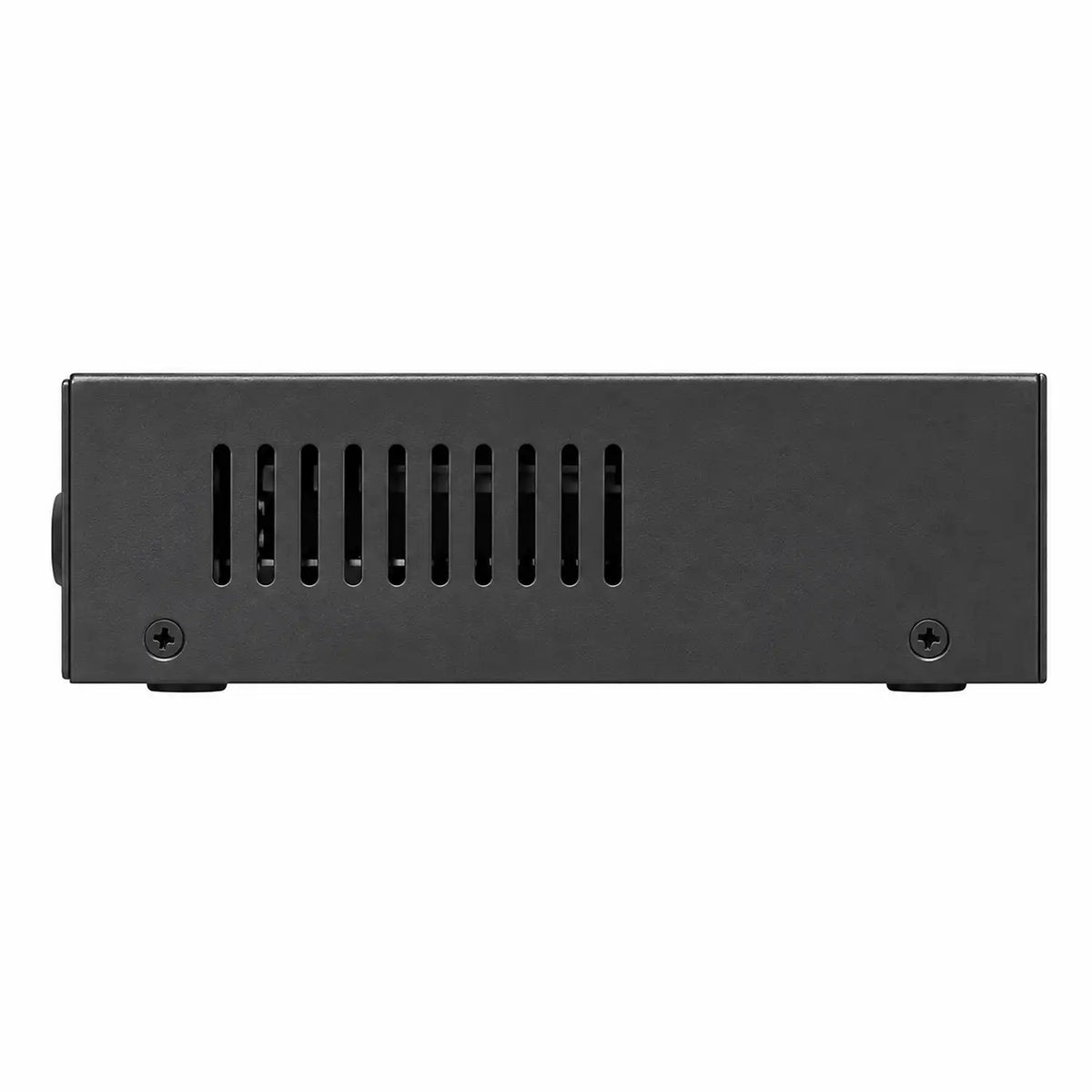

  • Side Panel View of CP PLUS CP-ANW-HP4H2-N65 PoE Switch Showing Cooling Ventilation Vents -tpstech.in

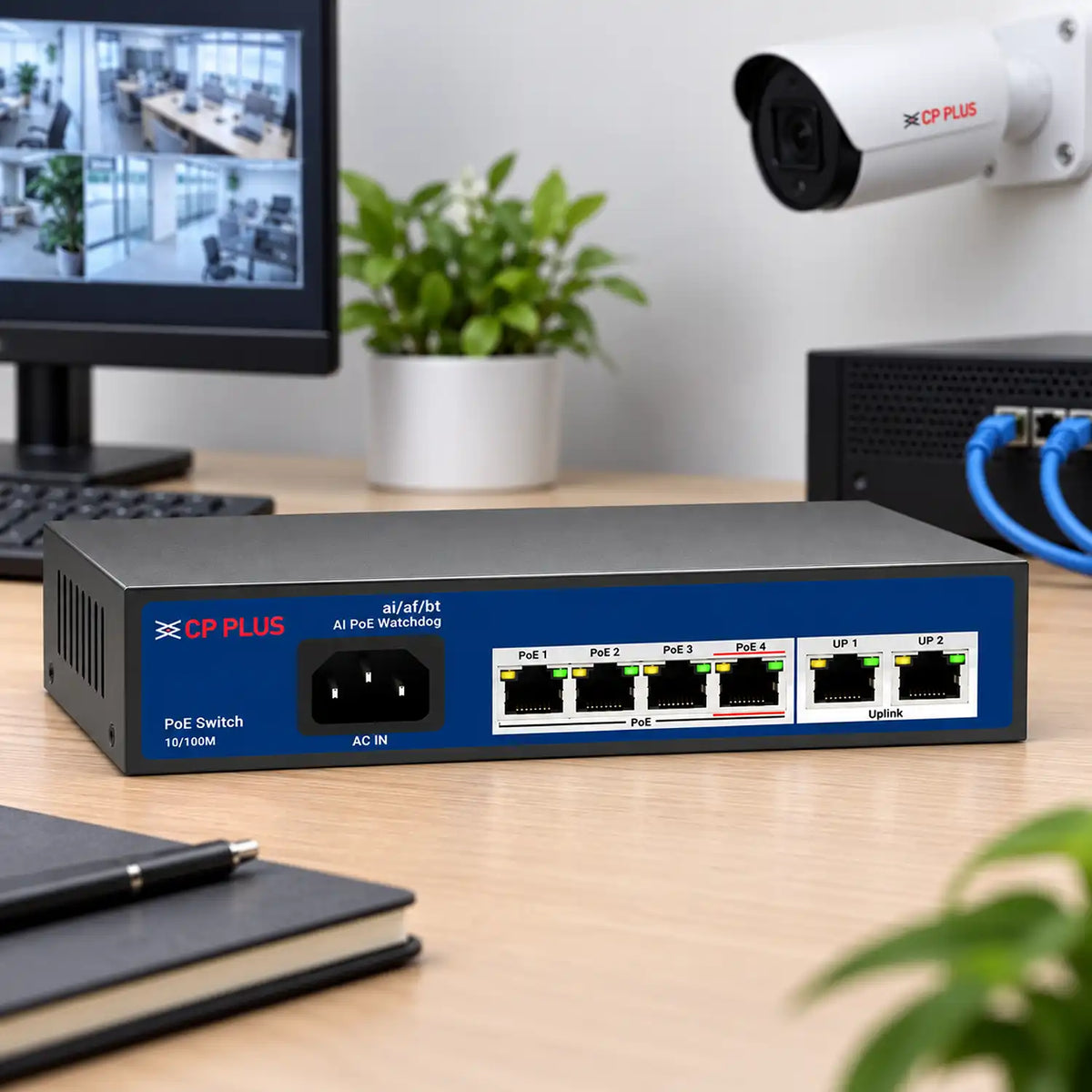

  • CP PLUS CP-ANW-HP4H2-N65 4-Port PoE Switch on Office Desk Setup with CCTV Camera and Monitoring Screen -tpstech.in
1 6

CP PLUS CP-ANW-HP4H2-N65 4-Port Unmanaged PoE Switch with 2 Uplinks

CP PLUS CP-ANW-HP4H2-N65 4-Port Unmanaged PoE Switch with 2 Uplinks

Brand: CP PLUS
Rs. 1,349.00
87% off Rs. 9,899.00 Rs. 1,349.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

🔌 4 PoE Ports: Provides four 10/100 Mbps RJ45 PoE ports, with Ports 1-3 supporting up to 30W and Port 4 supporting up to 60W.

🌐 2 Uplink Ports: Includes two 10/100 Mbps RJ45 uplink ports for connecting the switch to the network.

📡 Extended Transmission: Supports transmission distances of up to 250m at 10 Mbps for suitable long-distance network deployments.

⚡ 65W PoE Budget: Offers a total PoE power budget of up to 65W with IEEE 802.3af/at/bt support.

🛡️ Easy & Reliable Operation: Plug-and-play desktop design with 8KV ESD and 6KV lightning protection for straightforward deployment.

The CP PLUS CP-ANW-HP4H2-N65 is a 4-port unmanaged PoE switch with two 10/100 Mbps RJ45 uplink ports. It provides a 65W PoE budget, with up to 30W on Ports 1-3 and 60W on Port 4. With IEEE 802.3af/at/bt support, 250m transmission distance, AI Watchdog and plug-and-play operation, it is suitable for compatible network and surveillance deployments.

Product Specifications:

Brand CP PLUS
Model CP-ANW-HP4H2-N65
Product Type 4-Port Unmanaged PoE Switch
Network Ports 6 Ports
PoE Ports 4 × 10/100 Mbps RJ45
PoE Ports 1-3 Up to 30W per port
PoE Port 4 Up to 60W
Uplink Ports 2 × 10/100 Mbps RJ45
PoE Power Budget 65W
Bandwidth 1.2Gbps
Packet Forwarding Rate 0.9Mpps
Network Latency ≤16μs, using 64-byte packet size
MAC Address Table 2K
Network Standards IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control
PoE Standards IEEE 802.3af/at/bt
AI Watchdog Support
Transmission Rate 10/100 Mbps, Full Duplex / Half Duplex
Transmission Distance Up to 250m
Power Source Built-in Power Supply
Power Input AC 90~240V, Total ≤65W
ESD Protection 8KV
Lightning Protection 6KV
Operating Temperature -30°C to 60°C
Operating Humidity 10% to 90%, non-condensing
Storage Temperature -40°C to 70°C
Storage Humidity 5% to 90%, non-condensing
Dimensions 190mm × 140mm × 43mm
Weight 1000g
Warranty 2-year manufacturer brand warranty
