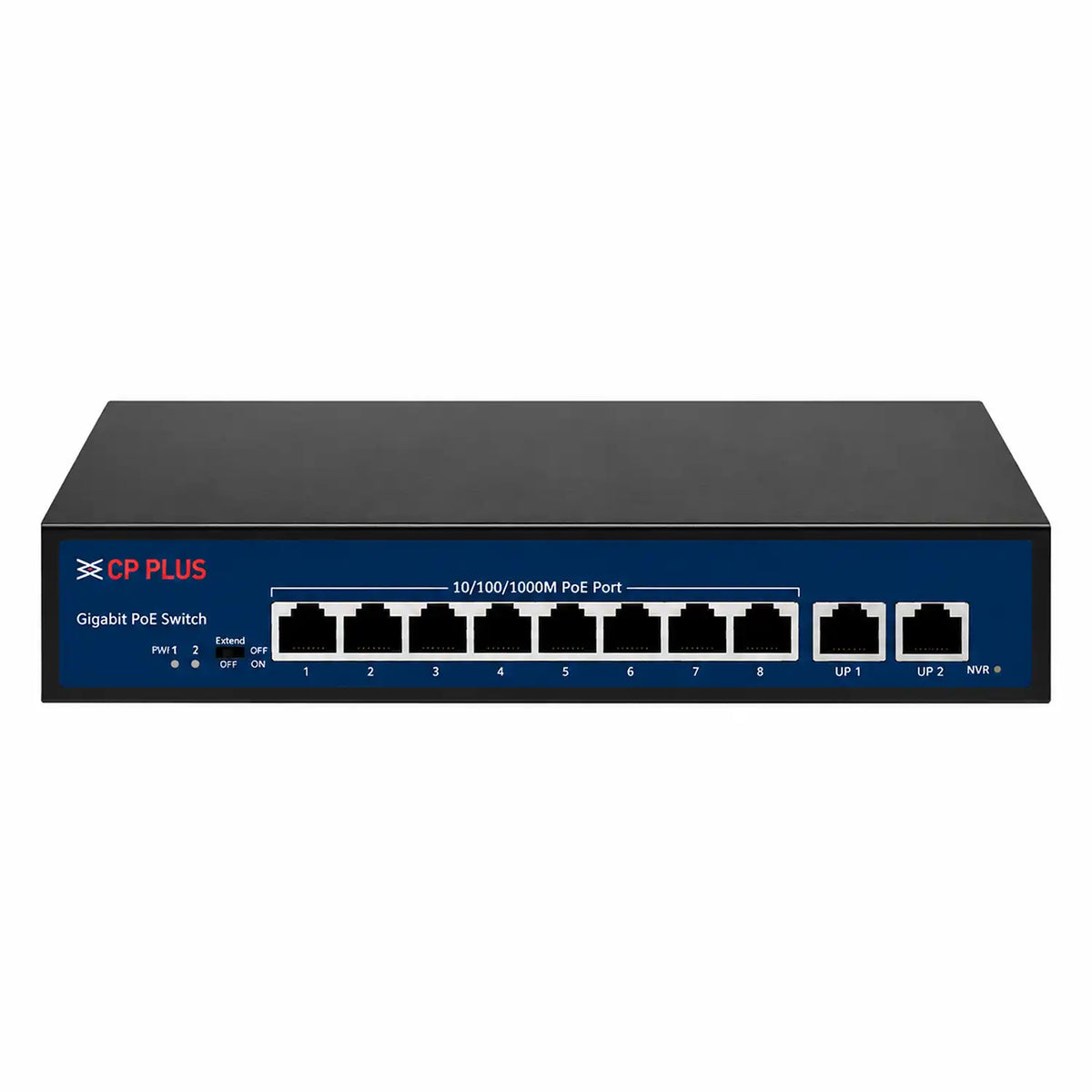

• CP PLUS CP-DNW-GPU8G2-96-V3 8 Port Gigabit PoE Switch Front Ethernet Ports View -tpstech.in

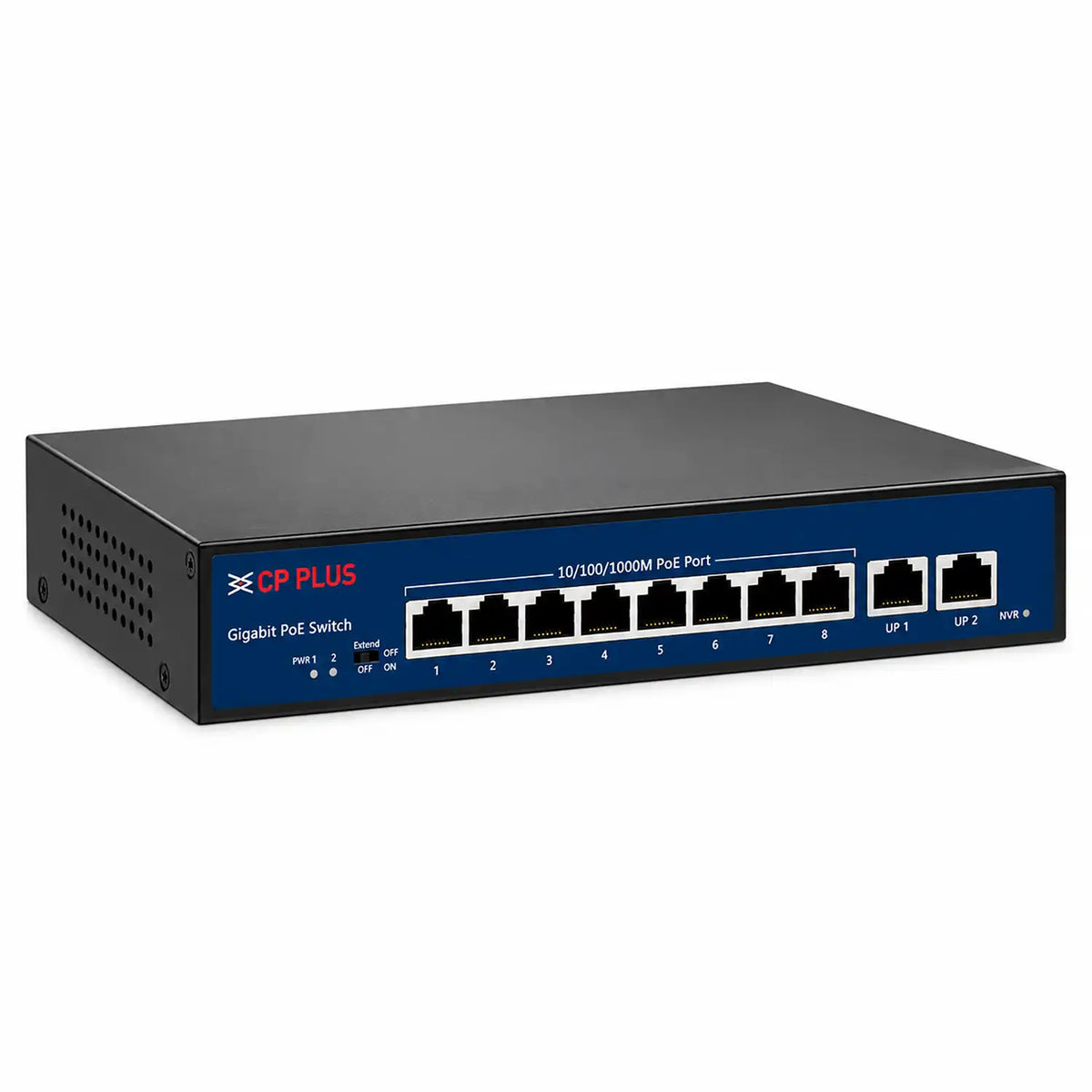

  • CP PLUS CP-DNW-GPU8G2-96-V3 8 Port Gigabit PoE Switch Left Perspective Angle -tpstech.in

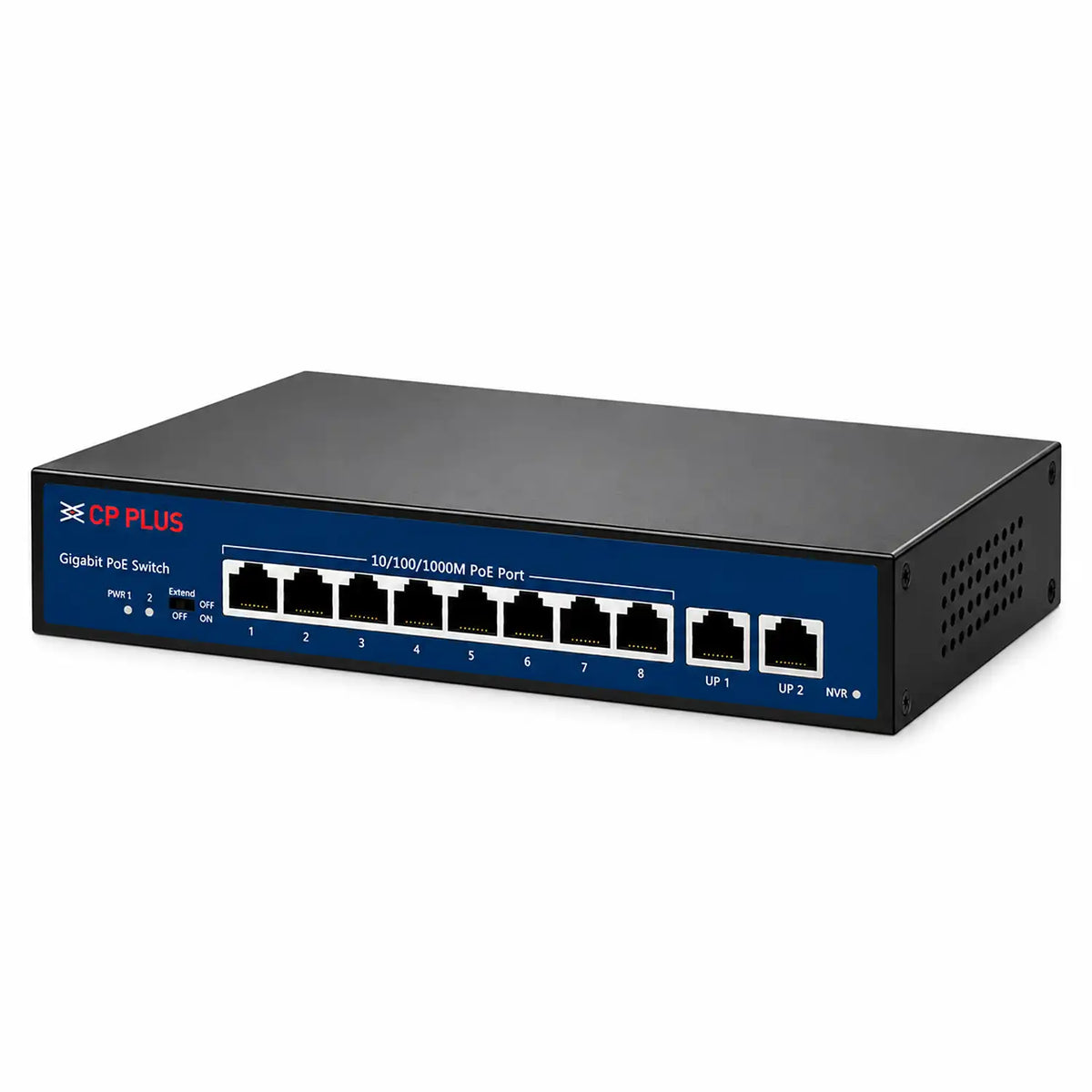

  • CP PLUS CP-DNW-GPU8G2-96-V3 8 Port Gigabit PoE Switch Right Perspective Angle -tpstech.in

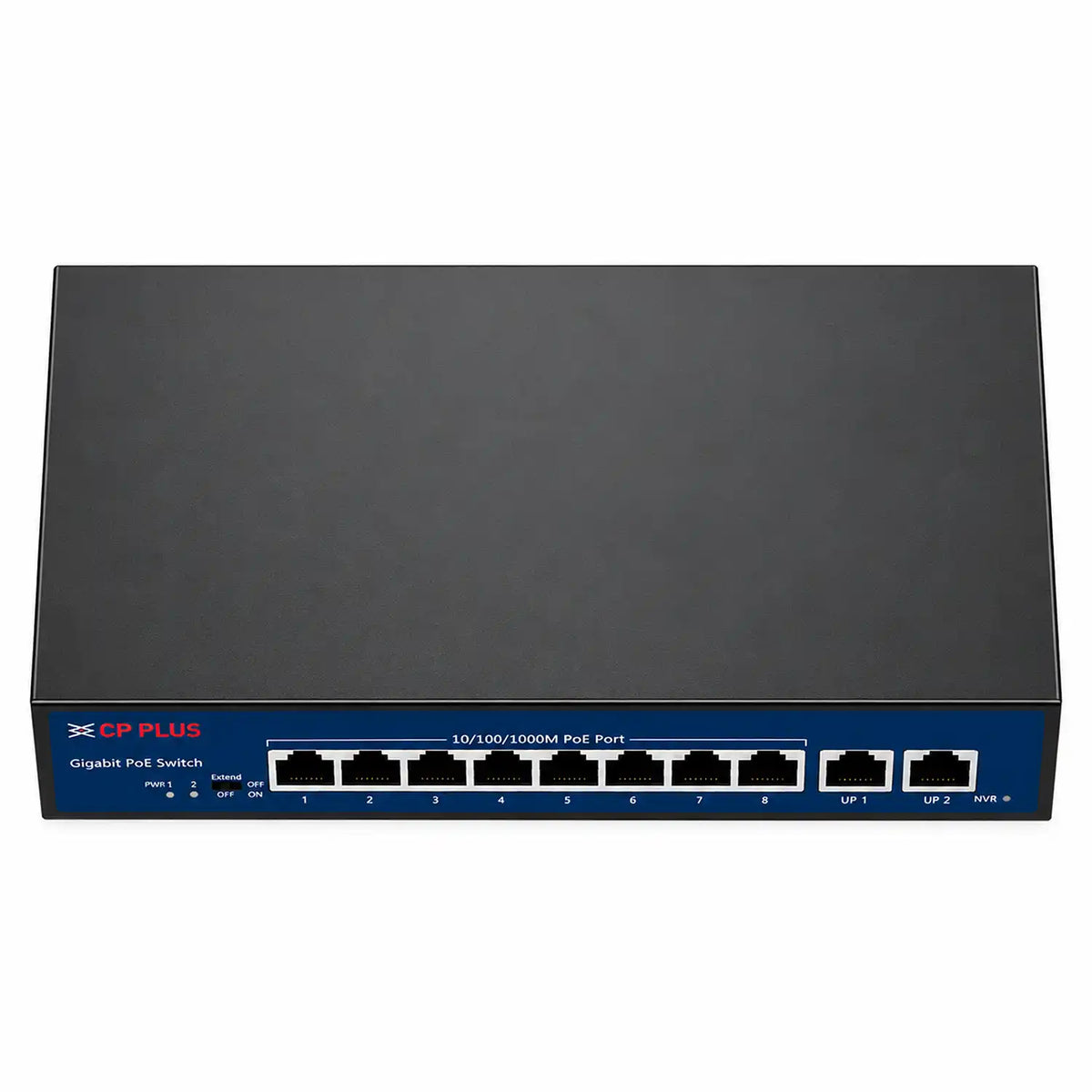

  • CP PLUS CP-DNW-GPU8G2-96-V3 8 Port Gigabit PoE Switch Top Down Perspective -tpstech.in

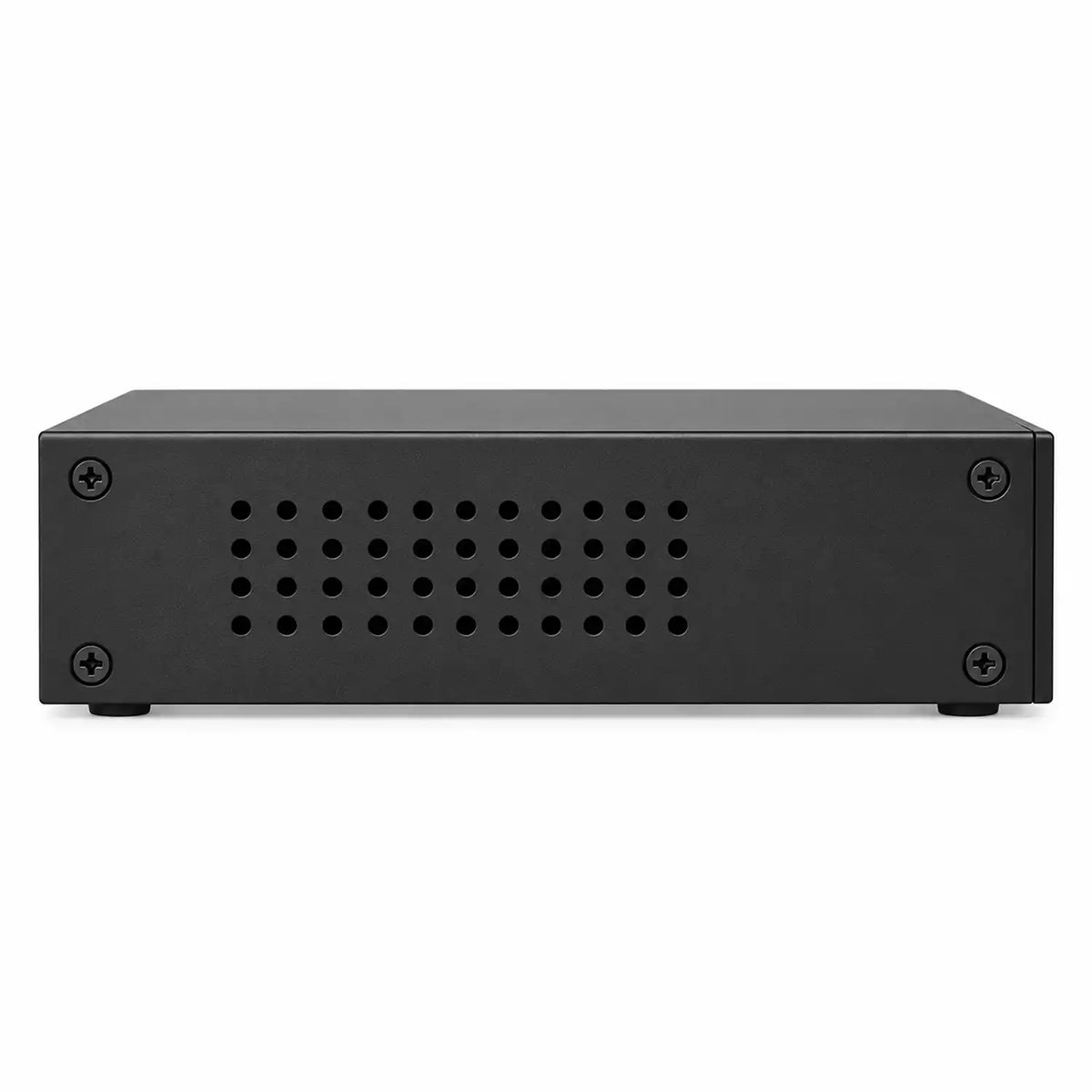

  • CP PLUS CP-DNW-GPU8G2-96-V3 8 Port Gigabit PoE Switch Side Panel Air Vents -tpstech.in

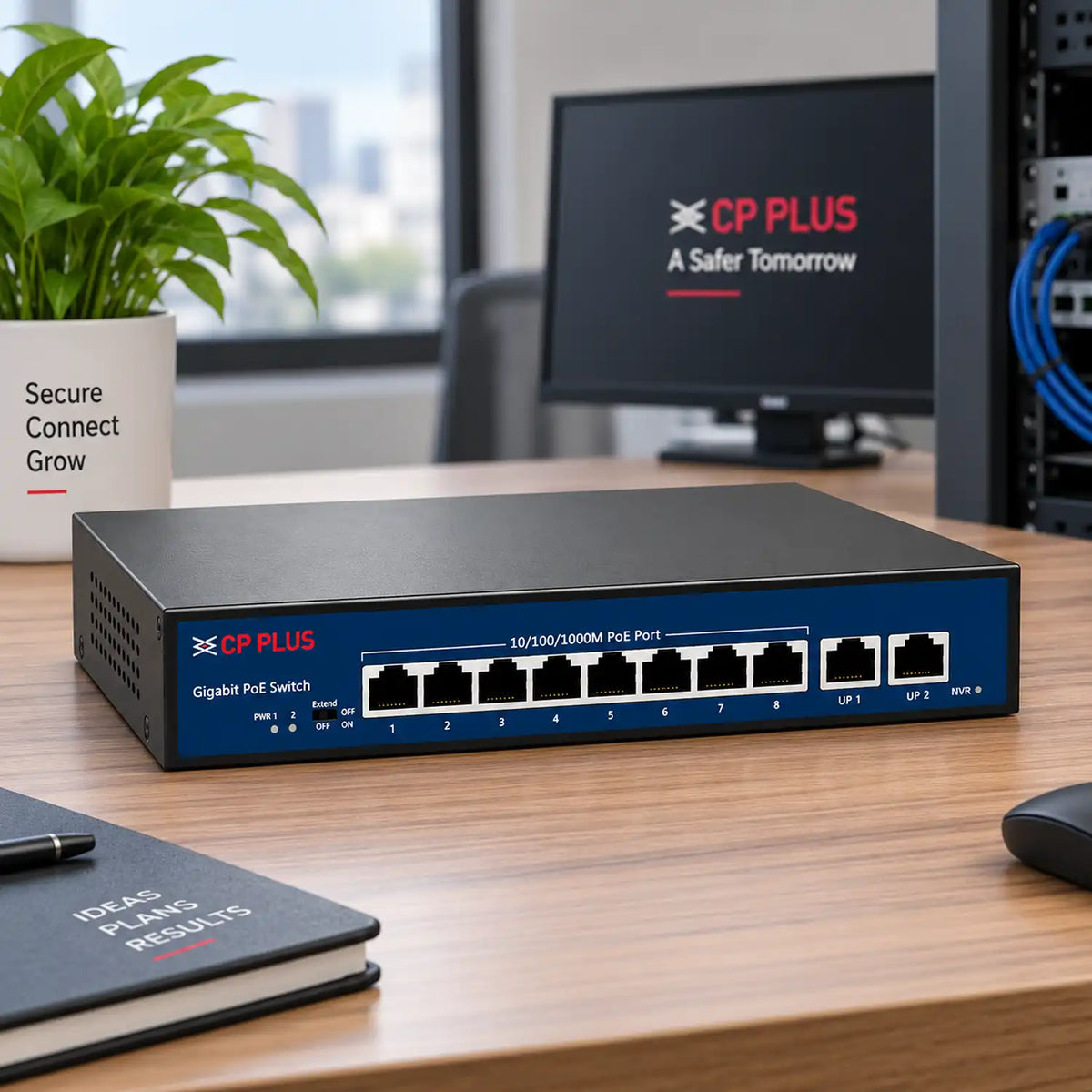

  • CP PLUS CP-DNW-GPU8G2-96-V3 8 Port Gigabit PoE Switch in Office Desk Setup -tpstech.in
1 6

CP PLUS CP-DNW-GPU8G2-96-V3 8-Port Gigabit PoE Switch

CP PLUS CP-DNW-GPU8G2-96-V3 8-Port Gigabit PoE Switch

Brand: CP PLUS
Rs. 3,850.00
62% off Rs. 9,899.00 Rs. 3,850.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

⚡ 8 Gigabit PoE Ports: Provides 8 × 1000Mbps RJ45 PoE ports with up to 30W output from each PoE port for compatible powered devices.

🔗 2 Gigabit Uplink Ports: Includes 2 × 1000Mbps uplink ports with a specified transmission distance of up to 100m for network connectivity.

🚀 20Gbps Switching Capacity: Delivers 20Gbps full-duplex switching capacity with a packet forwarding rate of 1.488Mpps per port for efficient network traffic handling.

🛡️ PoE & Network Protection: Supports IEEE802.3af/at PoE, VLAN, Watchdog, MDI/MDIX and ESD protection for compatible network deployments.

🏢 Unmanaged Network Design: Uses store-and-forward technology with a built-in 110-264V AC power supply, making it suitable for straightforward PoE network installations.

The CP PLUS CP-DNW-GPU8G2-96-V3 is an unmanaged Gigabit PoE switch with 8 × 1000Mbps RJ45 PoE ports and 2 × 1000Mbps uplink ports. It offers a 96W PoE power budget, 20Gbps full-duplex switching capacity and 1.488Mpps forwarding rate. With IEEE802.3af/at support, VLAN, Watchdog and up to 100m transmission distance, it is designed for compatible surveillance and network device deployments.

Product Specifications:

Brand CP PLUS
Model CP-DNW-GPU8G2-96-V3
Product Type Unmanaged Gigabit PoE Switch
PoE Ports 8 × 1000Mbps RJ45
Uplink Ports 2 × 1000Mbps
Maximum PoE Output per Port 30W
PoE Power Budget 96W
PoE Standard IEEE802.3af, IEEE802.3at
Network Protocol IEEE802.3i/802.3u/802.3x/802.3af/802.3ab
Switch Capacity 20Gbps Full Duplex
Packet Forwarding Rate 1.488Mpps/port
Transmission Distance 0-100m / 100Mbps
Uplink Transmission Distance 0-100m
MAC Address Table 2K
PoE Power Supply 1/2(+), 3/6(-)
PoE Feature All ports support MDI/MDIX
VLAN Support
Watchdog Support
Forwarding Mode Store-and-forward
ESD Protection Air discharge: 1.5KV; Contact discharge: 1.5KV
Anti-thunder Level Common mode: 2KV; Differential mode: 2KV
Power Supply Built-in Power Supply
Power Input 110-264V AC, 50/60Hz
Power Consumption <5W
Operating Temperature -10°C to -50°C
Storage Temperature -40°C to 70°C
Humidity 10%-95%, non-condensing
Dimensions 202mm × 140mm × 45mm
Colour Black
Weight 0.9Kg, excluding input cable and packaging
Warranty 1-year manufacturer warranty
