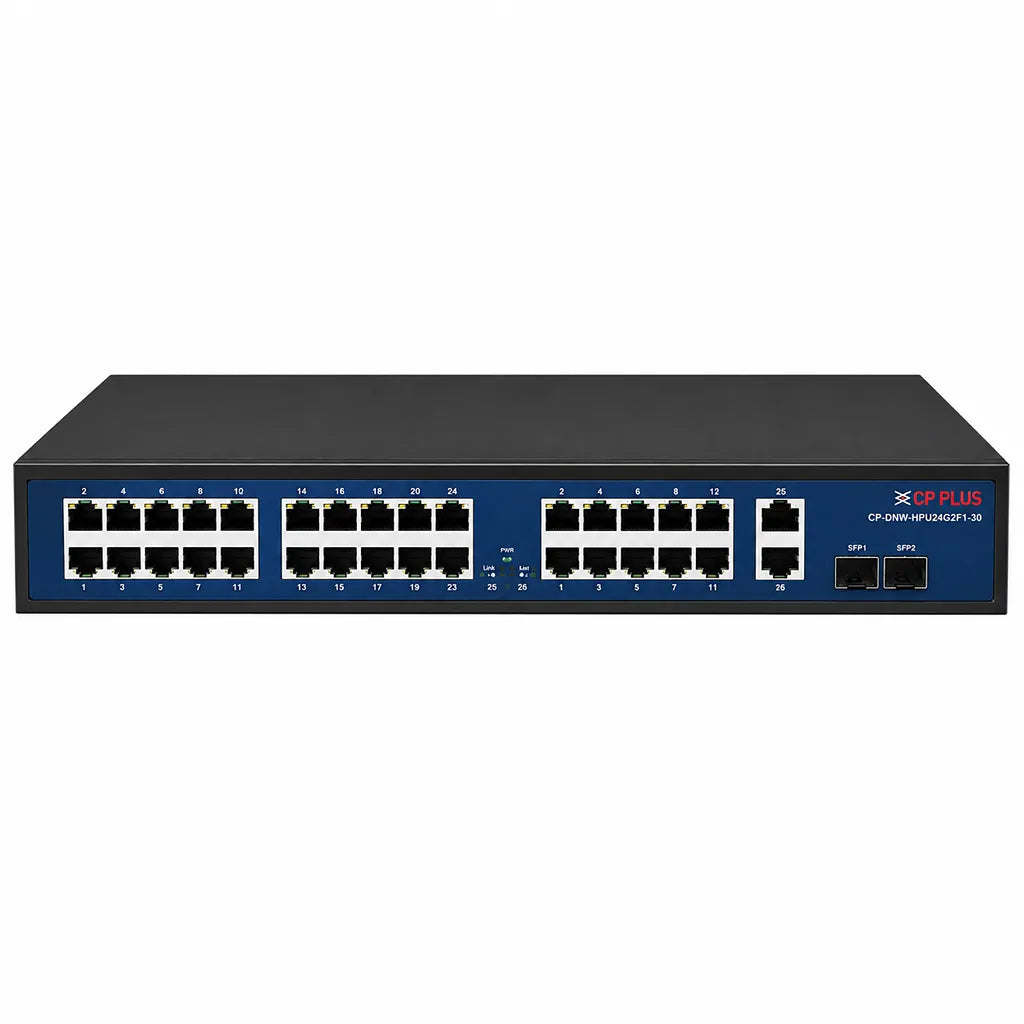

• CP PLUS CP-DNW-HPU24G2F1-30 24 Port PoE Network Switch front view with 2 Gigabit uplink ports and 2 SFP ports for CCTV networking -tpstech.in

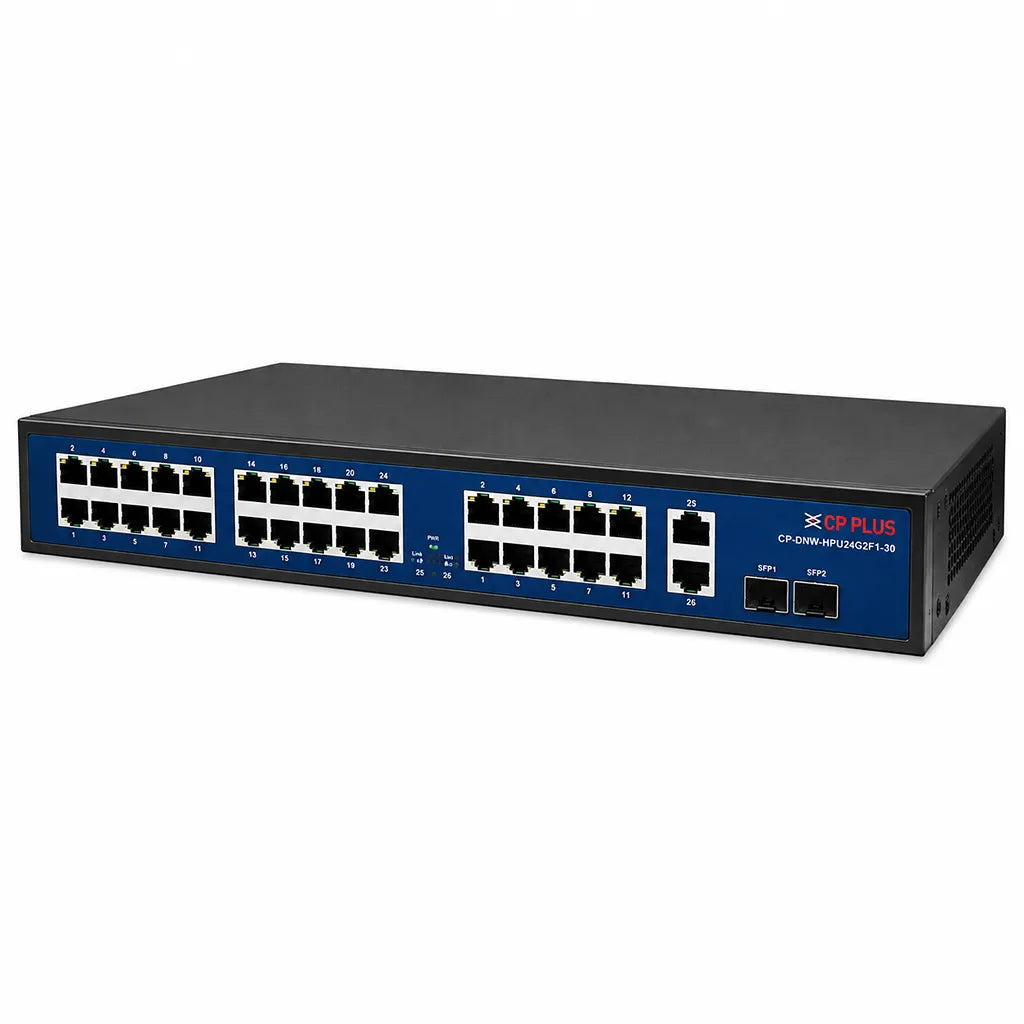

  • CP PLUS CP-DNW-HPU24G2F1-30 24 Port PoE Network Switch left angle view with Gigabit uplinks and SFP ports -tpstech.in

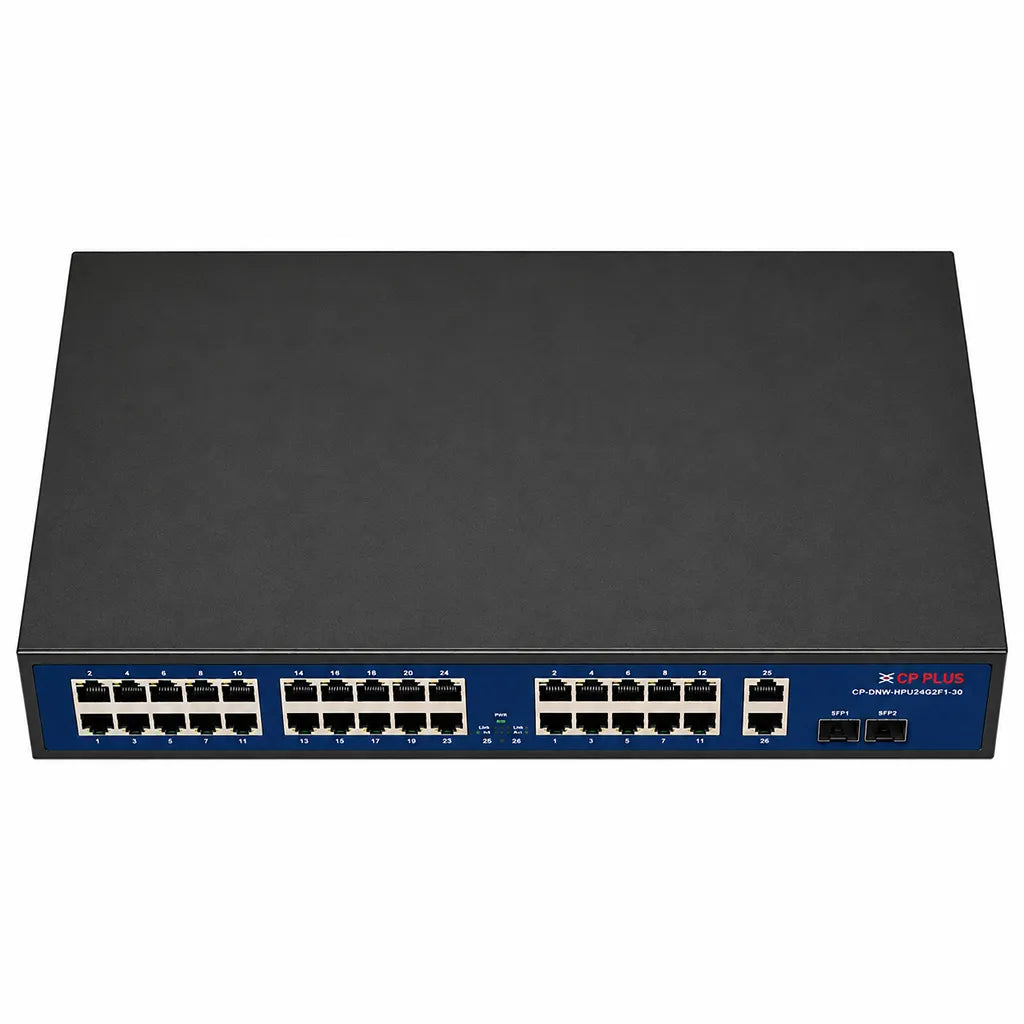

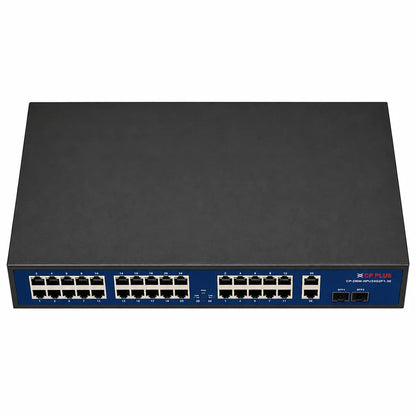

  • CP PLUS CP-DNW-HPU24G2F1-30 24 Port PoE Network Switch top front view for surveillance and enterprise networking -tpstech.in

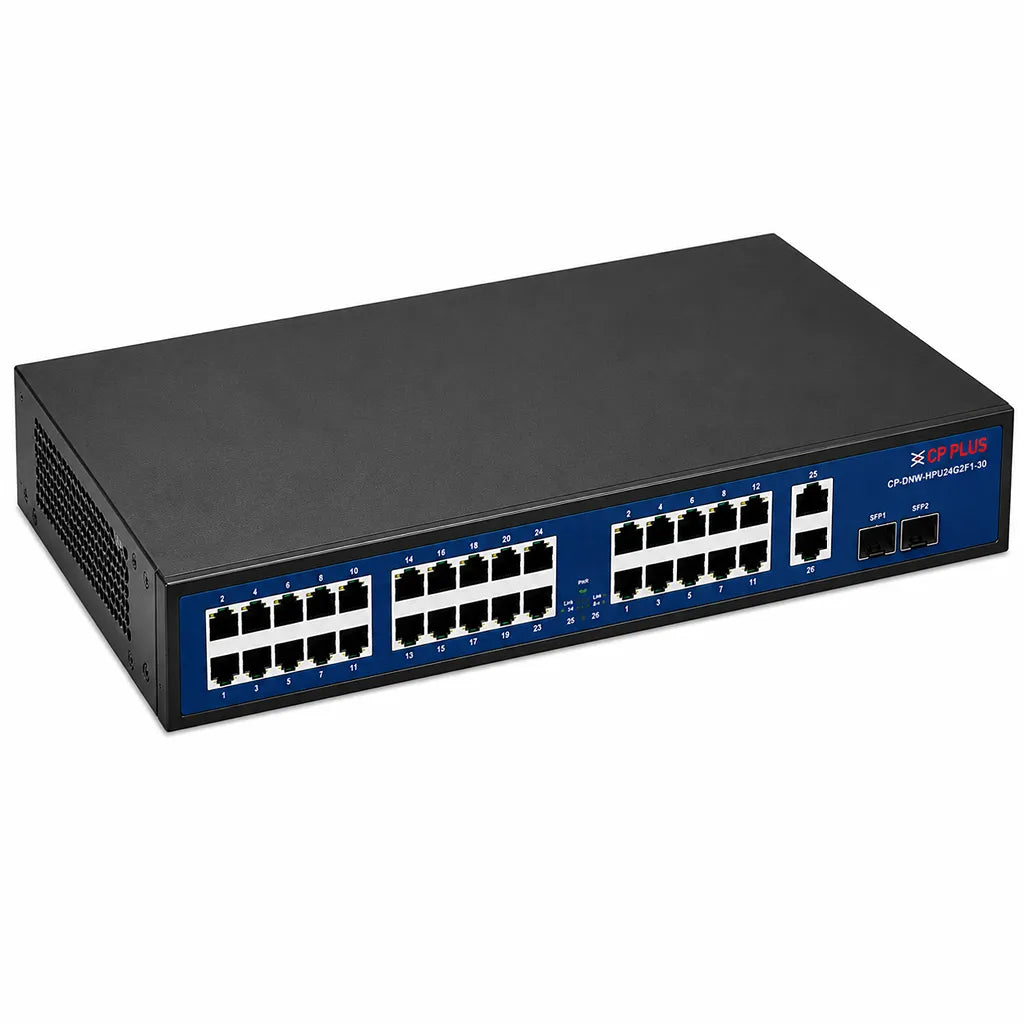

  • CP PLUS CP-DNW-HPU24G2F1-30 24 Port PoE Network Switch right angle view with PoE Ethernet ports and SFP uplinks -tpstech.in

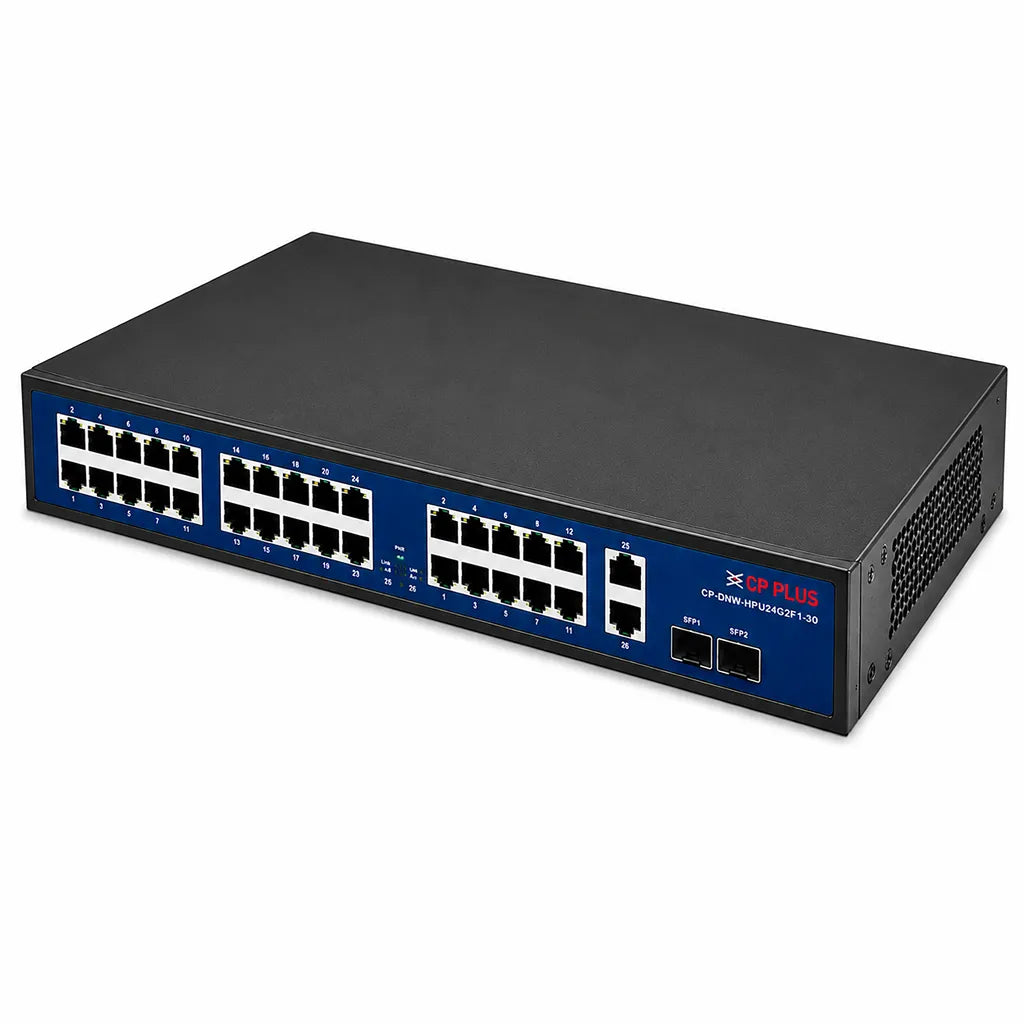

  • CP PLUS CP-DNW-HPU24G2F1-30 24 Port PoE Network Switch top right perspective showing metal chassis and network ports -tpstech.in

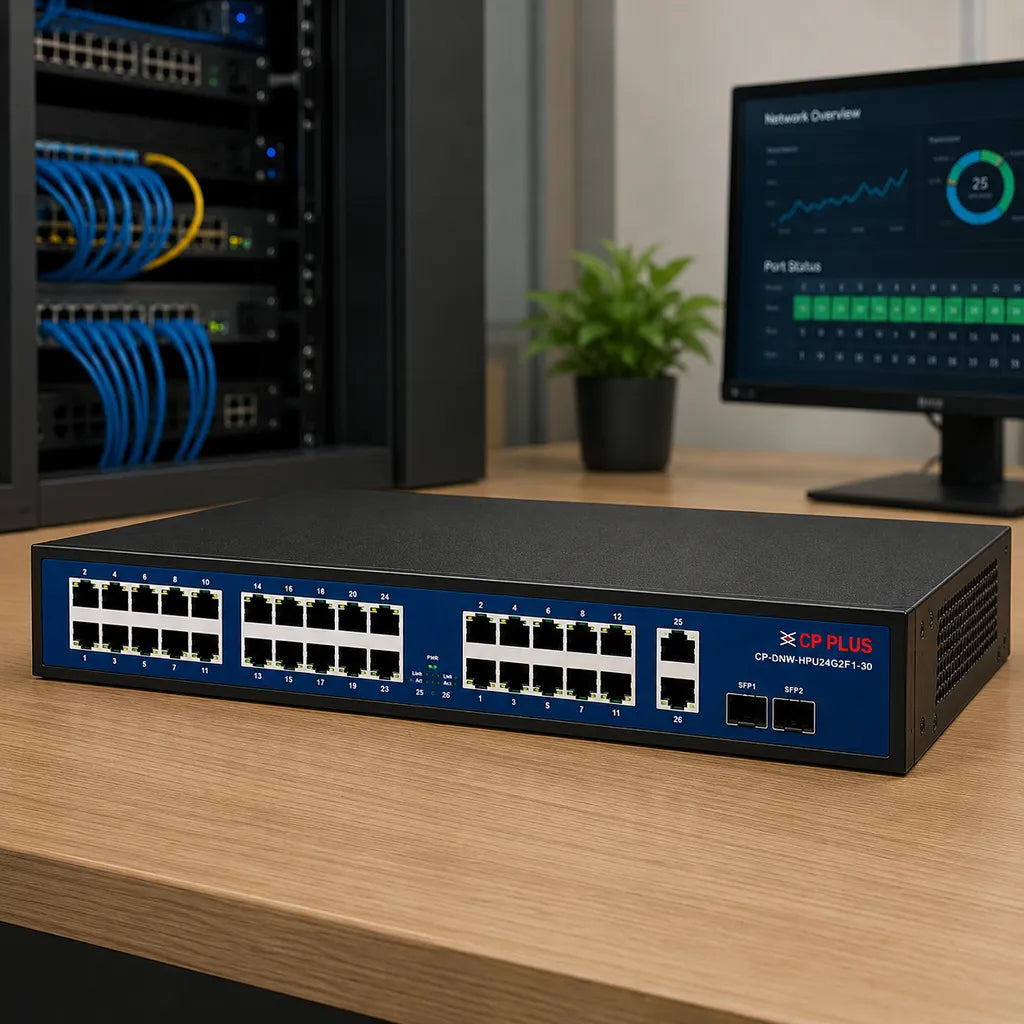

  • CP PLUS CP-DNW-HPU24G2F1-30 24 Port PoE Network Switch installed in a professional server room for IP CCTV and enterprise networking -tpstech.in
1 6

CP PLUS CP-DNW-HPU24G2F1-30 27-Port PoE Switch with 24 PoE Ports

CP PLUS CP-DNW-HPU24G2F1-30 27-Port PoE Switch with 24 PoE Ports

Brand: CP PLUS
Rs. 4,250.00
58% off Rs. 9,899.00 Rs. 4,250.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

⚡ 24 PoE Ports Supports up to 24 PoE-enabled devices with a maximum output of 30W per PoE port for simplified network and power delivery.

🌐 Flexible Uplink Connectivity Includes 2 Gigabit RJ45 uplink ports and 1 Gigabit SFP uplink port for reliable high-speed backbone connections.

📡 Long Distance Transmission Extend mode allows ports 9 to 24 to transmit up to 250m at 10Mbps over Cat5e or higher cables for remote device deployment.

🛡️ Reliable Network Protection Built with surge protection, ESD protection, VLAN support and store-and-forward switching for stable network performance.

🔌 Easy Installation Plug-and-play design with built-in power supply helps simplify deployment in surveillance and business networks.

The CP PLUS CP-DNW-HPU24G2F1-30 is a 27-port PoE switch designed for IP surveillance and business networking applications. It features 24 Fast Ethernet PoE ports, 2 Gigabit uplink ports and 1 Gigabit SFP uplink port for flexible connectivity. With a 300W PoE budget, VLAN support, extend mode up to 250m and built-in protection against surge and ESD, it offers dependable performance for CCTV cameras, wireless access points and other PoE-enabled devices.

Product Specifications:

Specification Details
Brand CP PLUS
Model CP-DNW-HPU24G2F1-30
Product Type PoE Network Switch
Total Network Ports 27 Ports
PoE Ports 24 × 10/100Mbps RJ45
Uplink Ports 2 × Gigabit RJ45 + 1 × Gigabit SFP
PoE Standards IEEE 802.3af, IEEE 802.3at
Maximum PoE Output per Port 30W
Total PoE Power Budget 300W
Network Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Switching Capacity 10.8Gbps (Non-blocking)
Packet Forwarding Rate 8.035Mpps
MAC Address Table 2K
Packet Buffer 1.5Mb
Forwarding Mode Store-and-Forward
VLAN Support Yes
Transmission Distance 0–100m (Default), up to 250m at 10Mbps in Extend Mode (Ports 9–24)
Operating Modes Normal, VLAN, Extend
Supported Network Cable Cat3/Cat4/Cat5 (10Mbps), Cat5 or above (100Mbps), Cat5 or above (1000Mbps)
Surge Protection RJ45: 4KV Common / 2KV Differential, Power Board: 4KV Common / 2KV Differential
ESD Protection Air: 8KV, Contact: 6KV
Power Supply Built-in, 110–264V AC
Power Consumption <5W (excluding PoE load)
Operating Temperature -20°C to 45°C
Dimensions 320 × 207 × 45mm
Weight 1.8kg (Without Packaging)
Warranty 2 Year Manufacturer Warranty
