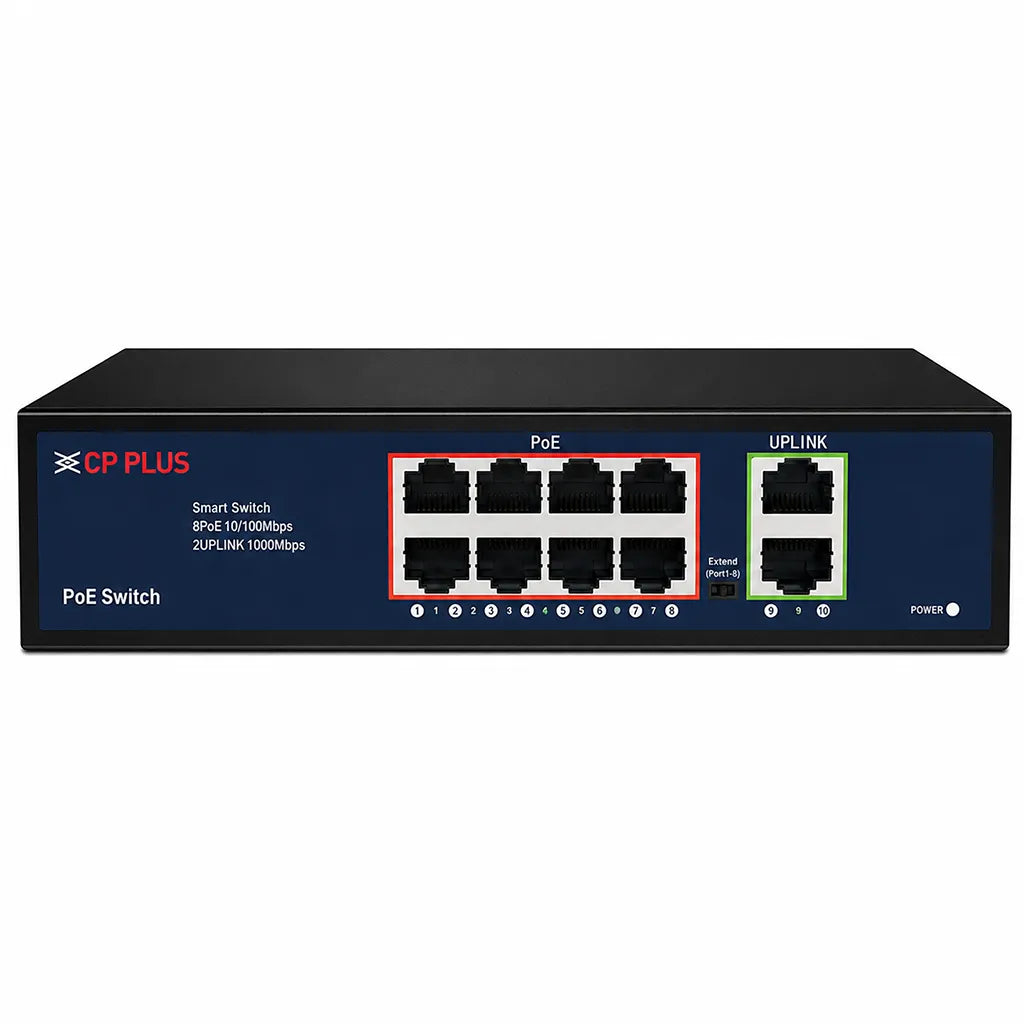

• CP PLUS CP-DNW-HPU8G2-96-V3 10 Port PoE Switch with 8 PoE ports and 2 Gigabit uplink ports front view for CCTV networking -tpstech.in

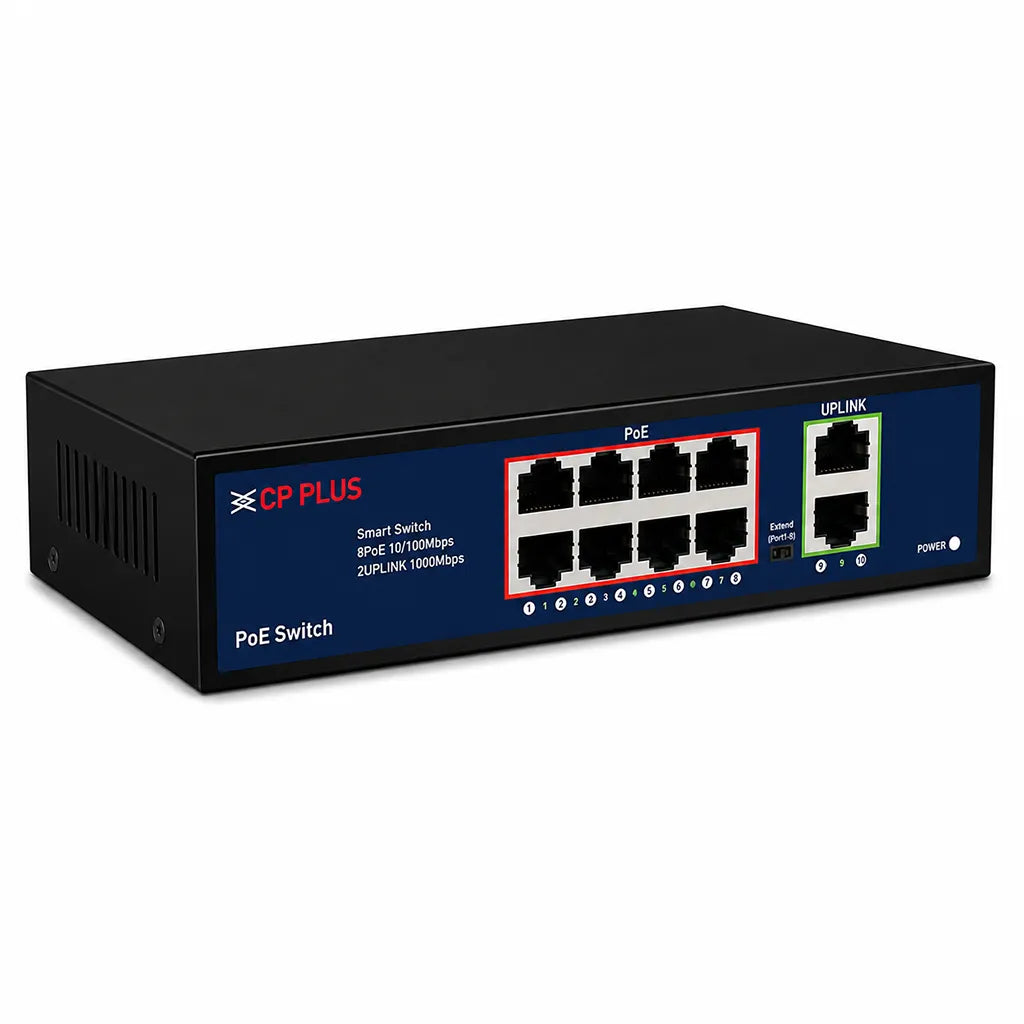

  • CP PLUS CP-DNW-HPU8G2-96-V3 unmanaged 10 Port PoE Switch with 8 PoE ports and 2 Gigabit uplink ports left angle view -tpstech.in

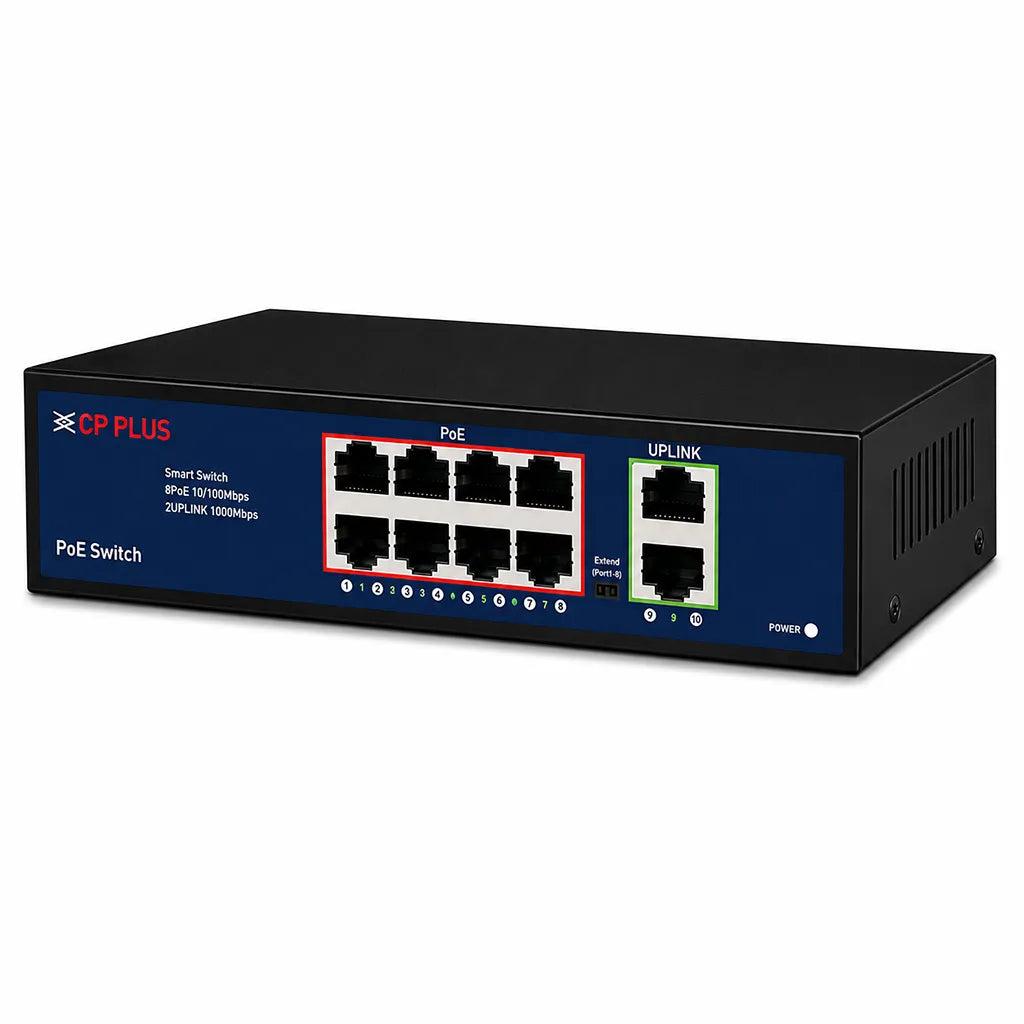

  • CP PLUS CP-DNW-HPU8G2-96-V3 10 Port Ethernet PoE Switch with 96W PoE budget and Gigabit uplink ports right angle view -tpstech.in

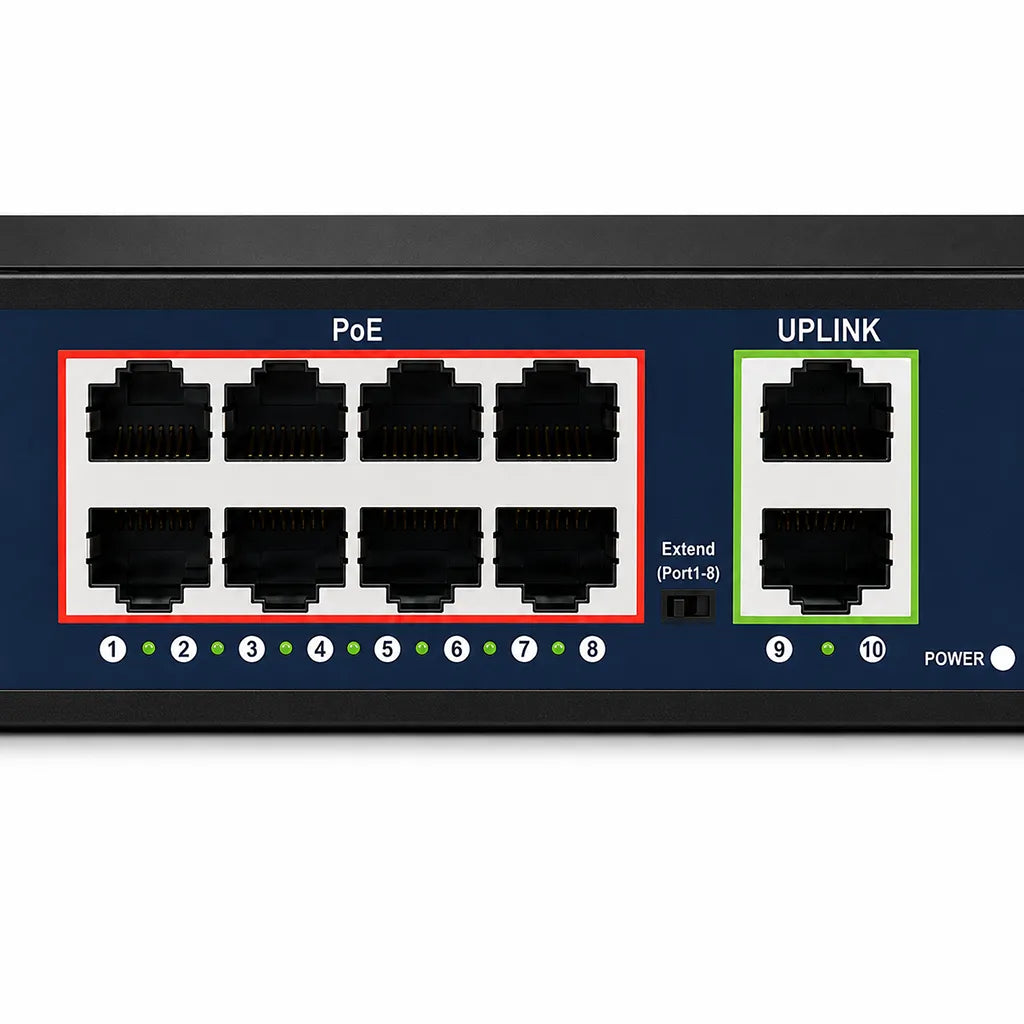

  • Close-up of CP PLUS CP-DNW-HPU8G2-96-V3 showing 8 PoE Ethernet ports, 2 Gigabit uplink ports and Extend mode switch -tpstech.in

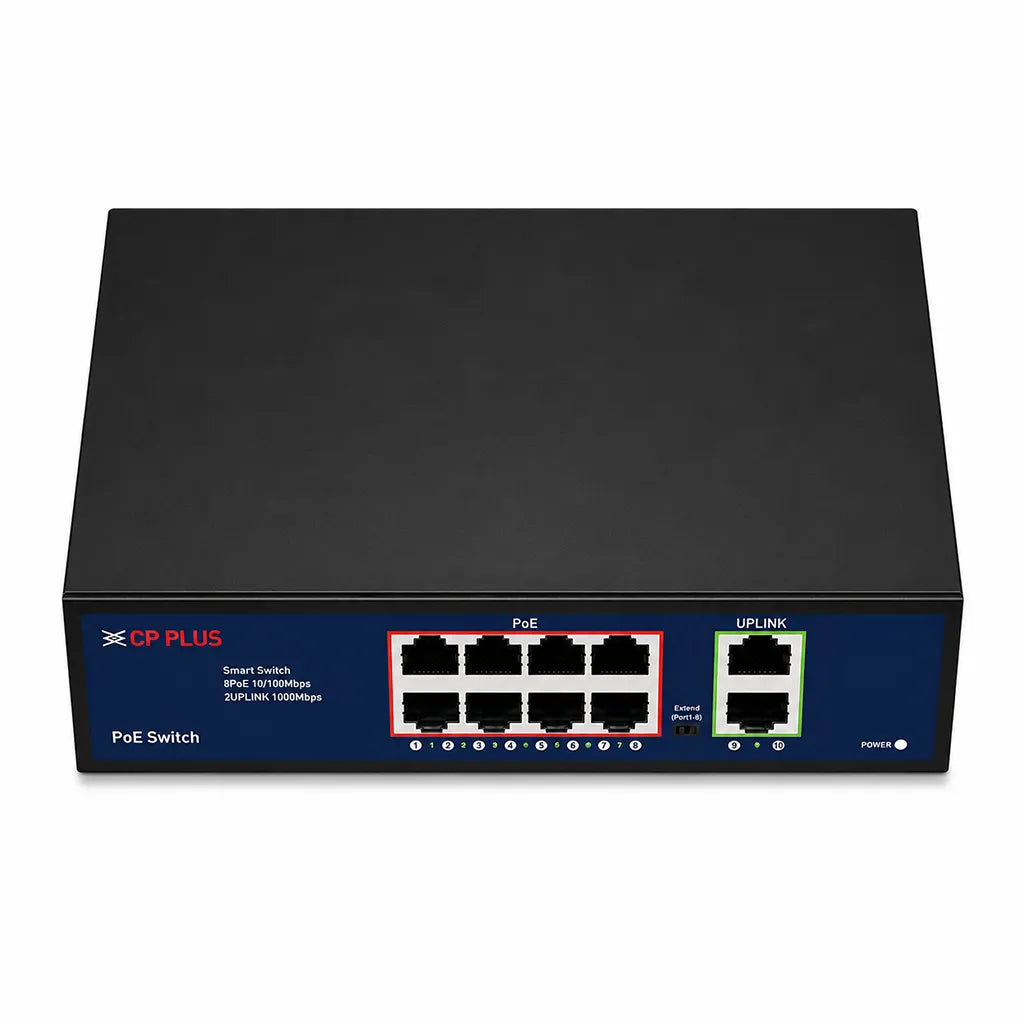

  • Top view of CP PLUS CP-DNW-HPU8G2-96-V3 unmanaged 10 Port PoE Switch with 8 PoE ports and 2 Gigabit uplink ports -tpstech.in

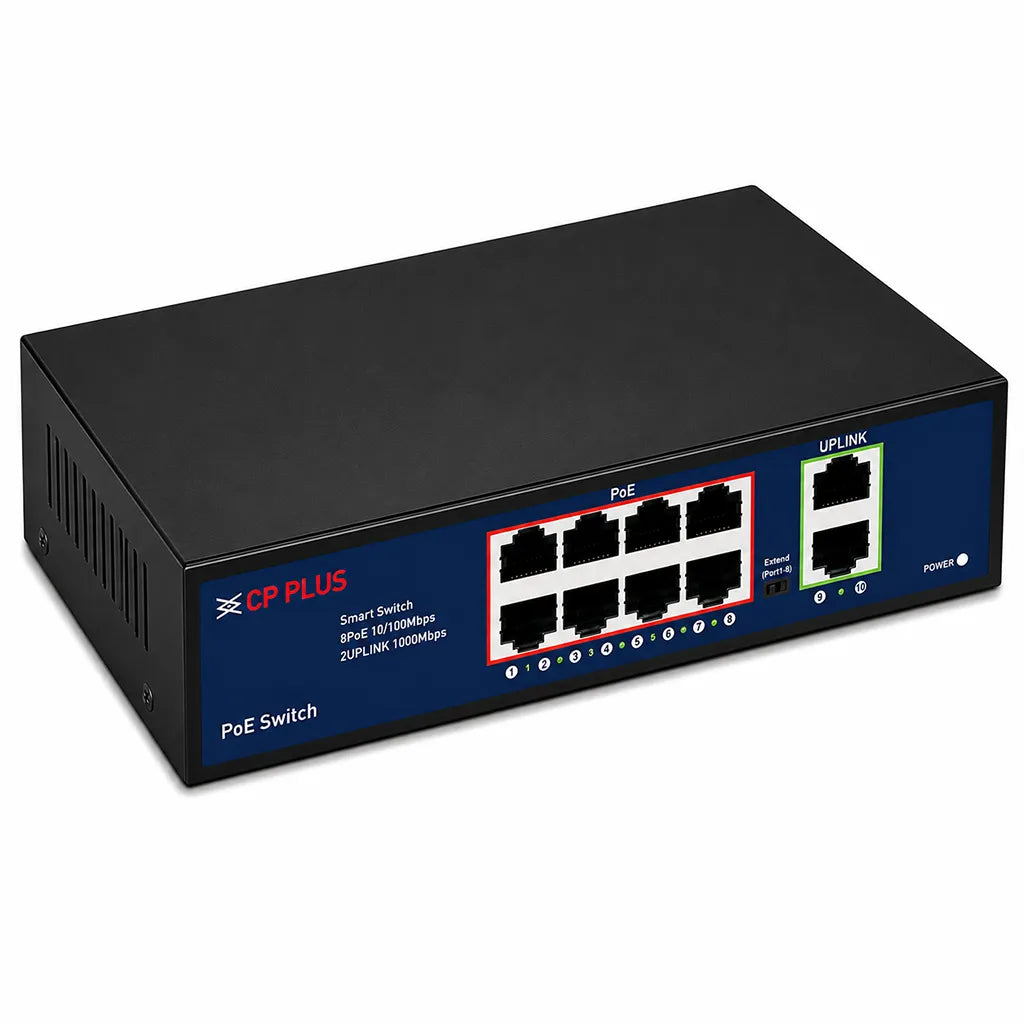

  • CP PLUS CP-DNW-HPU8G2-96-V3 10 Port PoE Switch for IP cameras and surveillance systems perspective view -tpstech.in

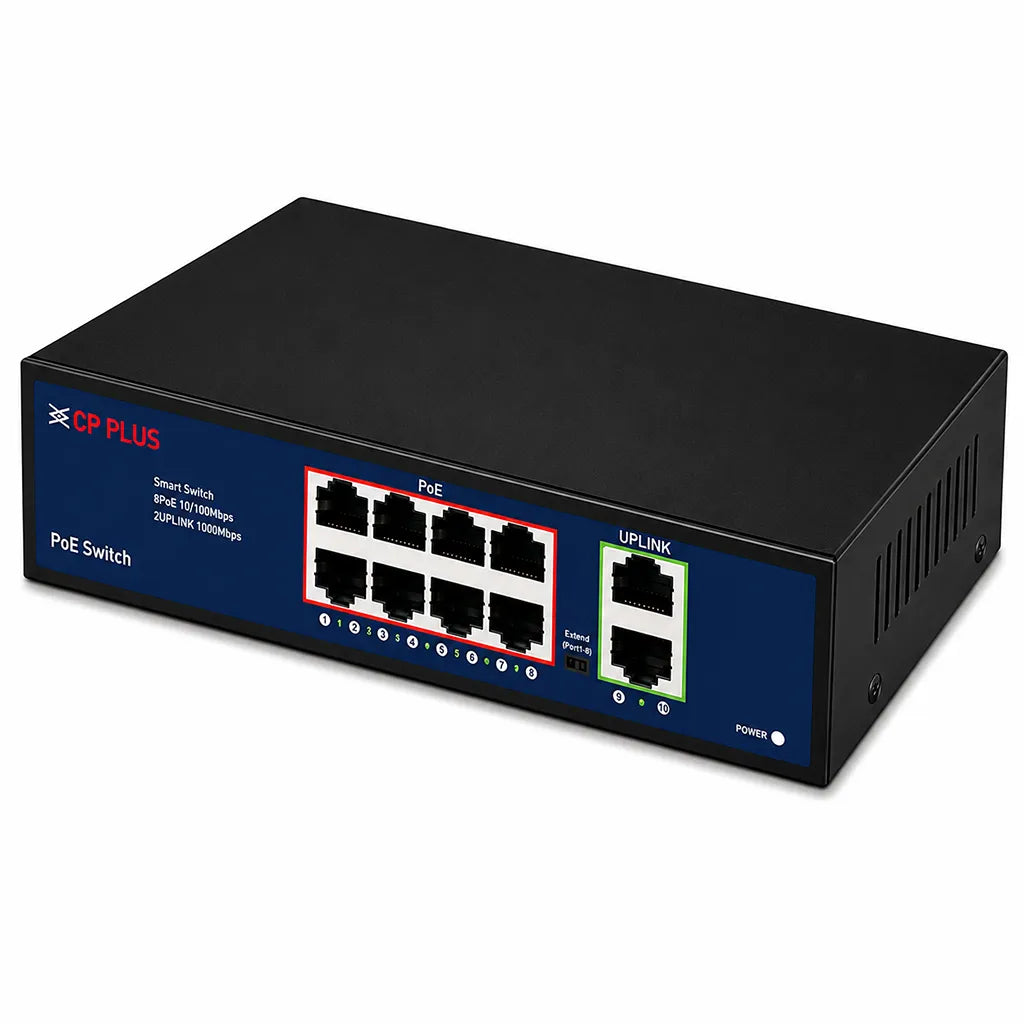

  • CP PLUS CP-DNW-HPU8G2-96-V3 10 Port unmanaged PoE Switch with 8 PoE ports and 2 Gigabit uplink ports front right perspective -tpstech.in
1 7

CP PLUS CP-DNW-HPU8G2-96-V3 10-Port PoE Switch

CP PLUS CP-DNW-HPU8G2-96-V3 10-Port PoE Switch

Brand: CP PLUS
Rs. 4,250.00
58% off Rs. 9,899.00 Rs. 4,250.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

🔌 8 PoE Ports with 30W Output Power compatible PoE devices through eight 10/100Mbps ports with up to 30W output per port for simplified network deployment.

⚡ 2 Gigabit Uplink Ports Enjoy High-speed Gigabit uplink connectivity for smooth data transmission between your switch and core network.

🛡️ Reliable Network Protection Built-in ESD and surge protection help safeguard connected equipment for dependable network operation.

📡 Extended Transmission Support Extend network connectivity up to 250m at 10Mbps in Extend Mode using Cat.5e or higher cables for long-distance installations.

🛠️ Simple Plug and Play Installation Deploy quickly with desktop or wall-mount installation, built-in power supply, and no software configuration required.

The CP PLUS CP-DNW-HPU8G2-96-V3 is a 10-port unmanaged PoE switch designed for IP surveillance and networking applications. It features eight 10/100Mbps PoE ports with up to 30W per port and two Gigabit uplink ports for efficient network connectivity. With VLAN mode, extend mode, PoE Watchdog, surge and ESD protection, this switch delivers reliable performance for offices, retail stores, warehouses, schools, and CCTV installations requiring stable power and data transmission.

Product Specifications:

Specification Details
Brand CP PLUS
Model CP-DNW-HPU8G2-96-V3
Product Type Unmanaged PoE Switch
Total Network Ports 10
PoE Ports 8 × 10/100Mbps RJ45 Ports
Uplink Ports 2 × 1000Mbps RJ45 Ports
Maximum PoE Output 30W per PoE Port
PoE Power Budget 96W
Network Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
PoE Standards IEEE 802.3af, IEEE 802.3at
Switching Capacity 5.6Gbps (Full duplex)
Packet Forwarding Rate 29.76Mbps
MAC Address Table 8K
Packet Buffer 3mb
Forwarding Mode Store-and-Forward
VLAN Supported
PoE Watchdog Supported
Transmission Distance 0–100m at 100Mbps
Surge Protection Common mode/RJ45 port: 4KV
ESD Protection Air Discharge: 8KV
Power Supply Built-in Power Supply, 100–240V AC, 50/60Hz
Warranty 2 Year Manufacturer Warranty
Weight 1780g
