CP PLUS CP-DPS-PD04V2-12D 4 Channel Power Supply for CCTV Systems

CP PLUS CP-DPS-PD04V2-12D 4 Channel Power Supply for CCTV Systems

Brand: CP PLUS
Rs. 1,999.00
26% off Rs. 2,699.00 Rs. 1,999.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

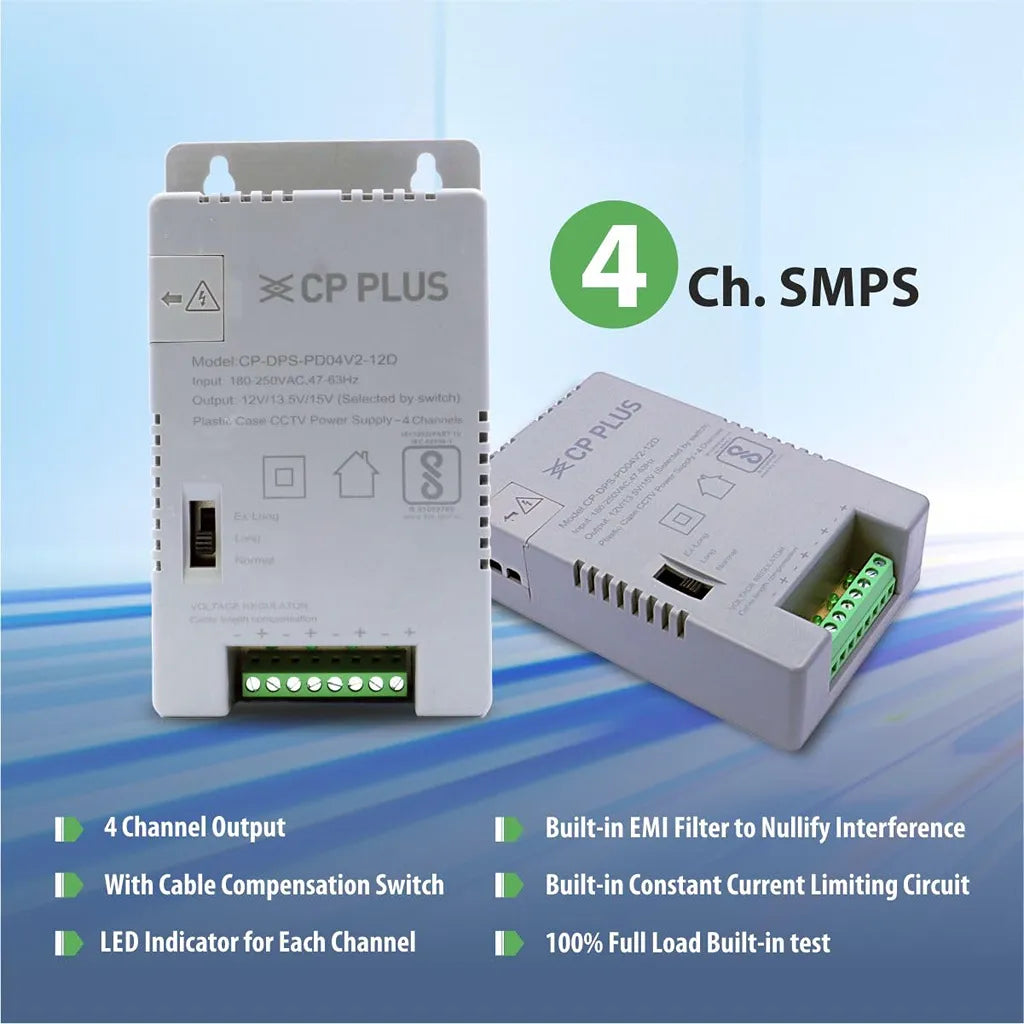

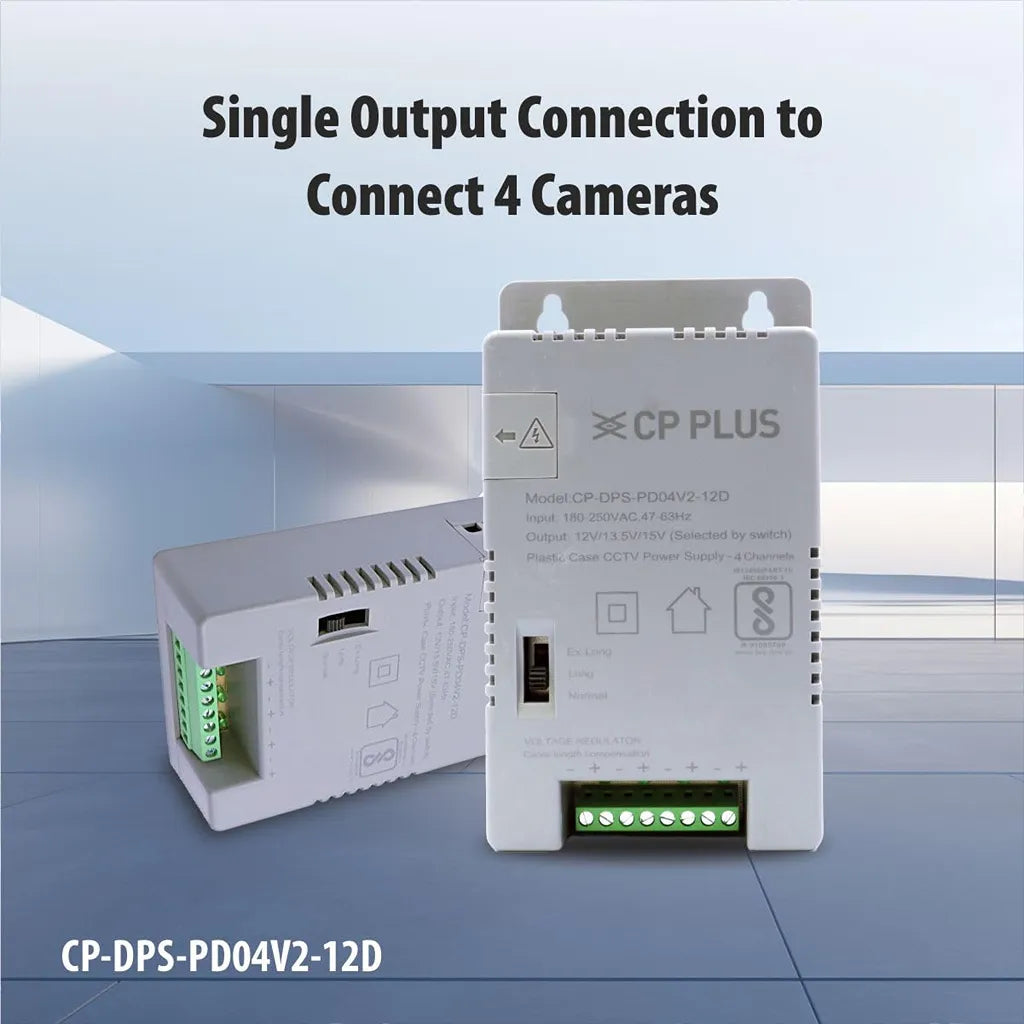

    🔌 Reliable 4 Channel Output Provides four output channels to power compatible CCTV surveillance devices from a single power supply.

    ⚡ Cable Compensation Switch Helps maintain stable voltage delivery across longer cable runs for dependable camera performance.

    💡 LED Status Indicators Features an LED indicator for each channel, making power status monitoring quick and convenient.

    🛡️ Built-in EMI Filter Reduces electromagnetic interference to support stable power delivery in surveillance installations.

    🌬️ Designed for Continuous Operation Free air convection cooling and a built-in constant current limiting circuit help ensure reliable everyday operation.

    The CP PLUS CP-DPS-PD04V2-12D 4 Channel Power Supply delivers a regulated 12V DC output for compatible CCTV surveillance systems. Featuring four output channels, cable compensation, individual LED indicators, an integrated EMI filter, and free air convection cooling, it is designed for stable and dependable operation. Its compact plastic housing makes it suitable for residential, commercial, and office CCTV installations where reliable power distribution is essential.

    Product Specifications:

    Specification Details
    Brand CP PLUS
    Model CP-DPS-PD04V2-12D
    Product Type 4 Channel Power Supply
    Input Voltage 200 to 240V AC
    Output Voltage 12V DC
    Output Current 0 to 3A
    Rated Power 36W
    Ripple & Noise (Max.) 120mVp-p
    Voltage Adjustment Range 11.4V to 12.6V
    Line Regulation ±1.0%
    Load Regulation ±5.0%
    Temperature Coefficient ±0.03%/°C (0°C to 50°C)
    Frequency Range 47Hz to 63Hz
    Efficiency (Typical) 86%
    AC Current (Typical) 1A at 220VAC
    Inrush Current (Typical) 40A at 220VAC (Cold Start)
    Leakage Current <2mA at 240VAC

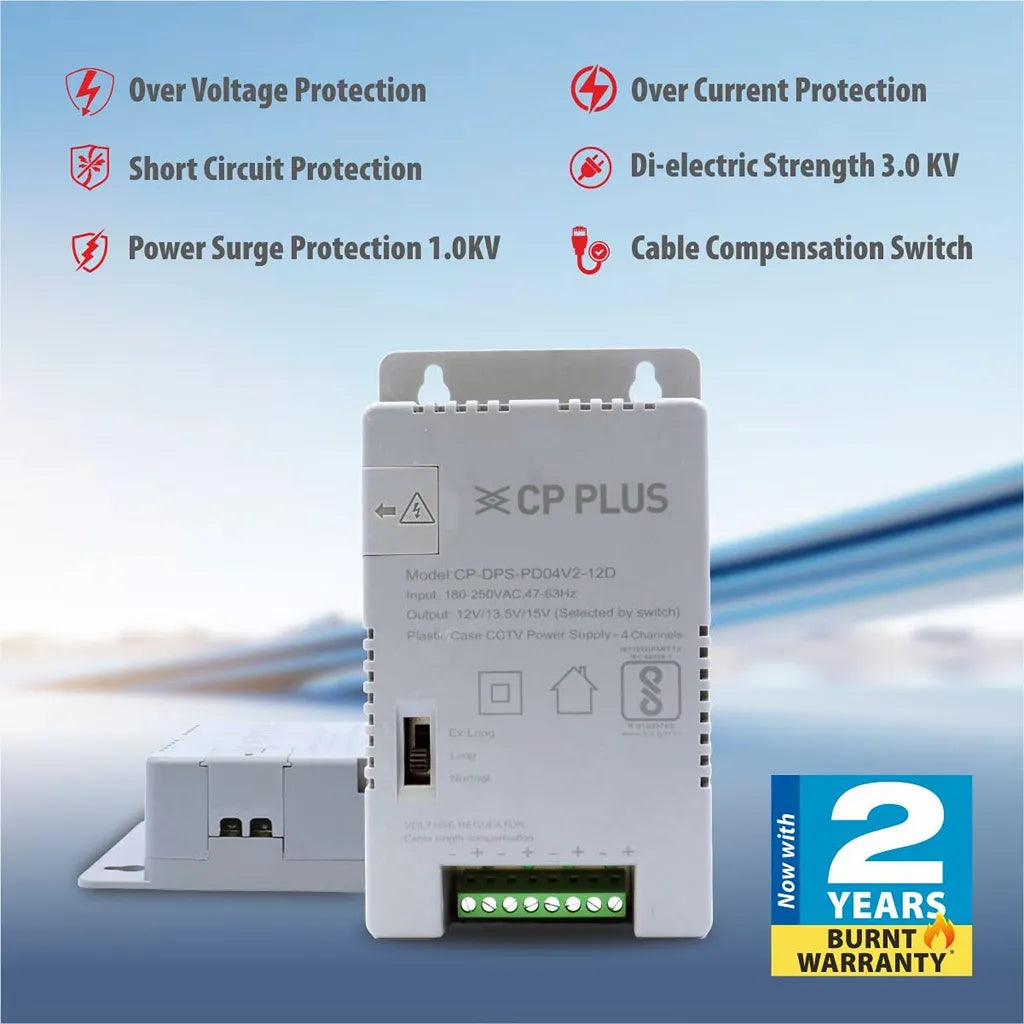

    Overload Protection 110% to 200% Rated Output Power with Automatic Recovery
    Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100MΩ / 500VDC / 25°C / 70% RH
    Cooling Method Free Air Convection
    EMI Filter Built-in
    Current Limiting Built-in Constant Current Limiting Circuit
    LED Indicators One LED Indicator for Each Channel
    Housing Material Plastic
    Operating Temperature -20°C to +45°C
    Dimensions 144 × 80 × 33 mm
    Weight 0.2 kg
    Warranty 2 Year Manufacturer Warranty
