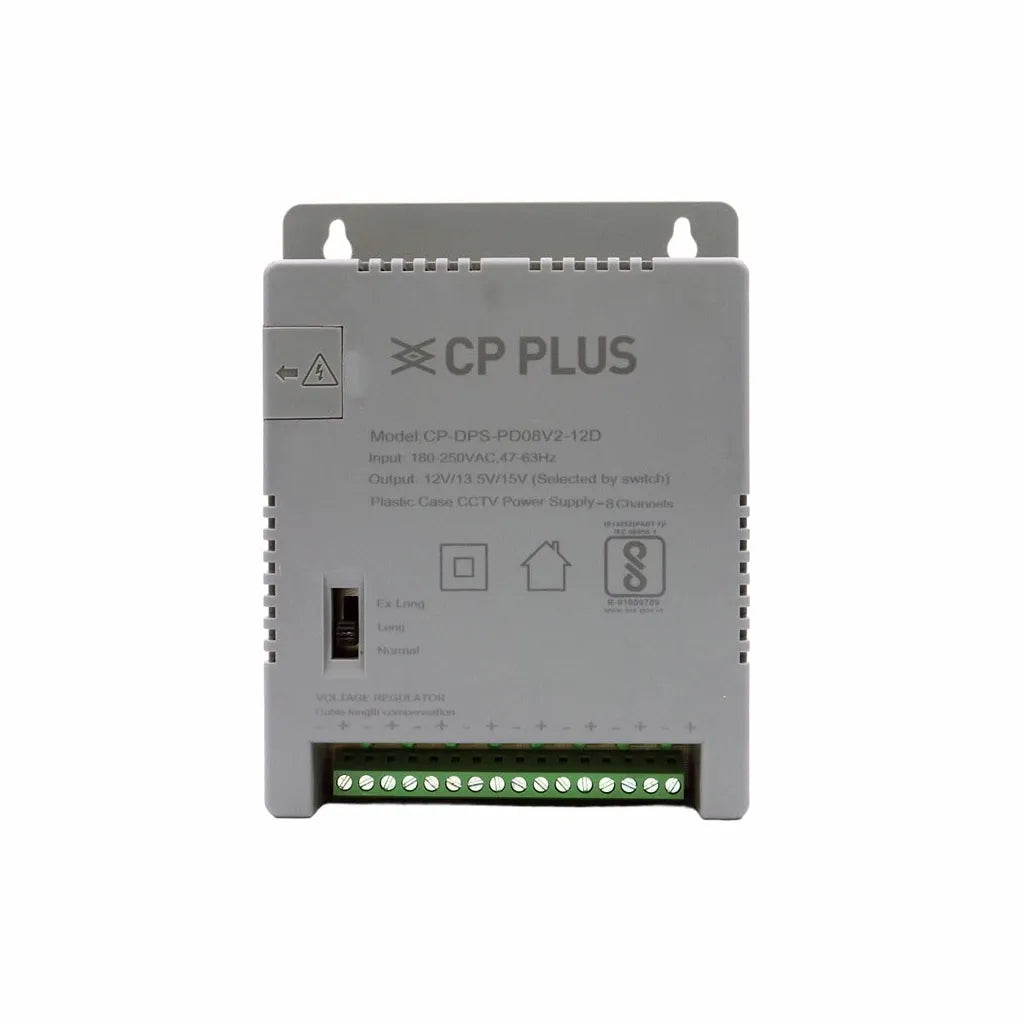

• CP PLUS CP-DPS-PD08V2-12D 8 Channel 12V CCTV Power Supply front view with cable compensation switch and LED indicators -tpstech.in

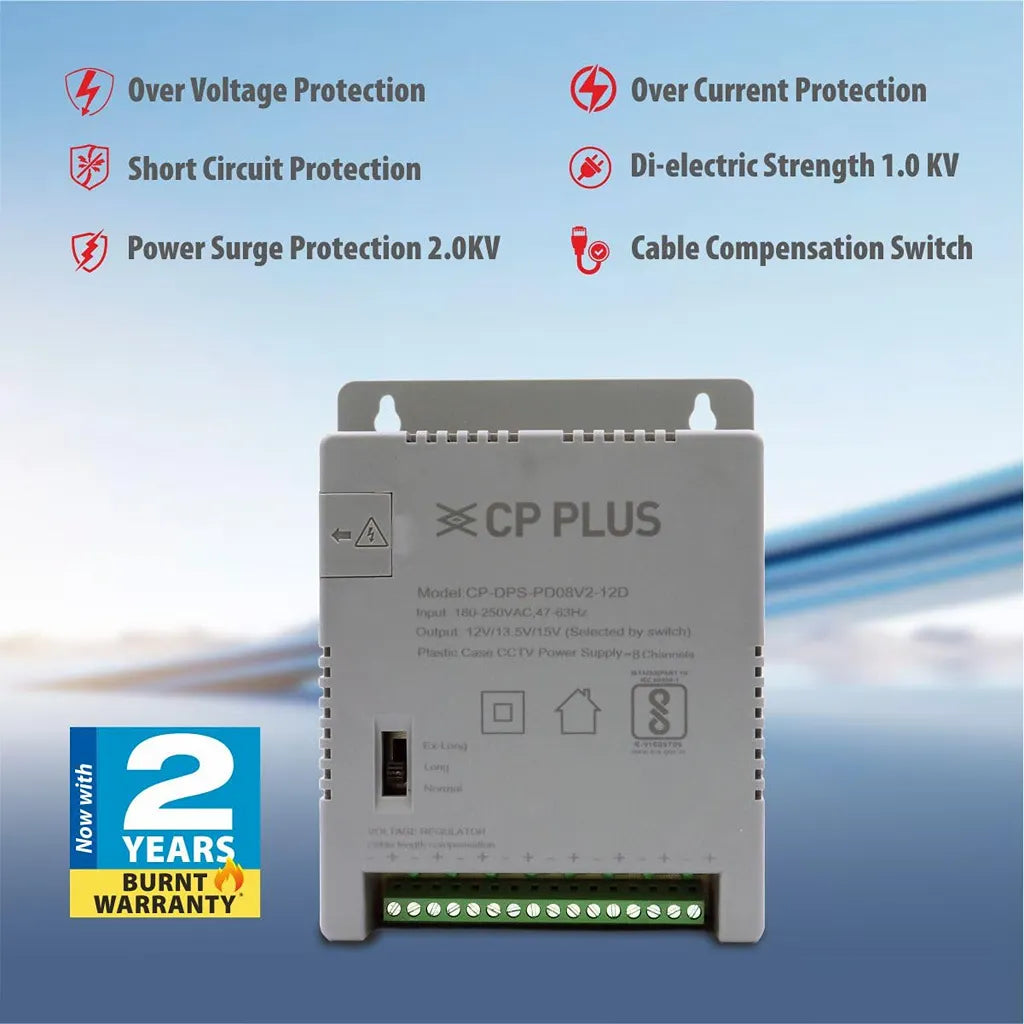

  • CP PLUS CP-DPS-PD08V2-12D 8 Channel CCTV Power Supply featuring over voltage, over current, surge and short circuit protection -tpstech.in

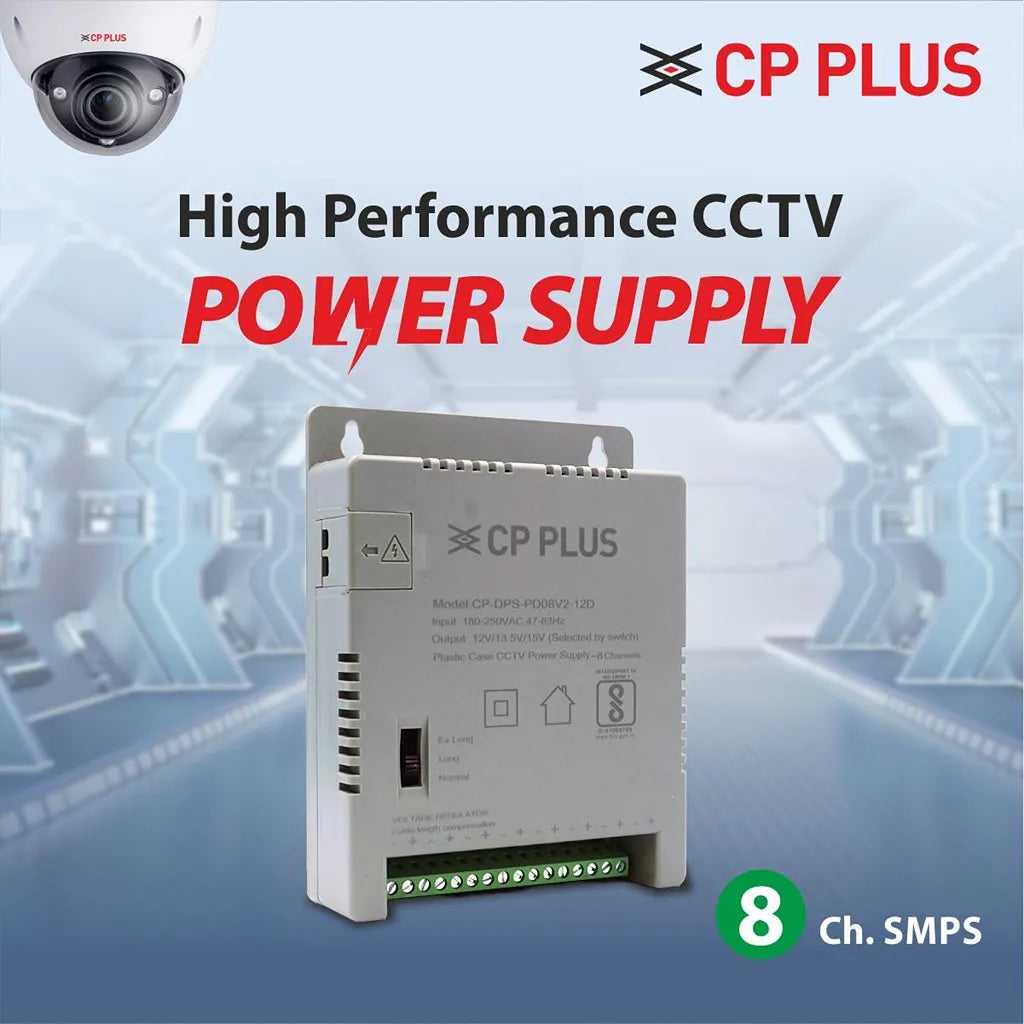

  • CP PLUS CP-DPS-PD08V2-12D high performance 8 channel 12V CCTV power supply for surveillance camera systems -tpstech.in

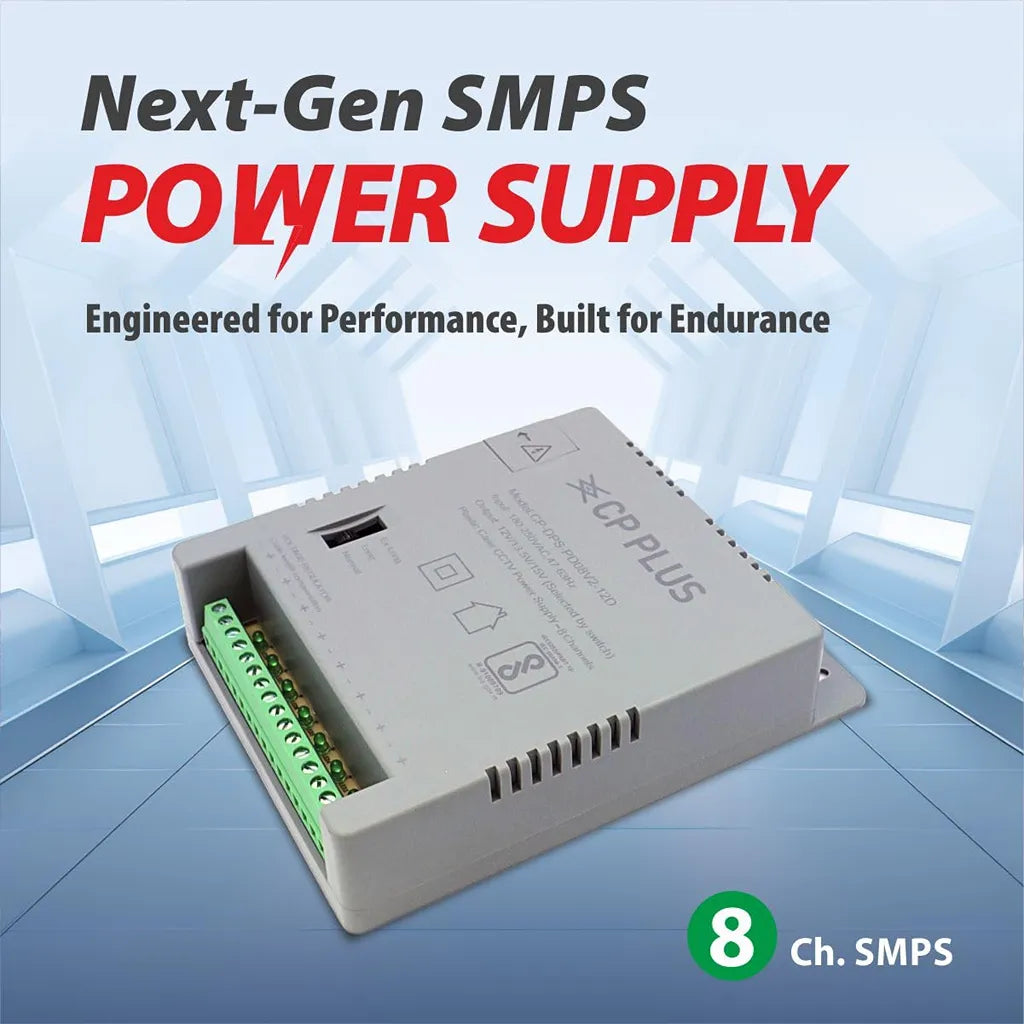

  • CP PLUS CP-DPS-PD08V2-12D next generation 8 channel SMPS power supply angled view for CCTV installations -tpstech.in

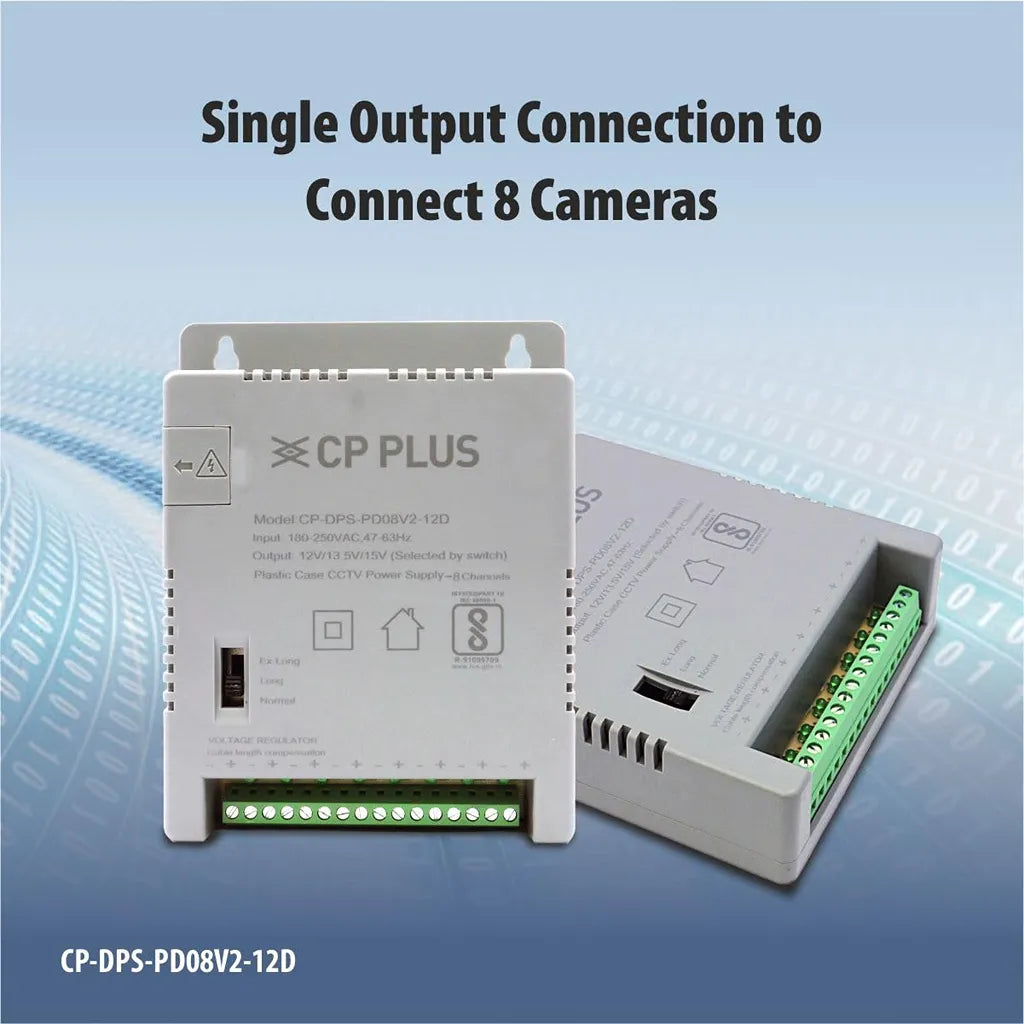

  • CP PLUS CP-DPS-PD08V2-12D 8 channel CCTV power supply with single output connection for up to 8 cameras -tpstech.in

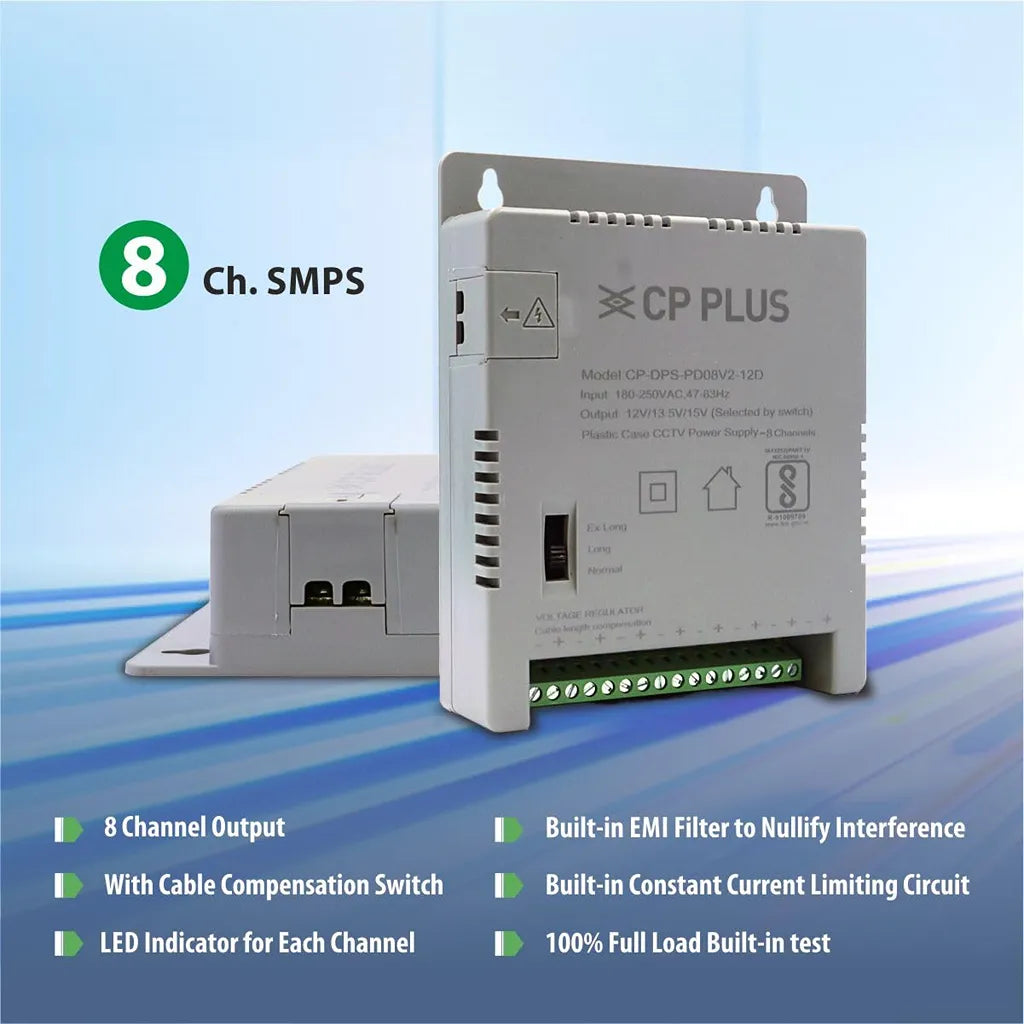

  • CP PLUS CP-DPS-PD08V2-12D 8 channel SMPS power supply with EMI filter, cable compensation switch and LED indicators -tpstech.in
1 6

CP PLUS CP-DPS-PD08V2-12D 8 Channel Power Supply for CCTV Cameras

CP PLUS CP-DPS-PD08V2-12D 8 Channel Power Supply for CCTV Cameras

Brand: CP PLUS
Rs. 1,999.00
26% off Rs. 2,699.00 Rs. 1,999.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

    ⚡ Reliable 8 Channel Output – Powers up to 8 CCTV camera connections from a single power supply for a clean and organized installation.

    🔧 Cable Compensation Switch – Helps maintain stable voltage over longer cable runs for dependable camera performance.

    💡 LED Status Indicators – Individual LED indicators for each channel make power monitoring and troubleshooting easier.

    🛡️ Built-in EMI Filter – Reduces electrical interference to support stable power delivery to connected surveillance devices.

    🌬️ Efficient Cooling Design – Free air convection cooling and constant current limiting circuit support reliable day-to-day operation.

    The CP PLUS CP-DPS-PD08V2-12D 8 Channel Power Supply is designed to provide stable 12V DC power for CCTV surveillance installations. Featuring 8 channel outputs, a cable compensation switch, individual LED indicators, built-in EMI filtering, and free air convection cooling, it delivers dependable performance for compatible CCTV cameras. Its compact plastic housing makes it suitable for residential, commercial, and office security installations while simplifying system maintenance.

    The CP PLUS CP-DPS-PD08V2-12D 8 Channel Power Supply is designed to provide stable 12V DC power for CCTV surveillance installations. Featuring 8 channel outputs, a cable compensation switch, individual LED indicators, built-in EMI filtering, and free air convection cooling, it delivers dependable performance for compatible CCTV cameras. Its compact plastic housing makes it suitable for residential, commercial, and office security installations while simplifying system maintenance.

    Product Specifications:

    Specification Details
    Brand CP PLUS
    Model CP-DPS-PD08V2-12D
    Product Type 8 Channel Power Supply
    Channel Output 8 Channel
    Input Voltage 200 to 240V AC
    Output Voltage 12V DC
    Output Current 0 to 5A
    Rated Power 60W
    Voltage Adjustment Range 11.4V to 12.6V
    Ripple & Noise (Max.) 120mVp-p
    Line Regulation ±1.0%
    Load Regulation ±5.0%
    Frequency Range 47 to 63Hz
    Efficiency (Typical) 86%
    AC Current (Typical) 1A at 220VAC
    Inrush Current Cold Start: 40A at 220V AC
    Leakage Current <2mA / 240VAC
    Cooling Method Free Air Convection
    EMI Filter Built-in
    Protection Constant Current Limiting Circuit, Overload Protection
    LED Indicators Individual LED for Each Channel
    Housing Material Plastic
    Operating Temperature -20°C to +45°C
    Weight 0.27 kg
    Dimensions 144 × 109.5 × 33 mm
    Warranty 2 Year Manufacturer Warranty
