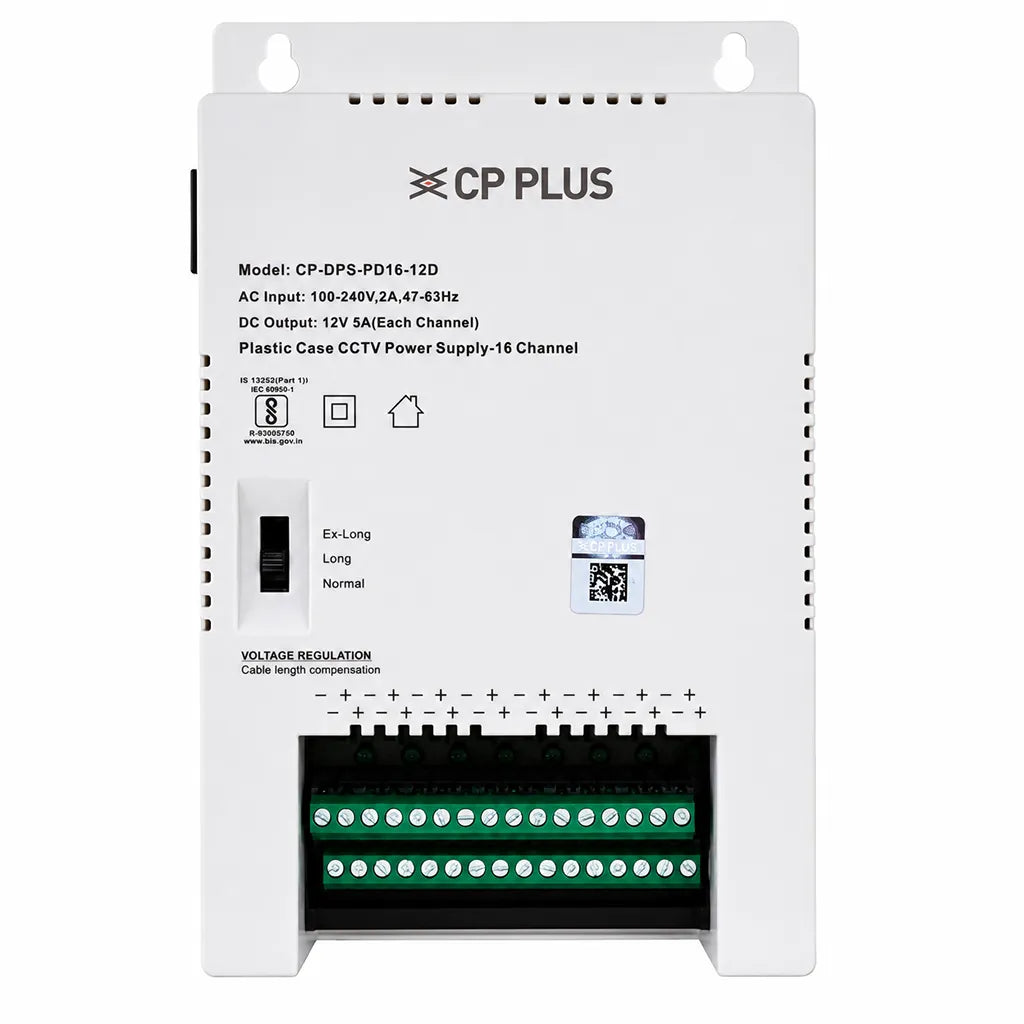

• CP PLUS CP-DPS-PD16-12D 16 Channel CCTV Power Supply front view with voltage regulation switch and terminal outputs -tpstech.in

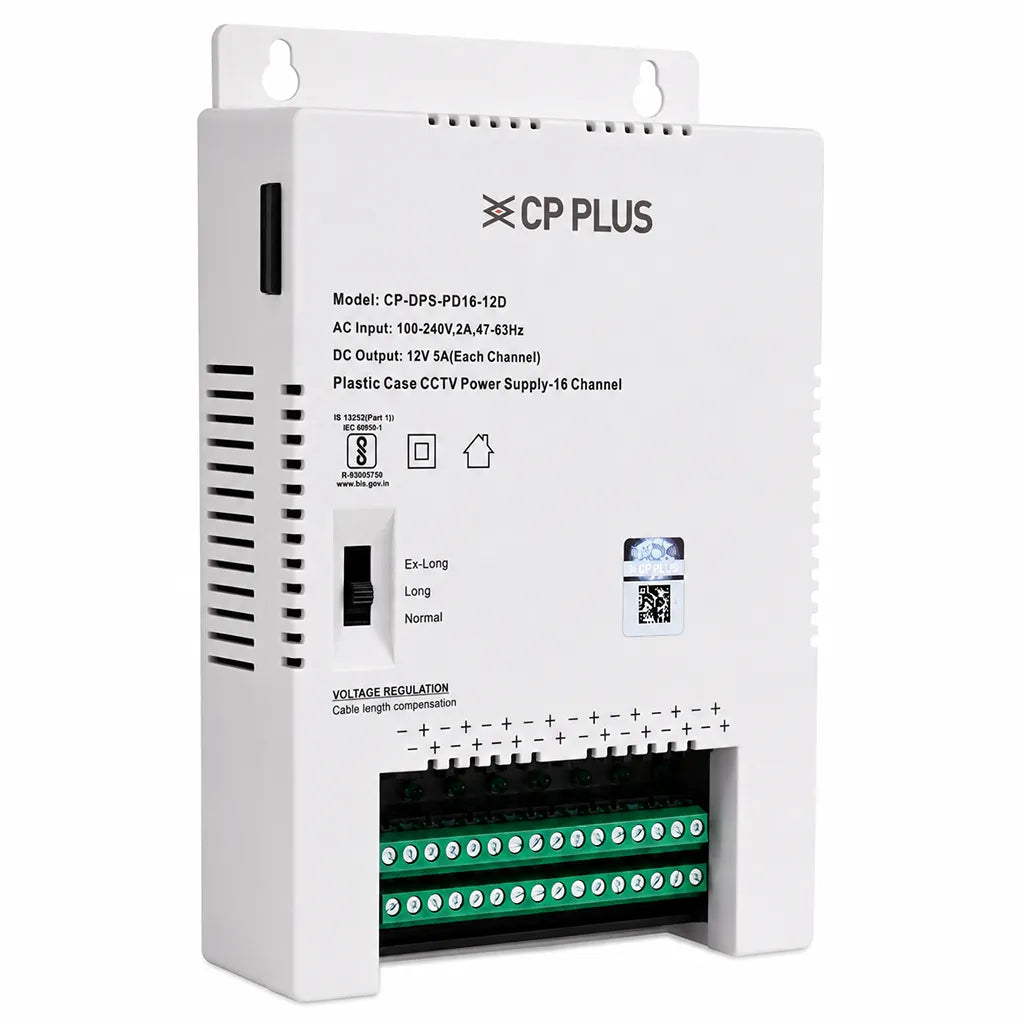

  • CP PLUS CP-DPS-PD16-12D 16 Channel CCTV Power Supply left angle view showing ventilation slots and power distribution terminals -tpstech.in

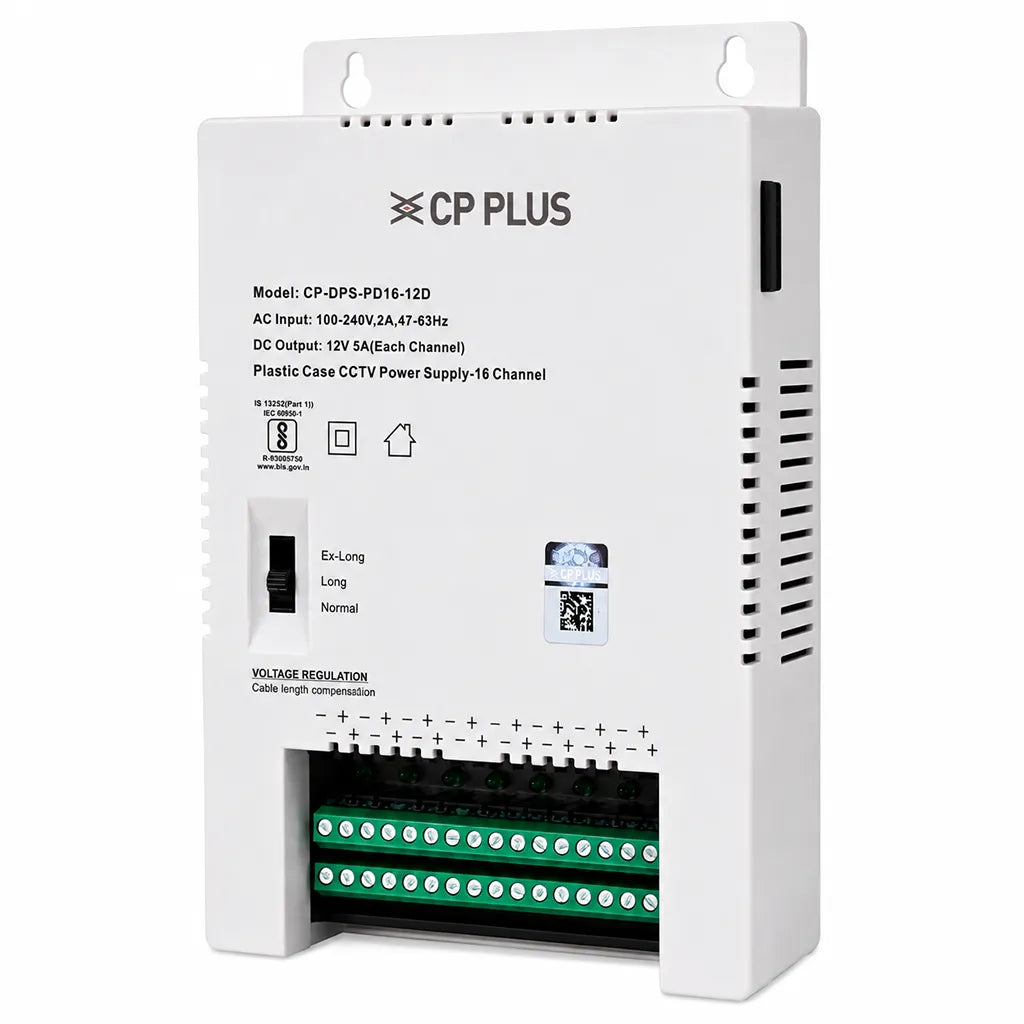

  • CP PLUS CP-DPS-PD16-12D 16 Channel CCTV Power Supply right angle view with cable length compensation switch -tpstech.in

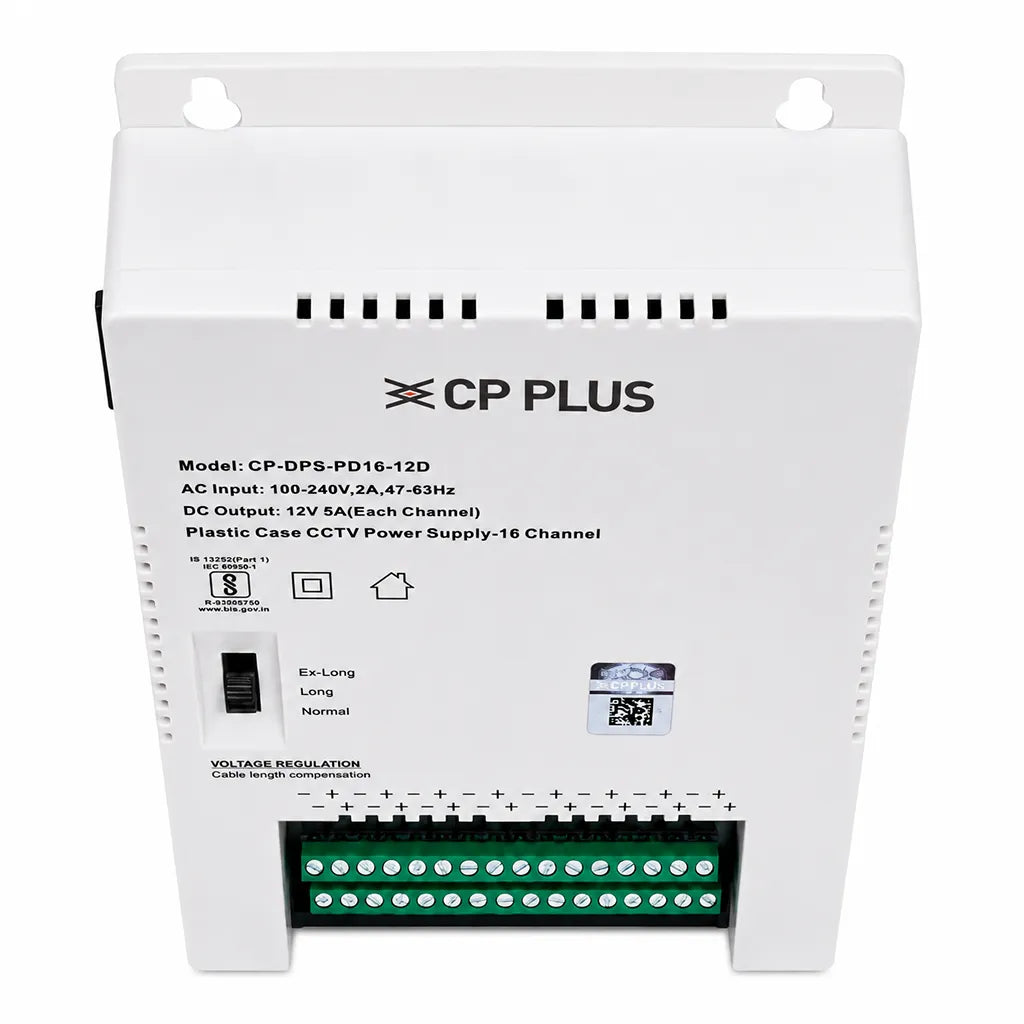

  • CP PLUS CP-DPS-PD16-12D 16 Channel CCTV Power Supply top front view highlighting compact plastic housing -tpstech.in

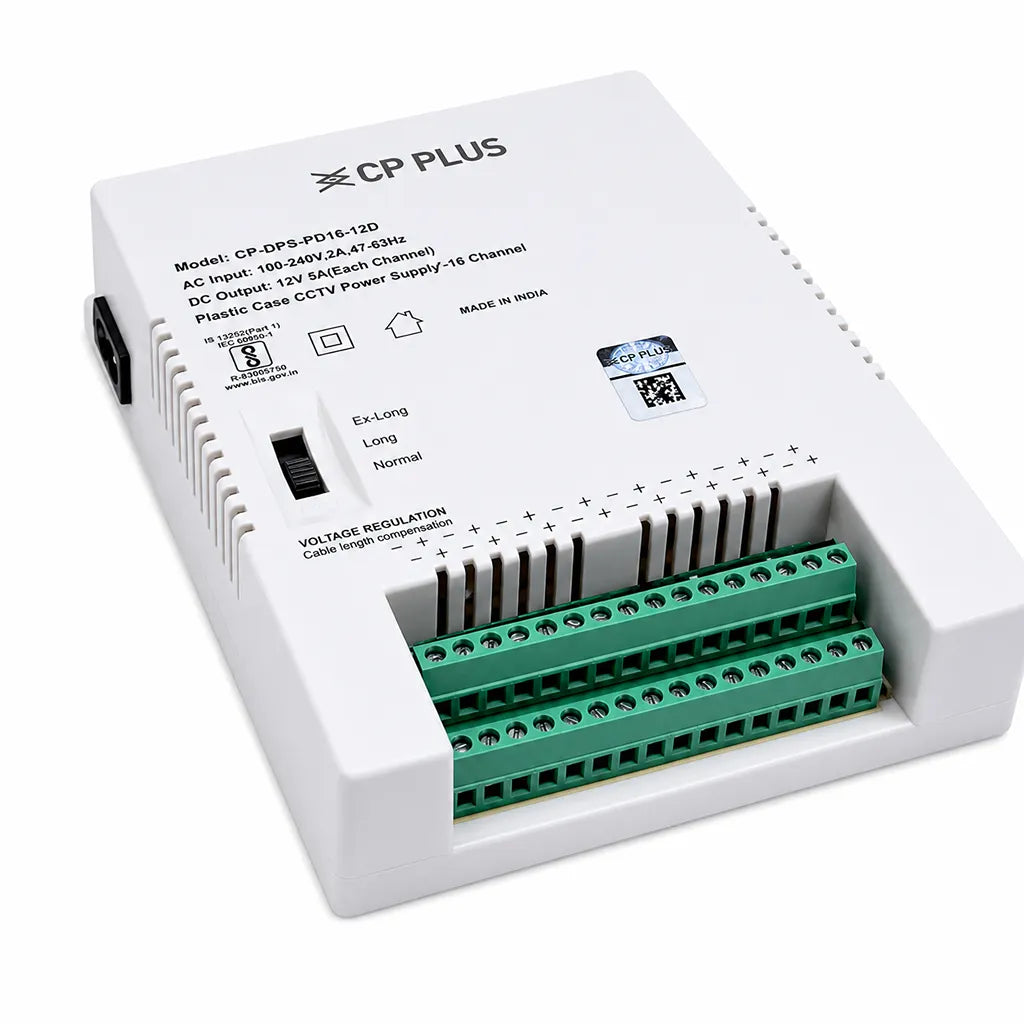

  • CP PLUS CP-DPS-PD16-12D 16 Channel CCTV Power Supply top perspective showing output terminals and voltage regulation control -tpstech.in

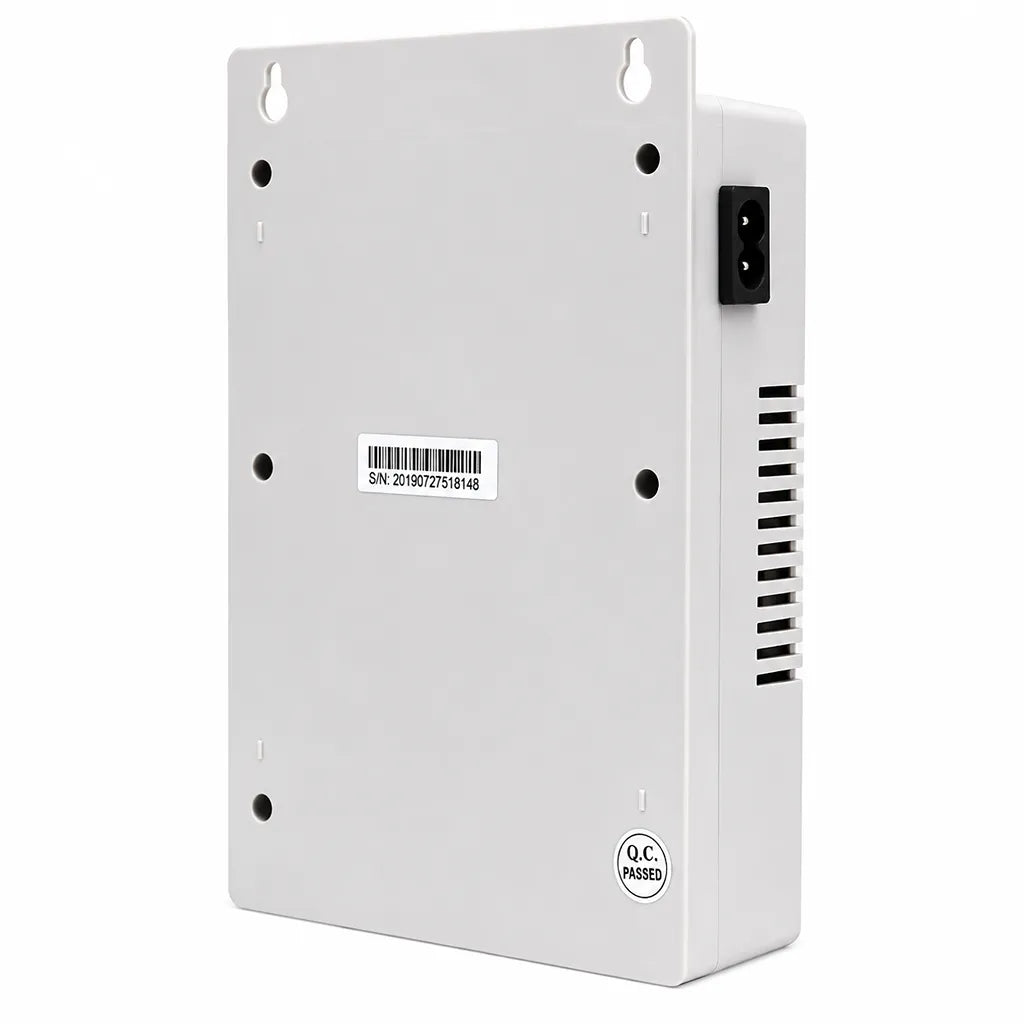

  • CP PLUS CP-DPS-PD16-12D 16 Channel CCTV Power Supply rear view with wall mounting slots and AC power input -tpstech.in

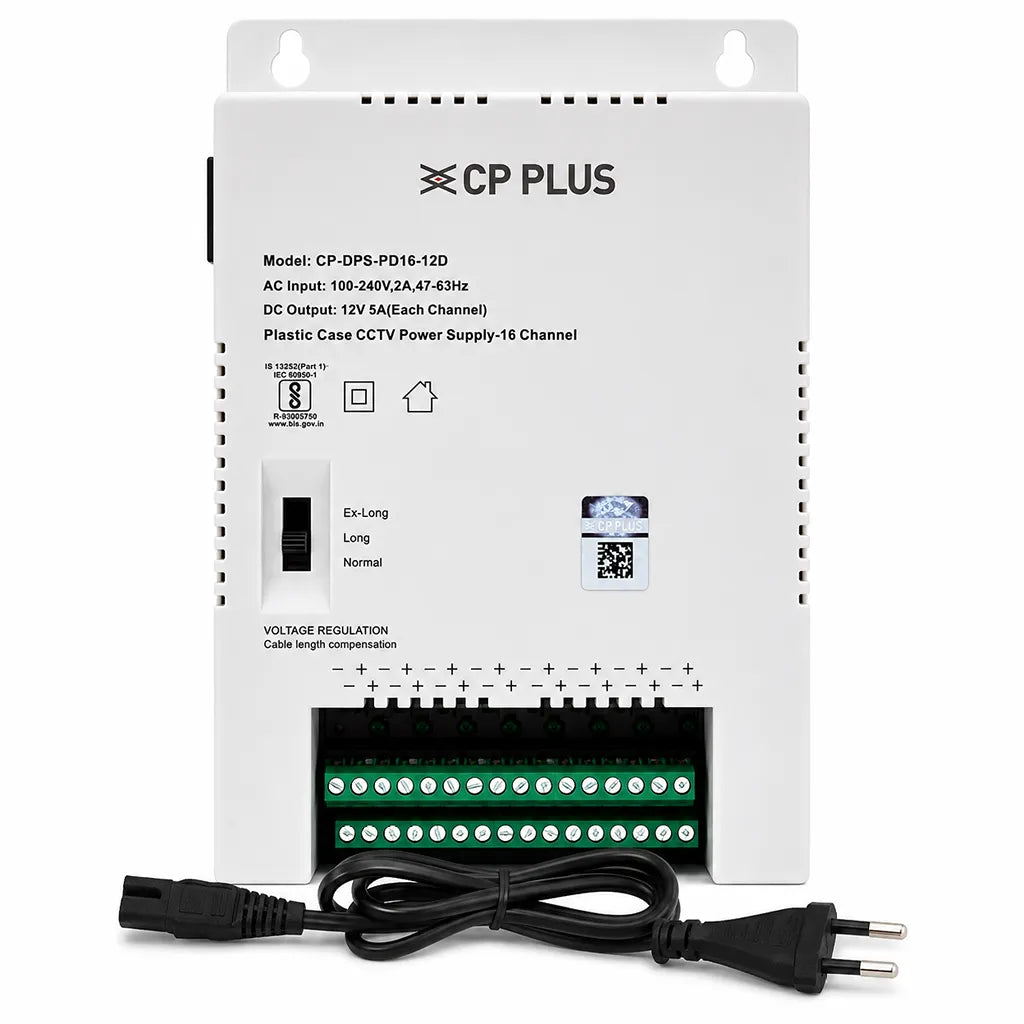

  • CP PLUS CP-DPS-PD16-12D 16 Channel CCTV Power Supply with AC power cable and front terminal connections -tpstech.in
1 7

CP PLUS CP-DPS-PD16-12D 16 Channel Power Supply for CCTV Cameras

CP PLUS CP-DPS-PD16-12D 16 Channel Power Supply for CCTV Cameras

Brand: CP PLUS
Rs. 1,999.00
26% off Rs. 2,699.00 Rs. 1,999.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

    ⚡ 16 Channel Output – Powers up to 16 CCTV cameras from a single power supply, making surveillance installations more organized.

    🛡️ Built-in Current Protection – Constant current limiting circuit helps protect connected devices during operation for improved reliability.

    🌡️ Efficient Cooling Design – Free air convection cooling with thermistor support helps maintain stable performance without additional cooling fans.

    💡 LED Status Indication – LED indicators allow quick visual confirmation of power status for easier monitoring and troubleshooting.

    ✅ Reliable Performance – 100% full-load tested with cable compensation switch to support dependable CCTV power distribution.

    The CP PLUS CP-DPS-PD16-12D 16 Channel Power Supply is designed to provide stable power distribution for CCTV surveillance systems. Featuring 16-channel output, built-in constant current limiting, LED indicators, and free air convection cooling, it helps ensure reliable operation of connected cameras. Its compact plastic housing makes installation convenient, making it suitable for homes, offices, retail stores, warehouses, and other professional security installations.

    Product Specifications:

    Specification Details
    Brand CP PLUS
    Model CP-DPS-PD16-12D
    Product Type CCTV Power Supply
    Channel Output 16 Channel
    Rated Power 96W
    Output Voltage 12V DC
    Voltage Adjustment Range 11.4V to 12.6V
    Input Voltage 150V to 285V AC
    Input Frequency 47Hz to 63Hz
    Rated Current 8A
    Current Range 0A to 8A
    Efficiency 86%
    Ripple & Noise 120mVp-p (Maximum)
    Line Regulation ±1.0%
    Load Regulation ±5.0%
    Inrush Current 50A (Cold Start at 220V AC)
    Leakage Current Less than 2mA at 240V AC
    Overload Protection 110% to 200% Rated Output with Auto Recovery
    Cooling Method Free Air Convection
    Housing Material Plastic
    LED Indicator Yes
    Cable Compensation Switch Yes
    Current Limiting Built-in Constant Current Limiting Circuit
    Testing 100% Full Load Tested
    Operating Temperature -20°C to +45°C
    Dimensions 186 × 130.5 × 39mm
    Weight 0.43kg
    Warranty 1 Year Manufacturer Warranty
