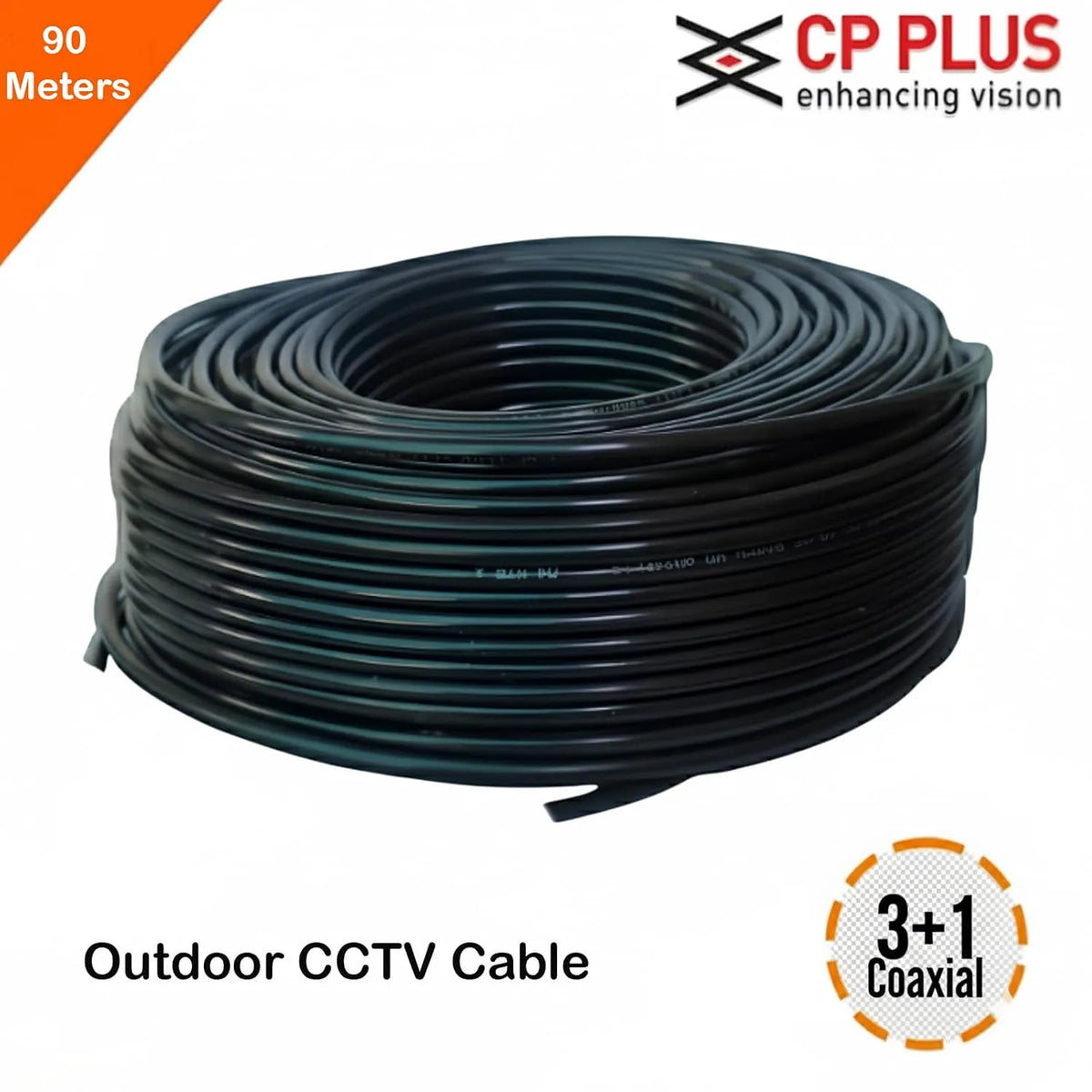

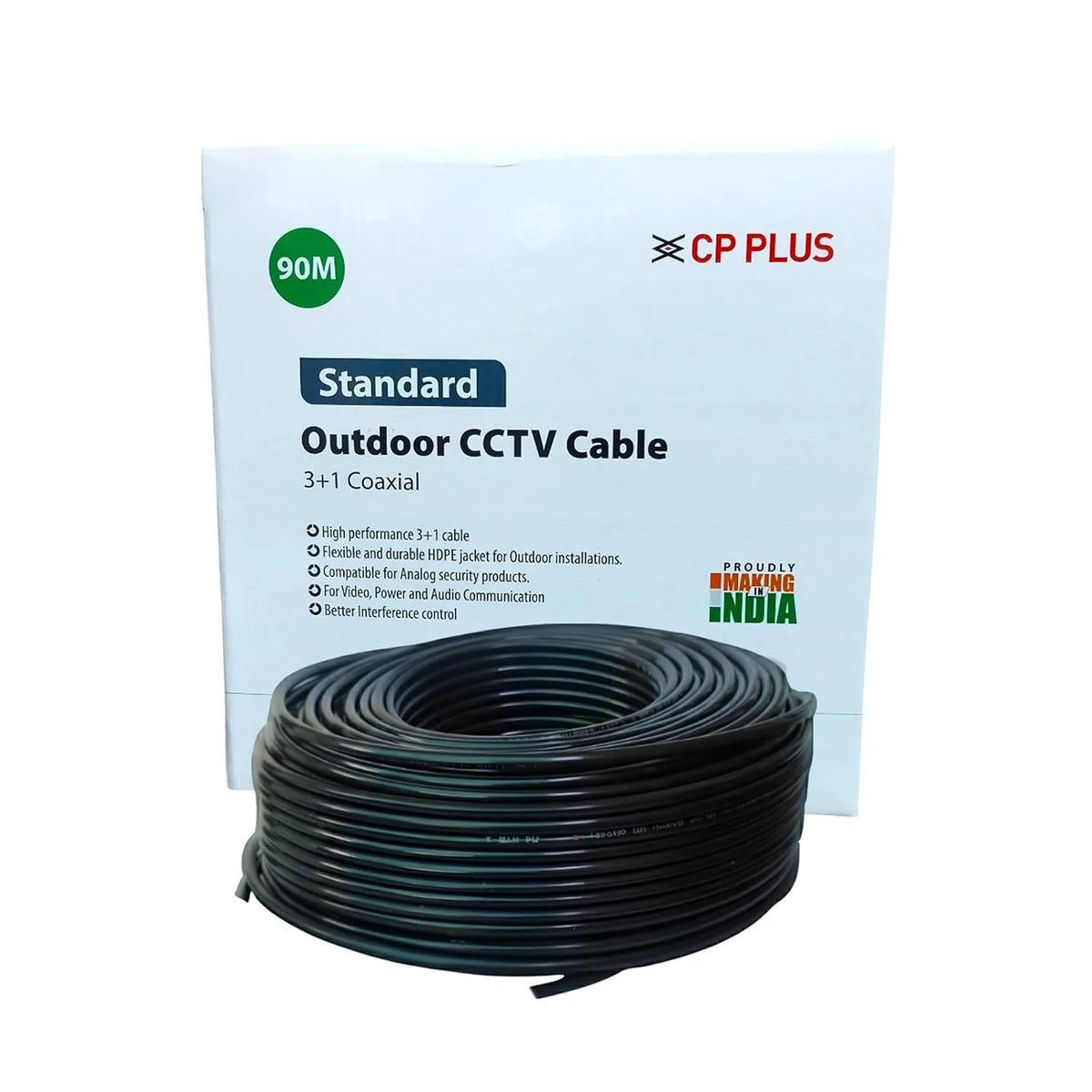

CP Plus CP-ECC-90RSO 3+1 Outdoor CCTV Cable 90m Weatherproof
CP Plus CP-ECC-90RSO 3+1 Outdoor CCTV Cable 90m Weatherproof
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
🌦️ Outdoor-Grade Sheath: LLDPE/PE sheath helps protect the cable in outdoor installation environments.
🔌 3+1 Construction: Designed for video, power and audio communication through a single cable.
🟤 Bare Copper Conductor: Solid annealed bare copper conductor supports reliable signal and power transmission.
📏 90-Metre Length: The standard 90 m cable length is suitable for extended CCTV installation runs.

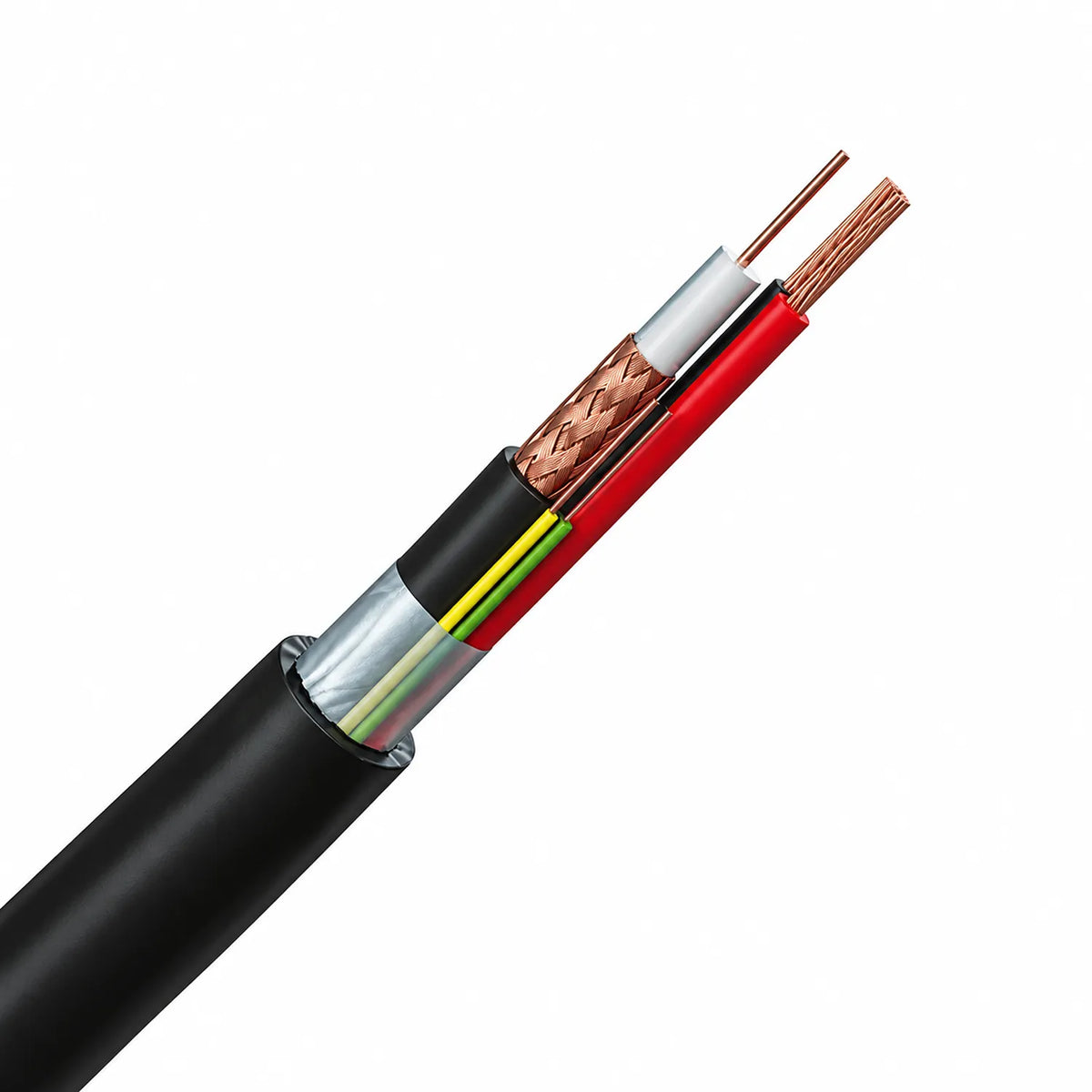

🛡️ Shielded Video Core: The video core uses AL alloy braiding for added protection during signal transmission.
The CP Plus CP-ECC-90RSO is a 90-metre 3+1 outdoor CCTV cable designed for video, power and audio communication. It features a solid annealed bare copper conductor, LLDPE/PE sheath material and a shielded video core with AL alloy braiding. Its outdoor-oriented construction makes it suitable for CCTV surveillance installations where cable runs are exposed to environmental conditions.
Product Specifications:| Brand | CP Plus |
| Model | CP-ECC-90RSO |
| Product Type | 3+1 CCTV Cable (Outdoor Cable) |
| Application | Video, Power and Audio Communication |
| Cable Length | 90 Meters |
| Video Core Conductor | Solid Annealed Bare Copper |
| Video Core Wire Diameter | 0.52 ± 0.02 mm |
| Video Core Insulation | LLDPE |
| Video Core Insulation Diameter | 1.5 mm (Nominal) |
| Video Core Strands | 48 |
| Video Core Braiding Material | AL Alloy |
| Power Core Conductor | Stranded Annealed Bare Copper |
| Power Core Strands | 14 |
| Power Core Wire Diameter | 0.100 ± 0.002 mm |
| Power Core Insulation | LLDPE/PE |
| Sheath Insulation Thickness | 1.3 ± 0.05 mm |
| Approx. Overall Diameter | 5.6 mm |
