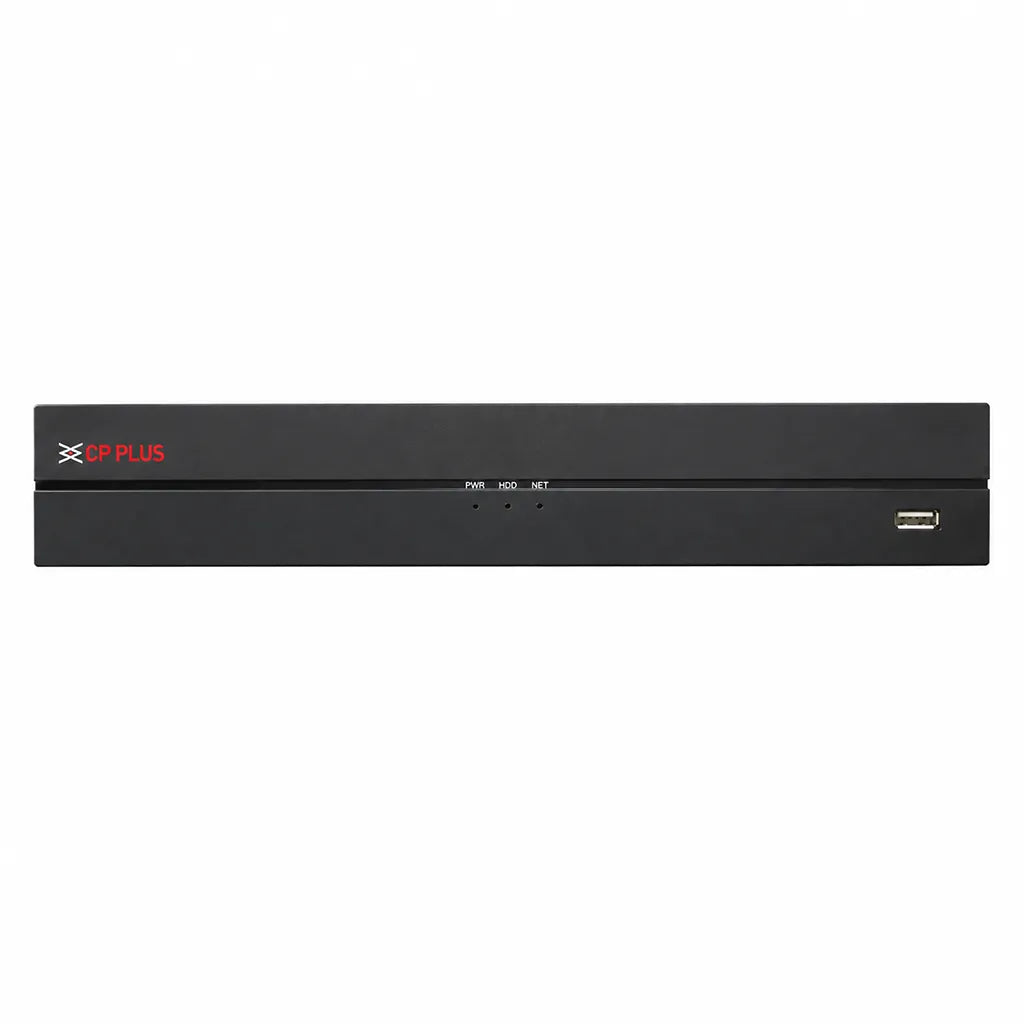

• CP PLUS CP-UNR-104F1 4 Channel 8MP Network Video Recorder front view with USB port and LED status indicators -tpstech.in

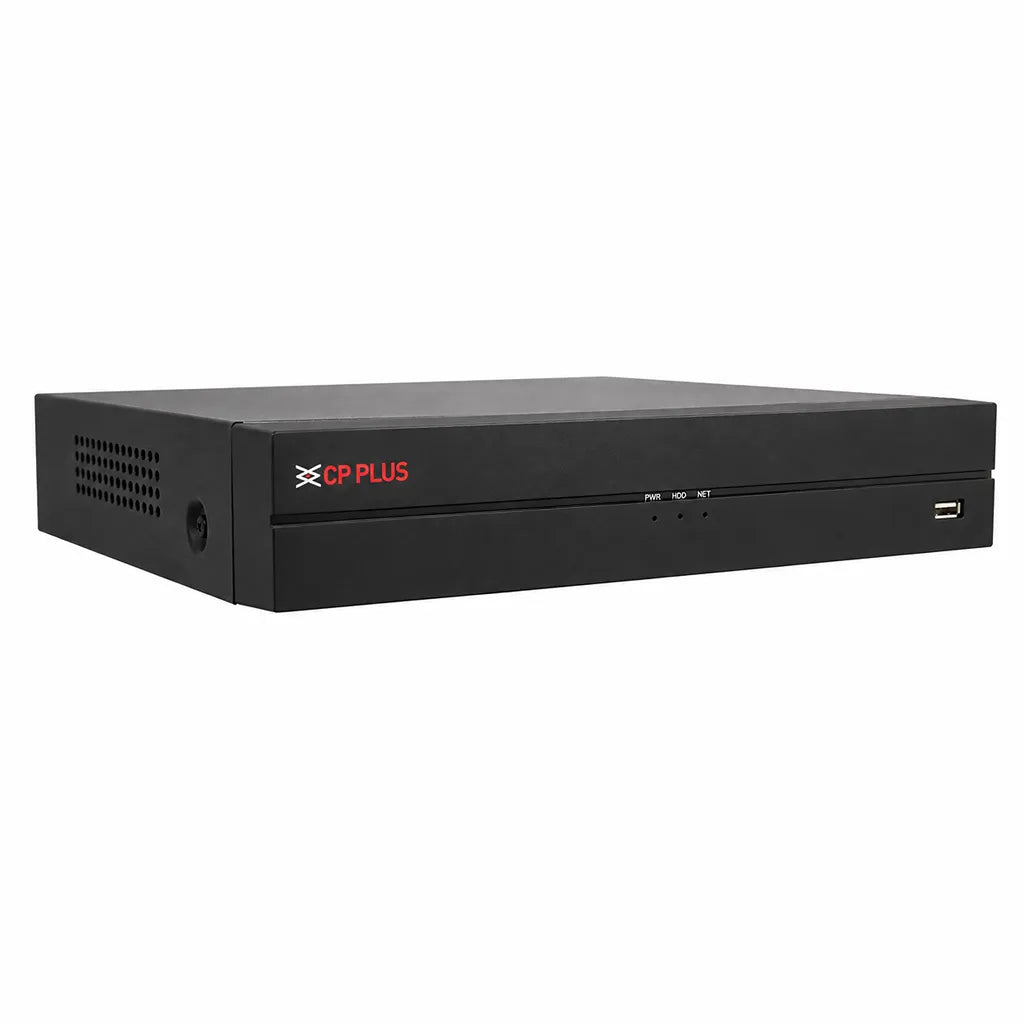

  • CP PLUS CP-UNR-104F1 4 Channel Network Video Recorder left angle view showing compact metal chassis and front USB port -tpstech.in

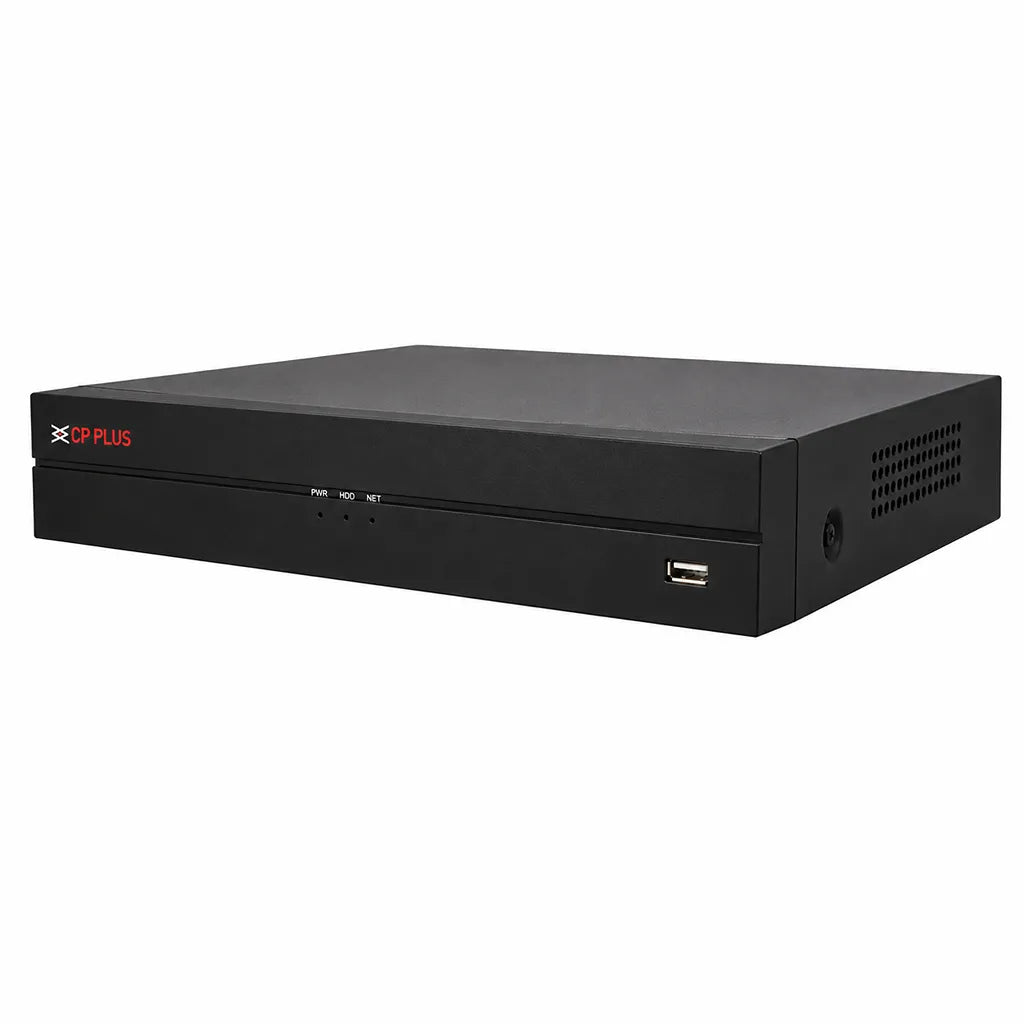

  • CP PLUS CP-UNR-104F1 8MP Network Video Recorder right angle view with front USB interface and ventilation design -tpstech.in

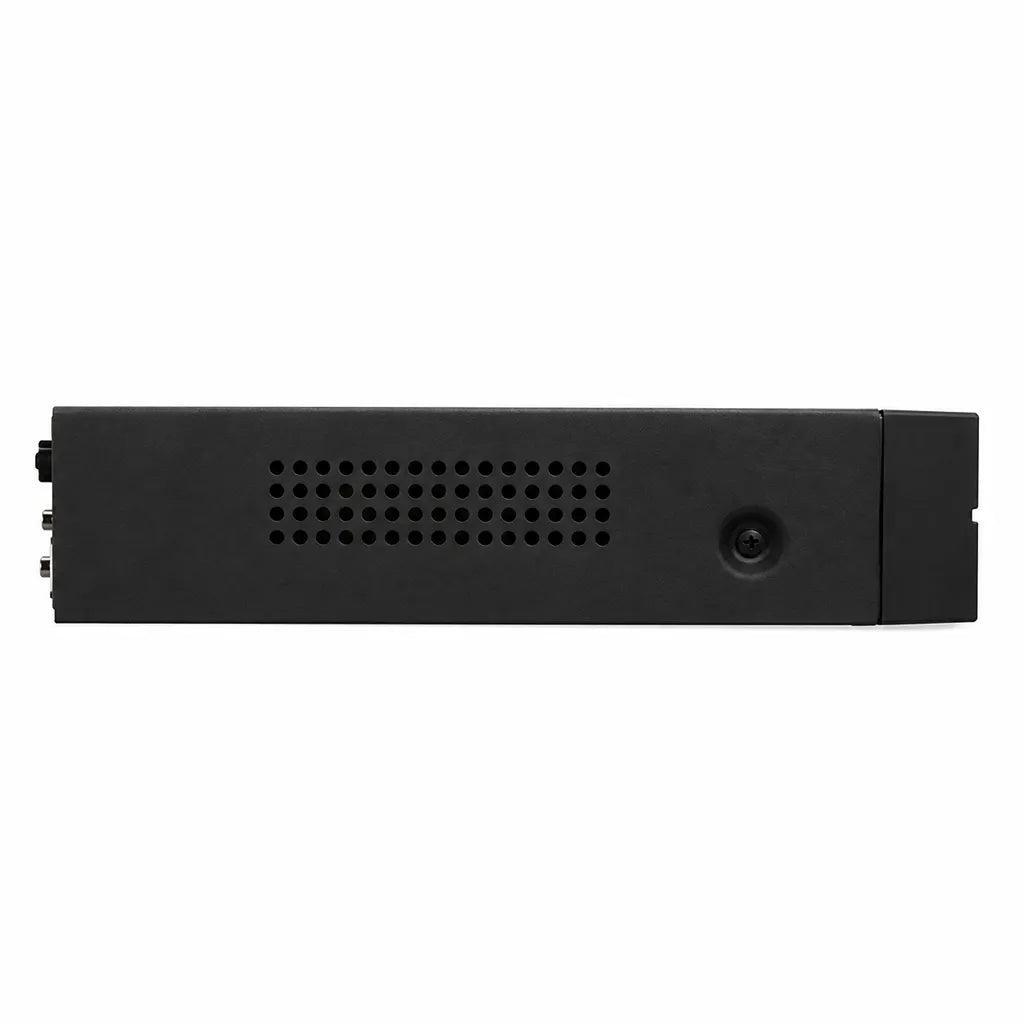

  • CP PLUS CP-UNR-104F1 Network Video Recorder left side view showing ventilation slots and durable metal housing -tpstech.in

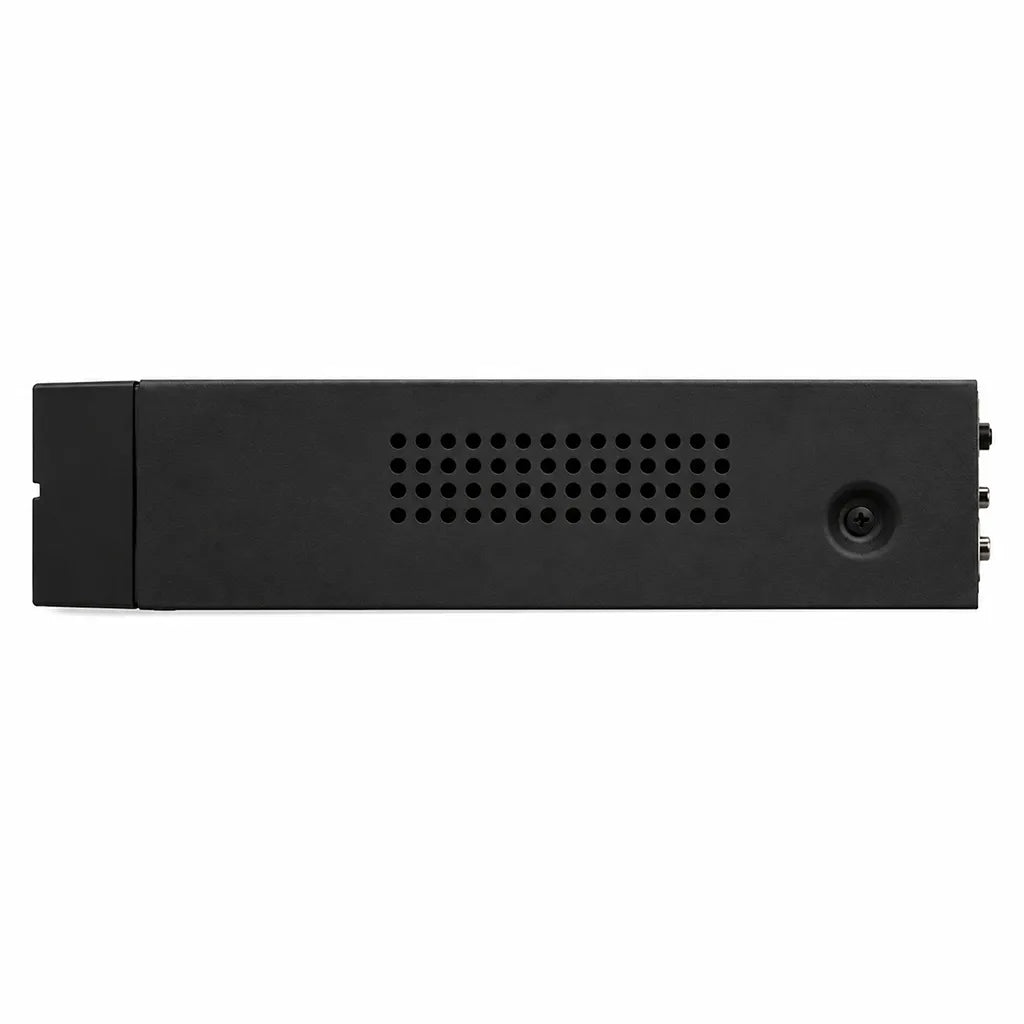

  • CP PLUS CP-UNR-104F1 Network Video Recorder right side view with cooling vents and compact industrial design -tpstech.in

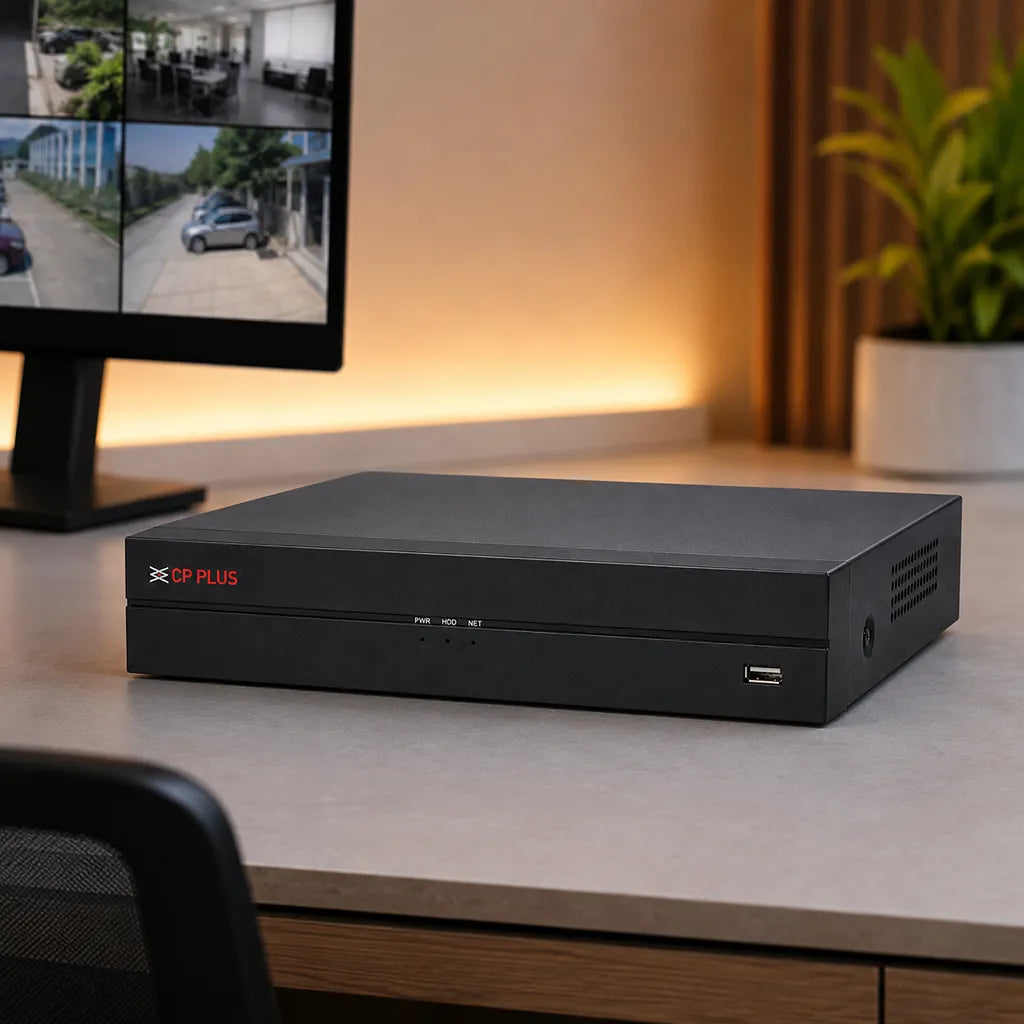

  • CP PLUS CP-UNR-104F1 4 Channel Network Video Recorder installed in a professional CCTV monitoring setup -tpstech.in
1 6

CP PLUS CP-UNR-104F1 4 Channel Network Video Recorder with 8MP Camera

CP PLUS CP-UNR-104F1 4 Channel Network Video Recorder with 8MP Camera

Brand: CP PLUS
Rs. 19,573.00
48% off Rs. 36,999.00 Rs. 19,573.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

📹 4 Channel IP Camera Support: Connect up to 4 IP cameras to manage small surveillance installations from a single recorder.

⚡ Up to 8MP Recording & Playback: View and replay high-resolution footage for improved image clarity and better incident verification.

💾 Supports Up to 8TB Storage: Expand recording capacity with a single SATA hard drive up to 8TB for longer video retention.

🌐 ONVIF Compatible: Works with ONVIF-compliant and multi-brand IP cameras for flexible system integration.

📱 Remote Monitoring: Access live view and recordings using iCMOB, gCMOB, or KVMS Pro for convenient surveillance management.

The CP PLUS CP-UNR-104F1 4 Channel Network Video Recorder is designed for reliable IP surveillance in homes, offices, retail stores, and small businesses. It supports up to 4 IP cameras, 8MP preview and playback, H.265/Smart H.264+ decoding, and up to 8TB SATA storage. With ONVIF compatibility, HDMI/VGA output, and remote access through iCMOB, gCMOB, and KVMS Pro, it delivers dependable recording and easy monitoring.

Product Specifications:

Specification Details
Brand CP PLUS
Model CP-UNR-104F1
Product Type 4 Channel Network Video Recorder (NVR)
IP Camera Input 4 Channels
Processor Industrial-grade embedded processor
Operating System Embedded Linux
User Interface Web / Local GUI
Maximum Preview & Playback Resolution Up to 8MP
Supported Video Resolutions 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF
Incoming / Recording Bandwidth 80 Mbps
Forwarding Bandwidth 60 Mbps
Video Output 1 HDMI, 1 VGA (Simultaneous)
HDMI Output Resolution Up to 1080P
Display Split 1 / 4
Multi-channel Playback Up to 4 Channels
Recording Modes Manual, Alarm, Motion Detection, Timed
Motion / Video Loss Detection Supported
HDD Support 1 × SATA 2.0
Maximum HDD Capacity Up to 8TB
Backup USB Device
USB Ports 2 × USB 2.0 (Front & Rear)
Ethernet Port 1 × RJ-45 (10/100 Mbps)
Supported Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (Profile T/S/G), CGI, SDK
Camera Compatibility Multi-Brand Network Cameras, ONVIF Compatible
Mobile Support iPhone, iPad, Android
Mobile App iCMOB, gCMOB
CMS Software KVMS Pro
Power Supply DC 12V, 1.5A
Power Consumption Less than 10W (Without HDD)
Warranty 1 Year Brand Warranty
Operating Temperature -10°C to 45°C
Dimensions 260 × 225 × 47.6 mm
Weight 0.81 kg (Without HDD)
