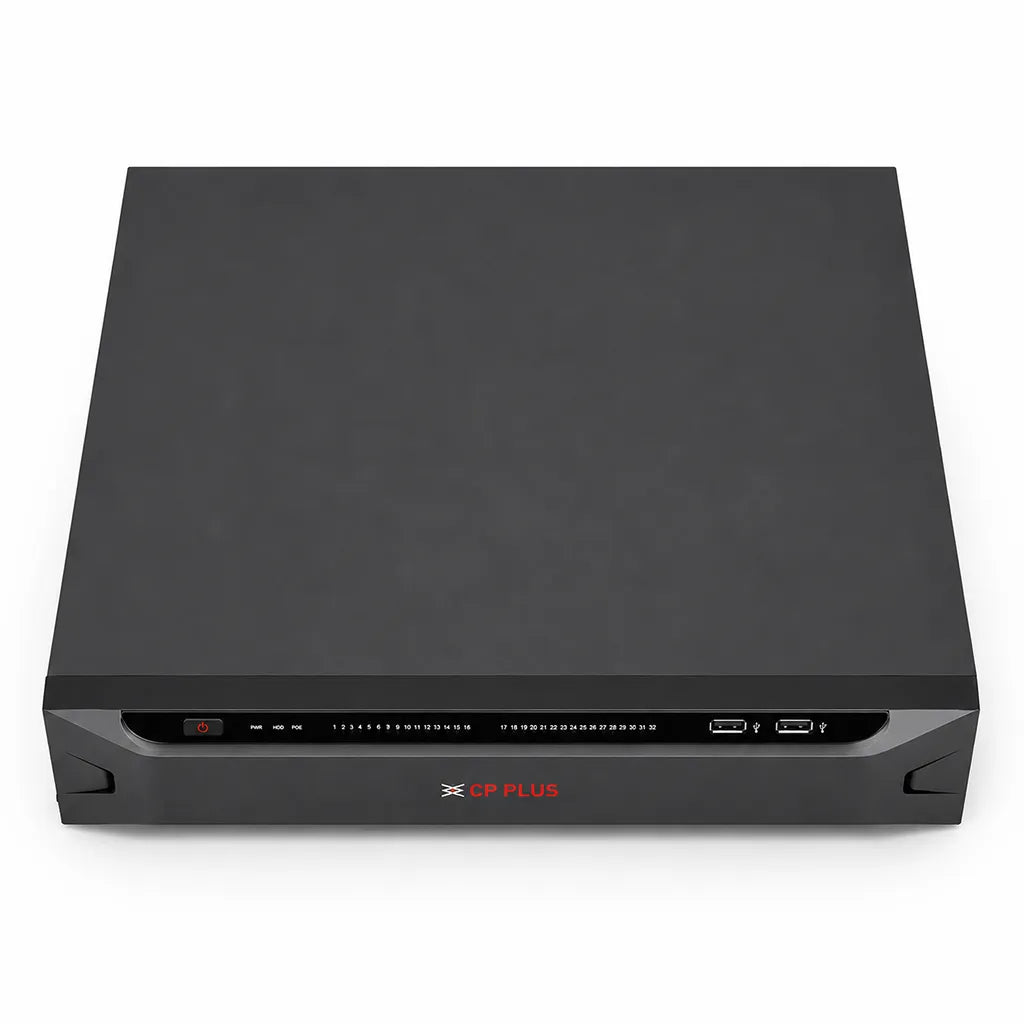

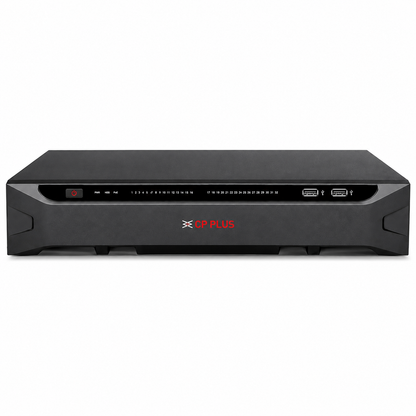

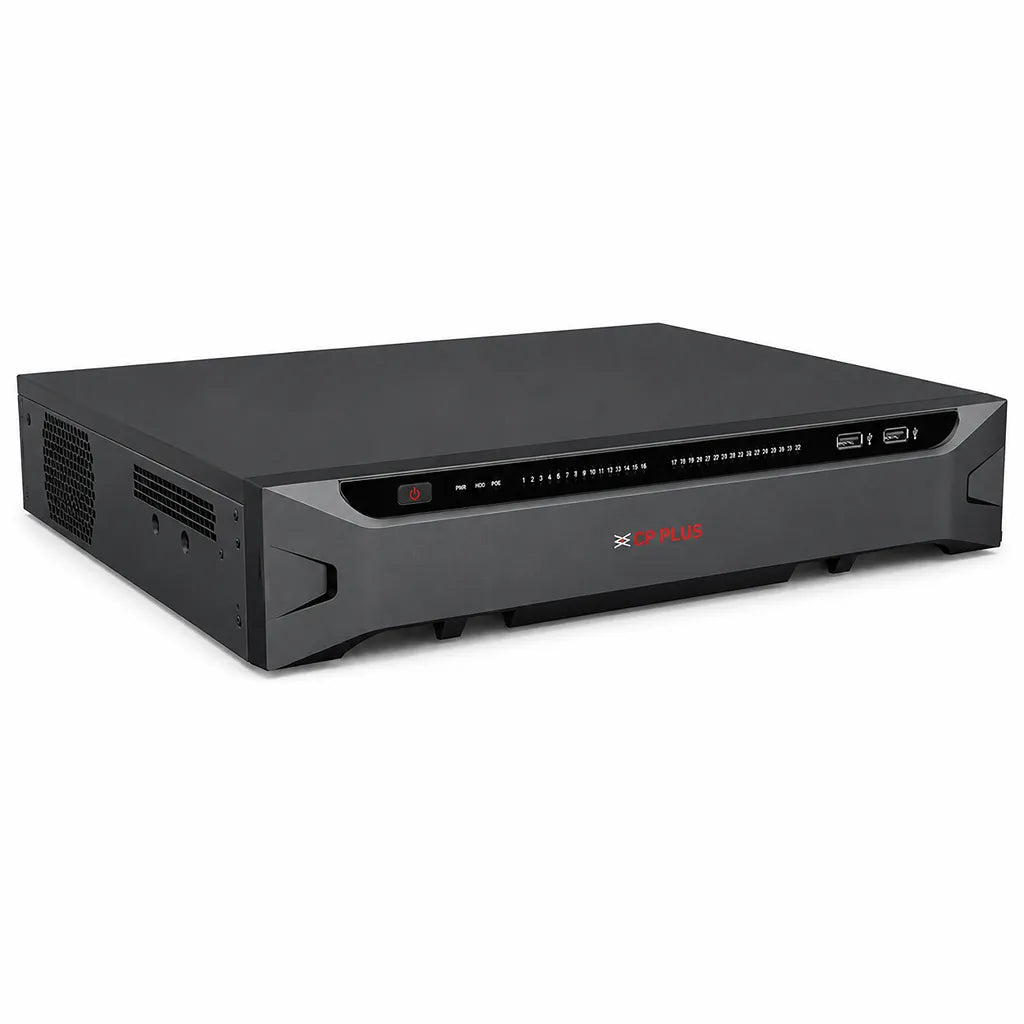

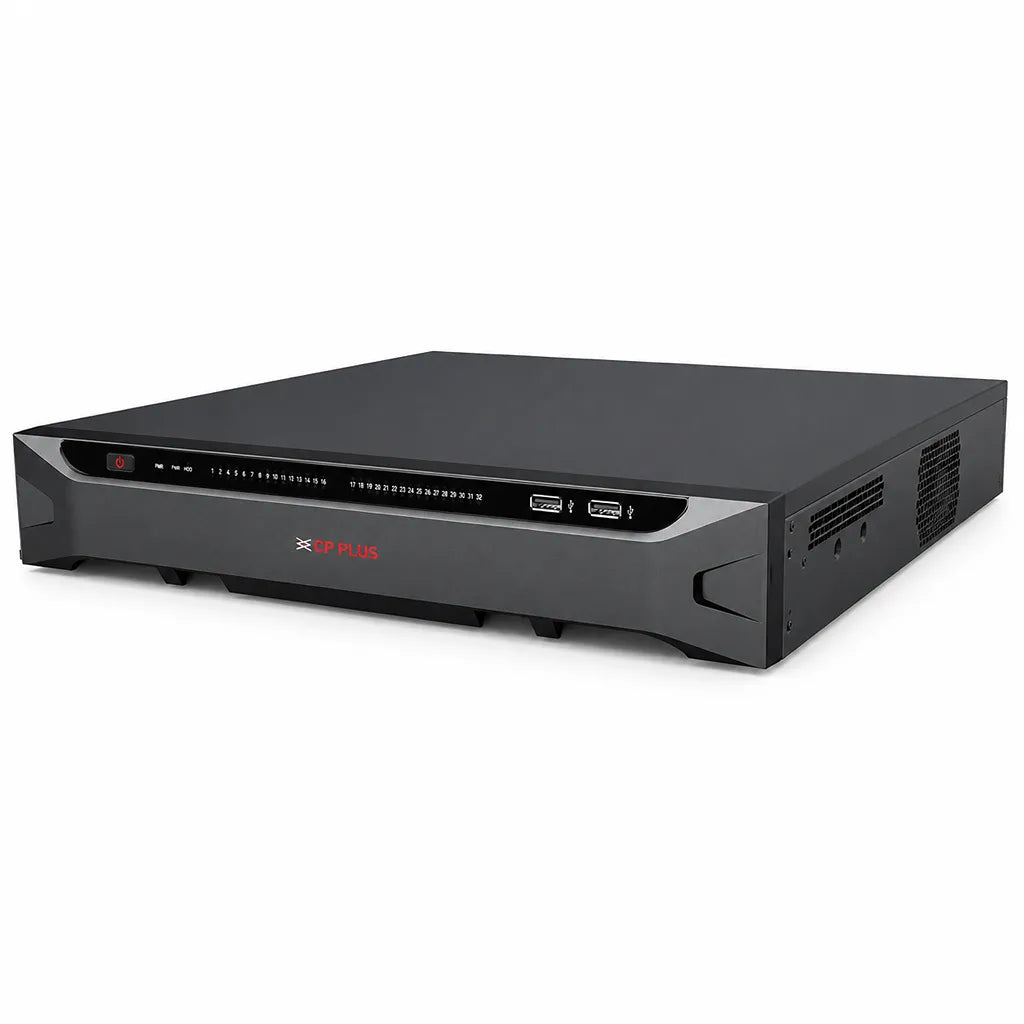

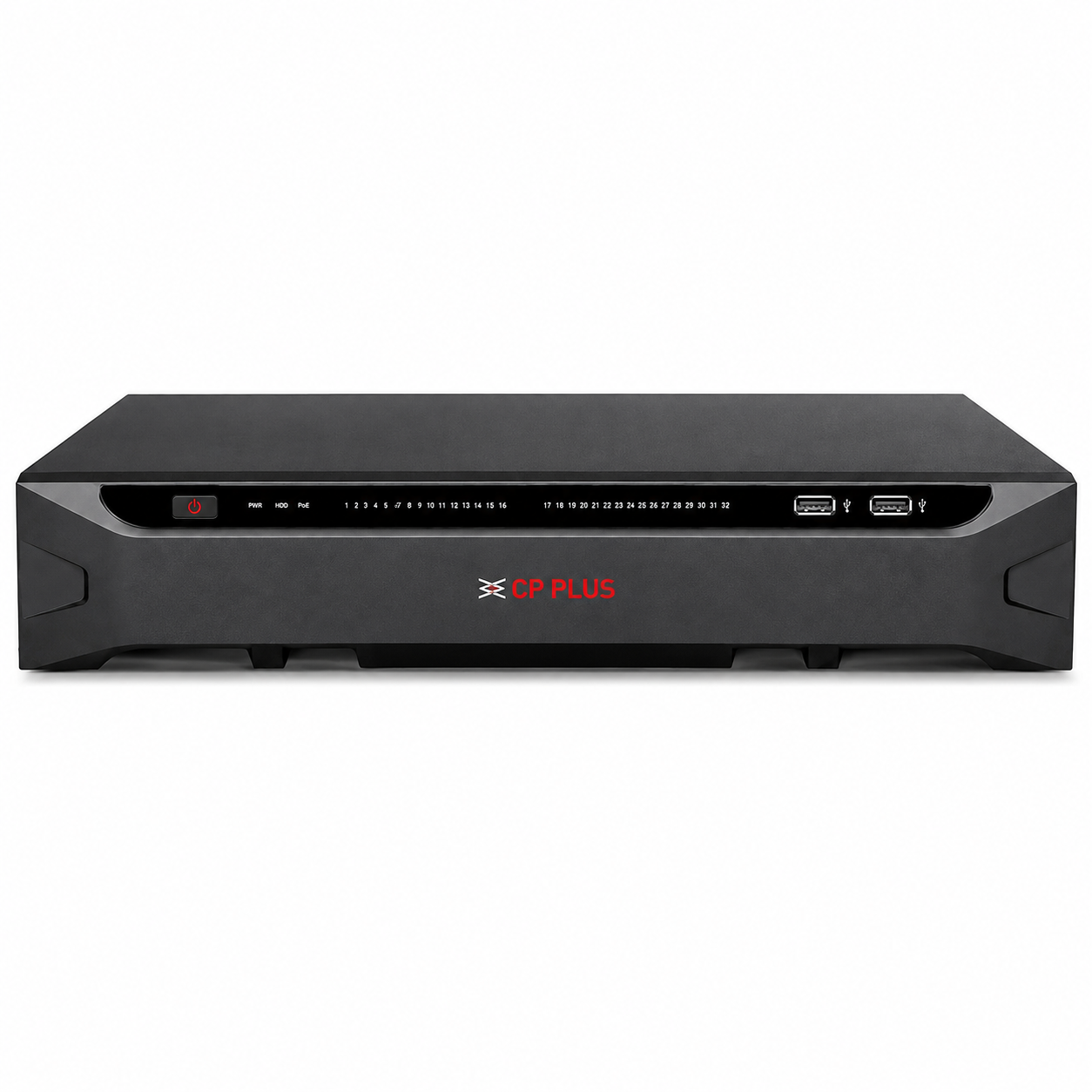

CP PLUS CP-UNR-4K5324-V3 32 Channel Network Video Recorder with AI Support
CP PLUS CP-UNR-4K5324-V3 32 Channel Network Video Recorder with AI Support
- Free Pan-India Shipping
- Easy 7-Day Returns
- GST Invoice on Every Order
- 100% Genuine, Brand New & Sealed
- Original Manufacturer Warranty
- Trusted Since 2014 ยท 15 Lakh+ Orders
Couldn't load pickup availability

๐น 32 Channel IP Camera Support Connect up to 32 IP cameras, making it suitable for medium to large surveillance installations with centralized recording.
๐น Up to 16MP Recording Resolution Capture high-resolution video with support for up to 16MP cameras, helping preserve important visual details.
๐น AI Powered Smart Surveillance Built-in AI features including Face Detection, Face Recognition, Perimeter Protection and SMD Plus improve event detection and reduce unnecessary alerts.
๐น Large Storage and Easy Connectivity Supports 4 SATA hard drives (up to 16TB each), dual USB ports, HDMI and VGA outputs for flexible storage, backup and display options.
๐น Wide Compatibility and Remote Monitoring Supports ONVIF 22.06 and remote access through iCMOB and gCMOB mobile applications for convenient surveillance management.

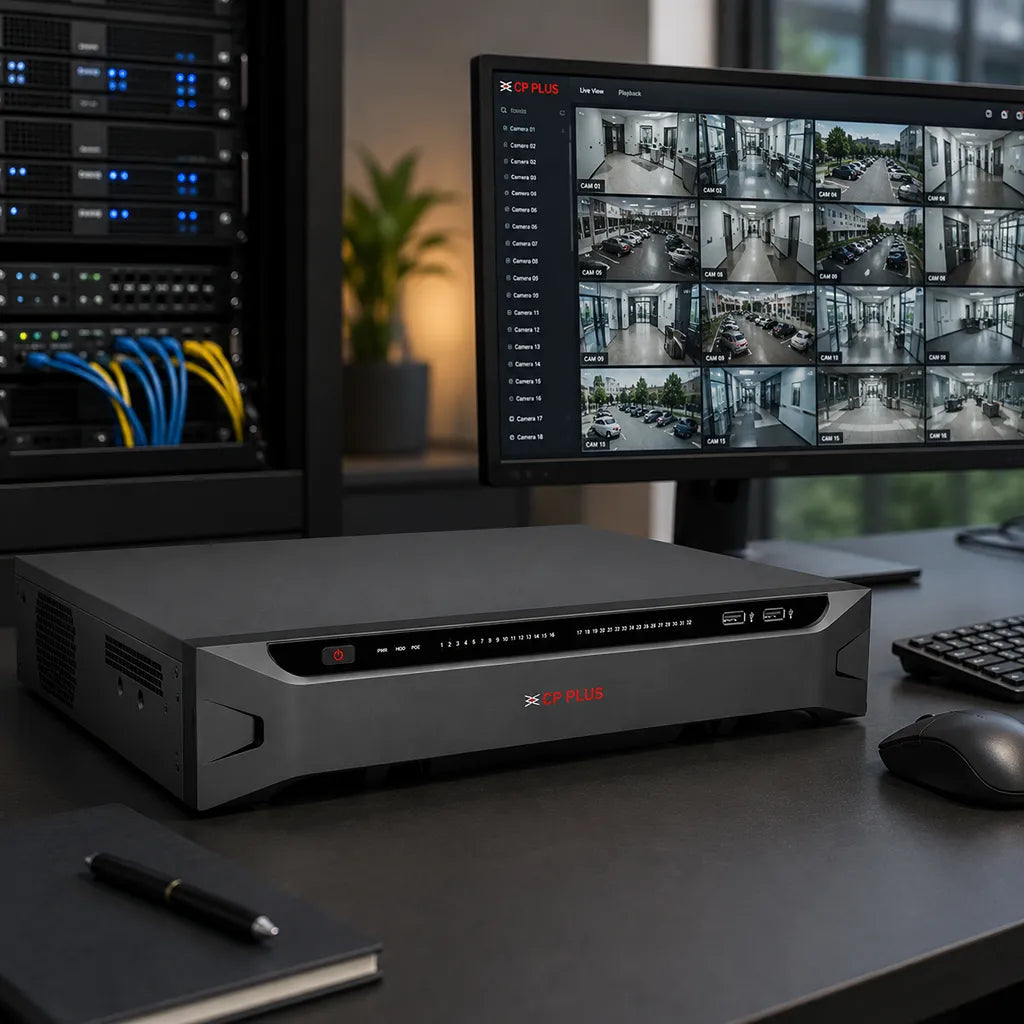

The CP PLUS CP-UNR-4K5324-V3 32 Channel Network Video Recorder is designed for professional IP surveillance systems requiring reliable recording and intelligent monitoring. It supports up to 32 IP cameras with recording resolutions up to 16MP and advanced AI functions including Face Detection, Face Recognition, Perimeter Protection and SMD Plus. With four SATA drive bays, ONVIF compatibility, dual display outputs and mobile monitoring via iCMOB and gCMOB, it is an excellent choice for commercial buildings, offices, warehouses, institutions and enterprise security applications.
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNR-4K5324-V3 |
| Product Type | Network Video Recorder (NVR) |
| Operating System | Embedded Linux |
| Processor | Industrial-grade Processor |
| IP Camera Input | 32 Channels |
| Maximum Recording Resolution | Up to 16MP |
| Video Compression | H.265, H.264, MJPEG |
| Encode Strategy | Instastream, H.264+ |
| Incoming Bandwidth | 256 Mbps (AI Disabled), 180 Mbps (AI Enabled) |
| AI Features | Face Detection, Face Recognition, Perimeter Protection, SMD Plus |
| Video Output | 1 ร HDMI, 1 ร VGA (Simultaneous Output) |
| HDMI Resolution | Up to 3840 ร 2160 |
| Display Split | Main: 1/4/8/9/16/25/36, Sub: 1/4/8/9/16 |
| Playback | Up to 16 Channels |
| Recording Modes | General, Motion Detection, Intelligent, Alarm |
| Storage | 4 ร SATA HDD, up to 16TB per HDD |
| USB Ports | 1 ร USB 2.0 (Front), 1 ร USB 3.0 (Rear) |
| Network Interface | 2 ร Gigabit RJ45 Ethernet Ports |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Alarm Input / Output | 16 Channels |
| Backup | USB Device, Network |
| Remote Access | iCMOB, gCMOB |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, DHCP, DNS, FTP, SMTP, NTP, DDNS, ONVIF Profile T/S/G, CGI, SDK |
| Power Supply | 100โ240V AC, 50โ60Hz |
| Warranty | 2 Years Manufacturer Warranty |
| Dimensions | 440 ร 415.6 ร 76 mm |
| Weight | 4.25 kg |
