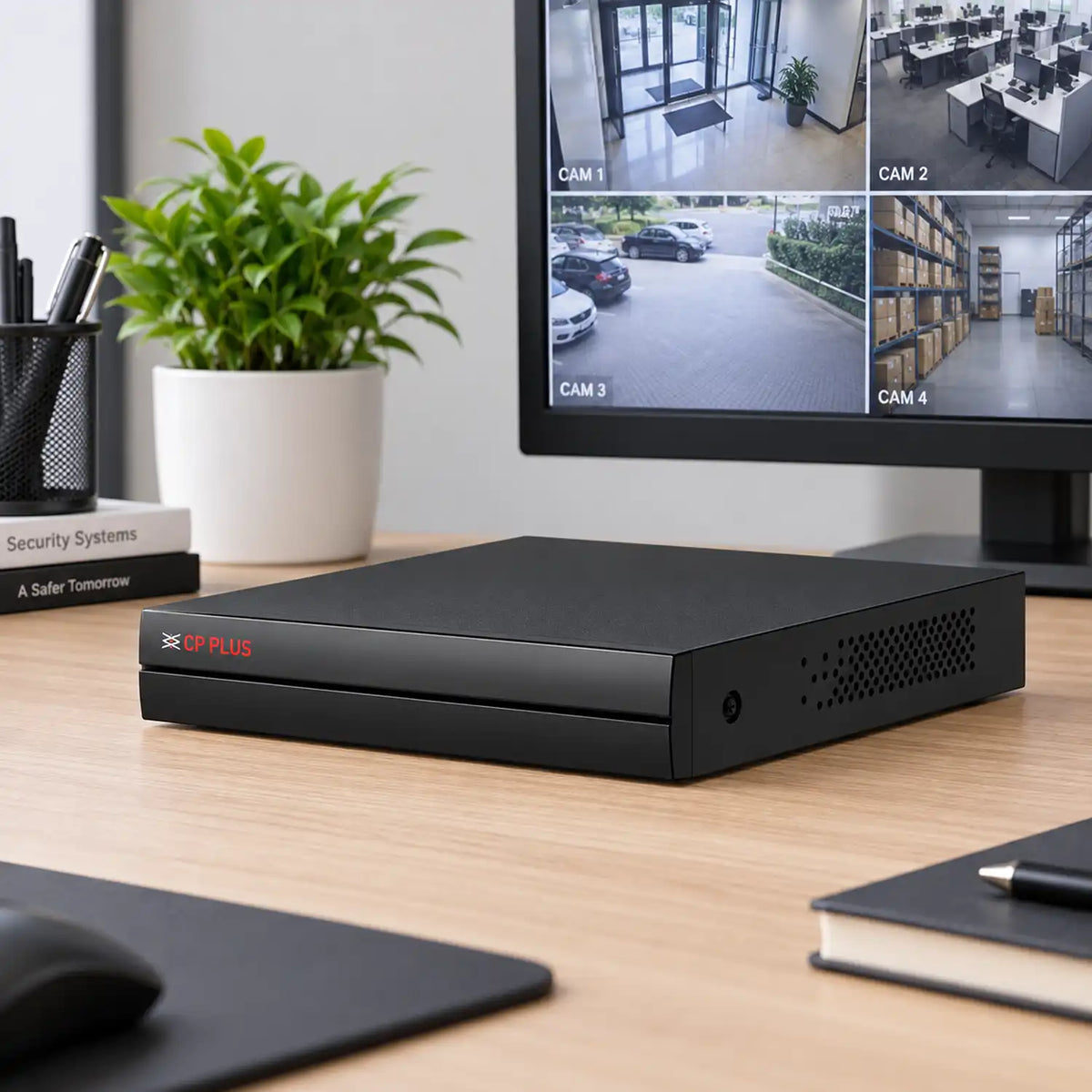

  • CP PLUS CP-UVR-0401F1V-I 4 Channel 1080P DVR desktop setup with multi-camera surveillance screen -tpstech.in
1 6

CP PLUS CP-UVR-0401F1V-I 4 Channel 1080P DVR for HDCVI AHD TVI CVBS and IP Cameras

CP PLUS CP-UVR-0401F1V-I 4 Channel 1080P DVR for HDCVI AHD TVI CVBS and IP Cameras

Brand: CP PLUS
Request Quote

Or on email sales@tpstech.in


Product Description:

🛡️ Multi-Format Support: Supports HDCVI, AHD, TVI, CVBS and IP video inputs for flexible surveillance system compatibility.

🎥 4-Channel Recording: Provides 4 BNC analog camera inputs with support for camera formats up to 5MP depending on the selected technology and frame rate.

🤖 Intelligent Detection: 4-channel DVR-based IMD+ helps filter human and vehicle movement to reduce false alarms from environmental changes.

💾 Efficient Recording: AI Coding and Instastream with H.265, H.264+ and H.264 compression help reduce storage and bandwidth requirements.

📱 Remote Surveillance: Supports iOS and Android smartphones through iCMOB and gCMOB, with web access and KVMS Pro Lite CMS support.

The CP PLUS CP-UVR-0401F1V-I is a 4-channel 1080P digital video recorder designed for flexible CCTV installations using HDCVI, AHD, TVI, CVBS and IP cameras. It supports up to 6 IP camera channels, 32 Mbps incoming, recording and outgoing bandwidth, AI Coding, Instastream and IMD+. With HDMI and VGA outputs, up to 16TB SATA storage support, two-way talk and mobile access, it suits homes, retail stores and other surveillance applications.

Product Specifications:

Brand CP PLUS
Model CP-UVR-0401F1V-I
Product Type 4 Channel 1080P Digital Video Recorder
Analog Camera Input 4 BNC, HDCVI/AHD/TVI/CVBS
IP Camera Support Up to 6 Channels
IP Camera Resolution Up to 6MP
Incoming Bandwidth 32 Mbps
Recording Bandwidth 32 Mbps
Video Compression AI Coding, Instastream, H.265, H.264+, H.264
HDMI Output 1
VGA Output 1
Audio Input 1 RCA + 4 BNC Coaxial Audio
Audio Output 1 RCA
Two-Way Talk Supported
Intelligent Detection IMD+
Recording Modes General, Alarm, Motion Detection
Playback Instant, General, Event, Tag, Smart
Storage Interface 1 × SATA
Maximum HDD Support Up to 16TB
USB Ports 2 × USB 2.0
Network Port 1 × 10/100 Mbps RJ-45
Mobile Support iOS, Android
Mobile Apps iCMOB, gCMOB
CMS Support KVMS Pro Lite
Power Supply 12V DC, 1.5A
Dimensions 197 × 204.3 × 41.5 mm
Weight 580g
Warranty 2-year manufacturer warranty
