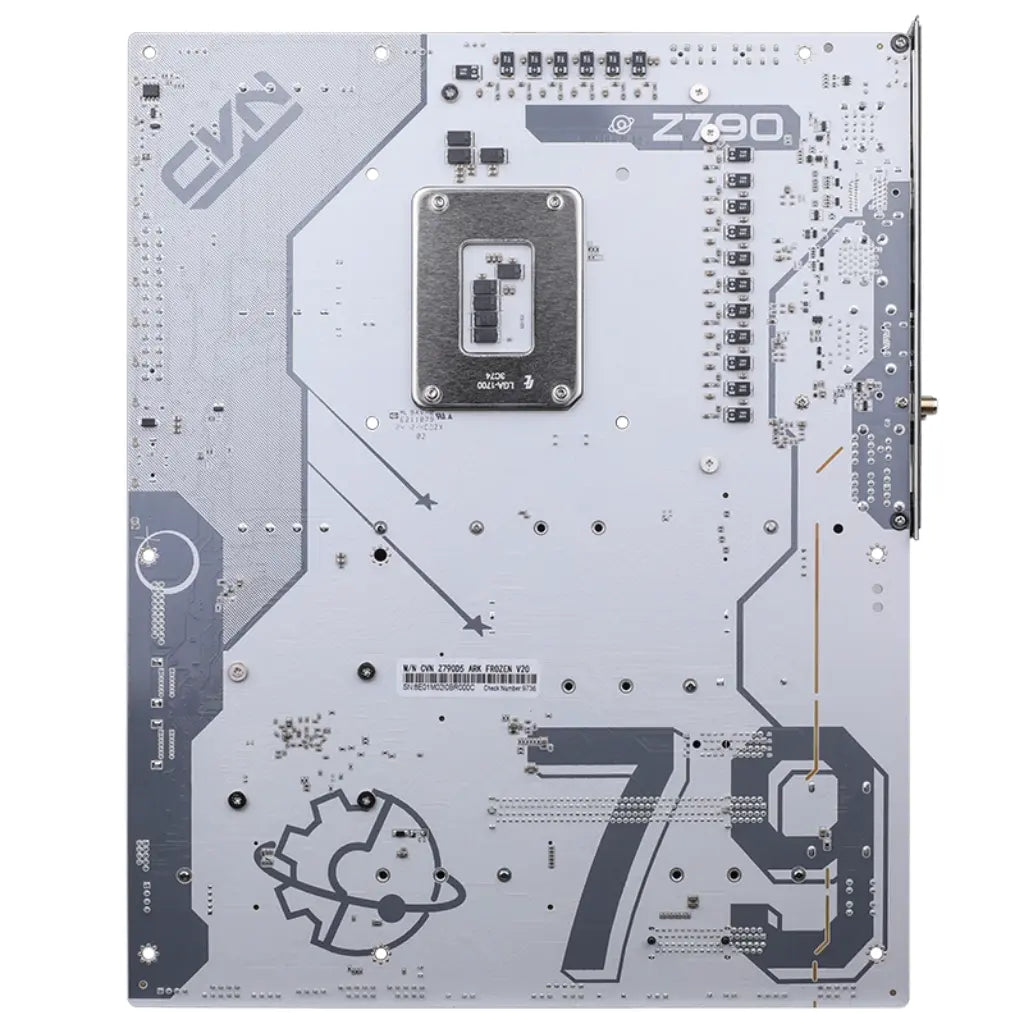

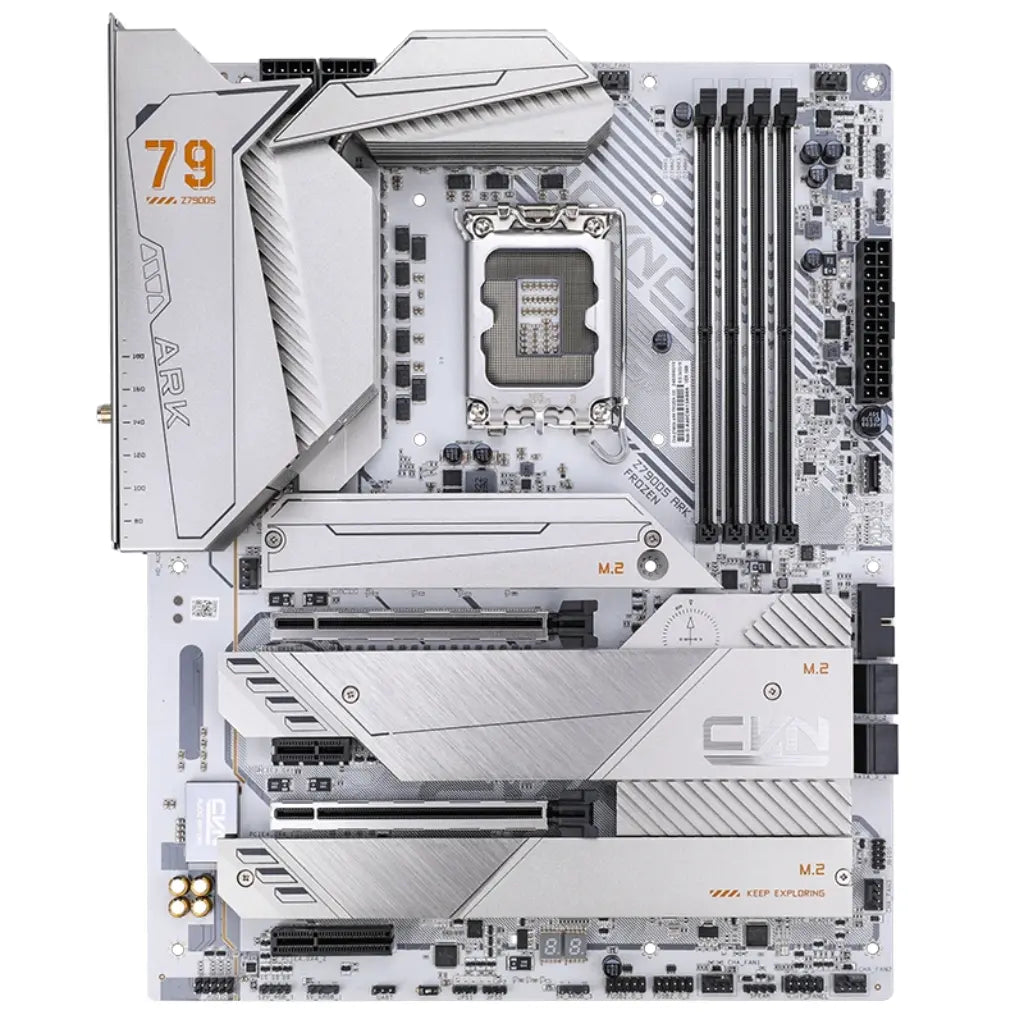

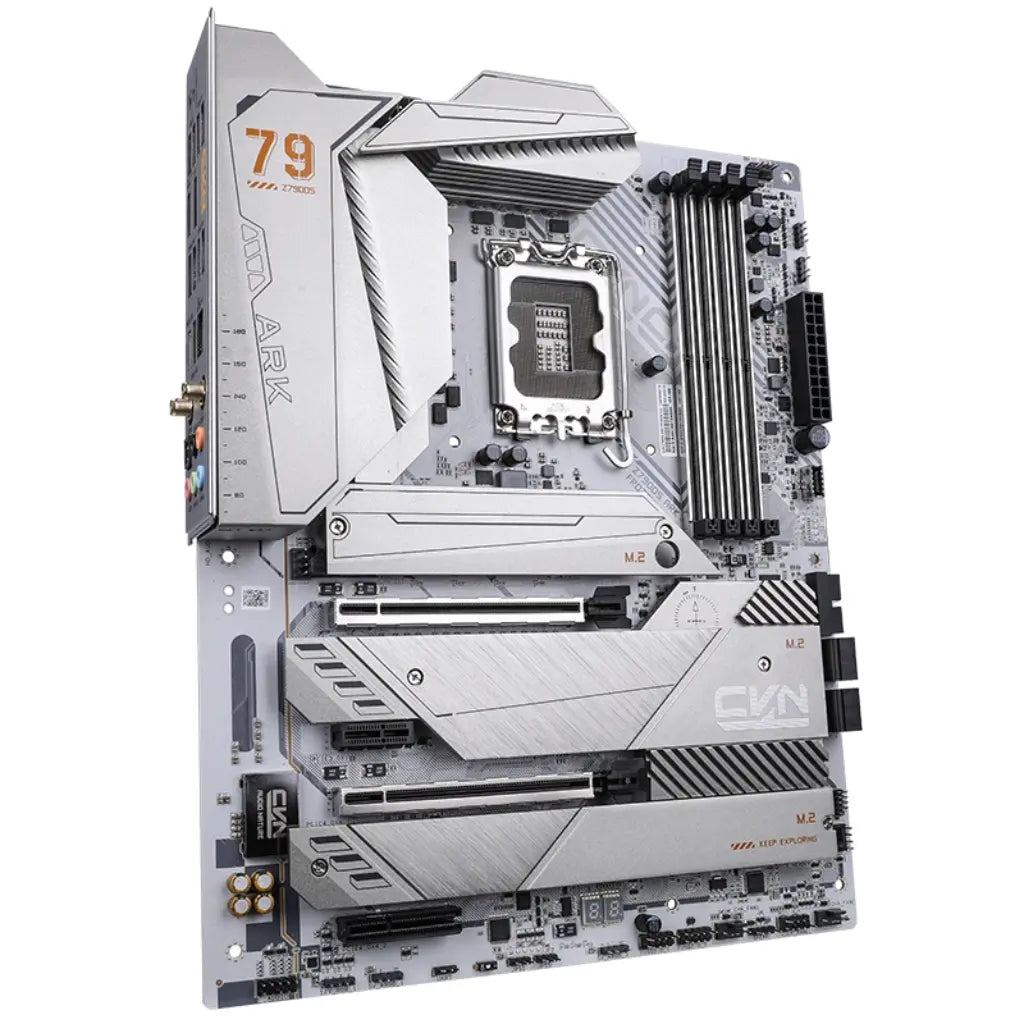

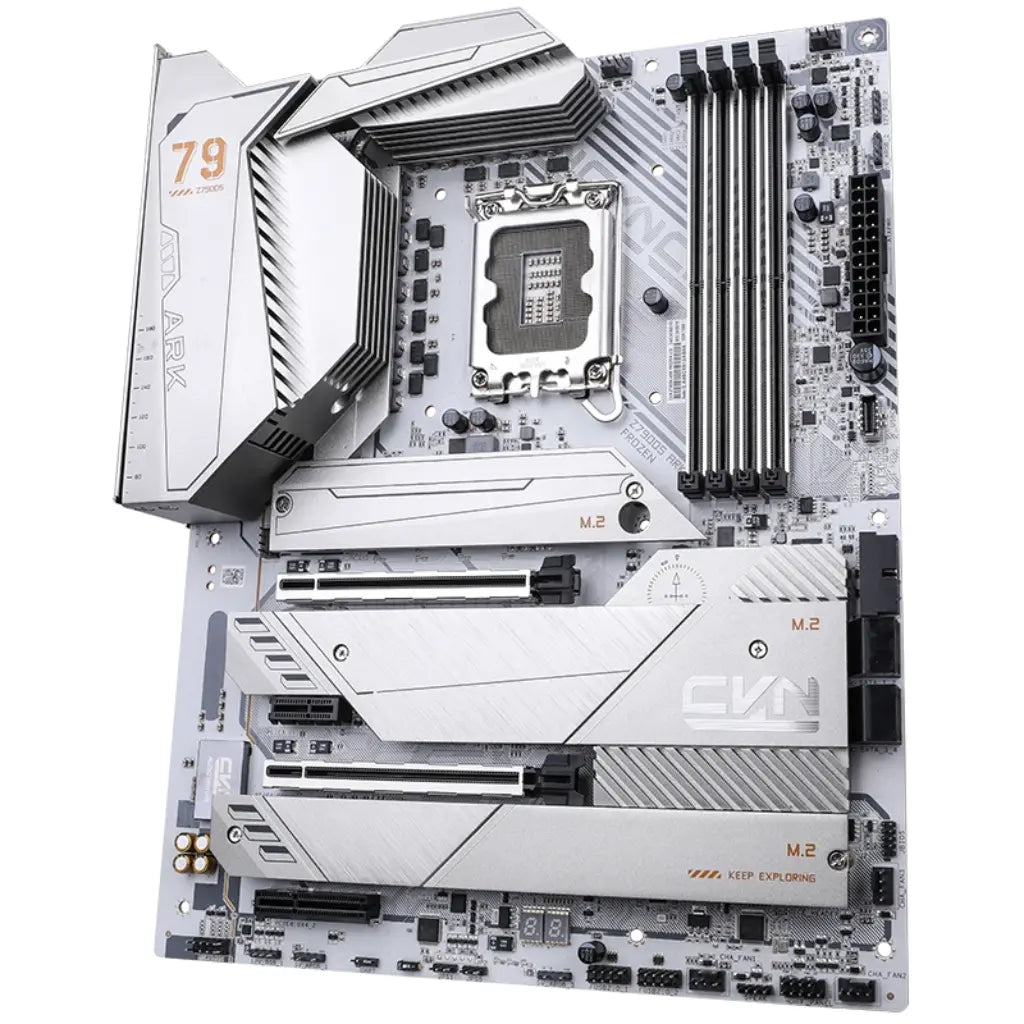

Colorful CVN Z790D5 ARK FROZEN V20 Z790 LGA1700 DDR5 ATX Motherboard
Colorful CVN Z790D5 ARK FROZEN V20 Z790 LGA1700 DDR5 ATX Motherboard
Regular price
Rs. 25,100.00
Regular price
62% off
Rs. 65,500.00
Sale price
Rs. 25,100.00
Quantity
Loading Offers...
+ Offers
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔋 14+1+1 Phase DrMOS 90 A Power Design – Robust digital VRM for stable overclocking of Intel 12th–14th Gen CPUs
❄️ "FROZEN" Frost-Cooling Armor & White Aesthetic – Custom CVN-series shield with 8-layer PCB and gold-plated slots
⚡ Supports DDR5‑7800 MHz (OC), Up to 192 GB – Alloy-reinforced DIMMs, XMP-capable on four slots
🖥️ PCIe Expansion – One PCIe 5.0 x16, one PCIe 4.0 x4, plus four PCIe 4.0 x4 M.2 slots & four SATA 6 Gb/s
🌐 Comprehensive Connectivity – Realtek 2.5G LAN, Intel AX211/AX210 Wi‑Fi 6E with BT 5.3, front/rear USB Type‑C (front supports 30 W PD)
🛠️ iGame Center Utility & One-Click BIOS – Synchronized lighting/cooling control, easy BIOS flashing
❄️ "FROZEN" Frost-Cooling Armor & White Aesthetic – Custom CVN-series shield with 8-layer PCB and gold-plated slots
⚡ Supports DDR5‑7800 MHz (OC), Up to 192 GB – Alloy-reinforced DIMMs, XMP-capable on four slots
🖥️ PCIe Expansion – One PCIe 5.0 x16, one PCIe 4.0 x4, plus four PCIe 4.0 x4 M.2 slots & four SATA 6 Gb/s
🌐 Comprehensive Connectivity – Realtek 2.5G LAN, Intel AX211/AX210 Wi‑Fi 6E with BT 5.3, front/rear USB Type‑C (front supports 30 W PD)
🛠️ iGame Center Utility & One-Click BIOS – Synchronized lighting/cooling control, easy BIOS flashing
Crafted for high-performance builders, the CVN Z790D5 ARK FROZEN V20 combines a robust 14+1+1 digital VRM with striking frost-cooling armor. It supports DDR5‑7800 MHz (OC), 192 GB memory, and extensive PCIe expansion. Packed connectivity includes PCIe 5.0, multiple M.2/SATA, 2.5G Ethernet, Wi‑Fi 6E, and PD Type‑C. Complete with alloy-reinforced slots and iGame Center control for ultimate customization.
Product Specifications:
| Specification | Details |
| Model | CVN Z790D5 ARK FROZEN V20 |
| Chipset | Intel Z790 |
| CPU Support | Intel 12th / 13th / 14th Gen Core (LGA1700) |
| Memory | DDR5‑4800 to DDR5‑7800 (OC), up to 192 GB (4×48 GB) |
| Power Design | 14+1+1 digital phase VRM, DrMOS 90 A |
| PCIe/Storage | 1×PCIe 5.0 x16, 1×PCIe 4.0 x4, 4×PCIe 4.0 x4 M.2, 4×SATA 6 Gb/s |
| Networking | Realtek 2.5G Ethernet, Intel AX211/AX210 Wi‑Fi 6E + Bluetooth 5.3 |

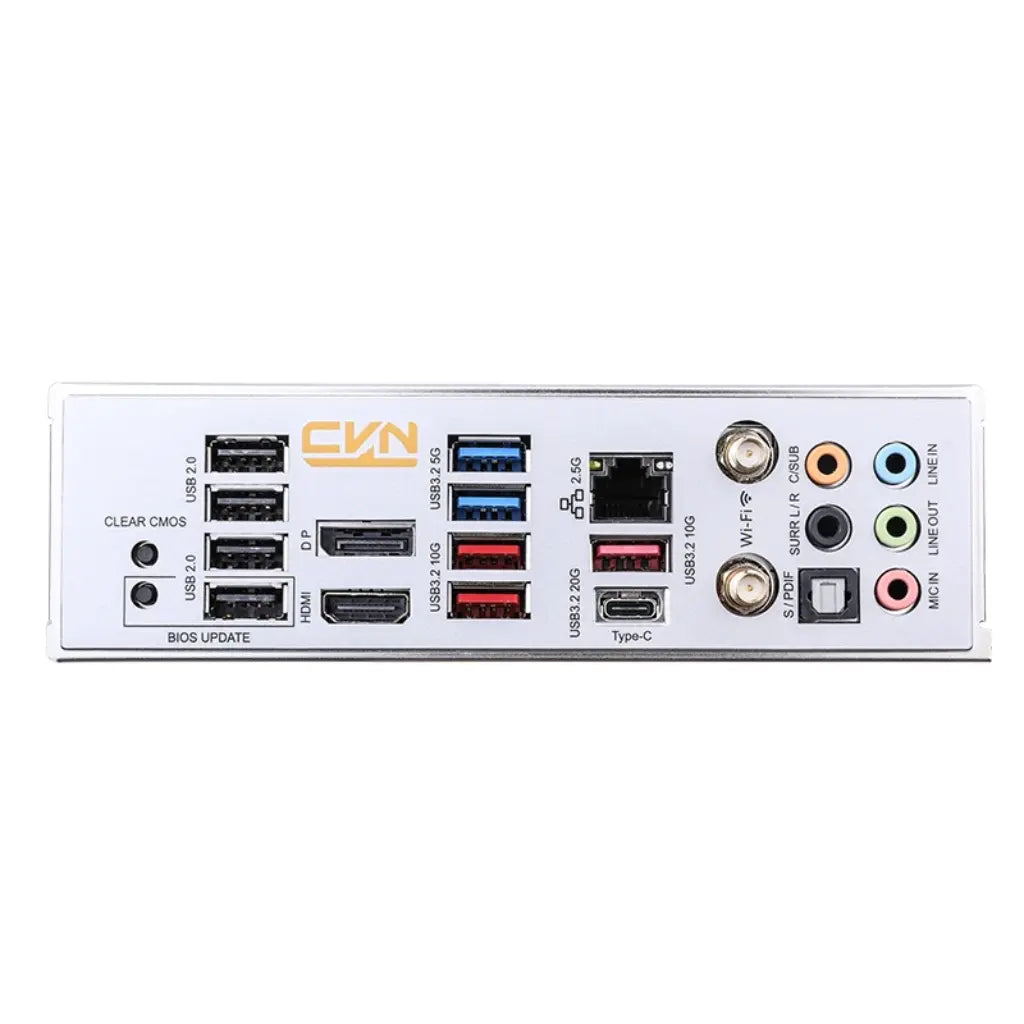

| USB Connectivity | Rear: USB2.0 (×4), USB3.2 Gen1 (×2), USB3.2 Gen2 Type‑A (×3), USB3.2 Gen2×2 Type‑C (×1); Front: USB3.2 Gen2 Type‑C (PD 30 W) |
| Display Outputs | HDMI 2.0, DisplayPort 1.4 (up to 8K60) |
| Form Factor | ATX (305 mm × 244 mm) |
| Special Features | Frost Armor design, 8-layer PCB, gold-plated reinforced slots, iGame Center, one-click BIOS |
| Internal Connectors | 24‑pin ATX, 2×8‑pin CPU, fan/pump headers, internal USB headers |
| Warranty | 3 Years |
| Weight | 1.5 Kg |
| Country of Origin | China |
| Model Number | CVN Z790D5 ARK FROZEN V20 |
