D Link DGS 1005A 5 Port Gigabit Unmanaged Desktop Switch
D Link DGS 1005A 5 Port Gigabit Unmanaged Desktop Switch
Regular price
Rs. 1,448.00
Regular price
51% off
Rs. 2,899.00
Sale price
Rs. 1,448.00
Quantity
Loading Offers...
+ Offers
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔌 5× Gigabit Ports – Five 10/100/1000 Mbps ports with Auto MDI/MDIX support for plug‑and‑play high‑speed connectivity.
🌿 Energy‑Saving Design – Implements D-Link Green tech, 802.3az Energy‑Efficient Ethernet, and powers down inactive ports to reduce energy consumption.
🤫 Silent, Fanless Operation – Completely fanless, compact desktop form factor ensures zero noise and reliable, maintenance-free performance.
📡 QoS Prioritization – IEEE 802.1p Quality of Service ensures latency-sensitive traffic like voice and video is prioritized.
♻️ Eco‑Friendly & Compliant – Meets RoHS, CE, FCC, CEC, MEPS, WEEE standards with recyclable packaging.
🔄 Reliable Switching Performance – 10 Gbps switching capacity, 7.44 Mpps forwarding rate, support for jumbo frames up to 9 KB.
🌿 Energy‑Saving Design – Implements D-Link Green tech, 802.3az Energy‑Efficient Ethernet, and powers down inactive ports to reduce energy consumption.
🤫 Silent, Fanless Operation – Completely fanless, compact desktop form factor ensures zero noise and reliable, maintenance-free performance.
📡 QoS Prioritization – IEEE 802.1p Quality of Service ensures latency-sensitive traffic like voice and video is prioritized.
♻️ Eco‑Friendly & Compliant – Meets RoHS, CE, FCC, CEC, MEPS, WEEE standards with recyclable packaging.
🔄 Reliable Switching Performance – 10 Gbps switching capacity, 7.44 Mpps forwarding rate, support for jumbo frames up to 9 KB.

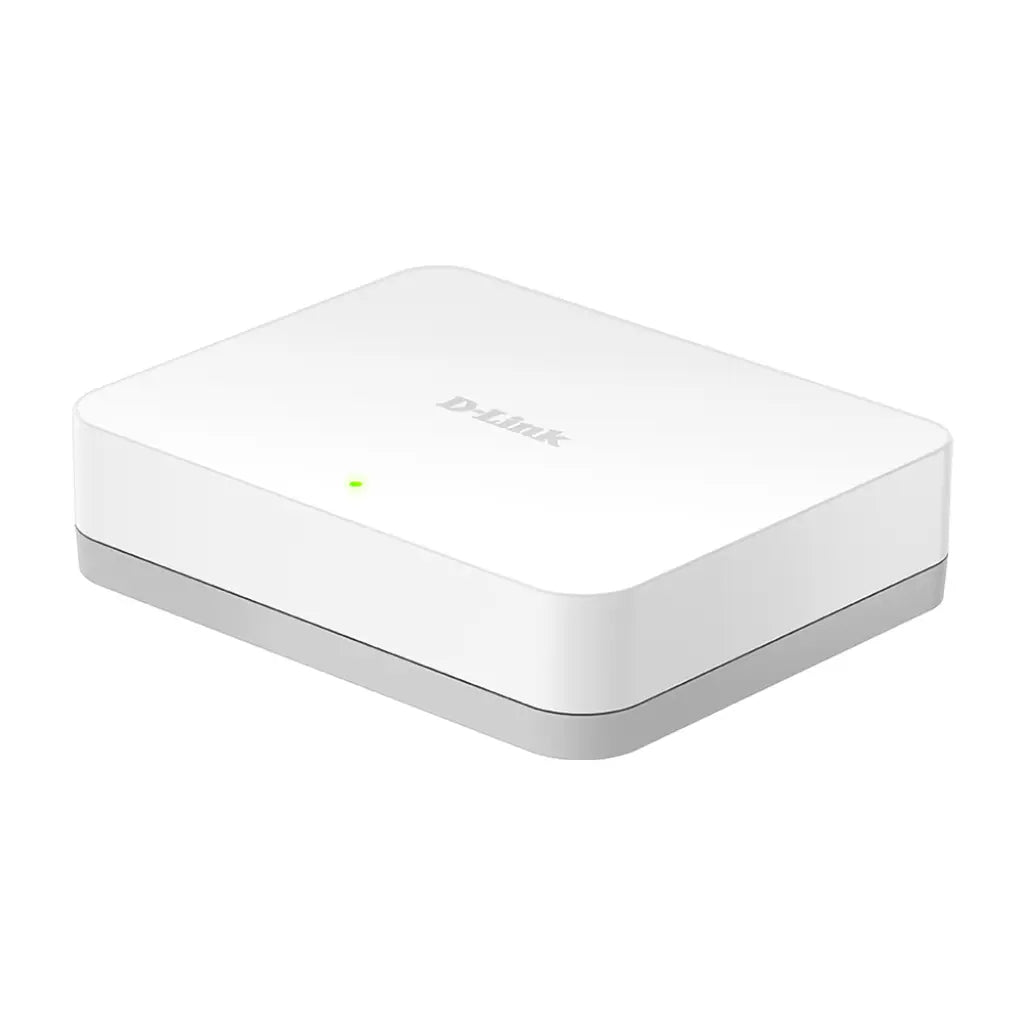

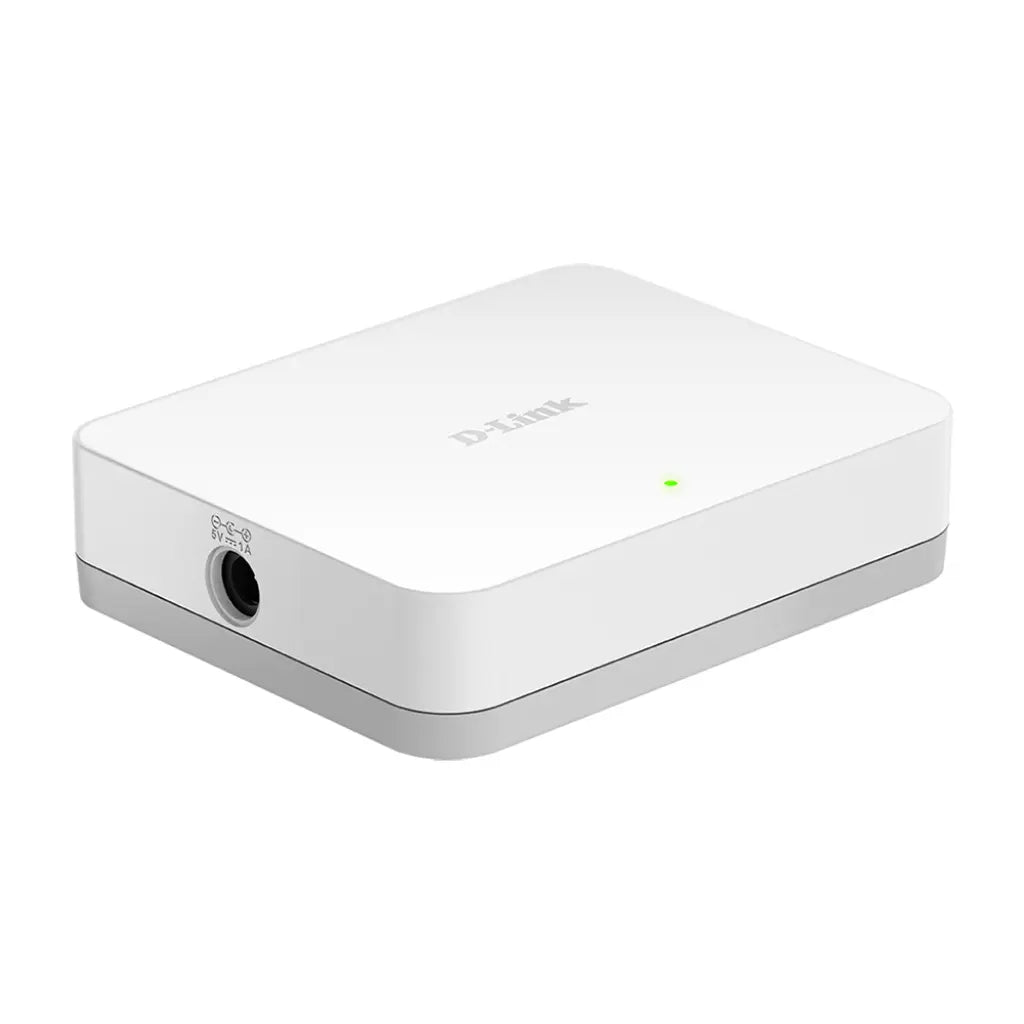

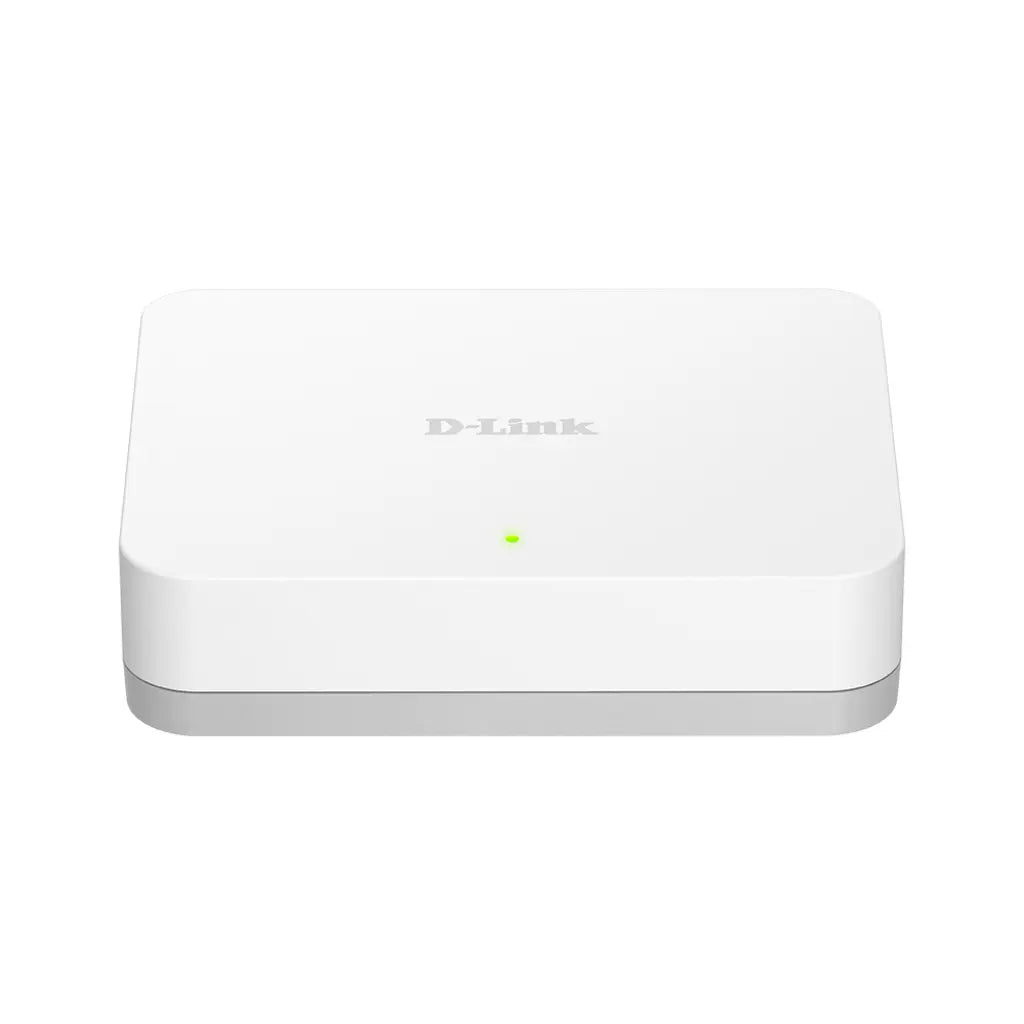

The D-Link DGS‑1005A is a sleek, silent 5‑port Gigabit unmanaged desktop switch designed for homes and small offices. It delivers robust performance with full Gigabit speeds, a 10 Gbps switching fabric, and low-latency forwarding. Equipped with smart energy-saving features like automatic idle-port shutdown and IEEE 802.3az support, it minimizes power usage. The fanless design ensures whisper‑quiet operation, while QoS guarantees smooth handling of voice and video traffic.
Product Specifications:
Product Specifications:
| Specification | Details |

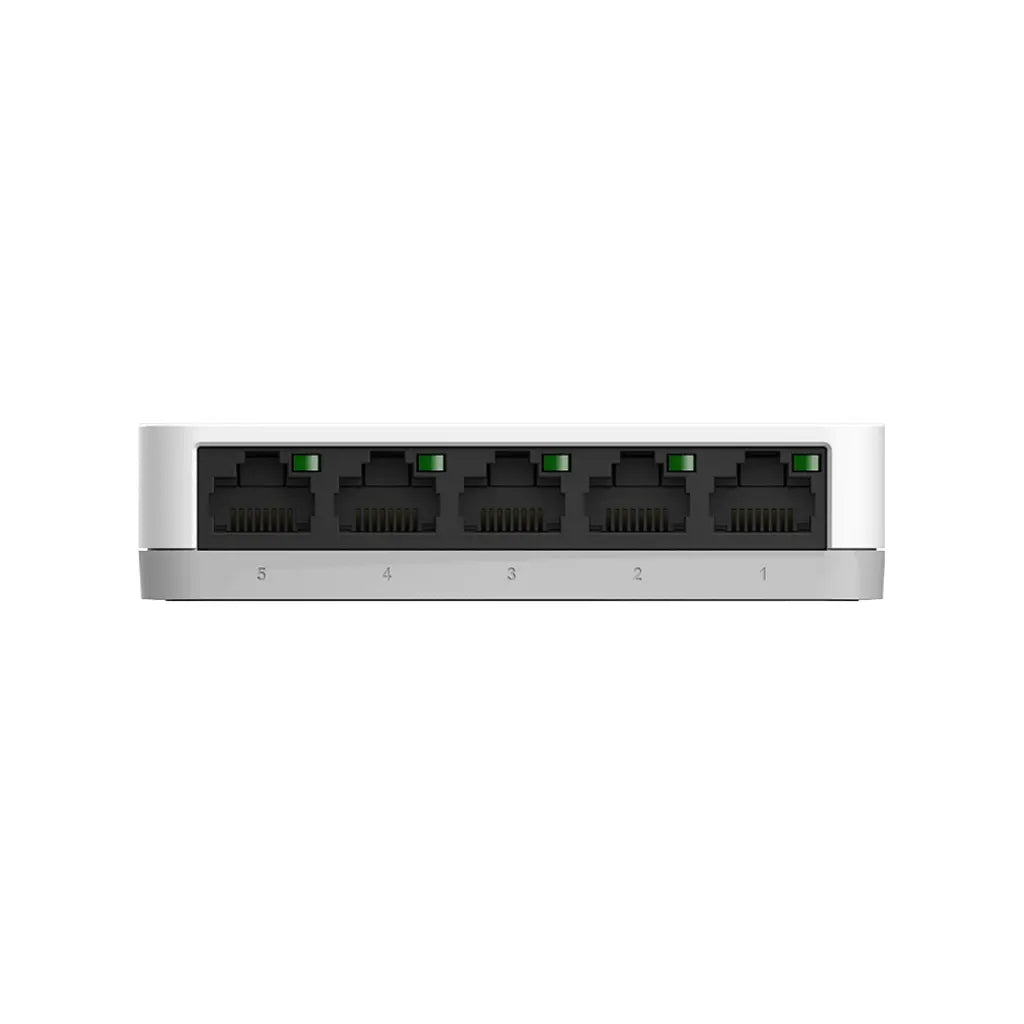

| Device Interfaces | 5 × Gigabit Ethernet LAN ports, 1 × power connector |
| Standards | IEEE 802.3 10BASE‑T; IEEE 802.3u 100BASE‑TX; IEEE 802.3ab 1000BASE‑T; ANSI/IEEE 802.3 NWay auto‑negotiation; IEEE 802.3x Flow Control; IEEE 802.3az Energy‑Efficient Ethernet |
| Advanced Features | Green Ethernet; 10 Gbps switching fabric; Auto MDI/MDIX; Secure store‑and‑forward; Full/half‑duplex; Jumbo Frame (9 KB); IEEE 802.1p QoS |
| Data Transfer Rates | Ethernet: 10 Mbps (half), 20 Mbps (full); Fast Ethernet: 100 Mbps (half), 200 Mbps (full); Gigabit Ethernet: 2000 Mbps (full) |
| Transmission Method | Store‑and‑forward |
| MAC Address Table | 2K entries |
| MAC Learning | Automatic update |
| Packet Filtering/Forwarding Rates | Ethernet: 14,880 pps; Fast Ethernet: 148,800 pps; Gigabit Ethernet: 1,488,000 pps |
| Packet Buffer | 128 KB |
| LED Indicators | Per port: Link/Activity; Per device: Power |
| Media Interface Exchange | Auto MDI/MDIX for all ports |
| Dimensions | 94 × 75 × 22.45 mm |
| Weight | 75 g |
| Power | 5 V / 1 A Power Adapter |
| Power Consumption | Max: 2.87 W; Standby: 0.47 W |
| Temperature | Operating: 0–40 °C; Storage: −10–70 °C |
| Humidity | Operating: 10–90% non‑condensing; Storage: 5–90% non‑condensing |
| MTBF | 1,479,725 hours |
| Certifications | CE, FCC, ICES‑003, VCCI, BSMI, LVD, RCM, Anatel, KCC |
| Ordering Info | DGS‑1005A – 5‑Port Gigabit Desktop Switch |
