DeepCool CH270 Digital High-Airflow Vertical Micro-ATX Computer Case
DeepCool CH270 Digital High-Airflow Vertical Micro-ATX Computer Case
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔧 Digital Display Panel: Real-time monitoring of CPU, GPU, and PSU stats with a sleek integrated screen.
🌀 High-Airflow Design: Wraparound mesh panels and support for up to 6 fans ensure optimal cooling.
🖥️ Tempered Glass Side Panel: Showcase your build with a clear view of internal components.
🧩 Rear Connector Ready: Extra clearance for BTF/STEALTH/PROJECT ZERO motherboards.

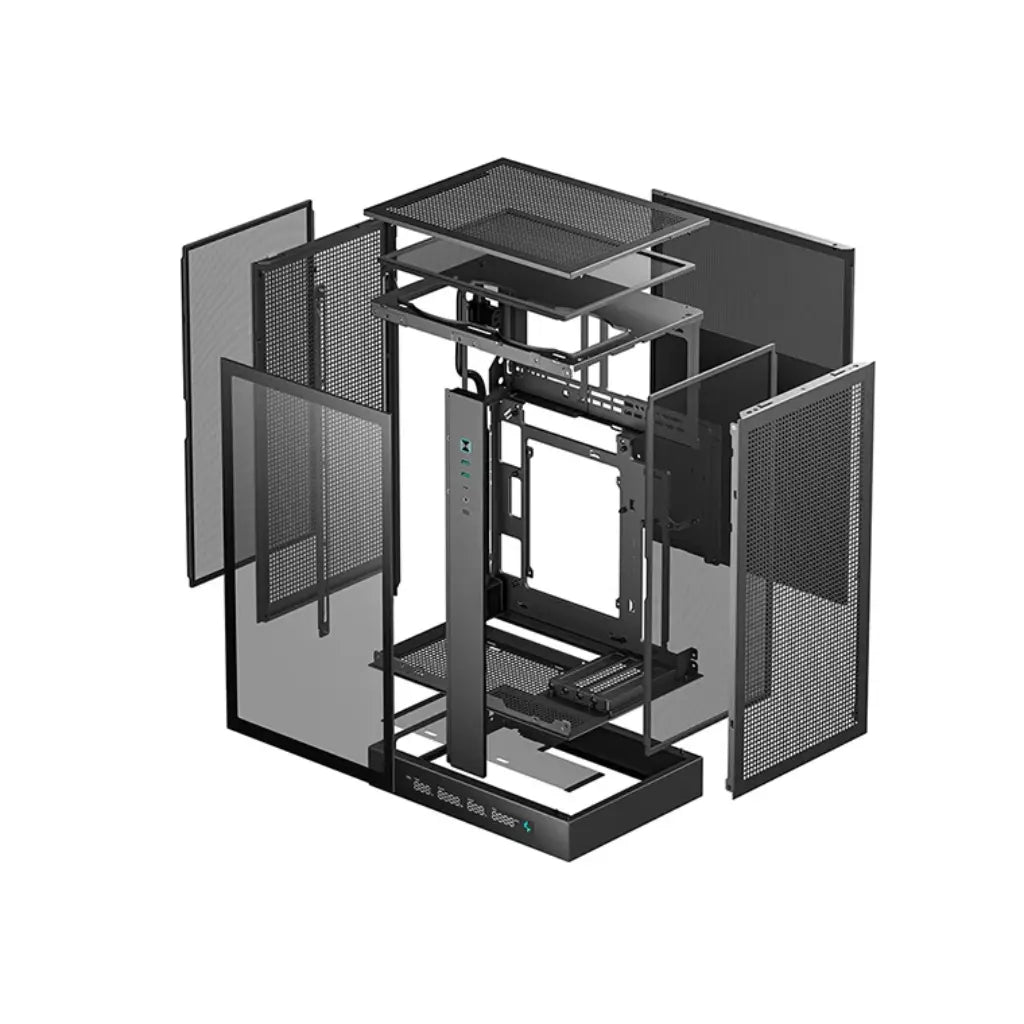

🛠️ Tool-Free Assembly: Removable PSU bracket and modular layout for easy cable management.
🔌 Modern I/O Ports: Includes USB 3.0 ×2, Gen2 Type-C ×1, and Audio/Mic combo jack.

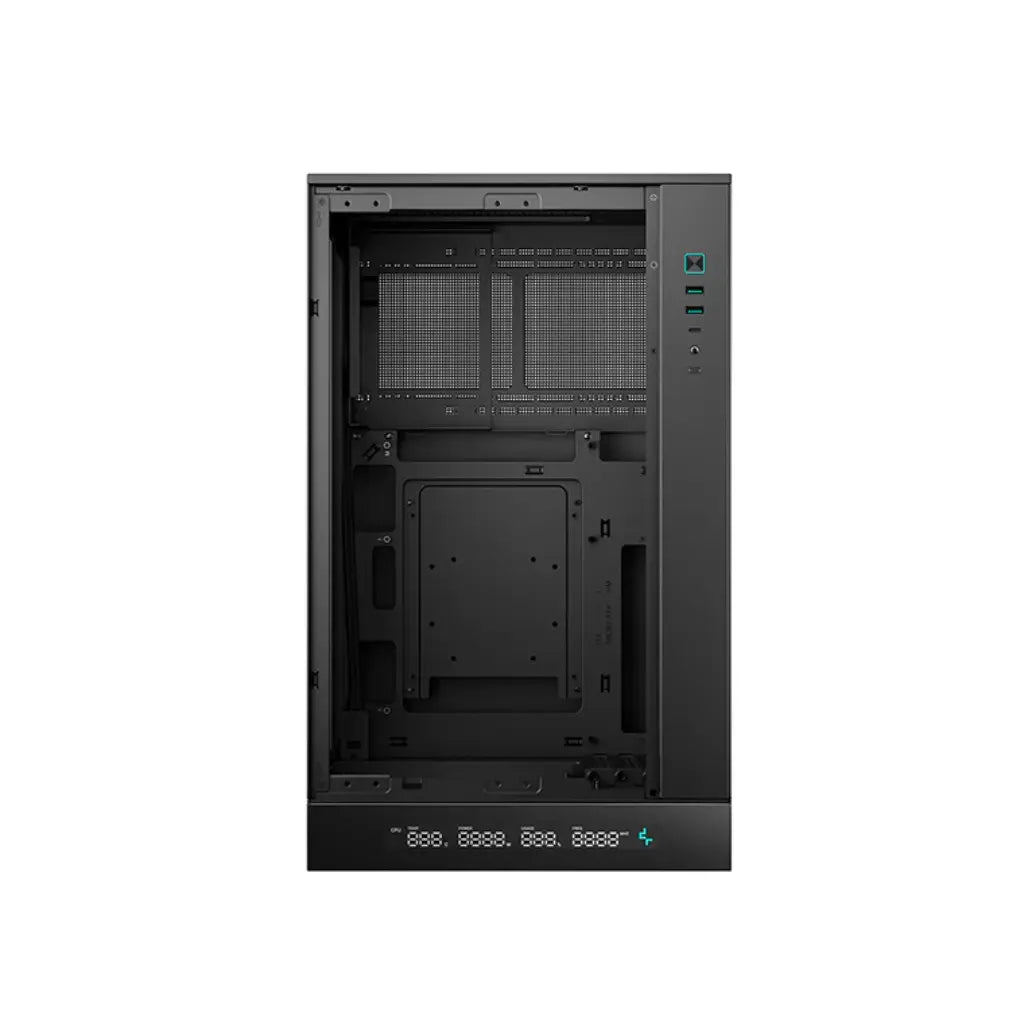

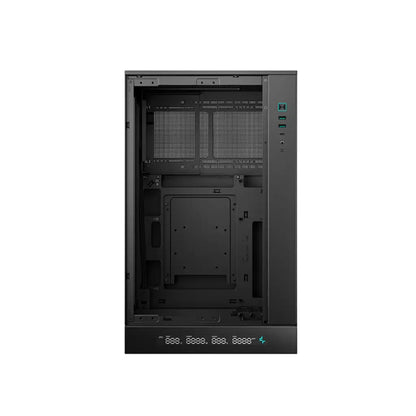

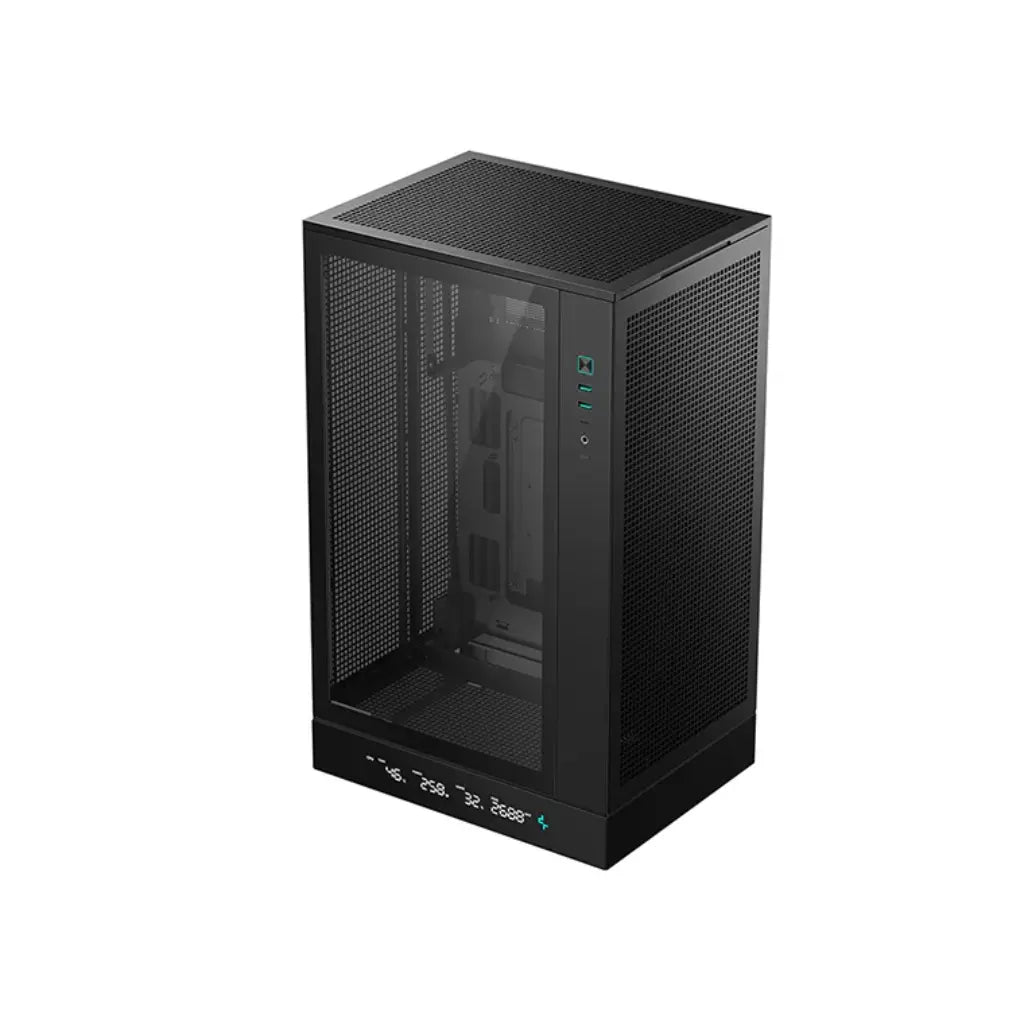

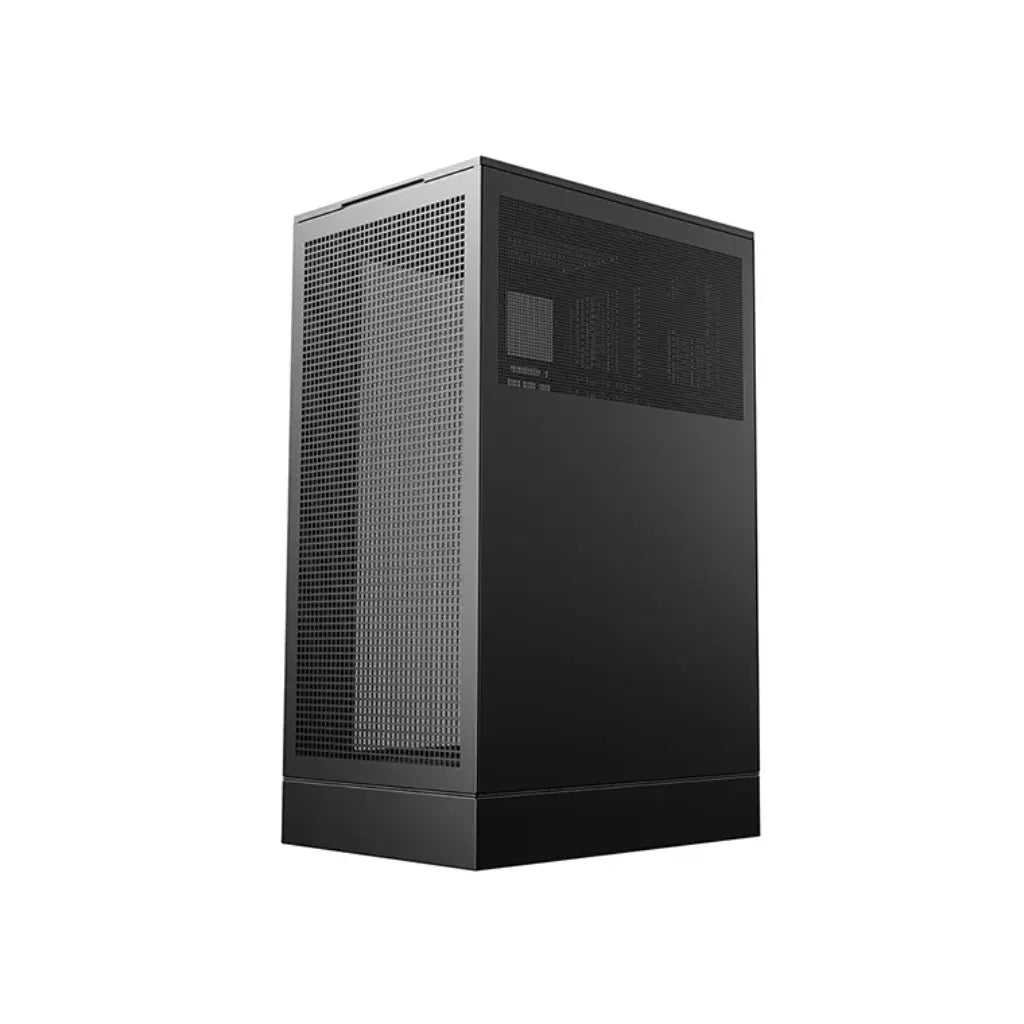

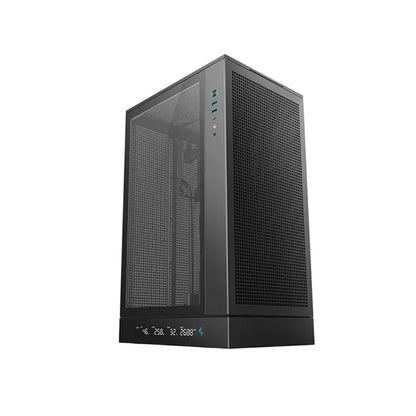

The DeepCool CH270 DIGITAL is a compact yet powerful Micro-ATX case designed for modern PC builders. Featuring a vertical layout, tempered glass side panel, and a digital display bar, it offers real-time system monitoring and a premium aesthetic. With support for full-size GPUs, 360mm radiators, and rear connector motherboards, it balances performance and space efficiency. Its high-airflow mesh design and modular internals make it ideal for enthusiasts seeking style and substance.
Product Specifications:
| Specification | Details |
| Model Name | DeepCool CH270 Digital |
| Form Factor | Micro-ATX / Mini-ITX |
| Dimensions (L×W×H) | 296mm × 225mm × 486mm |
| Material | ABS + SPCC + Tempered Glass |
| Motherboard Support | Micro-ATX, Mini-ITX, Rear Connector M-ATX |
| Drive Bays | 1 × 3.5", 1 × 2.5" |
| Expansion Slots | 4 |
| Fan Support | Top: 2 × 120mm, Side: 3 × 120mm / 2 × 140mm, Bottom: 1 × 120mm |
| Radiator Support | Side: 120/240/360mm, Bottom: 120mm |
| CPU Cooler Height Limit | 174mm |
| GPU Length Limit | 388mm / 413mm (without top fans) |
| PSU Type | ATX PS2 (Max Length: 150mm) |
| Front I/O Ports | USB 3.0 ×2, Gen2 Type-C ×1, Audio/Mic ×1 |
| Pre-installed Fans | None |
| Part Number | R-CH270-BKNDM0-G-1 |
| Country of Origin | China |
| Warranty | 2 Years |
| Weight | 5.8 kg |
