DeepCool CH510 MESH DIGITAL Computer Case Magnetic Tempered Glass Window ATX Mid-Tower Gaming Cabinet
DeepCool CH510 MESH DIGITAL Computer Case Magnetic Tempered Glass Window ATX Mid-Tower Gaming Cabinet
Brand: DEEPCOOL
Regular price
Rs. 7,299.00
Sale price
28% off Rs. 7,299.00
Sale
Sold out
Regular price
Rs. 9,999.00
Unit price
/
per
Couldn't load pickup availability
- Free Shipping
- 7-Days Easy Returns
- Brand Warranty
Product Description:

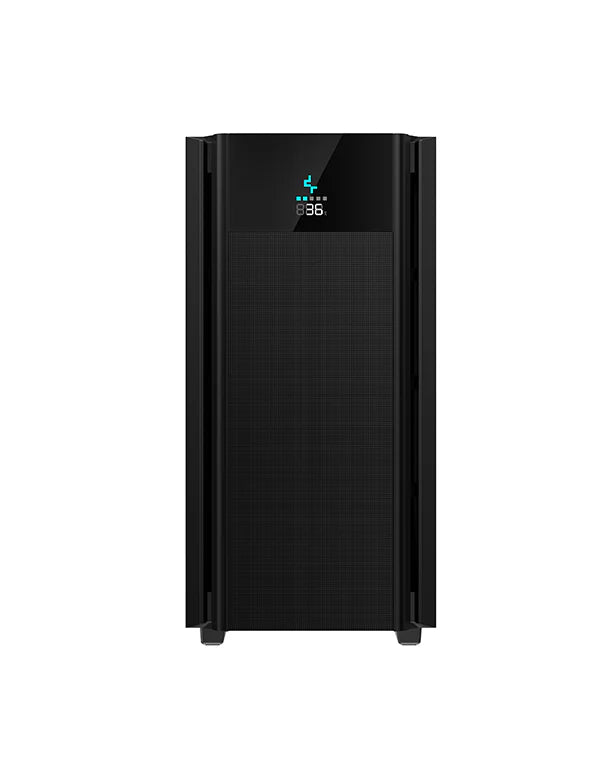

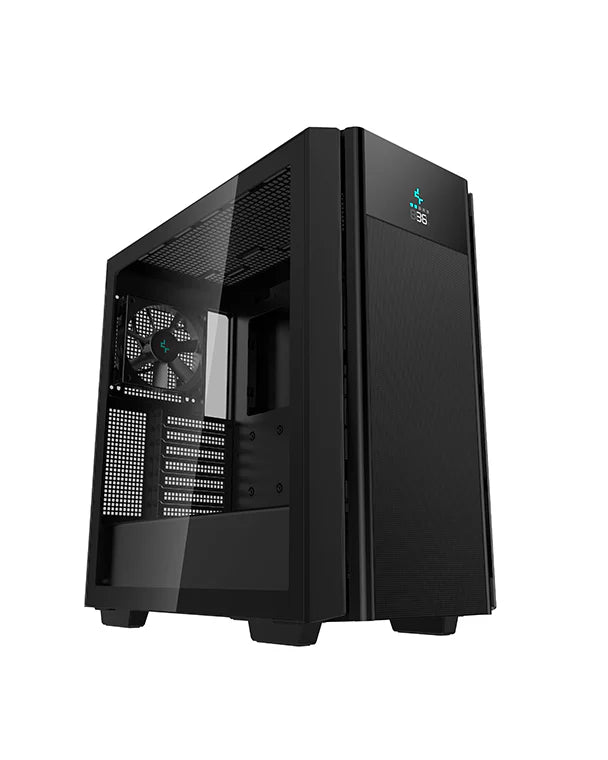

The DeepCool CH510 MESH DIGITAL is a high airflow mid-tower ATX case with great flexibility and wide component compatibility for any system build. Featuring a display screen that is programmable to monitor internal system temperatures for critical information up front.
HIGH-AIRFLOW PANEL
The CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast amounts of airflow for optimal system cooling.
MORE CAPACITY MORE POWER
Big power needs big cooling and the CH510 MESH DIGITAL provides ample amount of mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout.
STREAMLINED FRONT I/O
Get connectivity for your modern devices needing a USB Type-C port as well as including a USB 3.0 port, and a combo audio jack for gaming headsets.
BUILT-IN DISPLAY
Monitor system information stats for critical CPU or GPU temperatures with a digital display built into the front panel for info access up close.
Model | R-CH510-BKNSE1-G-1 |
Dimensions | 455×230×470mm (L×W×H) |
Form Factor | Mid Tower |
Materials | ABS+SPCC+Tempered Glass |
Mainboard Support | Mini-ITX Micro-ATX ATX E-ATX |
I/O Ports | USB3.0×2 Type-C×1 Audio×1 |
Side Panel | Tempered Glass |
Expansion & Drive Bays | |
Expansion Slots | 7 Slots |
3.5 Inch | 2 |
2.5 Inch | 2+1 |
Fan Support | |
Front | 3×120 2×140mm |
Top | 3×120 2×140mm |
Rear | 1×120mm 1×140mm |
PSU Shrouded | 2×120mm |
Fan RGB Effect | No |
Radiator Support | |
Front | 1 x 120 mm 1 x 140 mm 1 x 240 mm 1 x 280 mm 1 x 360 mm |
Top | 1 x 120 mm 1 x 140 mm 1 x 240 mm 1 x 280 mm 1 x 360 mm |
Rear | 1 x 120 mm 1 x 140 mm |
Clearance | |
CPU Cooler Height Limit | 175 mm |
GPU Length Limit | 380 mm |
Power Supply Type | ATX PS2 (maximum length: 170mm) |
Miscellaneous | |
Dust Filters | Yes |
Net Weight | 7.5 Kg |
Gross Weight | 8.9 Kg |
Warranty | 3 Year of Brand Warranty |
