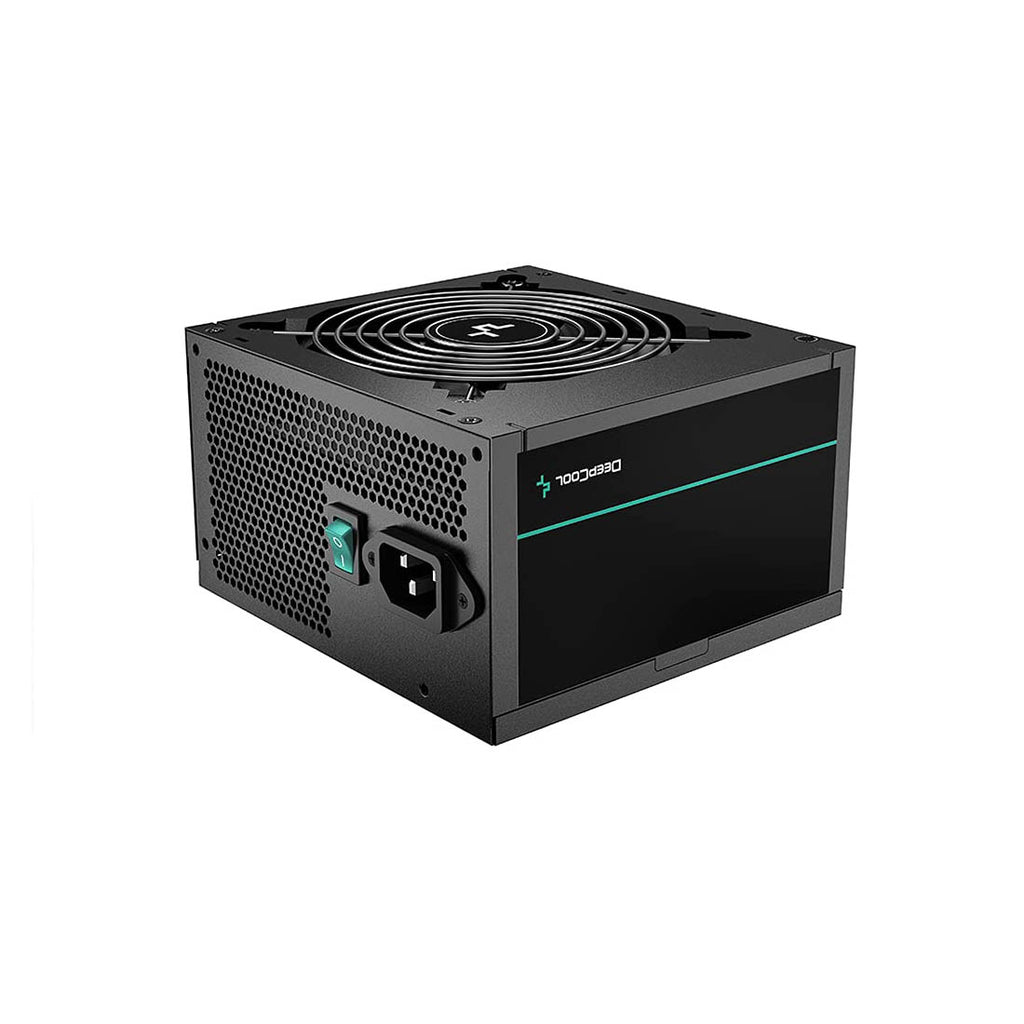

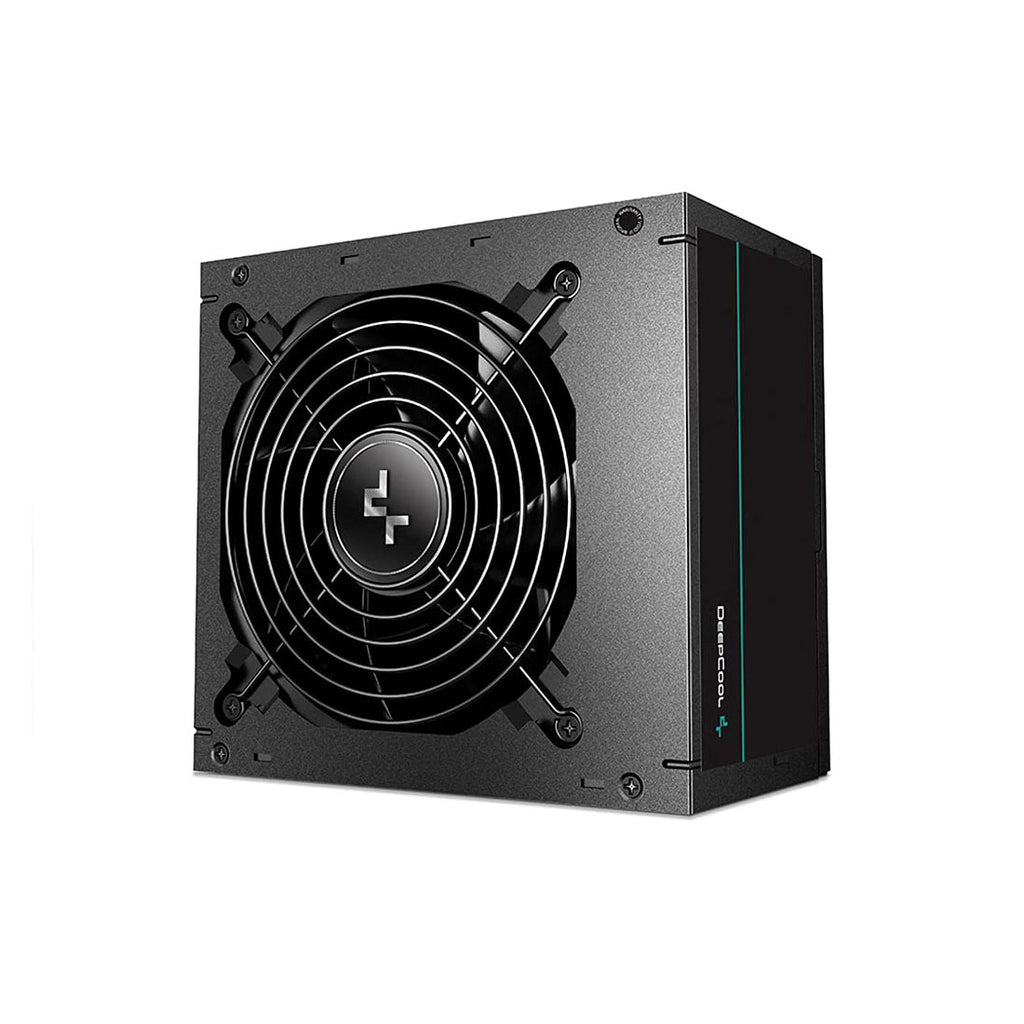

DEEPCOOL PM750D 750W Non-Modular 80 Plus Gold SMPS Power Supply

DEEPCOOL PM750D 750W Non-Modular 80 Plus Gold SMPS Power Supply

Brand: DEEPCOOL
Regular price Rs. 6,299.00
Regular price Rs. 11,999.00 Sale price Rs. 6,299.00
Sale Sold out
  • Free Shipping: We deliver to 27000+ pin codes in India.
  • 10-Days Return: We got you covered with easy returns.
  • Original Warranty: This product has original Brand warranty.
Easy Returns Cancellation Policy Shipping Policy Trust Center
  • DEEPCOOL PM750D PSU comes with 80 Plus Gold certification. It is designed to deliver 750 Watts at a typical minimum efficiency of 90%.
  • The Non Modular SMPS gives extended connectivity with 6x SATA, 3x 4-Pin, 3x 6 PCI-e+2 Pin connectors giving guaranteed universal compatibility with all major motherboards.
  • Equipped with 120mm FDB fan, the PM750D has temperature control function to keep low noise depending on the load and mode of operation.
  • Enabled with Active PFC, the SMPS comes with a bunch of protections including Over-Voltage, Over-Current, UVP, OPP, OTP and SCP.
  • The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.

~section~

DEEPCOOL PM750D 750W Non-Modular SMPS Power Supply - From TPSTech
DEEPCOOL PM750D 750W Non-Modular SMPS Power Supply - From TPSTech

80 PLUS Gold Certified

Get all the power you need with a maximum 90% efficiency to reduce excess energy consumption and waste heat. Built to deliver stable output capacity with high conversion efficiency, the PM750D offers better reliability for your PC system.

DEEPCOOL PM750D 750W Non-Modular SMPS Power Supply - From TPSTech

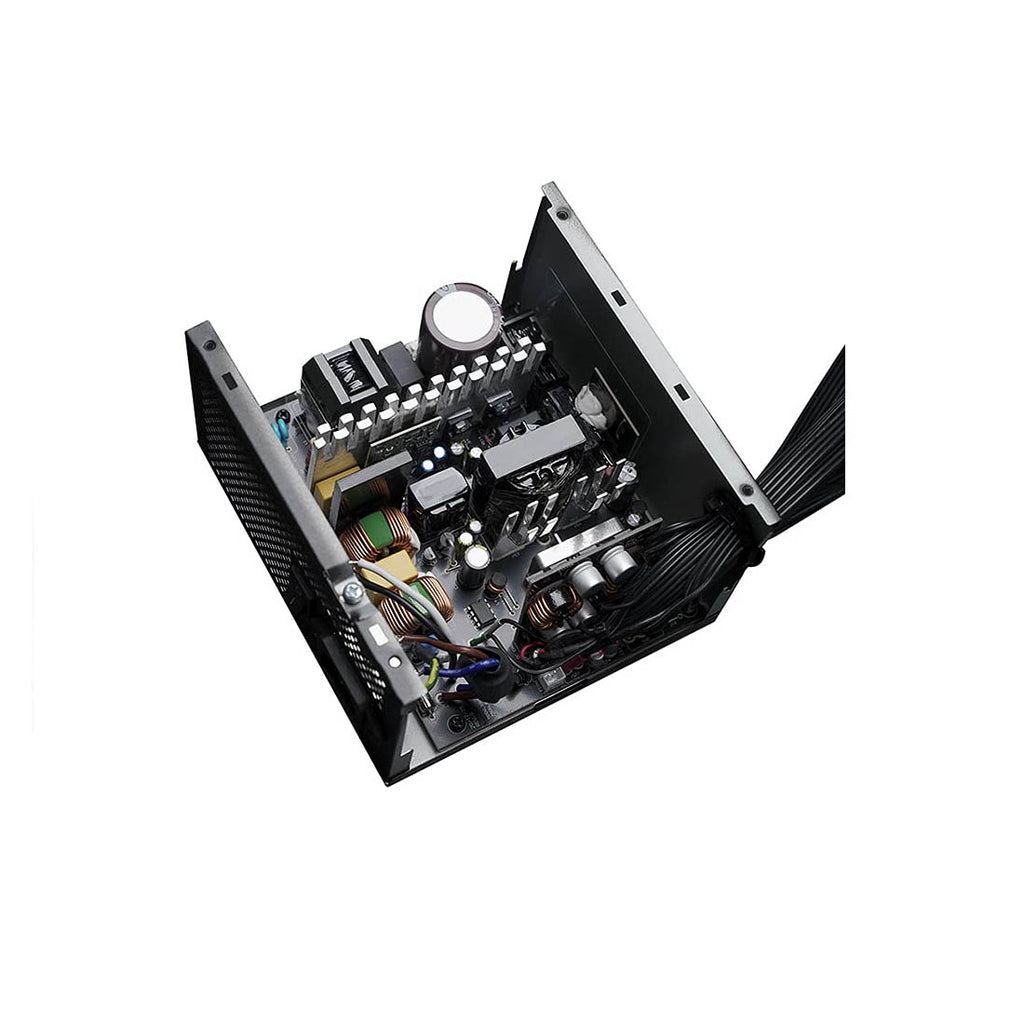

Quality Topology

For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.

DEEPCOOL PM750D 750W Non-Modular SMPS Power Supply - From TPSTech

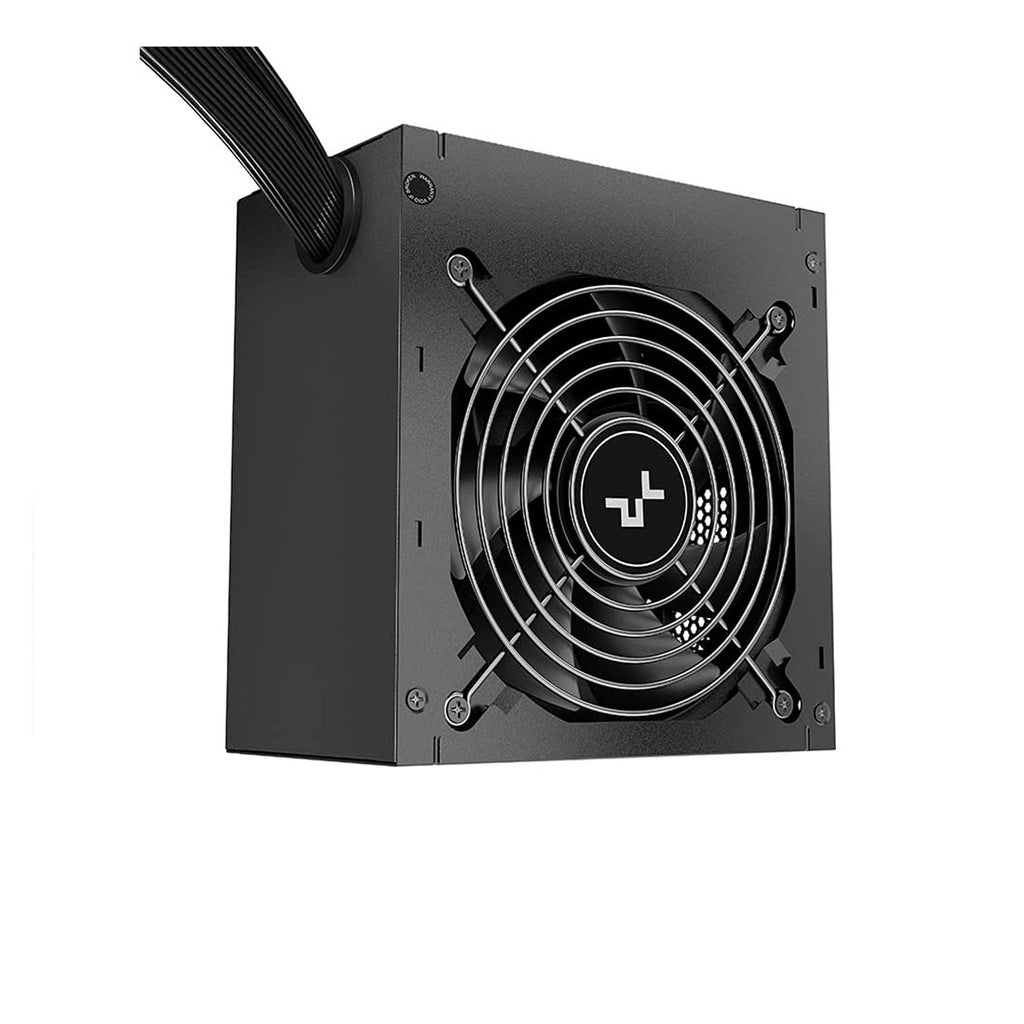

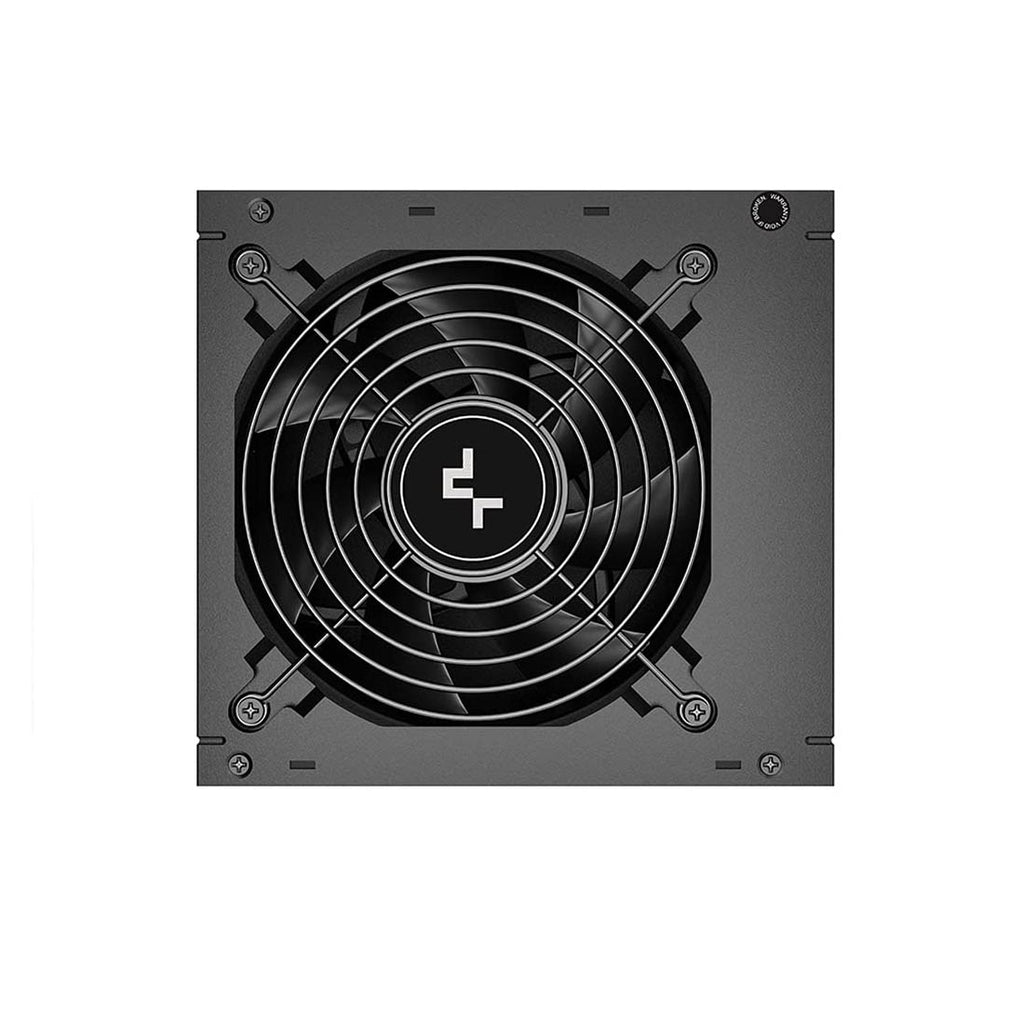

Silent High Performance Fan

120mm silent fan has temperature control function to keep low noise. Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.

DEEPCOOL PM750D 750W Non-Modular SMPS Power Supply - From TPSTech

Enough Power to go Around

The PM850D features three independent PCIe outputs and two EPS connectors for continuous high quality power that supports the latest high-end graphics cards and motherboards for gaming excellence.

~section~

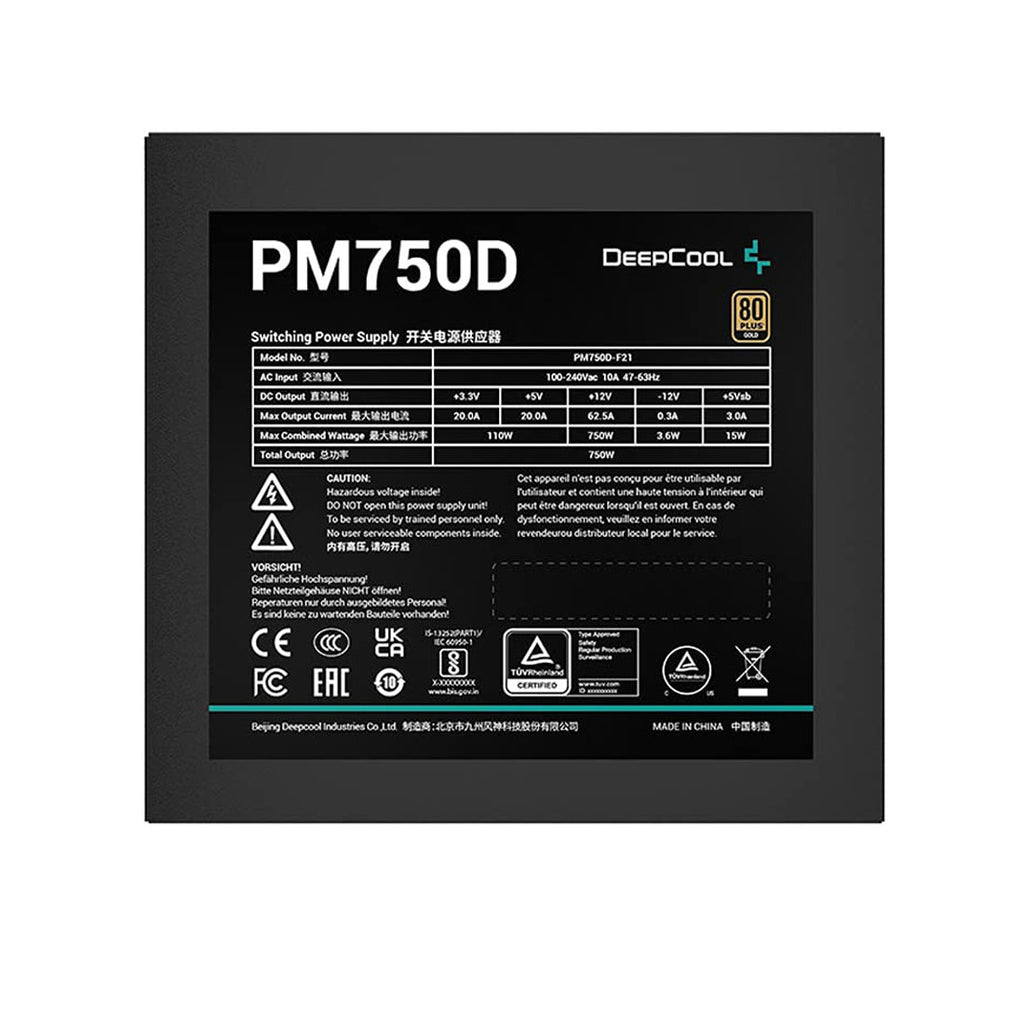

Model PM750D
Modular Non-Modular
Compliant with TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS
Efficiency 80 PLUS GOLD Certified up to 90% efficiency
Input Voltage 100-240Vac
Input Current 10A
Input Frequency 47-63Hz
Wattage 750W
PSU Form Factor ATX 12V V2.4
PFC Active PFC
Fan 120 mm
Connectors 1 x Main Power 24(20+4)Pin connector
1x x EPS 12V 8(4+4) pin connectors x2
2x SATA x3
1 x PERIPHERAL 4-pin connectors x3
3x PCI-E (6+2) pin connectors x1
MTBF 100,000 Hours
Protection OPP/OVP/SCP/OTP/OCP
Dimension 150 × 140 × 86 mm
Warranty 5 Year Warranty
