DEEPCOOL PM850D 850W Non-Modular 80 Plus Gold SMPS Power Supply
DEEPCOOL PM850D 850W Non-Modular 80 Plus Gold SMPS Power Supply
Couldn't load pickup availability
- Free Standard Shipping
- TPS Returns Policy
- Original Brand Warranty
Product Description:
DEEPCOOL PM850D PSU comes with 80 Plus Gold certification. It is designed to deliver 850 Watts at a typical minimum efficiency of 91.2%.
The Non-Modular SMPS gives extended connectivity with 6x SATA, 3x 4-Pin, 3x 6 PCI-e+2 Pin connectors giving guaranteed universal compatibility with all major motherboards.

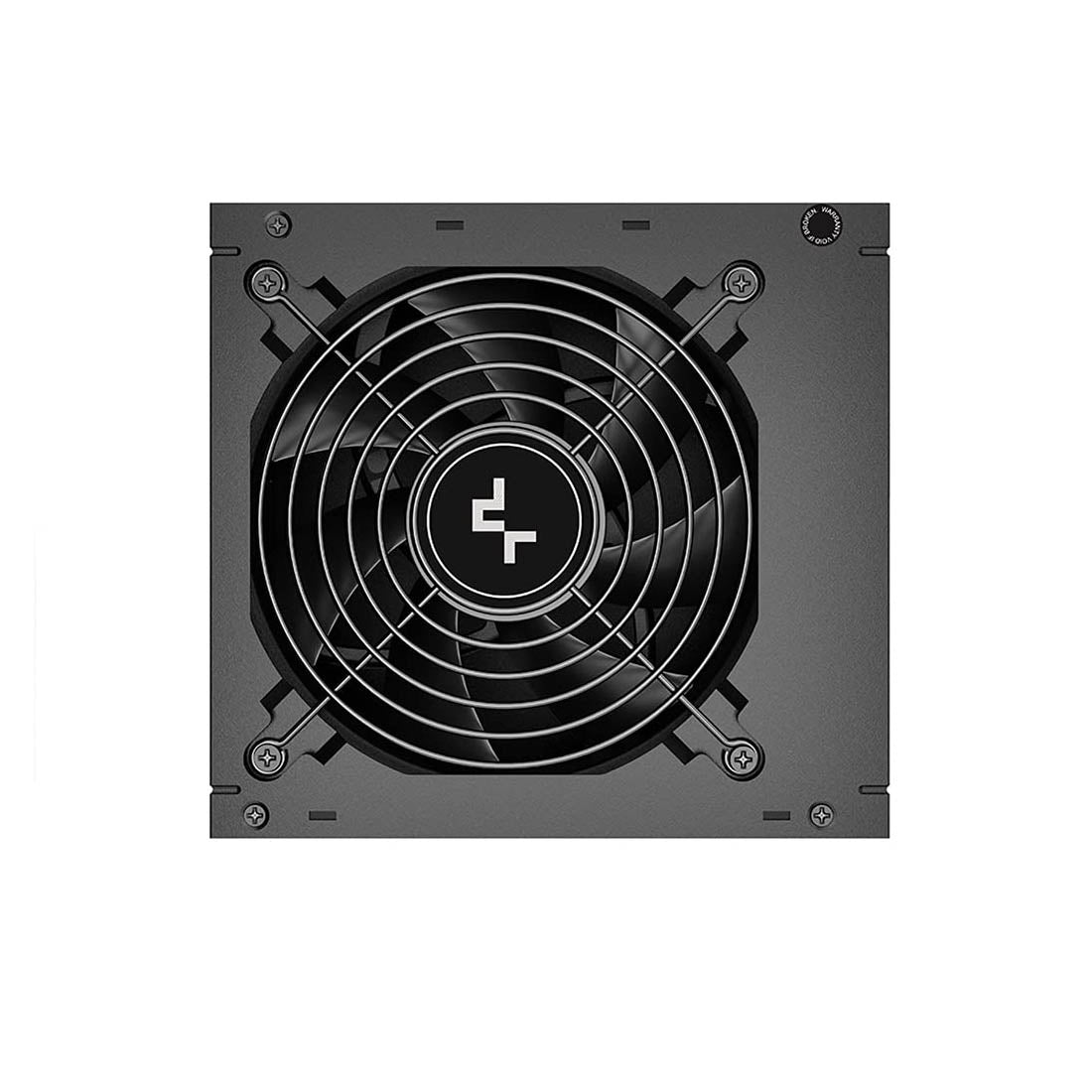

Equipped with 120mm FDB fan, the PM850D has temperature control function to keep low noise depending on the load and mode of operation.
Enabled with Active PFC, the SMPS comes with a bunch of protections including Over-Voltage, Over-Current, UVP, OPP, OTP and SCP.
The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards

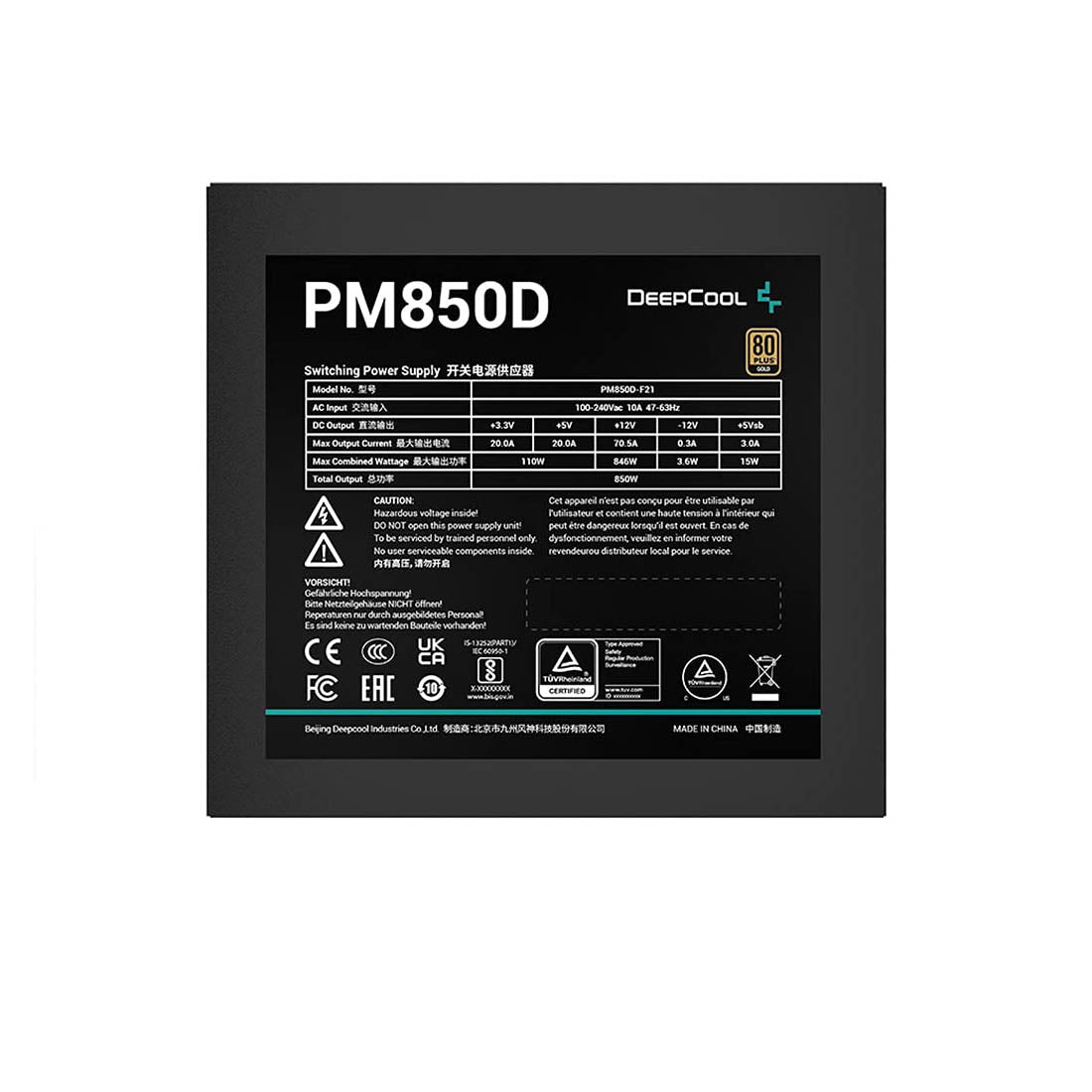

| Model | PM850D |
| Modular | Non-Modular |
| Compliant with | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
| Efficiency | 80 PLUS GOLD Certified up to 90% efficiency |
| Input Voltage | 100-240Vac |
| Input Current | 10A |
| Input Frequency | 47-63Hz |
| Wattage | 850W |
| PSU Form Factor | ATX 12V V2.4 |
| PFC | Active PFC |
| Fan | 120 mm |
| Connectors | 1 x Main Power 24(20+4)Pin connector 1x x EPS 12V 8(4+4) pin connectors x2 2x SATA x3 1 x PERIPHERAL 4-pin connectors x3 3x PCI-E (6+2) pin connectors x1 |
| MTBF | 100,000 Hours |
| Protection | OPP/OVP/SCP/OTP/OCP |
| Dimension | 150 × 140 × 86 mm |
| Warranty | 5 Year Warranty |
