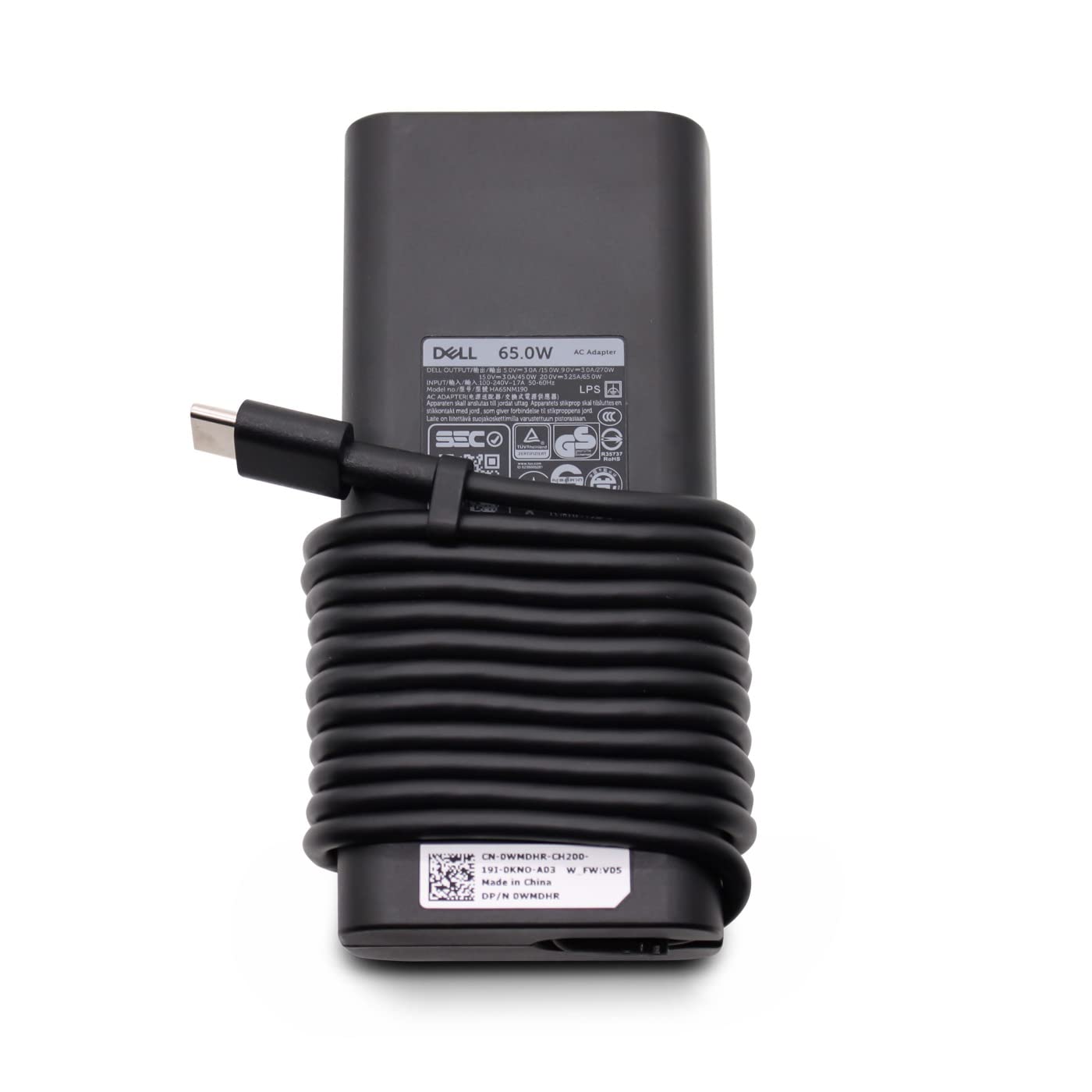

Dell Original 65W 20V USB Type C Pin Laptop Charger Adapter with TPS BIS Certified Power Cable
Dell Original 65W 20V USB Type C Pin Laptop Charger Adapter with TPS BIS Certified Power Cable
Couldn't load pickup availability
- Free Shipping
- 10-Days Return
- Original Warranty
The Perfect Partner for Your Laptop on the Go
Always on the go? Stop lugging your adapter back and forth between home and office. Get a second adapter for your laptop or Tablet and keep one in the office and one for home or travel.
Genuine Dell-branded parts undergo rigorous testing by qualified engineers to ensure compatibility and reliability in your Dell system.Dell’s sustaining qualification process allows for testing and certification of the newest
technology on your Dell system
Genuine Dell-branded parts mean that you will not need to worry about voiding your system’s hardware warranty.
Non-Dell parts are not covered under warranty and may void your Dell laptop's warranty.
Dell’s Limited One Year Warranty guarantees that if Genuine Dell-branded parts should fail, it will be replaced.
Care And Fix for Yor Laptop Adapter
Troubleshooting Adapter Issues
The adapter cable and power cables may get frayed or cut, and wires may become exposed at either end of the cables. This may be due to the way the cable is wrapped around the adapter, or if the cable is subject to undue stress. If the damage is severe enough to expose wires, you should discontinue using the adapter. To check the adapter, cables, and adapter port on the laptop for any damages:
- Unplug the adapter from the wall outlet.
- Unplug the adapter from the PC.
- Check the adapter and cables (including the power cable) for signs of physical damage or overheating.
- Check if the pin inside the plug or adapter port is bent, broken, or damaged.
- Unplug the adapter from the wall outlet.
- Connect another device on the wall outlet to verify if the wall outlet is working correctly.
- Try a known-good wall outlet.
- Plug the adapter directly to the wall outlet.
Bypass any power regulators like surge protectors, UPS (uninterruptible power supply), power splitters, etc.
- Unplug the adapter from the wall outlet.
- Disconnect any external peripherals that are connected to the PC.
- Remove the battery. Refer to the User Manual of the PC for instructions on how to remove the battery.
If the Dell laptop PC has a non-removable battery, skip this step. - Press and hold the Power button for 30 seconds to drain a residual power from the PC.
- Connect the battery.
- Plug the adapter to the PC.
- Turn on the PC.
- Unplug the adapter from the wall outlet.
- Unplug the adapter from the PC.
- Disconnect the power cable from the adapter.
- Connect the power cable firmly to the adapter.
- Verify if the LED on adapter is on. If no, try a compatible known-good adapter.
Reset the adapter by following these steps:
- Unplug the adapter from the wall outlet for 15 seconds.
- Unplug the adapter from the PC.
- Plug the adapter to a known-good wall outlet.
- Plug the adapter to the PC.
- Check the LED indicator on the adapter.
Using an adapter that has a lower wattage may cause the following issues:
- An error message like "The adapter type cannot be determined. This will prevent optimal system performance" or "Unknown or incorrect adapter detected" may appear.
- Your system may reduce the processor (CPU) speed to save power.
- The laptop battery might not charge or charge slowly.
- The adapter might heat up.
- Check the LED indicator on the adapter.
Dell laptop PCs may use either a 65W, 90W, 130W, 180W, or 240W adapter. For optimal performance, use the adapter that came with the Dell laptop PC. Adapter's wattage information is printed on the label on the bottom of the adapter.
To verify if the PC is recognizing the adapter correctly:
- Restart the PC.
- When the Dell logo appears, tap F2 key until the message Entering Setup appears.
- Verify the Adapter Type in the BIOS options.
If Adapter Type is None - Ensure to connect the adapter to the PC.
If Adapter Type is Unknown - Follow troubleshooting steps to resolve adapter issues.
Running a hardware diagnostic test can help you identify what the issue may be and provide you troubleshooting steps to help resolve the issue. Dell offers both built-in and online diagnostics. The Dell ePSA hardware diagnostic test checks if the adapter is recognized correctly.
To run the Dell ePSA built-in hardware diagnostics:
- Turn on the PC and tap F12 key at the Dell logo screen.
- Choose Diagnostics from the menu.
The BIOS is firmware that is embedded onto the System Board of your computer. Updating the BIOS to the latest version may help the PC recognize the adapter. Updating the BIOS to the latest version requires the laptop PC to be powered by the adapter and battery.
Technical Specifications
| Product Type | Laptop Adapter |
| Product Brand | Dell |
| Pin Type | USB Type C |
| Power Output | 20V @ 3.25A |
| Power Capacity | 65 Watt |
| Power Cable Included | Yes, TPS Branded BIS Certified Power Cable |
| Compatible Part Numbers | JYJNW 0JYJNW JNKWD 0JNKWD 2YK0F 02YK0F M1WCF 0M1WCF HA30NM150 LA45NM150 HA65NM170 LA65NM170 LA65NM170 492-BBUU 492-BBWZ PW7015MC DA65NM170 Y91PF F17M7 HDCY5 689C4 02CR08 |
| Compatible Laptop Models | Chromebook 11 3110 Chromebook 11 3110 Chromebook 11 3120 Chromebook 11 3100 Chromebook 11 3100 Chromebook 11 5190 Chromebook 11 5190 Chromebook 13 3380 Chromebook 14 3400 Inspiron 13 5310 Inspiron 13 5320 Inspiron 13 5330 Inspiron 13 7306 Inspiron 13 7306 Inspiron 13 7390 Inspiron 14 3420 Inspiron 14 5410 Inspiron 14 5430 Inspiron 14 5482 Inspiron 14 5491 Inspiron 14 7400 Inspiron 14 7415 Inspiron 14 7420 Inspiron 14 7430 Inspiron 14 7435 Inspiron 14 7440 Inspiron 14 7441 Inspiron 14 7490 Inspiron 15 5582 Inspiron 16 5630 Inspiron 16 7620 Inspiron 16 7630 Inspiron 16 7635 Inspiron Chromebook 14 7486 Latitude 10 Rugged 7030 Extreme Latitude 12 Rugged 7230 Extreme Latitude 12 Rugged Extreme 7212 Latitude 12 Rugged Extreme Tablet 7220 Latitude 12 Rugged Extreme Tablet 7220EX Latitude 13 Rugged 7330 Extreme Latitude 14 Rugged 5430 Latitude 3120 Latitude 3140 Latitude 3300 Latitude 3301 Latitude 3310 Latitude 3310 Latitude 3320 Latitude 3330 Latitude 3340 Launched in 2023 Latitude 3400 Latitude 3410 Latitude 3420 Latitude 3430 Latitude 3440 Latitude 3450 Launched in 2024 Latitude 3500 Latitude 3510 Latitude 3520 Latitude 3530 Latitude 3540 Latitude 3550 Launched in 2024 Latitude 5285 Latitude 5289 Latitude 5290 Latitude 5300 Latitude 5300 Latitude 5300 Chrome Latitude 5310 Latitude 5310 Latitude 5320 Latitude 5330 Latitude 5340 Latitude 5350 Latitude 5400 Latitude 5400 Chrome Latitude 5410 Latitude 5420 Latitude 5430 Latitude 5440 Latitude 5450 Latitude 5500 Latitude 5510 Latitude 5520 Latitude 5530 Latitude 5540 Latitude 5550 Latitude 7200 Latitude 7210 Latitude 7300 Latitude 7310 Latitude 7320 Latitude 7320 Detachable Latitude 7330 Latitude 7340 Latitude 7350 Launched in 2024 Latitude 7350 Detachable Latitude 7389 Latitude 7390 Latitude 7400 Latitude 7400 Latitude 7410 Latitude 7420 Latitude 7430 Latitude 7440 Latitude 7450 Latitude 7455 Latitude 7520 Latitude 7530 Latitude 7640 Latitude 7650 Latitude 9330 Latitude 9410 Latitude 9420 Latitude 9430 Latitude 9440 Latitude 9450 Latitude 9510 Latitude 9520 Latitude Chromebook 14 3445 Latitude Chromebook 14 5430 Latitude Chromebook 14 7410 Precision 3480 Precision 3490 Precision 3540 Precision 3550 Precision 3560 Precision 3570 Precision 3580 Precision 3590 Vostro 13 5310 Vostro 13 5320 Vostro 14 5490 Vostro 15 5590 XPS 13 9305 |
| Warranty | 1 Year on Adapter by DELL |
| Package Contents | Dell Original 65W Laptop Adapter |
