D-Link DES-1024D 24 Port 10 100 Mbps Unmanaged Desktop Rackmount Ethernet Switch
D-Link DES-1024D 24 Port 10 100 Mbps Unmanaged Desktop Rackmount Ethernet Switch
Regular price
Rs. 3,349.00
Regular price
49% off
Rs. 6,499.00
Sale price
Rs. 3,349.00
Quantity
Loading Offers...
+ Offers
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
⚡ High-Speed Connectivity: 24 Fast Ethernet ports (10/100 Mbps) with auto-negotiation for seamless data transfer
🏢 Flexible Installation: Durable metal housing supports both desktop and 19-inch rackmount setups
🌱 Energy-Efficient Design: IEEE 802.3az EEE technology reduces power consumption and saves energy
🔁 Reliable Performance: 4.8 Gbps switching capacity with non-blocking architecture for smooth traffic flow
📶 Enhanced Traffic Management: QoS support with 802.1p priority queuing for optimized voice and video
🔇 Silent Operation: Fanless design ensures quiet performance, perfect for office environments
🏢 Flexible Installation: Durable metal housing supports both desktop and 19-inch rackmount setups
🌱 Energy-Efficient Design: IEEE 802.3az EEE technology reduces power consumption and saves energy
🔁 Reliable Performance: 4.8 Gbps switching capacity with non-blocking architecture for smooth traffic flow
📶 Enhanced Traffic Management: QoS support with 802.1p priority queuing for optimized voice and video
🔇 Silent Operation: Fanless design ensures quiet performance, perfect for office environments

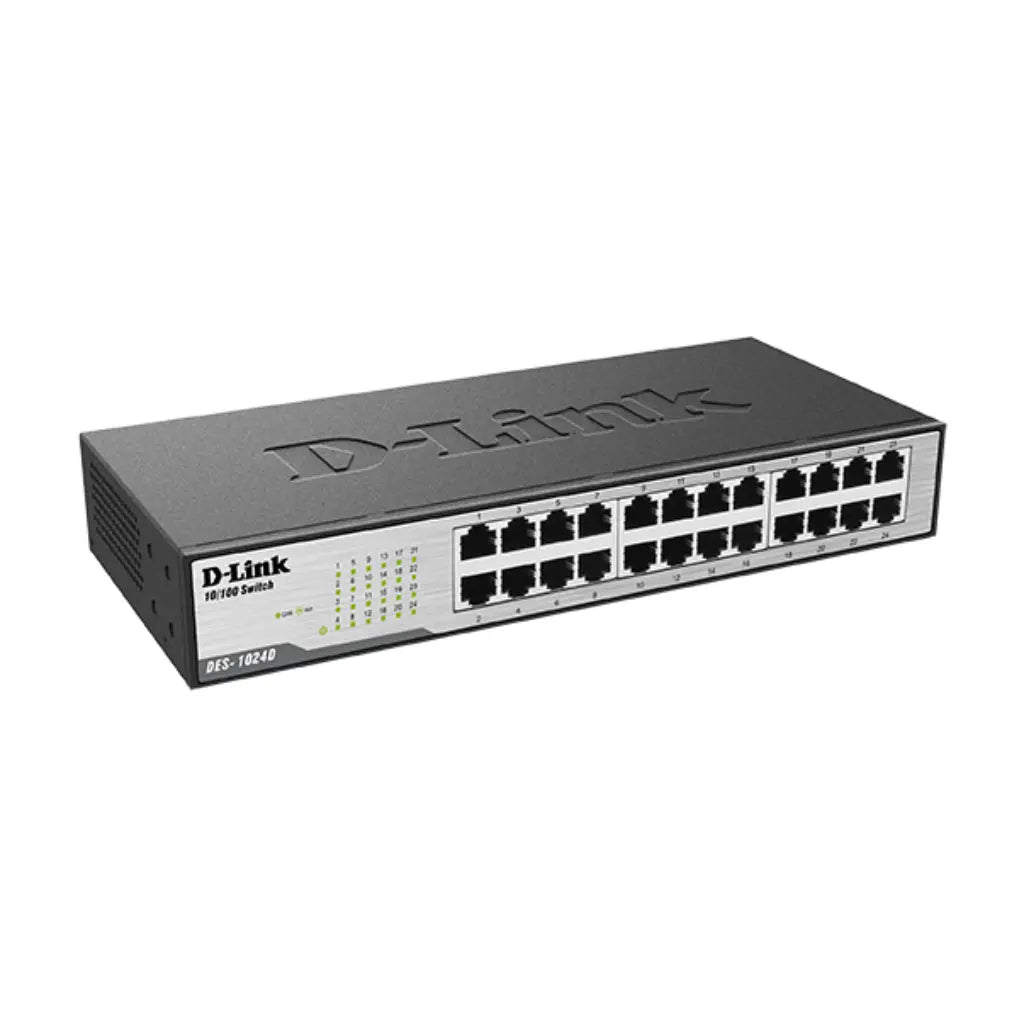

The D-Link DES-1024D is a 24-port unmanaged Fast Ethernet switch designed for small to medium-sized networks. It offers plug-and-play simplicity, robust metal housing, and versatile installation options. With energy-efficient technology and QoS support, it ensures reliable performance while reducing power consumption. Its fanless design guarantees silent operation for a noise-free workspace.
Product Specifications:
| Specification | Details |
| Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, ANSI/IEEE 802.3 NWay, IEEE 802.3x Flow Control, IEEE 802.3az EEE |
| LAN Compliance | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control |
| Data Transfer Rates | 10 Mbps Half-Duplex / 20 Mbps Full-Duplex (Ethernet), 100 Mbps Half-Duplex / 200 Mbps Full-Duplex (Fast Ethernet) |
| Switching Capacity | 4.8 Gbps |
| Packet Filtering/Forwarding Rate | 148,800 pps for 100 Mbps, 14,880 pps for 10 Mbps |
| Number of Ports | 24 × 10/100 Mbps Fast Ethernet ports |
| Network Cables | 10BASE-T: UTP CAT 3/4/5/5e (100 m max), 100BASE-TX: UTP CAT 5/5e (100 m max) |
| Media Interface Exchange | Auto MDI/MDIX adjustment for all ports |
| LED Indicators | Per port: Link/Activity; Per device: Power |
| Transmission Method | Store-and-forward |
| MAC Address Table | 8K entries per device |
| MAC Address Learning | Automatic update |
| Topology | Star |
| Protocol | CSMA/CD |
| Dimensions | 280 × 126 × 44 mm (11 × 4.96 × 1.73 inches) |
| Power Consumption | Standard: 1.32 W; Maximum: 4.73 W |
| Heat Dissipation | Maximum: 16.1394 BTU/h |
| MTBF | 1,257,498 hours |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | -10 to 70 °C (14 to 158 °F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Country of Origin | China |
| Weight | 0.95 kg |
| Warranty | Limited Lifetime Warranty |
| Model Number | DES-1024D |
