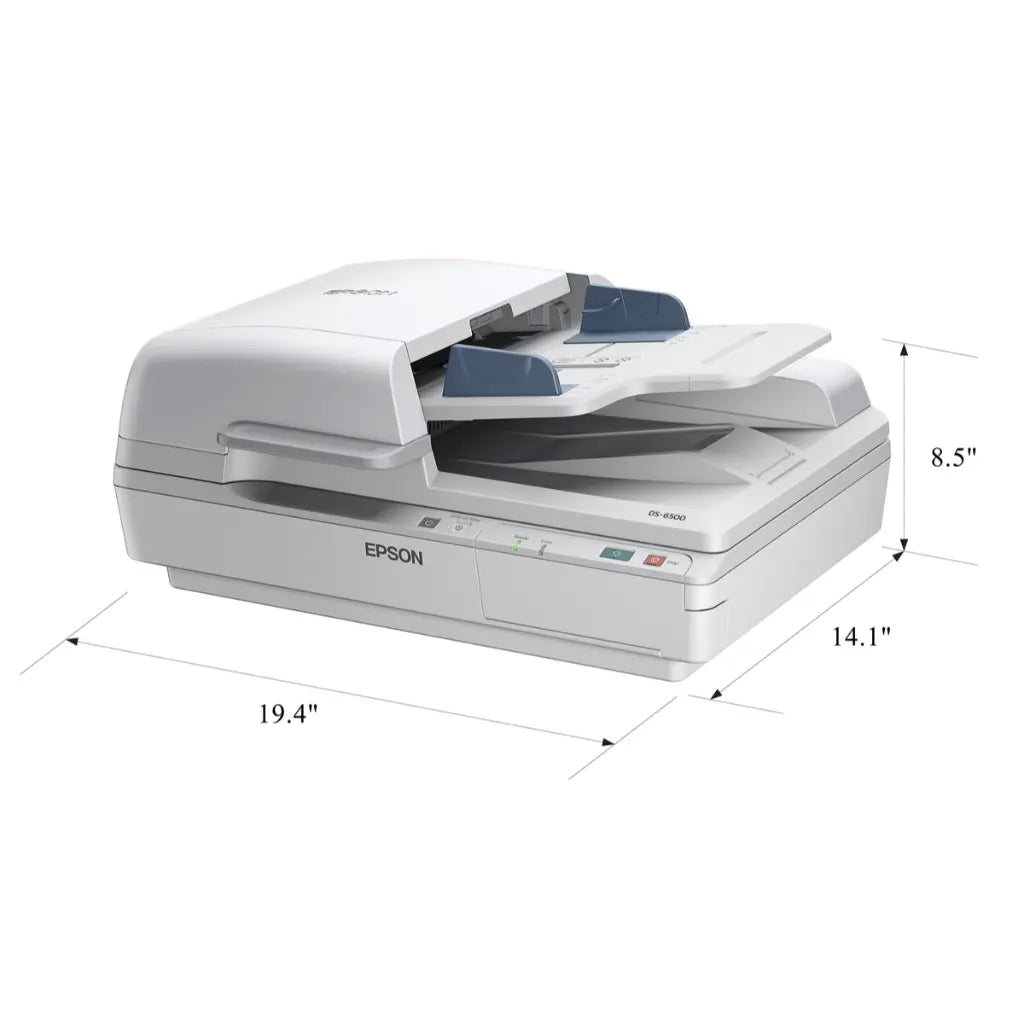

Epson WorkForce DS-6500 Flatbed Document Scanner with Duplex ADF

Epson WorkForce DS-6500 Flatbed Document Scanner with Duplex ADF

Brand: EPSON

Product Description:

🔄 One-pass duplex scanning – Capture both sides in a single pass at up to 25 ppm/50 ipm for fast, efficient document processing.

📚 Flatbed + ADF versatility – Scan bound or odd-sized documents via the 8.5″×11.7″ flatbed; feed long documents up to 8.5″×40″ through the 100-sheet ADF.

🔍 High-resolution CCD sensor – 4-line CCD delivers up to 1,200 dpi resolution with vivid color (48-bit) and clear text.

🛡️ Built for durability – Rated for a 3,000-page daily duty cycle with an ultrasonic double-feed detector to prevent jams.

🌐 Connectivity & software – Hi-Speed USB 2.0, optional Ethernet, TWAIN/ISIS drivers, plus Epson Scan, Document Capture Pro and ABBYY OCR included.

☁️ Workflow & cloud features – Scan directly to SharePoint, Google Docs, Evernote; create searchable PDFs and assign up to 30 one-touch jobs.

The Epson WorkForce DS‑6500 is a robust two-in-one document scanner combining a versatile flatbed with a high-capacity duplex ADF, ideal for busy offices. Its 4-line CCD sensor delivers sharp, true-to-life color at up to 1,200 dpi resolution, while one-pass duplex scanning speeds of 25 ppm/50 ipm significantly enhance productivity. Built for reliability, it supports up to 3,000 pages daily and includes safety features like ultrasonic double-feed detection. With USB, optional Ethernet connectivity, powerful bundled software, and cloud integration, it offers seamless scanning workflows and searchable PDF output—perfect for modern digitization needs.

Product Specifications:
Specification Details
Scanner Type (Flatbed) A4 flatbed colour image scanner
Sensor Type 4-line colour CCD
Light Source White LED
Optical Resolution (Flatbed) 1,200 dpi x 1,200 dpi
Output Resolution (Flatbed) 50 dpi – 4,800 dpi (1 dpi increments), 7,200 dpi and 9,600 dpi
Scanner Bit Depth (Colour) 48-bit input, 24-bit output
Scanner Bit Depth (Grayscale) 16-bit input, 8-bit output
Scanner Bit Depth (B&W) 16-bit input, 1-bit output
Max Document Size (Flatbed) 216 x 297 mm
Output File Formats JPEG, TIFF, Multi-TIFF, PDF, BMP
Document Capture Pro (Win) JPEG, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX
ADF Scanner Type A4 sheet-fed, one-pass duplex scanner
ADF Optical Sensor 4-line colour CCD
ADF Light Source White LED
ADF Optical Resolution 600 dpi x 600 dpi
ADF Output Resolution 50 – 600 dpi (in 1 dpi increments)
ADF Min Document Size 100 mm x 148 mm
ADF Max Document Size 215.9 mm x 1,016 mm
Support Paper Thickness 50 gsm – 128 gsm
ADF Capacity 100 sheets
Automatic Duplex Scanning Yes
Daily Duty Cycle Up to 4,000 pages/day
Multi-feed Detection Ultrasonic sensor
Weight Approx. 9.8 kg
Warranty 1-year limited warranty
Model Number B11B205501
Country of Origin Indonesia
