GIGABYTE B550M AORUS ELITE AX WiFi Ultra Durable AMD AM4 Micro ATX DDR4 Motherboard

GIGABYTE B550M AORUS ELITE AX WiFi Ultra Durable AMD AM4 Micro ATX DDR4 Motherboard

Brand: GIGABYTE
Rs. 10,799.00
40% off Rs. 10,799.00 Sale Sold out Rs. 17,850.00
Taxes included. Free Shipping.

Product Description:
GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

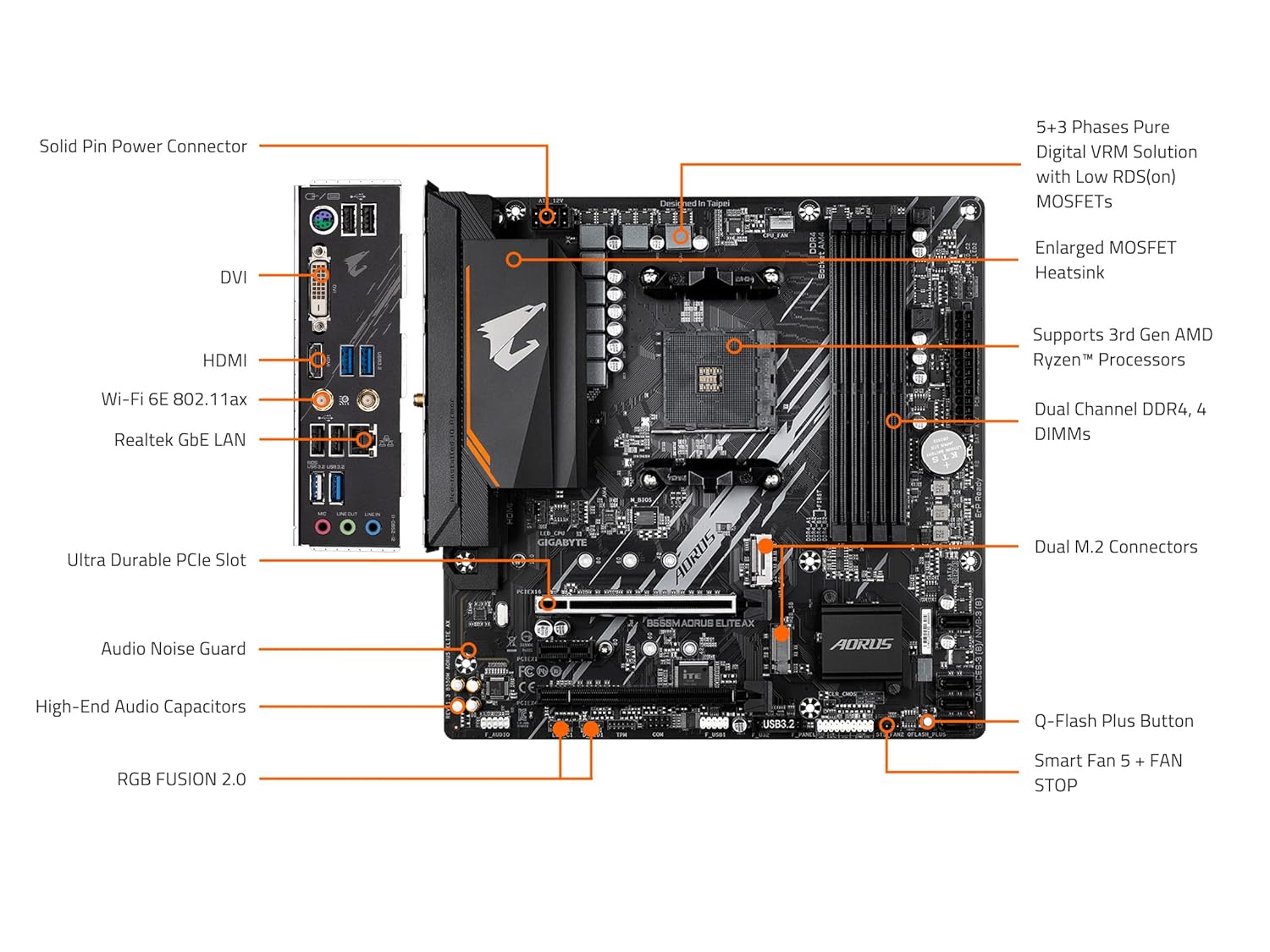

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • Onboard Wi-Fi 6E 802.11ax & BT 5.3
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek GbE LAN with Bandwidth Management
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
    Anti-Sulfur Resistors Design

Model B550M AORUS ELITE AX
CPU Support AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series, Ryzen 3000 Series and Ryzen 3000 G-Series Processors
Chipset AMD B550
Memory
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor with AMD Radeon Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Maximum shared memory of 16 GB
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module

Realtek Wi-Fi 6E RTL8852CE

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard
Expansion Slots
 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  1. AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode

  2. AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
  1. Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
  1. Supporting PCIe 3.0 x1 mode
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  1. AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
  1. Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
  1. Support for RAID 0, RAID 1, and RAID 10
USB CPU:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Storage Interface 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

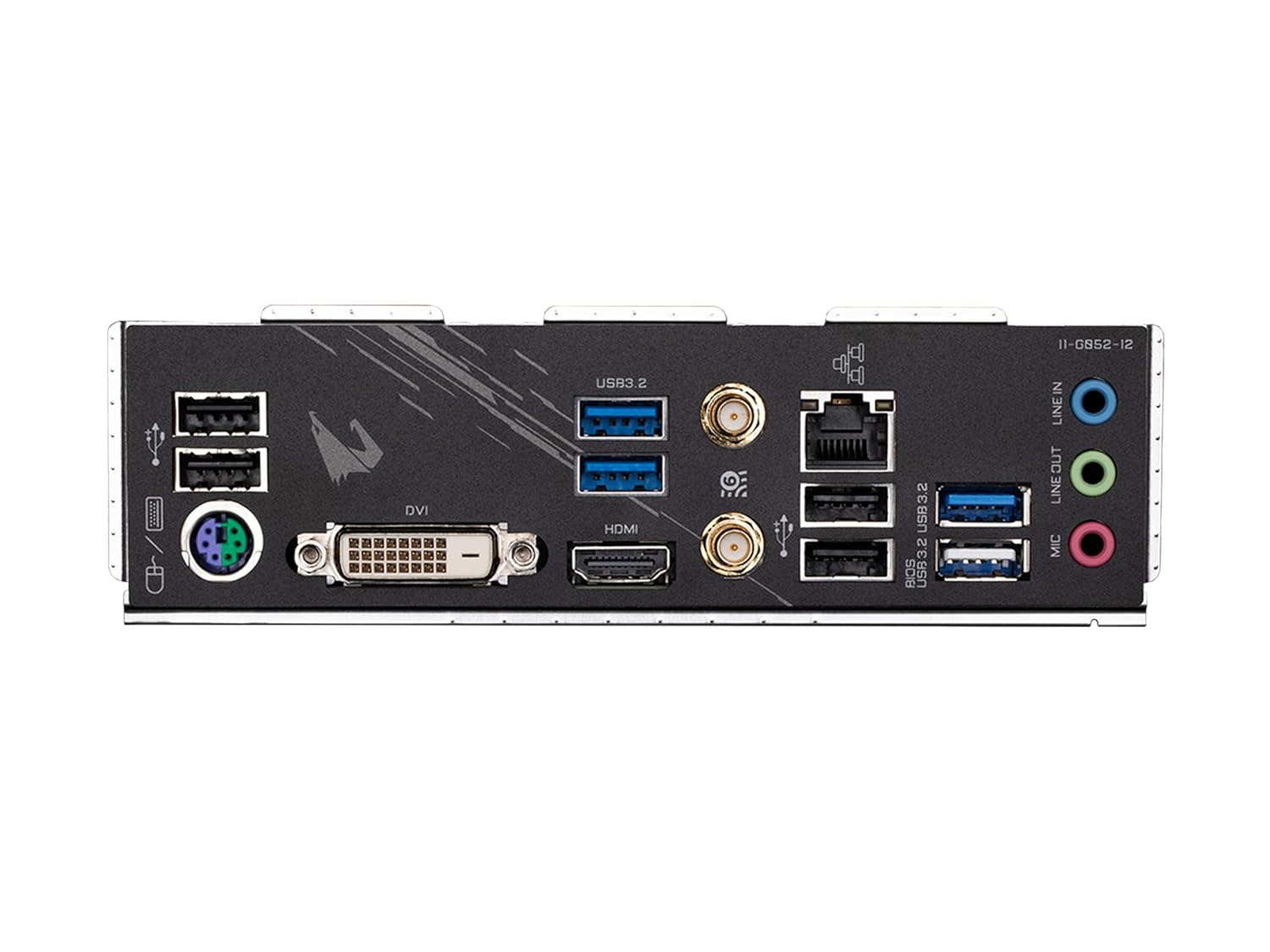

Back Panel Connectors 1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    @BIOS
    EasyTune
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor
24.4cm x 24.4cm
Warranty 3 Years Brand Warranty
