GIGABYTE B550M AORUS Pro AX (rev. 1.0) AMD B550 AMD AM4 Micro-ATX Motherboard
GIGABYTE B550M AORUS Pro AX (rev. 1.0) AMD B550 AMD AM4 Micro-ATX Motherboard
Brand: GIGABYTE
Regular price
Rs. 15,549.00
Sale price
16% off Rs. 15,549.00
Sale
Sold out
Regular price
Rs. 18,499.00
Unit price
/
per
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:

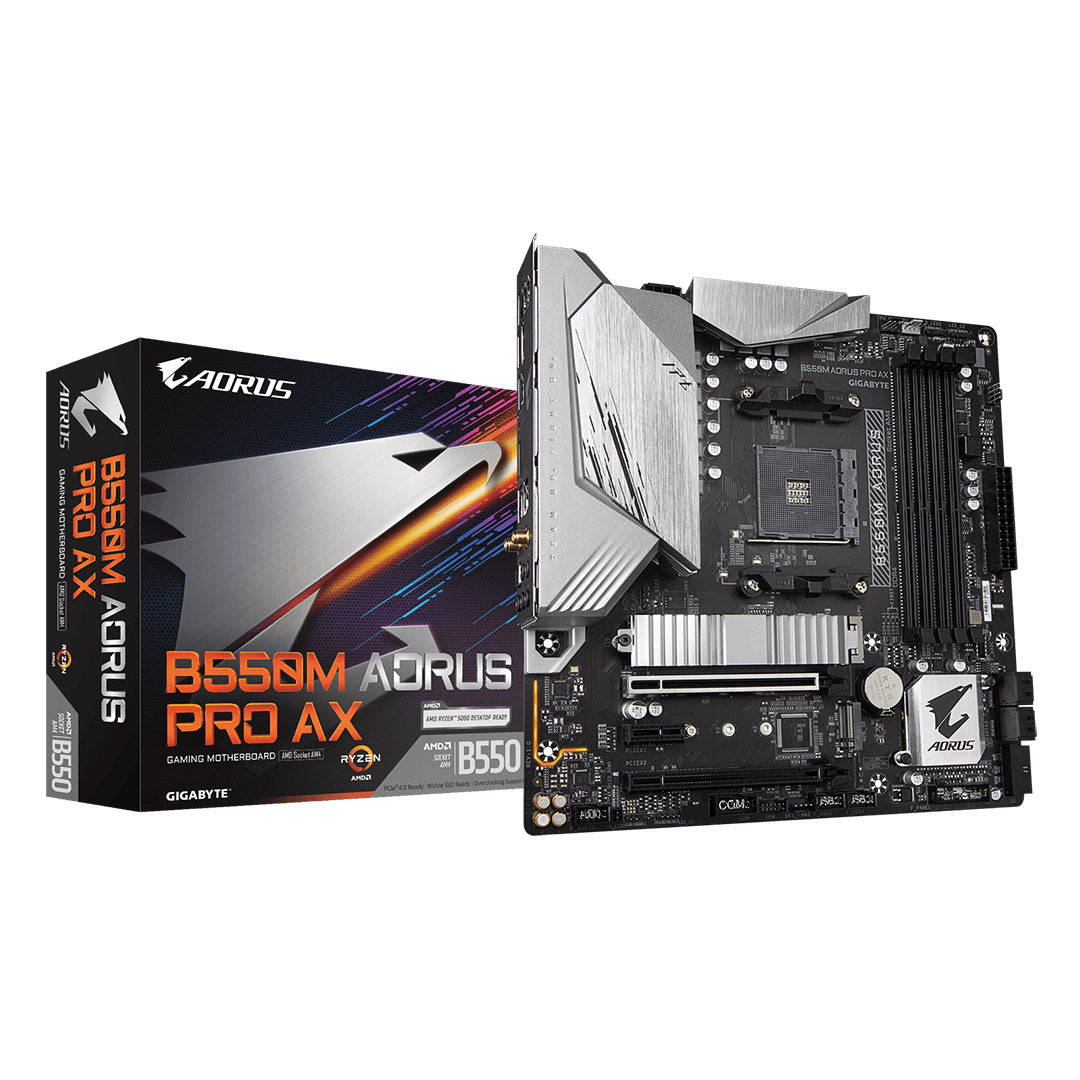

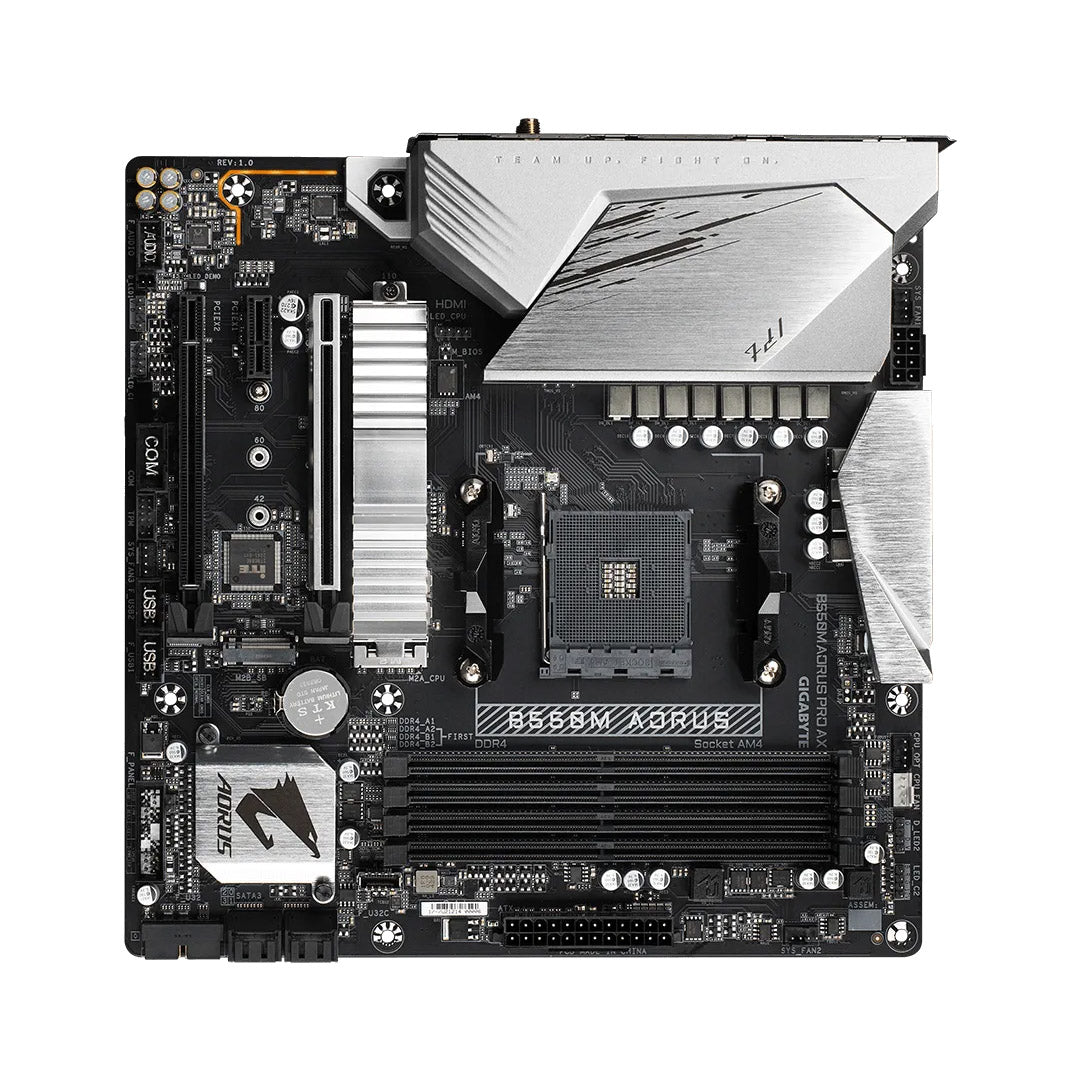

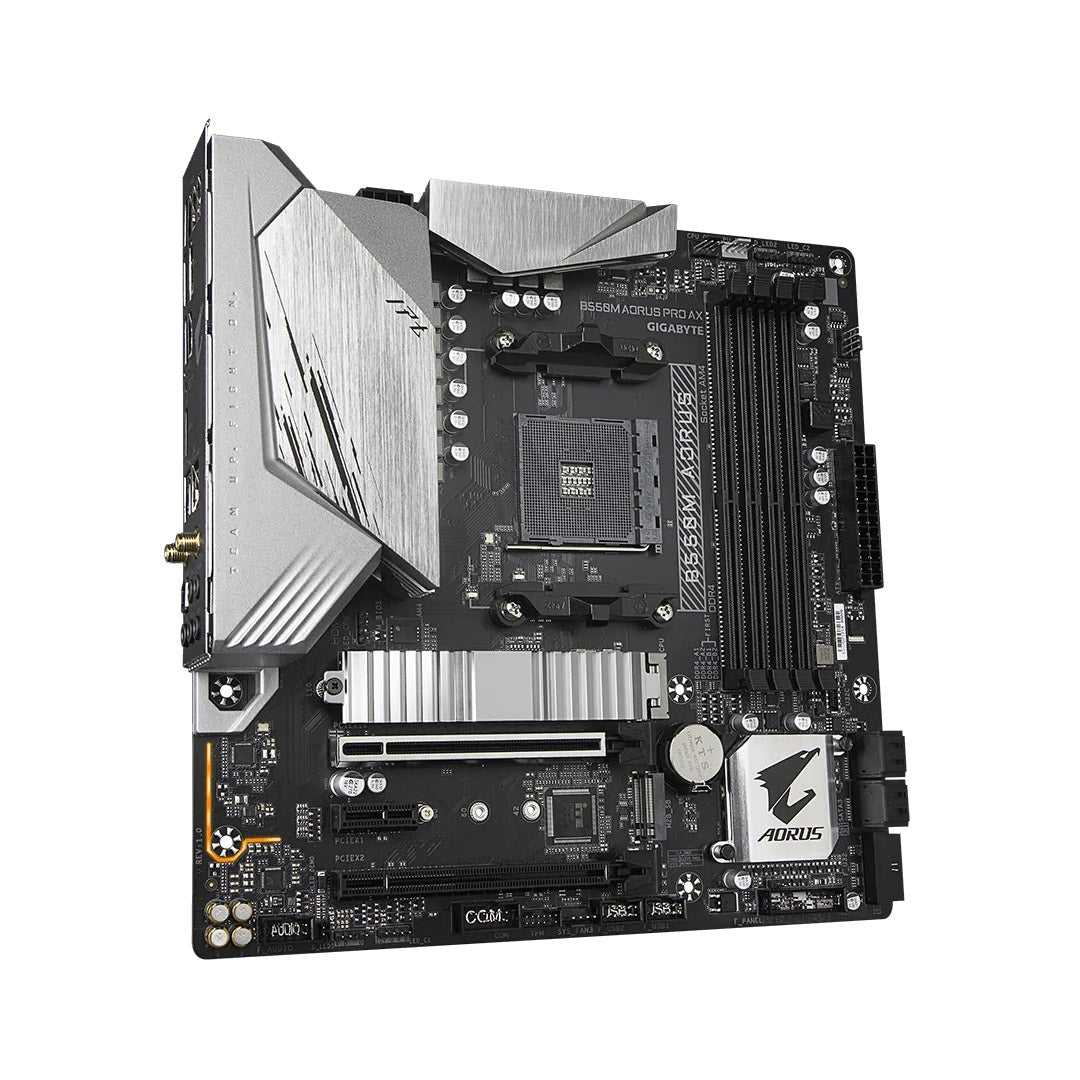

- GIGABYTE B550M AORUS Pro AX WIFI motherboard is designed to support latest AMD AM4 socket for AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series and Ryzen 3000 Series.
- The board is PCIe 4.0 Ready supporting up to 128GB DDR4 5100MHz (OC) of memory push your gaming experience to its peak. The board support next gen PCIe 4.0 video-cards making it future proof.
- Enjoy extended connectivity with the next-gen technology of PCIe 4.0, WIFI 6, Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C, USB 3.2 ports and Two M.2 slots.
- B550 motherboards are equipped with high quality audio components to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
- The Micro-ATX motherboard comes with Q-Flash Plus enabling you to update the BIOS easily without installing the CPU, memory and graphics card.
~section~
Model | GIGABYTE B550M AORUS PRO AX (rev. 1.0) Motherboard |
CPU Socket | AMD AM4 |
CPU Support | AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series and Ryzen 3000 Series |
Chipset | Intel B550 |
Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual Channel Memory Architecture |
On-Board Graphics support | 1 x HDMI 1 x DisplayPort |
Expansion Slot | 1 x PCI Express x16 slot (PCIEX16) 1 x PCI Express x16 slot (PCIEX16) 1 x PCI Express x1 slot (PCIEX1) |
Wi-Fi / Bluetooth | Intel Wi-Fi 6 AX200 Bluetooth 5.1 |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
Storage | 1 x M.2 connector integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs 1 x M.2 connector integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset |
Audio | Realtek ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
USB Ports | 3 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A 2 x USB 2.0/1.1 ports 1 x USB Type-C 1 x USB Type-C 1 x USB Type-C 3 x USB 2.0/1.1 3 x USB 2.0/1.1 |

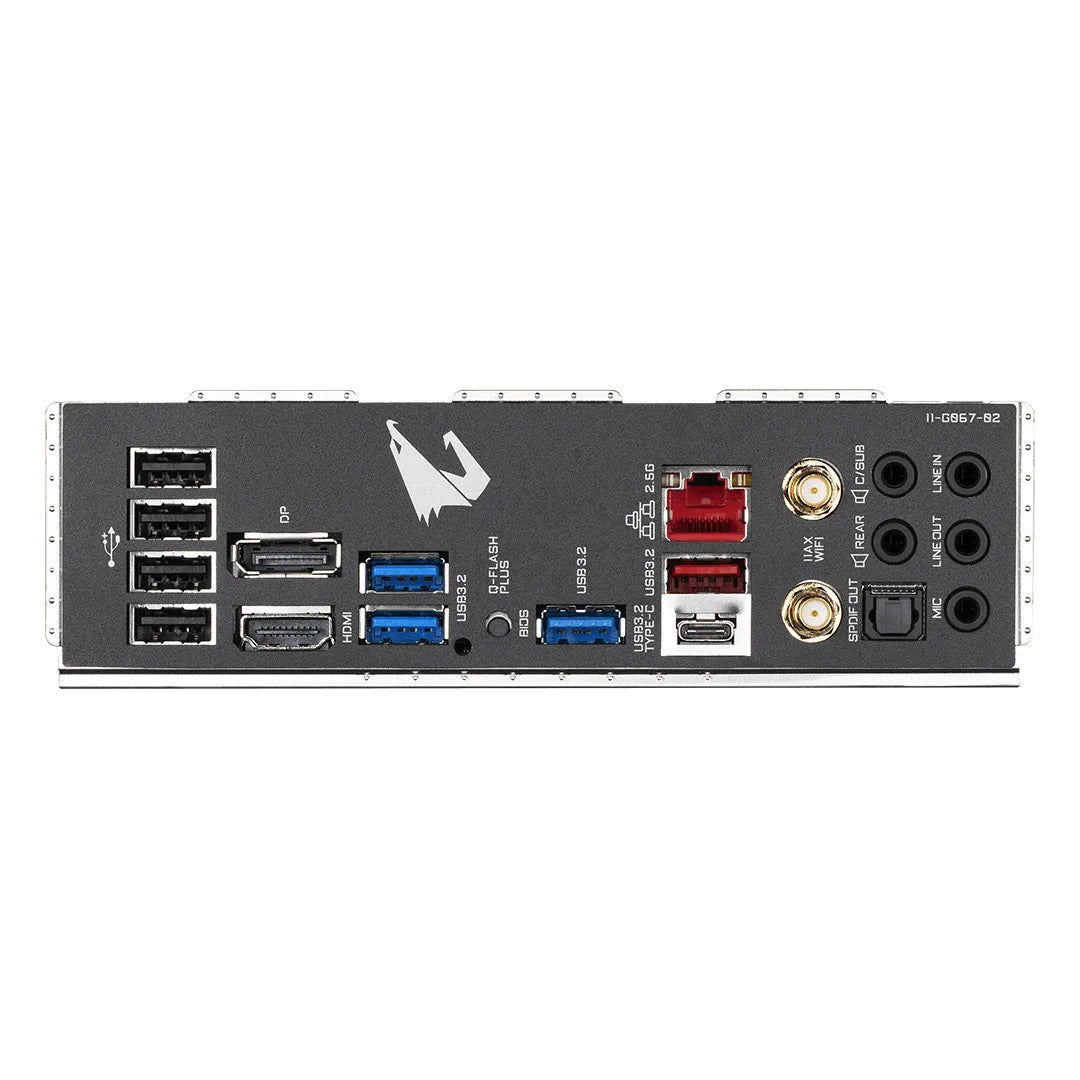

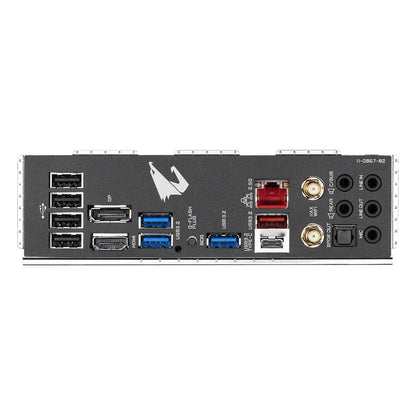

Back Panel I/O Ports | 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
Internal I/O ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
Operating System | Windows 11 64-bit Windows 10 64-bit |
Dimensions | 24.4cm x 24.4cm Micro-ATX Form Factor |
Warranty | 3 Years of Brand Warranty |
