Highlights:

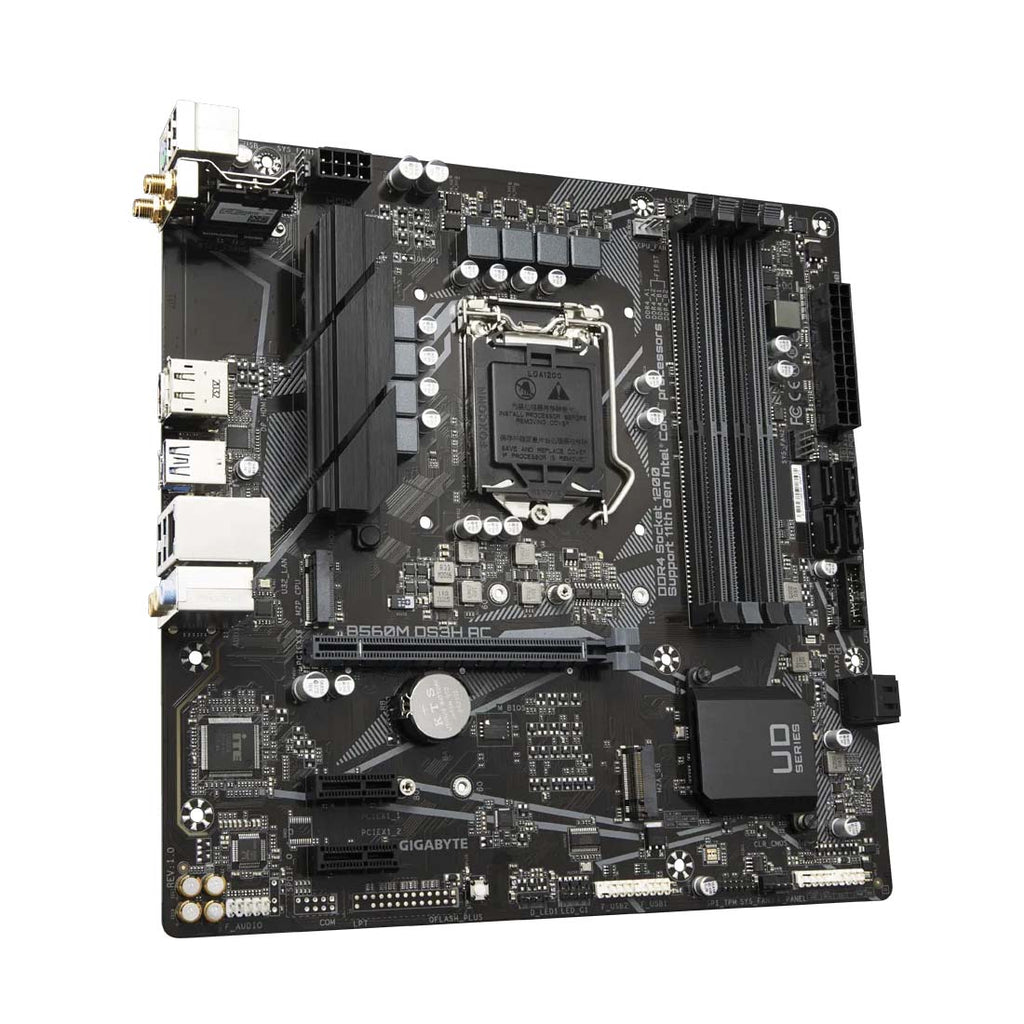

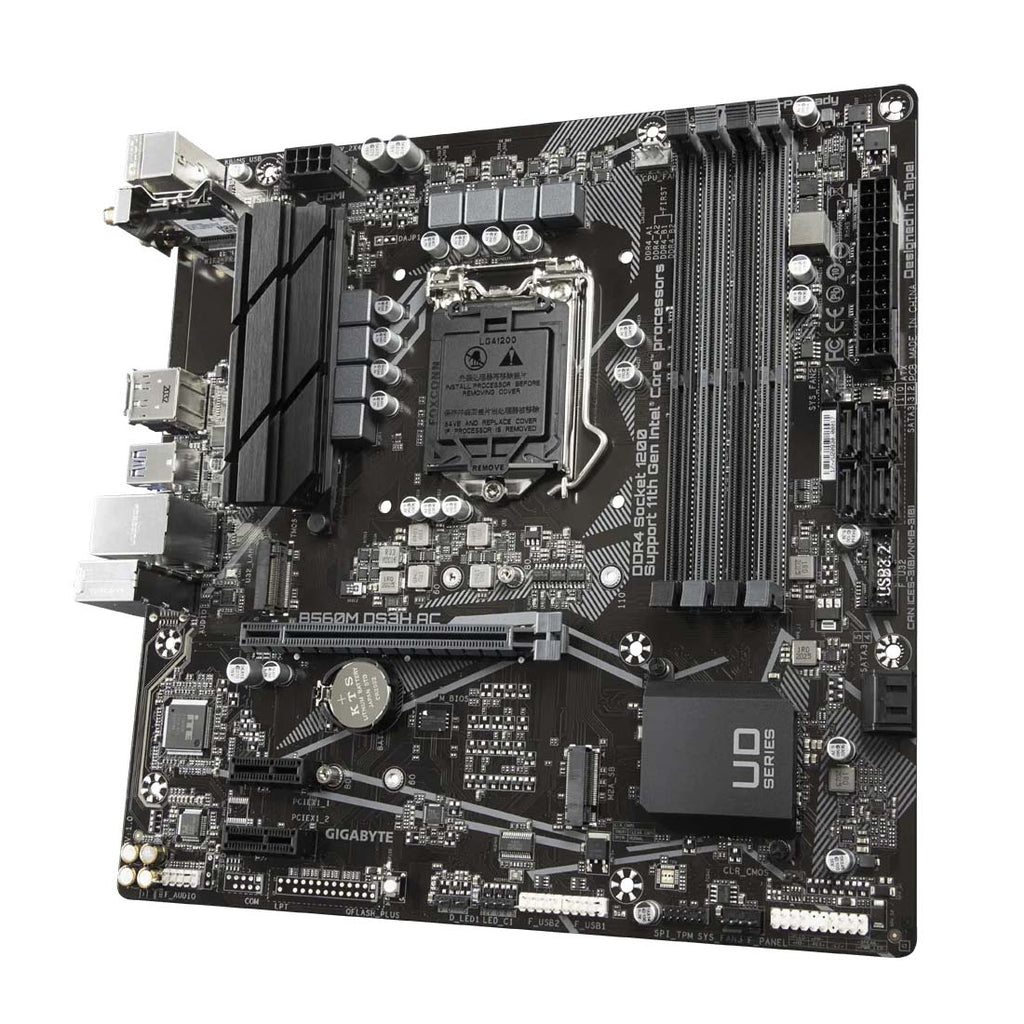

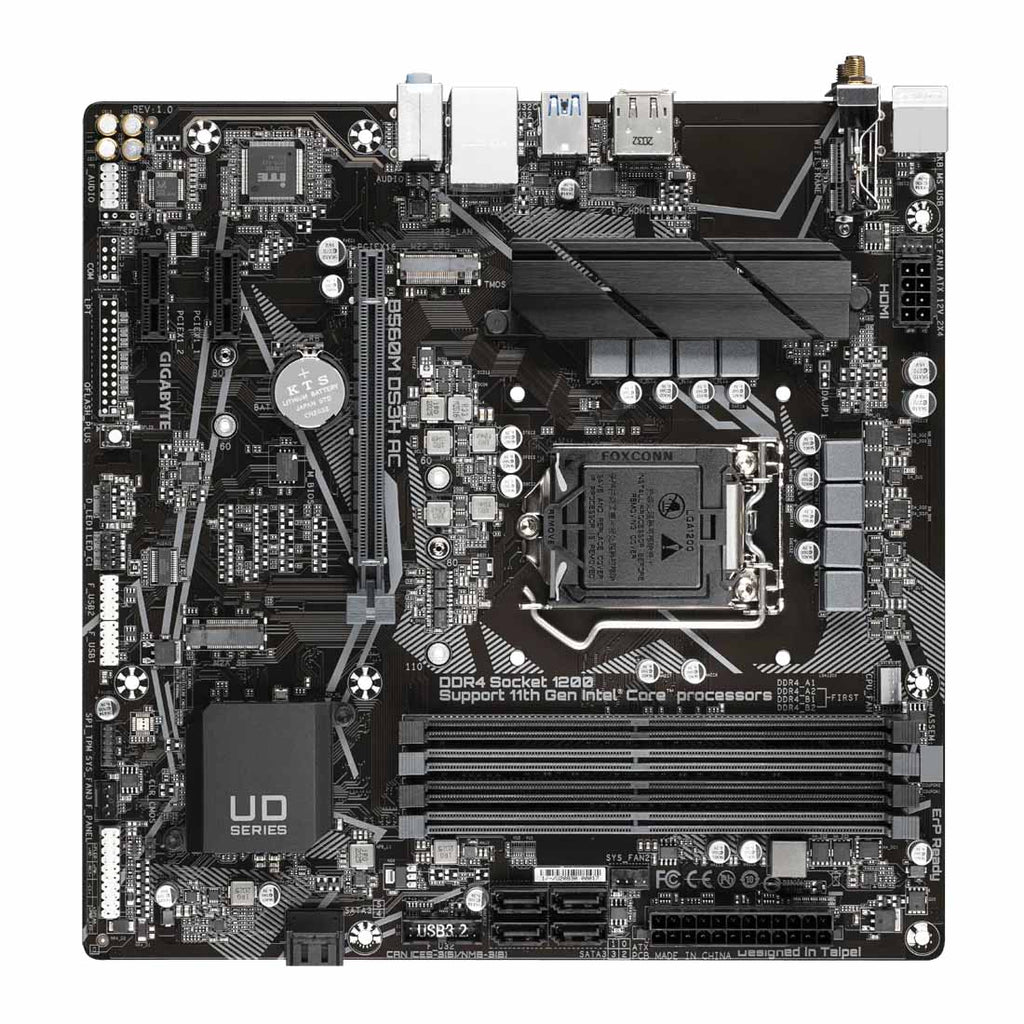

- GIGABYTE B560M DS3H AC WIFI Micro-ATX DDR4 motherboard is designed to support latest Intel Socket LGA 1200 for 11th and 10th Gen Intel Core processors and Pentium Gold and Celeron Processors.
- The GIGABYTE B560 WIFI motherboard is PCIe 4.0 Ready supporting up to 128GB DDR4 4600MHz of memory and Intel Extreme Memory Profile (XMP). The DDR4 GIGABYTE motherboard support next gen PCIe 4.0 slots.
- Enjoy extended connectivity with the next-gen technology of WIFI, Bluetooth 4.2, PCIe 4.0, Realtek Ethernet, M.2 Slots, USB 3.2 Gen 1 connector, USB-C and more.
| Model | GIGABYTE B560M DS3H Micro-ATX Motherboard |
| CPU Support | Supports 11th & 10th Gen i9/i7/i5/i3 Intel Core Processors, Pentium Gold and Celeron Processors |
| CPU Socket | LGA 1200 |
| Chipset | Intel B560 Express Chipset |
| Form Factor | Micro-ATX |
| Memory | 4x DDR4 memory slots, supporting up to 128GB 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Supports Dual-Channel mode Supports Intel Extreme Memory Profile (XMP) |
| Expansion Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2 x PCI Express x1 slot, supporting PCIe 3.0 |
| Onboard Graphics | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| Wireless & Bluetooth | WIFI 802.11a/b/g/n/ac Bluetooth 4.2 |
| Storage | 1 x M.2 connector 6 x SATA 6Gb/s connectors |
| USB | 1 x USB Type-C 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
| LAN | Realtek GbE LAN chip (1000/100 Mbit) |
| Audio | Realtek Audio Codec |

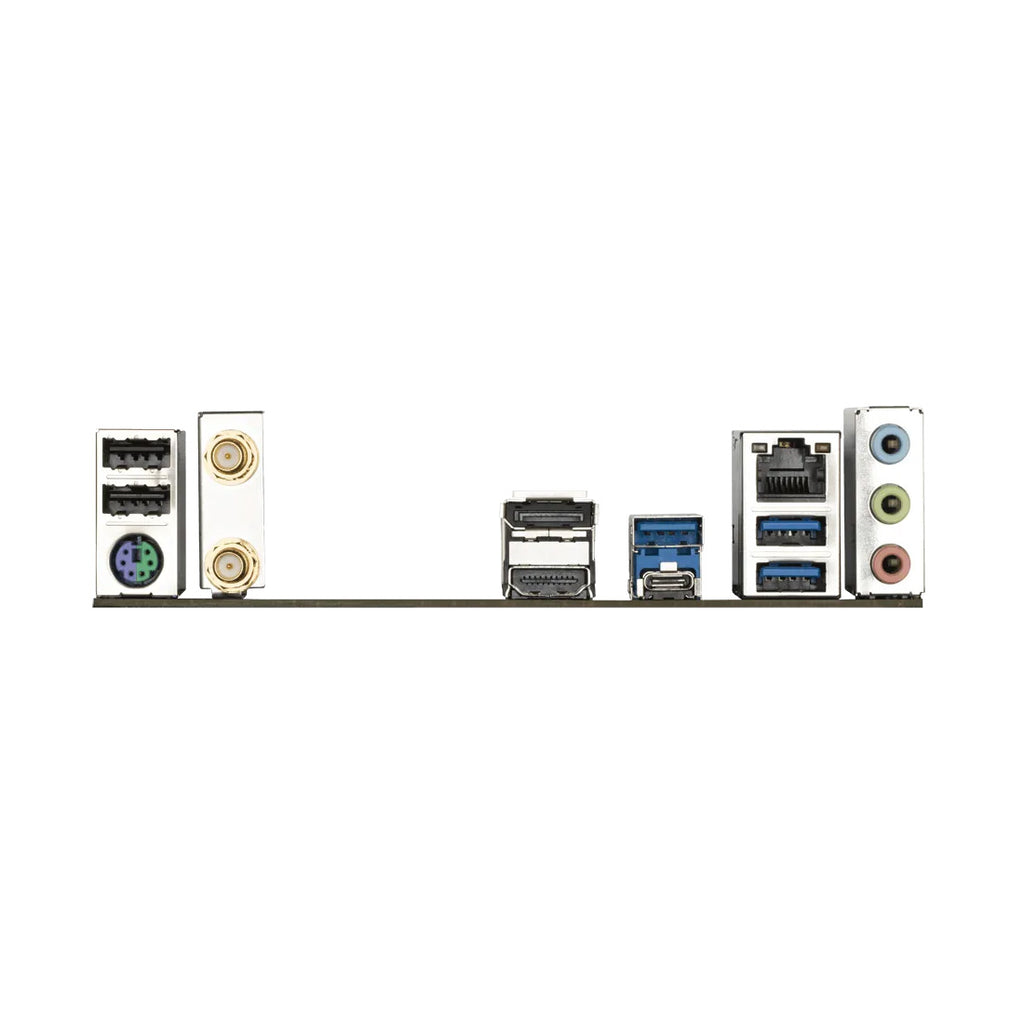

| BackPanel Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Dimension | Micro-ATX 24.4cm x 22.5cm |
| Warranty | 3 Years Brand Warranty |
