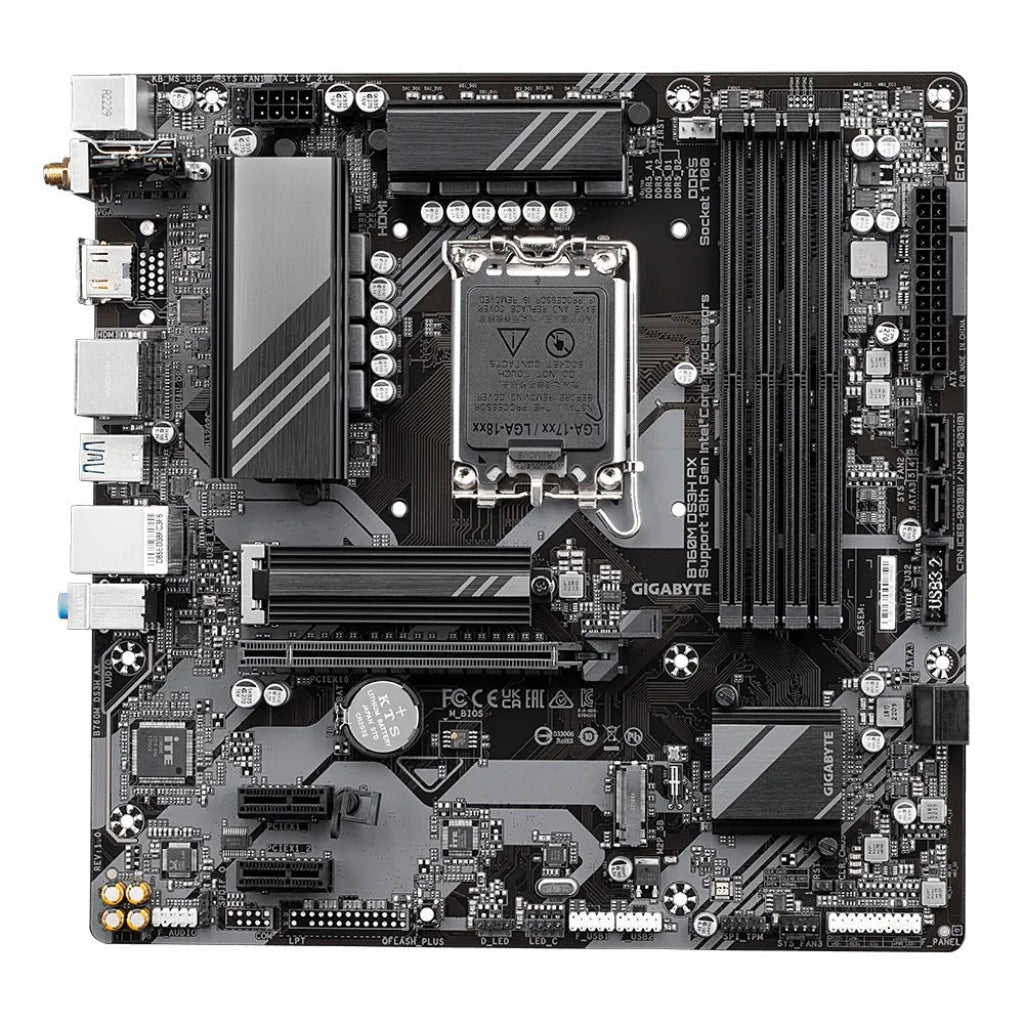

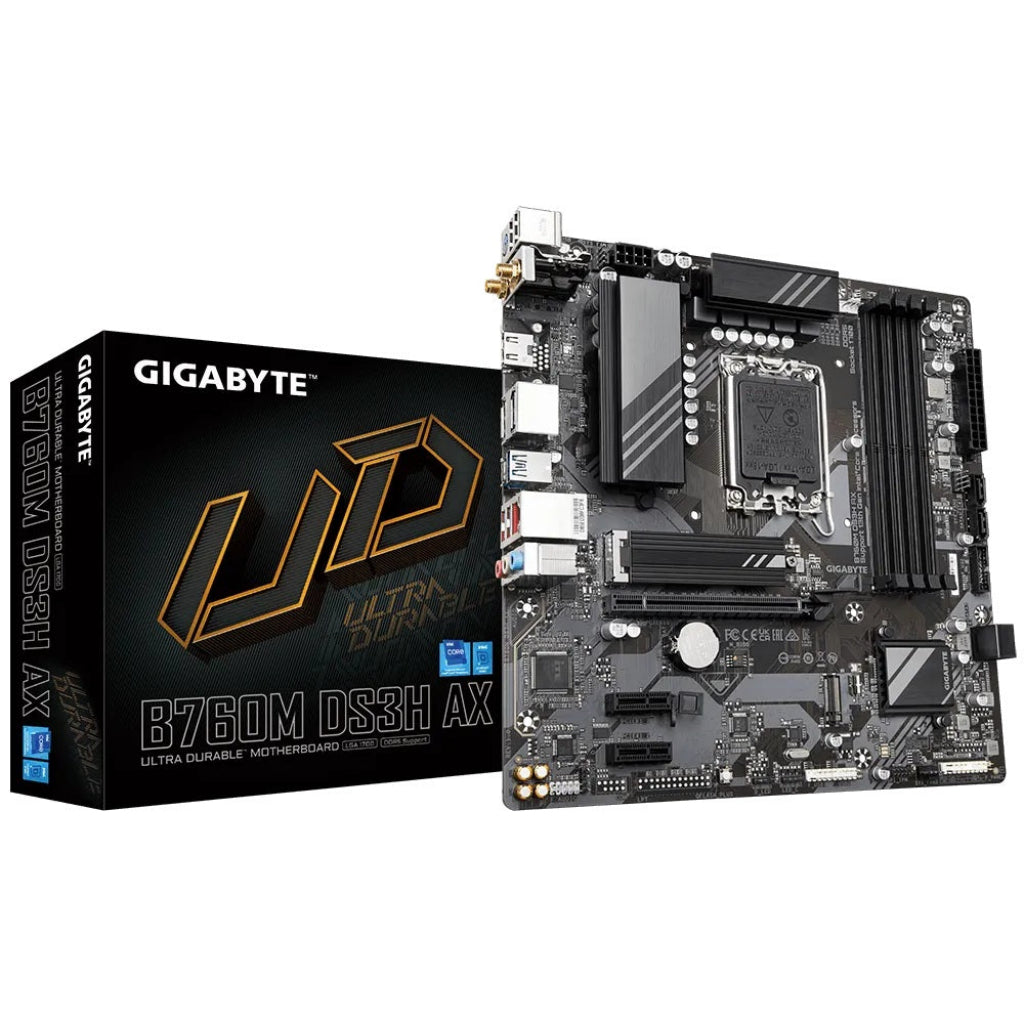

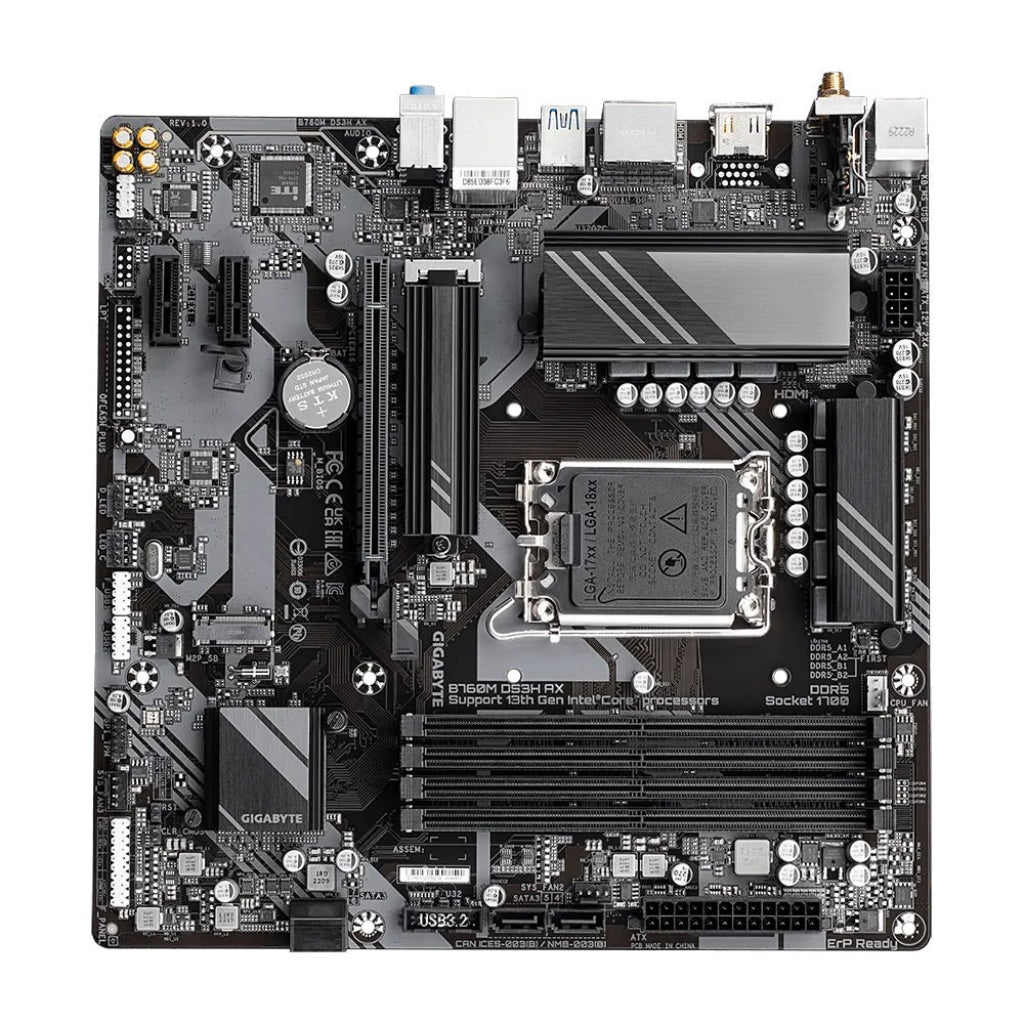

GIGABYTE B760M DS3H AX DDR5 WIFI Intel B760 LGA 1700 Micro-ATX Motherboard
GIGABYTE B760M DS3H AX DDR5 WIFI Intel B760 LGA 1700 Micro-ATX Motherboard
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
GIGABYTE B760M DS3H AX WIFI Gaming motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen Intel Core Processors, 12th Gen Intel Core processors, Pentium Gold and Celeron Processors.
The board is PCIe 4.0 Ready supporting up to 128GB DDR4 5333MHz (OC) of memory push your gaming experience to its peak. The board support next gen PCIe 4.0 video-cards making it future prrof.
Enjoy extended connectivity with the next-gen technology of Wi-Fi 6E, PCIe 4.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2, USB Type-C and Four M.2 slots.
Features the most comprehensive cooling options with M.2 Thermal Guard and Smart Fan 6 that ensure gaming PC maintain its performance while staying cool and quiet. This motherboard offers rock-solid and stable performance for marathon gaming.
The Micro-ATX motherboard comes with DIY Friendly features. With the Q-Flash Plus, can update the BIOS easily without installing the CPU, memory and graphics card.
Four M.2 Slots
With four strategically placed M.2 slots, B760 leverages mighty CPU and chipset bandwidth to deliver lightning-fast data transfers that blaze past traditional SATA-based SSDs.
PCIE 4.0 Ready
GIGABYTE B760M Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices.
DDR4 Overclocking
B760M is offering a tested and proven platform that has memory overclocking capability up to 5333. For DDR4 XMP Memory, need to do to attain high memory performance boost is to ensure that their memory module is XMP capable.
GIGABYTE M.2 Thermal Guard
GIGABYTE Motherboards unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
WIFI 6E
Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand-new frequency to transfer data, but also spacious spectrum for future more devices.
2.5GbE LAN
Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
USB 3.2 Gen 2x2 Type-C
The USB Type-C is a new reversible connector that is loaded with useful features such as USB 3.2 Gen 2 support for 10Gb/s transfer speed.
GIGABYTE System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
Model | GIGABYTE B760M DS3H AX Motherboard |
CPU Socket | Intel Socket LGA 1700 |
CPU Support | Intel 13th Gen, 12th Gen Intel Core, Pentium Gold and Celeron Processors. |
Chipset | Intel B760 |
Memory | 4 x DIMM, Max. 128GB, Supports DDR4 5333 (O.C.) ECC and non-ECC, un-buffered memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
On-Board Graphics support | Integrated Graphics Processor-Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz (Support for DisplayPort 1.2 version and HDCP 2.3) 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz (Support for DisplayPort 1.2 version) |
Expansion Slot |
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
Wireless and Bluetooth | Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band Bluetooth 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
Storage |
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
Audio | Realtek Audio CODEC High-Definition Audio 2/4/5.1/7.1-channel |
USB Ports |
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers |

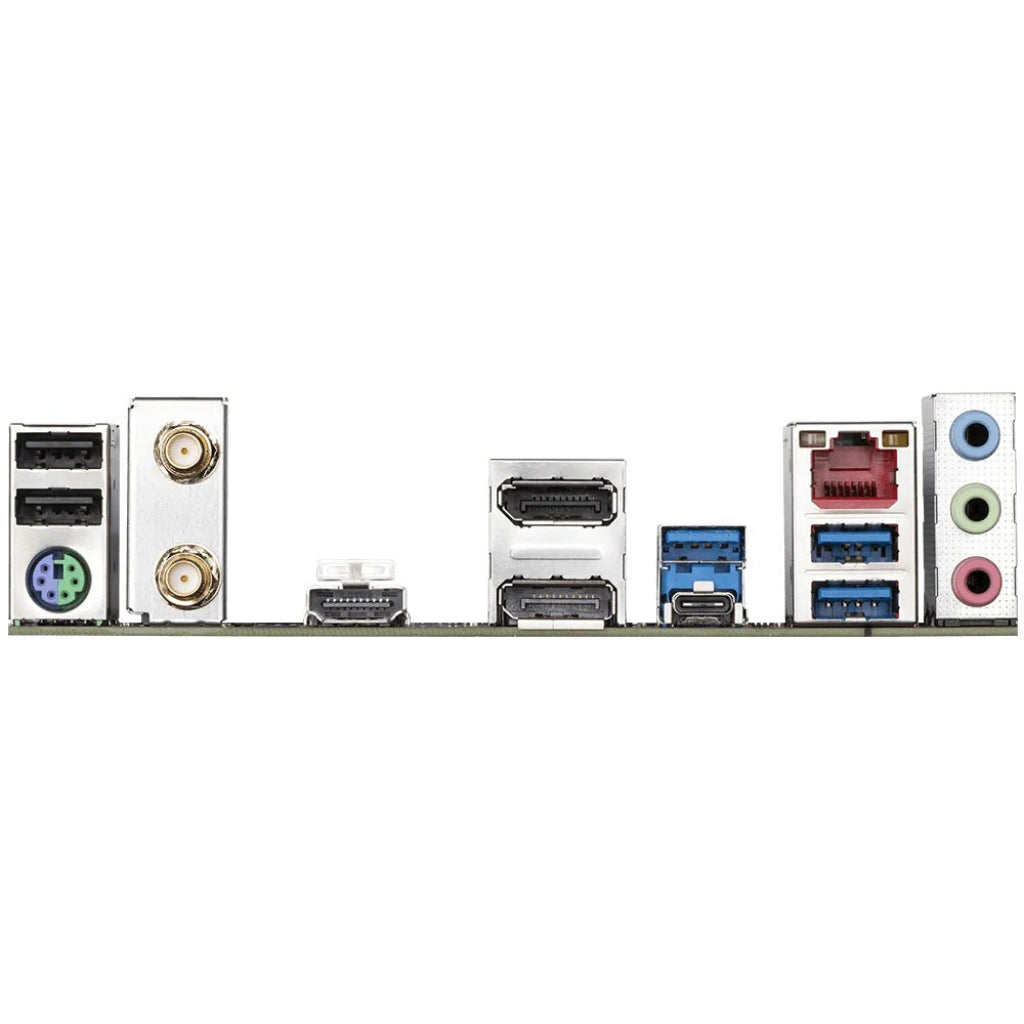

Back Panel I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
Internal I/O ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connectors 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
Operating System | Windows 11 64-bit Windows 10 64-bit |
Dimensions | 24.4cm x 24.4cm Micro-ATX Form Factor |
Warranty | 3 Years of Brand Warranty |
