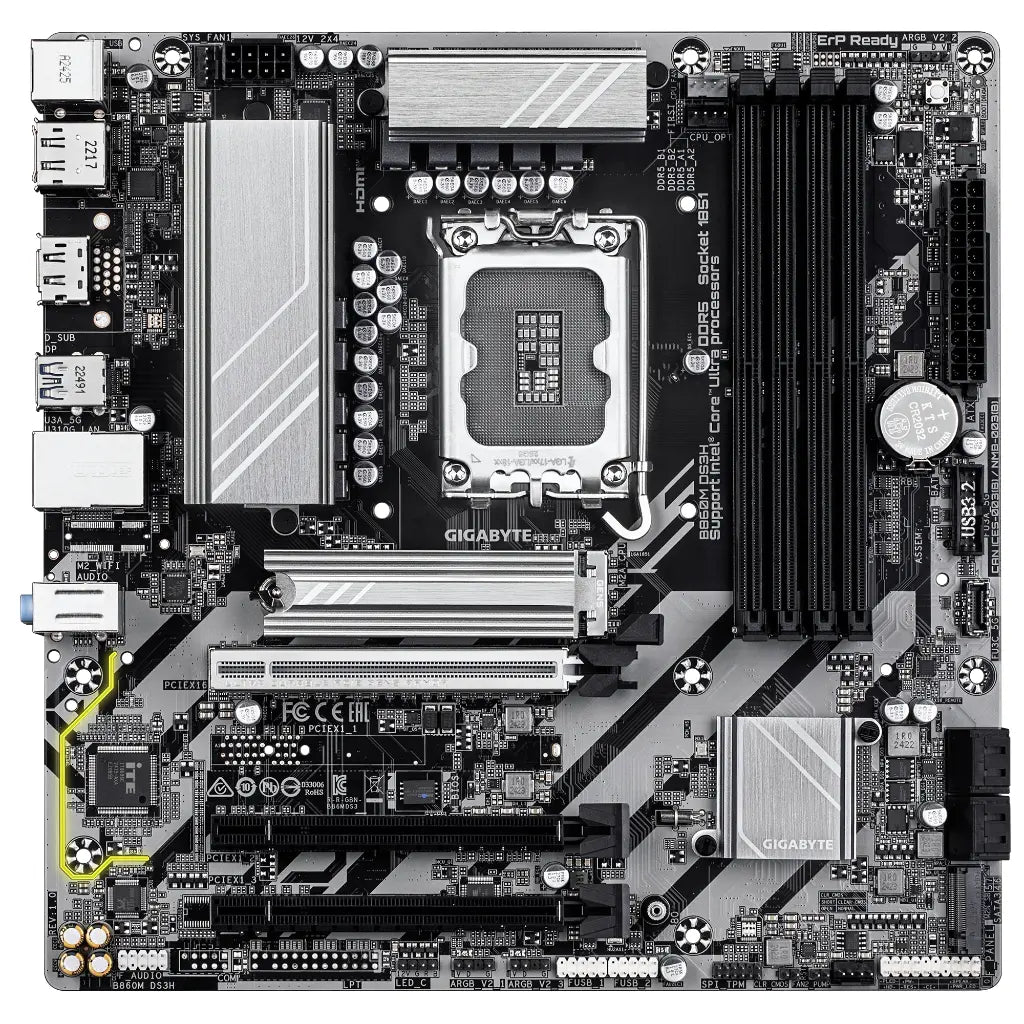

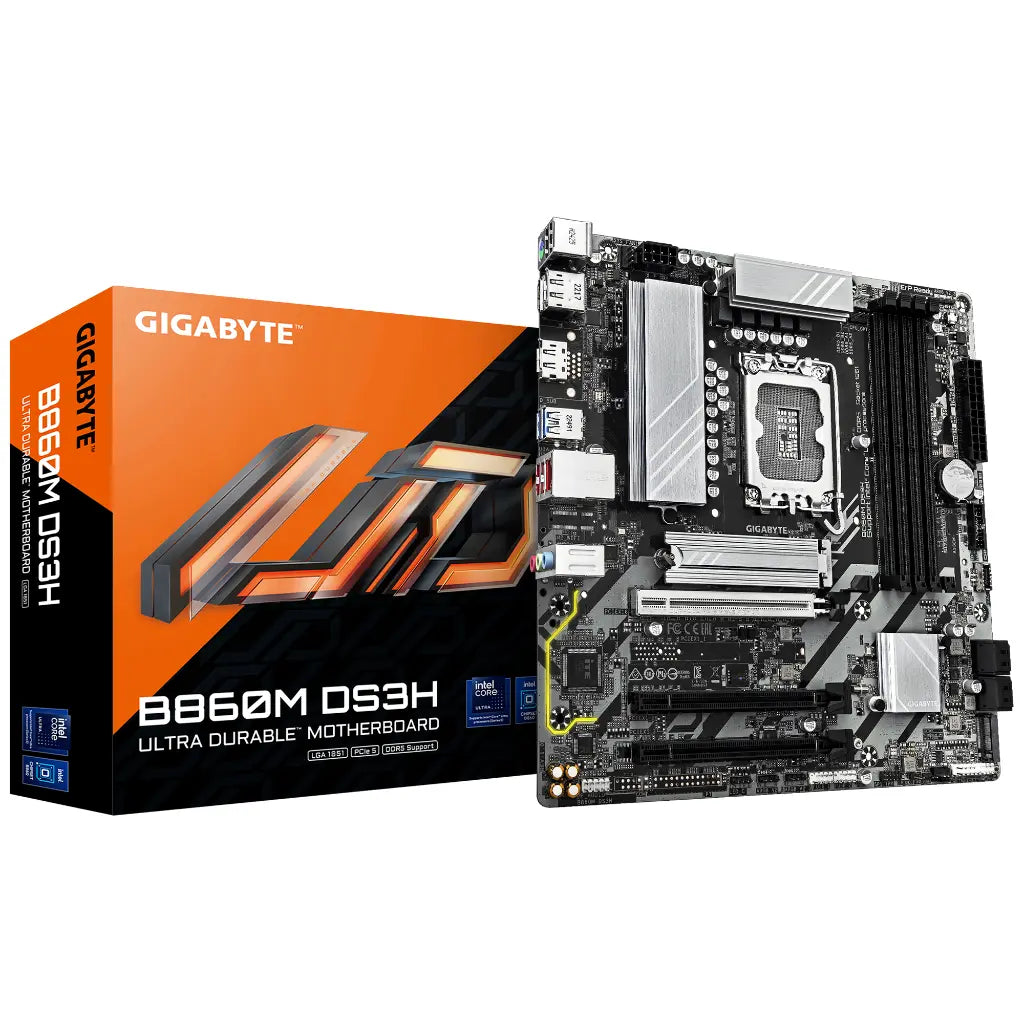

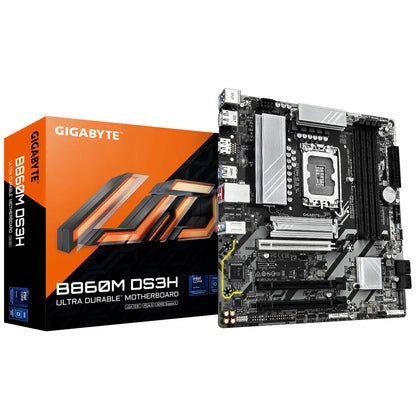

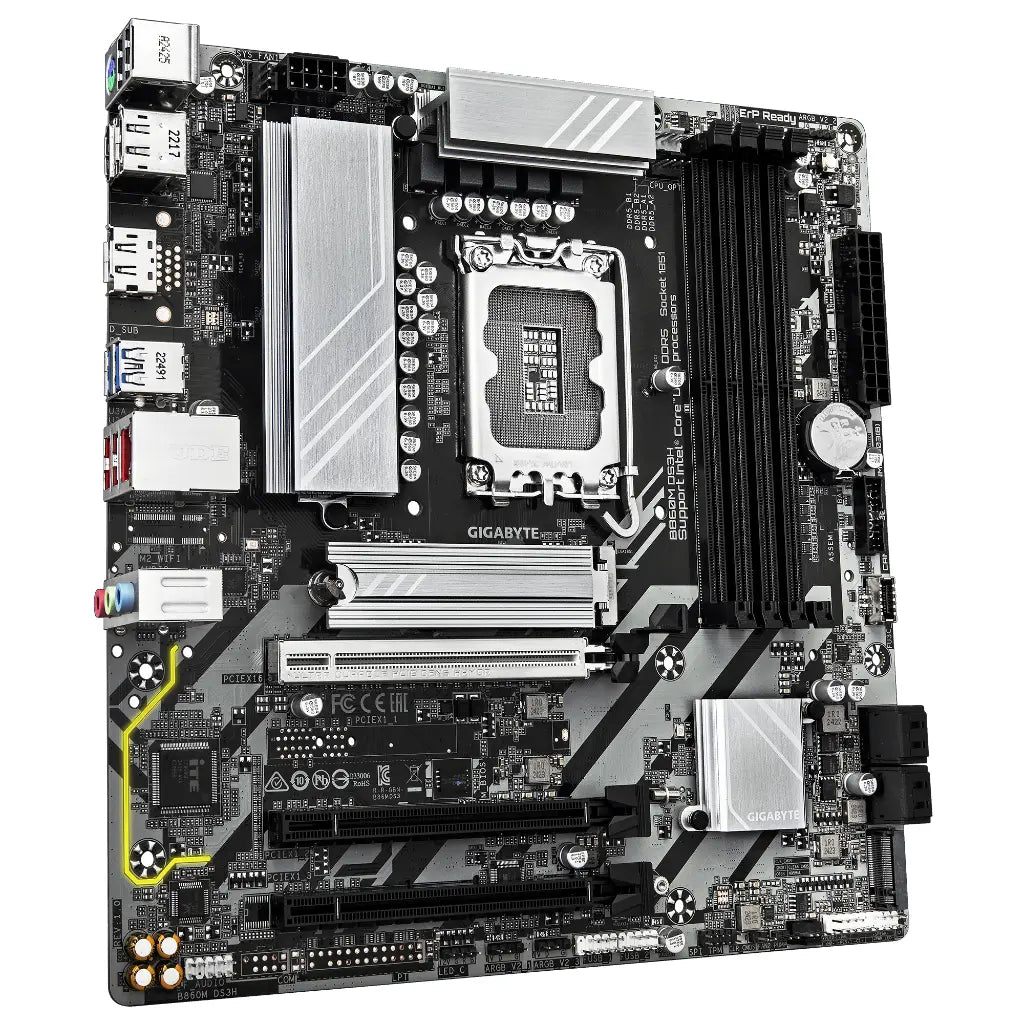

Gigabyte B860M DS3H Intel B860 LGA1851 DDR5 Micro-ATX Motherboard

Gigabyte B860M DS3H Intel B860 LGA1851 DDR5 Micro-ATX Motherboard

Brand: GIGABYTE
Rs. 13,799.00
100% off Rs. 13,799.00
Sale Sold out
  • 100% Genuine Product
  • Highly ā­ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled

Product Description:

šŸ”Œ Socket & CPU Support: LGA1851 socket compatible with IntelĀ® Coreā„¢ Ultra processors for next-gen performance.

āš” Chipset & Memory: IntelĀ® B860 Express chipset with support for DDR5 up to 9066 MT/s (O.C) and 256GB capacity across 4 DIMM slots.

šŸŽ® Graphics & Display: Integrated IntelĀ® HD Graphics with 1 x HDMI (4K@60Hz) and 2 x DisplayPort (144Hz) for triple-display setups.

šŸš€ Expansion Slots: 1 x PCIe 5.0 x16 slot for GPUs or NVMe SSDs, plus 2 x PCIe 4.0 x1 slots for additional cards.

šŸ’¾ Storage Options: Dual M.2 connectors (PCIe 5.0 & 4.0) and 4 x SATA 6Gb/s ports with RAID 0/1/5/10 support.

šŸ”— Connectivity: USB 3.2 Gen2 Type-A, USB Type-CĀ®, multiple USB 3.2 Gen1 ports, RealtekĀ® 2.5GbE LAN for ultra-fast networking.

The Gigabyte B860M DS3H motherboard delivers cutting-edge performance for IntelĀ® Coreā„¢ Ultra processors. Featuring DDR5 support up to 9066 MT/s, PCIe 5.0 graphics slot, and dual M.2 connectors, it ensures lightning-fast storage and gaming capabilities. With advanced connectivity options, robust cooling headers, and GIGABYTE Ultra Durableā„¢ design, this Micro-ATX board is perfect for high-performance builds. Experience next-gen computing with reliability and speed.

Product Specifications:

Specification Details
CPU Socket LGA1851
Chipset IntelĀ® B860 Express
Memory Support DDR5 up to 9066 MT/s (O.C), 4 DIMM slots, max 256GB
Graphics Output 1 x HDMI (4096x2160@60Hz), 2 x DisplayPort (3840x2160@144Hz)
Audio RealtekĀ® High Definition Audio, 7.1-channel
LAN RealtekĀ® 2.5GbE
Expansion Slots 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x1
Storage Interfaces 2 x M.2 (PCIe 5.0 & 4.0), 4 x SATA 6Gb/s

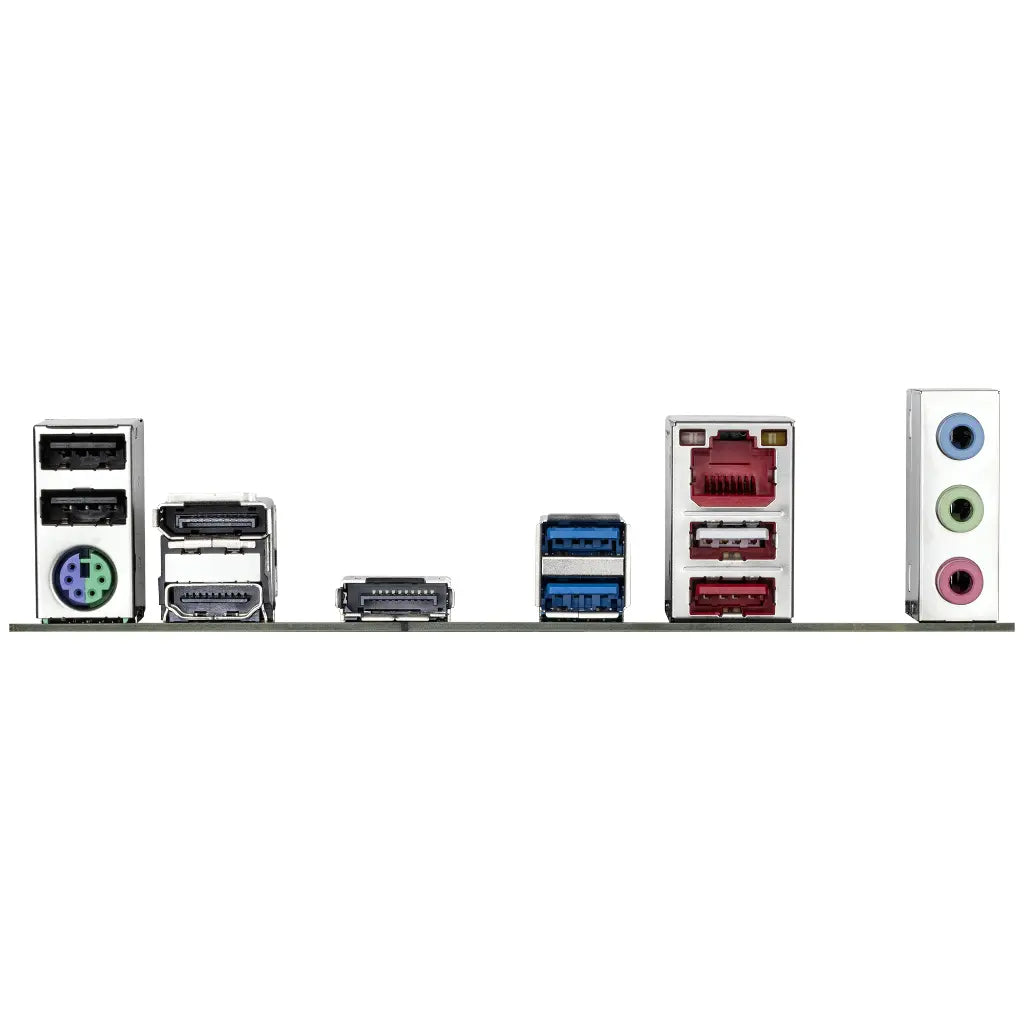

USB Ports Rear: 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 3 x USB 2.0; Internal: USB Type-CĀ®, USB 3.2 Gen1, USB 2.0 headers
Form Factor Micro-ATX (24.4cm x 24.4cm)
Country of Origin China
Model Number B860M DS3H
Warranty 3 Years
Weight 1 kg
